LMS Test - Lab Spectral Acquisition

LMS Test.
Lab Spectral
Acquisition
Restricted © Siemens AG 2014 All rights reserved.

Page 1 2014-09-03 Siemens PLM Software

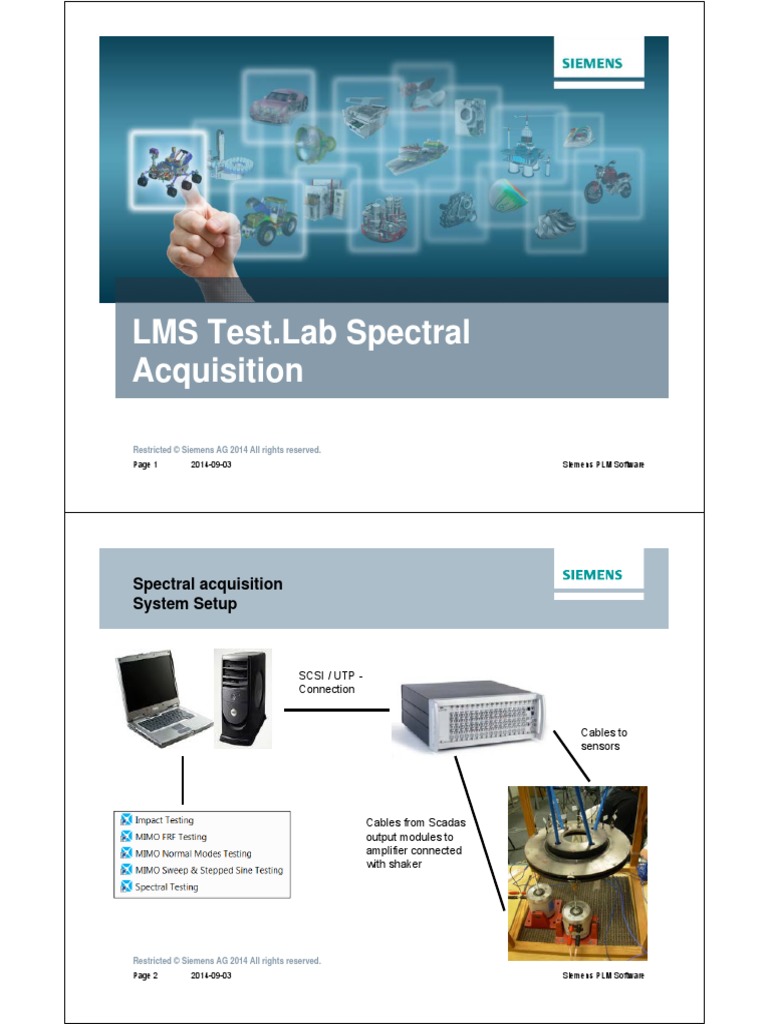

Spectral acquisition
System Setup
SCSI / UTP -
Connection
Cables to
sensors
Cables from Scadas

output modules to
amplifier connected
with shaker

LMS Test.Lab Spectral Testing
Introduction
 General acquisition workbook
 Source control possible as Add-In
 Measure time, frequency, …
 Normally used for stationary or steady state

measurements

Workflow
 Workbook consists out of a number of worksheets
 Each worksheet corresponds to a separate task in the spectral

acquisition measurement process
Click on tab to activate worksheet

The worksheet sequence suggests the
workflow

Documentation
Attachments list
Attributes grid
Text field
Double click to schedule associated program
Create some attributes that can be printed after the measurements

Channel Setup
Enable
Channels Select Channel
Group Define point id Select
. Vibration Set transducer
& measurement Measured
Select the reference . Acoustic sensitivity
direction Quantity
channels . Static

Tracking Setup
Define for each Tacho Channel

• Trigger Level
• Number Pulses/Rev

Calibration
 4 different calibrations
  AC: calibrator with known amplitude and frequency

  Rel: reference accelerometer and mass
Same as LMS Test.lab Modal Impact
 Bridge Settings: for use with strain input cards
 DC: static channels, linear regression
V
• point 2
V2
V1 • point
1
K1 K2 K

Scope
Tools  Add-Ins
Start Ranging  Set Ranges  Stop Ranging

Scope (2)
Sources:
Advanced parameters
(Burst) Random (Burst) Sine Periodic Chirp

Test Setup
1. Select Parallel online functions

to be measured
2. Set the Acquisition
parameters for the
measurement
3. Set the Acquisition

Control for the
measurement
4. Set the windowing

6. Select parameters
function to be
displayed
5. Start Check: Data

quality can be checked
during ‘dry run’
Restricted © Siemens AG 2014 All rights reserved. measurement
Test Setup
 Different functions can be measured or saved: Time, Octave, Spectrum,

Crosspower, Autopower, Frequency Response Funtions, Principal Component
Analysis,…
 For each function there are specific options
 Function can be displayed during Check

Test Setup (2)
 Acquisition parameters:
 Bandwith = fmax = fS/2
 Spectral Lines = N/2 = Blocksize/2
 Resolution = ∆f = fS/N
 Acquisition Control:
 Free Run – Trigger – Time – Source
 Averaging  Number of averages
 Conditioning: Reference + Response Window
 Do a check to preview the functions to be

measured

Test Setup
Acquisition Control
Acquisition is controlled by:

 Start condition
 Defines when the complete measurement starts
 No averages acquired before start condition has been met
 Does not start any data acquisition
 Acquisition mode
 Defines when a single average is acquired
 Free run, trigger, time, source
Avg 1 Avg 2 Avg 3 Avg 4
Start condition Averages are acquired based

fulfilled on acquisition mode settings

Acquisition control
Start Condition
No start Averages are acquired based

condition on acquisition mode settings Channel mode : parameters
for a vibration channel
Tacho channel mode :

parameters for a tacho
channel
Start condition fulfilled Averages are acquired based

on specified channel on acquisition mode settings
or tacho channel
Acquisition control
Acquisition mode
 Free run  Trigger
Specify
overlap
Specify nr of
Specify nr of averages
averages
Specify trigger
parameters

Start condition Averages are acquired as fast

fulfilled as possible when system is Start condition Averages are acquired when
available for data acquisition fulfilled trigger condition is met ( )
Acquisition control
Acquisition mode (2)
 Time  Source
 Acquisition is synchronous with
source
 Only with burst source signal
Specify duration and time  Set automatically
increment
2 sec 2 sec 2 sec 2 sec
Start condition Averages are acquired with a Specify nr of

fulfilled fixed time interval averages

Measure
Fixed or User
Defined Layout
Advanced Options
Data Explorer
Advanced Options
Data Explorer

Validate
Quick data overview

Post Processing
 Some post processing

capabilities
 Quickly display data in
different types of displays

Navigator
Display the data after the measurements
