Page 1 of 3

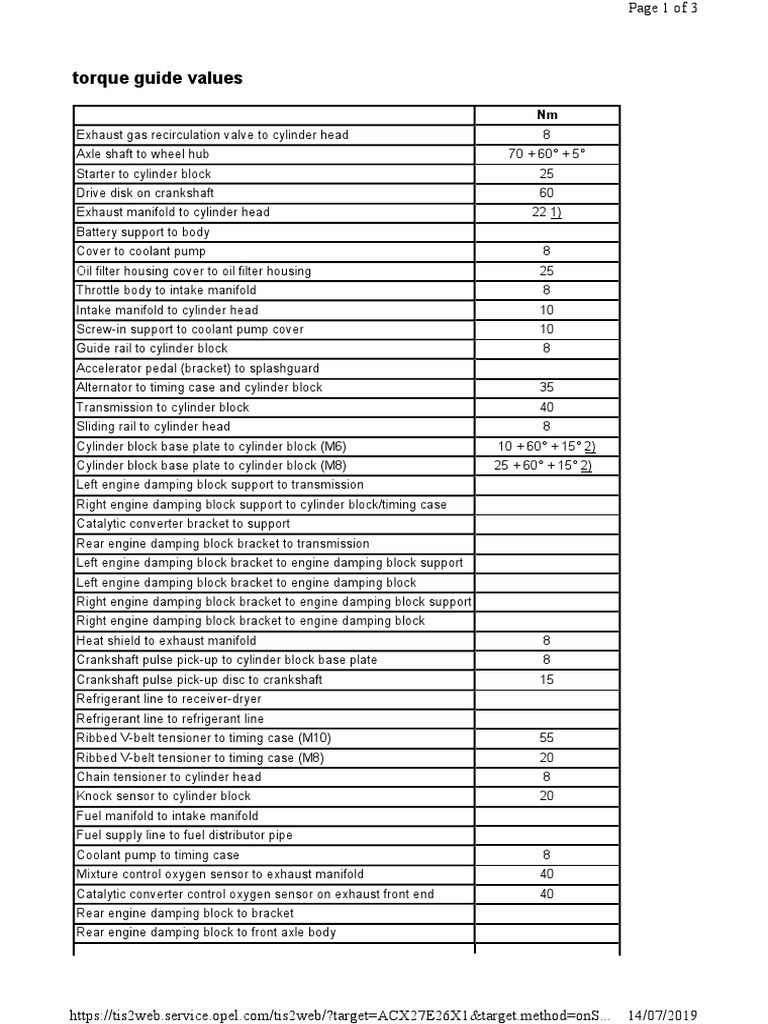

torque guide values

Nm
Exhaust gas recirculation valve to cylinder head 8
Axle shaft to wheel hub 70 + 60° + 5°
Starter to cylinder block 25
Drive disk on crankshaft 60
Exhaust manifold to cylinder head 22 1)
Battery support to body
Cover to coolant pump 8
Oil filter housing cover to oil filter housing 25
Throttle body to intake manifold 8
Intake manifold to cylinder head 10
Screw-in support to coolant pump cover 10
Guide rail to cylinder block 8
Accelerator pedal (bracket) to splashguard
Alternator to timing case and cylinder block 35
Transmission to cylinder block 40
Sliding rail to cylinder head 8
Cylinder block base plate to cylinder block (M6) 10 + 60° + 15° 2)
Cylinder block base plate to cylinder block (M8) 25 + 60° + 15° 2)
Left engine damping block support to transmission
Right engine damping block support to cylinder block/timing case
Catalytic converter bracket to support
Rear engine damping block bracket to transmission
Left engine damping block bracket to engine damping block support
Left engine damping block bracket to engine damping block
Right engine damping block bracket to engine damping block support
Right engine damping block bracket to engine damping block
Heat shield to exhaust manifold 8
Crankshaft pulse pick-up to cylinder block base plate 8
Crankshaft pulse pick-up disc to crankshaft 15
Refrigerant line to receiver-dryer
Refrigerant line to refrigerant line
Ribbed V-belt tensioner to timing case (M10) 55
Ribbed V-belt tensioner to timing case (M8) 20
Chain tensioner to cylinder head 8
Knock sensor to cylinder block 20
Fuel manifold to intake manifold
Fuel supply line to fuel distributor pipe
Coolant pump to timing case 8
Mixture control oxygen sensor to exhaust manifold 40
Catalytic converter control oxygen sensor on exhaust front end 40
Rear engine damping block to bracket
Rear engine damping block to front axle body

https://tis2web.service.opel.com/tis2web/?target=ACX27E26X1&target.method=onS... 14/07/2019
Page 2 of 3

Engine damping block (left) to body


Right engine damping block to body
Front engine damping block to transmission
Front engine damping block to front axle body
Engine transport shackle to cylinder head 20
Crankshaft hub to crankshaft 150 + 45° + 15° 2)
Camshaft bearing caps to cylinder head 8
Camshaft pulley to camshaft 50 + 60° 2)
Camshaft sensor to timing case 6
Oil drain bolt to oil pan 10
Oil pressure switch to cylinder head 20
Oil filter housing to cylinder block 20
Oil dipstick guide tube to exhaust manifold 8
Oil pump cover to timing case 8
Oil intake pipe to oil pan 14
Oil baffle plate to cylinder block base plate 8
Oil pan to transmission 40
Oil pan to cylinder block base plate and timing case 10
Swing arm to spring strut 40
Con-rod bearing cap to con-rod - M6.5 bolt 13 + 60° + 15° 2)
wheel to wheel hub 110
Resonator on upper front 3.5
Pulley to coolant pump 20
Crankshaft belt pulley to crankshaft hub 8
Exhaust gas recirculation pipe to exhaust gas recirculation valve 8
Hose clamps for intake system 3.5
Flywheel to crankshaft 35 + 30° + 15° 2)
Coolant temperature sensor to coolant pump cover 18
Tensioning rail to cylinder block 20
Tie rod to steering knuckle 35
Injection valve connector terminal to intake manifold 8
Timing case to cylinder block and to cylinder block base plate (M10) 35
Timing case to cylinder head and to cylinder block base plate (M6) 8
Intake manifold support to intake manifold 15
Intake manifold support to cylinder block 20
Tank vent valve to bracket
Thermostat housing to coolant pump 8
Compressor to cylinder block and timing case 20
Closure bolt to cylinder block base plate (crankshaft lock) 50
Closure bolt to coolant pump 15
Chain tensioner closure bolt to timing case 50
Oil pressure regulating valve closure bolt 50
Initial filling oil duct closure bolt to timing case 50
Front axle body to body (all bolts) 90 + 45° + 15° 2)
Spark plugs to cylinder head 25
Ignition module to cylinder head

https://tis2web.service.opel.com/tis2web/?target=ACX27E26X1&target.method=onS... 14/07/2019
Page 3 of 3

8
Intermediate spindle to steering intermediate spindle
Cylinder head to cylinder block 25 + 60° + 60° + 60° 2)
Cylinder head cover to cylinder head 8

1 ) 2 passes
2 ) Use new bolt(s)
© 2017 Opel Automobile GmbH. All Rights Reserved. The reproduction, distribution or modification is not
permitted.

https://tis2web.service.opel.com/tis2web/?target=ACX27E26X1&target.method=onS... 14/07/2019
