Project:

Project no:
Author:

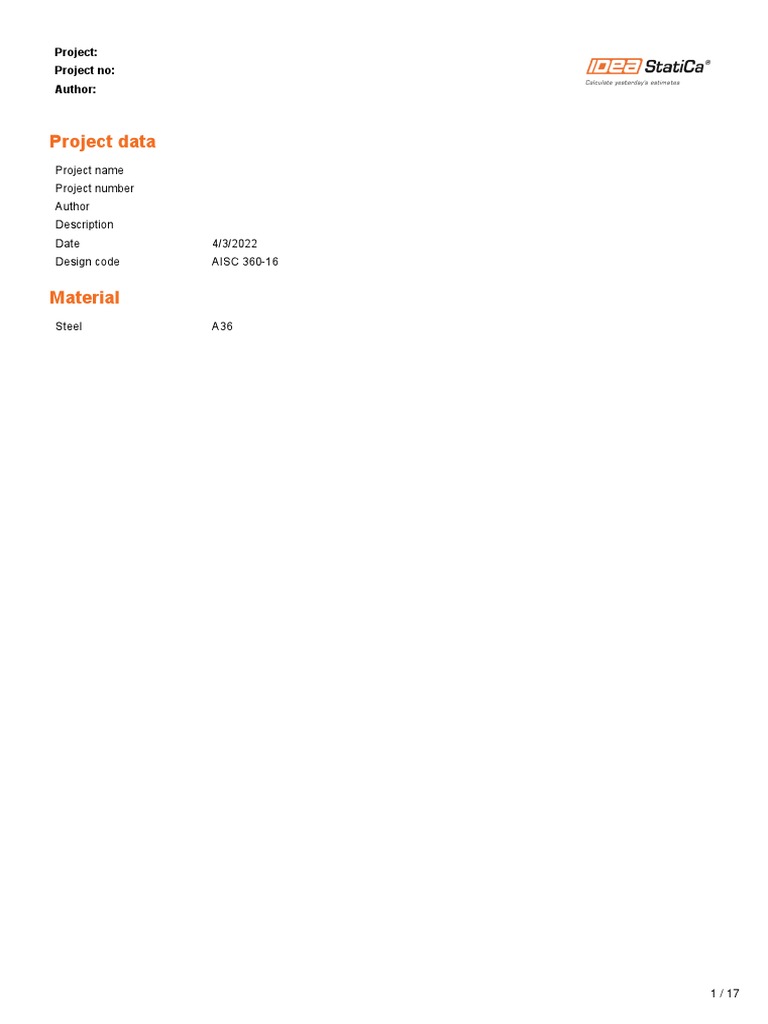

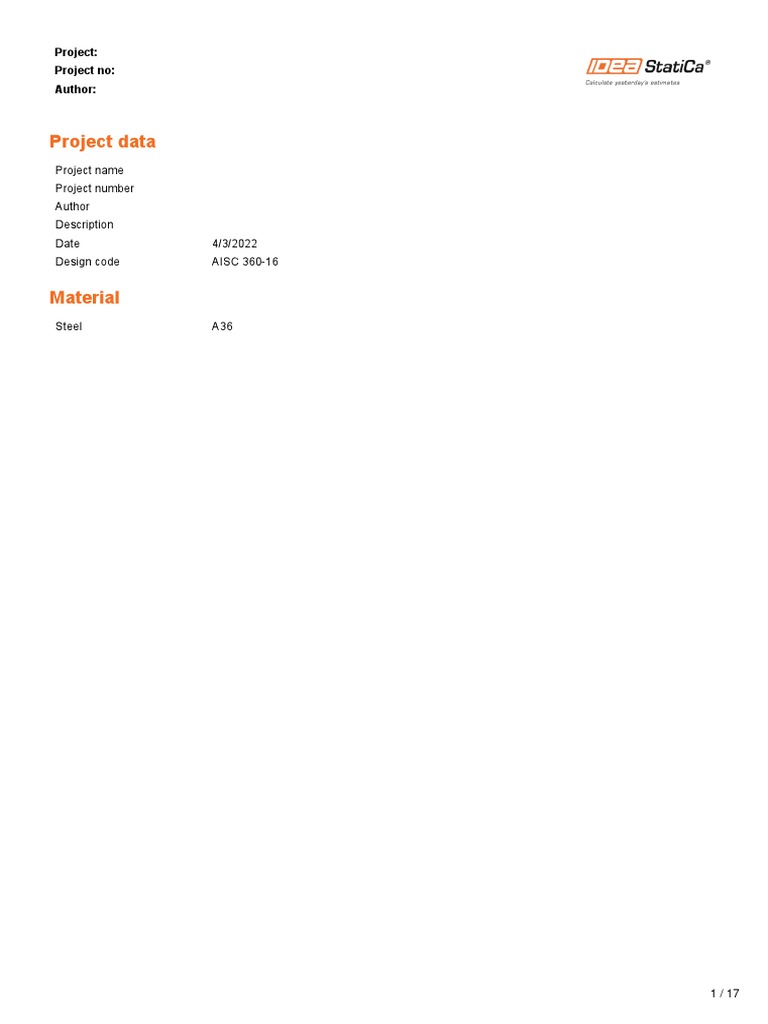

Project data
Project name
Project number
Author
Description
Date 4/3/2022
Design code AISC 360-16

Material
Steel A36

1 / 17
Project:
Project no:
Author:

Project item 24

Design
Name 24
Description
Analysis Stress, strain/ loads in equilibrium
Design code AISC - ASD 2016

Beams and columns

β – Direction γ - Pitch α - Rotation Offset ex Offset ey Offset ez
Name Cross-section Forces in
[°] [°] [°] [mm] [mm] [mm]
9 1 - HEB180 0.0 0.0 0.0 0 0 0 Position
19 2 - IPE200 0.0 0.0 0.0 0 0 0 Position
58 2 - IPE200 0.0 0.0 0.0 0 0 0 Position
68 2 - IPE200 0.0 0.0 0.0 0 0 0 Position
82 2 - IPE200 0.0 0.0 0.0 0 0 0 Position

2 / 17
Project:
Project no:
Author:

3 / 17
Project:
Project no:
Author:

Cross-sections
Name Material
1 - HEB180 A36
2 - IPE200 A36

4 / 17
Project:
Project no:
Author:

Cross-sections
Name Material Drawing

1 - HEB180 A36

2 - IPE200 A36

Bolts
Diameter fu Gross area
Name Bolt assembly
[mm] [MPa] [mm2]
16 A325M 16 A325M 16 830.0 201

5 / 17
Project:
Project no:
Author:

Load effects (forces in equilibrium)

N Vy Vz Mx My Mz
Name Member
[kN] [kN] [kN] [kNm] [kNm] [kNm]
DSTL2(1) 9 15.6 0.0 -2.0 0.0 -5.5 -0.1
19 -0.8 0.0 -12.6 0.0 -3.3 0.0
58 -1.9 0.0 0.6 0.0 -1.5 0.0
68 0.0 0.7 -1.5 -0.1 7.0 0.1
82 0.0 0.1 -2.1 0.0 3.3 0.0
DSTL7(2) 9 9.7 0.2 -1.4 0.0 -3.8 -0.5
19 -0.4 0.0 -5.5 0.0 -2.0 0.0
58 -1.1 0.0 -0.3 0.0 -1.6 0.0
68 0.0 0.2 -2.2 0.0 5.4 0.0
82 0.0 0.2 -1.6 0.0 2.5 0.0
DSTL1(3) 9 15.0 0.3 -2.2 0.0 -5.9 -0.8
19 -0.7 0.0 -8.6 0.0 -3.2 0.0
58 -1.8 0.0 -0.5 0.0 -2.5 0.0
68 0.0 0.4 -3.5 0.0 8.4 0.0
82 0.0 0.3 -2.5 0.0 4.0 0.0
DSTL12(4) 9 12.4 0.1 -1.7 0.0 -4.5 -0.2
19 -0.6 0.0 -9.4 0.0 -2.6 0.0
58 -1.5 0.0 0.3 0.0 -1.4 0.0
68 0.0 0.5 -1.6 0.0 5.9 0.0
82 0.0 0.1 -1.7 0.0 2.8 0.0

Check

Summary
Name Value Check status
Analysis 100.0% OK
Plates 0.0 < 5.0% OK
Bolts 25.3 < 100% OK
Welds 48.2 < 100% OK
Buckling Not calculated

6 / 17
Project:
Project no:
Author:

Plates
fy Thickness σEd εPl σcEd
Name Loads Check status
[MPa] [mm] [MPa] [%] [MPa]
9-bfl 1 248.2 14.0 DSTL1(3) 22.6 0.0 0.0 OK
9-tfl 1 248.2 14.0 DSTL1(3) 35.4 0.0 0.0 OK
9-w 1 248.2 8.5 DSTL1(3) 67.0 0.0 0.0 OK
19-bfl 1 248.2 8.5 DSTL1(3) 28.5 0.0 0.0 OK
19-tfl 1 248.2 8.5 DSTL1(3) 31.3 0.0 0.0 OK
19-w 1 248.2 5.6 DSTL2(1) 33.1 0.0 1.3 OK
58-bfl 1 248.2 8.5 DSTL1(3) 13.3 0.0 0.0 OK
58-tfl 1 248.2 8.5 DSTL1(3) 14.9 0.0 0.0 OK
58-w 1 248.2 5.6 DSTL1(3) 97.9 0.0 8.1 OK
68-bfl 1 248.2 8.5 DSTL1(3) 59.2 0.0 0.0 OK
68-tfl 1 248.2 8.5 DSTL1(3) 58.8 0.0 0.0 OK
68-w 1 248.2 5.6 DSTL2(1) 52.9 0.0 2.7 OK
82-bfl 1 248.2 8.5 DSTL1(3) 31.4 0.0 0.0 OK
82-tfl 1 248.2 8.5 DSTL1(3) 28.6 0.0 0.0 OK
82-w 1 248.2 5.6 DSTL1(3) 22.5 0.0 1.0 OK
FP1 248.2 14.0 DSTL1(3) 61.5 0.0 8.1 OK
FP1 248.2 14.0 DSTL1(3) 20.8 0.0 1.5 OK
FP2 248.2 14.0 DSTL2(1) 7.4 0.0 5.3 OK
FP2 248.2 14.0 DSTL2(1) 9.2 0.0 4.6 OK

Design data
fy εlim
Material
[MPa] [%]
A36 248.2 5.0

Symbol explanation
εPl Plastic strain
σcEd Contact stress
σEd Eq. stress
fy Yield strength
εlim Limit of plastic strain

7 / 17
 Project:
Project no:
Author:

Overall check, DSTL1(3)

Strain check, DSTL1(3)

8 / 17
 Project:
Project no:
Author:

Equivalent stress, DSTL1(3)

Bolts
Ft V Rn/ΩBearing Utt Uts Utts
Shape Item Grade Loads Status
[kN] [kN] [kN] [%] [%] [%]
B1 16 A325M - 1 DSTL1(3) 1.9 8.7 43.0 3.0 23.2 - OK

B2 16 A325M - 1 DSTL1(3) 1.8 8.8 43.0 2.9 23.5 - OK

B3 16 A325M - 1 DSTL1(3) 2.8 9.3 39.7 4.4 24.9 - OK

B4 16 A325M - 1 DSTL1(3) 1.8 9.5 43.0 2.9 25.3 - OK

B5 16 A325M - 1 DSTL1(3) 0.4 1.8 43.0 0.6 4.7 - OK

B6 16 A325M - 1 DSTL1(3) 0.2 1.0 43.0 0.4 2.7 - OK

B7 16 A325M - 1 DSTL1(3) 0.3 1.8 43.0 0.5 4.7 - OK

B8 16 A325M - 1 DSTL1(3) 0.4 1.0 43.0 0.6 2.7 - OK

B9 16 A325M - 1 DSTL1(3) 0.2 0.4 43.0 0.4 1.0 - OK

B10 16 A325M - 1 DSTL1(3) 0.0 0.1 43.0 0.1 0.3 - OK

B11 16 A325M - 1 DSTL1(3) 0.1 0.4 43.0 0.2 1.0 - OK

B12 16 A325M - 1 DSTL1(3) 0.1 0.1 43.0 0.1 0.3 - OK

B13 16 A325M - 1 DSTL2(1) 0.0 0.2 43.0 0.1 0.6 - OK

B14 16 A325M - 1 DSTL2(1) 0.1 0.8 43.0 0.2 2.0 - OK

B15 16 A325M - 1 DSTL2(1) 0.1 0.2 43.0 0.2 0.6 - OK

B16 16 A325M - 1 DSTL2(1) 0.2 0.8 43.0 0.3 2.1 - OK

9 / 17
Project:
Project no:
Author:

Design data
Rn/ΩTension Rn/ΩShear
Grade
[kN] [kN]
16 A325M - 1 62.3 37.4

Symbol explanation
Ft Tension force
V Resultant of shear forces Vy, Vz in bolt
Rn/ΩBearing Bolt bearing resistance
Utt Utilization in tension
Uts Utilization in shear
Utts Utilization in tension and shear
Rn/ΩTension Bolt tension resistance AISC 360-16 J3.6
Rn/ΩShear Bolt shear resistance AISC 360-16 – J3.8

Weld sections
Th Ls L Lc Fn Rn/Ω Ut
Item Edge Xu Loads Status
[mm] [mm] [mm] [mm] [kN] [kN] [%]
9-tfl 1 FP1 E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 3.9 9.4 41.2 OK
E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 4.6 9.5 48.2 OK
9-bfl 1 FP1 E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 2.1 8.5 24.7 OK
E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 1.9 8.3 23.4 OK
9-tfl 1 68-tfl 1 E70xx ◢4.3◣ ◢6.0◣ 100 25 DSTL1(3) 5.2 22.9 22.8 OK
E70xx ◢4.3◣ ◢6.0◣ 100 25 DSTL1(3) 6.6 23.0 28.7 OK
9-tfl 1 68-bfl 1 E70xx ◢4.3◣ ◢6.0◣ 100 25 DSTL1(3) 6.4 23.0 27.7 OK
E70xx ◢4.3◣ ◢6.0◣ 100 25 DSTL1(3) 5.6 22.9 24.5 OK
9-w 1 82-bfl 1 E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 3.1 18.8 16.3 OK
E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 3.0 20.4 14.8 OK
9-w 1 82-tfl 1 E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 2.8 20.9 13.3 OK
E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 3.1 19.6 15.6 OK
9-w 1 82-w 1 E70xx ◢4.0◣ ◢5.7◣ 191 21 DSTL1(3) 1.9 18.3 10.3 OK
E70xx ◢4.0◣ ◢5.7◣ 191 21 DSTL1(3) 1.0 18.4 5.5 OK
9-w 1 FP2 E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 0.6 7.8 7.1 OK
E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL1(3) 0.5 8.1 5.7 OK
9-w 1 19-bfl 1 E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 2.3 19.8 11.8 OK
E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 2.4 19.1 12.8 OK
9-w 1 19-tfl 1 E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 2.7 19.1 14.1 OK
E70xx ◢4.0◣ ◢5.7◣ 100 25 DSTL1(3) 2.7 19.5 13.7 OK
9-w 1 19-w 1 E70xx ◢4.0◣ ◢5.7◣ 191 21 DSTL1(3) 1.9 17.8 10.6 OK
E70xx ◢4.0◣ ◢5.7◣ 191 21 DSTL1(3) 1.8 17.8 9.9 OK
9-w 1 FP2 E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL2(1) 0.7 8.0 8.6 OK
E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL2(1) 0.5 8.7 6.1 OK

10 / 17
 Project:
Project no:
Author:

Symbol explanation
Th Throat thickness of weld
Ls Leg size of weld
L Length of weld
Lc Length of weld critical element
Fn Force in weld critical element
Rn/Ω Weld resistance AISC 360-16 J2.4
Ut Utilization

Buckling
Buckling analysis was not calculated.

Bill of material

Manufacturing operations
Plates Welds Length
Name Shape Nr. Bolts Nr.
[mm]
[mm]
[mm]

CUT1

FP1 P14.0x150.0-180.0 (A36) 1 Double fillet: a = 4.0 180.0 16 A325M 4

FP1 P14.0x150.0-180.0 (A36) 1 Double fillet: a = 4.0 180.0 16 A325M 4

CUT4 Double fillet: a = 4.0 391.5

FP2 P14.0x150.0-180.0 (A36) 1 Double fillet: a = 4.0 180.0 16 A325M 4

CUT4 Double fillet: a = 4.0 391.5

FP2 P14.0x150.0-180.0 (A36) 1 Double fillet: a = 4.0 180.0 16 A325M 4

11 / 17
Project:
Project no:
Author:

Welds
Throat thickness Leg size Length
Type Material

[mm] [mm]
[mm]

Double fillet E70xx 4.0 5.7 1503.0

Double fillet E70xx 4.3 6.0 200.0

Bolts
Grip length
Name Count
[mm]
16 A325M 20 16

Drawing

FP1

P14.0x180-150 (A36)

12 / 17
Project:
Project no:
Author:

FP1

P14.0x180-150 (A36)

13 / 17
Project:
Project no:
Author:

FP2

P14.0x180-150 (A36)

14 / 17
Project:
Project no:
Author:

FP2

P14.0x180-150 (A36)

19, IPE200 - Web 1:

15 / 17
Project:
Project no:
Author:

58, IPE200 - Web 1:

68, IPE200 - Web 1:

16 / 17
Project:
Project no:
Author:

82, IPE200 - Web 1:

Code settings
Item Value Unit Reference
Friction coefficient - concrete 0.40 - ACI 349 – B.6.1.4
Friction coefficient in slip-resistance 0.30 - AISC 360-16 J3.8
Limit plastic strain 0.05 -
Plastic
Weld stress evaluation
redistribution
Detailing No
Distance between bolts [d] 2.66 - AISC 360-16 – J3.3
Distance between bolts and edge [d] 1.25 - AISC 360-16 – J.3.4
Concrete breakout resistance check Both
Base metal capacity check at weld fusion
No AISC 360-16: J2-2
face
Cracked concrete Yes ACI 318-14 – Chapter 17
Local deformation check No
Local deformation limit 0.03 - CIDECT DG 1, 3 - 1.1
Analysis with large deformations for hollow section
Geometrical nonlinearity (GMNA) Yes
joints

17 / 17
