    Project:

    Project no:
    Author:

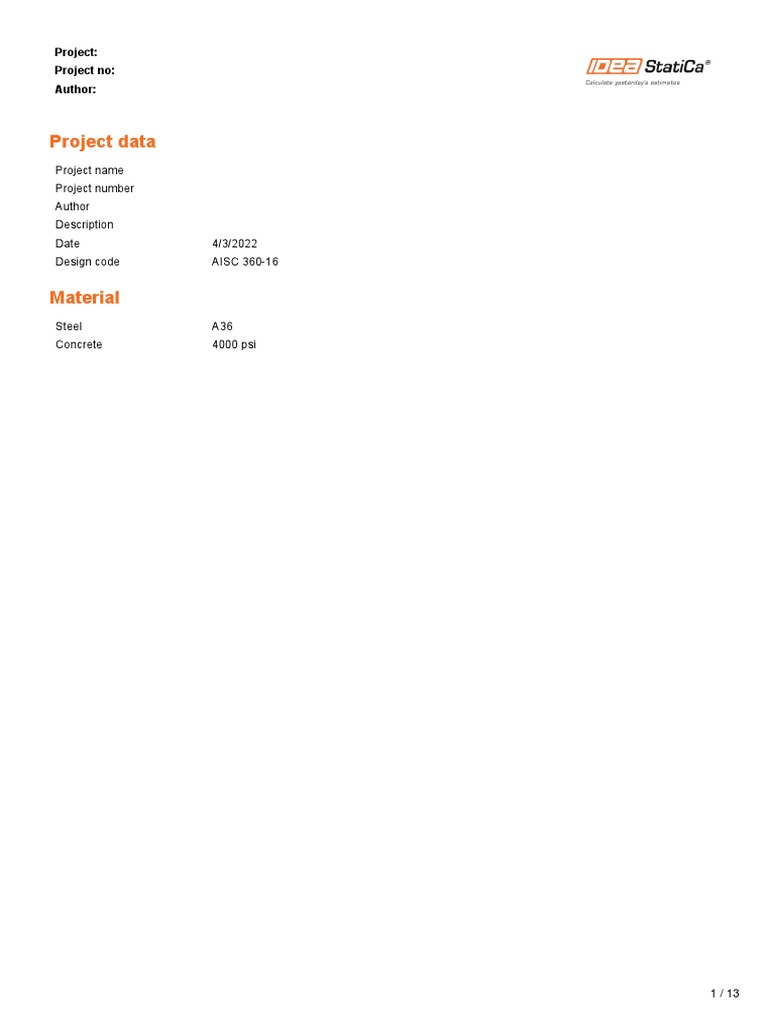

    Project data
    Project name
    Project number
    Author
    Description
    Date 4/3/2022
    Design code AISC 360-16

    Material
    Steel A36
    Concrete 4000 psi

    1 / 13
    Project:
    Project no:
    Author:

    Project item 64

    Design
    Name 64
    Description
    Analysis Stress, strain/ loads in equilibrium
    Design code AISC - ASD 2016

    Beams and columns


    β – Direction γ - Pitch α - Rotation Offset ex Offset ey Offset ez
    Name Cross-section Forces in
    [°] [°] [°] [mm] [mm] [mm]
    18 4 - IPE300 0.0 0.0 0.0 -4000 0 0 Position
    47 5 - IPE270 0.0 0.0 0.0 0 0 0 Position
    115 2 - IPE200 0.0 0.0 0.0 0 0 0 Position

    2 / 13
    Project:
    Project no:
    Author:

    3 / 13
    Project:
    Project no:
    Author:

    Cross-sections
    Name Material
    4 - IPE300 A36
    5 - IPE270 A36
    2 - IPE200 A36

    4 / 13
    Project:
    Project no:
    Author:

    Cross-sections
    Name Material Drawing

    4 - IPE300 A36

    5 - IPE270 A36

    2 - IPE200 A36

    Bolts
    Diameter fu Gross area
    Name Bolt assembly
    [mm] [MPa] [mm2]
    16 A325M 16 A325M 16 830.0 201

    5 / 13
    Project:
    Project no:
    Author:

    Load effects (forces in equilibrium)


    N Vy Vz Mx My Mz
    Name Member
    [kN] [kN] [kN] [kNm] [kNm] [kNm]
    DSTL2(1) 18 -9.7 0.2 -47.8 0.0 59.9 0.2
    47 0.0 0.0 -16.9 0.0 -1.8 0.0
    115 0.0 0.1 12.4 0.0 -1.9 0.0
    DSTL7(2) 18 -4.2 0.1 -20.8 0.0 26.0 0.1
    47 0.0 0.0 -7.3 0.0 -0.7 0.0
    115 0.0 0.0 4.7 0.0 -0.7 0.0
    DSTL1(3) 18 -6.5 0.1 -32.4 0.0 40.4 0.1
    47 0.0 0.0 -11.3 0.0 -1.1 0.0
    115 0.0 0.1 7.4 0.0 -1.1 0.0

    Check

    Summary
    Name Value Check status
    Analysis 100.0% OK
    Plates 0.0 < 5.0% OK
    Bolts 39.9 < 100% OK
    Welds 58.7 < 100% OK
    Buckling Not calculated

    Plates
    fy Thickness σEd εPl σcEd
    Name Loads Check status
    [MPa] [mm] [MPa] [%] [MPa]
    18-bfl 1 248.2 10.7 DSTL2(1) 9.2 0.0 0.0 OK
    18-tfl 1 248.2 10.7 DSTL2(1) 8.6 0.0 0.0 OK
    18-w 1 248.2 7.1 DSTL2(1) 37.6 0.0 0.0 OK
    47-bfl 1 248.2 10.2 DSTL2(1) 24.2 0.0 0.0 OK
    47-tfl 1 248.2 10.2 DSTL2(1) 24.1 0.0 0.0 OK
    47-w 1 248.2 6.6 DSTL2(1) 120.9 0.0 8.8 OK
    115-bfl 1 248.2 8.5 DSTL2(1) 16.6 0.0 0.0 OK
    115-tfl 1 248.2 8.5 DSTL2(1) 17.2 0.0 0.0 OK
    115-w 1 248.2 5.6 DSTL2(1) 127.3 0.0 10.5 OK
    FP1 248.2 12.0 DSTL2(1) 72.6 0.0 8.8 OK
    FP1 248.2 12.0 DSTL2(1) 64.1 0.0 10.5 OK

    Design data

    fy εlim
    Material
    [MPa] [%]
    A36 248.2 5.0

    6 / 13
    Project:
    Project no:
    Author:

    Symbol explanation
    εPl Plastic strain
    σcEd Contact stress
    σEd Eq. stress
    fy Yield strength
    εlim Limit of plastic strain

    Overall check, DSTL2(1)

    7 / 13
    Project:
    Project no:
    Author:

    Strain check, DSTL2(1)

    Equivalent stress, DSTL2(1)

    8 / 13
    Project:
    Project no:
    Author:

    Bolts
    Ft V Rn/ΩBearing Utt Uts Utts
    Shape Item Grade Loads Status
    [kN] [kN] [kN] [%] [%] [%]
    B1 16 A325M - 1 DSTL2(1) 1.3 9.4 50.7 2.1 25.2 - OK

    B2 16 A325M - 1 DSTL2(1) 3.3 14.9 50.7 5.2 39.9 - OK

    B3 16 A325M - 1 DSTL2(1) 1.3 9.5 50.7 2.2 25.4 - OK

    B4 16 A325M - 1 DSTL2(1) 3.2 14.9 50.7 5.1 39.9 - OK

    B5 16 A325M - 1 DSTL2(1) 2.3 12.4 43.0 3.6 33.3 - OK

    B6 16 A325M - 1 DSTL2(1) 3.2 12.4 43.0 5.2 33.2 - OK

    Design data

    Rn/ΩTension Rn/ΩShear
    Grade
    [kN] [kN]
    16 A325M - 1 62.3 37.4

    Symbol explanation
    Ft Tension force
    V Resultant of shear forces Vy, Vz in bolt
    Rn/ΩBearing Bolt bearing resistance
    Utt Utilization in tension
    Uts Utilization in shear
    Utts Utilization in tension and shear
    Rn/ΩTension Bolt tension resistance AISC 360-16 J3.6
    Rn/ΩShear Bolt shear resistance AISC 360-16 – J3.8

    Weld sections
    Th Ls L Lc Fn Rn/Ω Ut
    Item Edge Xu Loads Status
    [mm] [mm] [mm] [mm] [kN] [kN] [%]
    18-w 1 FP1 E70xx ◢4.0◣ ◢5.7◣ 248 16 DSTL2(1) 2.7 9.4 28.9 OK
    E70xx ◢4.0◣ ◢5.7◣ 248 16 DSTL2(1) 3.1 13.4 22.9 OK
    18-w 1 FP1 E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL2(1) 5.6 9.6 58.7 OK
    E70xx ◢4.0◣ ◢5.7◣ 179 11 DSTL2(1) 5.2 9.5 54.4 OK

    Symbol explanation
    Th Throat thickness of weld
    Ls Leg size of weld
    L Length of weld
    Lc Length of weld critical element
    Fn Force in weld critical element
    Rn/Ω Weld resistance AISC 360-16 J2.4
    Ut Utilization

    9 / 13
    Project:
    Project no:
    Author:

    Buckling
    Buckling analysis was not calculated.

    Bill of material

    Manufacturing operations
    Plates Welds Length
    Name Shape Nr. Bolts Nr.
    [mm]
    [mm]
    [mm]

    CUT1

    FP1 P12.0x150.0-250.0 (A36) 1 Double fillet: a = 4.0 250.0 16 A325M 4





    FP1 P12.0x151.4-180.0 (A36) 1 Double fillet: a = 4.0 180.0 16 A325M 2





    Welds
    Throat thickness Leg size Length
    Type Material

    [mm] [mm]
    [mm]

    Double fillet E70xx 4.0 5.7 430.0

    Bolts
    Grip length
    Name Count
    [mm]
    16 A325M 19 4
    16 A325M 18 2

    Drawing

    FP1

    10 / 13
    Project:
    Project no:
    Author:

    P12.0x250-150 (A36)

    FP1

    P12.0x180-151 (A36)

    11 / 13
    Project:
    Project no:
    Author:

    47, IPE270 - Web 1:

    115, IPE200 - Web 1:

    Code settings
    Item Value Unit Reference
    Friction coefficient - concrete 0.40 - ACI 349 – B.6.1.4
    Friction coefficient in slip-resistance 0.30 - AISC 360-16 J3.8
    Limit plastic strain 0.05 -
    Plastic
    Weld stress evaluation
    redistribution

    12 / 13
    Project:
    Project no:
    Author:

    Item Value Unit Reference


    Detailing No
    Distance between bolts [d] 2.66 - AISC 360-16 – J3.3
    Distance between bolts and edge [d] 1.25 - AISC 360-16 – J.3.4
    Concrete breakout resistance check Both
    Base metal capacity check at weld fusion
    No AISC 360-16: J2-2
    face
    Cracked concrete Yes ACI 318-14 – Chapter 17
    Local deformation check No
    Local deformation limit 0.03 - CIDECT DG 1, 3 - 1.1
    Analysis with large deformations for hollow section
    Geometrical nonlinearity (GMNA) Yes
    joints

    13 / 13
