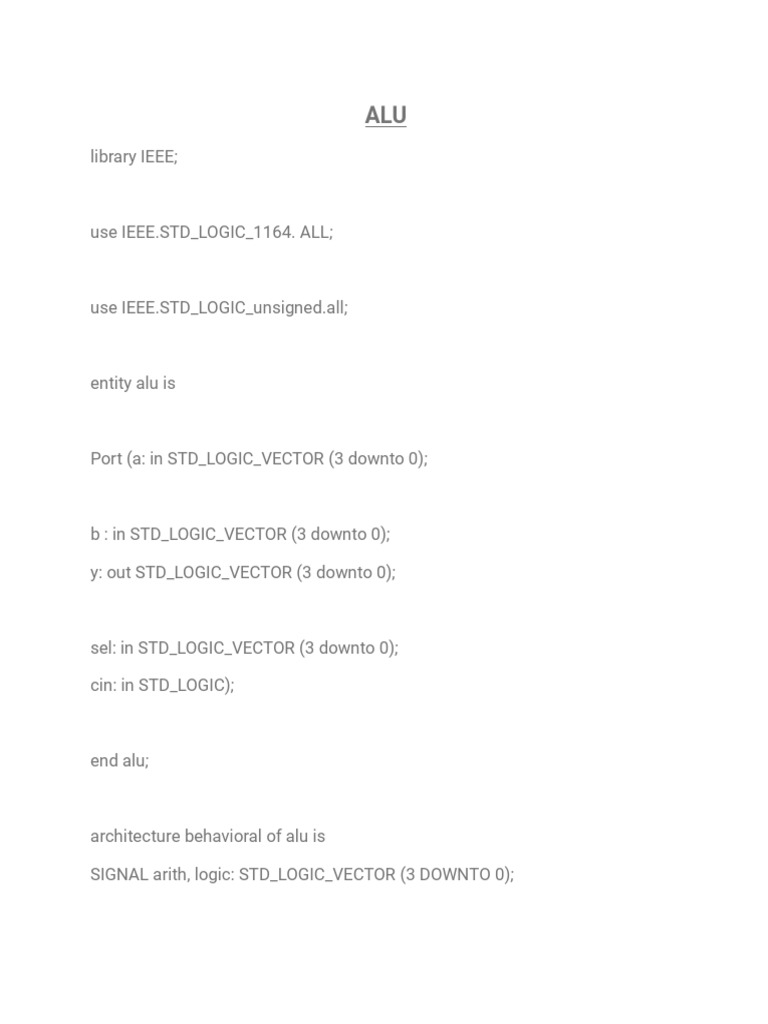

ALU

library IEEE;

use IEEE.STD_LOGIC_1164. ALL;

use IEEE.STD_LOGIC_unsigned.all;

entity alu is

Port (a: in STD_LOGIC_VECTOR (3 downto 0);

b : in STD_LOGIC_VECTOR (3 downto 0);

y: out STD_LOGIC_VECTOR (3 downto 0);

sel: in STD_LOGIC_VECTOR (3 downto 0);

cin: in STD_LOGIC);

end alu;

architecture behavioral of alu is

SIGNAL arith, logic: STD_LOGIC_VECTOR (3 DOWNTO 0);

begin

---ARITHMETIC UNIT

with sel(2 DOWNTO 0) select

arith<= a when "000",

a+1 when "001",

a-1 when "010",

b when "011",

b+1 when "100",

b-1 when "101",

a+b when "110",

a+b+cin when OTHERS;

with sel(2 DOWNTO 0) SELECT

logic<= NOT a when "000",

NOT b when "001",

a AND b when "010",

a OR b when "011",

a NAND b when "100",

a NOR b when "101",

a XOR b when "110",

NOT (a XOR b) when OTHERS;

-------

with sel(3) SELECT

y<=arith when '0',

logic when OTHERS;

end behavioral;

Test Bench:

library IEEE;

use IEEE.STD_LOGIC_1164. ALL;

 use IEEE.STD_LOGIC_unsigned.all;

--Uncomment the following library declaration if using -

arithmetic functions with Signed or Unsigned values --use
IEEE NUMERIC_STD. ALL:

--Uncomment the following library declaration if

instantiating - any Xilinx leaf cells in this code.

--Library UNISIM:
--use UNISIN. VComponents.all

entity alu_tb is Generic (n: integer:=4);

end alu_tb;

architecture Behavioral of alu_tb is

component alu is

 Port ( a : in STD_LOGIC_vector(3 downto 0);

           b : in STD_LOGIC_vector(3 downto 0);
           Cin : in STD_LOGIC;
           sel : in STD_LOGIC_vector(3 downto 0);
           y : out STD_LOGIC_vector(3 downto 0));

end component;

signal a,b,y: std_logic_vector(3 downto 0);

 signal sel:std_logic_vector(3 downto 0):= "0000";
 signal cin: std_logic;

begin

Ul: alu port map (a,b,cin,sel,y);

process
begin
a<="0001";

b<="1111";

cin<='0';

wait for 200 ns;

end process;

process

begin

wait for 200 ns;

sel<= sel+'1';

wait for 200 ns;

end process;

end Behavioral;
 USR
USR

Universal shift Register

--PIPO Main code

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

-- Uncomment the following library declaration if using

-- arithmetic functions with Signed or Unsigned values

--use IEEE.NUMERIC_STD.ALL;

-- Uncomment the following library declaration if instantiating

-- any Xilinx primitives in this code.

--library UNISIM;

--use UNISIM.VComponents.all;

entity sh4 is

    Port ( clk : in  STD_LOGIC;

   load1 :in STD_LOGIC;

           in4 : in  STD_LOGIC_VECTOR (3 downto 0);

           out4 : inout  STD_LOGIC_VECTOR (3 downto 0));

end sh4;

architecture Behavioral of sh4 is

signal s4:STD_LOGIC_VECTOR(3 DOWNTO 0);

begin

process(clk,in4,load1,out4)

begin

if(load1='1') THEN

s4 <= in4;

else

s4 <= out4;

end if;

if(clk'EVENT and clk='1') THEN

out4 <= s4;

end if;

end process;

end Behavioral;

--PIPO TestBench

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity pipo_tb is

end pipo_tb;

architecture beh of pipo_tb is

component sh4 is

    Port ( clk : in  STD_LOGIC;

   load1 :in STD_LOGIC;

           in4 : in  STD_LOGIC_VECTOR (3 downto 0);

           out4 : inout  STD_LOGIC_VECTOR (3 downto 0));

end component;

signal clk, load1: std_logic;

signal in4,out4 : std_logic_vector( 3 downto 0);

begin

 u1: sh4 port map ( clk,load1,in4,out4);

process

begin

clk<= '0';

wait for 10 ns;

clk<= '1';

wait for 10 ns ;

end process;

process

begin

load1<= '1';

in4<= "1010";

wait for 300 ns;

load1<= '0';

in4<= "0011";

wait for 100 ns;

load1<= '1';

in4<= "1111";

wait for 150 ns ;

end process;

end beh;

--PISO Main code

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity sh3 is  --PISO

    Port ( clk : in  STD_LOGIC;

           load : in  STD_LOGIC;

           in3 : in  STD_LOGIC_VECTOR (3 downto 0);

           out3 : out  STD_LOGIC);

end sh3;

architecture Behavioral of sh3 is

signal s3 : STD_LOGIC;

signal temp : STD_LOGIC_VECTOR(3 DOWNTO 0);

begin

process(clk,in3,load,s3)



begin
if(load='1') THEN

temp(3 DOWNTO 0) <= in3(3 DOWNTO 0);

elsif(clk'EVENT and clk='1') THEN

temp(3 DOWNTO 1) <= temp(2 DOWNTO 0);

s3 <= temp(3);

end if;

end process;

out3 <= s3;

end Behavioral;

--PISO TB

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity piso_tb is

end piso_tb;

architecture beh of piso_tb is

component sh3

   Port ( clk : in  STD_LOGIC;

           load : in  STD_LOGIC;

           in3 : in  STD_LOGIC_VECTOR (3 downto 0);

           out3 : out  STD_LOGIC);

end component;


signal clk, load, out3: std_logic;

signal in3 : STD_LOGIC_VECTOR (3 downto 0);

begin

 u1: sh3 port map ( clk,load,in3,out3);

process

begin

clk<= '0';

wait for 10 ns;

clk<= '1';

wait for 10 ns ;

end process;



Process

begin

load<= '1' ;

in3<= "1100";

wait for 20 ns;

load<= '0';

wait for 100 ns ;

end process;

end beh;


-- SIPO MainCode

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity sh2 is

    Port ( clk : in  STD_LOGIC;

           in2 : in  STD_LOGIC;

           out2 : inout  STD_LOGIC_VECTOR (3 downto 0));

end sh2;

architecture Behavioral of sh2 is

begin

process(clk,in2,out2)

begin

if(clk'EVENT and clk='1') THEN

out2(3 DOWNTO 1) <= out2(2 DOWNTO 0);

out2(0) <= in2;

end if;

end process;

end Behavioral;

--SIPO TestBench

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity sipo_tb is
end sipo_tb;

architecture beh of sipo_tb is

component sh2 is

    Port ( clk : in  STD_LOGIC;

           in2 : in  STD_LOGIC;

           out2 : inout  STD_LOGIC_VECTOR (3 downto 0));

end component;

signal clk, in2: std_logic;

signal out2 : std_logic_vector( 3 downto 0);

begin

 u1: sh2 port map ( clk,in2,out2);

process

begin

clk<= '0';

wait for 10 ns;

clk<= '1';

wait for 10 ns ;

end process;

in2<= '1', '0' after 80 ns;

end beh;


 --SISO Maincode

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

entity sh1 is

    Port ( clk : in  STD_LOGIC;

           in1 : in  STD_LOGIC;

           out1 : out  STD_LOGIC);

end sh1;

architecture Behavioral of sh1 is

signal s1 : STD_LOGIC_VECTOR(3 DOWNTO 0);

begin

process(clk,in1,s1)

begin

if(clk'EVENT and clk='1') THEN

s1(3 DOWNTO 1) <= s1(2 DOWNTO 0);

s1(0) <= in1;

end if;

end process;

out1 <= s1(3);

end Behavioral;



-- SISO Testbench

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

entity siso_tb is

end siso_tb;

architecture beh of siso_tb is

component sh1

    Port ( clk : in  STD_LOGIC;

           in1 : in  STD_LOGIC;

           out1 : out  STD_LOGIC);

end component;

signal clk, in1,out1: std_logic;

begin

 u1: sh1 port map ( clk,in1,out1);

process

begin

clk<= '0';

wait for 10 ns;

clk<= '1';

wait for 20 ns ;

end process;


in1<= '1', '0' after 80 ns;

end beh;

-- Universal MAIN code

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use IEEE.STD_LOGIC_ARITH.ALL;

use IEEE.STD_LOGIC_UNSIGNED.ALL;

-- Uncomment the following library declaration if using

-- arithmetic functions with Signed or Unsigned values

use IEEE.NUMERIC_STD.ALL;

-- Uncomment the following library declaration if instantiating

-- any Xilinx primitives in this code.

--library UNISIM;

--use UNISIM.VComponents.all;

entity sh_uni is

    Port ( clk : in  STD_LOGIC;

           load : in  STD_LOGIC;

     sel : in STD_LOGIC_VECTOR(1 DOWNTO 0);

           si : in  STD_LOGIC;

           pi : in  STD_LOGIC_VECTOR (3 downto 0);

           so : out  STD_LOGIC;

           po : inout  STD_LOGIC_VECTOR (3 downto 0));

end sh_uni;

architecture Behavioral of sh_uni is

component sh1

Port ( clk : in  STD_LOGIC;

           in1 : in  STD_LOGIC;

           out1 : out  STD_LOGIC);

end component;

component sh2

   Port ( clk : in  STD_LOGIC;

           in2 : in  STD_LOGIC;

           out2 : inout  STD_LOGIC_VECTOR (3 downto 0));

end component;

component sh3

   Port ( clk : in  STD_LOGIC;

           load : in  STD_LOGIC;

           in3 : in  STD_LOGIC_VECTOR (3 downto 0);

           out3 : out  STD_LOGIC);

end component;

component sh4

   Port ( clk : in  STD_LOGIC;

load1 : in STD_LOGIC;

           in4 : in  STD_LOGIC_VECTOR (3 downto 0);

           out4 : inout  STD_LOGIC_VECTOR (3 downto 0));

end component;

signal SiSo, PiSo: STD_LOGIC;

signal SiPo, PiPo: STD_LOGIC_VECTOR(3 downto 0);

begin

U1: sh1 port map(clk,si,SiSo);

U2: sh2 port map(clk,si,SiPo);

U3: sh3 port map(clk,load,pi,PiSo);

U4: sh4 port map(clk,load,pi,PiPo);

with sel select

so <= SiSo when "00",

PiSo when "10",

'Z' when others;

with sel select

po <= SiPo when "01",

PiPo when "11",

"ZZZZ" when others;

end Behavioral;

--Test bench USR

 LIBRARY ieee;

USE ieee.std_logic_1164.ALL;

-- Uncomment the following library declaration if using

-- arithmetic functions with Signed or Unsigned values

--USE ieee.numeric_std.ALL;


ENTITY usr_test IS

END usr_test;

ARCHITECTURE behavior of usr_test is

    -- Component Declaration for the Unit Under Test (UUT)

    COMPONENT sh_uni

    PORT(

         clk : IN  std_logic;

         load : IN  std_logic;

         sel : IN  std_logic_vector(1 downto 0);

         si : IN  std_logic;

         pi : IN  std_logic_vector(3 downto 0);

         so : OUT  std_logic;

         po : INOUT  std_logic_vector(3 downto 0)

        );

    END COMPONENT;



   --Inputs

   signal clk : std_logic := '0';

   signal load : std_logic := '0';

   signal sel : std_logic_vector(1 downto 0) := (others => '0');

   signal si : std_logic := '0';

   signal pi : std_logic_vector(3 downto 0) := (others => '0');

--BiDirs

   signal po : std_logic_vector(3 downto 0);

  --Outputs

   signal so : std_logic;

   -- Clock period definitions

   constant clk_period : time := 20 ns;

BEGIN

-- Instantiate the Unit Under Test (UUT)

   uut: sh_uni PORT MAP (

          clk => clk,

          load => load,

          sel => sel,

          si => si,

          pi => pi,

          so => so,

          po => po

        );

   -- Clock process definitions

   clk_process :process
   begin

clk <= '0';

wait for clk_period/2;

clk <= '1';

wait for clk_period/2;

   end process;

   -- Stimulus process

   stim_proc: process

   begin

sel<= "00"; --SISO mode

si<= '1';

wait for 20 ns ;

si<= '0';

wait for 20 ns ;

si<= '1';

wait for 20 ns;

si<= '0';

wait for 20 ns ;

wait for 100 ns;

sel<= "01";

si<= '1';

wait for 20 ns;

si<= '0';
wait for 20 ns;

si<= '1';

wait for 20 ns;

si<= '1';

wait for 20 ns;

wait for 100 ns;

sel <= "10"; -- PISO mode

-- siso and sipo

load<= '1' ,'0' after 20 ns,'1' after 100 ns, '0' after 120 ns;

pi<= "1100";

wait for 100 ns;

pi<="1111";

wait for 100 ns ;

sel<= "11"; -- PIPO mode

load<= '1', '0' after 20 ns, '1' after 100 ns, '0' after 120 ns;

pi<= "0010";

wait for 100 ns;

pi<= "0100";

wait for 100 ns;

end process;

END;


 MOD-N Counter
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;
-- Uncomment the following library declaration if instantiating
-- any Xilinx leaf cells in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity count is
Port ( clk : in STD_LOGIC;
clk_div: inout std_logic;
rst : in STD_LOGIC;
an : out std_logic_vector(3 downto 0);
seg : out std_logic_vector(6 downto 0);
q : inout STD_LOGIC_VECTOR (3 downto 0));
end count;
architecture Behavioral of count is
signal count : std_logic_vector( 25 downto 0):= (others => '0');
begin
an<="0001";
process(clk_div,rst)
variable temp: std_logic_vector(3 downto 0):="0000";
begin
if (rst='1') then
temp:= "0000";
elsif (clk_div'event and clk_div='1') then
temp:= temp+'1';
if( temp > "1001") then
temp := "0000";
end if;
end if;
q<=temp;
end process;
process(clk)
begin
if (clk'event and clk='1') then
count <= count + '1';
end if;
clk_div<= count(0);
end process;
--clk_div<= count(1);
process(q)
begin
case q is
when "0000" => seg <= "1000000"; -- 0
when "0001" => seg <= "1001111"; -- 1
when "0010" => seg <= "0100100"; -- 2
when "0011" => seg <= "0110000"; -- 3
when "0100" => seg <= "0011001"; -- 4
when "0101" => seg <= "0010010"; -- 5
when "0110" => seg <= "0000010"; -- 6
when "0111" => seg <= "1111000"; -- 7
when "1000" => seg <= "0000000"; -- 8
when "1001" => seg <= "0010000"; -- 9
when others => seg <= "1111111";
end case;
end process;
end Behavioral;

Test Bench

—-Testbench
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
entity COUNTER_TB is
-- Port ( );
end COUNTER_TB;
architecture Behavioral of COUNTER_TB is
COMPONENT count is
Port ( clk : in STD_LOGIC;
clk_div: inout std_logic;
rst : in STD_LOGIC;
q : inout STD_LOGIC_VECTOR (3 downto 0));
end component;
signal clk,clk_div: std_logic;
signal rst:std_logic;
signal q: std_logic_vector(3 downto 0);
begin
u1: count port map(clk,clk_div,rst,q);
process
begin
clk<='1';
wait for 100 ns;
clk<='0';
wait for 100 ns;
end process;
rst<='1', '0' after 300 ns ;
end Behavioral;

FIFO
library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;
-- Uncomment the following library declaration if instantiating
-- any Xilinx leaf cells in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity fifoo is
GENERIC
(
ADDRESS_WIDTH:integer:=2;
DATA_WIDTH:integer:=4
);
Port ( clk : in STD_LOGIC;
-- clk_div : inout STD_LOGIC;
reset : in STD_LOGIC;
enr : in STD_LOGIC;
enw : in STD_LOGIC;
dataout : out STD_LOGIC_VECTOR (DATA_WIDTH-1 downto 0);
datain : in STD_LOGIC_VECTOR (DATA_WIDTH-1 downto 0);
empty : out STD_LOGIC;
error : out STD_LOGIC;
full : out STD_LOGIC);
end fifoo;
architecture Behavioral of fifoo is
type memory_type is array(0 to ((2**ADDRESS_WIDTH)-1)) of STD_LOGIC_VECTOR(DATA_WIDTH-1
downto 0);
signal memory:memory_type;
signal readptr,writeptr: STD_LOGIC_VECTOR(ADDRESS_WIDTH-1 downto 0):="00";
signal full0:STD_LOGIC:='0';
signal empty0:STD_LOGIC:='1';
signal counter:STD_LOGIC_VECTOR(30 downto 0):=(others=>'0');
signal clk_div:STD_LOGIC:='0';
begin
full<=full0;
empty<=empty0;
fifo0:process(clk_div,reset,datain,enw,enr)
begin
if reset='1'thenreadptr<=(others=>'0');
writeptr<=(others=>'0');
empty0<='1';
full0<='0';
error<='0';
elsif clk_div'event and clk_div='1' then
if enw='1' and full0='0' then
memory (conv_integer(writeptr))<=datain;
writeptr<=writeptr+'1';
if(writeptr+'1'=readptr) then
full0<='1';
empty0<='0';
else
full0<='0';
empty<='1';
end if;
end if;
end if;
if enr='1' and empty0='0' then
dataout<=memory(conv_integer(readptr));
readptr<=readptr+'1';
if(readptr+'1'=writeptr) then
full0<='0';
empty0<='1';
else
full0<='1';
empty0<='0';
end if;
end if;
if(empty0='1' and enr='1') or (full0='1' and enw='1') then
error<='1';
else
error<='0';
end if;
end process;
process(clk)
begin
if(clk'EVENT and clk='1') then
counter<=counter+1;
end if;
end process;
clk_div<=counter(0);
end Behavioral;

Test Bench

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;
use IEEE.STD_LOGIC_UNSIGNED.ALL;
-- Uncomment the following library declaration if using
-- arithmetic functions with Signed or Unsigned values
--use IEEE.NUMERIC_STD.ALL;
-- Uncomment the following library declaration if instantiating
-- any Xilinx leaf cells in this code.
--library UNISIM;
--use UNISIM.VComponents.all;
entity fifoo_test is
-- PORT();
end fifoo_test;
architecture Behavioral of fifoo_test is
component fifoo is
GENERIC
(
ADDRESS_WIDTH:integer:=2;
DATA_WIDTH:integer:=4
);
Port ( clk : in STD_LOGIC;
-- clk_div : inout STD_LOGIC;
reset : in STD_LOGIC;
enr : in STD_LOGIC;
enw : in STD_LOGIC;
dataout : out STD_LOGIC_VECTOR (3 downto 0);
datain : in STD_LOGIC_VECTOR (3 downto 0);
empty : out STD_LOGIC;
error : out STD_LOGIC;
full : out STD_LOGIC);
end component;
signal clk:STD_LOGIC:='0';
signal reset:STD_LOGIC;
signal enr:STD_LOGIC;
signal enw:STD_LOGIC;
signal dataout:STD_LOGIC_VECTOR(3 downto 0);
signal datain:STD_LOGIC_VECTOR(3 downto 0);
signal empty:STD_LOGIC;
signal error:STD_LOGIC;
signal full:STD_LOGIC;
beginU1: fifoo port map(clk,reset,enr,enw,dataout,datain,empty,error,full);
process
begin
clk<='1';
wait for 20 ns;
clk<='0';
wait for 20 ns;
end process;
process
begin
reset<='1';
wait for 20 ns;
reset<='0';
datain<="1010";
enw<='1';
enr<='0';
wait for 200 ns;
enw<='0';
enr<='1';
wait for 200 ns;
end process;
end Behavioral;

MicroWind

CMOS inverter
NAND Gate
NOR Gate
HALF Adder
Inverter with Capacitor
2:1 MUX (CMOS)
2:1 MUX (TG)


Comments
