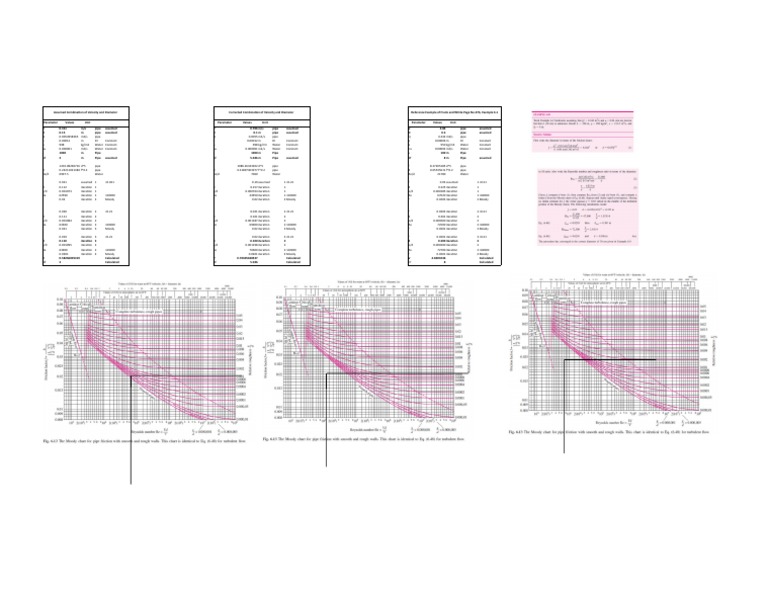

Assumed Combination of Velocity and Diameter Corrected Combination of Velocity and Diameter Reference Example of Frank and White

ence Example of Frank and White Page No.376, Example 6.1

Parameter Values Unit Parameter Values Unit Parameter Values Unit

V 0.311 m/s pipe assumed V 0.706 m/s pipe assumed V 4.84 pipe assumed
D 0.15 m pipe assumed D 0.1 m pipe assumed D 0.3 pipe assumed
Q 0.0054958365 m3/s pipe Q 0.0055 m3/s pipe Q 0.342 m3/s pipe
e 0.00012 m DI Constant e 0.00012 m DI Constant e 0.00006 m DI Constant
p 998 kg/m3 Water Constant p 998 kg/m3 Water Constant p 950 kg/m3 Water Constant
nu 0.000001 m2/s Water Constant nu 0.000001 m2/s Water Constant nu 0.00002 m2/s Water Constant
L 1000 m Pipe L 1000 m Pipe L 100 m Pipe
hf 3 m Pipe assumed hf 5.046 m Pipe assumed hf 8m Pipe assumed

f 1202.08296716 d^5 pipe f 1986.26343202 d^5 pipe f 8.27205185 d^5 pipe

d 0.24211021384 f^0.2 pipe d 0.21897403977 f^0.2 pipe d 0.65535611 f^0.2 pipe
Re/d 6997.5 Water Re/d 7060 Water Re/d 21780 Water

f 0.021 assumed 1 <0.021 f 0.19 assumed 1 <0.21 f 0.03 assumed 1 <0.21

d 0.112 iteration 1 d 0.157 iteration 1 d 0.325 iteration 1
e/d 0.001073 iteration 1 e/d 0.000764 iteration 1 e/d 0.000185 iteration 1
Re 62590 iteration 1 >60000 Re 44950 iteration 1 >60000 Re 67020 iteration 1 >60000
f 0.02 iteration 2 Moody f 0.02 iteration 2 Moody f 0.0203 iteration 2 Moody

f 0.020 iteration 2 <0.21 f 0.021 iteration 2 <0.21 f 0.0203 iteration 2 <0.21

d 0.111 iteration 2 d 0.101 iteration 2 d 0.301 iteration 2
e/d 0.001084 iteration 2 e/d 0.001187 iteration 2 e/d 0.000200 iteration 2
Re 63300 iteration 2 >60000 Re 69900 iteration 2 >60000 Re 72500 iteration 2 >60000
f 0.021 iteration 3 Moody f 0.02 iteration 3 Moody f 0.0201 iteration 3 Moody

f 0.019 iteration 3 <0.21 f 0.02 iteration 3 <0.21 f 0.0201 iteration 3 <0.21

d 0.110 iteration 2 d 0.100 iteration 2 d 0.300 iteration 2
e/d 0.001095 iteration 2 e/d 0.001198 iteration 2 e/d 0.000200 iteration 2
Re 63900 iteration 2 >60000 Re 70600 iteration 2 >60000 Re 72700 iteration 2 >60000
f 0.0201 iteration 4 Moody f 0.0201 iteration 4 Moody f 0.0201 iteration 4 Moody
V 0.58266005319 Calculated V 0.70405638537 Calculated V 4.8401046 Calculated
hf 3 Calculated hf 5.046 Calculated hf 8 Calculated
