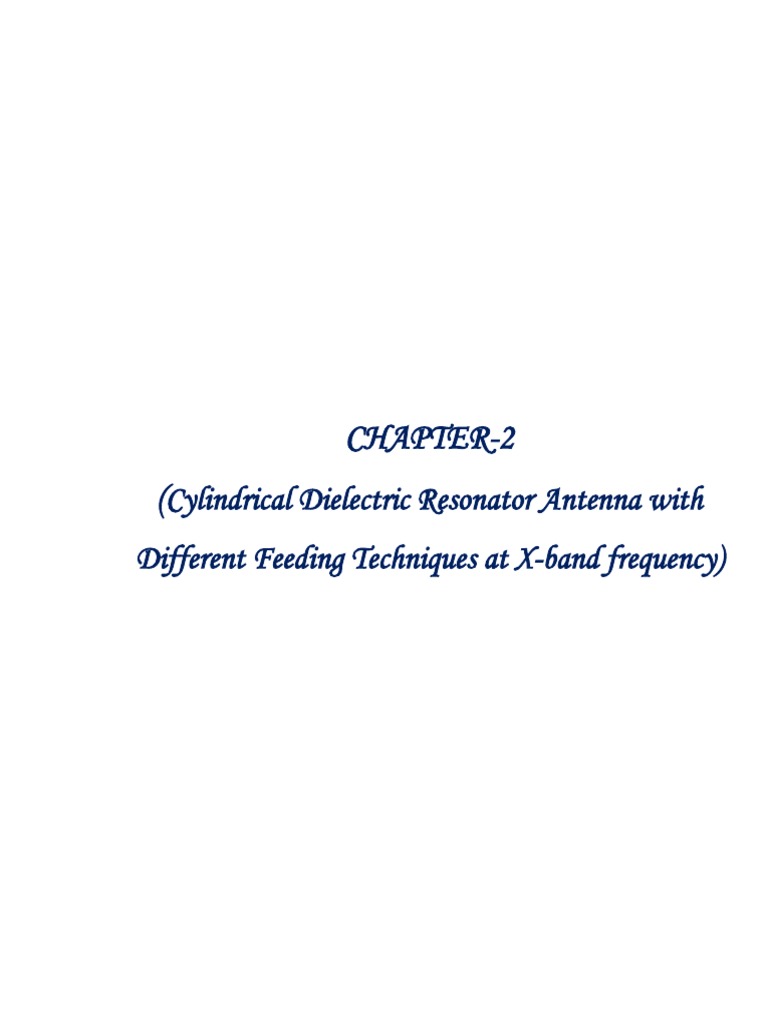

CHAPTER-2

(Cylindrical Dielectric Resonator Antenna with

Different Feeding Techniques at X-band frequency)
Chapter-2

Chapter-2
Cylindrical Dielectric Resonator Antenna with
Different Feeding Techniques at X-Band Frequency
2.1 Introduction

Popular Micro strip patch antenna suffers severe conduction and surface wave losses
at microwave and higher frequency bands while volumetric nature of Dielectric Resonator
Antenna provides wider bandwidth and good efficiency at these frequencies. One more
degree of freedom of cylindrical dielectric resonator antenna (CDRA) in contrast to
hemispherical DRA provides the flexibility to obtain the desired resonating frequency with
the several combination of material permittivity and dimension (A/H ratio). Performance and
characteristics of CDRA depends on modes excited inside the DRA through the suitable
feeding structure as discussed in chapter-1. Every mode has its own radiation characteristics
and it can be excited by placing the antenna at the suitable location relative to the particular
feeding network. It is important to select the suitable feeding technique for the antenna to
obtain the optimized performance from it. In this chapter, first CDRA for X- band frequency
range is designed and later it is investigated with coaxial probe, micro strip feed and slot
coupled feeding techniques .A comparisons have been done with the results of these feeding
techniques for CDRA and it is attempted to find the reasons for showing the different
characteristics. Parametric analysis has been done to tune the CDRA to work on desired
frequency band with acceptable performance.

2.2 Design of Cylindrical DRA

The Dielectric material have the nature of lossy resonator in which fields are loosely
bound with material and air, unlike the patch antenna in which fields are confined within the
patch. This nature of dielectric material makes it a good radiator along with resonator.
Several modes corresponding to different radiation nature are possible to propagate within the
DRA structure and as a result different radiation characteristics can be generated in DRA
structure by exciting different modes [2-7]. Field intensities of the desired mode in DRA can
be established by means of proper coupling devices. Many coupling methods such as
Aperture slot coupled [8-11], Probe feed [12-13], modified micro strip feed [13-17],

23
Chapter-2

Conformal Strip feed [18], Direct Image line [19] etc have been studied previously by
researches for the different shapes for different applications. Resonant frequency of lower
order TE01δ,TM01δ and HE11δ (TE110) modes can be computed by equations as discussed in
chapter-1. In mode TEnpm or TMnpm the subscripts n, p and m represent field variation in
azimuthal, radial and axial direction respectively.

For fundamental TMnpm Mode [1]

2
𝑓𝑇𝑀𝑛𝑝𝑚 = 2𝐴
1
√{𝑋 ′ 2𝑛𝑝 } + [ 𝐴 (2𝑚 + 1)] (2.1)
√µ𝜀 2𝐻

A= Radius of Cylinder, H= height of Cylinder, εr = Permittivity of Cylindrical Dielectric

Resonator Material.

Impedance bandwidth for the DRA can be approximated in equation (2.2) as

𝑆−1
𝐵𝑊 = 𝑄√𝑆 . 100% ( 2.2)

Where S is the desired VSWR at input port and Q is quality factor which is directly related
with dielectric constant of DRA and (H/A) ratio of DRA geometry.

Amount of coupling K, between the source and the fields within the DRA can be
approximated for an electric source J1 as [3]
𝐾 ∝ ∫(𝐸2 . 𝐽1 ) 𝑑𝑉 (2.3)

And for a magnetic source M1

𝐾 ∝ ∫(𝐻2 . 𝑀1 ) 𝑑𝑉 (2.4)

To achieve strong coupling using an electric current source (like a probe), the source should
be located in an area of strong electric fields within the DRA. On the other hand, to achieve
strong coupling using a magnetic current source (like a loop) the source should be located in
an area of strong magnetic fields. By knowing the field distribution of particular mode,
source can be placed at appropriate position for strong coupling between the excitation source
and the CDRA.
Resonant frequency and Quality factor of CDRA are the function of DRA material’s
permittivity and dimensions. Based on this, the resonant frequency of CDRA can be
predicted using equation 2.1 for various modes. Field distribution for TM01δ and HE11δ mode
can be calculated using dielectric waveguide model [3, 7] which shows that electric field and
magnetic field is maximum at the CDRA centre for TM01δ and HE11δ modes respectively. In

24
Chapter-2

order to excite TM01δ mode inside the CDRA electric current source like probe should be
located at the centre. Similarly to excite HE11δ mode in CDRA, magnetic source like loop or
slot should be placed at the centre. TM01δ mode have the radiation characteristic like electric
monopole having the end fire radiation pattern while HE11δ mode acts as a short horizontal
magnetic dipole having the broadside radiation pattern. Therefore, Selection of coupling
technique plays an important role for determining the antenna behaviour. In this chapter, the
behaviour of feeding techniques for the designed CDRA have been observed and parameters
are optimized to get better results. In simulation, different resonant frequencies have occurred
for different feeding techniques which show the effect of feeding techniques on performance
of CDRA. Schematic diagram of CDRA is shown in fig. 2.1 in which low permittivity
material (𝜀𝑟 = 6.15) Rogers 3006 with Aspect ratio of 2.60 (R= 10mm radius and H= 3.84
mm height) is placed on grounded substrate of dimension 64*64 mm. With these parameters,
the resonant frequency for HE11δ mode is found to be 8.62GHz whereas for TM01δ mode, the
computed resonant frequency is 9.14GHz as per equation - 2.1. Operating frequency is tuned
to X-band frequency range by optimizing the parameters and excitation techniques. Extensive
simulation and trade off in parameter values has been done for the better and acceptable
performance in terms of bandwidth and far field radiation pattern. Designed CDRA is
simulated in CST Microwave studio numerical software based on finite integration technique.

D
H
CDRA

Grounded Substrate
Z

X Y

Fig. 2.1 Schematic diagram of Cylindrical CDRA

2.3 Coaxial probe Feeding D

The probe can be considered as a vertical electric current that is positioned to achieve
strong coupling to the DRA. The level of coupling can be optimized by adjusting the height
and diameter of the probe. Depending upon the shape of DRA and probe location, different
modes can be excited. In this section, role of coaxial probe at the centre and at the boundary
have been investigated for CDRA, designed to operate at X-band frequency range.

25
Chapter-2

2.3.1 Probe at centre of CDRA

For the excitation of TM01δ mode inside the designed CDRA, the probe of 0.75 mm
diameter having the impedance of 50 Ω, at the centre of CDRA is used (fig. 2.2). Coaxial
probe behaves as vertical electric current, the characteristic of which is decided by its length
and diameter as well as dielectric material used for separation of inner and outer metal part of
the probe. As per equation- 2.3, for maximum coupling between probe and CDRA, probe
should be located at the point where electric field is maximum. TM01δ mode have maximum
electric field at the centre [3]. For Probe height of 3mm inside the CDRA is showing
optimum 37% impedance bandwidth of 3.81GHz at Centre frequency of 10.5GHz covering
nearly entire portion of X-Band (fig. 2.3). Two modes near at 9GHz and 10.5GHz can be
observed in simulated return loss curve which shows that probe itself also is producing modes

Probe
X

CDRA
Y
Grounded
Substrate
Fig. 2.2 Cylindrical DR antenna with Probe at the centre

0 75
(a) (b)
-5
50
-10
25
B (S1,1/abs,dB)

B(Impedance)

-15

-20 0

-25
-25
-30 Z11_Real
-50 Z11_Imaginary
-35

-40 -75
7 8 9 10 11 12 13 7 8 9 10 11 12 13
A (Frequency / GHz) A (Frequency / GHz)

Fig. 2.3 (a) Return loss curve and (b) Impedance curve for CDRA with Probe at the
centre

at 9GHz along with the CDRA’s mode at 10.5GHz. Probe insertion inside the DRA shifts the
resonant frequency in upward direction and bandwidth is also enhanced. Similarly probe
location relative to centre of CDRA affects the electric field of excited mode. Good
impedance matching shows the acceptable performance of the design (fig. 2.3 (a & b)).

26
Chapter-2

Electric field lines are shown in fig. 2.4 (a & b) in XZ and XY plane respectively. Field lines
in XZ and XY plane shows that the electric field lines are converging at the centre due to
probe itself at 10.5GHz. From the observation of field lines at 10.5GHz in both planes it can
be concluded that TM01δ is excited inside the CDRA for this arrangement as expected.

(a)

(b)

Fig. 2.4 Field distribution for Probe at the centre at 10.5 GHz in (a) XZ (b) XY plane
1.0

0.9

Radiation
Efficiency

0.8 Total

0.7

0.6

0.5
7 8 9 10 11 12 13
Frequency/GHz

Fig. 2.5 Efficiency curve for Cylindrical DR antenna with Probe at the centre

More than 85% radiation and total efficiencies has been obtained by the design in desired
band (fig. 2.5). Same level of end fire radiation pattern has been obtained in both E (ф=0o)
and H (ф=90o) plane by feeding the CDRA at the centre as shown in fig. 2.6(a & b)
respectively with peak gain of 3.69dB and side lobe level of 10.4dB down. Very less cross
polarization level has produced in both ф=0o and ф=90o plane seen in fig. 2.7 (a & b)

27
Chapter-2

respectively. Reason behind the same radiation pattern and same polarization level in both the
planes and high ratio of co-polarization and cross-polarization level could be the symmetric
body of revolution shape of probe (feed) and CDRA (radiator).

Fig. 2.6 Gain pattern for Probe at the centre at 10.5 GHz in (a) ф=0o & (b) ф=90o plane

Fig. 2.7 Copol and cross pol for probe at centre of DRA in (a) ф=0o & (b) ф=90o plane
2.3.2 Probe at boundary of CDRA

In the next step, feed probe is shifted close to the peripheral boundary to yield
broadside radiation patterns by exciting the HE11δ mode of CDRA. Fig. 2.8(a) shows the
probe position located outside the CDRA to avoid the drilling in CDRA during fabrication.
Probe height of 3mm as in the case of probe at centre has shown 26% impedance bandwidth
of 3GHz covering some portion at 8.5GHz and maximum part at 10.7GHz side of X-band
(fig. 2.8(b)). Impedance of probe has been taken as 50 Ω and it is matching with impedance
of CDRA nearly at 10.7 GHz as shown in fig. 2.9(a). Feed is in contact with both DRA
material and open atmosphere having different permittivity resulting in excitation of HEM11δ
mode of CDRA at 10.7GHz and mode due to probe at 8.5GHz as well as one higher mode
near 12.5 GHz. Since it is beyond the desired X- band frequency range, its nature has not
been investigated further. More than 80% radiation and total efficiency have been observed in

28
Chapter-2

acceptable impedance bandwidth curve as shown in fig. 2.9(b). Electric field lines are shown
in fig. 2.10(a & b) in XZ and XY plane respectively. Field lines in XZ and XY plane shows
the two electric field variation in radial and azimuthal direction. From the observation of field
lines at 10.5GHz in both planes, it can be concluded that HEM22δ is excited inside the CDRA
for this arrangement though HEM11δ mode is supposed to be excited [3].

0
(b)
(a) -5

-10

B (S1,1/abs,dB)
-15

-20

-25

-30

-35

-40
7 8 9 10 11 12 13
A (Frequency / GHz)

Fig. 2.8 (a) CDRA with Probe at the boundary & (b) Corresponding Return loss curve
of CDRA

(a) 1.0
(b)
50
0.9
0.8
Radiation
0.7
B (Impedance)

Total
0.6
Efficiency

0 0.5
Z11_Real
0.4
Z11_Imaginary 0.3

-50 0.2
0.1
0.0
7 8 9 10 11 12 13 7 8 9 10 11 12 13
A (Frequency / GHz) Frequency/GHz

Fig. 2.9 (a) Impedance curve and (b) Efficiency curve of CDRA with Probe at the
boundary

CDRA with probe at boundary has shown mixed pattern in ф=0o and ф=90o plane at 10.5GHz
as shown in fig. 2.11 ( a & b). In ф=0o plane, pattern is broadside, steered at nearly θ=60o
with gain of 7.8dB while in ф=90o plane peak of 1dB with side lobe level down to 2.7dB is
observed at θ=0o. In ф=0o plane, co-polarization level is 50dB higher than cross-polarization
level in nearly all direction hence larger gain of 7.8dB with side lobe level down to 6.3dB has
been observed (fig. 2.12(a)). Reason behind this mixed pattern and low gain in ф=90o plane

29
Chapter-2

is large cross-polarization level for nearly all values of θ except at 0o where co-polarization
level is more than 30dB relative to cross-polarization level as seen in fig. 2.12(b) at 10.5GHz.

(a)

(b)

Fig. 2.10 Field distribution for Probe at the boundary at 10.5 GHz in (a) XZ (b) XY
plane

Fig. 2.11 Gain pattern for Probe at boundary at 10.5 GHz in (a) ф=0o & (b) ф=90o plane

30
Chapter-2

Fig. 2.12 Copol and cross pol for probe at boundary in (a) ф=0o & (b) ф=90o plane
(10.5GHz)

2.4 Micro-strip feed excitation

Further CDRA is excited by the micro-strip feed etched on grounded substrate of FR-
4 having dielectric constant of 4.3 (fig. 2.13(a)). Width of the feed has been taken as 2.92mm
corresponding to standard 50Ω to be compatible with measuring instruments. In general
micro-strip feed is easy to fabricate and popular also with high 𝜀𝑟 material but have the
drawback of poor coupling with low 𝜀𝑟 (in present work DRA has 𝜀𝑟 = 6.15 ). Simulation
result shown in fig. 2.13-2.26 also indicates this behaviour of feed with DRA as expected.
Broadside HEM11δ mode is likely to couple at 11.6GHz far away from calculated frequency
of 8.62GHz as per equation 2.1. Parametric analysis of length and width of feed has been
done for impedance matching to CDRA. Resonant frequency has shifted towards higher side
at 11.6GHz with 13% impedance bandwidth of 1.45GHz.

0
(b)
(a)
-5
B (S1,1/abs,dB)

-10

-15

-20
7 8 9 10 11 12 13
A (Frequency / GHz)

Fig. 2.13 (a) CDRA with micro-strip feed (Top-view) & (b) Corresponding Return loss
curve

31
Chapter-2

50

B(Impedance)
0

-50 Z11_Real
Z11_Imaginary

7 8 9 10 11 12 13
A (Frequency / GHz)

Fig. 2.14 Impedance curve for CDRA with micro-strip feed

Electric field lines are shown in fig. 2.15 (a & b) in XZ and XY plane respectively.
Field lines in XZ plane shows the one electric field variation in radial direction while XY
plane shows the excitation of CDRA at the Centre like omni directional. From the
observation of field lines at 11.6GHz in both planes, it can be concluded that HEM11δ mode is
excited inside the CDRA for this arrangement. Radiation and total efficiency of the design is
less than 50% which is expected for microstrip feeding at microwave and higher frequencies
(here 11.6GHz) shown in fig. 2.16, due to severe conduction and surface wave losses in
micro strip line at these higher frequencies.

(a)

(b)

Fig. 2.15 Field distribution for microstrip feed at 11.5 GHz in (a) XZ (b) XY plane

32
Chapter-2

Radiation
0.5 Total

0.4

Efficiency
0.3

0.2
7 8 9 10 11 12 13
Frequency/GHz

Fig. 2.16: Efficiency curve for cylindrical DRA with micro-strip feed

Fig. 2.17: Gain pattern for micro-strip feed at 11.5 GHz in ф=0o & ф=90o plane

Fig. 2.18 Copol & Crosspol for microstrip feed in (a) ф=0o, (b) ф=90o plane at 11.5 GHz
Peak gain of around 5.8dB is observed in both ф=0o & ф=90o planes with 3dB beam-
width of nearly 45o shown in fig. 2.17(a & b). Undesirable back radiation has been observed
in Ф=90o plane fig. 2.17(b) while in Ф=0o plane antenna is showing omni directional
broadside radiation pattern shown in fig. 2.17 (a). Co-polarization level is of much larger
value relative to cross polarization level in Ф=0o plane could be the reason of nearly Omni

33
Chapter-2

directional pattern as shown in fig. 2.18 (a) while in Ф=90o plane cross-polarization level
have significant value relative to co polarization in the specific range of θ, yielding the
directive broadside pattern in θ=0o direction with beam-width of 43o (fig. 2.18(b)).

2.5 Aperture slot coupled excitation

This technique has the advantage of having the feed network located below the
ground plane to avoid unwanted radiations from the micro strip that causes distortion and
degrade the pattern shape. In addition, the slot feed provides more degree of freedom in
design relative to other feed network [16]. For HEM11δ or TM110 mode, slot at the DRA
centre behaves, like magnetic current flowing parallel to its length and as a result excites the
magnetic fields in the DRA body causing broadside radiation pattern in the far field [4]. In
some cases slot resonance may be desirable to increase the bandwidth by merging the slot
resonance with CDRA resonance but in the present work slot resonance is avoided by
keeping the slot dimension small. Coupling of energy depends on the shape of slot and
position of CDRA with respect to slot. The micro strip stub is used to cancel out the reactive
component of the slot, thus allowing an impedance match to the DRA. Slot etched on ground
plane behaves like a capacitor in which two side of the slot are separated by an air. Larger
length of slot shifts the resonant frequency towards downside. Optimized value of slot length
of 12*1 mm is etched on ground plane giving impedance bandwidth of about 31% at 9GHz
centre frequency close to predicted frequency of 8.62GHz as per eqn. 2.1. The 2.4mm wide
feed line, of impedance of 50 Ω is used below the RO-5870 substrate of height of 0.785mm
to indirectly couple the energy to CDRA (fig. 2.19(a)).

0
(b)
(a)
Slot Stub -5
t X
B (S1,1/abs,dB)

-10

-15
Microstrip Y
Feed CDRA -20

WF
-25
7 8 9 10 11 12 13
Grounded Substrate A (Frequency / GHz)

Fig. 2.19 (a) CDRA with aperture slot feed & (b) Return loss curve for cylindrical DR
antenna with aperture slot feed

34
Chapter-2

50

B(Impedance)
0

Z11_Real
Z11_Imaginary
-50

7 8 9 10 11 12 13
A (Frequency / GHz)

Fig. 2.20 Impedance curve for cylindrical DR antenna with aperture slot feed

Wide impedance bandwidth (-10dB) of 2.73GHz has been obtained with excitation of
fundamental HEM11δ mode at 9GHz frequency (fig. 2.19 (b)). Slot dimension is kept small to
avoid excitation of slot mode by taking length less than λg/2. Impedance curve confirm the
favourable conditions for radiation throughout the bandwidth (fig. 2.20). Field distribution of
CDRA shown in fig. 2.21 (a) indicates the one field variation in XZ plane while XY plane
shows excitation of whole CDRA and one field variation in azimuthally in fig. 2.21 (b).
Field lines in both the planes show the proper excitation of HEM11δ mode inside the CDRA.
Both radiation and total efficiencies are nearly 95% which shows the potential of dielectric
resonator antenna at higher frequencies compared to patch antenna (fig. 2.22). Slot feed have

(a)

(b)

Fig.2.21 Field distribution for aperture slot feed at 9 GHz in (a) XZ (b) XY plane

35
Chapter-2

1.0

0.9

0.8

Efficiency
0.7

0.6
Radiation
0.5 Total

0.4
7 8 9 10 11 12 13
Frequency/GHz

Fig. 2.22 Efficiency curve for CDRA with aperture slot feed

(a) (b)

Fig. 2.23 Gain pattern for aperture slot feed at 9 GHz in ф=0o & ф=90o plane

Fig. 2.24 Copol and cross pol for aperture slot feed in ф=0o & ф=90o plane at 9GHz

36
Chapter-2

better radiation pattern in both ф=0o & ф=90o plane shown in fig. 2.23 (a & b). In ф=0o plane
directive pattern with beam-width of 53o and peak of 3.5dB with side lobe level of 9.5dB has
been generated in the direction of θ=0o (fig. 2.23(a)). Symmetric broadside pattern with peak
of 6.2dB and side lobe level of 14dB down has been shown in ф=90o plane (fig. 2.23(b)).
Reason behind the gain pattern shown in ф=0o & ф=90o plane can be explained by co
polarization and cross polarization plot in both plane. Fig. 2.24 shows large cross polarization
level at ф=0o plane in back direction while larger value of co polarization level in the
direction of θ=0o. In ф=90o plane co polarization level is more than 40dB in almost all
direction hence producing very wide broadside pattern with 3dB beam-width of 132.6o.

2.6 Results & Comparisons of Feeding

Performances of feeding networks for the cylindrical DRA designed for X-band has
been plotted in fig. 2.25 to fig. 2.27. Return loss curve in fig. 2.25 shows the S11 parameter
for different feeding techniques and we can observed that probe at centre of CDRA is
exciting the desired mode as well as other higher order modes therefore providing widest
impedance bandwidth among feeding techniques. Probe at centre and at boundary of CDRA
is supposed to excite TM01δ (end-fire pattern) and TM110 (broadside pattern) respectively.
Excitation of higher order modes could affect the axial symmetry of the radiation pattern
which is reflected in radiation pattern of the feed shown in fig. 2.27(a & b) in = 0ο and =
90ο respectively for these cases. Probe at boundary is supposed to produce broadside pattern
in the desired

-5

-10
B (S1,1/abs,dB)

-15

-20

-25 microstrip feed

probe at centre
-30 probe at boundary
slot feed
-35
7 8 9 10 11 12 13
A (Frequency / GHz)

Fig. 2.25 Comparison of return loss curve for different feeding techniques

37
Chapter-2

frequency range but it could not be possible due to large cross-polarization level in = 90ο
plane while in = 0ο plane it is showing mixed pattern having steered peak with gain of
7.8dB. Nearly same co-polarization and cross polarization pattern have observed for probe at
centre feed in both the plane due to the axial symmetry of CDRA and probe itself. Probe at
centre could be used to obtain the end-fire radiation pattern but it needs drilling in substrate
as well as in the antenna makes the fabrication complicated.
For the micro-strip feeding, observed results are Not according to expectation due to
poor coupling for the lower dielectric constant DRA material (in this case ε r is 6.15) and
micro-strip feed. Micro-strip line suffers from increased conductor and surface wave losses at
high frequencies resulted in degradation of gain and efficiency shown in fig. 2.26. From gain
pattern of feeding technique shown in fig. 2.27(a &b) it can be observed that slot feed has
more symmetric and stable broadside pattern in impedance bandwidth range which is due to
the separation of more than 50 dB between co polarization and cross polarization level in
both planes as discussed earlier in section 2.5. Slot feed is located below the substrate which
protects CDRA from the backward radiation of feed line so that the CDRA radiation pattern
is very less affected from radiation of feed, resulting in better performance in terms of gain.

1.0

0.9

0.8
B (Effic. [1]/abs,linear)

slot feed
0.7 probe at boundary
probe at centre
0.6
microstrip feed
0.5

0.4

0.3

0.2
8 9 10 11 12
A (Frequency/GHz)

Fig. 2.26: Comparison of radiation efficiency curve for different feeding techniques

Performance of feeding network with designed cylindrical dielectric resonator

antenna is summarized in Table 2.1. It shows that the slot feed and probe at centre feed yield
wider bandwidth due to merging of mode of CDRA with mode of feed itself. Probe at centre
provides impedance bandwidth of around 3.81GHz nearly covering entire bandwidth while

38
Chapter-2

slot feed provides bandwidth of 2.73GHz. A narrow slot aperture placed at the centre of
CDRA couples only a fundamental mode of CDRA that provides axial symmetry radiation
patterns with good impedance bandwidth as shown in fig. 2.25. Performance of slot feed can
be said better as centre frequency of 9GHz for slot feeding is closer to calculated frequency
of HEM11δ mode while for probe feed at centre have resonant frequency at 10.5GHz.
Efficiency curve as shown in fig. 2.26 for feeding network shows more than 95% radiation

(a) (b)

Fig. 2.27 Gain pattern at (a) ф=0o plane & (b) ф=90o plane for different feed network

Table-2.1 Comparison of feeding Techniques

Parameter Coaxial feed Coaxial feed at Micro strip Slot feed

at Center Boundary feed
Resonant 10.5GHz 8.5 & 10.7GHz 11.6GHz 9GHz
Frequency
Bandwidth 3.81GHz 2.98GHz 1.46GHz 2.73GHz
Nature of TM01 end fire TM110 ( HEM11δ) HEM11δ HEM11δ
Excited Modes pattern broadside pattern broadside broadside
pattern pattern
Main Lobe 3.69dB 2.9 dB 5.72 dB 6.4dB
magnitude
back Lobe -10.3dB -4.1dB -6.9dB -12dB
level
Radiation and 89 & 88% 88 & 87% 47&45% 100 & 95%
total Efficiency

and total efficiency to slot feed while Probe at centre or at boundary both have nearly same
85% efficiency in the desired band. Probe at boundary and micro-strip feed are not providing
impedance match at desired frequency range. At higher frequencies DRA have tendency to
confine the signal rather radiation due to smaller wavelength as compared to antenna structure

39
 Chapter-2

resulting in degradation of efficiency in all the three feeding techniques. Micro-strip feed has
shown poor efficiency among all techniques due to severe conduction and surface losses at X-
band frequency range. Gain for all three techniques can be increased by using the larger size
of ground plane at the cost of larger physical space requirement. On the basis of above
observation it can be concluded that impedance bandwidth can be enhanced by making the
resonances of the dielectric cylinder and of feed structure itself close to each other. Probe and
slot can be a radiator also causing wide bandwidth due to the combination of feed network’s
resonance and CDRA’s resonance.

2.7 Conclusion

Wideband CDRA has been designed for X-band frequencies applications. Role of
feeding techniques on the performance of CDRA is investigated by exciting the CDRA by
coaxial probe, Micro strip and Aperture coupled techniques for optimum performance.
Aperture coupled technique has shown better performance in terms of wide impedance
bandwidth and symmetric far field pattern for X-band. Simulated center frequency of 9GHz
closely matches with theoretically calculated resonant frequency of 8.62GHz. Overall, this
chapter concludes that slot coupled feed is better feeding technique for designed CDRA as
compared to other techniques and it can be used as a feed while exploring the other
possibilities in designed cylindrical dielectric resonator antenna.

40
 Chapter-2

References

1. S. A. Long, M. W. McAllister, and L. C. Shen, “The resonant cylindrical dielectric cavity

antenna,” IEEE Trans. Antennas Propagation, Vol. -31, No. 3, May 1983, pp. 406–412,
2. R.K. Mongia and P. Bhartia, “Dielectric Resonator Antennas- A Review and General Design
Relations for Resonant Frequency and Bandwidth,” International Journal of Microwave and
Millimeter Wave Computer aided Engineering, Vol. 4, No. 3, 1994, pp. 230-247.
3. A. Petosa, Dielectric Resonator Antenna Handbook, Artech house press ,2007.
4. K. M. Luk and K. W. Leung ,Dielectric resonator antennas, Baldock U.K.: Research Studies
Press, 2003. ch.1.
5. Q. Lai, G. Almpanis, C. Fumeaux, H. Benedickter, and R. Vahldieck , “Comparison of the
Radiation Efficiency for the Dielectric Resonator Antenna and the Microstrip Antenna at Ka
Band”, IEEE Transactions on Antennas and Propagation, Vol. 56, No. 11, November 2008,
pp.1085-1087,.
6. R.K. Mongia and A. Ittipoboon, “Theoretical and Experimental Investigations on Rectangular
Dielectric Resonator Antennas,” IEEE Transaction Antennas Propagation, Vol. 45, No. 9,
1997, pp. 1348-1356.
7. S.Y. Liao, Microwave Devices and Circuits, 3rd edition, Pearson Education, 2009.ch. 4.
8. R. K. Mongia, A. Ittipiboon, Y. M. M. Antar and P. Bhartia, "A Half-Split Cylindrical
Dielectric Resonator Antenna Using Slot Coupling,," IEEE Microwave and Guided Wave
Letters, Vol. 3, February 1993, pp. 38-39.
9. O. G. Avădănei, M. G. Banciu, I. Nicolaescu, and L. Nedelcu ,“Superior Modes in High
Permittivity Cylinderical Dielectric Resonator Antenna Excited by a Central Rectangular
Slot,” IEEE Transactions on Antennas and Propagation, Vol. 60, NO. 11, November 2012,
pp. 5032-5038,.
10. R. Chair, A. A. Kishkand, K. F. Lee, “Wideband Simple Cylindrical Dielectric Resonator
Antennas,” IEEE Antennas and Wireless Propagation Letters, Vol. 15, No. 4, 2005 , pp. 241-
243.
11. M. I. Aksun and S.L. Chuang, “On Slot-Coupled Microstrip Antennas and Their Applications
to CP Operation- Theory and experiment”, IEEE Transactions on Antennas and Propagation,
Vol. 38, No. 08, 1990, pp. 1224-1230.
12. A. P. Huynh, D. R. Jackson, S. A. Long, and D. R. Wilton, “ A Study of the Impedance and
Pattern Bandwidths of Probe-Fed Cylindrical Dielectric Resonator Antennas,” IEEE Antennas
and Wireless Propagation Letters, Vol. 10, 2011, pp.1313-1316.
13. D. Guha, A. Banerjee, C. Kumar and Y. M. M. Antar, “New Technique to Excite Higher-
Order Radiating Mode in a Cylindrical Dielectric Resonator Antenna”, IEEE Antennas and
Wireless Propagation Letters, Vol. 13, 2014, pp. 15-18.
14. P.V. Bijumon, S.K. Menon, M.N. Suma, M.T. Sebastian and P. Mohanan, “Broadband
cylindrical dielectric resonator antenna excited by modified microstrip line” Electronics
Letters”, Vol. 41, No. 7, March 2005, pp. 385-387.
15. C.C. Lin and J.S. Sun, “Circularly Polarized Dielectric Resonator Antenna Fed by Off-
Centered Microstrip Line for 2.4-GHz ISM Band Application”, IEEE Antenna Wireless
propagation Letter 14, 2015 , pp. 947-949.

41
 Chapter-2

16. B. Rana and S. K. Parui, “Non-Resonant Microstrip Patch Fed Dielectric Resonator Antenna
Array”, IEEE Antennas and Wireless Propagation Letters, Vol. 14, 2015, pp. 747-750.
17. M.R. Nikkah, J.R. Mohassel, and A. A. Kishk, “Compact Low-Cost Phased Array of
Dielectric Resonator Antenna Using Parasitic Elements and Capacitor Loading” , IEEE
Transaction Antennas Propagation , Vol.61, 2013, pp. 2318-2321.
18. L C. Y. Chu, D. Guha, and Y. M. M. Antar, “Conformal Strip-Fed Shaped Cylindrical
Dielectric Resonator: Improved Design of a Wideband Wireless Antenna”, IEEE Antennas
and Wireless Propagation Letters, Vol. 08, 2009, pp. 482-485.
19. A. A. Baba, M. A. Zakariya, Z. Baharudin, M. H. M. Khir and S. M. Ali, “2.45 GHz
Cylindrical Dielectric Resonator Antenna Fed by Dielectric Image Line”, IEEE Business
Engineering and Industrial Application Colloquium , 2013, pp. 120-124.

42
