Lathe Machine

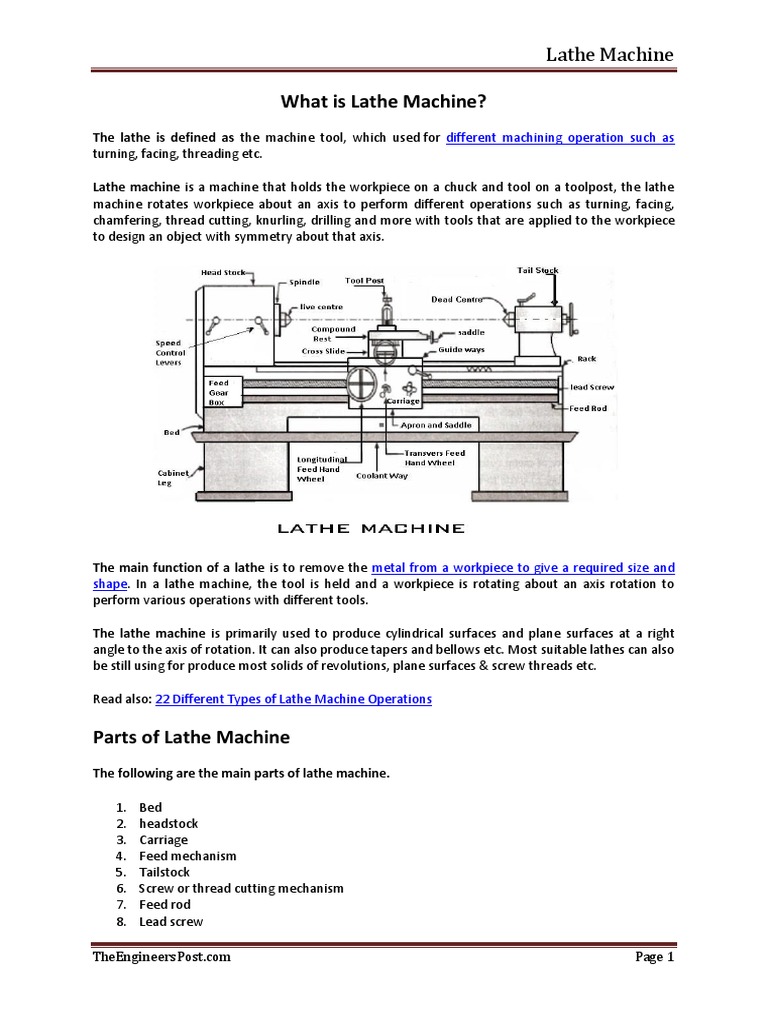

What is Lathe Machine?

The lathe is defined as the machine tool, which used for different machining operation such as
turning, facing, threading etc.

Lathe machine is a machine that holds the workpiece on a chuck and tool on a toolpost, the lathe
machine rotates workpiece about an axis to perform different operations such as turning, facing,
chamfering, thread cutting, knurling, drilling and more with tools that are applied to the workpiece
to design an object with symmetry about that axis.

The main function of a lathe is to remove the metal from a workpiece to give a required size and
shape. In a lathe machine, the tool is held and a workpiece is rotating about an axis rotation to
perform various operations with different tools.

The lathe machine is primarily used to produce cylindrical surfaces and plane surfaces at a right
angle to the axis of rotation. It can also produce tapers and bellows etc. Most suitable lathes can also
be still using for produce most solids of revolutions, plane surfaces & screw threads etc.

Read also: 22 Different Types of Lathe Machine Operations

Parts of Lathe Machine

The following are the main parts of lathe machine.

1. Bed
2. headstock
3. Carriage
4. Feed mechanism
5. Tailstock
6. Screw or thread cutting mechanism
7. Feed rod
8. Lead screw

TheEngineersPost.com Page 1
 Lathe Machine

1. Bed

The lathe bed is the base of the machine, which is a solid structure. It should be provided strictly
under heavy pressure. On top of the bed, has the V-type of guideways include the angle of 90°.

There are two guideways provided, inner ways and outer ways, which are accurately machined to
make them parallel to the axis. The lathe should take up the varies vibrations, which are causing due
to different types of force. The guideways provide sliding surfaces to the carriage and the tailstock.

The lathe bed must-resist stresses due to the results of two important forces,

 The downward cutting force on the tool

 The force tending to move the tool away from the workpiece in a horizontal direction.

2. Headstock

 H1: Geared headstock housing,

 H2: Intermediate gears lever,
 H3: High Low gear lever,
 H4: Camlock spindle,
 H5: Tumbler gears - forward/reverse and engage/disengage,
 H6: Quick change gearbox with 4 selectors (3 levers),
 H7: Lead screw,
 H8: Feed screw,
 H9: Forward reverse switch,
 H10: Change gear cover

It is located on the left-hand side of the lathe bed. It has a hollow spindle and the different types of
mechanism for driving and changing the speed of the spindle.

In this case, the speed increases when the belt is shifted from larger to smaller diameter pulleys. The
spindle is made up of nickel, chrome steel and carbon steel. The front end of the spindle hole is
taper for holding the centres perfectly.

Read Also: 16 Different Types of Milling Cutters [Complete Guide]

TheEngineersPost.com Page 2
 Lathe Machine

The speed changing is based on the following conditions,

 The type of material to be cut

o Hard and tough materials like cast iron - slow speed
o Soft materials like aluminium, brass - high speed.
 Type of cutting tool material
o For high - speed hard tools made of tungsten carbide is used.
o For slow - speed medium hardness tool is used.
 The type of finish-finishing cut-small depth-high speed
o Rough cut - high depth - low speed.
 The diameter of the workpiece
o For large diameter workpiece - low speed
o For smaller diameter workpiece - high speed
 Type of operation
o For turning, boring, drilling - high speed
o For thread cutting, tapping, reaming - low speed

3. Tailstock

The tailstock is located on the right-hand side of the lathe bed. The tailstock supports the other end
of the workpiece when it is machining between two centres.

 T1: A feed screw

 T2: Reduction gearbox (optional)
 T3: Body
 T4: Adjustable base
 T5: Spindle
 T6: Locking Lever

It holds the tool rigidly and perfectly for performing operations such as drilling, reaming, tapping,
and boring. It can move along the guideways and can clamp in any position on the bed.

The tailstock is consist of the dead centre, spindle, adjusting screw, hand wheel, etc. The spindle can
move forward and backward of the body called barrel by means of a handwheel. The keyway is
provided on the inside surface of the barrel to hold the dead centre.

Read also: Cutting speed, Feed, Depth of cut, Machining time in lathe machine

TheEngineersPost.com Page 3
 Lathe Machine

4. Carriage

The carriage is one of the most important parts of the lathe tool and it will serve as a supporting,
moving and controlling part of the cutting tool.

It consists of the following parts:

4.1 Saddle

It is 'H' shaped. The saddle fits over the bed and slides along the guideways by carrying the cross
slide and tool post. It can lock in any position in its movement.

4.2 Cross Slide

It is an attachment to the saddle and to the compound rest. The cross slide move by the turning
handwheel. Transverse movement is obtained when the nut mounted on the feed screw is engaged
with the binder screw of the cross slide.

When a taper turning attachment is used the binder screw is open to disconnect the cross slide from
crossfeed screw and the cross slide is attached to the guide block. Cross slide can move
automatically when the pinion is keyed to the crossfeed screw is in mesh with the apron gearing.

4.3 Compound rest

It is a circular base, graduated in degrees and it is used to obtain angular cuts and tapers of the
variable cross-section. It consists of compound slide handwheel, compound slide feed screw,
compound slide nut. The compound slide handwheel is mainly used in taper turning operation to
give the feed.

4.4 Tool post

The tool post is placed above the compound rest and it holds the tool firmly. There are different
types of tool post,

 Single screw tool post

 Four-way tool post
 Eight-way tool post

5. Feed mechanism

The amount of the tools relative to the workpiece is called 'Feed'.

 A lathe tool has 3 types of feed

o Longitudinal feed: Here the tool moves parallel to the lathe axis. It is affected by
means of the carriage movement.
o Crossfeed: Here the tool moves at right angles to the lathe axis.
o Angular feed: By adjusting the compound slide and swivelling it to the required
angle to the lathe axis.

TheEngineersPost.com Page 4
 Lathe Machine

Cross and longitudinal feeds are both hand and power operated, but angular is only hand operated.

6. Screw or Thread Cutting Mechanism

The lathe is important to the machine tool, which is used to cut the required type of threads on a
given work. The rotation of the screw is used to move the tool along the workpiece to produce the
screw threads. The half-nut mechanism is used in the lathe.

7. Feed Rod

It is a long shaft having a keyway extends from the feed box across and in front of the bed. The
power is transmitted from the lathe spindle to the apron gears through the feed rod.

The feed rod is mainly using to move the carriage or cross slide for the operations such as turning,
boring, facing and all other considering the thread cutting operation.

8. Leadscrew

It is a long threaded shaft used for only thread cutting operation. The lead screw is in arranged
position in all operations from the gearbox. It may also be used to give the motion for turning,
boring, etc., in the lathes which are equipped with a feed rod.

Read also: 14 Different Types of Lathe Cutting Tools

Types of Lathe Machine

Following are the different types of lathe machine.

1. Speed Lathe Machine

1. Woodworking
2. Polishing
3. Centring
4. Spinning
2. Engine Lathe Machine
1. Belt drive
2. Motor drive
3. Gear heat type
3. Bench Lathe Machine
4. Toolroom Lathe Machine
5. Capstan and Turret Lathe Machine
6. Special purpose lathe machines
1. T. Lathe
2. Wheel Lathe
7. Automatic Lathe Machine

1. Speed Lathe Machine

This types of lathe machines are simple in construction. It has a bed, headstock, tailstock and tool
post mounted on the adjustable slide. There is no feed box lead screw or carriage.

TheEngineersPost.com Page 5
 Lathe Machine

The tool is mounted on the adjustable slide and is fed into the work purely by hand control. This
characteristic of the lathe machines has the speed ranges from 1200 to 3600 rpm. The headstock
construction is very simple and has only 2 or 3 spindle speed available.

Speed lathe machine has less depth of cut. Light force and high speed made this to use this part
woodworking, spinning, centring and polishing. The name speed lathe has been given because of the
very high speed of the headstock spindle.

2. Engine Lathe Machine

Engine lathe is the most widely using in the lathe machine. These machines are driven by the gear
mechanism or pulley mechanism. The name engine lathe is given because of the earlier lathe were
driven by steam engines.

Engine lathe machine has all the parts similar to that of speed lathe. Such as bed, headstock and
tailstock etc. The headstock of an engine lathe is rigid in construction and has got an additional
mechanism to get multiple spindle speeds.

Unlike the speed lathe, the engine lathe can feed the cutting tool both in the cross and longitudinal
direction with reference to the lathe axis with the help of a carriage feed and leadscrew. This types
of lathe machines are still using in workshops and many industries. It has three types Belt-driven,
Motor-driven, Gearhead type.

Read Also: Milling Machine: Main Parts and It’s Working Principle

2.1 Belt Drive Lathe Machine

A lathe that receives its power from an overhead line shaft is a belt-driven lathe and is equipped
with a speed-cone and one or more back gears to get a wide range of spindle speeds.

TheEngineersPost.com Page 6
 Lathe Machine

2.2 Motor Driven Lathe Machine

A lathe that receives its power from an individual motor integral with the machine is called a motor-
driven lathe.

2.3 Geared-head Lathe Machine

A geared-head lathe gets its power from a constant speed motor, and all-speed changes are
obtained by shifting various gears located in the headstock. It has no cone pulley.

3. Bench lathe

This types of lathe machines are small in size and use for a very small precision work. Bench lathe
machines are mounted on the bench. It has all the similar parts of engine lathe and speed lathe.
Bench lathe machine performs almost all the operations of engine lathe and speed lathe its only
difference being in the size.

4. Toolroom Lathe Machine

Toolroom lathe machine is the same as that of engine lathe but provides a wide range of speed. The
spindle speed range is from very low to a quite high speed up to 2500rpm.

This is equipped beside the other thing, with a chuck, taper turning attachment, draw in collect
attachment, steady and follower rest, pump for coolant, etc. Toolroom Lathe is costlier as compared
to the engine lathe. It is mainly using in grindings, working on the tool, dies gauges and in machining
work where is accuracy is needed.

Read Also: Broaching Machine: Types, Operations, Advantages and Broaching Methods

TheEngineersPost.com Page 7
 Lathe Machine

5. Capstan Lathe and Turret Lathe

This types of lathe machines are using in production work. These lathe machines are the
development of the engine lathe. These machines provided by hexagonal turret head instead of the
tailstock. It also consists of three tool post.

In these types of lathe machines, multiple tools may be fitted and fed into the work in the proper
sequence. The main advantage is that different operations and parts can produce in very less
amount of time. And also without changing the tool the quantity and quality are high.

Capstan and turret lathe requires more floor space than other lathe machines. Capstan and turret
lathe is using for only large jobs.

Read full article on Capstan and Turret lathe

6. Special purpose lathe machines

As the name implies these types of lathe machines used for the special purpose and for production
work. In this lathe, special operations are performed such as drilling, grinding, reaming, boring etc.

The special purpose lathe machines are:

1. Wheel lathe machine

2. Gap bed lathe machine
3. T-lathe machine
4. Duplicating lathe machine
5. Missile lathe machine

1. Wheel Lathe Machine

The wheel lathe is made for finishing the journals and turning the thread on the railroad, automobile
cars and locomotive wheels.

2. Gap Bed Lathe

The gap bed lathe, in which a section of the bed adjacent to the headstock is removable, is used to
swing extra large diameter pieces.

3. T-Lathe

The "T -lathe" is using for machining rotors for jet engines. The axis of the lathe bed is at right angles
to the axis of the headstock spindle in the form of a T.

4. Duplicating Lathe

The duplicating lathe machine is one of the duplicating the shape of a flat or round template on to
the workpiece. Mechanical, pneumatic and hydraulic devices are all used to coordinate the
movement of the tool to reproduce accurately the shape of the template.

TheEngineersPost.com Page 8
 Lathe Machine

5. Missile Lathe Machine

The missile lathe machine which has a very large swing for accommodating long missile component
of very large diameter is the most modern and latest in lathe design.

7. Automatic Lathe

In these types of lathe machines, all the work is done automatically. These are the high-speed heavy-
duty, production lathes. In these types of lathe machines once the tool is set it performs all the
operations automatically to finish the job.

Here the change of tools and feed are automatically. The single operator can control 5 to 6
automatic lathe at a time.

Lathe machine performs the different operation such as turning, facing, taper turning, knurling,
grooving, parting off, electric turning, thread cutting, reaming etc. Let it take one by one as follows.

Read Also: Metal Saw Machine and Types of Sawing Machine

Lathe Machine Operations

The lathe machine operations are classified into three main categories.

Lathe machine operations done either by holding the workpiece between centres or by a chuck
are:

1. Turning
1. Plain or Straight Turning
2. Rough Turning
3. Shoulder Turning
4. Taper Turning
5. Eccentric Turning
2. Facing
3. Chamfering
4. Knurling
5. Thread cutting
6. Filing
7. Polishing
8. Grooving
9. Spinning
10. Spring Winding
11. Forming

Lathe machine operations performed by holding the work by a chuck or a faceplate or an angle
plate:

1. Drilling
2. Reaming
3. Boring
4. Counterboring

TheEngineersPost.com Page 9
 Lathe Machine

5. Taper boring
6. Tapping
7. Undercutting
8. Internal thread cutting
9. Parting-off

The operation performed by using special attachments:

1. Grinding
2. Milling

Read full article here: 22 Different Types of Lathe Machine Operations

Lathe Machine Accessories

The lathe machine accessories are used either for holding and supporting the workpiece or for
holding the tool. The important lathe accessories are

1. Centres
2. Chucks
3. Collets
4. Angle Plates
5. Face Plates
6. Mandrels
7. Catch Plates and Carriers

Read also: 7 Types Of Lathe Machine Chucks

Lathe Attachments
The lathe machine attachments are additional types of equipment used for some special and specific
purposes. The important lathe attachments are

1. Stops
2. Rests
3. Taper turning attachments
4. Milling attachments
5. Grinding attachments
6. Gear attachments
7. Boring attachments

That's it, thanks for reading. If you like this post please share with your friends.

TheEngineersPost.com Page 10
 Lathe Machine

Join our Facebook Page.

Read more on our blog:

1. The Complete List of Milling Machine Operations

2. 6 Different types of Shaper Machine Operations
3. Press Machine and Types of Press Machine

TheEngineersPost.com Page 11
