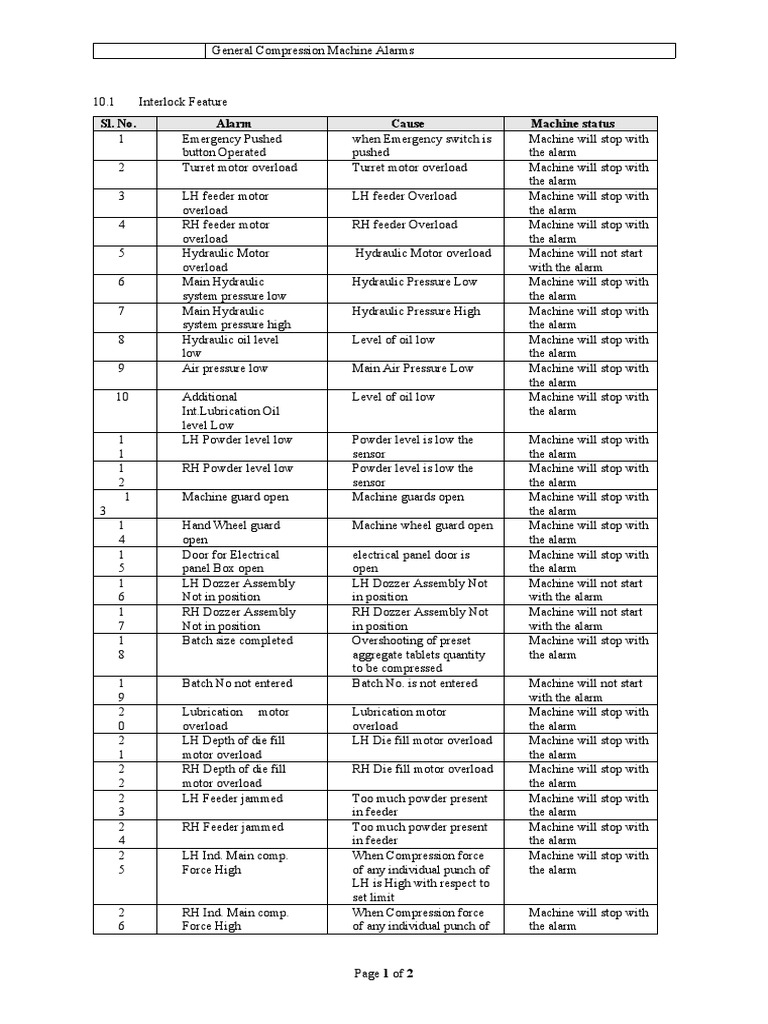

    General Compression Machine Alarms

    10.1 Interlock Feature


    Sl. No. Alarm Cause Machine status
    1 Emergency Pushed when Emergency switch is Machine will stop with
    button Operated pushed the alarm
    2 Turret motor overload Turret motor overload Machine will stop with
    the alarm
    3 LH feeder motor LH feeder Overload Machine will stop with
    overload the alarm
    4 RH feeder motor RH feeder Overload Machine will stop with
    overload the alarm
    5 Hydraulic Motor Hydraulic Motor overload Machine will not start
    overload with the alarm
    6 Main Hydraulic Hydraulic Pressure Low Machine will stop with
    system pressure low the alarm
    7 Main Hydraulic Hydraulic Pressure High Machine will stop with
    system pressure high the alarm
    8 Hydraulic oil level Level of oil low Machine will stop with
    low the alarm
    9 Air pressure low Main Air Pressure Low Machine will stop with
    the alarm
    10 Additional Level of oil low Machine will stop with
    Int.Lubrication Oil the alarm
    level Low
    1 LH Powder level low Powder level is low the Machine will stop with
    1 sensor the alarm
    1 RH Powder level low Powder level is low the Machine will stop with
    2 sensor the alarm
    1 Machine guard open Machine guards open Machine will stop with
    3 the alarm
    1 Hand Wheel guard Machine wheel guard open Machine will stop with
    4 open the alarm
    1 Door for Electrical electrical panel door is Machine will stop with
    5 panel Box open open the alarm
    1 LH Dozzer Assembly LH Dozzer Assembly Not Machine will not start
    6 Not in position in position with the alarm
    1 RH Dozzer Assembly RH Dozzer Assembly Not Machine will not start
    7 Not in position in position with the alarm
    1 Batch size completed Overshooting of preset Machine will stop with
    8 aggregate tablets quantity the alarm
    to be compressed
    1 Batch No not entered Batch No. is not entered Machine will not start
    9 with the alarm
    2 Lubrication motor Lubrication motor Machine will stop with
    0 overload overload the alarm
    2 LH Depth of die fill LH Die fill motor overload Machine will stop with
    1 motor overload the alarm
    2 RH Depth of die fill RH Die fill motor overload Machine will stop with
    2 motor overload the alarm
    2 LH Feeder jammed Too much powder present Machine will stop with
    3 in feeder the alarm
    2 RH Feeder jammed Too much powder present Machine will stop with
    4 in feeder the alarm
    2 LH Ind. Main comp. When Compression force Machine will stop with
    5 Force High of any individual punch of the alarm
    LH is High with respect to
    set limit
    2 RH Ind. Main comp. When Compression force Machine will stop with
    6 Force High of any individual punch of the alarm

    Page 1 of 2
    General Compression Machine Alarms

    RH is High with respect to


    set limit
    2 LH Standard Standard deviation limit is Machine will stop with
    7 Deviation beyond not in Set Range the alarm
    Limit
    2 RH Standard Standard deviation limit is Machine will stop with
    8 Deviation beyond not in Set Range the alarm
    Limit
    2 RH Permitted Tab RH Tablet Rejected Higher Machine will stop with
    9 Rejection High in 1 than Set value the alarm
    revolution
    3 LH Permitted Tab LH Tablet Rejected Higher Machine will stop with
    0 Rejection High in 1 than Set value the alarm
    revolution
    3 LH Tablet counting Counting proxy sensor not Machine will stop with
    1 proxy not in position in position the alarm
    3 RH Tablet counting Counting proxy sensor not Machine will stop with
    2 proxy not in position in position the alarm
    3 LH Home position Home position proxy Machine will stop with
    3 proxy not in position sensor not in position the alarm
    3 RH Home position Home position proxy Machine will stop with
    4 proxy not in position sensor not in position the alarm

    Page 2 of 2
