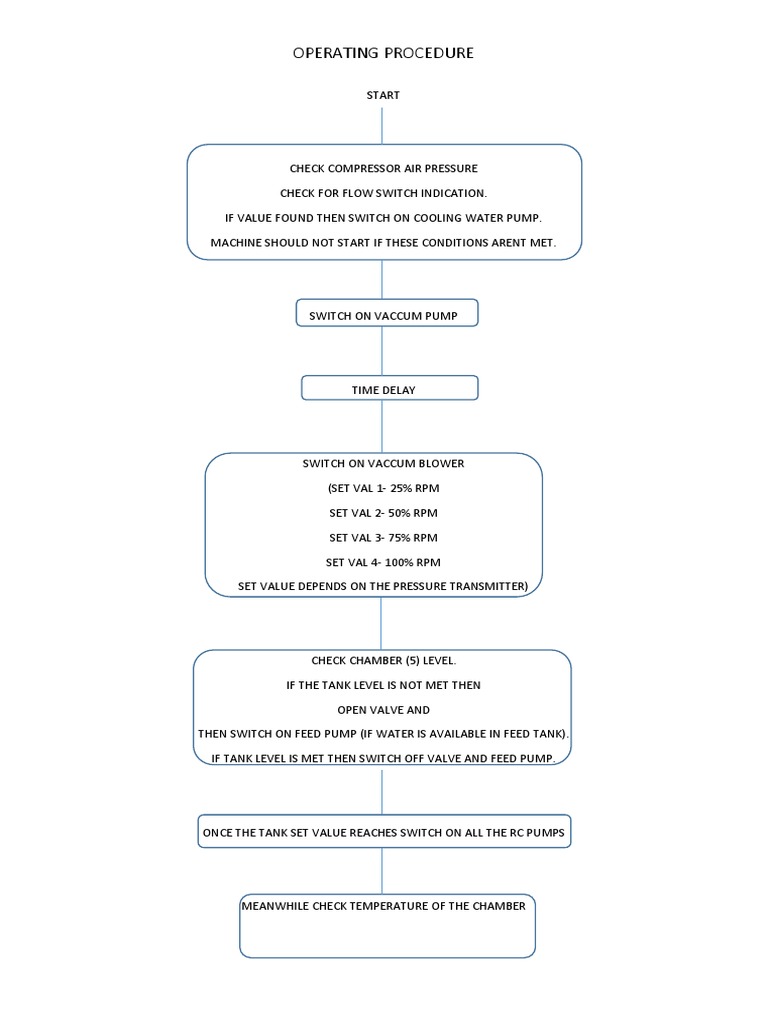

OPERATING PROCEDURE

START

CHECK COMPRESSOR AIR PRESSURE

CHECK FOR FLOW SWITCH INDICATION.
IF VALUE FOUND THEN SWITCH ON COOLING WATER PUMP.
MACHINE SHOULD NOT START IF THESE CONDITIONS ARENT MET.

SWITCH ON VACCUM PUMP

TIME DELAY

SWITCH ON VACCUM BLOWER

(SET VAL 1- 25% RPM

SET VAL 2- 50% RPM

SET VAL 3- 75% RPM

SET VAL 4- 100% RPM

SET VALUE DEPENDS ON THE PRESSURE TRANSMITTER)

CHECK CHAMBER (5) LEVEL.

IF THE TANK LEVEL IS NOT MET THEN
OPEN VALVE AND

THEN SWITCH ON FEED PUMP (IF WATER IS AVAILABLE IN FEED TANK).

IF TANK LEVEL IS MET THEN SWITCH OFF VALVE AND FEED PUMP.

ONCE THE TANK SET VALUE REACHES SWITCH ON ALL THE RC PUMPS

MEANWHILE CHECK TEMPERATURE OF THE CHAMBER

 OPERATING PROCEDURE

IF SET TEMPERATURE IS NOT REACHED THEN

OPEN VALVE AND BRING IN OIL
IF TEMPERATURE REACHES THEN SWITCH OFF VALVE

ONCE THE VACCUM REACHES THE x SET VALUE

TURN ON MVR BOOSTER (15KW)

(SET VAL 1- 25% RPM

SET VAL 2- 50% RPM

SET VAL 3- 75% RPM

SET VAL 4- 100% RPM)

AFTER X no. OF SECONDS

ONCE THE VACCUM REACHES THE y SET VALUE

TURN ON MVR BOOSTER (90 KW)

(SET VAL 1- 25% RPM

SET VAL 2- 50% RPM

SET VAL 3- 75% RPM

SET VAL 4- 100% RPM)

ONCE THE VACCUM REACHES THE z SET VALUE

AFTER X no. OF SECONDS

TURN ON MVR BOOSTER (37 KW)

(SET VAL 1- 25% RPM

SET VAL 2- 50% RPM

SET VAL 3- 75% RPM

SET VAL 4- 100% RPM)

 OPERATING PROCEDURE

FLOW OF THE TANK IS MEASURED VIA A PRESSURE TRANMITTER

WHEN THE DESIRED SET VALUE REACHES
SWITCH ON CONDENSATE PUMP
OPEN VALVE

IF BPE SET VALUE IS REACHED

THEN SWITCH ON REJECT PUMP.

OPEN VALVE
