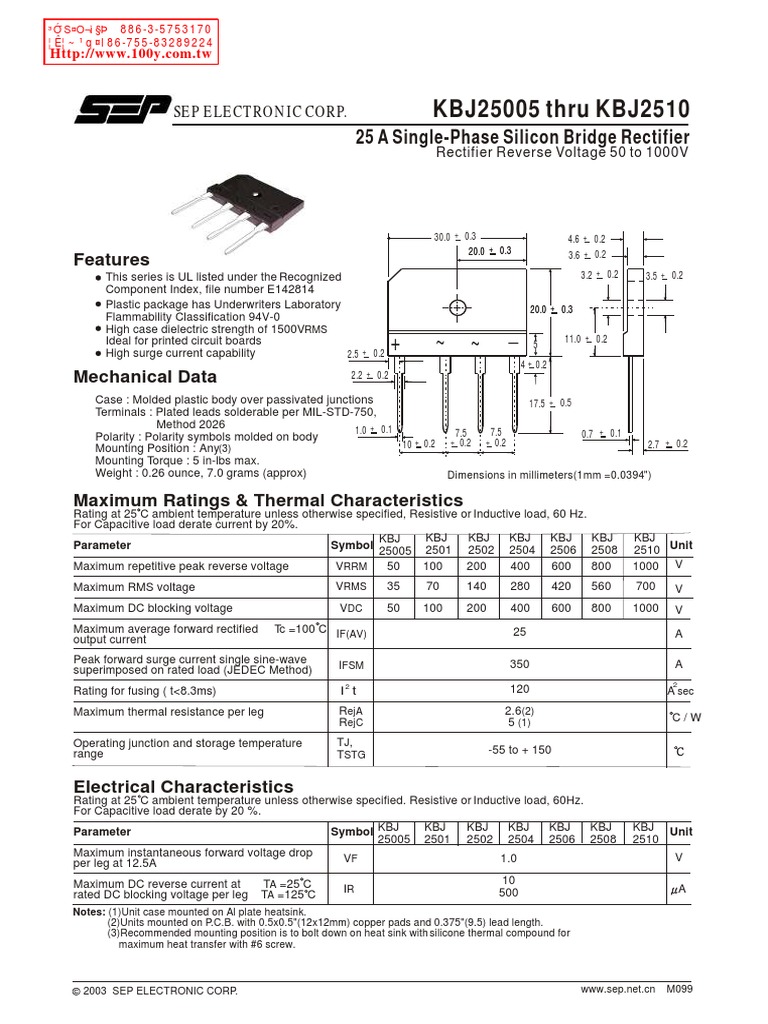

SEP ELECTRONIC CORP. KBJ25005 thru KBJ2510

25 A Single-Phase Silicon Bridge Rectifier
Rectifier Reverse Voltage 50 to 1000V

30.0 + 0.3 4.6 + 0.2

20.0 + 0.3 3.6 + 0.2
Features
This series is UL listed under the Recognized 3.2 + 0.2 3.5 + 0.2
Component Index, file number E142814
Plastic package has Underwriters Laboratory 20.0 + 0.3
Flammability Classification 94V-0

~ ~ _
High case dielectric strength of 1500VRMS
Ideal for printed circuit boards
High surge current capability 2.5 + 0.2
+ 5
11.0 + 0.2

4 +0.2
Mechanical Data 2.2 + 0.2

Case : Molded plastic body over passivated junctions 17.5 + 0.5

Terminals : Plated leads solderable per MIL-STD-750,
Method 2026
1.0 + 0.1 7.5 7.5 0.7 + 0.1
Polarity : Polarity symbols molded on body + 0.2 + 0.2 + 0.2 + 0.2
Mounting Position : Any(3) 10 2.7
Mounting Torque : 5 in-lbs max.
Weight : 0.26 ounce, 7.0 grams (approx) Dimensions in millimeters(1mm =0.0394＂）

Maximum Ratings & Thermal Characteristics

Rating at 25 C ambient temperature unless otherwise specified, Resistive or Inductive load, 60 Hz.
For Capacitive load derate current by 20%.
KBJ KBJ KBJ KBJ KBJ KBJ KBJ
Parameter Symbol 2510 Unit
25005 2501 2502 2504 2506 2508
Maximum repetitive peak reverse voltage VRRM 50 100 200 400 600 800 1000 V
Maximum RMS voltage VRMS 35 70 140 280 420 560 700 V
Maximum DC blocking voltage VDC 50 100 200 400 600 800 1000 V
Maximum average forward rectified Tc =100 C IF(AV) 25 A
output current
Peak forward surge current single sine-wave IFSM 350 A
superimposed on rated load (JEDEC Method)
2 2
Rating for fusing ( t<8.3ms) I t 120 A sec
Maximum thermal resistance per leg RejA 2.6(2)
RejC 5 (1) C/W

Operating junction and storage temperature TJ,

range TSTG -55 to + 150

Electrical Characteristics
Rating at 25 C ambient temperature unless otherwise specified. Resistive or Inductive load, 60Hz.
For Capacitive load derate by 20 %.
Parameter Symbol KBJ KBJ KBJ KBJ KBJ KBJ KBJ Unit
25005 2501 2502 2504 2506 2508 2510
Maximum instantaneous forward voltage drop V
per leg at 12.5A VF 1.0

Maximum DC reverse current at TA =25 C 10

rated DC blocking voltage per leg TA =125 C IR 500 A

Notes: (1)Unit case mounted on Al plate heatsink.

(2)Units mounted on P.C.B. with 0.5x0.5"(12x12mm) copper pads and 0.375"(9.5) lead length.
(3)Recommended mounting position is to bolt down on heat sink with silicone thermal compound for
maximum heat transfer with #6 screw.

2003 SEP ELECTRONIC CORP. www.sep.net.cn M099

 勝特力科技 886-3-5753170
百年電子 86-755-83289224
Http://www.100y.com.tw

Rating and Characteristic Curves ( TA=25oC Unless otherwise noted )

KBJ25005 thru KBJ2510

Fig. 1 Derating Curve for Fig. 2 Maximum Non-repetitive Peak

Output Rectified Current Forward Surge Current
30.0
400
with heatsink

Peak Forward Surge Current,

Average Forward Output

8.3ms
25.0
Single half-sine-Wave
300 [JEDEC Method]
Current, Amperes

20.0

200
15.0 60Hz Resistive of
Inductive Load

Amperes
10.0 100

5.0 without heatsink 0

1 10 100
0 Number of Cycles at 60HZ
0 50 100 150
o
Case Temperature, C Fig. 4 Typical Reverse
Characteristics at Tj=25 oC
1000
Tj=150 C

Fig. 3 Typical Instantaneous 100

Instantaneous Reverse

Tj=125 C
Forward Characteristics
Current ,Amperes

Tj=100 C
10
10
Instantaneous Forward Current,

1.0
Tj=25 C
Tj=60
Tj=25 C

1.0 0.1
0 20 40 60 80 100 120 140
Percent of Rated Peak Reverse
Voltage, %
Amperes

0.1 Fig. 5 Typical Junction Capacitance

Tj=25 C
Pulse Width=300us 1000
2% duty cycle
Tj=25 C
f=1.0MHz
Ving =50mV p.p.
.01
0.4 0.6 0.8 1.0 1.2 1.4 1.6
Capacitance, pF

Instantaneous Forward
Voltage, Volts 100

10
0.1 1 10 100

Reverse Voltage, Volts
