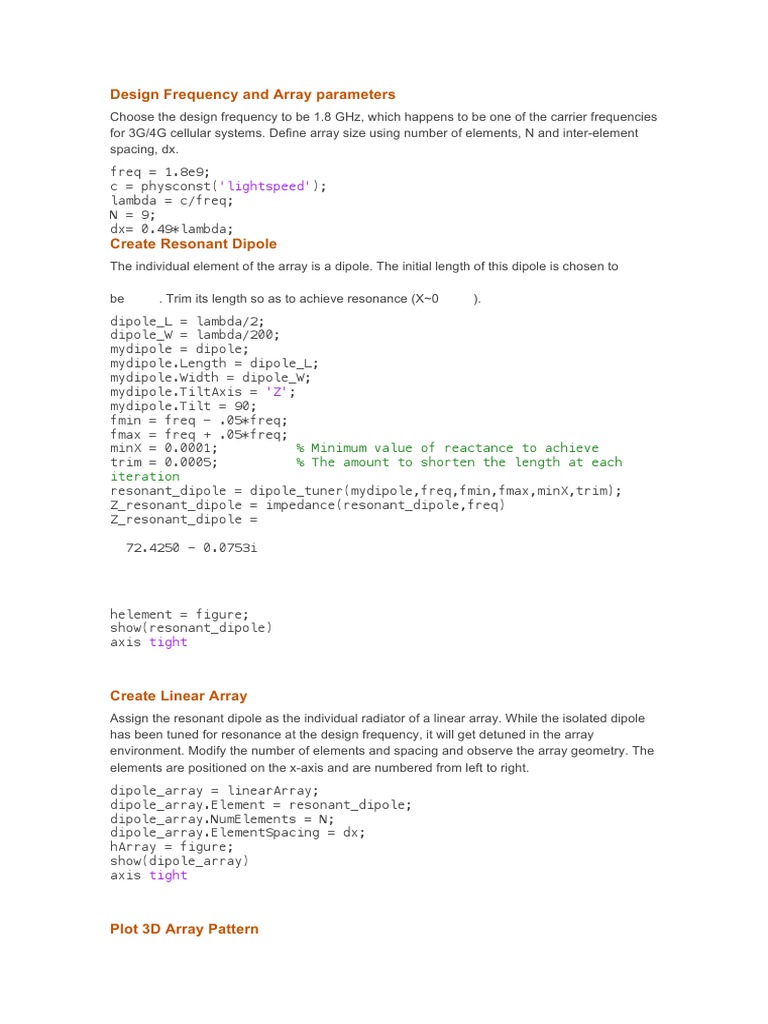

Design Frequency and Array parameters

Choose the design frequency to be 1.8 GHz, which happens to be one of the carrier frequencies
for 3G/4G cellular systems. Define array size using number of elements, N and inter-element
spacing, dx.
freq = 1.8e9;
c = physconst('lightspeed');
lambda = c/freq;
N = 9;
dx= 0.49*lambda;
Create Resonant Dipole
The individual element of the array is a dipole. The initial length of this dipole is chosen to

be . Trim its length so as to achieve resonance (X~0 ).

dipole_L = lambda/2;
dipole_W = lambda/200;
mydipole = dipole;
mydipole.Length = dipole_L;
mydipole.Width = dipole_W;
mydipole.TiltAxis = 'Z';
mydipole.Tilt = 90;
fmin = freq - .05*freq;
fmax = freq + .05*freq;
minX = 0.0001; % Minimum value of reactance to achieve
trim = 0.0005; % The amount to shorten the length at each
iteration
resonant_dipole = dipole_tuner(mydipole,freq,fmin,fmax,minX,trim);
Z_resonant_dipole = impedance(resonant_dipole,freq)
Z_resonant_dipole =

72.4250 - 0.0753i

helement = figure;
show(resonant_dipole)
axis tight

Create Linear Array

Assign the resonant dipole as the individual radiator of a linear array. While the isolated dipole
has been tuned for resonance at the design frequency, it will get detuned in the array
environment. Modify the number of elements and spacing and observe the array geometry. The
elements are positioned on the x-axis and are numbered from left to right.
dipole_array = linearArray;
dipole_array.Element = resonant_dipole;
dipole_array.NumElements = N;
dipole_array.ElementSpacing = dx;
hArray = figure;
show(dipole_array)
axis tight

Plot 3D Array Pattern

Visualize the pattern for the linear array in 3D space at the design frequency.
pattern3Dfig = figure;
pattern(dipole_array,freq)

Plot 2D Radiation Pattern

The 3D pattern of the array shows the maximum of the beam at an azimuthal angle of 90 deg.
Plot the 2D radiation pattern in the azimuthal plane(x-y plane) which corresponds to zero
elevation angle.
patternazfig1 = figure;
az_angle = 1:0.25:180;
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
axis([0 180 -25 15])

The array has a peak directivity of 12.83 dBi, and the first sidelobes on either side of the peak
are approximately 13 dB down. This is because the array has a uniform amplitude taper with all
elements fed at 1V. The sidelobe level can be controlled by using different amplitude tapers on
the array elements such as Chebyshev and Taylor.

Beam Scanning
Choosing a set of phase shifts allows us to scan the beam to a specific angle. This linear array
configuration enables scanning in the azimuthal plane (x-y plane), which corresponds to zero
elevation angle. Scan the beam 30 deg off broadside (azimuthal angle of 120 deg).
scanangle = [120 0];
ps = phaseshift(freq,dx,scanangle,N);
dipole_array.PhaseShift = ps;
patternazfig2 = figure;
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
axis([0 180 -25 15])

The peak of the main beam is now 30 deg away from the initial peak (azimuth = 90 deg). Note
the drop in directivity of about 0.9 dB. For infinite arrays, this drop increases with increasing the
scan angle according to a cosine law.

Plot Element Patterns of Corner and Central Elements

In small arrays, the pattern of the individual element can vary significantly. In order to establish
this fact, plot the pattern of the central elements and of the two edge elements. To obtain these
patterns, excite every element alone and terminate the rest into a reference impedance. The
elements are numbered from left to right, in the direction of the x-axis.
element_number = [1 ceil(N/2)-1 ceil(N/2) ceil(N/2)+1 N];
D_element = nan(numel(element_number),numel(az_angle));
legend_string = cell(1,numel(element_number));
for i = 1:numel(element_number)
D_element(i,:) = pattern(dipole_array,freq,az_angle,0,
...
'CoordinateSystem','rectangular',
...
'ElementNumber',element_number(i),
...
 'Termination',real(Z_resonant_dipole));
legend_string{i} = strcat('N = ',num2str(element_number(i)));
end
patternazfig3 = figure;
plot(az_angle,D_element,'LineWidth',1.5)
xlabel('Azimuth (deg)')
ylabel('Directivity (dBi)')
title('Element Patterns')
grid on
legend(legend_string,'Location','best')

The plot of the element patterns reveals that, apart from the central element, all the others are
mirror images about the center of the plot, i.e. the element pattern of the 1st element is a mirror
reflection about azimuth = 90 deg of the element pattern of the 9th element, etc.

Mutual Coupling

dipole_array.NumElements = 2;
dipole_array.AmplitudeTaper = 1;
dipole_array.PhaseShift = 0;
To observe the effect of mutual coupling, vary the spacing between the array elements and plot

the variation in , mutual impedance between the pair of dipoles in the array [1]. Since the
elements are parallel to each other, the coupling is strong.
spacing = (lambda/2:0.05:2).*lambda;
Z12 = nan(1,numel(spacing));
for i = 1:numel(spacing)
dipole_array.ElementSpacing = spacing(i);
s = sparameters(dipole_array,freq,real(Z_resonant_dipole));
S = s.Parameters;
Z12(i) = 2*S(1,2)*70/((1 - S(1,1))*(1- S(2,2)) - S(1,2)*S(2,1));
end
mutualZ12fig = figure;
plot(spacing./lambda,real(Z12),spacing./lambda,imag(Z12),'LineWidth',2
)
xlabel('Spacing, d/\lambda')
ylabel('Impedance (\Omega)')
grid on
title('Mutual Impedance Variation With Spacing')
legend('Resistance','Reactance')

Grating Lobes

dipole_array.NumElements = 9;
dipole_array.ElementSpacing = lambda/2;
D_half_lambda =
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
;
dipole_array.ElementSpacing = 0.75*lambda;
D_three_quarter_lambda =
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
;
dipole_array.ElementSpacing = 1.5*lambda;
D_lambda =
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
;
patterngrating1 = figure;
plot(az_angle,D_half_lambda,az_angle,D_three_quarter_lambda,az_angle,D
_lambda,'LineWidth',1.5);
grid on
xlabel('Azimuth (deg)')
ylabel('Directivity (dBi)')
title('Array Pattern (Elevation = 0 deg)')
legend('d=\lambda/2','d=0.75\lambda','d=1.5\lambda','Location','best')

Compared to the spaced array, the spaced array shows 2 additional equally strong

peaks in the visible space - the grating lobes. The spaced array still has a single unique
beam peak at zero scan off broadside (azimuthal angle of 90 deg). Scan this array off broadside
to observe appearance of the grating lobes.
dipole_array.ElementSpacing = 0.75*lambda;
azscan = 45:10:135;
scanangle = [azscan ;zeros(1,numel(azscan))];
D_scan = nan(numel(azscan),numel(az_angle));
legend_string1 = cell(1,numel(azscan));
for i = 1:numel(azscan)
ps = phaseshift(freq,dx,scanangle(:,i),N);
dipole_array.PhaseShift = ps;
D_scan(i,:) =
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
;
legend_string1{i} = strcat('scan = ',num2str(azscan(i)),' deg');
end
patterngrating2 = figure;
plot(az_angle,D_scan,'LineWidth',1)
xlabel('Azimuth (deg)')
ylabel('Directivity (dBi)')
title('Scan Pattern for 0.75\lambda Spacing Array ((Elevation = 0
deg)')
grid on
legend(legend_string1,'Location','best')

The spacing array with uniform excitation and zero phaseshift does not have grating lobes
in the visible space. The peak of the main beam occurs at broadside (azimuth = 90 deg).
However for the scan angle of 65 deg and lower, and for 115 deg and higher the grating lobe

enters visible space. To avoid grating lobes, choose an element spacing of or less. With
smaller spacing, the mutual coupling is stronger.

Effect of Element Pattern on Array Pattern

To study the effect of the element pattern on the overall array pattern, plot the normalized
central element pattern versus the normalized directivity of the linear array of 9 dipoles at
broadside.
dipole_array.ElementSpacing = 0.49*lambda;
dipole_array.PhaseShift = 0;
Dmax = pattern(dipole_array,freq,90,0);
D_scan = nan(numel(azscan),numel(az_angle)); % Pre-allocate
legend_string2 = cell(1,numel(azscan)+1);
legend_string2{1} = 'Center element';
for i = 1:numel(azscan)
ps = phaseshift(freq,dx,scanangle(:,i),N);
dipole_array.PhaseShift = ps;
D_scan(i,:) =
pattern(dipole_array,freq,az_angle,0,'CoordinateSystem','rectangular')
;
D_scan(i,:) = D_scan(i,:) - Dmax;
legend_string2{i+1} = strcat('scan = ',num2str(azscan(i)));
end
patternArrayVsElement = figure;
plot(az_angle,D_element(3,:) - max(D_element(3,:)),'LineWidth',3)
hold on
plot(az_angle,D_scan,'LineWidth',1)
axis([min(az_angle) max(az_angle) -20 0])
xlabel('Azimuth (deg)')
ylabel('Directivity (dBi)')
title('Scan Pattern for 0.49\lambda Spacing Array')
grid on
legend(legend_string2,'Location','southeast')
hold off
