PHYSICS X FALGUNI MISS
Mark: 20
Time: 25 min

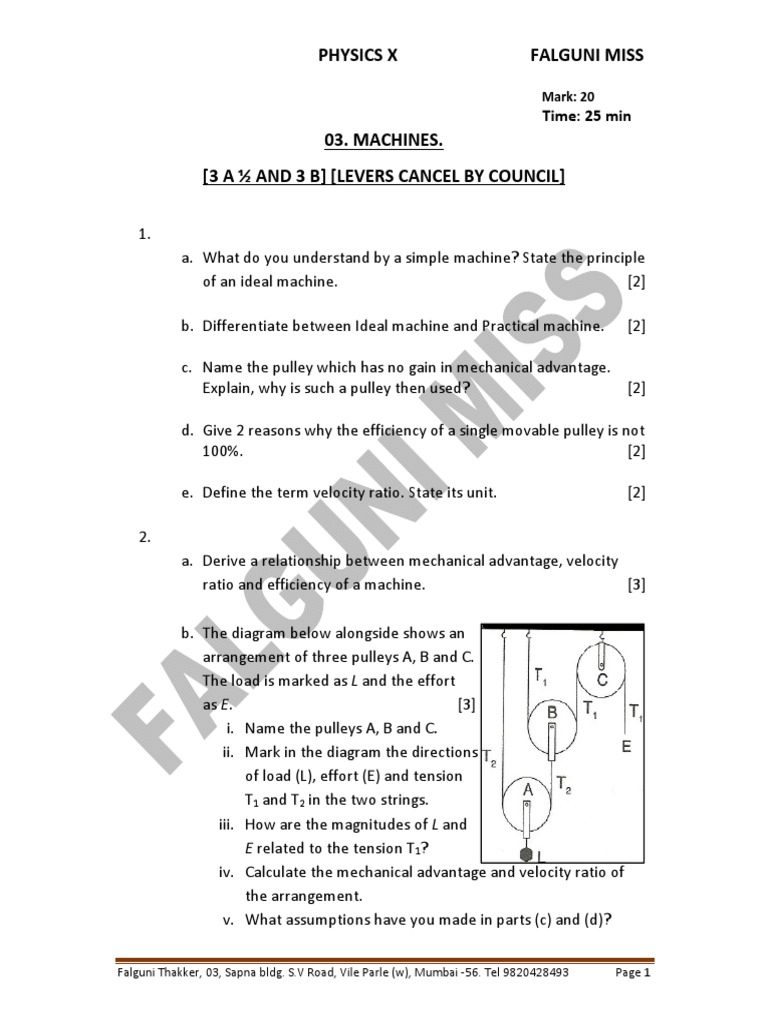

03. MACHINES.
[3 A ½ AND 3 B] [LEVERS CANCEL BY COUNCIL]
1.
a. What do you understand by a simple machine? State the principle
of an ideal machine. [2]
b. Differentiate between Ideal machine and Practical machine. [2]
c. Name the pulley which has no gain in mechanical advantage.
Explain, why is such a pulley then used? [2]
d. Give 2 reasons why the efficiency of a single movable pulley is not
100%. [2]
e. Define the term velocity ratio. State its unit. [2]
2.
a. Derive a relationship between mechanical advantage, velocity
ratio and efficiency of a machine. [3]
b. The diagram below alongside shows an
arrangement of three pulleys A, B and C.
The load is marked as L and the effort
as E. [3]
i. Name the pulleys A, B and C.
ii. Mark in the diagram the directions
of load (L), effort (E) and tension
T1 and T2 in the two strings.
iii. How are the magnitudes of L and
E related to the tension T1?
iv. Calculate the mechanical advantage and velocity ratio of
the arrangement.
v. What assumptions have you made in parts (c) and (d)?
Falguni Thakker, 03, Sapna bldg. S.V Road, Vile Parle (w), Mumbai ‐56. Tel 9820428493 Page 1
PHYSICS X FALGUNI MISS
c. A pulley system has a velocity ratio 3. [4]
i. Draw a diagram showing the point of application and
direction of load (L), effort (E) and tension (T).
ii. It lifts a load of 150 N by an effort of 60 N. Calculate its
mechanical advantage.
iii. Is the pulley system ideal? Give reasons.
