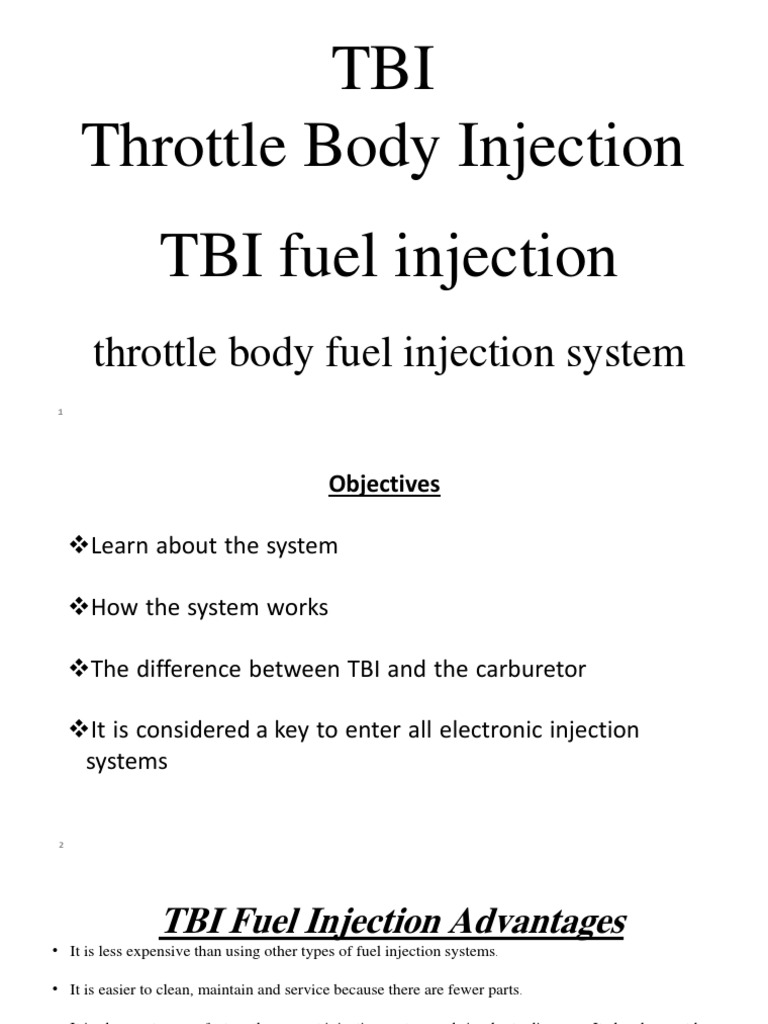

TBI

Throttle Body Injection

TBI fuel injection
throttle body fuel injection system
1
 Objectives

Learn about the system

How the system works

The difference between TBI and the carburetor

It is considered a key to enter all electronic injection

systems

2
 TBI Fuel Injection Advantages
• It is less expensive than using other types of fuel injection systems.

• It is easier to clean, maintain and service because there are fewer parts.

• It is cheaper to manufacture than a port injection system and simpler to diagnose. It also does not have
the same level of injector balance problems that a port injection system might have when the
injectors are clogged.

• It greatly improves the fuel metering compared to a carburetor.

• You do not have to make any changes to the TBI intake manifold. You also do not have to change the
throttle linkage. Instead, use the existing linkage, air cleaners and carbs to install the system.

• It is also capable of logging data and can be programmed for ignition and fuel. The TBI system is that
it learns and understands your habits when driving so it can easily map out your actions and the
performance of the engine.

3
 TBI Fuel Injection Disadvantages
• It is almost the same as a TBI carburetor wherein the fuel is not equally distributed to
all the cylinders. This means that the air/fuel mixture injected differs for each cylinder.

• It can cool the manifold much faster causing the fuel to puddle and condense in the
manifold. The possibility of condensation is much higher since the fuel travels longer
from the throttle body to the combustion chamber
.
• Since the system needs to be mounted on top of the combustion chamber, you're
prevented from modifying the manifold design to improve your car's performance.

• It is a wet system and the mixture of fuel is still based per cylinder.

4
5 TBI engine component location on the 2.5L (VIN R) engine
 This non-synchronized mode of operation is for a single throttle body
injection system
6
This non-synchronized mode of operation is for a dual throttle
body injection system
7
During engine cranking, the ECM/PCM will deliver a synchronized
injector pulse for each distributor reference pulse
8
 Run mode with the engine cold in open loop
9
 Run mode with the engine cold in closed loop

10
11
12
13
14
15
 Fuel pump wiring circuit
