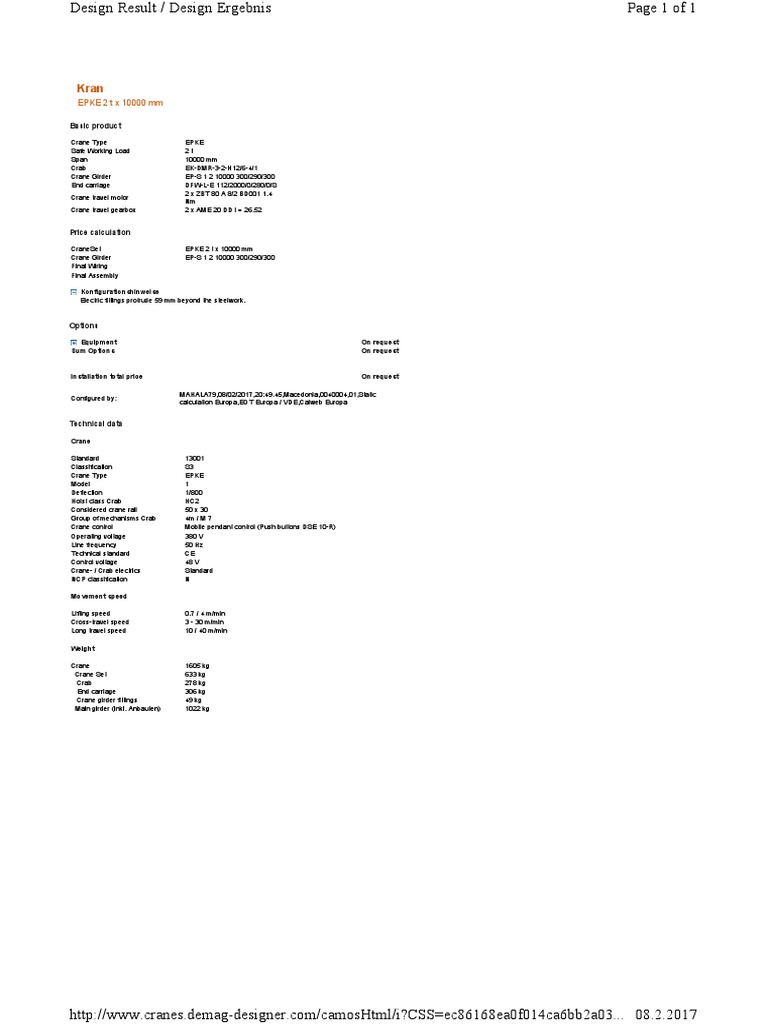

Design Result / Design Ergebnis Page 1 of 1

Kran
EPKE 2 t x 10000 mm

Basic product

Crane Type EPKE

Safe Working Load 2t
Span 10000 mm
Crab EK-DMR-3-2-H12/6-4/1
Crane Girder EP-S 1 2 10000 300/290/300
End carriage DFW-L-E 112/2000/0/280/0/S
2 x ZBT 80 A 8/2 BD001 1.4
Crane travel motor
Nm
Crane travel gearbox 2 x AME 20 DD i = 26.52

Price calculation

CraneSet EPKE 2 t x 10000 mm

Crane Girder EP-S 1 2 10000 300/290/300
Final Wiring
Final Assembly

Konfigurationshinweise
Electric fittings protrude 59 mm beyond the steelwork.

Options

Equipment On request
Sum Options On request

Installation total price On request

MAHALA79,08/02/2017,20:49.45,Macedonia,0040004,01,Static
Configured by:
calculation Europa,EOT Europa / VDE,Calweb Europa

Technical data

Crane

Standard 13001
Classification S3
Crane Type EPKE
Model 1
Deflection 1/800
Hoist class Crab HC2
Considered crane rail 50 x 30
Group of mechanisms Crab 4m / M 7
Crane control Mobile pendant control (Push buttons DSE 10-R)
Operating voltage 380 V
Line frequency 50 Hz
Technical standard CE
Control voltage 48 V
Crane- / Crab electrics Standard
NCP classification N

Movement speed

Lifting speed 0.7 / 4 m/min

Cross-travel speed 3 - 30 m/min
Long travel speed 10 / 40 m/min

Weight

Crane 1605 kg
Crane Set 633 kg
Crab 278 kg
End carriage 306 kg
Crane girder fittings 49 kg
Main girder (inkl. Anbauten) 1022 kg
