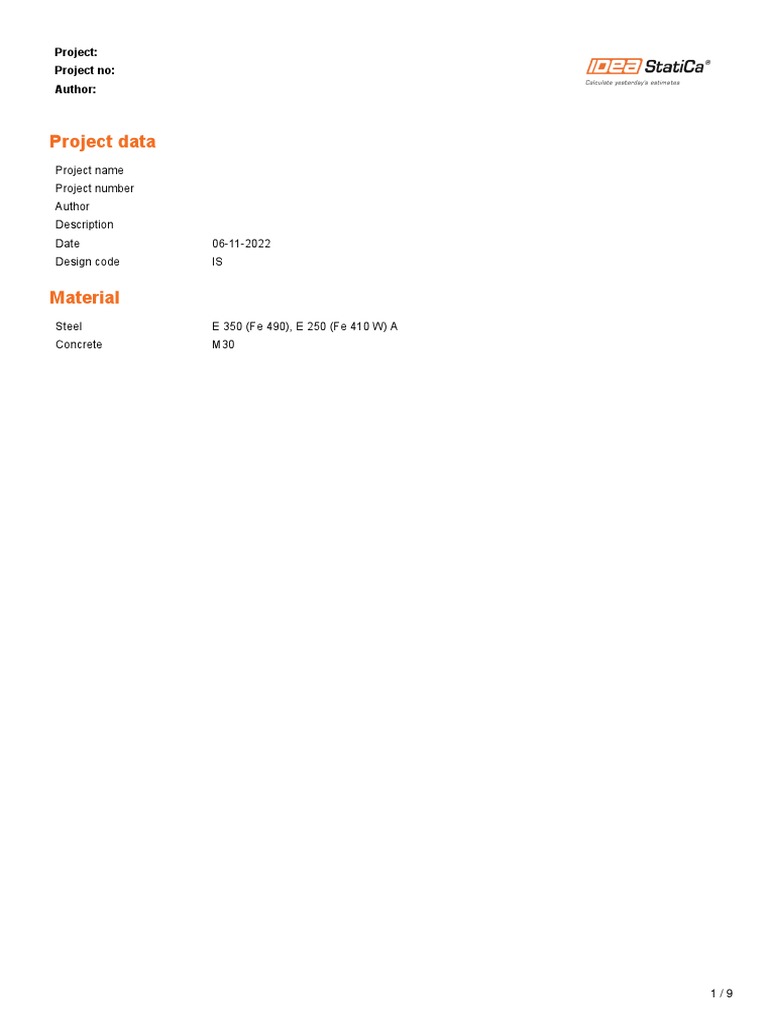

Project data
Project name
Project number
Author
Description
Date 06-11-2022
Design code IS

Material
Steel E 350 (Fe 490), E 250 (Fe 410 W) A
Concrete M30

1/9
Project:
Project no:
Author:

Project item CON1

Design
Name CON1
Description
Analysis Stress, strain/ simplified loading

Beams and columns

β – Direction γ - Pitch α - Rotation Offset ex Offset ey Offset ez
Name Cross-section Forces in
[°] [°] [°] [mm] [mm] [mm]
M1 1 - FLA100/10 0.0 0.0 0.0 0 0 0 Node
M2 2 - ISA 65658 0.0 0.0 0.0 0 0 0 Node

2/9
Project:
Project no:
Author:

Cross-sections
Name Material
1 - FLA100/10 E 250 (Fe 410 W) A
2 - ISA 65658 E 250 (Fe 410 W) A

Bolts
Diameter fu Gross area
Name Bolt assembly
[mm] [MPa] [mm2]
M16 8.8 M16 8.8 16 800.0 201

Load effects (equilibrium not required)

N Vy Vz Mx My Mz
Name Member
[kN] [kN] [kN] [kNm] [kNm] [kNm]
LE1 M2 0.0 0.0 0.0 0.0 0.0 0.0
M2 -45.0 0.0 0.0 0.0 0.0 0.0

Check

Summary
Name Value Check status
Analysis 100.0% OK
Plates 0.1 < 5.0% OK
Bolts 43.1 < 100% OK
Buckling Not calculated

3/9
 Project:
Project no:
Author:

Plates
fyd Thickness σ εPl σcEd
Name Material Loads Check status
[MPa] [mm] [MPa] [%] [MPa]
M1-bfl 1 E 250 (Fe 410 W) A 227.3 10.0 LE1 227.5 0.1 27.6 OK
M2-bfl 1 E 250 (Fe 410 W) A 227.3 8.0 LE1 220.3 0.0 34.7 OK
M2-w 1 E 250 (Fe 410 W) A 227.3 8.0 LE1 108.7 0.0 0.0 OK

Overall check, LE1

4/9
 Project:
Project no:
Author:

Strain check, LE1

Equivalent stress, LE1

5/9
 Project:
Project no:
Author:

Bolts
Tb Vsb Vdpb Utt Uts Utts
Shape Item Loads Status
[kN] [kN] [kN] [%] [%] [%]

B1 LE1 4.4 24.4 105.0 4.9 42.1 18.0 OK

B2 LE1 12.5 25.0 105.0 13.9 43.1 20.5 OK

Design data
Tdb Vdsb
Grade
[kN] [kN]
M16 8.8 - 1 90.4 58.0

Detailed result for B1

Tension resistance check
(IS 800, Cl. 10.3.5)
Tnb
Tdb = =  90.4 kN ≥ Tb =  4.4 kN
​

​ ​ ​

γmb ​

Where:
γmb
Tnb = min{0.9 ⋅ fub An , fyb As } = 113.0 kN – nominal tensile capacity of the bolt
​

​ ​ ​ ​ ​ ​

γm0 ​

fub = 800.0 MPa

​ – ultimate tensile strength of the bolt

fyb = 640.0 MPa

​ – yield strength of the bolt

An = 157 mm2
​ – net tensile stress area of the bolt
As = 201 mm2
​ – cross-section area at the shank

γmb = 1.25 ​ – partial safety factor for bearing type bolts

γm0 = 1.10 ​ – partial safety factor for resistance governed by yielding

Shear resistance check

(IS 800, Cl. 10.3.3)
Vsb
Vdsb = =  58.0 kN ≥ Vsb =  24.4 kN
​

​ ​ ​

γmb ​

Where:
fub
Vnsb = ⋅ An = 113.0 kN – nominal shear capacity of the bolt
​

3
​ ​ ​

fub = 800.0 MPa

​ – ultimate tensile strength of the bolt
An = 157 mm2
​ – area for resisting shear in shear plane intercepted by the threads

γmb = 1.25 ​ – partial safety factor for bearing type bolts

6/9
 Project:
Project no:
Author:

Bearing resistance check

(IS 800, Cl. 10.3.4)
Vnpb
Vdpb = =  105.0 kN ≥ Vsb =  24.4 kN
​

​ ​ ​

γmb ​

Where:
Vnpb = 2.5 ⋅ kb ⋅ d ⋅ t ⋅ fu = 131.2 kN ​ – nominal bearing strength of a bolt​ ​

e p fub
kb = min{ , − 0.25, , 1.0} = 1.00 – factor for joint geometry and material strength
​

3 d0 3 d0
​ ​ ​ ​

fu ​ ​ ​

e = 60 mm – end distance of the fastener along bearing direction

p = ∞ – pitch distance of the fastener along bearing direction

fub = 800.0 MPa ​ – ultimate tensile strength of the bolt

fu = 410.0 MPa
​ – ultimate tensile strength of the plate

d = 16 mm – diameter of a bolt

d0 = 18 mm ​ – diameter of bolt hole

t = 8 mm – plate thickness

γmb = 1.25 ​ – partial safety factor for bearing type bolts

Interaction of tension and shear check

(IS 800, Cl. 10.3.6)

Vsb 2 Tb 2
( ) +( ) =  0.18 ≤ 1.0
​ ​

​ ​

Vdsb Tdb​ ​

Where:
Vsb = 24.4 kN ​ – factored shear force

Vdbs = 58.0 kN – design shear resistance ​

Tb = 4.4 kN ​ – factored tensile force

Tdb = 90.4 kN ​ – design tensile capacity of the bolt

Detailed result for B2

Tension resistance check
(IS 800, Cl. 10.3.5)
Tnb
Tdb = =  90.4 kN ≥ Tb =  12.5 kN
​

​ ​ ​

γmb ​

Where:
γmb
Tnb = min{0.9 ⋅ fub An , fyb As } = 113.0 kN – nominal tensile capacity of the bolt
​

​ ​ ​ ​ ​ ​

γm0 ​

fub = 800.0 MPa ​ – ultimate tensile strength of the bolt

fyb = 640.0 MPa ​ – yield strength of the bolt

An = 157 mm2 ​ – net tensile stress area of the bolt

As = 201 mm2 ​ – cross-section area at the shank

γmb = 1.25 ​ – partial safety factor for bearing type bolts

γm0 = 1.10 ​ – partial safety factor for resistance governed by yielding

7/9
 Project:
Project no:
Author:

Shear resistance check

(IS 800, Cl. 10.3.3)
Vsb
Vdsb = =  58.0 kN ≥ Vsb =  25.0 kN
​

​ ​ ​

γmb ​

Where:
fub
Vnsb = ⋅ An = 113.0 kN – nominal shear capacity of the bolt
​

3
​ ​ ​

fub = 800.0 MPa ​ – ultimate tensile strength of the bolt

An = 157 mm2 ​ – area for resisting shear in shear plane intercepted by the threads
γmb = 1.25 ​ – partial safety factor for bearing type bolts

Bearing resistance check

(IS 800, Cl. 10.3.4)
Vnpb
Vdpb = =  105.0 kN ≥ Vsb =  25.0 kN
​

​ ​ ​

γmb ​

Where:
Vnpb = 2.5 ⋅ kb ⋅ d ⋅ t ⋅ fu = 131.2 kN ​ – nominal bearing strength of a bolt ​ ​

e p fub
kb = min{ , − 0.25, , 1.0} = 1.00 – factor for joint geometry and material strength
​

3 d0 3 d0
​ ​ ​ ​

fu ​ ​ ​

e = 88 mm – end distance of the fastener along bearing direction

p = ∞ – pitch distance of the fastener along bearing direction

fub = 800.0 MPa ​ – ultimate tensile strength of the bolt

fu = 410.0 MPa
​ – ultimate tensile strength of the plate

d = 16 mm – diameter of a bolt

d0 = 18 mm ​ – diameter of bolt hole

t = 8 mm – plate thickness

γmb = 1.25 ​ – partial safety factor for bearing type bolts

Interaction of tension and shear check

(IS 800, Cl. 10.3.6)

Vsb 2 Tb 2
( ) +( ) =  0.20 ≤ 1.0
​ ​

​ ​

Vdsb Tdb​ ​

Where:
Vsb = 25.0 kN ​ – factored shear force

Vdbs = 58.0 kN – design shear resistance

​

Tb = 12.5 kN ​ – factored tensile force

Tdb = 90.4 kN ​ – design tensile capacity of the bolt

Buckling
Buckling analysis was not calculated.

8/9
Project:
Project no:
Author:

Symbol explanation
Symbol Symbol explanation
εPl Strain
f Design yield strength
εlim Limit of plastic strain
Tb Factored tensile force
Vsb Factored shear force
Vdpb Design bearing capacity of the bolt - IS 800, Cl. 10.3.4
Ut Utilization
Uts Utilization in shear
Utts Utilization in combined tension and shear - IS 800, Cl. 10.3.6
Tdb Design tensile capacity of the bolt - IS 800, Cl. 10.3.5
Vdsb Design shear capacity of the bolt - IS 800, Cl. 10.3.3

Code settings
Item Value Unit Reference
Friction coefficient - concrete 0.45 - IS 800, Cl. 7.4.1
Friction coefficient in slip-resistance 0.30 - IS 800, Cl. 10.4.3
Limit plastic strain 0.05 -
Detailing No
Distance between bolts [d] 2.50 - IS 800, Cl. 10.2.2
Distance between bolts and edge [d] 1.50 - IS 800, Cl. 10.2.4
Limit grip length of bolts as a multiple of bolt diameter - IS 800, Cl.
Bolt maximum grip length [d] 8.00 -
10.3.3.2
Local deformation check Yes
Local deformation limit 0.03 - CIDECT DG 1, 3 - 1.1
Geometrical nonlinearity (GMNA) Yes Analysis with large deformations for hollow section joints
IS800, Cl
Concrete in compression check
7.4
Braced system (EC stiffness
No EN1993-1-8 - Cl. 5.2.2.5
classification)
