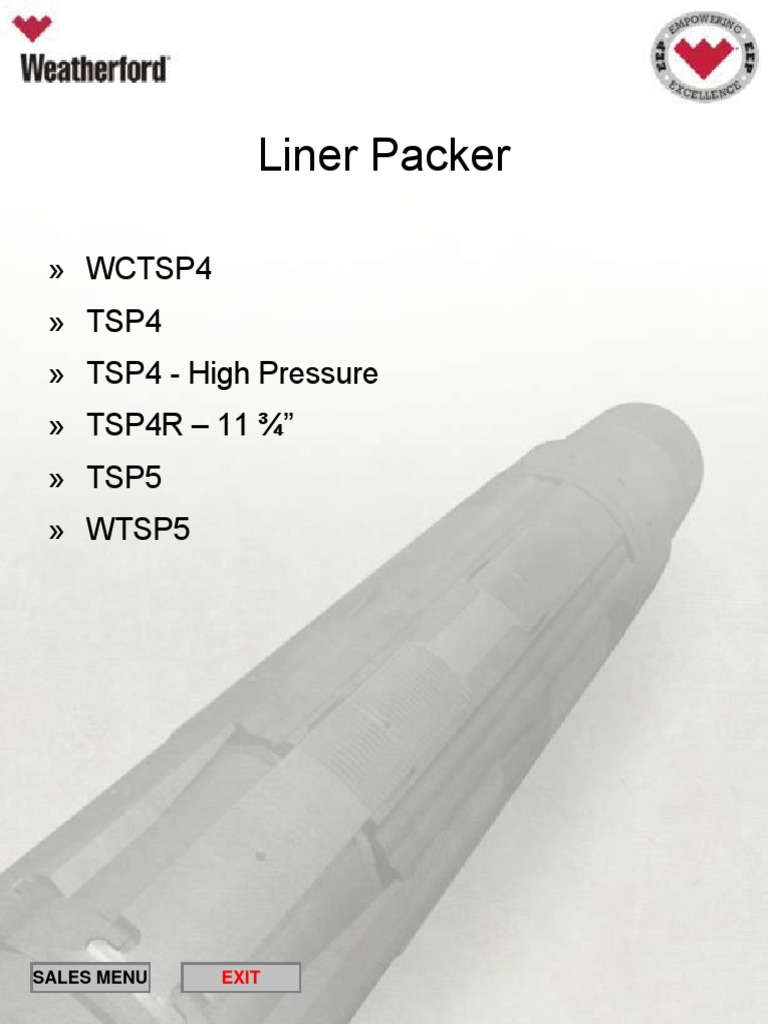

Liner Packer
» WCTSP4
» TSP4
» TSP4 - High Pressure
» TSP4R – 11 ¾”
» TSP5
» WTSP5
SALES MENU EXIT

Liner Systems
WCTSP4 Liner-Top Packer

Weatherford’s WCTSP4 liner-top packer is very flexible and can
be used for many different applications; it is typically run as an
integral part of the liner hanger assembly to provide a reliable,
high-integrity seal that isolates the gap between the liner OD and
the host casing ID. This seal isolates the cement, preventing gas
migration or flow as the cement sets. The WCTSP4 also
incorporates the profile for the running tool and, when a liner
setting sleeve is not run, is the means by which the running tool
connects to the liner.
The packer is usually set by setting down weight on the TSP4
tie-back polished bore receptacle (PBR) with the packer actuator
after the running tool is released. The weight is transferred to the
WCTSP4 liner-top packer, setting the element and the holddown
slips.
Applications
— Cemented liners
— Uncemented liners for which a seal between the liner OD the
host casing ID is necessary or advantageous
— Tie-back packers
Features, Advantages and Benefits

— Peroxide-cured HNBR packing element creates a reliable seal that
prevents gas migration in the cement in most well conditions,
saving the cost of a liner-top squeeze.
— One-piece packing element is resistant to swabbing to enable high
circulation rates past the liner-top packer assembly, aiding removal
of debris during well cleaning and improving the quality of cement
displacement.
— XYLAN® coated backup rings reduce the setting force required for
energizing the packing element. This advantage is particularly
useful in applications in which setting down enough weight to set
WCTSP4RHD WCTSP4H
the liner-top packer is especially challenging.
Weatherford International Ltd.

515 Post Oak Blvd., Suite 600
Houston, Texas 77027 USA
Tel: 713-693-4000
www.weatherford.com
© 2005–2006 Weatherford. All rights reserved. 1285.02
Liner Systems
WCTSP4 Liner-Top Packer
Features, Advantages and Benefits (continued)

— The WCTSP4 liner-top packer also incorporates the profile and seal bore for Weatherford's RSM
retrievable cementing packoff. This feature eliminates the need for—and cost of—a separate assembly.
It also ensures easy retrieval of the packoff because the packoff does not have to be retrieved through a
premium connection.
— Internal body lock-ring ratchet system positively locks in the applied setting forces to ensure that the
packer remains set.
— One WCTSP4 can be set inside host casings of the same size but varying weights. This design
provides operational flexibility.
Specifications
Contact an authorized Weatherford representative.
Options
— The WCTSP4 liner-top packer is available with or without holddown slips.
— The packer is also available with R or HNG running tool profiles.
— Standard metallurgies are L-80 and P-110 (125ksi); other metallurgies are available on request.
— Standard connection is NEW VAM®; other connections are available on request.
XYLAN and NEW VAM are registered trademarks of their respective owners.
Weatherford products and services are subject to the Company’s standard terms and conditions, available on request or
Weatherford International Ltd. at www.weatherford.com. For more information contact an authorized Weatherford representative. Unless noted
515 Post Oak Blvd., Suite 600 otherwise, trademarks and service marks herein are the property of Weatherford. Specifications are subject to change
Houston, Texas 77027 USA without notice. Weatherford sells its products and services in accordance with the terms and conditions set forth in the
Tel: 713-693-4000 applicable contract between Weatherford and the client.
www.weatherford.com
© 2005–2006 Weatherford. All rights reserved. 1285.02
Liner Systems
TSP4 Liner-Top Packer

Weatherford's TSP4 liner-top packer is run as an
integral part of the liner hanger assembly to provide a
reliable, high-integrity seal that isolates the gap
between the liner OD and the host casing ID. This
reliable liner-top packer isolates the cement,
preventing gas migration or flow while the cement
sets. The TSP4 also incorporates the profile for the
running tool and, when a liner setting sleeve is not run,
is the means by which the running tool connects to the
liner.
The packer is normally set by setting down weight on
the TSP4 tie-back polished bore receptacle with the
packer actuator after the running tool is released. The
weight is transferred to the TSP4 liner-top packer,
setting the element and the holddown slips.
Applications
— Any cemented liners

— Uncemented liners for which a seal between the liner
OD and the host casing ID is necessary or
advantageous
— Peroxide-cured HNBR packing element creates a

reliable seal that prevents gas migration in the
cement in most well conditions, saving the cost of a
liner-top squeeze.
— One-piece packing element is resistant to swabbing
to enable high circulation rates past the liner-top
packer assembly, aiding removal of debris during
well cleaning and improving the quality of cement
displacement. R Running HNG Running
Tool Type Tool Type

Tel: 713-693-4000
www.weatherford.com
© 2006 Weatherford. All rights reserved. 1282.01
Liner Systems

— Integral beam spring stores an internal force that helps boost the setting load on the element under
dynamic loading conditions, such as temperature or pressure changes, maintaining seal integrity.
— High-torque, one-piece mandrel is equipped with premium connections that meet or exceed the torque
of the liner connections.
®
— XYLAN coated backup rings reduce the setting force required for energizing the packing element. This
advantage is particularly useful in applications (such as extended-reach wells) that present a challenge
to getting enough weight down to set the liner-top packer.
— Mechanical locking mechanism is available in most models and ensures that the liner-top packer cannot
be set until the liner running tool has been released. This feature dramatically reduces the potential for
nonproductive time.
— Holddown slips and internal body lock-ring ratchet system positively lock in the applied setting forces to
ensure that the packer does not become unset.
— The TSP4 liner-top packer incorporates the profile and seal bore for Weatherford's RSM retrievable
cement packoff. This feature eliminates the need for—and cost of—a separate assembly. It also
ensures easy retrieval of the packoff because the packoff does not have to be retrieved through a
premium connection.
Options
— The TSP4 liner-top packer is available with a running profile for either the R running tool or the HNG
running tool.
— Standard metallurgies in most sizes are L-80 and P-110 (125 KSI); other metallurgies are available on
request.
® ®
— Standard connection is VAM TOP HT in most sizes; other connections are available on request.
Specifications
XYLAN, VAM, and TOP are registered trademarks of their respective owners.
Weatherford International Ltd. Weatherford products and services are subject to the Company’s standard terms and conditions, available on request or
515 Post Oak Blvd., Suite 600 at www.weatherford.com. For more information contact an authorized Weatherford representative. Unless noted
Houston, Texas 77027 USA otherwise, trademarks and service marks herein are the property of Weatherford. Specifications are subject to change
Tel: 713-693-4000 without notice.
www.weatherford.com
Liner Systems

with High-Pressure
Packing Element
Weatherford's TSP4 liner-top packer, with high-
pressure packing element, is run as an integral
part of the liner hanger assembly to provide a
reliable, high-integrity seal that isolates the gap
between the liner OD and the host casing ID. This
reliable liner-top packer isolates the cement,
preventing gas migration or flow while the cement
sets. The TSP4 also incorporates the profile for
the running tool and, when a liner setting sleeve is
not run, is the means by which the running tool
connects to the liner.
The packer is normally set by setting down weight
on the TSP4 tie-back polished bore receptacle
with the packer actuator after the running tool is
released. The weight is transferred to the TSP4
liner-top packer, setting the element and the
holddown slips.
Applications
—Cemented liners
—Uncemented liners for which a seal between the
liner OD and the host casing ID is necessary or
advantageous
—Tie-back packers
TSP4R with TSP4H with

R Running Tool HNG Running Tool
Profile Profile

Tel: 713-693-4000
www.weatherford.com
Liner Systems
TSP4 Liner-Top Packer with High-Pressure

Packing Element

—Three-piece packing element creates a reliable high-pressure seal (V0 rated in most sizes) that
prevents gas migration in the cement, saving the cost of a liner-top squeeze.
—Integral beam spring stores an internal force that helps boost the setting load on the element under
—High-torque, one-piece mandrel is equipped with premium connections that meet or exceed the torque
—Mechanical locking mechanism is available in most models and ensures that the liner-top packer cannot
nonproductive time.
—Holddown slips and body lock-ring ratchet system positively lock in the applied setting forces to ensure
that the packer does not become unset.
Specifications
Options
—The TSP4 liner-top packer is available with a running profile for either the R running tool or the HNG
running tool.
—Standard connection is VAM® TOP® HT in most sizes. Other connections are available on request.
VAM and TOP are registered trademarks of Vallourec Mannesmann Oil & Gas France Corporation.
Weatherford products and services are subject to the Company’s standard terms and conditions, available on
Weatherford International Ltd. request or at www.weatherford.com. For more information contact an authorized Weatherford representative.
515 Post Oak Blvd., Suite 600 Unless noted otherwise, trademarks and service marks herein are the property of Weatherford. Specifications
Houston, Texas 77027 USA are subject to change without notice. Weatherford sells its products and services in accordance with the terms
Tel: 713-693-4000 and conditions set forth in the applicable contract between Weatherford and the client.
www.weatherford.com
PDMLiner
Partslist Product Information System
Parts List For: Number Rev Sign Created ODia 0

StdNo Part 00278222 00 sutherdx 4/4/2003 PnoLeg 278222 IDia 0
Doc D000035053 00 sutherdx 4/4/2003 DwgLeg D000035053 Length 0
Description Packing Element Sub-assy 7.000 in x 9.625 in 47-53.5# 3 Piece V0 Nitrile

InfoSh AssyProc DimSh Ref PI3948
Pos PartNo Doc/Dwg TRev Description Qty
1 00233835 D000015791 00 Gauge Ring 7.000 in x 9.625 in 47- 2

53.5# Element 4130-4145 Q&T WS-
410
2 00233832 D000015788 00 Filler Ring 7.000 in x 9.625 in 47-53.5# 2
Foldback, Element Steel 88 HRB WS-
104
3 00233834 D000015790 00 End Element 7.000 in x 9.625 in 47- 2
53.5# N80 80 Duro NBR WE-114
4 00233833 D000015789 A Spacer Ring 7.000 in x 9.625 in 47- 2
53.5# Element 4130-4145 Q&T WS-
410
5 00233830 D000015786 00 Center Element 7.000 in x 9.625 in 47- 1
53.5# Material: CDI-407 Nitrile N70
6 00233831 D000015787 A Filler Ring 7.000 in x 9.625 in 47-53.5# 1
Element 4130-4145 Q&T WS-410
© Weatherford 2002 Printed Thursday, December 14, 2006 By: Admin Page 1 of 1
Liner Systems
TSP4R Liner-Top Packer

9-5/8 × 11-3/4 in. and 11-3/4 × 13-3/8 in.
Weatherford's TSP4R liner-top packer is run as an integral part

of the liner hanger assembly to provide a reliable, high-integrity
seal that isolates the gap between the liner OD and the host
casing ID. This particular size of the TSP4R liner-top packer was
specifically developed for deepwater applications, such as the
Gulf of Mexico, where tight clearance between the liner and the
host casing is typical. This reliable liner-top packer isolates the
cement, preventing gas migration or flow while the cement sets.
The TSP4R also incorporates the profile for the running tool and
is the means by which the running tool connects to the liner.
The packer is normally set by setting down weight on the TSP4R
tie-back polished bore receptacle with the packer actuator after
the running tool is released. The weight is transferred to the
TSP4R liner-top packer, setting the element and the holddown
slips.
Applications
— Uncemented liners for which a seal between the liner OD and
the host casing ID is necessary or advantageous

— Peroxide-cured HNBR packing element creates a reliable seal
that prevents gas migration in the cement in most well
conditions, saving the cost of a liner-top squeeze.
— One-piece packing element is resistant to swabbing to enable
high circulation rates past the liner-top packer assembly, aiding
removal of debris during well cleaning and improving the
quality of cement displacement.

Tel: 713-693-4000
www.weatherford.com
Liner Systems
TSP4R Liner-Top Packer

9-5/8 × 11-3/4 in. and 11-3/4 × 13-3/8 in.

— XYLAN® coated backup rings reduce the setting force required for energizing the packing element. This
getting enough weight down to set the liner-top packer.
— The design of this liner-top packer optimizes the functionality of Weatherford's proven TSP4 technology
for use with a liner where little or no clearance exists between the liner and the host casing.
Specifications
— Standard metallurgies in both sizes are P-110 (125 ksi) and API 140 (140 ksi) OCTG.
— Connections on the 11 3/4- x 13 3/8-in. model are Hydril® 561 and on the 9 5/8- x 11 3/4-in. model are
Grant Prideco WHC-1.
Hydril is a registered trademark of Hydril Company.
www.weatherford.com
Liner Systems

Weatherford's TSP5 liner-top packer is run as an integral
part of the liner hanger assembly to provide a reliable,
high-integrity seal that isolates the gap between the liner
OD and the host casing ID. This reliable liner-top packer
isolates the cement, preventing gas migration or flow while
the cement sets. The TSP5 also incorporates the profile for
the running tool and is the means by which the running
tool connects to the liner.
The design of this packer builds on the success of
Weatherford's TSP4 liner-top packer with the addition of a
helical lock wire that mechanically locks the polished bore
receptacle (PBR) to the packer. This refinement eliminates
the possibility of the PBR backing off, making the TSP5
ideal for drill-down applications.
The packer is normally set by setting down weight on the
TSP5 tie-back PBR with the packer actuator after the
running tool is released. The weight is transferred to the
TSP5 liner-top packer, setting the element and the
holddown slips.
Applications
— Uncemented liners for which a seal between the liner OD
and the host casing ID is necessary or advantageous
— Drill-down liners
— Liners that must be reamed down

— Peroxide cured HNBR packing element creates a reliable
seal that prevents gas migration in the cement, saving
the cost of a liner-top squeeze.
— One-piece packing element is resistant to swabbing to
enable high circulation rates past the liner-top packer
assembly, aiding removal of debris during well cleaning R Running HNG Running
and improving the quality of cement displacement. Tool Type Tool Type

Tel: 713-693-4000
www.weatherford.com
Liner Systems

— The PBR and slips ring are locked together by a helical lock wire. This feature prevents the PBR from
backing off, even as the liner is being vigorously rotated.
— Unique shear system includes three shears to prevent shear screws from shearing under excessive
torsional forces during heavy rotation. This feature ensures optimal element performance.
®
nonproductive time.
— The TSP5 liner-top packer incorporates the profile and seal bore for Weatherford's RSM retrievable
cement packoff. This feature eliminates the need for—and cost of—a separate assembly. It also
ensures easy retrieval of the packoff because the packoff does not have to be retrieved through a
premium connection.
Options
— The TSP5 liner-top packer is available with a running profile for either the R running tool or the HNG
running tool.
request.
® ®
— Standard connection is VAM TOP HT in most sizes; other connections are available on request.
Specifications
Weatherford International Ltd. Weatherford products and services are subject to the Company’s standard terms and conditions, available on request or
515 Post Oak Blvd., Suite 600 at www.weatherford.com. For more information contact an authorized Weatherford representative. Unless noted
Houston, Texas 77027 USA otherwise, trademarks and service marks herein are the property of Weatherford. Specifications are subject to change
Tel: 713-693-4000 without notice.
www.weatherford.com
Liner Systems
WTSP5 Liner-Top Packer

Weatherford's WTSP5 liner-top packer is run as an integral part
of the liner hanger assembly to provide a dependable, high-
integrity seal that isolates the gap between the liner OD and the
host casing ID. This reliable liner-top packer isolates the cement,
preventing gas migration or flow while the cement sets. The
WTSP5 also incorporates the profile for the running tool and is
the means by which the running tool connects to the liner.
The design of this packer builds on the success of Weatherford's
TSP4 liner-top packer with the addition of a helical lock wire that
mechanically locks the polished bore receptacle (PBR) to the
packer. This refinement eliminates the possibility of the PBR
backing off, making the WTSP5 ideal for drill-down applications.
The packer is typically set by setting down weight on the TSP5
tie-back PBR with the packer actuator after the running tool is
released. The weight is transferred to the WTSP5 liner-top
packer, setting the element and the holddown slips.
Applications
— Any cemented liner
— Uncemented liners for which a seal between the liner OD and
the host casing ID is necessary or advantageous
— Drill-down liners
— Liners that must be reamed down

— Peroxide-cured HNBR packing element creates a reliable seal
that prevents gas migration in the cement, saving the cost of a
liner-top squeeze.
— One-piece packing element is resistant to swabbing to enable
high circulation rates past the liner-top packer assembly, aiding
removal of debris during well cleaning and improving the
quality of cement displacement.
WTSP5R1 with WTSP5H1 with
R Running Tool Profile HNG Profile

Tel: 713-693-4000
www.weatherford.com
Liner Systems
WTSP5 Liner-Top Packer

— The PBR and slips ring are locked together by a helical lock wire. This feature prevents the PBR from
backing off, even as the liner is vigorously rotated.
— Three shears prevent screws from shearing under excessive torsional forces during heavy rotation. This
unique system ensures optimal element performance.
®
nonproductive time.
ensure that the packer remains set.
— The WTSP5 liner-top packer incorporates the profile and seal bore for Weatherford's RSM retrievable
cement packoff. This feature eliminates the need for—and cost of–a separate assembly. It also ensures
easy retrieval of the packoff because the packoff does not have to be retrieved through a premium
connection.
— One WTSP5 can be set inside host casings of the same size but varying weights. This design provides
operational flexibility.
Specifications
Options
— The WTSP5 liner-top packer is available with a running profile for either the R running tool or the HNG
running tool.
request.
— Standard connection is VAM® TOP® HT in most sizes; other connections are available on request.
www.weatherford.com

Liner Packer

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Liner Packer

Uploaded by

Copyright:

Available Formats

Liner Packer

SALES MENU EXIT

WCTSP4 Liner-Top Packer

Features, Advantages and Benefits

Weatherford International Ltd.

WCTSP4 Liner-Top Packer

Features, Advantages and Benefits (continued)

TSP4 Liner-Top Packer

— Any cemented liners

Features, Advantages and Benefits

— Peroxide-cured HNBR packing element creates a

Weatherford International Ltd.

TSP4 Liner-Top Packer

Contact an authorized Weatherford representative.

TSP4 Liner-Top Packer

TSP4R with TSP4H with

Weatherford International Ltd.

TSP4 Liner-Top Packer with High-Pressure

Features, Advantages and Benefits

Parts List For: Number Rev Sign Created ODia 0

Description Packing Element Sub-assy 7.000 in x 9.625 in 47-53.5# 3 Piece V0 Nitrile

Pos PartNo Doc/Dwg TRev Description Qty

1 00233835 D000015791 00 Gauge Ring 7.000 in x 9.625 in 47- 2

TSP4R Liner-Top Packer

Weatherford's TSP4R liner-top packer is run as an integral part

Features, Advantages and Benefits

Weatherford International Ltd.

TSP4R Liner-Top Packer

Features, Advantages and Benefits (continued)

Hydril is a registered trademark of Hydril Company.

TSP5 Liner-Top Packer

Features, Advantages and Benefits

Weatherford International Ltd.

TSP5 Liner-Top Packer

WTSP5 Liner-Top Packer

Features, Advantages and Benefits

Weatherford International Ltd.

WTSP5 Liner-Top Packer

You might also like
