UNIT-4

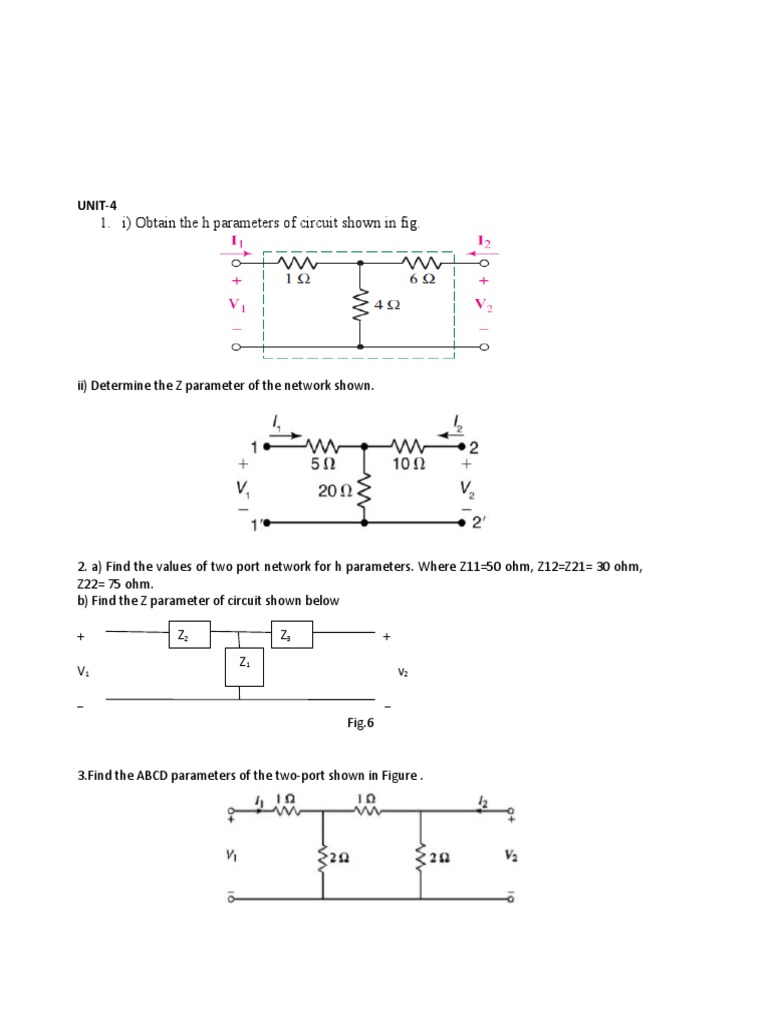

1. i) Obtain the h parameters of circuit shown in fig.

ii) Determine the Z parameter of the network shown.

2. a) Find the values of two port network for h parameters. Where Z11=50 ohm, Z12=Z21= 30 ohm,
Z22= 75 ohm.
b) Find the Z parameter of circuit shown below

 Z2 Z3 
Z1
V1 v2

 
Fig.6

3.Find the ABCD parameters of the two-port shown in Figure .

4.a) Two identical sections of the network in figure below are connected in series. Obtain the Z
parameters of the overall connection.

b) Derive the expressions for transmission parameters in terms of Z parameters.

5.i) Calculate the 2-port admittance matrix of the circuit shown.

b) Determine the ABCD parameters of the following

matrix.

6.Find h and T (Transmission) parameters for the given circuits.

7.(i) The Z parameters of a two-port network are Z 11 = 10 Ω, Z22 = 15 Ω, Z12 =

5Ω, Z21 = 5 Ω. Determine the equivalent T network and ABCD parameters.
(ii) The port currents of a two-port network are given by I 1 = 2.5 V1 – V2 and
I2 = -V1 + 5V2. Find the equivalent π-network.
8.Find the Z and Y parameters for the given circuit
9.Determine the h parameters for the below network.

10.Derive the condition for reciprocity and symmetricity for a two-port network in any one of the
parameters you like?

UNIT-4
Write the expressions for hybrid parameters
Write z parameters in terms of y parameters
If a two-port is reciprocal, which of the following is
Not true?

Write the parameter Y11 in terms of Z parameters.

Which parameters are widely used in transmission line theory?
Write the expressions for transmission parameters.
Write expressions for open circuit impedance parameters
Write the condition for symmetricity in Z- parameter.
