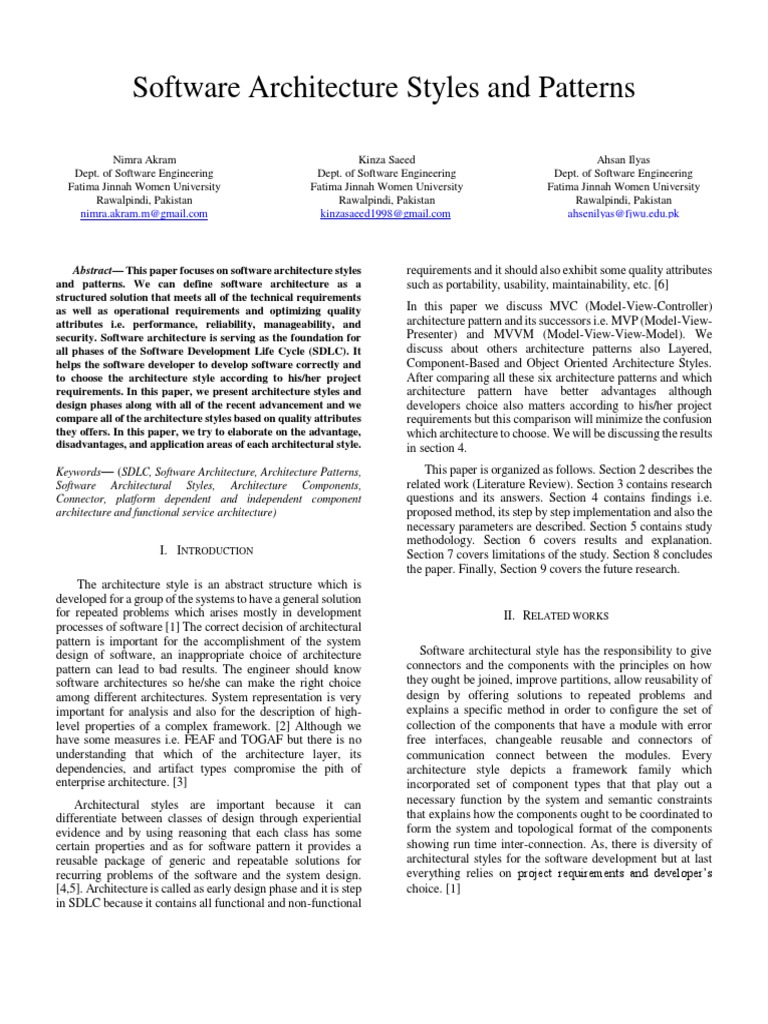

Software Architecture Styles and Patterns
Nimra Akram Kinza Saeed
Dept. of Software Engineering Dept. of Software Engineering
Fatima Jinnah Women University Fatima Jinnah Women University
Rawalpindi, Pakistan Rawalpindi, Pakistan
nimra.akram.m@gmail.com kinzasaeed1998@gmail.com
Abstract— This paper focuses on software architecture styles
and patterns. We can define software architecture as a
structured solution that meets all of the technical requirements
as well as operational requirements and optimizing quality
attributes i.e. performance, reliability, manageability, and
security. Software architecture is serving as the foundation for
all phases of the Software Development Life Cycle (SDLC). It
helps the software developer to develop software correctly and
to choose the architecture style according to his/her project
requirements. In this paper, we present architecture styles and
design phases along with all of the recent advancement and we
compare all of the architecture styles based on quality attributes
they offers. In this paper, we try to elaborate on the advantage,
disadvantages, and application areas of each architectural style.
Keywords— (SDLC, Software Architecture, Architecture Patterns,
Software Architectural Styles, Architecture Components,
Connector, platform dependent and independent component
architecture and functional service architecture)
I. INTRODUCTION
The architecture style is an abstract structure which is
developed for a group of the systems to have a general solution
for repeated problems which arises mostly in development
processes of software [1] The correct decision of architectural
pattern is important for the accomplishment of the system
design of software, an inappropriate choice of architecture
pattern can lead to bad results. The engineer should know
software architectures so he/she can make the right choice
among different architectures. System representation is very
important for analysis and also for the description of high-
level properties of a complex framework. [2] Although we
have some measures i.e. FEAF and TOGAF but there is no
understanding that which of the architecture layer, its
dependencies, and artifact types compromise the pith of
enterprise architecture. [3]
Architectural styles are important because it can
differentiate between classes of design through experiential
evidence and by using reasoning that each class has some
certain properties and as for software pattern it provides a
reusable package of generic and repeatable solutions for
recurring problems of the software and the system design.
[4,5]. Architecture is called as early design phase and it is step
in SDLC because it contains all functional and non-functional
Ahsan Ilyas
Dept. of Software Engineering
Fatima Jinnah Women University
Rawalpindi, Pakistan
ahsenilyas@fjwu.edu.pk
requirements and it should also exhibit some quality attributes
such as portability, usability, maintainability, etc. [6]
In this paper we discuss MVC (Model-View-Controller)
architecture pattern and its successors i.e. MVP (Model-View-
Presenter) and MVVM (Model-View-View-Model). We
discuss about others architecture patterns also Layered,
Component-Based and Object Oriented Architecture Styles.
After comparing all these six architecture patterns and which
architecture pattern have better advantages although
developers choice also matters according to his/her project
requirements but this comparison will minimize the confusion
which architecture to choose. We will be discussing the results
in section 4.
This paper is organized as follows. Section 2 describes the
related work (Literature Review). Section 3 contains research
questions and its answers. Section 4 contains findings i.e.
proposed method, its step by step implementation and also the
necessary parameters are described. Section 5 contains study
methodology. Section 6 covers results and explanation.
Section 7 covers limitations of the study. Section 8 concludes
the paper. Finally, Section 9 covers the future research.
II. RELATED WORKS
Software architectural style has the responsibility to give
connectors and the components with the principles on how
they ought be joined, improve partitions, allow reusability of
design by offering solutions to repeated problems and
explains a specific method in order to configure the set of
collection of the components that have a module with error
free interfaces, changeable reusable and connectors of
communication connect between the modules. Every
architecture style depicts a framework family which
incorporated set of component types that that play out a
necessary function by the system and semantic constraints
that explains how the components ought to be coordinated to
form the system and topological format of the components
showing run time inter-connection. As, there is diversity of
architectural styles for the software development but at last
everything relies on project requirements and developer’s
choice. [1]
 Category Architectural Style
Structure Layered, Component-
Based and Object Oriented
Architecture Styles
Table 1 showing category (Patterns) and Architecture Style
An architectural pattern determines vocabulary of
connectors and components how that can be used for
instances of the style which constraints i.e., no cycle. The
software architecture is responsible to represent the software
artifact e.g. software services and data structures [2,3].
Quality attributes are the important factors in software
architecture e.g. performance is measured in latency and
throughput. And for the performance arrival pattern of event
is important it can be either one of it i.e. periodic, sporadic,
and stochastic. [4]
Table 2 showing Pattern Template
It is important because it is a structured document and we
present the necessary guidelines to document software
pattern in a template. [5]
The key principle of software architecture are:
1. It should only describes how to achieve user/customer
requirements while not disclosing any of the
implementation details.
2. Architecture should be made carefully and also
considering the fact that there is flexibility factor i.e. the
software system should be flexible and should be able to
handle to any changes and maintenance in the future.
3. Architecture should be made in such a way that it can
fulfill all the functional requirements as well as non-
functional requirements of the customer.
4. Architecture ought to predict any risk that can happen to
system in future.
5. Architecture should be able to support optimum
utilization of system resources [6].
The main purpose of software architecture is to find high
level structures. And these structures are developed according
to the software system which have to be developed. Software
architectures guarantee advantages to both development as
well as maintenance also. The design should take advantage
of improved abstractions, analysis and also notation.
Architectural definitions ought to provide best specifications
for the programming activities, it also serves as the system
build, the specifications and the code will be less inclined to
diverge. The maintenance ought to have benefit in three
ways:
1. Half of the maintenance efforts should be devoted to
understanding the framework (system) in anticipation of
rolling out any improvements.
2. And explicit definition of architecture ought to lessen
this expense
3. The system architectures will be degrading after some
time, when we carry out the architectural definition in
the maintenance it ought to diminish this inclination
towards degradation. [7, 8]. Aoyama describes that the
evolution of architecture can be either continuous or
discontinuous. We consider two three types of pattern
evolutions i.e.
1. The pattern can evolve without changing pattern
itself.
2. The new architecture should contain newest pattern
not the oldest pattern.
3. The new pattern should be add in the architecture
and should be able to interact with the existing pattern
also and the newest pattern will be added when there
was no pattern before. [9]
Architecture exists at different levels of
abstraction i.e. World Wide Web it is component based
architecture although no single piece of software
implements the whole architecture. [10] Decision
making has an important role in the creation of Software
Architecture. Such decisions are required throughout the
software development life cycle and to attain the quality
attributes of a software product. Decisions which are
made during architectural design have direct impact on
software quality. Many design patterns are available in
software architecture and these design patterns help
achieve quality attributes in a software product but
decision-making for the solution of these design patterns
is still an issue. A new perspective of selection of design
pattern for a given problem is presented. PRIC
(Problem, Requirement Identification, Compatible
design pattern) model is proposed which helps decision-
making of selection of design pattern to attain the
required quality attributes. [11]
As quality attributes are considered major drivers
of the design process to achieve high quality systems,
the design decisions that drive the selection and use of
specific quality properties and vice versa are closely
related. ADD (Architectural Design Decision) which
include tools, support for managing ADDs, and human
aspects in architectural decision making (ADM). The
literature review should be getting-started guide for the
 researchers who are entering in the research phase of
ADM. [12, 13]
III. RESEARCH QUESTIONS
This research mainly concentrated on these questions:
1. Which software architecture style and pattern are
most suitable?
Layered architecture is most common and suitable
architectural style because it is frequently built round the
database, and most of the business applications must have
functionality to store data.
This is to some degree of a self-fulfilling prediction. Almost
all the prime and best software frameworks like Java EE,
Express and Drupal were constructed with this architectural
style in mind, so most of the software applications made with
them logically come out in this architecture.
Code is arranged into the top layer reaches the lower layers
one by one until reach the bottom layer. So, it is very common
for programmers to work on different layers independently.
Each layer has its own functionality so, maintaining the
checking of data consistency become easy.
The MVC that is the most popular and a standard software
development method is basically layered architecture. The
model layer is above database which often grasp business
logic and have information about database. The view layer is
at top which is frequently HTML, CSS and the JavaScript
(active embedded code). The controller, which is basically in
the middle have numerous principles and approaches for
altering the data sharing between the view and model. The
architecture i.e. layer makes the system maintainable, testable
and the role assignation easy. Updating and enhancement of
the separate layer is also become easy.
2. What is the role of quality attributes in software
architecture?
Developing regular ways to make the relation of quality
attributes of the software system with system’s architecture
provides a comprehensive base for making decisions about
design job and empowers engineers to compose sensibly
accurate estimates about a software system’s attributes which
are free from partiality and unseen assumption The major
goal is the capability to quantitatively assess and adjust
numerous software quality attributes to reach at a good
system.
3. What is the major function of high-level
architecture?
The key function of the High-Level Architecture is to create
a common infrastructure, for a construction other component
of a software system. The infrastructure is used and then, re-
used by further components that depend on interaction and
other resources by HLA.
An HLA is a group of correlated standards which collectively
define a unified method and common architecture to making
interoperable replication systems. It comprises major
functional foundations, interfaces, design rules and
pertaining to all DoD simulation apps, and provided that a
common framework inside which precise system architecture
can be well-defined. The aims of the HLA are to:
i. To establish common architecture to simplify the
interfaces of all types of Modeling and
Simulation including the real time, quicker than
the real time, the event driven simulations & the
command and the control systems.
ii. Enable the reuse of Model & the simulation
components.
The use of RTI software is needed to support the
confederation execution operation. The RTI software delivers
a set of service area, as clear by the unite interface
description, used by unites to coordinate the operations &
data exchange throughout the runtime execution.
HLA has three parts.

Quality attributes such as performance, reliability, security, i.
modifiability, maintenance and usability have an important
effect on the software architecture. It is essential for an
Architect to comprehend his design in terms of software ii.
quality attributes. Many safety critical application used iii.
software where any mistake take lives. Safety critical
applications must have the following features:
4.
i. It must have long life cycles and involve
evolutionary upgrading.
ii. The applications must have uninterrupted operation.
iii. The applications should be able to interact with
different hardware’s.
iv. The safety critical applications should give
importance to software quality attributes i.e. safety,
portability, interoperability, timeliness etc.
Rules: that must obey the standards. Federates &
Federations that describe relationships amongst
federating submissive simulations.
Federate: an HLA entity of compliant simulation.
Federation: multiple Federates connected through
the RTI.
What are main challenges of the software
architecture and the design phase?
i. Problems in requirement elicitation
process.
a. Defining the objectives and scope of
the system.
b. Collaboration among stakeholders of
the system.
c. Volatile requirements.
Solution.
 Prototyping, interviews and other a. 13% of the architect use attack treeand threat
inspection techniques are helpful to solve models for designing software architecture.
requirement related problems. b. 26% are believe on the utilization of
ii. Problems in choosing design inappropriate cases during designing process.
methodologies. c. 40% uses secure design principles to mitigate
a. Reliability with risks.
b. Quality d. 20% are agreed on the utilization of existing
c. Complexity software.
d. Conformity 2. Most difficult task in software design process.
e. Changeability a. 40% are agreed on creating consistency.
f. Invisibility b. 26% believes that maintenance is most
Solution challenging.
Making increments and delivered to client c. 20% are agreed on feasibility.
can helpful to identify the problems in this d. 13% thinks that following the standards is most
regard. difficult task.
iii. Problems related to the using of Tools and 3. Most Critical deficiency in design.
technologies. a. 40% are agreed on flexibility.
a. Usability, Complexity. b. 33% and 26% are agreed on global acceptance
b. Required creative skills and scalability deficiencies respectively.
c. Incorporations between teams 4. Design tools & technologies
Solution a. 33% uses commercial tools for designing.
Commercial tools should be used because b. 26% and 20% uses open source tools and free
these are easy and reliable to use. tool respectively. These are all easily available.
iv. Problems in selecting Software process 5. Design methodologies
model a. 26% and 20% use brainstorming and
a. Applying the wrong process for prototyping techniques to elicitate
software product requirements.
b. Use of less code generated by b. 10% are agreed on interviews and
automated tools. questionnaires while 6% prefers case study.
Solution 6. Volatile requirements handling.
Iterative model is helpful to reduce a. 40% people believes that volatility can be
mistakes at this phase because increment reduced by freezing requirements.
can measure the performance of model at b. 33% are agreed on reducing modifications.
early stages. c. 26% believed that we would ignore changes.
v. Architecture & design is risky and costly 7. Best designing method
due to the following reasons: a. 33% and 25% are agreed on iterative method
a. Effects of design and cost cannot be and agile method respectively.
determined and not understandable. b. 20% and 13% prefers spiral and waterfall
b. Continuous change of requirements respectively.
put design into high risk. 8. Design documentation.
c. Top-down method is not suitable for a. 33% believes that changeability is the big
inherited systems. challenge in documentation.
Solution b. 26% are agreed on flexibility and
Requirements should be fixed to understandability.
reduce changing requirements to c. 13% are agreed in invisibility in documentation.
reduce cost and risk of failure of a
software system.
V. STUDY METHODOLOGY
IV. FINDINGS
Related work of many different research papers is used
to identify the importance and comparison of software
Based on survey of UK Department of Information architectural styles and the patterns. The primary focus is on
Technology. software architecture because architecture must be selected
1. Secure architecture and design perfectly and correctly according to project requirements and
should be able extract all the benefits. We compared these
patterns on quality attributes and other major factors. In order
to suggest the suitable pattern we did brainstorming, study
research papers and read the architecture documentation. The
main challenge is to find architectural description therefore,
we observed and explained the architectural description of
open -source software’s.
VI. RESULTS
Software Architecture and design is a main activity of
every software development cycle. The techniques which can
be used in software architecture depends on the nature of
project and choice of the developer. The study of UK
department of information technology shows that different
developers have different views about using different
techniques, models and preferences. But the projects
prototyping, and incremental implementation guides the
developers to develop fault free software architecture. Every
prototype and increment can measure the system
performance and customer satisfaction.
VII. CONCLUSION
We have highlighted some problems in this paper which
are related to architecture and design phase. Every developer
has to meet with these challenges to complete his project.
This paper covers all the frequently occur problems in
designing a software architecture that can be faced by a
software architect. We also give suggestion above to solve
these problems. By following these suggestions, we can
lessen the problems in designing software architecture. The
success of the software architecture depends upon the
developer and his methods of development, but he can reduce
his difficulties by following standards. Standard will take the
architecture to the success.
VIII. FUTURE RESEARCH
In the future, software architects are trying to follow
the idea of platform-dependent and independent
architectures. The architecture will be based on the following
three in the future.
1. Functional Service Architecture
It describes almost all functionality provided by a
software system to world i.e. software systems e.g. latest
phones are offering a huge number of facilities, it is important
to structure all the facilities into a functional service
architecture and to define equally behaviour of the interfaces
i.e. the functionality providing to the exterior and the
common connections which describe the functional
dependencies, known as features interactions. So, required a
description technique takes both interface performances,
structuring, and the dependencies. Specifications of the
interfaces ought to depend on supposition related to their
specific conditions.
2. Platform Independent Component Architecture
(PICA)
We decompose software into component to realize it.
From the viewing platform of the architecture, these
decomposed components have to perform their execution
depend on their roles that they offer including the behavior of
the interface. The definition of software components is free
of execution platform, but we ought to specify equivalent
behavior, real time behavior, & probabilistic behavior in term
of interfaces.
3. Platform Dependent Software and Hardware
Architecture (PDSHA)
Finally, (PDSHA) has to be put into effect on a carefully
selected hardware platform. Now this time of deployment of
the components of software & their development. Now,
components of COA must be sovereign deployable
components that are lonely associated to their platforms only
by own their interfaces. Despite these methods, we want a
suitable interface concept, behaviour of the interfaces, & the
system conformation in standings of the interfaces and
practices for their requirement. In conclusion, we ought to
define the framework of the software, the suppositions, and
also the behaviours
IX. REFERENCES
[1] Akmel, Feidu, et al. "AComparative ANALYSIS ON
SOFTWARE ARCHITECTURE STYLES." International
Journal in Foundations of Computer Science &
Technology 7.5/6 (2017): 11-22.
[2] David Garlan, Mary Shaw.”An Introduction to Software
Architecture.” Technical Report (1994).
[3] Winter, Robert, and Ronny Fischer. "Essential layers,
artifacts, and dependencies of enterprise architecture." 2006
10th IEEE International Enterprise Distributed Object
Computing Conference Workshops (EDOCW'06). IEEE,
2006.
[4] Klein, Mark H., et al. "Attribute-based architecture
styles." Working Conference on Software Architecture.
Springer, Boston, MA, 1999.
[5] Ahmad, Aakash, et al. "ARCHITECTING OF MOBILE
CLOUD SOFTWARE."
[6] Sharma, Anubha, Manoj Kumar, and Sonali Agarwal. "A
complete survey on software architectural styles and
patterns." Procedia Computer Science 70 (2015): 16-28.
[7] Rani, Neha. "Review on Application of Pipe and Filter
Architectural Style." Int. J. Curr. Trends Eng. Res 2.9 (2017):
7-12.
[8] Shaw, Mary, et al. "Abstractions for software architecture
and tools to support them." IEEE transactions on software
engineering 21.4 (1995): 314-335.
[9] Harrison, Neil B., Erich Gubler, and Danielle Skinner.
"Software architecture pattern morphology in open-source
systems." 2016 13th Working IEEE/IFIP Conference on
Software Architecture (WICSA). IEEE, 2016.
[10] Rotta, Randolf, Vladimir Nikolov, and Lutz Schubert.
"Software Architecture Fundamentals." (2016).
[11] Aslam, Tehreem, et al. "Quality based software
architectural decision making." 2019 International
Conference on Communication Technologies (ComTech).
IEEE, 2019.
[12] Lytra, Ioanna, et al. "Quality attributes use in
architecture design decision methods: research and
practice." Computing 102.2 (2020): 551-572.
[13] Bhat, Manoj, et al. "The Evolution of Architectural
Decision Making as a Key Focus Area of Software
Architecture Research: a Semi-Systematic Literature
Study." 2020 IEEE International Conference on Software
Architecture (ICSA). IEEE, 2020.
