MultiGrid Support System

Multidiscipline Support System
Type MultiGrid™
Being first is good, being smart is better, being both is Simply the Best! 1

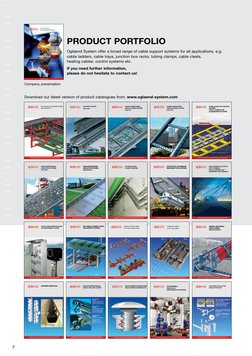

PRODUCT PORTFOLIO
Oglaend System offer a broad range of cable support systems for all applications, e.g.
cabIe Iadders, cable trays, junction box racks, tubing clamps, cable cleats,
heating cables, control systems etc.
If you need further information,
please do not hesitate to contact us!
Company presentation
Download our latest version of product catalogues from: www.oglaend-system.com
2

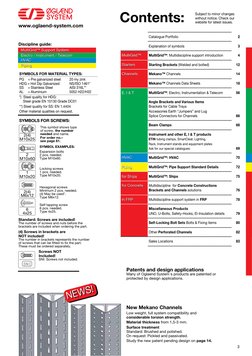

Contents:
Subject to minor changes
without notice. Check our
website for latest issues.
www.oglaend-system.com
––––––––––––––––––––––––––––––––––––––––
Catalogue Portfolio 2
––––––––––––––––––––––––––––––––––––––––
Discipline guide: Explanation of symbols 3
MultiGrid™ Support System –––––––––––––––––––––––––––––––––––––––––––––––––––––
Electro / Instrument / Telecom MultiGrid™ MultiGrid™: Multidiscipline support introduction 4
HVAC –––––––––––––––––––––––––––––––––––––––––––––––––––––
Piping Starters Starting Brackets (Welded and bolted) 12
–––––––––––––––––––––––––––––––––––––––––––––––––––––
Symbols for Material types: Channels Mekano™ Channels 14
PG = Pre galvanized steel 20 my zink ––––––––––––––––––––––––––––––––––––––––
HDG = Hot Dip Galvanized NS/ISO 1461* Mekano™ Channels Data Sheets 18
SS = Stainless Steel AISI 316L** –––––––––––––––––––––––––––––––––––––––––––––––––––––
AL = Aluminium 5052 H22/H32 E, I & T MultiGrid™: Electro, Instrumentation & Telecom 56
*) Steel quality for HDG: ––––––––––––––––––––––––––––––––––––––––
Steel grade EN 10130 Grade DC01 Angle Brackets and Various Items
**) Steel quality for SS: EN 1.4404 Brackets for Cable Trays
Other material qualities on request. Accessories Earth “Jumpers” and Lug
Splice Connectors for Channels 66
SYMBOLS FOR SCREWS: ––––––––––––––––––––––––––––––––––––––––
Beam Clamps 68
This symbol shows type
of screw, the number ––––––––––––––––––––––––––––––––––––––––
2(4) needed and name. Instrument and other E, I & T products
For order no.–
M10x25 see page 81. ETIN tubing clamps, SmartCleat, Lighting,
Rack, Instrument stands and equipment plates
Symbol examples:
Ask for our special catalogues: 69
Expansion bolts –––––––––––––––––––––––––––––––––––––––––––––––––––––
2 2 pcs. needed.
M10x60 Type M10x60. HVAC MultiGrid™: HVAC 70
–––––––––––––––––––––––––––––––––––––––––––––––––––––
Locking screws Piping MultiGrid™: Pipe Support Standard Details 72
1 1 pcs. needed. –––––––––––––––––––––––––––––––––––––––––––––––––––––
M10x20 Type M10x20. for Ships MultiGrid™: Ships 75
–––––––––––––––––––––––––––––––––––––––––––––––––––––
Hexagonal screws for Concrete Multidiscipline for Concrete Constructions
2(4) Minimum 2 pcs. needed. Brackets and Channels solutions 76
M6x12 (4) May be used*.
Type M6x12.
–––––––––––––––––––––––––––––––––––––––––––––––––––––
in FRP Multidiscipline support system in FRP 78
Self tapping screw –––––––––––––––––––––––––––––––––––––––––––––––––––––
6 6 pcs. needed. Miscellaneous Products
Type 4x25.
4x25 UNO, U-Bolts, Safety-Hooks, El-Insulation details 79
Standard: Screws are included! ––––––––––––––––––––––––––––––––––––––––
The number of screws and nuts before the Self-Locking Bolt Sets Bolts & Fixing items 80
brackets are included when ordering the part. ––––––––––––––––––––––––––––––––––––––––
(4) Screws in brackets are Other Perforated Channels 82
NOT included! –––––––––––––––––––––––––––––––––––––––––––––––––––––
The number in brackets represents the number
of screws that can be fitted to fix the part. Sales Locations 83
These must be ordered separately. ––––––––––––––––––––––––––––––––––––––––
Screws NOT
Included!
SNI: Screws not included.
SNI
Patents and design applications
Many of Oglaend System´s products are patented or
protected by design applications.
S!
new
New Mekano Channels
Low weight, full system compatibility and
considerable torsion strength.
Material thickness from 1,5-3 mm.
Surface treatment
Standard: Brushed and polished.
On request: Pickled and passivated.
Study the new patent pending design on page 14.
3

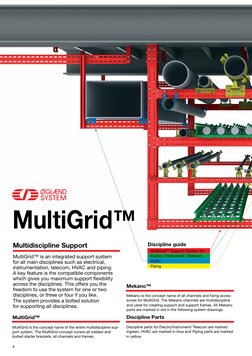

MultiGrid™
Multidiscipline Support Discipline guide
MultiGrid™ Support System for:
MultiGrid™ is an integrated support system Electro / Instrument / Telecom
for all main disciplines such as electrical, HVAC
Piping
instrumentation, telecom, HVAC and piping.
A key feature is the compatible components
which gives you maximum support flexibility
across the disciplines. This offers you the Mekano™
freedom to use the system for one or two
disciplines, or three or four if you like. Mekano is the concept name of all channels and fixing acces-
The system provides a bolted solution sories for MultiGrid. The Mekano channels are multidiscipline
for supporting all disciplines. and used for creating support and support frames. All Mekano
parts are marked in red in the following system drawings.
MultiGrid™ Discipline Parts

MultiGrid is the concept name of the entire multidiscipline sup- Discipline parts for Electro/Instrument/ Telecom are marked
port system. The MultiGrid concept covers all welded and ingreen, HVAC are marked in blue and Piping parts are marked
bolted starter brackets, all channels and frames. in yellow.
4

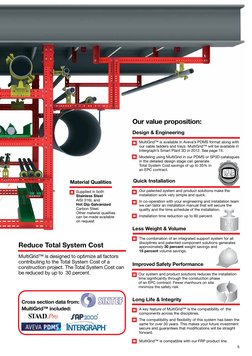

Our value proposition:
Design & Engineering
MultiGrid™ is available in Aveva’s PDMS format along with
our cable ladders and trays. MultiGrid™ will be available in
Intergraph’s Smart Plant 3D in 2012. See page 74.
Modeling using MultiGrid in our PDMS or SP3D catalogues
in the detailed design stage can generate
Total System Cost savings of up to 35% in
an EPC contract.
Material Qualities Quick Installation
Supplied in both Our patented system and product solutions make the
Stainless Steel installation work very simple and quick.
AISI 316L and In co-operation with your engineering and installation team
Hot Dip Galvanized we can tailor an installation manual that will secure the
Carbon Steel. quality and the time schedule of the installation.
Other material qualities
can be made available Installation time reduction up to 60 percent.
on request.
Less Weight & Volume

The combination of an integrated support system for all
disciplines and patented component solutions generates
Reduce Total System Cost approximately 30 percent weight savings and
15 percent volume savings.
MultiGrid™ is designed to optimize all factors
contributing to the Total System Cost of a
Improved Safety Performance
construction project. The Total System Cost can
be reduced by up to 30 percent. Our system and product solutions reduces the installation
time significantly through the constuction phase
of an EPC contract. Fewer manhours on site
minimize the safety risk.
Cross section data from: Long Life & Integrity

MultiGrid™ included: A key feature of MultiGrid™ is the compatibility of the
components across the disciplines.
The compatibility and flexibility of this system has been the
same for over 30 years. This makes your future investment
secure and guarantees that modifications will be straight
forward.
MultiGrid™ is compatible with our FRP product line.

5

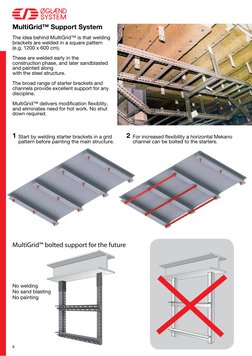

MultiGrid™ Support System
The idea behind MultiGrid™ is that welding
brackets are welded in a square pattern
(e.g. 1200 x 600 cm).
These are welded early in the

construction phase, and later sandblasted
and painted along
with the steel structure. TW!
The broad range of starter brackets and The utmost use of Mul-
channels provide excellent support for any tiGrid™
discipline.
MultiGrid™ delivers modification flexiblity,

and eliminates need for hot work. No shut
down required.
1 Start by welding starter brackets in a grid 2 For increased flexibility a horizontal Mekano
pattern before painting the main structure. channel can be bolted to the starters.
MultiGrid™ bolted support for the future
No welding
No sand blasting
No painting
6
Provide lowest possible
Total System Cost
The broad range of brackets in the Mul-
tiGrid™ system enable support for dif-
ferent loads. The starters should always
be selected based on the load capacity
needed.
The grid pattern is decided through a dia-

logue between the engineering experts.
All grid starters and Mekano channels are

fully compatible in order to provide flexibi-
lity and deliver lowest possible
Total System Cost.
Above: Grid system and ”starters” welded & ready for area painting.
3 Vertical and horizontal Mekano channels 4 MultiGrid™: Your flexible low weight support
can be bolted to the starters to support system, safe and easy to install and flexible
any discipline. in terms of future modifications.
Whatever support you decide, the solution may be preassembled

before installation.
7

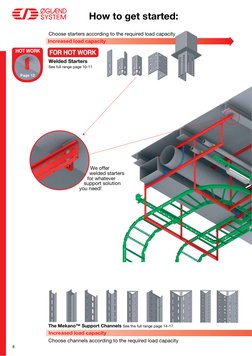

How to get started:
Choose starters according to the required load capacity
Increased load capacity
HOT WORK FOR HOT WORK
Welded Starters
See full range page 10-11
Page 12
We offer
welded starters
for whatever
support solution
you need!
The Mekano™ Support Channels See the full range page 14-17
Choose channels according to the required load capacity
8

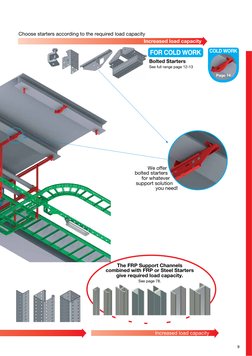

Choose starters according to the required load capacity
FOR COLD WORK COLD WORK
Bolted Starters
See full range page 12-13
Page 14
We offer
bolted starters
for whatever
support solution
you need!
The FRP Support Channels

combined with FRP or Steel Starters
give required load capacity.
See page 78.
9

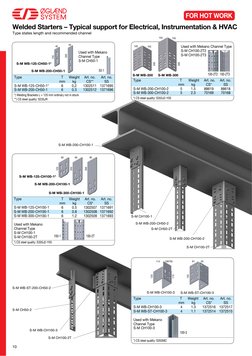

FOR HOT WORK
Welded Starters – Typical support for Electrical, Instrumentation & HVAC
Type states length and recommended channel
105 105
40
40 105 105 Used with Mekano Channel Type
Used with Mekano S-M CH100-2T2
S-M CH100-2T3
200
Channel Type
125
S-M CH50-1
S-M WB-125-CH50-1*
200
300
S-M WB-200-CH50-1 50-1
S-M WB-200 S-M WB-300 100-2T2 100-2T3
Type T Weight Art. no. Art. no.
mm kg CS** SS Type T Weight Art. no. Art. no.
S-M WB-125-CH50-1* 6 0,2 1302511 1371695 mm kg CS* SS
S-M WB-200-CH50-1 6 0.3 1302512 1371696 S-M WB-200-CH100-2 5 1.5 88619 88618
S-M WB-300-CH100-2 5 2.3 70169 70168
*) Welding Brackets L = 125 mm ordinary not in stock
**) CS steel quality: S235JR *) CS steel quality: S355J2-Y05
S-M WB-200-CH100-1
90 90 90
125
200
300
S-M WB-125-CH100-1*
S-M WB-200-CH100-1
S-M WB-300-CH100-1
mm kg CS* SS
S-M WB-125-CH100-1 6 0.5 1302507 1371691
S-M WB-200-CH100-1 6 0.8 1302508 1371692
S-M WB-300-CH100-1 6 1.2 1302509 1371693 S-M CH100-1

Used with Mekano S-M WB-200-CH50-2
Channel Type S-M CH50-2T
S-M CH100-1
S-M CH100-2T 100-1 100-2T
S-M WB-200-CH100-2
*) CS steel quality: S355J2-Y05
S-M CH100-2T
114 109793 91 93
120
175
150
S-M WB-ST-200-CH50-2
S-M WB-CH100-3 S-M WB-ST-CH100-3
mm kg CS* SS
S-M WB-CH100-3 4 1.3 1372516 1372517
S-M CH50-2 S-M WB-ST-CH100-3 4 1.1 1372514 1372515

Used with Mekano
Channel Type
S-M CH100-3
S-M WB-CH100-3
100-3
S-M CH100-2T
*) CS steel quality: S355MC
10
FOR HOT WORK
Welded Starters – Typical for Piping & heavy loads
Type states length and recommended channel
61 61 61 61 61 61 61 61 20 150 150
113 113 0
0
20
8
125
200
300
S-M WB-125-CH50-2
250
240
240
170
250
20
S-M WB-200-CH50-2 0
6
S-M WB-300-CH50-2 20
0
S-M WB-ST-200-CH50-2
240
Type T Weight Art. no. Art. no. S-M WB-CH100-4
mm kg CS* SS S-M WB-PL-CH100-4
S-M WB-125-CH50-2 6 0.6 82210 82211
S-M WB-200-CH50-2 6 1.0 1302514 1371698 S-M WB-FP-CH100-4
S-M WB-300-CH50-2 6 1.5 1302599 1371699 Type T Weight Art. no. Art. no.
S-M WB-ST-200-CH50-2 6 0.9 84287 84283 mm kg CS SS
S-M WB-CH100-4 6 3 1372606 1372601
Used with Mekano S-M WB-PL-CH100-4 6 5.5 N/A 1372552
Channel Type S-M WB-FP-CH100-4 6 12 N/A 1372602
S-M CH50-2
S-M CH60-2 Used with Mekano
S-M CH50-2T 50-2 60-2 50-2T Channel Type
*) CS steel quality: S355J2-Y05 S-M CH100-4 100-4
*) CS steel quality: S355J2-Y05
CS brackets are uncoated and not available in HDG.
S-M WB-200-CH50-2
S-M CH60-2
S-M WB-ST-200-CH100-3
S-M CH100-3
S-M WB-CH100-4
S-M CH100-4
11
FOR COLD WORK
Bolted Starters – Typical support for Electrical, Instrument & HVAC
Type states recommended channel
Bolted solutions for concrete,

see page 77. Used with Mekano
Channel Type
S-M CH100-1
160
S-M CH100-2T
S-M BS-CH100-1 105 100-1 100-2T
Type T Weight Art. # Art. no.
mm HDG SS
S-M BS-CH100-1 3 1.2 61092 1371707

S-M BC-ST-HD
S-M CH100-3
76 110
M12 bolts
172
150
90
S-M BS-CH100-1
S-M BC-ST-HD S-M BS-CH100-3
Type T Weight Art. # Art. no. S-M BC-240
mm kg HDG SS
S-M BC-ST-HD 4 2,4 N/A 86887 S-M CH100-1
S-M BS-CH100-3 4 3,6 1372493 1372492

Used with Mekano
Channel Type S-M CH50-2T
S-M CH100-3
S-M CH100-4 S-M BS-CH100-4
100-3 100-4
S-M CH100-2T
See page 68 for M12 bolts

S-M BC-FC 200 120 200 150 200 200
further details
8 8
(x2) 8
240
240
240
S-M BC-160 S-M BC-300

113
Type T Weight Art. no. Art. no. S-M BS-CH100-4-B
mm kg HDG SS S-M BS-CH100-4-C S-M BS-CH100-4
S-M BC-FC 4 0.37 85196 85197
S-M BC-160 3 1.16 85621 85622 Type T Weight Art. # Art. no.
S-M BC-300 3 1.7 85623 85624 mm kg HDG* SS
S-M BS-CH100-4-C 6 4.5 1372522 1372523
Used with Mekano S-M BS-CH100-4-B 6 4.9 1372554 1372555
Channel Type S-M BS-CH100-4 6 5.5 1372603 1372550
S-M CH50-1 *) CS steel quality:
S-M CH50-2 Used with Mekano S355J2-Y05
S-M CH50-2T1,5 Channel Type
S-M CH50-2T2 50-1 50-2 50-2T
S-M CH100-4 100-4
12
FOR COLD WORK
Bolted Starters – Typical for Piping & heavy loads
Type states recommended channel
S-M BC-CH100-3
S-M MG-CA
103
S-M BS-CH60-2 50
0
95
96 See page 68

Type T Weight Art. # Art. no. for further details
mm HDG SS S-M BT-CH100-3
109.5
S-M BS-CH60-2 4 2.5 1371424 1371423
Used with Mekano mm HDG SS
Channel Type S-M BC-CH100-3 4 3 1372490 1372491
S-M CH60-2 S-M BT-CH100-3 4 3.5 1372494 1372495
S-M CH50-2T1.5 S-M MG-CA 3 80926 1372497
S-M CH50-2T2
S-M CH100-2T3 Used with Mekano
60-2 50-2T 100-2T
S-M CH100-2T3 Channel Type
S-M CH100-2T2
S-M CH100-2T3
S-M CH100-3 100-2T2 100-2T3 100-3

M16 bolts
5
41
120
S-M BC-MS-CH100-4
(See Page 63 for details.)

100
0
40 Fit-range HE240-1000A/B

Type T Weight Art. # Art. no.
mm kg HDG SS
S-M BC-MS-CH100-4 5 16 1372519 1372520

Used with Mekano
Channel Type
S-M CH100-4 100-4
S-M BS-CH60-2
S-M CH60-2
S-M BC-CH100-3
S-M CH100-3
S-M BC-MS-CH100-4
S-M CH100-4
13
Support Channels for Electrical, Instrument & HVAC
Electro / Instrument / Telecom
HVAC Increased load capacity
Piping
Mekano 50-1 Mekano 50-2 Mekano 100-1 Mekano 50-2T

Single and Double Single and Double Mekano 100-2T
!
new

S-M CH50-1 S-M CH50-2 S-M CH100-1 S-M CH50-2T S-M CH100-2T

Data:
Thickn. Weight Thickn. Weight Thickn. Weight Thickn. Weight
Type mm kg/m Type mm kg/m Type mm kg/m Type mm kg/m
S-M CH50-1-3 1.5 1.3 S-M CH50-2-3 1.5 1.7 S-M CH100-1-3 1.5 1.7 S-M CH50-2T1,5-3 1.5 1.4
S-M CH50-2T2-3 2.0 1.8
S-M CH100-2T2-3 2.0 3.8
Ordering list: Type states width, material
Type states width and length Type states width and length Type states width and length thickness and length
Art. no. Art. no. Art. no. Art. no. Art. no. Art. no. Art. no. Art. no.
Type HDG SS Type HDG SS Type HDG SS Type HDG SS
S-M CH50-1-3 1371684 1371687 S-M CH50-2-3 1302506 1371689 S-M CH100-1-3 1371649 1371685 S-M CH50-2T1,5-3 1372186 1372181*
S-M CH50-2T2-3 1372187 1372182*
S-M CH100-2T2-3 1372189 1372184*
*)
The triangular SS channels are supplied non pickled and passivated as standard.
Article numbers for pickled and passivated are: 1372181P, 1372182P, 1372184P.
Calculation basis Channel material thickness (mm)

Channel Type: CH50-1 (1.5) CH50-2 CH100-1 (1.5) CH100-1 (1.5) CH50-2T CH50-2T CH100-2T
Double (1.5mm) Single Double (1.5mm) (2mm) (2mm)
AE 305 215 214 427 222 222 461
ITE 237 169 160 319 33 853 41 015 273 205
IXE 127 000 81 598 31 4961 629 922 35 062 71 015 521 996
IYE 44 790 81 598 11 960 40 000 55 062 71 015 521 996
WXP 5 082 2 663 6 299 12 599 1 682 2 168 7 844
WYP 1 991 2 663 762 1 850 1 682 2 168 7 844
CTP 158 113 106 213 2 492 3 101 12 217
DW = Dead Weight AE - Effective cross-section area (mm2) WXP - Moment of resistance, bending about X-axis, perforated (mm3)
KN = Kilo Newton ITE - Effective moment of inertia, torsion (mm4) WYP - Moment of resistance, bending about Y-axis, perforated (mm3)
IXE - Effective moment of inertia, bending about X-axis (mm4) CTP - Moment of resistance, torsion, perforated (mm3)
IYE - Effective moment of inertia, bending about Y-axis (mm4)
14
Support Channels for Piping & heavy loads
Electro / Instrument / Telecom
HVAC Increased load capacity
Piping
Mekano 50-2T Mekano 60-2 Mekano 100-3 Mekano 100-4

Mekano 100-2T Double and
Single Perforated
!
new

Thickness

2,5mm 3mm

S-M CH50-2T S-M CH100-2T S-M CH60-2* S-M CH100-3* S-M CH100-4-3
*) Made to order only *) Made to order only S-M CH100-4-5
Thickn. Weight Thickn. Weight Thickn. Weight Thickn. Weight

Type mm kg/m Type mm kg/m Type mm kg/m Type mm kg/m
S-M CH50-2T2,5-3 2.5 2.4 S-M CH60-2-A-3 6 5.3 S-M CH100-3-2.5 2.5 5.3 S-M CH100-4-3-6 3 8.5
S-M CH100-2T3-3 3.0 6.0 S-M CH100-4-5-6 5 13.7

Type states width, material Type states width, material Type states width, material Type states width, material
thickness and length thickness and length thickness and length thickness and length
Art. no. Art. no. Art. no. Art. no. Art. no. Art. no. Art. no. Art. no.
Type HDG SS Type HDG SS Type HDG SS Type HDG SS
S-M CH50-2T2,5-3 1372188 1372183* Double perforated S-M CH100-3-0.5 80912 80267 3mm thickness
S-M CH100-2T3-3 1372190 1372185* S-M CH60-2-A-3 1371432 1371430 S-M CH100-3-1 80913 80268 S-M CH100-4-3-6 1372525 1372526
Single perforated S-M CH100-3-1.25 80914 80460 5mm thickness
S-M CH60-2-B-3 1371431 1371429 S-M CH100-3-2.5 1372504 1372505 S-M CH100-4-5-6 1372530 1372531
*) The triangular SS channels are supplied non pickled and passivated as standard.
Article numbers for pickled and passivated are: 1372181P, 1372182P, 1372184P.
CH50-2T CH100-2T CH60-2 CH100-3 CH100-4 CH100-4

(2.5mm) (3mm) (6mm) (2.5mm) (3mm) (5mm)
240 722 633 777 1023 1 642
54 474 449 902 7 524 1 619 2 516 957 3 972 831
88 245 789 750 220 797 1 073 537 1 596 639 2 428 086
88 245 789 750 220 797 1 347 007 1 596 639 2 428 086
26 278 11 792 4 902 17 267 28 016 42 284
26 278 11 792 4 902 23 961 28 016 42 284
4 171 19 343 1 121 578 44 467 70 680
Channels are included in Staad.Pro (contact us for library)
by Bentley by EDR
15
Support Channels for Electrical, Instrument & HVAC
Mekano 50-1 Standard length = 3 m. Mekano 100-1
Other lengths as per your

specific material take off
requirement (MTO)
can be provided as speci-
alty products.
T: 1.5 mm T: 1.5 mm
Art. no. Art. no. Art. no. Art. no.
Type HDG SS Type HDG SS
S-M CH50-1-3 1371684 1371687 S-M CH100-1-3 1371649 1371685
Mekano 100-2T Mekano 50-2T Mekano 50-2
! !
new new
T: 1.5 & 2 mm
T: 2 mm T: 1.5 mm
Art. no. Art. no.
Art. no. Art. no. Type HDG SS Art. no. Art. no.
Type HDG SS S-M CH50-2T1,5-3 1372186 1372181 Type HDG SS
S-M CH100-2T2-3 1372189 1372184 S-M CH50-2T2-3 1372187 1372182 S-M CH50-2-3 1302506 1371689
16
Support Channels for Piping & heavy loads
Mekano 50-2T Mekano 60-2* Mekano 100-2T
*) Made to order only
! !
new new
T: 6 mm A B
T: 2.5 mm Art. no. Art. no. T: 3 mm
Art. no. Art. no. Type HDG SS Art. no. Art. no.
Type HDG S S-M CH60-2-A-3 1371432 1371430 Type HDG SS
S-M CH50-2T2,5-3 1372188 1372183 S-M CH60-2-B-3 1371431 1371429 S-M CH100-2T3-3 1372190 1372185
Mekano 100-3* Mekano 100-4

*) Made to order only
T: 2.5 mm
Art. no. Art. no.
Type HDG SS T: 3 & 5 mm
S-M CH100-3-0.5 80912 80267 Art. no. Art. no.
S-M CH100-3-1 80913 80268 Type HDG SS
S-M CH100-3-1.25 80914 80460 S-M CH100-4-3-6 1372525 1372526
S-M CH100-3-2.5 1372504 1372505 S-M CH100-4-5-6 1372530 1372531
17
A guide to standard U- , L- , T- and Cantilever support
Choose starters and Channels according to the required load capacity
Using Channels: For complete spesifications and ordering list see data sheet page p 19 up to: p 55
U: 01 U: 02
Mekano 50-2 Vertical
Mekano 50-2 Horizontal CH50-2-1,5 CH50-2T2
Mekano 100-1 Horizontal
p 19 p 20
CH100-1
Mekano 50-2T-1,5 Vertical U: 03 U: 05 C: 01

Mekano 50-2T-1,5 Horizontal CH50-2T1,5 CH50-2T1,5
Mekano 100-1 Horizontal CH50-2T1,5
p 21 p 23 p 41
CH100-1
U: 04 U: 06 U: 07 U: 08 C: 02
Mekano 50-2T2 Vertical
CH50-2T2 CH50-2T2 CH50-2T1,5 CH50-2T1,5
Mekano 50-2T2 Horizontal
CH50-2T2
Mekano 100-1 Horizontal
p 22 p 26 p 24 p 25 p 42
CH100-1 CH100-1 CH100-1
U: 09 U: 10 U: 11 L: 01 C: 03 T: 01
Mekano 100-2T-2 Vertical
CH100-2T2 CH100-2T2 CH100-2T2 CH100-2T2 CH100-2T2
Mekano 100-2T-2 Horizontal
CH100-2T2
p 27 p 28 p 29 p 36 p 43 p 50
U: 12 C: 04
Mekano 50-2T2,5 Vertical
Mekano 50-2T2,5 Horizontal CH50-2T2,5
CH50-2T2,5
p 30 p 44
U: 13 C: 05 T: 02
Mekano 60-2 Horizontal CH60-2 CH60-2
CH60-2
p 31 p 45 p 51
U: 15 L: 03 C: 07 T: 04
Mekano 100-2T3 Vertical
Mekano 100-2T3 Horizontal CH100-2T3 CH100-2T3 CH100-2T3
CH100-2T3
p 33 p 38 p 47 p 53
U: 14 L: 02 C: 06 T: 03
CH100-3-2,5 CH100-3-2,5 CH100-3
Mekano 100-3 Horizontal CH100-3-2,5
p 32 p 37 p 46 p 52
U: 16 L: 04 C: 08 T: 05 T: 06
Mekano 100-4 Vertical CH100-4-3 CH100-4-3 CH100-4-3 CH100-4-3 CH100-4-5
Mekano 100-4 Horizontal U: 17 L: 05
CH100-4-5 CH100-4-5 C: 09
CH100-4-5
p 34 p 35 p 30 p 40 p 54 p 55
p 48 p 49
88
18
U-SUPPORT: CH 50-2 -1,5mm MG-U: 01
A)
S-M WB-200-CH50-2
Thickness
1.5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
Function Type Thickness (mm) Weight (kg) Art # HDG Art # SS # of Parts
A) Welded Starter S-M WB-200-CH50-2 6 0,9 1302514** 1371698 2
B) Mekano Channel S-M CH50-2 (*kg/m) 1,5 1,7* 1302506 1371689 1
C) Angle Bracket S-M AB 55x55-10 4 0,2 1302494 1371712 2
D) Self Lock Boltset S-M LS-NU-M10x20 10 0,05 1371980 1371983 14
**) S-M WB-200-CH50-2 is delivered in carbon steel quality.
Load Capacity: Mekano Channel CH 50-2 (vertical) & CH 50-2 (horizontal)
Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

1000 250 5.5 1.8
1000 500 3.2 1.1
1000 750 2.3 0.8
1000 1000 1.8 0.6
1000 1250 1.5 0.5
• Norsk Standard code NS3472/Eurocode 03/Norsok.

• Capacity (KN) is calculated using point load on the centre of the horizontal support.
• Piping: ULS – Ultimate Limit state – Load factor 1,3 – Material factor 1,15 on r = 210N/mm².
• Other disciplines: SLS -. Load factor 1,0 – Material factor 1,15 on r = 210N/mm².
• Deflection allowance piping: L/300 or 3 mm. Most conservative used.
• Deflection allowance other disciplines: L/200
• Section properties are based on effective values reduced for perforations.
• Max loads Y(KN) and X(KN) are non-concurrent loads.
• We do not recommend to use channel CH50-2-1,5 as horizontal support for widths > 1,2 m.
For these applications please substitute to either CH100-1 double or CH100-2T-2mm.
19
U-SUPPORT: CH 50-2-1,5mm & CH100-1-1,5mm MG-U: 02
A)
S-M WB-200-CH50-2
Thickness
1.5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
Function Type Thickness (.mm) Weight(kg) Art # HDG Art # SS #of Parts
B) Mekano Channel S-M CH50-2(*kg/m) 1,5 1,7* 1302506 1371689 1
C) Mekano Channel S-M CH100-1(*kg/m) 1,5 1,7* 1371649 1371685 1
Load Capacity: Mekano Channel CH 50-2 (v) & CH 100-1 (h)

1000 250 13.4 4.5
1000 500 8.8 2.9
1000 750 6.4 2.1
1000 1000 4.4 1.5
1000 1250 4.2 1.4

20
U-SUPPORT: CH 50-2T-1,5mm MG-U: 03
A)
S-M WB-200-CH50-2
Thickness
1.5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
B) Mekano Channel S-M CH50-2T1,5(*kg/m) 1,5 1,4* 1372186 1372181 1
Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 50-2T1,5 (h)

1000 250 5.5 1.8
1000 500 3.2 1.1
1000 750 2.3 0.8
1000 1000 1.8 0.6
1000 1250 1.5 0.5

• We do not recommend to use channel CH50-2T-1,5 as horizontal support for widths > 1,2 m.
21
U-SUPPORT: CH 50-2T-2mm MG-U: 04
A)
S-M WB-200-CH50-2
Thickness
2 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
B) Mekano Channel S-M CH50-2T2(*kg/m) 2 1,8* 1372187 1372182 1
Load Capacity: Mekano Channel CH 50-2T2 (v) & CH 50-2T2 (h)

1000 250 7.3 2.4
1000 500 4.7 1.6
1000 750 3.5 1.2
1000 1000 2.8 0.9
1000 1250 2 0.7

• We do not recommend to use channel CH50-2T-2 as horizontal support for widths > 1,2 m.
22
U-SUPPORT: CH 50-2T-1,5mm & CH100-1-1,5mm MG-U: 05
A)
S-M WB-200-CH50-2
Thickness
1.5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 100-1 (h)

1000 250 13.4 4.5
1000 500 8.8 2.9
1000 750 6.4 2.1
1000 1000 4.4 1.5
1000 1250 4.2 1.4

23
U-SUPPORT: CH 50-2T-2mm & CH100-1-1,5mm MG-U: 06
A)
S-M WB-200-CH50-2
Thickness
2 mm
Height
B)
Py(KN)
C) Thickness
1,5 mm
D) Px(KN)
Width
Items list:

1000 250 13,5 4,5
1000 500 9 3
1000 750 6,6 2,2
1000 1000 5,3 2,4
1000 1250 4,5 1,5

24
A)
S-M WB-200-CH50-2
H1 Py(KN) Thickness
2 mm
Thickness
1,5 mm
Height
B)
H1
Py(KN)
C)
D) Px(KN)
Width
Items list:

Height(mm) H1 Width(mm) Capacity Py(KN) Capacity Px(KN)
1000 250 13 4,3
1000 500 8,6 3,8
1000 750 6,2 2,0
1000 1000 4,2 1,4
1000 1250 4,0 1,3

25
A)
Thickness
H1
Py(KN) 2 mm S-M WB-200-CH50-2
Thickness
1,5 mm
Height
Py(KN)
H1
B)
Py(KN)
C) H1
D) Px(KN)
Width
Items list:
C) Mekano Channel S-M CH100-1(*kg/m) 1,5 1,7* 1371649 1371685 1(2)
Height(mm) H1 Width(mm) Capacity Py(KN) Capacity Px(KN)

1000 250 12 4
1000 500 8 2,6
1000 750 6 2
1000 1000 4 1,3
1000 1250 3,5 1,5

26
U-SUPPORT: CH100-2T-2mm MG-U: 09
A)
S-M WB-200-CH100-2
Thickness
2 mm
Height
B)
Py(KN)
C)
Px(KN)
Width
Items list:
C) Self Lock Boltset S-M LS-NU-M10x20 10 0,05 1371980 1371983 16
Mekano Channel CH 100-2T2 (v) & CH 100-2T2 (h)

1000 250 22.5 7.5
1000 500 14.2 4.7
1000 750 10.5 3.5
1000 1000 8 2.7
1000 1250 7 2.3
1000 2000 4.7 1.5

27
A)
S-M WB-200-CH100-2
H1
Thickness Py(KN)
2 mm
Height
B)
H1
Py(KN)
C)
Px(KN)
Width
Items list:

1000 250 21 7
1000 500 12,8 4,3
1000 750 9,4 3,4
1000 1000 7,4 2,4
1000 1250 6,2 2,1
1000 2000 4,0 1,3

28
A)
Py(KN)
H1 S-M WB-200-CH100-2
Thickness
2 mm
Height
Py(KN)
H1
B)
H1 Py(KN)
C)
Px(KN)
Width
Items list:

1000 250 19,6 6,5
1000 500 12,0 4,0
1000 750 8,8 2,9
1000 1000 7,0 2,3
1000 1250 5,8 1,9
1000 2000 3,1 1,0

29
U-SUPPORT: CH 50-2T-2,5mm MG-U: 12
A)
S-M WB-200-CH50-2
Thickness
2.5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
Load Capacity: Mekano Channel CH 50-2T2,5 (v) & CH 50-2T2,5 (h)
Height(mm) Width(mm) Capacity DW Py(KN) Piping Py(KN) Piping Px(KN) Blast Py(KN) Blast Px(KN)
1000 250 8.5 3.8 1.1 10 3
1000 500 5 3.3 1 9 3
1000 750 3.6 2.5 0.8 8 3
1000 1000 2.8 2.2 0.66 5 3
1000 1250 2.4 1.8 0.54 4 2.5


• For blast calculation a P(y)=70% of capacity load is used to estimate max blast in x-direction.
30
U-SUPPORT: CH 60-2-6mm MG-U: 13
A)
S-M WB-200-CH50-2
Thickness
6 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
Function Type Thickness (mm) Weight(kg) Art # HDG Art # SS #of Parts
B) Mekano Channel S-M CH60-2(*kg/m) 6 5,1* 1371432 1371430 1
C) Angle Bracket S-M AC CH60-2 4 1,7 1371436 1371435 4
Load Capacity: Mekano Channel CH 60-2(v) & CH 60-2(h)
1000 250 15.5 4.6 1.38 8 7
1000 500 9 4.4 1.32 7 6
1000 750 6.5 3.8 1.14 7 6
1000 1000 5 3.3 0.99 5 6
1000 1250 4.2 2.8 0.69 3 6

• For blast calculation r=450N/mm².
31
U-SUPPORT: CH 100-3-2,5mm MG-U: 14
A)
S-M WB-ST-CH100-3
Thickness
2,5 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
E)
Items list:
A) Welded Starter S-M WB-ST-CH100-3 4 1,2 1372514** 1372515 2
C) Splice Connector L S-M SC-L-CH100-3 4 0,2 1372510 1372511 4
E) End Protection A-CH100-3 EP 2 0,1 1372506 1372507 2
**) S-M WB-ST-CH100-3 is delivered in carbon steel quality.
Load Capacity: Mekano Channel 100-3 & CH100-3
1000 250 20.4 11 3.3 12 12
1000 500 18 11.4 3.5 11 12
1000 750 13.2 9.8 2.5 11 12
1000 1000 10.8 8.1 2.4 10 12
1000 1250 9 6.7 2.0 9 11
1000 2000 7 4.2 1.3 4 10

32
U-SUPPORT: CH 100-2T-3mm MG-U: 15
A)
S-M WB-200-CH100-2
Thickness
3 mm
Height
B)
Py(KN)
C) Px(KN)
Width
Items list:
B) Mekano Channel S-M CH100-2T3(*kg/m) 3 6* 1372190 1372185 1
Load Capacity: Mekano Channel CH 100-2T3 & CH100-2T3
1000 250 30 13.1 4.0 12 14
1000 500 20.3 12.5 3.8 14 15
1000 750 15.2 11.1 3.3 14 14
1000 1000 12.4 9 2.7 13 14
1000 1250 10.4 7.8 2.3 12 13
1000 2000 7.0 4.5 1.35 11 12

33
A)
S-M WB-CH100-4
Thickness
3 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
Items list:
A) Welded Starter S-M WB-CH100-4 3 3 1372606** 1372601 2
B) Mekano Channel S-M CH100-4-3(*kg/m) 3 8,3* 1372525 1372526 1
D) Self Lock Boltset S-M LS-NU-M10x130 10 0,05 N/A 1372950 32
**) S-M WB-CH100-4 is delivered in carbon steel quality.
Load Capacity: Mekano Channel CH 100-4-3 & CH100-4-3
1000 250 44 16 4.8 20 20
1000 500 36 20 6 25 25
1000 750 30 20 6 30 30
1000 1000 26 18 5.4 30 30
1000 1250 22 16 4.8 28 28
1000 2000 15 9 2.7 15 21

34
A)
S-M WB-CH100-4
Thickness
5 mm
Height
B)
Py(KN)
C)
Px(KN)
D)
Width
Items list:
Load Capacity: Mekano Channel CH 100-4-5 & CH100-4-5
1000 250 69 26 7.8 45 45
1000 500 57 32 9.6 50 45
1000 750 47 31 9.3 55 45
1000 1000 39 28 8.4 50 45
1000 1250 34 25 7.5 49 43
1000 2000 23 18 5.4 38 37

35
L-SUPPORT: CH100-2T-2mm & CH100-2T-2mm MG-L: 01
A)
S-M WB-200-CH100-2
Thickness
2 mm
Height
B)
Py(KN)
C) Px(KN)
Width
Items list:
B) Mekano Channel S-M CH1002T2(*kg/m) 2 3,8* 1372189 1372184 1
**) S-M WB-ST-200-CH100-2 is delivered in carbon steel quality.
Height(mm) Width(mm) Capacity DW Py(KN) Capacity Px(KN)

600 200 6,7 2,2
600 400 3,4 1,15
600 600 2,3 1,6

• Piping: ULS – Ultimate Limit state – Load factor 1,3 – Material factor 1,15 on p = 210N/mm².
• Other disciplines: SLS -. Load factor 1,0 – Material factor 1,15 on p = 210N/mm².
36
L-SUPPORT: CH 100-3-2,5mm MG-L: 02
A)
S-M WB-ST-CH100-3
Thickness
Height 2,5 mm
B)
Py(KN)
C)
Px(KN)
D) Width
E)
Items list:
Load Capacity: Mekano Channel CH100-3-2,5(v) & CH100-3-2,5(h)
600 200 10,8 4,0 1,6 12 6
600 400 6 2,7 0,9 8 5,4
600 600 3,3 1,7 0,6 5 5,4

• For blast calculation p=450N/mm².
37
L-SUPPORT: CH100-2T-3mm MG-L: 03
A)
S-M WB-200-CH100-2
Thickness
3 mm
Height
B)
Py(KN)
C) Px(KN)
Width
Items list:
Mekano Channel CH100-2T3 (v) & CH100-2T3 (h)

600 200 10 4,1 1,3 6 7
600 400 5 2,6 0,85 4 6
600 600 3,5 1,7 0,55 3 6

38
L-SUPPORT: CH 100-4-3mm MG-L: 04
A)
Thickness S-M WB-CH100-4

3 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
E)
Items list:
B) Mekano Channel S-M-CH100-4-3(*kg/m) 3 8,5* 1372525 1372526 1
E) End Protection A-CH100-4 EP Plastic: PS60018 1
Load Capacity: Mekano Channel CH 100-4-3 (v) & CH100-4-3 (h)
600 200 22 9 3 20 15
600 400 12 6 2 10 14
600 600 7 3,5 1,1 7 14

39
L-SUPPORT: CH 100-4-5mm MG-L: 05
A)
Thickness S-M WB-CH100-4

3 mm
Height
B)
Py(KN)
C)
D) Px(KN)
Width
E)
Items list:
600 200 34 14 4,5 25 23
600 400 17 8 2,5 14 22
600 600 10,5 5,4 1,5 11 22

40
Cantilever SUPPORT: CH 50-2T-1,5mm MG-C: 01
S-M WB-200-CH50-2
A)
Py(KN)
B)
Px(KN)
C) Thickness
1.5 mm
Width
Items list:
B) Mekano Channel S-M CH50-2T(*kg/m) 1,5 1,4* 1372186 1372181 1
Load Capacity: Mekano Channel CH 50-2T1,5

Lenght(mm) Capacity DW Py(KN) Piping Px(KN)
200 1,5 1
400 0,8 0,6
600 0,5 0,2

• Capacity (KN) is calculated using point load.
41
Cantilever SUPPORT: CH 50-2T-2mm MG-C: 02
S-M WB-200-CH50-2
A)
Py(KN)
B)
Px(KN)
C) Thickness
1.5 mm
Width
Items list:
Load Capacity: Mekano Channel CH 50-2T2

200 2,0 0,65
400 1,0 0,35
600 0,7 0,21

42
Cantilever SUPPORT: CH100-2T-2mm MG-C: 03
S-M WB-200-CH100-2
A)
Py(KN)
B)
Px(KN)
C) Thickness
2 mm
Width
Items list:
A) Welded Starter S-M WB-ST-200-CH100-2 5 1,6 88619** 88618 1
Load Capacity: Mekano Channel CH100-2T2

200 7,0 2,3
400 3,6 1,2
600 2,3 0,7
800 1,8 0,6
1000 1,4 0,5

43
Cantilever SUPPORT: CH50-2T-2,5mm MG-C: 04
S-M WB-200-CH50-2
A)
Py(KN)
B)
Px(KN)
C) Thickness
2.5 mm
Width
Items list:
Load Capacity: Mekano Channel CH50-2T2,5
Lenght(mm) Capacity DW Py(KN) Piping Py(KN) Piping Px(KN) Blast Py(KN) Blast Px(KN)
200 2,4 1,9 0,6 5,5 10,0
400 1,2 0,9 0,3 2,5 10,0
600 0,8 0,6 0,2 1,8 10,0

44
Cantilever SUPPORT: CH60-2-6mm MG-C: 05
S-M WB-200-CH50-2
A)
Py(KN)
B)
Px(KN)
C) Width Thickness
6 mm
Items list:
Load Capacity: Mekano Channel CH60-2
Width(mm) Capacity DW Py(KN) Piping Py(KN) Piping Px(KN) Blast Py(KN) Blast Px(KN)
200 4,4 3,4 1,1 10,5 10,0
400 2,2 1,7 0,6 5,5 10,0
600 1,5 1,1 0,4 3,5 10,0

45
Cantilever SUPPORT: CH100-3-2,5mm MG-C: 06
S-M WB-ST-CH100-3
A)
Py(KN)
B)
Px(KN)
C) Width
Thickness
2,5 mm
D)
Items list:
B) Mekano Channel S-M CH100-3-2,5(*kg/m) 2,5 5,7* 1372504 1372505 1
D) End Protection A-CH100-3 EP 2 0,1 1372506 1372507 1
Load Capacity: Mekano Channel CH100-3-2,5
200 12,0 9,0 3,0 30 15
400 6,0 4,2 1,6 15 15
600 4,3 3,2 1,0 10 15
800 3,3 2,7 0,8 7,5 15
1000 2,2 2,0 0,7 6 15

46
Cantilever SUPPORT: CH100-2T-3mm MG-C: 07
S-M WB-200-CH100-2
A)
Py(KN)
B) Thickness
3 mm
Px(KN)
C) Width
Thickness
3 mm
Items list:
Load Capacity: Mekano Channel CH100-2T3
200 11,0 8,0 2,6 25,0 25,0
400 5,4 4,0 1,3 12,2 25,0
600 3,6 2,7 0,9 8,0 25,0
800 2,7 2,0 0,7 6,0 25,0
1000 2,1 1,6 0,6 5,0 25,0

47
S-M WB-CH100-4
A)
Py(KN)
B)
Px(KN)
C) Width Thickness
3 mm
Items list:
C) Self Lock Boltset S-M LS-NU-M10x130 10 0,05 N/A 1372950 4
D) End Protection A-CH100-4 EP Plastic: PS60018 1
Load Capacity: Mekano Channel CH100-4-3
200 11,0 8,0 2,6 25,0 25,0
400 5,4 4,0 1,3 12,2 25,0
600 3,6 2,7 0,9 8,0 25,0
800 2,7 2,0 0,7 6,0 25,0
1000 2,1 1,6 0,6 5,0 25,0

48
S-M WB-CH100-4
A)
Py(KN)
B)
Px(KN)
C) Width Thickness
3 mm
Items list:
C) Self Lock Boltset S-M LS-NU-M10x130 10 0,05 N/A 1372950 4
D) End Protection A-CH100-4 EP Plastic: PS60018 1
Load Capacity: Mekano Channel CH100-4-5
200 38,0 25,0 8,3 75,0 50,0
400 19,2 14,0 4,3 50,0 50,0
600 13,0 9,6 3,2 30,0 50,0
800 9,5 7,2 2,4 22,0 50,0
1000 7,6 5,8 1,8 18,0 50,0

49
T-SUPPORT: CH100-2T-2mm MG-T: 01
A) S-M WB-200-CH100-2
Thickness
2 mm
Height
B)
Py(KN) Py(KN)
C)
Px(KN) Px(KN)
Width
Items list:
Height(mm) Width(mm) Capacity DW Py(KN) Piping Px(KN)

600 200 3,10 1,0
600 400 2,30 0,7
600 600 1,60 0,5
600 800 1,20 0,4

• Please note that the capacity calculation for T-support is for even loading on both sides.
50
T-SUPPORT: CH 60-2-6mm MG-T: 02
S-M WB-200-CH50-2
A)
Thickness
6 mm
B)
Height
C)
Py(KN) Py(KN)
D)
Px(KN) Px(KN)
Width
Items list:
Function Type Thickness (mm) Weight(kg) Art # HDG Art # SS #of Parts
C) Angle Bracket S-M AC CH60-2 4 1,7 1371436 1371435 2
Load Capacity: Mekano Channel CH 60-2 & CH 60-2
1500 300 3,00 2,10 0,70 6,00 2,20
1500 600 1,50 1,20 0,40 3,90 1,30
1500 900 1,00 0,75 0,25 2,40 0,90
1500 1200 0,75 0,50 0,13 1,80 0,60

51
T-SUPPORT: CH 100-3-2,5mm MG-T: 03
S-M WB-ST-CH100-3
A)
Thickness
B)
Height
2.5 mm
C)
Py(KN) Py(KN)
D)
E)
Px(KN) Px(KN)
Width
Width
Items list:
B) Mekano Channel S-M CH100-3-2,5(*kg/m) 2,5 5,7* 1372504 1372505 1
C) Splice Connector T S-M SC-T-CH100-3 4 1,1 80976 80470 2
Load Capacity: Mekano Channel CH100-3-2,5(v) & CH100-3-2,5(h)
1500 300 3,5 2,7 0,9 4,9 1,6
1500 600 3 2,5 0,8 4,9 1,6
1500 900 2,8 2,2 0,7 4,9 1,6
1500 1200 2,2 1,6 0,5 4,8 1,6

52
T-SUPPORT: CH100-2T-3mm MG-T: 04
A) S-M WB-200-CH100-2
B) Thickness
3 mm
Py(KN) Py(KN)
Height
C)
Px(KN) Px(KN)
Width
Items list:
Mekano Channel CH100-2T3 (v) & CH100-2T3 (h)
1500 300 4,9 4,7 1,4 7,5 2,5
1500 600 3,6 2,7 0,9 7,5 2,5
1500 900 2,4 1,8 0,6 6 2
1500 1200 1,8 1,3 0,43 4,5 1,5

53
A)
S-M WB-CH100-4
B) Thickness
3 mm
C)
Height
D) Py(KN) Py(KN)
E)
Px(KN) Px(KN)
Width
Items list:
C) Splice Connector T S-M SC-T-CH100-4 6 1.2 1372542 1372543 2
1500 300 7,1 6 3 11 3,5
1500 600 6,9 6 3 11 3,5
1500 900 5,7 4,2 1,4 10,5 3,4
1500 1200 4,25 3,6 1,2 10,5 3,4

54
A)
S-M WB-CH100-4
B) Thickness
3 mm
C) Height
D) Py(KN) Py(KN)
E)
Px(KN) Px(KN)
Width
Items list:
C) Splice Connector T S-M SC-T-CH100-4 6 1,2 1372542 1372543 2
1500 300 11 9,9 3,3 17,5 6
1500 600 10,8 9,6 3,2 17,5 6
1500 900 8,6 6,6 2,3 17,5 6
1500 1200 6,5 4,9 1,6 16 5,5

55
Mekano 50-1 HOT WORK COLD WORK
Mekano 50-2
Mekano 100-1
Order no. see page 14. Page 12 Page 14
Typical use for

supporting E, I & T and HVAC
40 55
Material
thickness: 4 mm.
2 55
M10x20 Holes
11 x 35
Angle Bracket Fit all channels. Also study page 64.

HDG SS Weight
Type Art. no. Art. no. SS (kg)
S-M AB 55x55-10 1302494 1371712 0.1
Fits CH50-2 Splice Connectors for channels

CH50-2T For Mekano channel S-M CH50-2 and CH50-1
4 HDG SS Weight
M10x20
S-M SC-CH50-2 84824 81992 0.4
S-M SC-CH50-1 1372763 1302595 0.3
2(4) 200
M10x20
40
Fits CH50-1
Fits CH100-1 Splice Connectors for channels

40
30°
Holes 11 x 35 For Mekano channel S-M CH100-1
4(6-8) HDG SS Weight

M10x20 Without Type Art. no. Art. no. SS (kg)
notches.
40
45°
OE100 SC-NO 1371681 0,3
Holes 11 x 35 OE100 SC* 1371678 1371683 0.5
*) Without notches.
56
40
60°
Mekano 50-2T Order no. see page 14. New Channels
Mekano 100-2T
• Mekano 50-2T and 100-2T are the first perforated triangle
shaped channels in the marketplace.
• Mekano 50-2T and 100-2T are lightweight channel system

with improved load capacity and torsion strength.
• Standard locking bolts M10x20 are to be used.

The large holes on one side of the triangle make the chan-
! nel easy to assemble, much like a regular angle channel.
new The Mekano 50-2T and 100-2T complete the MultiGrid sys-
• tem, offering even more opportunities in order to
optimize our system to fit your requirements.
• The channels are patent pending.

Compare the load data for
Mekano 50-2T and 100-2T
with other channels! Page 14-15.
The large holes make it

easy to bolt other parts to
the channel.
Two Mekano 100-2T:

Because of the large holes the
channels are easy to assemble.
Mekano 100-2T bolted to

Mekano 100-1.
The bolts can be mounted
Nuts and bolts fit from both sides.
through slots for easy
fastening
32 mm Mekano 50-2T bolted to Mekano 100-1.

Ø 22 The bolts can be mounted from both sides.
Use 1 part Splice Connectors for channel

HDG SS Weight
Type Art. no Art. no. SS (kg)
S-M SC-100-5 1372535 1372534 1.2
57
Mekano 60-2
Order no. see page 15.
Angle Connector Beam Clamp-set for ”Main & Secondary steel”

HDG SS Weight HDG SS Weight
Type Art. no. Art. no. SS (kg) Type Art. no. Art. no. SS (kg)
S-M AC-CH60-2 1371436 1371435 0.33 S-M BC-CH60-2 1371421 1371420 1.66
Slide-step Connection L60 to existing Preferred solution where the

25mm to fit. HE– Main Steel area directly underneath is occupied.
(when drilling is not prohibited)
Mekano 60-2 solutions on Ula (BP Norway) Mekano 60-2 solutions on Ula (BP Norway)
58
HOT WORK COLD WORK
Mekano 60-2 & Details
Page 12 Page 14
Please ask for our MultiGrid™

Connection L60 to Deck Stringers
Site Support Solution for Small Bore Pipes
Connection L60 to RHS (Best Practice / Work Instruction)
(when drilling is not prohibited) and our
Pipe Support Standard Parts catalogue
or download from
59
Mekano 100-3
Supplied in
pairs
8
M10x20
Splice Connectors for 100-3

HDG SS Weight
S-M SC-CH100-3 1372509 1372508 1.2
MultiGrid™ Bracing Equipment

The unique flexibility in MultiGrid makes bracing a simple bolt
job. Various standard brackets in combination with channels or
threaded rods are tailored to fit the requirements.
Ask for alternatives.
Threaded Rod
Type Art. no. SS Hinge
OE100-HH
S-M TR-06-1000 1900290 Art. no. 1371680 SS
S-M TR-10-1000 1371416
Nyhamna Power Station

Aukra, Norway
In 2006 it was decided that
Norwegian main grid owner Statnett was
to build two gas turbine driven power plants
on the north-west coast of Norway. The three
production units were expected to produce 150 MW.
Late 2007 Oglaend System was contacted by E&I Contractor

Siemens Installation, and based on their sketch our R&D department
developed a solution including MultiGrid™ support, cable ladders Type OE,
trefoil cable cleats Type SmartCleat and earth links.
The Mekano 100-3 channel along with accessories was the best choice for the 4.5 meter tall
towers. The channels were easy to handle and assemble due to the light weight of the 2.5
mm thick non-magnetic AISI 316 L stainless steel. Even if none of the items exceeded the
maximum man-handling weight of 25 kg the final construction was firm and strong.
60
HOT WORK COLD WORK Mekano 100-3 & Details
Channel Bracket
200 S-M CB-100-200
1372499 SS
Page 12 Page 14 1372498 HDG
Max load 600 kg

350 Channel Bracket
S-M CB-100-350
1372501 SS
1372500 HDG
Max load 500 kg
500 Channel Bracket

S-M CB-100-500
1372503 SS
1372502 HDG
Max load 500 kg
90
Splice Connector L 4 mm
S-M SC-L-CH100-3
215
1372511 SS
1372510 HDG
Patented, study the Nonie

principle below.
195
Splice Connector T 4mm

S-M SC-T-CH100-3
80470 SS
90 80976 HDG
195
350
End Protection Splice Connector U Goal post

A-CH100-3 EP 4 mm 150
S-M SC-U-CH100-3 Bolted starter bracket
1372507 SS S-M BS-CH100-3
90 1372506 HDG 1372513 SS
1372512 HDG 1372492 SS
20 1372493 HDG
0 150
The Nonie-principle = Enhanced Flexibility

Oglaend System´s patented Nonie-principle enables
adjustments in step of 5 mm, utilizing the hole combinations
between the Mekano Channel and the L-connector.
The slots in combination with our self-lock bolt-sets en-
sure precise levels and eliminates risk of sliding.
CH100-3 wth CC 25 mm against Square slots
(10.3x10.3mm)
Splice L with CC 20mm for CH 100-3
bolt-holes = 5mm steps
CC 25 mm
CC 20
CC 100
CC 100
CC 100
+10 mm
+5 mm
0 mm
61
Mekano 100-4
Splice Connector T
Type: S-M SC-T-CH100-4
Art. No. 1372543 SS
SNI 8 x M10x130mm
Bracing Connector set for 15-60°

Type: S-M SC-V-CH100-4-A
Art.No. 1372546 SS
SNI 4 x M10x130mm
Plastic End Protection

Type: A-CH100-4 EP
Art. No. PS60018
How to cut Mekano CH 100-4 Mekano 100-4 Cut marking tool

All cutting of profile Mekano 100-4 to be by 25mm steps. Measuring tool.
(L1 = Always ending with ..00,-..25,-..50 or ..75mm) Aid for cutting of Mekano 100-4. It is important that 90° cuts are done
exactly between 2 holes. Cut tolerance: 25mm +0 / -1mm
Recommended exstra length for adjustments on site (dim. L): (both sides of cut)
”L” = round up ”L1” ~ 25mm and add 25mm = Type: S-M CD-CH100-4.
L min. 25 to L max. 50mm. 316L Art. No: 1372533
Example L1= 717mm = (717 + 25 ~ 25) = 750mm cut Length. -
Result “L” = 33mm
CC 25 mm Circle slots
(Ø 10.3mm)
for CH 100-4
CC 20
L1
Notches for positioning

L
NONIE = Simple flexibility. Study the Nonie principle at page 63.
62
HOT WORK COLD WORK Mekano 100-4 & Details
Bracing Connector for 15-60°
Type: S-M SC-V-CH100-4-B
Art. No. 1372549 SS
Page 10 Page 12
SNI 4 x M10x130mm
Splice Connector
Type: S-M SC-CH100-5 SS
Art. No. SS 1372534 / HDG 1372535
Order two to splice one channel
SNI 8 x M10x130mm
Splice Connector L
Type: S-M SC-L-CH100-4
316L Art.No. 1372540
HDG Art No. 1372539 (NA Stock)
Patented, study the Nonie
principle page 61.
SNI 8 x M10x130mm
Bolted Main Steel connection

Range: HE240A/B – HE1000A/B
Fit all sizes from

HE240A/B to HE1000A/B
(& similar beam with
240-300mm flange-width)
SNI 6 x M16x65
Bolted Starter
Type: BC-MS-CH100-4 Thickness
316L Art. No. 1372520
(HE240B)
Shim plates setup:
20mm – Thickness =
Splice Connectors for channel mm shim-plates needed.
Bolts 6 x M16x65
(Shim Size:
HDG SS Weight
2 a 3, 2 & 1mm)
Type Art. no Art. no. SS (kg)
S-M SC-100-5 1372535 1372534 1.2
To splice connect CH100-4 use 8 through-going bolts.

Type: S-M HE-NU-M10x130. Art. no.: 1372950 as bolt set with nut.
Mekano CH 100-4 as
alternative starter between stringers
Step 1. Plates (110x110x6mm x 2 ) to be welded to stringer.
Step 2. CH 100-4 to be placed and welded to plates. Adjustable by 5mm step sideways
Step 3. Apply masking tape. (Not covering welds!)
Minimum clearence 25mm
63
MultiGrid™: Electro, Instrumentation & Telecom
Various Angle Brackets fits all channels
Also see page 66. Traverse Support
Other Fixing Clamps for Lad- Fixed back to back
ders and Trays see our pro- with two bolts M10
duct catalogues. giving shear strength
pr. bolt:
2000kg
Fits all
Safety-
11x35 Single Kg factor = 2 Double
Holes 6x35
55 11 x 35 11x35
40 40
55 33 23
40
Material thickness: 4 mm. Material thickness: 3 mm.
Fixing Clamps
For fastening ladders to brackets and supports.
Gives a safe earth connection between ladder and bracket.
Type HDG SS Weight
Art. no. Art. no. SS (kg)
S-M AB 55x55-10 1302494 1371712 0.11
OE-FC-A40x33-10/10 89908 89907 0.14
OE-FC-A40x23-10/6 89917 89916 0.05
11x35
Fits all
Material
thickness: 3 mm.
Fixing Clamp for channel-traverse. Supplied in pairs.
HDG SS Weight
OE FC-CHM10 1302482 1371705 0.3
Fixing Clamp for traverse channels

HDG SS Weight
S-M FC-CH 1302483 1302598 0.07
How to use:
L
Fits both
Mekano H
and UNO
Channel Bracket for LOE, RZE ladders

and SPB trays. Type no. indicates ladder width. Safety factor 2.
HDG SS Maks last Weight
Type H + L Art. no. Art. no. Max. load SS
S-M CB-30-100 38 + 129 1302437 1371791 180 kg 0.36 kg
S-M CB-30-150 38 + 179 1302438 1371792 180 kg 0.42 kg
S-M CB-30-200 38 + 229 1302439 1371793 200 kg 0.48 kg
S-M CB-30-300 50 + 329 1302440 1371794 200 kg 0.67 kg
S-M CB-30-400 50 + 429 1302441 1371799 200 kg 0.81 kg
64
Choose channels
according to the
required load ca-
pacity.
SC-TW 40/390
SC-TW 90/213 SC-TW 40/290
390
213 290
4 mm
5 mm
Directional adjustors
HDG SS Weight
S-M SC-TW 90/213 1302515 1371700 0.5
S-M SC-TW 40/290 1302517 1371702 0.4
S-M SC-TW 40/390 84167 84168 0.6
Channel Bracket Twisted

HDG SS Weight
S-SPB CB-TW 1302172 1371818 0.27
Gives a clean and professional installation with no descenders.
Fits all Mekano Channels.
11x11
7x7
97
177
Interface between tray and OE-ladder

HDG SS Weight
S-OE/SPB-RF-IF-97 85082 0.04
S-OE/SPB-RF-IF-177 60381 0.06
65
Angle Brackets Fit all channels
HDG SS Weight
25 50 30 52
Material S-M AB 50x50-10/6 1372761 1371817 0.1
thickness: 5 mm.
1 Holes Holes 52 S-M AB 50x50-6 83410 84386 0.1
11 x 20 50
M6x12 7 x 30
7 x 22 Material
thickness: 4 mm.
40 55
Material
1 thickness: 4 mm.
M6x12 Holes 55 S-M AB 55x55-10/6 1302170 1371816 0.2
+1 11 x 35
M10x20 7 x 20
40 55
Material
thickness: 4 mm.
S-M AB 55x55-10 1302494 1371712 0.2
2 55
M10x20 Holes
11 x 35
40 65
Material
thickness: 5 mm.
2 Holes 80 S-M AB 65x80-10/12 1372759 1371713 0.2
M10x20 11 x 35
13 x 25

60 65
Material
thickness: 5 mm.
Holes 80 S-M AB 65x80-10/12B 1372762 1371714 0.3
2
M10x20 11 x 35
13 x 24
60 65
Material
thickness: 5 mm.
S-M AB 65x60-Z 1302501 1371715 0.3
2
M10x20 Holes 65 60
13 x 25
11 x 35
50
115
Material
thickness: 5 mm.
2 For kombinasjon av
M6x12 S-M AB 110x120-10/6 1302503 1371717 0.5
6 og 10mm skruer. Holes
2
To combine 6 and 11 x 20 125
M10x20 10mm bolts. 7 x 20
Ø 11
Material thickness:
5 mm. 60 80
End piece for Channel S-M CH100-1-3000
3 HDG SS Weight
M10x20 Type Art. no. Art. no. SS (kg)
60
S-M AB 60x60-10/12 1302502 1371716 0.3
14 x 25
11 x 25
50
66
5 mm material 11 x 20
Various Items B
11 x 35
7 x 20
A A: Cantilever Arm for 100 mm tray
B: Channel Bracket for 100 mm tray
2 HDG SS AL Weight
M10x20 62 Type Art. no. Art. no. Art. no. SS (kg)
2 S-SPB CA-100 1302320 1302323 0.4 kg
M6x12 S-SPB CB-100 1302216 1302218 0.3 kg
40 40
B SPB Wall Support Bracket

Type states tray width B and type SHS it will fit using a square
2(4) U-bolt. See page 79 ordering U-bolts. SHS: Square Hollow
M6x12 Section. Can also be mounted directly to a wall.
HDG SS Weight
B Type Fits SHS Art. no. Art. no. SS (kg)
S-SPB SB-85-SHS-50 1302150 1371795 0.12
S-SPB SB-111-SHS-80* 1302154 1371800 0.15
S-SPB SB-135-SHS-100 1302151 1371796 0.18
S-SPB SB-155-SHS-120 1302152 1371797 0.40
S-SPB SB-175-SHS-140 1302153 1371798 0.45
Tray Wall SHS *) Fits tray width 100-150
30
10
0 Tray Bracket for SPBE/SPB-RF-100
90
2
HDG SS AL Weight
90
M6x12 105
65
7 x 30 Type Art. no. Art. no. Art. no. SS
200
11 x20020
105
S-SPB SB-STUD 1372902 1372903
50
90
50
90
30° Earth Link “Jumpers”

50
90
30° Art. L Ø Cross

section
50
90
Type no. Length mm Screw mm2

Holes 11 x 35
A-M EL-100/6-4 85813 100 6 4
Holes 11 x 35
A-M EL-100/6-6 85814 100 6 6
Ø A-M EL-100/10-10 85815 100 10 10
L 45° A-M EL-300/10-10 85816 300 10 10
A-M EL-100/10-16 85817 100 10 16
50
90
45°
A-M EL-300/10-16 85818 300 10 16

50
90
Holes 11 x 35
Other dimensions on request.
Holes 11 x 35
50 Earthing Boss
CS SS SS
M12 Type Art.no. Art.no. Weight
75 60°
50
50
90
Ø 13 60° A-M EB-EL-50x50x12 83427 83428 0.8 kg

50
90
Holes 11 x 35
T = 5mm Holes 11 x 35 Earthing Lug
Welding zone 75 Type Art.no. Weight
to be repainted
A-M WB-EL 87640 0.2 kg
Fits CH100-1
50
90
50
90
2(4-8) Holes 11 x 35
Splice Connectors for channels
M10x20
Holes 11 x 35 For Mekano channel S-M CH100-1
225
225
HDG SS Weight
SPLICE ANGLE VERTICAL OE100 SA-VE Type Art. no. Art. no. SS (kg)
OE100 SA-VE 1302493 1371711 0.8
Fits CH100-1 119 mm

119 mm
Splice Connectors for channels
119 119 109 109
For Mekano channel S-M CH100-1
4(6-8)
M10x20 HDG SS Weight
50
77
50
77

SPLICE ANGLE HORIZONTAL 11 x 35 35 35 35
15 15 35 OE100 SA-HO 1302534 1371682 0.7
67
50
90
50
90
FOR COLD WORK
Z M 10
Load
350 kg
25/35
Beam Clamp Tapered M10 screw included

SS Max Weigth
M6/M10
Type Art. no. load (kg) SS (kg)
13
S-M BC-U-25/6 1371801 350
5 S-M BC-U-25/10 1371802 350
S-M BC-U-35/10 1371803 350
Pressure Plate (sleeve) on request.
For various tasks and for combination with channels Type: S-M BC-U-PP Art. no. 1371804
Press Clamp for Beam Clamp

Supplied in pairs.
D ax
m ax Dm n 48 Materialtykkelse HDG SS
in/ i Type Material thickness Art. no. Art. no.
m
Dm
S-M BC-FC 4 mm 85196 85197
Beam Clamp
A Maks. belastning / Max. load weight = 800 kg.
A For D HDG SS
Type mm min/max Art. no. Art. no.
mm
24 S-M BC-160 260 88 - 160 85621 85622
S-M BC-300 390 102 - 300 85623 85624
Z
Load
600 kg
Beam Clamp for Stringer

HDG SS Max
Type Art. no. Art. no. Load (kg)
Z S-M BC-ST-HD 86889 86877 350
Load Pressure Plate (sleeve) on request.
350 kg Type: S-M BC-U-PP Art. no. 1371804
Beam Clamp for Beam Traverse

HDG SS
Type Art. no. Art. no.
S-M BC-CH100-3 1372490 1372491
Z Beam Traverse
Load For D HDG SS Max
1000 kg Type min/max Art. no. Art. no. Load (kg)
mm
S-M BT-CH100-3 100 - 350 1372494 1372495 1000
D
ax
n/m Channel Angle For directional adjustment (t = 3mm)
mi
HDG SS Max
Type Art. no. Art. no. Load (kg)
S-M MG-CA 80926 1372497 1000
68
MultiGrid™ offers you the freedom in
choice of discipline support
Please study the catalogue range page 2.

Contact us or simply download on:
69
MultiGrid™: HVAC
Prepared for
circular
channels.
Prepared for
square
channels.
Note the different

use of the plastic
pad.
Universal Strap-Bracket
A pair of brackets and levasint coated cable ties are all you
need to fix both square and circular HVAC pipes of all sizes to
the support system. Plastic pads insulate against both noise
and corrosion.
SS Weight
Type Art. no. SS
A-H HC-UN 1302393 0.5 kg
Plastic pad: Art. no.: 1302394
Levasint coated cable ties: Use for example 19mm
Band-it AE-416/ AE-436 and the lock AE 456
HVAC Clamps
When ordering, add H = Outside duct diameter +
insulation if relevant.
HVAC clamp is supplied for duct dimensions
from 160 - 850 mm / perforated 125-800mm.
SS Weight
Type (H) Art. no. SS (kg)
A-H HC-LI-125 87613 0.2
A-H HC-LI-160 87614 0.3
A-H HC-LI-180 87615 0.3
A-H HC-LI-200 87616 0.3
A-H HC-LI-230 87617 0.4
A-H HC-LI-250 87618 0.4
A-H HC-LI-315 87619 0.5
A-H HC-LI-400 87620 0.6
A-H HC-LI-500 87621 1.0
A-H HC-LI-600 87622 1.2
A-H HC-LI-630 87877 1.2
A-H HC-LI-800 87623 1.5
HDG SS Weight
Type (H) Art. no. Art. no. SS (kg)
A-H HC-160 79167 79168 0.6
A-H HC-200 78684 78689 0.7
A-H HC-250 78685 78690 0.8
A-H HC-315 78686 78691 1.1
A-H HC-355 78703 78707 1.2
A-H HC-400 78687 78692 1.3
A-H HC-450 78704 78708 1.5
A-H HC-500 78688 78693 16
A-H HC-600 78705 78709 1.6
A-H HC-850 78706 78710 2.7
0
7
Based on our standard MultiGrid details
we offer custom made
HVAC solutions
Choose channels according to the

required load capacity. Optimised use
of Mekano channels give minimum
weight and cost.
I.V.A.R. waste water plant in Mekjarvik, Randaberg
71
MultiGrid™ Please ask for our
MultiGrid™
Pipe Support Standard Details
Pipe Support
Clamped Shoe (2) Adjustable Standard Parts
Type: OPS-SD PS02 Catalogue
Range Pipe 2”– 8”
HDG 355 & SS 316L
Bolted Line Guide/

Hold down (LG & HD)
Type: OPS-SD LG05
Range: Pipe Shoes 2”– 8”
HDG 355 & SS 316L
Bolted Line Guide/

Hold down
Type: OPS-SD PG01
Range: Pipe Shoes 2”– 8”
HDG 355 & SS 316L
Clamped Shoe (2)

Type: OPS-SD PS05
Range Pipe 2”– 8”
HDG 355 & SS 316L
U-BOLTS ordering list:

Type/ For Ø Art. no. Type/ For Ø Art. no.
dim: mm: HDG SS dim: mm: HDG SS
1/2’’ M6 23 1302347 1302403 2’’ M10 62 1302354 1302409
1/2’’ M8 23 1302348 1302404 2’’ M12 62 1302355 1302410
3/4’’ M8 28 1302349 1302405 21/2’’ M10 78 1302356 1302411
3/4’’ M10 28 1302350 1302396 21/2’’ M12 78 1302357 1302412

1’’ M8 36 1302351 1302406
3” M12 91 1302358 1302413
11/4’’ M10 44 1302352 1302407 31/2’’ M12 102 1302359 1302414
11/2’’ M10 50 1302353 1302408 4’’ M12 117 1302360 1302415
OPS SD-PC13 – Pipe Clamp

With Adjustable Bolted Bracket
Pipe Clamp
Perforated and Adjustable
Type: OPS-SD PC13
Range Pipe 1/2”– 2”
HDG 355 & SS 316L
Sleeves to be removed
for Grip function
(pre-set Non-Grip)
Pipe Clamps perforated and adjustable
Slide or/and rotate Adjustable to fit
180° to fit 25mm 25mm vertical - Dim. ID Clamps HDG SS Weight
perforated angle. Perforated angle. Type inch mm Art.no. Art.no. SS (kg)
OPS SD-PC13-015 1/2 141 PS43755 PS43750 0.7
Pre-set hight = 100mm
(range = +25/ -15mm) OPS SD-PC13-020 3/4 170 PS43756 PS43751 0.7
OPS SD-PC13-025 1 222 PS43757 PS43752 0.8
Note: OPS SD-PC13-030 1 1/4 222 PS43758 PS43753 0.8
Req. bolt torque for
M10 Self-Lock nuts OPS SD-PC13-040 1 1/2 222 PS43759 PS43754 0.8
= 30Nm OPS SD-PC13-050 2 222 PS43761 PS43760 0.9
72
U-Strap Non-Grip U-Strap Grip
Type: OPS-SD PC01 Type: OPS-SD PC02
Range Pipe 2”– 8” Range Pipe 2”– 8”
HDG 355 & SS 316L HDG 355 & SS 316L
MultiGrid Adapter MultiGrid U-Strap Adapter

U-Bolt & U-Strap Type: OPS-SD AD01-B
Type: OPS-SD AD01-A Range : U-Strap 2” & 5”
Range: U-Bolt 1/2”– 2” HDG 355 & SS 316L
U-Bolt Grip U-Bolt Non-Grip Range : U-Strap 6” & 8”
(Vibro-damping) (Vibro-damping) HDG 355 & SS 316L
Type: OPS-SD PC05 Type: OPS-SD PC06
Range Pipe 1/2”– 8” Range Pipe 1/2”– 8”
HDG 355 & SS 316L HDG 355 & SS 316L
U-Bolt Grip U-Bolt Non-Grip

Type: OPS-SD PC04 Type: OPS-SD PC03 U-Bolt and U-Strap Adapters
Range Pipe 1/2”– 8” Range Pipe 1/2”– 8”
HDG 355 & SS 316L HDG 355 & SS 316L HDG SS Weight
OPS SD-AD01-A PS60053 PS60051 0,3
OPS SD-AD01-B PS60052 PS60050 0,8
Type: Pipe Clamp with Perforatet Base Plate

OPS-SD PC21 Type: OPS SD-PC21
with 50mm longer Range Pipe 1/2”– 2”. HDG 355 & SS 316L
base plate Pipe Clamps for stdr. ST-pipes. For Cu/Ni on request.
Dim. B HDG SS Weight
Type inch mm Art. no. Art. no. SS (kg)
OPS SD-PC21-015 1/2 30 PS44105 PS44100 0,5
OPS SD-PC21-020 3/4 30 PS44106 PS44101 0,5
OPS SD-PC21-025 1’ 30 PS44107 PS44102 0,6
B OPS SD-PC21-030 11/4 30 PS44108 PS44103 0,6
Pipe Clamp OPS SD-PC21-040 11/2 30 PS44109 PS44104 0,7
Type: With Perforatet OPS SD-PC21-50 2 30 PS44111 PS44110 0,8
OPS-SD PC23 Base Plate OPS SD-PC23-050 2 30 PS43905 PS43900
with 50mm Type: OPS-SD PC23 OPS SD-PC23-065 21/2 30 PS43906 PS43901
longer Range Pipe 3”– 4” OPS SD-PC23-080 3 30 PS43907 PS43902 1,2
base plate HDG 355 & SS 316L OPS SD-PC23-090 31/2 30 PS43908 PS43903 1,5
OPS SD-PC23-100 4 30 PS43909 PS43904 1,8
73
Oglaend System have commissioned Aveva to produce our Cable
Tray, Ladder and Supports catalogue within their PDMS format. This
has been done to ensure that our equipment codes are produced
in a way that is fully compatible with PDMS and that Aveva will fully
support the software with their existing client base.
Our Supports, Cable Trays and Ladders can be downloaded from our web page.
SmartPlant® 3D and PDS®
SmartPlant® 3D is an advanced plant design software and Intergraph PDS is a comprehensive, intelligent computer-aided
Intergraph Process, Power & Marine’s next-generation, data- design/engineering (CAD/CAE) application.
centric, rule-driven solution for streamlining engineering design
processes while preserving existing data and making it more Production-driven, PDS delivers the best design possible - and
usable/re-usable. does it more efficiently to reduce the total installed cost of the
project. It enhances value and minimizes risk while preserving
A fundamental component the value of data.
of Intergraph’s SmartPlant
Enterprise, SmartPlant Intergraph PDS provides seamless integration with the design
3D is a complementary, tools and catalogues of Oglaend System.
full-suite solution
that provides all the
capabilities needed to
design a plant, and then
keep it as-built throughout
its life cycle.
Contact us for SP3D and PDS catalogue.
74
MultiGrid™: Ships
Flexible Support Plan and a Simplified support plan
Use our low weight versatile Mekano Channels instead of
the heavy welded traditional solutions.
For full range

Please ask for our catalogue;
Cable Ladders and
Accessories for Ships
or download from
Flexible support plan Simplified support plan

Only the welding channels are fixed in the construction Only the welding brackets are installed by the fabricator.
yard by the fabricator. Then the installation contractor can fit the equipment without
Then the installation contractor can fit the equipment without need of repainting.
need of repainting. The channels provide multiple fixing points The brackets combined with channels
for cable ladders and small pipes, and also function as stif- give fixing points for cable ladders
feners for the stringers. The flexibility makes it easy to and small pipes throughout the
install and adjust E, I&T and piping, making equipment route.
this a very cost efficient solution.
75
FOR COLD WORK
Multidiscipline support system for concrete constructions
Cast the Concrete Insert Rail into the concrete construction for full Multidiscipline Support.
Additional concrete clamps for all our Mekano Channels and Support Equipment complete the
MultiGrid™ system.
Concrete Insert Rail as

MultiGrid Ceiling on
Ormen Lange.
Please ask for our special folder describing

the use of our Insert Rail
Order Code for Concrete Insert Rail:
Foam included. Type states length in mm
HDG SS
Type: Art. no. Art. no.
S-M CIC-V-50-1-3000 1303393 1303390
S-M CIC-V-50-1-2500 1303394 1303391
S-M CIC-V-50-1-1250 1303395 1303392
Nail plate: S-M CIC-V-FC 79717C
Nail box 500 pcs.:S-M CIC-V-NA 79717H
T-bolt M10x30: S-M CIC-V-TS 80911 80910
76
Fixing brackets for concrete
Choose starters according to the required load capacity.
Ceiling Bracket for single or double CH100-1
For order details and load capacities

see page 12-13.
Also study Angle Brackets on page 68.
Ceiling Bracket for Concrete Insert Rail. Safety factor 2.

HDG SS Max. Weight
Type L Art. no. Art. no. load (kg) SS (kg)
S-M BS-CH50-2 80133 1000 0.5
Cantilever Arm for LOE, RZE ladders and SPB trays.

Fix with: 1 bolt max Ø 12mm Type states width. Safety factor 2.
HDG SS Maks last Weight
L = Type length + 40mm Type L Art. no. Art. no. Max. load (kg) SS (kg)
S-M CA-35-100 1372689 1302442 350 0,4
Page 81 S-M CA-35-200 1372690 1302443 250 0,5
S-M CA-35-300 1372691 1302444 200 0,6
S-M CA-35-400 1372692 1302445 175 0,8
S-M CA-35-500 1372693 1302446 150 0,9
S-M CA-35-600 1372694 1302447 125 1,1
Fix with:
1 bolt max Ø 12mm
12.5 x 25
Cantilever Arm for LOE, RZE ladders and SPB trays.
c/c 53
Type states ladder width. Safety factor 2.
L
94 HDG SS Max. Weight
Type L Art. no. Art. no. load (kg) SS (kg)
S-M CA-30-100 86275 86270 150 0.35
Holes:
7 x 20 L S-M CA-30-150 86276 86271 100 0.42
9 x 30 S-M CA-30-200 86277 86272 80 0.48
Page 81 S-M CA-30-300 86278 86273 60 0.67
S-M CA-30-400 86279 86274 50 0.81
L = Type length + 40mm
For wider
ladders and trays
we recommend U-frames.
Choose starters according to the required load
capacity.
77
Multidiscipline support system in FRP
Oglaend System’s enhanced FRP system con-
sists of a multidicipline heavy duty support sys- FRP CABLE LADDERS, TRAYS
tem and a full range of cable trays and cable AND SUPPORT SYSTEM
ladders. All made from Fiber Reinforced Plastic.
Ask for our special

catalogue!
ISO 9001 2008

CERTIFIED
Being first is good, being smart is better, being both is Simply the Best!
The FRP Support System

is simple, smart and fast,
whatever solution you require
• A light-weight Multidiscipline support system
• Corrosion resistant
• Simple hand tools used for cutting and drilling
• Modifications are easily done on site
Our FRP support system with ladders and trays installed

in a highly corrosive environment at the Elkem Solar
Silicium production facilities in Norway.
78
Miscellaneous products:
Type UNO
Ask for special catalogue
A complete range of
UNO support channels
and accessories
along with best practice
examples.
RHS U-bolts for UNO:

Ordering list in the
UNO catalogue
UNO channel fixed to RHS 80 with Square U- bolt type M8-RHS-80.

The UNO channels support equipment plate and cable tray.
Square U-bolt for RHS beams

ordering list:
SS
Type states dim. Bolt/RHS Art. no.
S-M UB-SQ-M8-SHS-50 1372590
S-M UB-SQ-M8-SHS-80 1372591
S-M UB-SQ-M8-SHS-100 1372592
S-M UB-SQ-M10-SHS-120 1372593
S-M UB-SQ-M10-SHS-140 1372594
Cantilever console fixed to RHS Square U- bolts used to fix M10 supplies from stock.
with UNO 3-hole brackets and weather house bracket.
Square U- bolts.
Safety hook (Temporary solution)

Type (white) Safe (kg)
The white hook is approved by DNV Approved by DNV Art. no. Length Working Load Weight
A-M HT-6 1372893 160mm (6”) 60
Constructed to A-M HT-9 1372894 230mm (9”) 55
support loads from all A-M HT-12 1372895 310mm(12”) 190
kinds of cables. Made of Type (LI=green)
synthetic, none conductive
material. Available in three Light version is not approved by DNV. For some less load.
different sizes: A-M HT-LI-6 80902 160mm (6”)
A-M HT-LI-9 80903 230mm (9”)
A-M HT-LI-12 80904 310mm(12”)
79
Self-Lock System SELF-Locking BOLT SETS with pan head and flange nuts
Self-Lock system is supplied in stainless steel.
includes Vibration-proof fasteners Other bolts & fixing items see below and next page.
Self-Lock Nut details (A4-80)

Descrition Height Key size Torque STD SS
Type (mm) (mm) (Nm) Packs Art. no.
DIN 6923 S-M NU-FL-M6 5,8 10 8-10 200 1371971
DIN 6923 S-M NU-FL-M8 7,9 13 20-23 200 1371972
DIN 6923 S-M NU-FL-M10 9,6 15 40-45 200 1371973
Old-fashioned: DIN 6923 S-M NU-FL-M12 11,8 18 80-85 200 1371343
The nut is
moveable Standard Nut details (A4-80)
during Descrition Height Key size Torque STD SS
vibrations Type (mm) (mm) (Nm) Packs Art. no.
bacause of
DIN 934 S-M NU-M6 4,8 10 6-7 200 1372781
side wards
DIN 934 S-M NU-M8 6,4 13 15-17 200 1371340
thread gap.
DIN 934 S-M NU-M10 7,9 17 30-33 200 1371341
DIN 934 S-M NU-M12 10 19 60-62 200 1371342
New standard:
The nut is locked during
Self-Lock, a unique pretension
vibrations because all thread locking system.
thread contact stops Ask for separate brochure.
side-wards movement.
Bolt details for Mekano 60-2 system (Channel S-M CH60-2)

SS
Description Type Art. no.
M10x25mm locking bolts A4 DIN 603 S-M LS-M10x25 84352
M10x1000mm Threaded rod A4-80 DIN 975 S-M TR-M10x1000 87995
M10 Self-Lock Nuts A4-80 DIN 6923 S-M NU-FL-M10 1371973
Various use: Bolt

details for Mekano 100-4 system (Channel S-M CH100-4)
Dimensions M10 is for splice connections e.g.: SS
Type: S-M SC-L-CH100-4 Description Type Art. no.
Use: 8 x M10x130mm M10x130 HEX Bolt-Set A4-80 Self-Lock Nut S-M HE-NU-M10X130 1372950
M10x130 HEX Bolt A4 80 DIN 931 S-M HE-M10X130 1372572
M10x140 HEX Bolt-Set A4-80 Self-Lock Nut S-M HE-NU-M10X140 1372951
M10x150 HEX Bolt-Set A4-80 Self-Lock Nut S-M HE-NU-M10X150 1372952
M10x1000mm Rod-Set A4-80 Self-Lock nut (2) S-M TR-NU-M10X1000 1372953
M10x1000mm Threaded Rod A4-80 DIN 975 S-M TR-M10X1000 87995
Other dimensions is for various items e.g.: M10 Self-Lock Nut A4-80 (L=10mm) DIN 6923 S-M NU-FL-M10 1371973
Type: BC-MS-CH100-4
Use: 6 x M16x65mm M12x1000mm Rod-Set A4-80 Self-Lock nut (2) S-M TR-NU-M12X1000 1372954
M12x1000mm Threaded Rod A4-80 DIN 975 S-M TR-M12X1000 87996
M12 Self-Lock Nut A4-80 (L=12mm) DIN 6923 S-M NU-FL-M12 1371343

M16x50 HEX Bolt-Set A4-80 S-M HE-NU-M16X50 1372970
For Bracing Connection M16x70 HEX Bolt-Set A4-80 S-M HE-NU-M16X70 1372972
Type: S-M SC-V-CH100-4-A M16x70 HEX Bolt A4 80 DIN 933 S-M HE-M16X70 1372928
and S-M SC-V-CH100-4-B M16x80 HEX Bolt-Set A4-80 S-M HE-NU-M16X80 1372973
Use: 4 x M10x130mm for splice M16x80 HEX Bolt A4 80 DIN 933 S-M HE-M16X80 1372929
and 1 x M20x130mm for hinge function M16x90 HEX Bolt-Set A4-80 S-M HE-NU-M16X90 1372974
M16 Full Metal Lock Nut A4-80 (L=13mm) DIN 980 S-M NU-FL-M16 1372969

M20 Full Metal Lock Nut A4-80 (L=16mm) DIN 980 S-M NU-FL-M20 1372581
80
HUSK: Skruer er inkludert!
REMEMBER: Screws are included!
SKRUER / SCREWS TYPE STD. packs
PG+HDG / SS
PG.
Art. no.
HDG
Art. no.
SS
Art. no.
M 6 x 12 * S-M LS-NU-M6x12 200 1372750 1371981
LÅSESKRUER M 6 x 16 * S-M LS-NU-M6x16 100 84487
LOCKING BOLT SETS M 6 x 20 * S-M LS-NU-M6x20 200 1371982
*) Low m/linsehode og flensmutter M 6 x 30 S-M LS-NU-M6x30 200 1372749 1371361
With pan head and flange nuts M10 x 20 * S-M LS-NU-M10x20 100 1371983
M10 x 25 * S-M LS-NU-M10x25 100 1371980 1371437
Self-Lock only in SS M10 x 50 S-M LS-NU-M10x50 50 1371589 1371362
M 6 x 12 * S-M LS-M6x12 per piece 1372167 1372161
LÅSESKRUER M 6 x 16 * S-M LS-M6x16 per piece 84493
M 6 x 25 DIN 603 S-M LS-M6x25 200 / 100 1372169 1372162
LOCKING BOLTS
M 6 x 50 DIN 603 S-M LS-M6x50 200 / 100 1371360 85520
*) Low M10 x 20 * S-M LS-M10x20 per piece 1372163
M10 x 25 * S-M LS-M10x25 per piece 1372765
M10 x 30 DIN 603 S-M LS-M10x30 100 / 100 86008 89821
M10 x 35 DIN 603 S-M LS-M10x35 100 82709
High M10 x 50 DIN 603 S-M LS-M10x50 per piece 89822
M10 x 70 DIN 603 S-M LS-M10x70 50 81396
M 6 x 12 DIN 933 S-M HE-M6x12 100 / 200 1372780
SEKSKANTSKRUER M 6 x 16 DIN 933 S-M HE-M6x16 100 1372171 1371318
HEXAGONAL BOLTS M 6 x 20 DIN 933 S-M HE-M6x20 200 1372172 1371319
M 6 x 30 DIN 933 S-M HE-M6x30 200 1371320
M 8 x 20 DIN 933 S-M HE-M8x20 200 1371301 1371321
M 8 x 25 DIN 933 S-M HE-M8x25 200 1371302 1371322
Lengre utgaver M 8 x 30 DIN 933 S-M HE-M8x30 200 1371303 1371323
leveres i DIN 931 M10 x 16 DIN 933 S-M HE-M10x16 100 1372178 1371324
delgjenget. M10 x 20 DIN 933 S-M HE-M10x20 200 / 100 1371304 1371325
M10 x 25 DIN 933 S-M HE-M10x25 200 / 100 1371305 1371326
Longer lengths M10 x 30 DIN 933 S-M HE-M10x30 200 / 100 1371306 1371327
in DIN 931 M10 x 35 DIN 933 S-M HE-M10x35 100 1371307 1371328
M10 x 45 DIN 933 S-M HE-M10x45 100 1371308 1371329
partly threaded. M10 x 50 DIN 933 S-M HE-M10x50 100 1371309 1371330
M10 x 55 DIN 933 S-M HE-M10x55 100 / 50 1371310 1371331
M12 x 25 DIN 933 S-M HE-M12x25 100 1371311 1371332
M12 x 35 DIN 933 S-M HE-M12x35 100 1371312 1371333
M12 x 45 DIN 933 S-M HE-M12x45 100 / 50 1371313 1371334
Spisset / Cone point M10 x 40 DIN 933 S-M HE-M10x40 per piece 1371314 1371335
M 6 x 16 DIN 7985 S-M PS-M6x16 200 1372164 1372156
LINSESKRUER M 6 x 20 DIN 7985 S-M PS-M6x20 200 1372842 1372157
PAN HEAD SCREWS M 6 x 25 DIN 7985 S-M PS-M6x25 200 84954 1372158
With Torx T30 M 6 x 30 DIN 7985 S-M PS-M6x30 200 1372166 1372159
M 6 x 40 DIN 7985 S-M PS-M6x40 200 / 100 1372168 1372160
BITS for torx T30 conical Bits conical Torx T30 1371417
FLENSMUTTERE 6 mm DIN 6923 S-M NU-FL-M6 per piece 1372843 1371971
FLANGE NUTS 8 mm DIN 6923 S-M NU-FL-M8 per piece 1372831 1371972
10 mm DIN 6923 S-M NU-FL-M10 per piece 1372832 1372180 1371973
Self-Lock only in SS 12 mm DIN 6923 S-M NU-FL-M12 per piece 1371343
SEKSKANTMUTTERE M 6 x 10 DIN 934 S-M NU-M6 100 1372844 1372781
M 8 x 13 DIN 934 S-M NU-M8 100 1372176 1371340
HEXAGONAL NUTS M10 x 17 DIN 934 S-M NU-M10 100 / 50 1372845 1371341
M12 x 19 DIN 934 S-M NU-M12 100 / 50 1372179 1371342
5x30.5x1.5 S-M WA-5x30.5x1.5 per piece 84394
SKIVER 6x12x1.6 DIN 125 S-M WA-6.4x12x1.6 200 1372782
WASHERS 6x18x1.6 DIN 125 S-M WA-6.4x18x1.6 200 1372175 1371349
OD
Type codes: 6x25x1.5 S-M WA-6x25x1.5 100 / 200 1372848 1371350
Ø t= 8x16x1.6 DIN 125 S-M WA-8.4x16x1.6 100 1372849 1371345 1371351
8x40.3x1.5 S-M WA-8x40.3x1.5 per piece 84345
10.5x20x2 DIN 125 S-M WA-10.5x20x2 100 1372850 1371352
10.5 x 20 x 2
12x24x2.5 DIN 125 S-M WA-13x24x2.5 100 1371346 1371353
7x30.4x1.5 S-M WA-7x30,4x1,5 per piece 84562
11x32x1 S-M WA-11x32x1 per piece 1371354
7x35x2 S-M WA-7x35x2 per piece 1371594
10x(29x33)x3 S-M WA-10x(29x33)x3 per piece 84110
M6 DIN 6798 S-M SW-M6 200 1372852 1371355
STJERNESKIVER M8 DIN 6798 S-M SW-M8 100 1371356
STAR WASHERS M10 DIN 6798 S-M SW-M10 100 1372854 1371357
M12 DIN 6798 S-M SW-M12 100 1371359 1371358
EKSPANSJONSBOLTER M 6 x 40 S-M AC-6x40 150 1372767
M 6 x 52 S-M AC-6x52 100 1371368
CONCRETE ANCHOR BOLTS
M 8 x 50 S-M AC-8x50 100 1372768 1371369
Kvaliteter: V.G. = 5.8 M 8 x 72 S-M AC-8x72 50 1371364
Qualities: S.S. = A4-70 M10 x 60 S-M AC-10x60 50 1372769 1371365 1371370
P.G. = 5.8 M10 x 92 S-M AC-10x85 40 1371366 1371371
M12 x 110 S-M AC-12x110 25 89823
SELVBORENDE SKRUER i 100-pakn. / SELF-TAPPING SCREWS in packs of 100
Inntil/Up to 1 mm stålplate/steelplate 4,2 x 14mm 32-PH 100 1349417
Inntil/Up to 3 mm stålplate/steelplate 4.2 x 13mm 34-PH 100 1372820
Inntil/Up to 3 mm stålplate/steelplate 4.2 x 25mm 36-PH 100 1372821
SELVBORENDE RUSTFRIE SKRUER / SELF-TAPPING STAINLESS STEEL SCREWS
For opptil 2.5mm tykkelse 4.8 x 13 mm MARUTEX M4.8x13 SS in A2 quality 100 1371373
For up to 2.5mm thickness 4.8 x 25 mm Marutex M4.8x25 SS in A2 quality 100 1371374
Bits for Marutex Bits 1371375
Maks tiltrekningsmoment / Max tightening torque for Self-Lock Flange Nuts: M6 = 8-10Nm, M8 = 20-23Nm, M10 = 40-45Nm, M12 = 80-85Nm
PG = 4-7 my zink. HDG = 40-70 my zink. ww = A4-70 (Hex = A4-80) 81
PR = Primed Perforated Channels
HDG = Hot Dip Galvanized For other support of trays, ladders and electrical installations.
SS = Stainless Steel EN 1.4404 Available in 3m lengths.
ALU = Aluminium
7 10
7
7
Flat Iron
7 10 Crosswise perforated
20 mm
15 PR HDG SS ALU Weight
20 mm
35
15 Type Art. no. Art. no. Art. no. Art. no. HDG (kg)
35
Fl-CW-7x20-30x5x3000 1372104 1372130 2,6
7 mm
35
15 Fl-CW-7x20-40x5x3000 1372105 1372131 3,8
7 mm
35
15 Fl-CW-7x20-50x4x3000 1372101 1372103 4,0
30
Lengthwise perforated SS (kg)
11 mm
11 mm 30 30 Fl-LW-7x35-25x5x3000 1372107 1372111 1371930 2,4
30 Fl-LW-7x35-30x5x3000 1372108 1372112 1371931 78173 3,0
11 mm
Fl-LW-7x35-40x5x3000 1372109 1372113 1371932 78229 4,2
11 mm Fl-LW-7x35-50x5x3000 1372110 1372114 1371933 5,5
Fl-LW-11x35-40x5x3000 81477 81484 86858 3,9
Fl-LW-11x30-50x5x3000 81485 1371935 5,4
7 10
7
Fl-LW-11x30-40x6x3000 1371984 5,0
7
7 10 Fl-LW-11x30-40x8x3000 1372100 1372102 6,6
16 mm
16 mm
15
30
30
15 Angle Iron
Crosswise perforated
7 mm
PR HDG SS ALU Weight
7 mm
30
Type Art. no. Art. no. Art. no. Art. no. HDG (kg)
30 30 AI-CW-7x16-30x30x3x3000 1372132 1372134 1371942 78228 3,9
30 AI-CW-7x16-40x40x4x3000 1372133 1372140 1371943 6,9
11 mm Lengthwise perforated
11 mm
AI-LW-7x30-30x30x3x3000 1372115 1372117 1371939 3,9
15 AI-LW-7x30-40x40x4x3000 1372116 1372118 1371940 6,9
30
30
15 AI-LW-7x30-50x50x3x2000 78045 1,5*
AI-LW-11x30-50x50x5x3000 1372119 1372120 1371941 10,7
7 mm
7 mm
Double lengthwise perforated
30
AI-LW-7x30-40x40x4x3000 1371945 6,6
30 30 AI-LW-11x30-50x50x5x3000 78662 1371946 10,1
30 AI-LW-11x35-49x49x4x3000 88349 88348 7,4
11 mm
AI-LW-7x35-49x49x4x3000 88347 88342 7,9
11 mm
AI-LW-7x35/11x35-49x49x4x3000** 88346 88344 7,7
15 AI-LW-13x40-54x54x4x3000 88351 7,8
35 15 Predefined lengths up to 1,5m are supplied on request. *) Weight in ALU
35
11 mm
11 mm

Welding Channel for tubing clamps

For quick and easy tubing installation with ETIN tubing clamp.

Available in 3m lengths.
PG HDG SS ALU Weight
Type Art. no. Art. no. Art. no. Art. no. SS (kg/m)

RZ- WB 78463 78497 1

25
28,5 25
7

15
15 35 50
15
35 50
5 36,5
82
LOCATIONS
HOLDING COMPANY Russia (St. Petersburg) AGENTS - DlSTRlBUTORS Iceland

Øglænd Industrier AS Oglaend System Russia Abu Dhabi Smith & Norland
P.O. Box 133 Tel.: +7(812) 313 1580 Proserv Albadie LLC Tel.: + 354 52 03 000
NO-4358 Kleppe Fax: +7(812) 313 1580 Tel.: + 971 26 27 73 70 Fax: + 354 52 03 011
Tel.: + 47 51 78 81 00 Email: info@oglsys.ru Fax: + 971 29 27 79 72 Email: sminor@sminor.is
Fax: + 47 51 78 81 60 www.oglaend-system.ru Email: proserv@emirates.net.ae www.sminor.is
www.oglaend-system.com www.proserv.no
Singapore (South East Asia) lndonesia
SUBSIDIARY Oglaend System Singapore Pte. Ltd. Australia PT. Multi Tarex MuIia
Norway Tel.: + 65 67 48 82 78 J. T. Day Pty. Ltd. Tel.: + 62 21 3983 5337
Øglænd System AS Fax: + 65 67 48 86 15 Tel.: + 61 8 9303 2248 Fax: + 62 21 3983 5340
P.O. Box 133 Email: oglaend.system@pacific.net.sg Fax: + 61 8 9303 2446 Email: agus@multitarex.co.id
NO-4358 Kleppe Email: enquiries@jtday.com.au www.multitarex.com
Tel.: + 47 51 78 81 00 Sweden www.jtday.com.au
Fax: + 47 51 78 81 60 Ögländ System AB Italy
Fax sales office: + 47 51 78 81 61 Tel.: + 46 40 45 74 60 Brazil Piemme Broker S.R.L.
Email: oglaend@oglsys.no Fax: + 46 40 45 67 25 M.O.TECH do Brazil Tel.:+39 02 906 33621
www.oglaend-system.com Email: oglaend-system@oglsys.se Tel.: + 55 21 2532 2101 Fax +39 02 906 32036
Fax: + 55 21 2517 2437 Email: m.maiandi@pmbroker.it
Denmark UK Email: motech@motech.com.br www.pmbroker.it
Øglænd System AS Oglaend System UK Ltd. www.motech.com.br
Tel.: +45 86 88 66 66 Tel.: + 44 121 552 9662 Malaysia
Fax: +45 86 88 66 67 Fax: + 44 121 544 6627 Brunei Offshore Industries Sdn Bhd
Email: oglaend-system@oglsys.dk Email: oglaend.system@oglsys.co.uk Shinba Integrated Engineering Services Tel.: + 60 3-9284 0613
Tel.: + 673 333-1489 Fax: + 60 3-9284 1051
Dubai (Middle East) USA Fax: + 675 333-6333 Email: oisbkl@tm.net.my
Oglaend Industries Middle East Oglaend System USA Email: info@shinbaies.com
Tel.: + 971 4 887 8134 Tel.: +1 832 288 4452 Poland
Fax: + 971 4 887 8143 Email: sales@oglsys-us.com Canada Nd Service Sp. Z.O.O.
Mobile: + 971 50 55 86 183 Apel/CSA Enterprises Tel.: + 48 665 070 111
Email: sales@oglaend.ae Korea Tel.: + 1 902 450 5647 Email: wojciech.pedzich@ndservice.pl
Oglaend System Korea Co Ltd Fax: + 1 902 450 5286 www.ndservice.pl
Malaysia Tel.: + 82 518 320 761 Email: urquhart@csarep.com
Oglaend Industries SDN BHD Fax: + 82 518 320 762 www.csarep.com Thailand
Tel.: + 60 3 51 922 049 Email: oglaend@oglaend-system.co.kr Probity International Co Ltd.
Fax: + 60 3 51 922 039 NOSO Ltd. Tel.: + 66 2 710 6146 Ext. 107
Mobile: + 60 1 26 85 57 65 SALES OFFICES Tel.: + 1 709 782 2645 Fax: + 66 2 710 6147
Email: sales@oglaendind.com Norway Fax: + 1 709 782 0534 Email: ak@probity.co.th
fraser@oglaendind.com Øglænd System AS, Division Oslo: Email: mshinkle@coil.ca www.probity.co.th
Tel.:+ 47 22 25 15 10 www.noso.ca
The Netherlands Fax: + 47 22 25 25 21 The Baltic States
Oglaend System BV Finland Bastini OÜ
Tel.: + 31 1804 14 204 Øglænd System AS, Division Ålesund: Elmarino - Shipping OY Tel.: + 372 660 5811
Fax: + 31 1804 19 395 Tel.: + 47 70 19 09 50 Tel.: + 358 22 54 61 00 Fax: + 372 660 5812
Email: rfq@oglaend-system.nl Fax: + 47 70 19 09 51 Fax: + 358 22 54 62 76 Email: sales@bastini.ee
Øglænd System AS, Division Trondheim: Finn H&T Group Oy Vietnam

Tel.: + 47 73 80 99 70 Tel.: +358 45 630 4004 MT Corp.
Fax: + 47 73 80 99 77 Fax: +358 3 5752550 Tel.: + 848 821 0373
Email: teppo.kuivanen@finnhtgroup.fi Fax: + 848 821 0358
www.finnhtgroup.fi Email: mail@mt-co.com
•
* ••
•
•
•
•
•
x ••
* HEAD OFFICE AND FACTORY

• SUBSIDIARIES
AGENTS – DISTRIBUTORS
SALES OFFICES
x FABRICATION FACILITIES
Simply the BEST!
This has been our motto since the company was founded in 1977. By living up
to the motto we have become the market leader in our field – worldwide.
Oglaend System´s goal is to develop systems that are better, simpler and more
economic overall.
Konsern/Holding company:
Øglænd Industrier AS
Datterselskap/Subsidiary:
Øglænd System AS
Hovedkontor fabrikk/Head Office factory:
P.O. box 133, N-4358 Kleppe,
Tel.: +47 51 78 81 00, Fax: (47) 51 78 81 60
Fax sales office: +47 51 78 81 61
84 www.oglaend-system.com Email: oglaend@oglsys.no 12.13

MultiGrid Support System

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

MultiGrid Support System

Uploaded by

Copyright:

Available Formats

Multidiscipline Support System

Download our latest version of product catalogues from: www.oglaend-system.com

MultiGrid™ Discipline Parts

Material Qualities Quick Installation

Less Weight & Volume

Cross section data from: Long Life & Integrity

MultiGrid™ is compatible with our FRP product line.

These are welded early in the

MultiGrid™ delivers modification flexiblity,

MultiGrid™ bolted support for the future

The grid pattern is decided through a dia-

All grid starters and Mekano channels are

Whatever support you decide, the solution may be preassembled

FOR COLD WORK COLD WORK

The FRP Support Channels

Increased load capacity

*) CS steel quality: S355J2-Y05

CS brackets are uncoated and not available in HDG.

Bolted solutions for concrete,

See page 68 for M12 bolts

S-M BC-160 S-M BC-300

(See Page 63 for details.)

Mekano 50-1 Mekano 50-2 Mekano 100-1 Mekano 50-2T

   

Calculation basis Channel material thickness (mm)

Mekano 50-2T Mekano 60-2 Mekano 100-3 Mekano 100-4

    

Thickn. Weight Thickn. Weight Thickn. Weight Thickn. Weight

CH50-2T CH100-2T CH60-2 CH100-3 CH100-4 CH100-4

Channels are included in Staad.Pro (contact us for library)

Other lengths as per your

Mekano 100-2T Mekano 50-2T Mekano 50-2

Mekano 100-3* Mekano 100-4

Mekano 50-2T-1,5 Vertical U: 03 U: 05 C: 01

Load Capacity: Mekano Channel CH 50-2 (vertical) & CH 50-2 (horizontal)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2 (v) & CH 100-1 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 50-2T1,5 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T2 (v) & CH 50-2T2 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 100-1 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 100-1 (h)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 100-1 (h)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Load Capacity: Mekano Channel CH 50-2T1,5 (v) & CH 100-1 (h)

Height(mm) H1 Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Mekano Channel CH 100-2T2 (v) & CH 100-2T2 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Mekano Channel CH 100-2T2 (v) & CH 100-2T2 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)

• Norsk Standard code NS3472/Eurocode 03/Norsok.

Mekano Channel CH 100-2T2 (v) & CH 100-2T2 (h)

Height(mm) Width(mm) Capacity Py(KN) Capacity Px(KN)
