SVG CONTROL SYSTEMS PVT LTD

PLOT NO. 21, AVVERAHALLI INDL AREA,

DABASPETE PHASE 4, HONNENAHALLI VILLAGE,
SOMPURA HOBLI, NELAMANGALA TALUK
DABASPETE, BANGALORE RURAL DIST - 562111

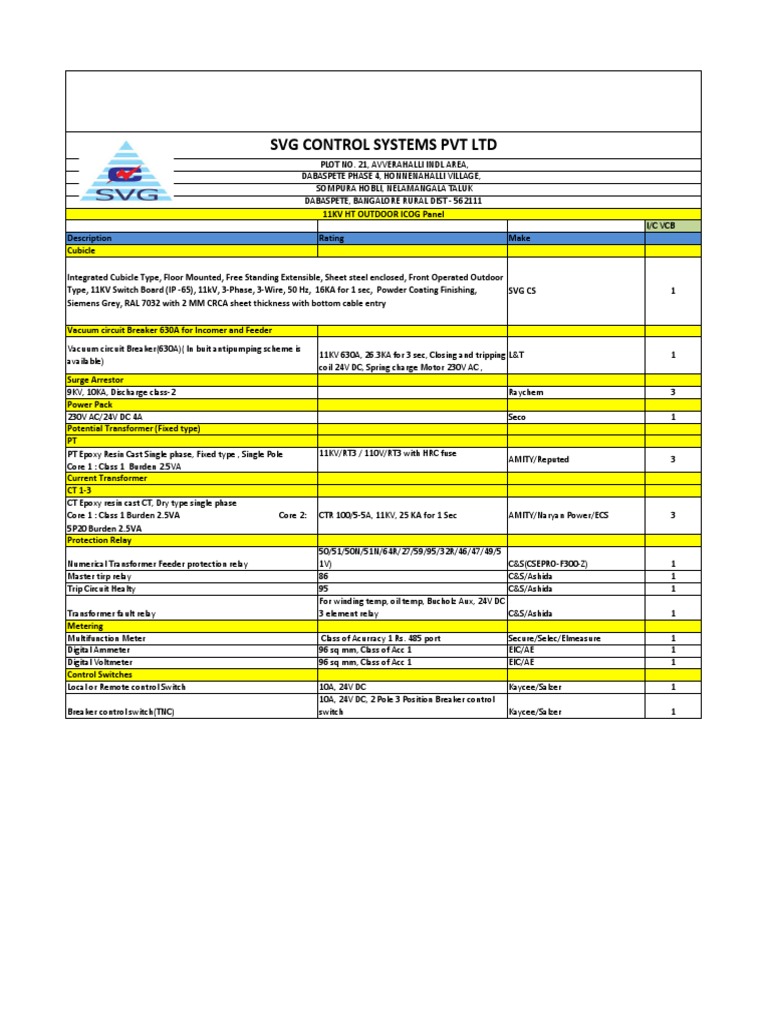

11KV HT OUTDOOR ICOG Panel
I/C VCB
Description Rating Make
Cubicle

Integrated Cubicle Type, Floor Mounted, Free Standing Extensible, Sheet steel enclosed, Front Operated Outdoor
Type, 11KV Switch Board (IP -65), 11kV, 3-Phase, 3-Wire, 50 Hz, 16KA for 1 sec, Powder Coating Finishing, SVG CS 1
Siemens Grey, RAL 7032 with 2 MM CRCA sheet thickness with bottom cable entry

Vacuum circuit Breaker 630A for Incomer and Feeder

Vacuum circuit Breaker(630A)( In buit antipumping scheme is
11KV 630A, 26.3KA for 3 sec, Closing and tripping L&T 1
available)
coil 24V DC, Spring charge Motor 230V AC ,
Surge Arrestor
9KV, 10KA, Discharge class-2 Raychem 3
Power Pack
230V AC/24V DC 4A Seco 1
Potential Transformer (Fixed type)
PT
PT Epoxy Resin Cast Single phase, Fixed type , Single Pole 11KV/RT3 / 110V/RT3 with HRC fuse
AMITY/Reputed 3
Core 1 : Class 1 Burden 2.5VA
Current Transformer
CT 1-3
CT Epoxy resin cast CT, Dry type single phase
Core 1 : Class 1 Burden 2.5VA Core 2: CTR 100/5-5A, 11KV, 25 KA for 1 Sec AMITY/Naryan Power/ECS 3
5P20 Burden 2.5VA
Protection Relay
50/51/50N/51N/64R/27/59/95/32R/46/47/49/5
Numerical Transformer Feeder protection relay 1V) C&S(CSEPRO-F300-Z) 1
Master tirp relay 86 C&S/Ashida 1
Trip Circuit Healty 95 C&S/Ashida 1
For winding temp, oil temp, Bucholz Aux, 24V DC
Transformer fault relay 3 element relay C&S/Ashida 1
Metering
Multifunction Meter Class of Acurracy 1 Rs. 485 port Secure/Selec/Elmeasure 1
Digital Ammeter 96 sq mm, Class of Acc 1 EIC/AE 1
Digital Voltmeter 96 sq mm, Class of Acc 1 EIC/AE 1
Control Switches
Local or Remote control Switch 10A, 24V DC Kaycee/Salzer 1
10A, 24V DC, 2 Pole 3 Position Breaker control
Breaker control switch(TNC) switch Kaycee/Salzer 1
Indicating lamps & Push Button
LED type Indicate lamps for R phsase RED 63.5 V AC Seco/C&S/Vaishnav 1
LED type Indicate lamps for Y phsase Yellow 63.5 V AC Seco/C&S/Vaishnav 1
LED type Indicate lamps for B phsase Blue 63.5 V AC Seco/C&S/Vaishnav 1
DC Supply Healty RED, 110V AC Seco/C&S/Vaishnav 1
AC Supply Healty RED, 230V AC Seco/C&S/Vaishnav 1
Breaker On RED , 24V DC Seco/C&S/Vaishnav 1
Breaker Off GREEN, 24V DC Seco/C&S/Vaishnav 1
Breaker Trip AMBER, 24V DC Seco/C&S/Vaishnav 1
Breaker Motor spring charge BLUE, 24V DC Seco/C&S/Vaishnav 1
Trip Circuit Healty WHITE, 24V DC Seco/C&S/Vaishnav 1
Breaker service Position RED, 24V DC Seco/C&S/Vaishnav 1
Emergency push Button RED, 24V DC Seco/C&S/Vaishnav 1
Push Button for trip circuit healty Seco/C&S/Vaishnav 1
Bus Bar
Main Bus 11 KV , 25KA for 1 Sec Aluminium( 60 X 6) Reputed
Bus Bar for PT Ckt Aluminium Reputed
Earth bus Aluminium Reputed 1 SET
Bus Bar Support Insulator Reputed
HT Heat shrink Sleeves Reputed
Terminal Block
Disconnecting type CDTTU Connectwell 40
Screw driver type CTS2. Connectwell 120
Other common materials
Auxillary Relay for DC Fail 230V AC, 6A, 3C/O ABB/C&S 1
Auxillary Relay for AC Fail 24V DC, 6A, 3C/O ABB/C&S 1
Auxillary Relay for Spring charge motor 24V DC, 6A, 2C/O, ABB/C&S 1
Auxillary Relay for Limit switch 24V DC, 6A, 2C/O, ABB/C&S 1
Auxillary Contactor for Scada related operation ABB/C&S 3
Thermostat 240V AC, 20-80 Deg Girish Ego 1
Space Heater 240V AC, 100W Encore/Girish Ego/ Telelac 1
Plug & socket 3 Pin, 16A, 230V AC Anchor/Cona/Roma 1
Toggle Switch Toggle switch Jainson/Shree suraj 1
Lamp 240V AC, 9W, Flourscent Lamp Philips 1

PVC Flexible conduits Reputed

Hardwares Reputed
MCB & TB Channel Reputed
Panel engravements Reputed
1 Set
Locks & Beading Reputed

Hinges Reputed
Wiring & wiring accessories Polycab/finolex
For SVG Control Systems Pvt. Ltd.
 Our ref: 21A_149_Aryan_NMDC_R0

Sl. No. Desription Make Qty UOQ

1 BOM for Main LT Panel 1 Nos.

Enclosure made of CRCA sheet with thickness 2mm for load bearing and 1.6mm for non-load bearing
1 members, 3mm for removable gland plate. Floor mounting type Outdoor panel with protection IP: 65. SVGCS 1 Nos.
Powder coating shade for Exterior & Interior: RAL 7032. Tentative dimensions: 2275(H)x3300(W)x900(D) mm.

2 EB Incomer: 2000A FP 50kA ACB-EDO type 1 Nos.

3 2000A FP 50kA ACB-EDO type with MP based LSIG releases ABB/L&T 1 Nos.
4 Accessories for 2000A ACB: built in 4NO+4NC aux contacts+Motor: 230V AC+Trip aux contact ABB/L&T 1 Nos.
5 6A FP 10kA MCB C curve ABB/L&T 2 Nos.
6 6A DP 10kA MCB C curve ABB/L&T 3 Nos.
7 Aux contactor: 2NO+2NC, 230V AC ABB/L&T 8 Nos.
8 PT: 415V/R3//110V/R3, Cl: 1, 50VA, resin cast type Newtek/Kalpa/Ampturn 1 Nos.
9 CT: 2000/5A, Cl: 1, 5VA, resin cast type Newtek/Kalpa/Ampturn 4 Nos.
10 Digital MFM: size: 96sqmm, Cl: 1, with RS485 communication port L&T/Secure 1 Nos.
11 Digital Ammeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
12 Digital Voltmeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
13 Auto/Manual selector switch Kaycee/Salzer 1 Nos.
14 Local/Remote selector switch Kaycee/Salzer 1 Nos.
15 TNC selector switch Kaycee/Salzer 1 Nos.
16 3Ph Voltage monitoring relay Selec/Minilec 1 Nos.
17 On delay Timer Selec 1 Nos.
18 LED type indication lamps Seco/C&S 6 Nos.
19 CT shorting links Connectwell 10 Nos.
20 Control TB Connectwell 30 Nos.
21 Wiring for 2000A FP ACB incomer Polycab 1 Nos.
22 Incomer busbar(2000A)- Aluminium Reputed 1 Nos.
23 DG Incomer: 1000A FP 50kA ACB-EDO type 1 Nos.
24 1000A FP 50kA ACB-EDO type with MP based LSIG releases ABB/L&T 1 Nos.
25 Accessories for 1000A ACB: built in 4NO+4NC aux contacts+Motor: 230V AC+Trip aux contact ABB/L&T 1 Nos.
26 6A FP 10kA MCB C curve ABB/L&T 2 Nos.
27 6A DP 10kA MCB C curve ABB/L&T 3 Nos.
28 Aux contactor: 2NO+2NC, 230V AC ABB/L&T 8 Nos.
29 PT: 415V/R3//110V/R3, Cl: 1, 50VA, resin cast type Newtek/Kalpa/Ampturn 1 Nos.
30 CT: 1000/5A, Cl: 1, 5VA, resin cast type Newtek/Kalpa/Ampturn 3 Nos.
31 Digital MFM: size: 96sqmm, Cl: 1, with RS485 communication port L&T/Secure 1 Nos.
32 Digital Ammeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
33 Digital Voltmeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
34 Auto/Manual selector switch Kaycee/Salzer 1 Nos.
35 Local/Remote selector switch Kaycee/Salzer 1 Nos.
36 TNC selector switch Kaycee/Salzer 1 Nos.
37 3Ph Voltage monitoring relay Selec/Minilec 1 Nos.
38 On delay Timer Selec 1 Nos.
39 LED type indication lamps Seco/C&S 6 Nos.
40 CT shorting links Connectwell 7 Nos.
41 Control TB Connectwell 30 Nos.
42 Wiring for 1000A FP ACB incomer Polycab 1 Nos.
43 Incomer busbar(1000A)- Aluminium Reputed 1 Nos.
44 Outgoing: 1000A FP 50kA ACB-EDO type 2 Nos.
45 1000A FP 50kA ACB-EDO type with MP based LSIG releases ABB/L&T 2 Nos.
46 Accessories for 1000A ACB: built in 4NO+4NC aux contacts+Motor: 230V AC+Trip aux contact ABB/L&T 2 Nos.
47 6A FP 10kA MCB C curve ABB/L&T 2 Nos.
48 6A DP 10kA MCB C curve ABB/L&T 4 Nos.
49 Aux contactor: 2NO+2NC, 230V AC ABB/L&T 10 Nos.
50 CT: 1000/5A, Cl: 1, 5VA, resin cast type Newtek/Kalpa/Ampturn 6 Nos.
51 Digital MFM: size: 96sqmm, Cl: 1, with RS485 communication port L&T/Secure 2 Nos.
52 Digital Ammeter, size: 96sqmm, Cl: 1 ABB/L&T 2 Nos.
53 Digital Voltmeter, size: 96sqmm, Cl: 1 ABB/L&T 2 Nos.
54 Auto/Manual selector switch Kaycee/Salzer 2 Nos.
55 Local/Remote selector switch Kaycee/Salzer 2 Nos.
56 TNC selector switch Kaycee/Salzer 2 Nos.
57 3Ph Voltage monitoring relay Selec/Minilec 2 Nos.
58 On delay Timer Selec 2 Nos.
59 LED type indication lamps Seco/C&S 6 Nos.
60 CT shorting links Connectwell 14 Nos.
61 Control TB Connectwell 40 Nos.
62 Wiring for 1000A FP ACB feeder Polycab 2 Nos.
63 Feeder busbar(1000A)- Aluminium Reputed 2 Nos.
64 Outgoing: busbar for 1250A 1 Nos.
65 Feeder busbar(1250A)- Aluminium Reputed 1 Nos.
66 Busbar Set
67 Mian busbar(2000A)- Aluminium Reputed 1 Set
68 Earth busbar- Aluminium Reputed 1 Set
69 Busbar Sleeves. Reputed 1 Set
70 Busbar supporting Insulators. Reputed 1 Set
71 Accessories Set
72 AC circuit(DLS+PL+socket) Reputed 4 Set
73 MCB & TB Channels. Reputed 1 Set
74 Hardwares. Reputed 1 Set
75 Panel Engravements. Reputed 1 Set
76 Lifting Hooks and Door Locks. Reputed 1 Set
77 Wiring and Wiring Accessories. Polycab 1 Set
78 Trough With Trough Covers. Reputed 1 Set
79 Earth Studd Reputed 1 Set

For SVG Control Systems Pvt. Ltd.

2 BOM for 500kVAR APFC Panel 1 Nos.

Enclosure made of CRCA sheet with thickness 2mm for load bearing and 1.6mm for non-load bearing
1 members, 3mm for removable gland plate. Floor mounting type Outdoor panel with protection IP: 65. SVGCS 1 Nos.
Powder coating shade for Exterior & Interior: RAL 7032. Tentative dimensions: 2275(H)x3050(W)x900(D) mm.

2 Incomer: 1250A TP 50kA ACB-EDO type 1 Nos.

3 1250A TP 50kA ACB-EDO type with MP based LSIG releases ABB/L&T 1 Nos.
4 Accessories for 1250A ACB: built in 4NO+4NC aux contacts+Trip aux contact ABB/L&T 1 Nos.
5 6A FP 10kA MCB C curve ABB/L&T 2 Nos.
6 6A DP 10kA MCB C curve ABB/L&T 3 Nos.
7 Aux contactor: 2NO+2NC, 230V AC ABB/L&T 6 Nos.
8 Control trafo: 415V/230VAC, Cl: 1, 500VA, resin cast type Newtek/Kalpa/Ampturn 1 Nos.
9 CT: 1250/5A, Cl: 1, 5VA, resin cast type Newtek/Kalpa/Ampturn 3 Nos.
10 Digital Ammeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
11 Digital Voltmeter, size: 96sqmm, Cl: 1 ABB/L&T 1 Nos.
12 Auto/Manual selector switch Kaycee/Salzer 1 Nos.
13 12 Step APFC Relay- 1 CT input 144sqmm ABB/L&T 1 Nos.
14 3Ph Voltage monitoring relay Selec/Minilec 1 Nos.
15 On delay Timer Selec 1 Nos.
16 LED type indication lamps Seco/C&S 6 Nos.
17 CT shorting links Connectwell 10 Nos.
18 Control TB Connectwell 40 Nos.
19 Wiring for 1250A TP ACB incomer Polycab 1 Nos.
20 Incomer busbar(1250A)- Aluminium Reputed 1 Nos.
21 50kVAR Stage 8 Nos.
22 125A TP SFU ABB/L&T 8 Nos.
23 125A Fuse for 125A SFU ABB/L&T 24 Nos.
24 50kVAR Capacitor duty contactor ABB/L&T 8 Nos.
25 440V 50kVAR 7% Aluminium Reactor TS Il/ABB/Epcos 8 Nos.
26 440V 25kVAR Heavy duty MPP type Cylindrical Capacitor ABB/L&T/Epcos 16 Nos.
27 Illuminated type Push buttons Seco/C&S 16 Nos.
28 Control TB Connectwell 120 Nos.
29 Wiring for 50kVAR feeder Polycab 8 Nos.
30 25kVAR Stage 4 Nos.
31 63A TP SFU ABB/L&T 4 Nos.
32 63A Fuse for 63A SFU ABB/L&T 12 Nos.
33 25kVAR Capacitor duty contactor ABB/L&T 4 Nos.
34 440V 25kVAR 7% Aluminium Reactor TS Il/ABB/Epcos 4 Nos.
35 440V 25kVAR Heavy duty MPP type Cylindrical Capacitor ABB/L&T/Epcos 4 Nos.
36 Illuminated type Push buttons Seco/C&S 8 Nos.
37 Control TB Connectwell 60 Nos.
38 Wiring for 25kVAR feeder Polycab 4 Nos.
39 Busbar Set
40 Mian busbar(1250A)- Aluminium- 2Rx100x10 mm Reputed 1 Set
41 Earth busbar- Aluminium Reputed 1 Set
42 Busbar Sleeves. Reputed 1 Set
43 Busbar supporting Insulators. Reputed 1 Set
44 Accessories Set
45 AC circuit(DLS+PL+socket+cooling fan+filter) Reputed 2 Set
46 MCB & TB Channels. Reputed 1 Set
47 Hardwares. Reputed 1 Set
48 Panel Engravements. Reputed 1 Set
49 Lifting Hooks and Door Locks. Reputed 1 Set
50 Wiring and Wiring Accessories. Polycab 1 Set
51 Trough With Trough Covers. Reputed 1 Set
52 Earth Studd Reputed 1 Set

For SVG Control Systems Pvt. Ltd.
