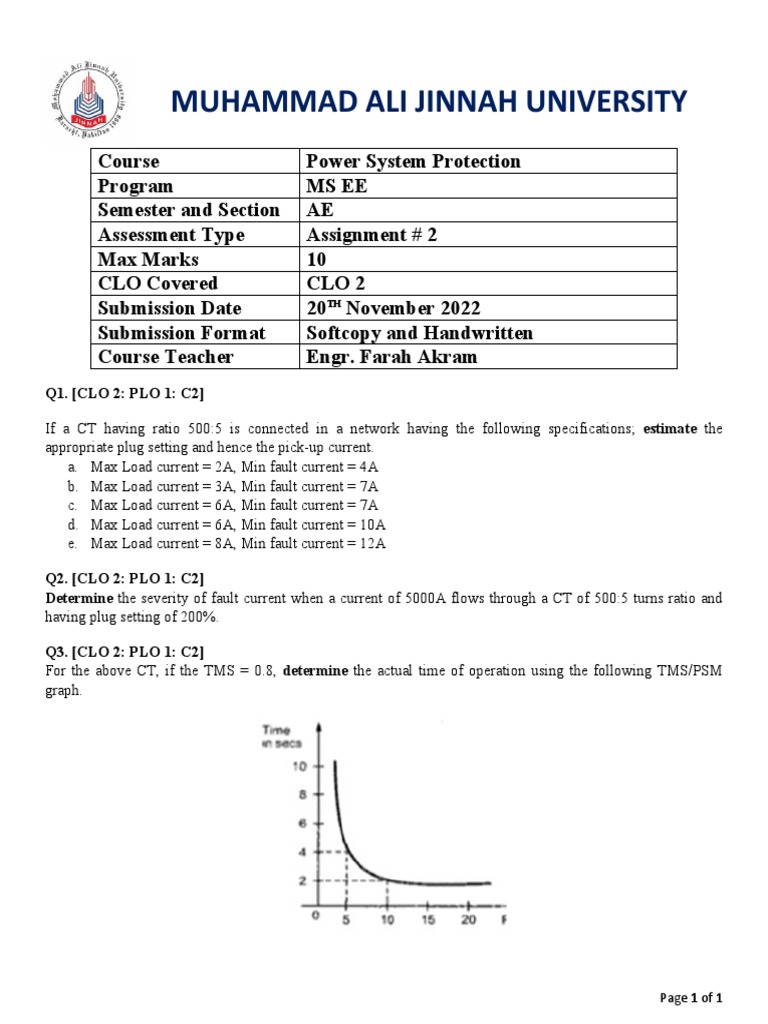

MUHAMMAD ALI JINNAH UNIVERSITY

Course Power System Protection

Program MS EE
Semester and Section AE
Assessment Type Assignment # 2
Max Marks 10
CLO Covered CLO 2
Submission Date 20TH November 2022
Submission Format Softcopy and Handwritten
Course Teacher Engr. Farah Akram
Q1. [CLO 2: PLO 1: C2]

If a CT having ratio 500:5 is connected in a network having the following specifications; estimate the
appropriate plug setting and hence the pick-up current.
a. Max Load current = 2A, Min fault current = 4A
b. Max Load current = 3A, Min fault current = 7A
c. Max Load current = 6A, Min fault current = 7A
d. Max Load current = 6A, Min fault current = 10A
e. Max Load current = 8A, Min fault current = 12A

Q2. [CLO 2: PLO 1: C2]

Determine the severity of fault current when a current of 5000A flows through a CT of 500:5 turns ratio and
having plug setting of 200%.

Q3. [CLO 2: PLO 1: C2]

For the above CT, if the TMS = 0.8, determine the actual time of operation using the following TMS/PSM
graph.
