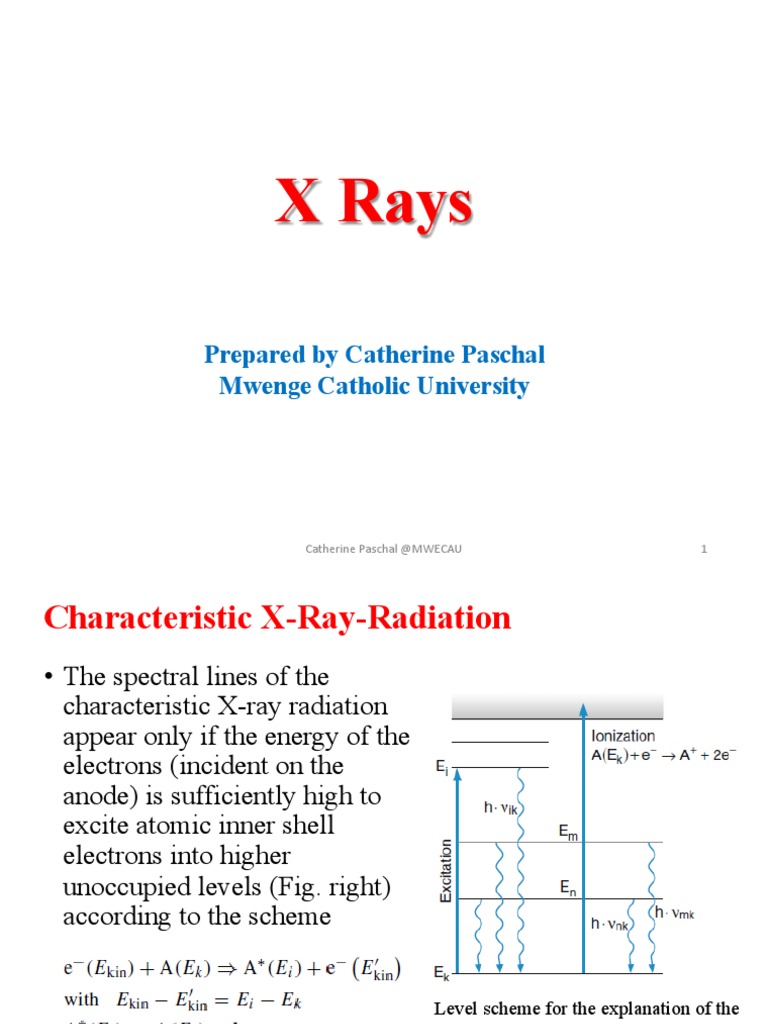

Characteristic X-Ray-Radiation • The spectral lines of the characteristic X-ray radiation appear only if the energy of the electrons (incident on the anode) is sufficiently high to excite atomic inner shell electrons into higher unoccupied levels (Fig. right) according to the scheme
Level scheme for the explanation of the
characteristic X-ray emission from the anode atoms. Characteristic X-Ray-Radiation Example • Ek (Cu(1s)) = −8978 eV (binding energy of an electron in the 1s level of the K-shell); Ei (Cu(6p)) = −4 eV. • The incident electrons can therefore only excite electrons in the K-shell into the level Ei, which emits the Cu-K-radiation, if their kinetic energy is above 8974eV. • The characteristic X-ray radiation appears as sharp lines superimposed on the continuous spectral background of the bremsstrahlung (Fig. (a) below). Characteristic X-Ray-Radiation • With increasing voltage U between the cathode and anode, the ratio η = Pchar/Pcont of the emitted powers of characteristic to continuous radiation increases (Fig. (b)). • However, even at a voltage U = 250 kV it is only about 0.1 for a tungsten anode. Characteristic X-Ray-Radiation
(a) Continuous X-ray radiation, superimposed by the characteristic
lines of tungsten. (b) Ratio η = Pchar/Pcont of emitted characteristic and continuous X- ray radiation power from a tungsten anode as a function of applied voltage U Scattering and Absorption of X-Rays • When a parallel X-ray beam passes through a sample in x direction (Fig. right) the transmitted radiation power P(x) decreases after the path length dx by Absorption and scattering of X-rays in matter
• The constant factor μ, which depends on the material of
the sample is the attenuation coefficient. • Integration over a sample thickness x gives Scattering and Absorption of X-Rays • The attenuation has two parts: scattering and absorption, which may be both simultaneously effective. • The attenuation coefficient can therefore be written as the sum μ = μs + α of scattering coefficient μs and absorption coefficient α. Scattering and Absorption of X-Rays • The scattering is produced by the atomic electrons of the sample. • In a classical model, each electron can be regarded as a harmonic oscillator induced to forced oscillations under the influence of the incident electromagnetic wave with frequency ω. • Assume that the electric field vector of the incident wave points in the y direction. • Then the oscillating dipole is described by y = y0sinωt. • The amplitude A of the radiation emitted by the oscillator is proportional to the acceleration.
