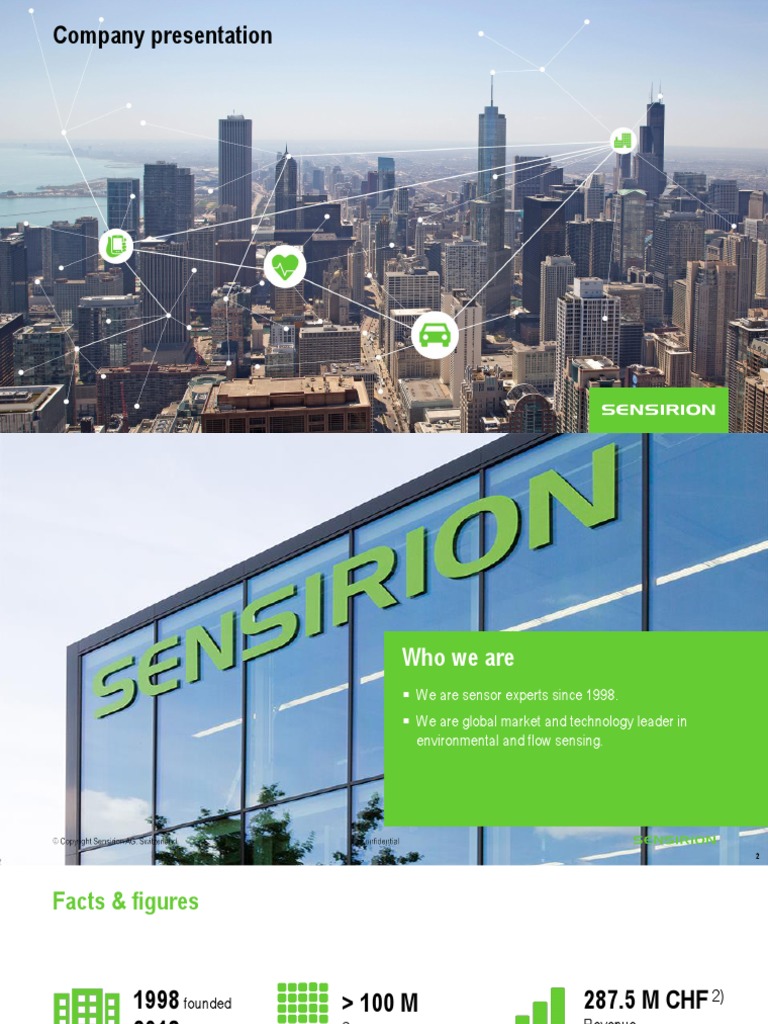

Company presentation

© Copyright Sensirion AG, Switzerland Confidential

Who we are
▪ We are sensor experts since 1998.
▪ We are global market and technology leader in
environmental and flow sensing.

2
Facts & figures

1998 founded > 100 M 287.5 M CHF 2)

Revenue
2018 public Sensors per year

1065 1) > 200 21% 3)

Full-time equivalents Patent families Of revenue invested in
(FTEs) R&D

1) As of 30st June 2022

2) 2021
3) Average 2018 – 2021

© Copyright Sensirion AG, Switzerland Confidential

3
Our success

Innovation leader > 50%1)

In flow and environmental Of the global
sensing humidity sensor share

~ 1 in 31) > 90%1) > 1 Mrd

Cars Of all CPAP2) Sensors sold
devices

1) Based on internal estimates

2) Continuous positive airway pressure

© Copyright Sensirion AG, Switzerland Confidential

4
Global presence
Netherlands (Qmicro) South Korea
R&D, production and sales R&D, production
and sales
Germany (AiSight)
R&D, production and sales

Japan
Switzerland (HQ) Sales
R&D, production, sales
and management

North America Taiwan

Sales Sales
Hungary
Production site China
R&D, production
and sales

5 production sites (CH, NL, HU, KR, CN)

11 sales offices

© Copyright Sensirion AG, Switzerland Confidential

5
Our markets at a glance

Automotive Industrial
Appliances / HVAC / Smart energy

Medical Consumer

© Copyright Sensirion AG, Switzerland Confidential

6
Solving complex problems everywhere

Anti-fogging
Natural gas

Providing antifogging, engine and climate control to Reliable real-time monitoring of gas consumption for
approximately one in three cars manufactured more than 5 million households.
worldwide.

Mass flow Humidity & temperature

Monitoring the breathing of more than 15 million High precision monitoring of temperature and air
patients in hospitals and at home. quality for millions of households.
© Copyright Sensirion AG, Switzerland Confidential
7
Sensirion product lines
Environmental sensors and modules

Humidity & temperature Gas Carbon dioxide Particulate matter

Environmental node sensor Formaldehyde sensor module

© Copyright Sensirion AG, Switzerland Confidential

8
Sensirion product lines
Flow sensors and modules

Natural gas Differential pressure Liquid flow Mass flow

Mass Flow Controllers

© Copyright Sensirion AG, Switzerland Confidential

9
Sensirion Automotive Solutions product lines
Automotive sensors

Particulate matter sensor Air quality sensor Ionizer

Cabin air temperature sensor Anti-fogging/Auto-defrost sensor Dew point sensor

© Copyright Sensirion AG, Switzerland Confidential

10
www.sensirion.com
© Copyright Sensirion AG, Switzerland Confidential
Kiwu Project
Christophe Salzmann
November 2022

© Copyright Sensirion AG, Switzerland Confidential

Project description
▪ Name: Kiwu “Lake Kivu is a fresh water lake and, along with Cameroonian Lake Nyos and Lake
Monoun, is one of three that are known to undergo limnic eruptions. Around the
lake, geologists found evidence of massive local extinctions about every thousand years,
presumably caused by outgassing events” (Wikipedia)

▪ Target market: US residential and industrial HVAC

▪ Refrigerant leakage detection
▪ New market for Sensirion

▪ Volume: ~1M/yr (potential up to 2M/yr)

▪ Price sensitive market

© Copyright Sensirion AG, Switzerland Confidential

13
Manufacturing concept

PCBA • Europe
Manufacturing

Callibration • Sensirion Europe

Sensirion
• NAFTA
• Assembly: cable
soldering /
mounting, plastic
Box Build parts,
• Function test
(module)
• Laser Marking
© Copyright Sensirion AG, Switzerland Confidential • Drop-Shipment
14
Project status
▪ Requirement discussion with customer

▪ First design created and first process flow draft setup

▪ Design review with supplier

▪ Design for cost
▪ Identify design cost driver

▪ Design for manufacturing

▪ Identify manufacturing cost driver

© Copyright Sensirion AG, Switzerland Confidential

15
Process flow

EMS-EU Sensirion-EU EMS-MX

SMT (PCB Function Cable Housing Laser End of line

assembly)
Calibration
test mounting assembly marking test
Packaging Shipping

© Copyright Sensirion AG, Switzerland Confidential

16
Short term time line

Material sourcing for first engineering runs to be discussed

• Material: Cable, housing, …
• source: Sub-supplier from manufacturing side, Sensirion supplier, …
Processing by supplier
© Copyright Sensirion AG, Switzerland Confidential
17
 Long term timeline
development phase improving phase production phase
supplier
Nov 7 - Dec 31
evaluation

assembly line design and setup Jan 16 - May 8

first engineering run May 8 - May 26

low volume production Jun 1 - Oct 31

mid volume production Nov 1 - Dec 31

production Jan 2 - Mar 8

today supplier nomination Start of produciotn

Nov 7 Jan 16 Jan 1

Nov 2023 Mar May Jul Sep Nov 2024 Mar 2024
Today

Transfer SMT and calibration

to MX beginning 2025

© Copyright Sensirion AG, Switzerland Confidential

18
RampUp Scenario

2024/01:
2023/11: - 10k pcs. /
week
- 1k pcs. /
2023/08: week
- 100 pcs. /
week
2023/05:
2023 2024
- Engineering
run

© Copyright Sensirion AG, Switzerland Confidential

19
Project characteristic
▪ Many different customer
▪ Many requirements → one design

▪ Customer needs unclear

▪ during discussion with customer requirements may change

▪ Low experience level on Sensirion side for box build with cable

▪ Very, very, very short timeline

▪ This requires very close collaboration
▪ Strong commitment is crucial

© Copyright Sensirion AG, Switzerland Confidential

20
Collaboration
▪ Dedicated project team

▪ Weekly project update meetings

▪ Frequent on permanent on-site engineer from Sensirion

▪ Guarantee short feedback loop
▪ Enhance understanding of requirements and capabilities

© Copyright Sensirion AG, Switzerland Confidential

21
www.sensirion.com
© Copyright Sensirion AG, Switzerland Confidential
Working hypothesis (given design aspects)

• Product lifetime: Min. 15 years

• Max. dimensions: Max. 3 x 2,0 x 0,73 inch → max. 76,20 x 50,80 x 18,54 mm
• Cable: Main requirements:
− 4 wire cable (UL certified)
− AWG 18 and 22
− Length: 5 ft (but variants with up to 8 ft possible)
• Elect. connection: Soldering → hand soldering possible but automated preferred
• Protection class: IP55
• Temp range: -40….90°C (minimum)/ -40….105°C (extended)
• Flammability: UL94-V0 (for all material facing outside required)
• UV: UV-C resistant (for all material facing outside required)

• Key: Lean assembly concept

© Copyright Sensirion AG, Switzerland Confidential

23
Module design concept K-B1
Cover
Lasermarking Cover
area Injection
molded plastic
part (2k)
Cable Yellow = soft
board-in- component
connector
Cable
Cable grommet
AWG 18 or 22
5 or 8 ft

PCBA

Base
Injection
molded plastic
part (1k)

© Copyright Sensirion AG, Switzerland Confidential

24
Material sourcing for box-build
Sensirion Supplier
Calibrated PCBA gets shipping from Sourcing of cable and plastic housings
Sensirion HU-DEB to supplier in MEX is in responsibiliy of the supplier

Cable

Base Cover
2K component

© Copyright Sensirion AG, Switzerland Confidential

25
Module assembly – process flow

Soldering Housing assembly (Step 1) Housing assembly (Step 2)

Press board-in-connector into PCBA

and solder pins on bottom side Press PCBA&Cable into base Clip cover on to base

© Copyright Sensirion AG, Switzerland Confidential

26
Module assembly – process flow

Lasermarking EOL Shipping

Device marking via laser Basic functionality test & sorting Drop shipment to customer
in NAFTA region

© Copyright Sensirion AG, Switzerland Confidential

27
Design for manufacturing
Cover Design for manufacturing
Lasermarking recommendations and inputs
area Cover are highly welcome!
Injection
molded plastic
Cable part (2k)
board-in- Please comment here:
connector
Cable
Cable grommet
AWG 18 or 22
5 or 8 ft

PCBA

Base
Injection
molded plastic
part (1k)

© Copyright Sensirion AG, Switzerland Confidential

28
Preliminary material specifications
Material Requirement
- Number of wires: 4
- Length: 5 ft
- Diameter: AWG 22
Cable
- 300V Rating
- Temperature range: minimum -40….95°C
- UL94 – V0
1 component molded part (hard component only)

Material A (hard component):

Housing base - PBT (unfilled) (e.g. Valox FR Resins 357XU)
- UV-stabilized
- UL94-V0
- Color: Black
2 component molded part (hard and soft component)

Material A (hard component):

- PBT (unfilled) (e.g. Valox FR Resins 357XU)
- UV-stabilized
Housing cover
- UL94-V0
- Color: Black

Material B (soft component):

- TPE (~Shore 50) (e.g. Material → tbd)

© Copyright Sensirion AG, Switzerland Confidential
