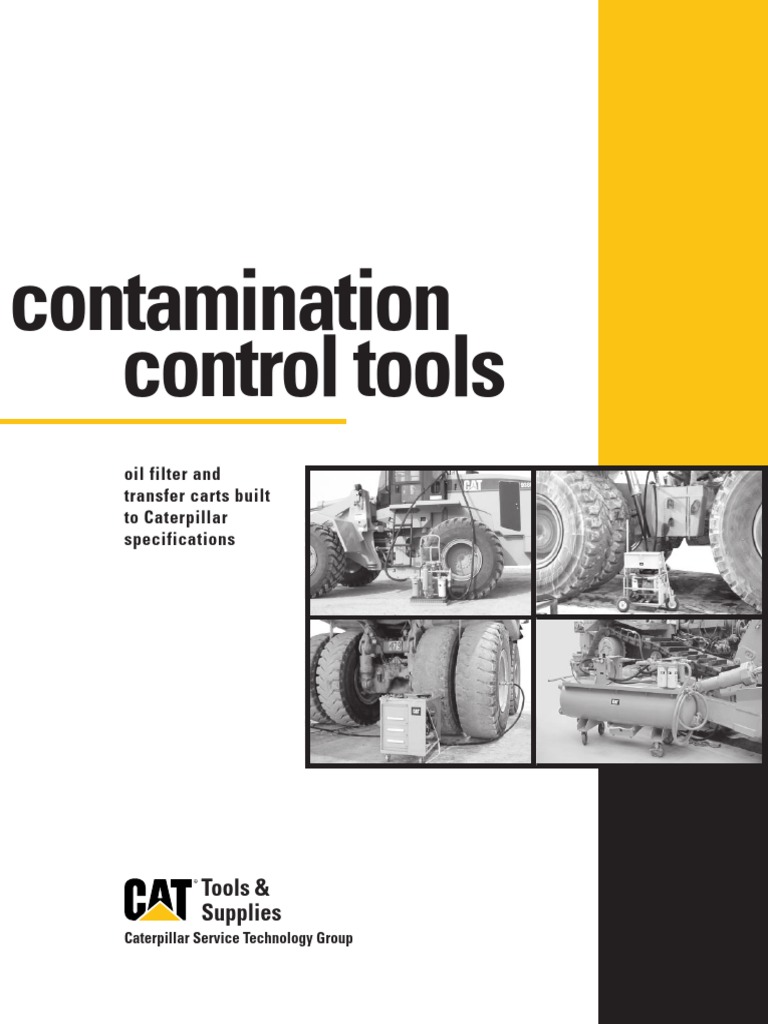

contamination

control tools
oil filter and
transfer carts built
to Caterpillar
specifications

Tools &
Supplies
Caterpillar Service Technology Group

1
 oil filter carts
Designed for filtering machine system
oils on Cat® machines—such as off-
highway trucks, excavators, motor
graders, track-type tractors, wheel
loaders, and wheel tractor scrapers—
these carts clean oil by kidney
looping, a process that extends the life
of the machine, lowers costs, and
allows for scheduled maintenance.
Other features include:
• Large-capacity high-efficiency
filters that remove and hold more 194-2897 ......................................................... page 4
contaminants, saving time
and money
• 12-inch pneumatic tires for easy
maneuvering
• Quality Cat hoses that stand up to
heat and abuse
• Air-powered pumps for high-volume
low pressure
• Flush-face, quick disconnect fittings
to speed hookup and maintain
cleanliness
• Machine connection adapters that
can be purchased separately
• Tool boxes and hose storage for 188-3242 ......................................................... page 5
added convenience

183-9301 and 201-8131 ................................. page 6

2
 oil transfer carts
These air-powered carts can adapt to a
variety of different machines. They’re
ideal for transferring fluids and kidney
looping smaller hydraulic, transmission,
and engine oil systems.

174-9158 and 204-7392 ................................. page 7

oil recovery cart

Sized to handle most hydraulic,
transmission, crankcase, or cooling
system filtering/handling tasks in the
shop on Cat equipment, this cart
removes dirt particles in fluid.
173-8839 ......................................................... page 8

high pressure cart

This cart cleans contaminants from
high-pressure hydraulic systems.

173-9842 ......................................................... page 9

3
 Ideal for moving and filtering oil, this multi-functional cart is designed to clean oil
in small off-highway truck and wheel loader rear axles. Its large filter capacity also
makes it ideal for kidney filter looping tote tanks and other oil storage containers.

194-2897 oil filter cart

specifications
Description Specification
Air diaphragm pump operating pressure 138-827 kPa (20-120 psi)
Variable delivery 189 lpm (0-50 gpm) oil temperature and
viscosity dependent
Supply air consumption 0.47 lps (1 cfm) per 3.78 lpm (1 gpm) of fluid pumped
Maximum output pressure of fluid pumped Equal to air inlet pressure
Hydraulic fluids 5W to 90W
Operating temperature -18 to 65°C (0 to 150°F)
Standard filtration of 10 µm (192-1560) Optional elements of 3 µm (212-7125), 5 µm (188-7020),
and 25 µm (185-1375)
Extra large filter 273 mm (10.75”) diameter x 825 mm (32.5”) height
Integral dirty filter indicator Monitors filter element cleanliness
Outlet hoses One pair of Caterpillar #844, 38.1 mm (1.5”) diameter x
6.1 m (20’) length (fitted with 1.5”cam-lok fittings)
Inlet hose Caterpillar #844, 50.8 mm (2”) diameter x 3 m
(10’) length (fitted with 2” cam-lok fittings)
Mobile cart mounted Three 304 mm (12”) pneumatic tires
Storage box (w x d x h) 762 mm (30”) x 406 mm (16”) x 304 mm (12”)
Overall dimensions (w x d x h) 1270 mm (50”) x 762 mm (30”) x 1219 mm (48”)
Convenient hose hook Easy hose storage
Noise level 82 dB at 758 kPa (110 psi) air pressure
Weight 163 kg (360 lbs)
_ CE compliant

repair parts reference material

(dealer support procedures)
Several adapters to fit on quick
Form no. Description
disconnect fittings are available for
NEHS0809 194-2897 Filter Cart Group (for use
but not included with this cart. Refer on rear axle and final drive
to the SEBF Procedure document assemblies in off-highway trucks,
large wheel loaders, and other
(listed right) for required special filtering applications)
adapters.
SEBF8454 Procedure for Filtering Off-
Part no. Description Highway Truck (769-777) Rear
Axle Oil (uses 194-2897 filter cart)
188-7019 Pump
SEBF8464 Procedure for Filtering Large
188-7018 Repair kit, diaphragm for pump Wheel Loader (988B-992G) Front
196-9504 Repair kit, air valve for pump and Rear Axle Oil

188-7020 Filter element, 5 µm

192-1560 Filter element, 10 µm
185-1375 Filter element, 25 µm
212-7125 Filter element, 3 µm

4
Designed to clean hydraulic and transmission oil for many Cat machines, this
cart features a 4-gang filter and large pumping capacity for efficient kidney loop
filtration. It also can be adapted to small storage tanks and tote containers to
provide pre-filtration on bulk oils.
188-3242 oil filter cart
specifications
Description Specification
Air diaphragm pump operating pressure 138-827 kPa (20-120 psi)
Variable delivery 189 lpm (0-50 gpm) oil temperature and viscosity
dependent
Supply air consumption 0.47 lps (1 cfm) per 3.78 lpm (1 gpm) of fluid pumped
Maximum output pressure of fluid pumped Equal to air inlet pressure
Hydraulic fluids 5W to 90W

Operating temperature -18 to 65°C (0 to 150°F)

Standard filtration 10 microns, optional elements 2 µm, 5 µm, 25 µm, and
water absorption (700 ml)
4-gang parallel filter head Extends time between dirty element change
Differential pressure gauges Monitors filter element cleanliness
Easy pull cart Three 304mm (12”) pneumatic tires
Inlet and outlet hoses Caterpillar #844, 38.1 mm (1.5”) diameter x 3.6 m (12’)
length (fitted with quick disconnect fittings)
Storage box (w x d x h) 762 mm (30”) x 406 mm (16”) x 304 mm (12”)
Overall dimensions (w x d x h) 1270 mm (50”) x 762 mm (30”) x 1219 mm (48”) without
609 mm (24”) hook bar
Extra tall hose hook Easy hose handling
Noise level 82 dB at 758 kPa (110 psi) air pressure
Weight 163 kg (360 lbs)
_ CE compliant

reference material (dealer support procedures)

Form no. Description
NEHS0778 188-3242 Filter Cart Group (for use on all hydraulic tanks or hydraulic systems)
SEBF8436 The Kidney Loop Filtration Process for the 320C Excavator Hydraulic System repair parts
SEBF8445 Procedure for Filtering Off-Highway Truck (769-793B) Transmission Oil
Several adapters to fit on the quick
SEBF8446 Procedure for Filtering Off-Highway Truck Hydraulic Oil
disconnect fitting are available for but
SEBF8447 Procedure for Filtering Excavator (311-375) Hydraulic Oil
not included with this cart. Refer to
SEBF8452 Kidney Looping Wheel Loader (988F, 980G, 972G, 966G, 962G, and 950G) Transmission
Oil Equipped With Ecology Drain the SEBF Procedure document (listed
SEBF8456 Procedure for Filtering Track-Type Tractor (D7-D11) Hydraulic Oil left) for required special adapters.
SEBF8457 Procedure for Filtering Wheel Tractor Scraper Hydraulic Oil Part no. Description
SEBF8458 Kidney Looping Wheel Loader (992G, 938G, 928G, and 924G) Transmission
Oil Without Ecology Drain
188-7019 Air pump

SEBF8459 Kidney Looping 994D Wheel Loader Transmission Oil 188-7018 Repair kit diaphragm for pump

SEBF8460 Kidney Looping 793C Off-Highway Truck Transmission and Torque Converter Oil 196-9504 Repair valve for pump
SEBF8461 Kidney Looping Motor Grader (12H, 14H, 16H, 120H, 135H, 140H, 143H, 160H, and 163H) 9U-6985 100 mesh
Transmission Oil Without Ecology Drain
9U-5870 Filter element, 10 µm
SEBF8462 Kidney Looping Transmission Oil on 24H Motor Grader Equipped
With Ecology Drain Valve 9U-6986 Differential pressure gauge
SEBF8465 Kidney Looping Transmission Oil on D6R, D7R, D8R, D9R, D10R, and D11R Track-Type 9U-6983 Filter element, 5 µm
Tractors Equipped With Ecology Valve
SEBF8484 Kidney Looping Implement/Transmission Oil on Challenger MT700 Series Tractors 9U-6984 Filter element, 25 µm

SEBF8486 Procedure for Kidney Looping Articulated Truck Transmission Oil 188-7027 Water removal element
SEBF8489 Procedure for Kidney Looping Articulated Truck Hydraulic Oil 198-3188 Filter element, 2 µm
5
 With large filters and pumping capacities, these carts provide efficient kidney
loop filtration in the rear axles of large Cat off-highway trucks (785-797).

183-9301(old) & 201-8131(new) oil filter carts

Note: The 201-8131 replaces
the 183-9301.
reference material
(dealer support procedures)
Form no. Description
NEHS0779 183-9301 Filter Cart Group (for use
on rear axle and final drive
assemblies in off-highway trucks
or other filtering applications)
NEHS0847 201-8131 Heavy Weight Filter Cart
(for use on all hydraulic systems)
SEBF8438 Procedure for Filtering
Off-Highway Truck Rear Axle Oil
specifications
Description Specification
Air diaphragm pump operating pressure 138-827 kPa (20-120 psi)
Variable delivery 340 lpm (0-90 gpm) oil temperature and viscosity
dependent
Supply air consumption 0.47 lps (1 cfm) per 3.78 lpm (1 gpm) of fluid pumped
Maximum output pressure of fluid pumped Equal to air inlet pressure
Hydraulic fluids 5W to 90W
Operating temperature -18 to 65°C (0 to 150°F)
Standard filtration 10 µm (192-1560), optional elements of 3 µm (212-7125),
5 µm (188-7020), and 25 µm (185-1375)
Extra large filter 273 mm (10.75”) diameter x 825 mm (32.5”) height
Delta pressure gauge (201-8131) Monitors filter element cleanliness
Integral dirty filter indicator (183-9301) Monitors filter element cleanliness
Mobile cart Mounted on four 152 mm (6”) hard plastic casters
Outlet hoses One pair of Caterpillar #844, 38.1 mm (1.5”) diameter x
7.3 m (24’) length (fitted with 1.5” cam-lok fittings)
Inlet hose Caterpillar #844, 50.8 mm (2”) diameter x 4.2 m (14’)
length (fitted with 2” cam-lok fittings)
Three-drawer storage box (183-9301 only) 508 mm (20”) x 660 mm (26”) x 914 mm (36”)
Toolbox (201-8131 only) 406 mm (16”) x 254 mm (10”) x 228 mm (9”)
Convenient hose caddy Easy hose storage
Overall dimensions for 183-9301 (w x d x h) 914 mm (36”) x 1828 mm (72”) x 965 mm (38”)
Overall dimensions for 201-8131 (w x d x h) 1220 mm (48”) x 1570 mm (62”) x 1020 mm (40”)
Noise level 82 dB at 758 kPa (110 psi) air pressure
Weight (183-9301) 544 kg (1200 lbs)
Weight (201-8131) 369 kg (812 lbs)
_ CE compliant
repair parts
Several adapters to fit on the quick disconnect fitting are available for but not
included with this cart. Refer to the SEBF Procedure document (listed left) for
required special adapters.
Part no. Description Part no. Description
212-7125 Filter element, 3 µm 209-1800 Repair kit, diaphragm for pump on 183-9301
188-7020 Filter element, 5 µm 209-1801 Repair kit, air valve for pump on 183-9301
192-1560 Filter element, 10 µm 196-9504 Repair kit, air valve for pump on 201-8131
185-1375 Filter element, 25 µm 161-7059 Repair kit, diaphragm for pump on 201-8131
209-1799 Pump (183-9301 only) 077-8298 O-ring/filter housing
4C6786 Pump (201-8131 only)

6
Smaller versions that can adapt to different machines, these two-wheel carts with hard rubber wheels are ideal for
transferring oil from a 55-gallon barrel or bulk storage tank to a field service vehicle or from a service truck to a machine.
The air-powered cart may also be used to kidney loop filter a machine’s hydraulic, transmission, or engine oil.

174-9158 & 204-7392 oil filter carts

specifications
Description Specification
174-9158 56 lpm (15 gpm) 4hp air motor, 7 bar, 62 lps
(at 100 psi, 131 cfm)
204-7392 Same as above but hoses are configured to fit
on engines
Variety of spin-on filters 2 µm (198-3188), 5 µm (9U-6983), 10 µm (9U-5870), 25
µm (9U-6984), 100 mesh (9U-6985), and water
absorption (188-7027) (700 ml/24 oz)

repair parts reference material

(dealer support procedures)
The hose is equipped with quick
Form no. Description
disconnect fittings and/or nozzle. A
suction tube is included. Several other NEHS0634 Procedures for Using Transfer/
Filter Cart: 127-8781, 169-7159,
adapters are available for but not and 174-9158
included with this cart. Refer to the NEHS0784 Procedures for Using Transfer
SEBF Procedure document (listed Cart: 4C-9475 and 169-7158
right) for required special adapters. NEHS0848 204-7392 (Air Motor Driven)
Filtering Cart (for use on all
Part no. Description Caterpillar products)
9U-7450 Pump SEBF8405 The Kidney Loop Filtration
127-8783 Electric motor (115 vac, 60 hz) Process for Rebuilt Engines (uses
174-9158 or 204-7392 filter cart)
127-8784 Electric motor (220 vac, 50 hz)
SEBF8453 Procedure for Filtering Motor
1W-7216 Air motor Grader (all models) Hydraulic Oil
(uses 174-9158 filter cart)
198-3188 Filter element, 2 µm
SEBF8455 Procedure for Filtering Track-
9U-6983 Filter element, 5 µm Type Tractor (D3-D6) Hydraulic
9U-5870 Filter element, 10 µm Oil (uses 174-9158 filter cart)

9U-6984 Filter element, 25 µm SEBF8463 Procedure for Filtering Wheel

Tractor Scraper Transmission Oil
9U-6985 Filter element, 100 mesh
188-7027 Water absorption element
(700 ml/24 oz)

7
 Designed to remove dirt particles from petroleum-based fluids and water glycol,
this cart handles most hydraulic, transmission, crankcase, or cooling system
filtering tasks. Compact and portable, it provides excellent short-term fluid
storage and comes fully equipped with tank, hoses, pumps, filters, and catch pan.

173-8839 recovery cart

specifications
Description Specification
Air pump operating pressure 414-827 kPa (60-120 psi)
Suction capability 64 lpm (17 gpm) oil temperature and viscosity
dependent
Output delivery 64 lpm (17 gpm) oil temperature and viscosity
dependent
Petroleum-based fluids 5W to 90W, plus water glycols
Operating temperature -18 to 65°C (0 to 150°F)
Standard filtration 10 µm (9U-5870)
Suction filter 100 mesh (9U-6985)
Optional elements 2 µm (198-3188), 5 µm (9U-6983), 25 µm (9U-6984), and
water absorption, 700 ml (188-7027)
Easy pull cart Mounted on four 200 mm (8”) hard rubber casters
Inlet and outlet hoses Reinforced plastic, 31.8 mm (1.25”) diameter x 3.6 m
(12’) length (fitted with quick disconnect fittings)
Holding tank 567 liters (150 gallons)
Drip pan (w x d x h) 520 mm (20.5”) x 469 mm (18.5”) x 76 mm (3”) with
ball-type rollers
Overall dimensions (w x d x h) 609 mm (24”) x 2336 mm (92”) x 1371 mm (54”)
Noise level 72 dB at 551 kPa (80 psi) air pressure
Weight 498 kg (1100 lbs)
_ CE compliant

basic procedure repair parts reference material

Part number Description (dealer support procedures)
Fluid can be vacuumed from the catch
Form number Description
pan or the machine’s tank at a rate of 198-3188 Filter element, 2 µm
NEHS0648 Procedure for Using 173-8839
64 lpm (17 gpm). It passes through 9U-6983 Filter element, 5 µm
(old 9U-7534) Filter Storage Filter
the 100 mesh suction filters and can 9U-5870 Filter element, 10 µm Cart Group
be continuously circulated through the 9U-6984 Filter element, 25 µm
recycle filters (10 µm) until an
9U-6985 Filter element, 100 mesh
acceptable cleanliness level is
188-7027 Water absorption element
attained. Fluid can be returned to the (700 ml/24 oz)
machine through the discharge filters
(10 µm) at a rate of 64 lpm (17 gpm).
NOTE: This cart can filter fluid at
three separate times: suction,
recirculation, and discharge.

8
This unique cart, designed to clean contaminants from high-pressure hydraulic
systems, is ideal for Cat machines with complex and extensive hydraulic
systems—such as hydraulic excavators. Integrated into a circuit, this cart uses
the Cat product’s main pump to circulate fluid during cleaning.

173-9842 high pressure cart

specifications
Description
No air or electrical is needed
High-pressure filters (2 per cart)
High-pressure filter media
Low-pressure filter
(one head with 4 spin-on elements)
Low-pressure filter media
Petroleum-based fluids
High-pressure ports
Low-pressure connection
Operating temperature
Portable cart
Overall dimensions (w x d x h)
Weight
Specification
Machine’s hydraulic system forces oil through
the filter
Rated at 41,000 kPa (6,000 psi) and 321 lpm (85 gpm)
6 µm (9U-5966), 321 lpm (85 gpm) flow rate at 110 kPa
(17 psi) differential
Rated at 1,000 kPa (150 psi) and 375 lpm (100 gpm)
10 µm (9U-5870), optional element 2 µm (198-3188)
and 5 µm (9U-6983)
10W
31 mm (1.25”), 41,000 kPa (6,000 psi), Snaptite #75
quick disconnect
38 mm (1.5”) cam-lock quick disconnect
-18 to 93°C (0 to 200°F)
Two 400 mm (16”) wheels
610 mm (24”) x 762 mm (30”) x 1220 mm (48”)
90 kg (200 lbs)

repair parts reference material

Part number Description
(dealer support procedures)
Form number Description
9U-5966 Filter element, 6 µm
(high pressure) NEHS0633 Procedure for Using 9U-5971 and
173-9842 Filter Cart Group
198-3188 Filter element, 2 µm
(low pressure)
9U-6983 Filter element, 5 µm
(low pressure)
9U-5870 Filter element, 10 µm
(low pressure)

9
 dealer support procedures by Cat product
ag tractors
Form number Description
SEBF8484 Kidney Looping Implement/Transmission Oil on Challenger® MT700 Series Tractors

articulated trucks
Form number Description
SEBF8486 Procedure for Kidney Looping Articulated Truck Transmission Oil
SEBF8489 Procedure for Kidney Looping Articulated Truck Hydraulic Oil

engines
Form number Description
SEBF8405 The Kidney Loop Filtration Process for Rebuilt Engines (uses 174-9158 or 204-7392
filter cart)

excavators
Form number Description
SEBF8447 Procedure for Filtering Excavator (311-375) Hydraulic Oil (uses 188-3242 filter cart)

motor graders
Form number Description
SEBF8453 Procedure for Filtering Motor Grader (all models) Hydraulic Oil (uses 174-9158 filter cart)
SEBF8461 Kidney Looping Motor Grader (12H, 14H, 16H, 120H, 135H, 140H, 143H, 160H, and
163H) Transmission Oil Without Ecology Drain (uses 188-3242 filter cart)
SEBF8462 Kidney Looping Transmission Oil on 24H Motor Grader Equipped With Ecology Drain
Valve (uses 188-3242 filter cart)

off-highway trucks
Form number Description
SEBF8445 Procedure for Filtering Off-Highway Truck (769-793B) Transmission Oil (uses 188-
3242 filter cart)
SEBF8446 Procedure for Filtering Off-Highway Truck Hydraulic Oil (uses 188-3242 filter cart)
SEBF8454 Procedure for Filtering Off-Highway Truck (769-777) Rear Axle Oil (uses 194-2897
filter cart)
SEBF8438 Procedure for Filtering Off-Highway Truck (785-797) Rear Axle Oil (uses 183-9301
filter cart)
SEBF8460 Kidney Looping 793C Off-Highway Truck Transmission and Torque Converter Oil
(uses 188-3242 filter cart)

10
track-type tractors
Form number Description
SEBF8455 Procedure for Filtering Track-Type Tractor (D3-D6) Hydraulic Oil (uses 174-9158 filter cart)
SEBF8456 Procedure for Filtering Track-Type Tractor (D7-D11) Hydraulic Oil (uses 188-3242 filter cart)
SEBF8465 Kidney Looping Transmission Oil on D6R, D7R, D8R, D9R, D10R, and D11R Track-
Type Tractors Equipped With Ecology Valve (uses 188-3242 filter cart)

wheel loaders
Form number Description
SEBF8458 Kidney Looping Wheel Loader (992G, 938G, 928G, and 924G) Transmission Oil
Without Ecology Drain (uses 188-3242 filter cart)
SEBF8452 Kidney Looping Wheel Loader (988F, 980G, 972G, 966G, 962G, and 950G)
Transmission Oil Equipped With Ecology Drain (uses 188-3242 filter cart)
SEBF8459 Kidney Looping 994D Wheel Loader Transmission Oil (uses 188-3242 filter cart)
SEBF8464 Kidney Looping 988B, 988F, 990, 990II, 992, 992B, 992C, 992D, and 992G Wheel Loaders -
Front and Rear Axle Oil

wheel tractor scrapers

Form number Description
SEBF8457 Procedure for Filtering Wheel Tractor Scraper Hydraulic Oil (uses 188-3242 filter cart)
SEBF8463 Kidney Looping Wheel Tractor Scraper Transmission Oil for 611, 613CII, and 615C
(uses 204-7392 filter cart)

11
 Please contact us for more information about these
contamination control tools, other service tools and shop
supplies, and the latest updates. You can also visit:
Cat Infocast at https://nacd.cat.com/public
(click on Product Support Marketing, then on Contamination Control)
http://productsupport.cat.com/dcd/cstg
(click on Products, then Contamination Control,
then Oil Filtering/Transferring)

Caterpillar Service Technology Group

501 SW Jefferson Ave Peoria, IL 61630-2184
1-800-542-8665 (USA)
1-800-541-8665 (Illinois)
1-800-523-8665 (Canada)
1-309-675-6277 (outside USA except Canada)
1-309-675-6618 (Fax)
CSTG (Hotline e-mail)
Caterpillar Service Technology Group
Caterpillar Overseas S.A.
P.O. Box 6000 1211 Geneva 6 Switzerland
+41 (22) 849 40 56 (phone)
+41 (22) 849 49 29 (fax)
36CSTG (COSA e-mail)

NELG5029 ©2002 Caterpillar Printed in U.S.A.

12
