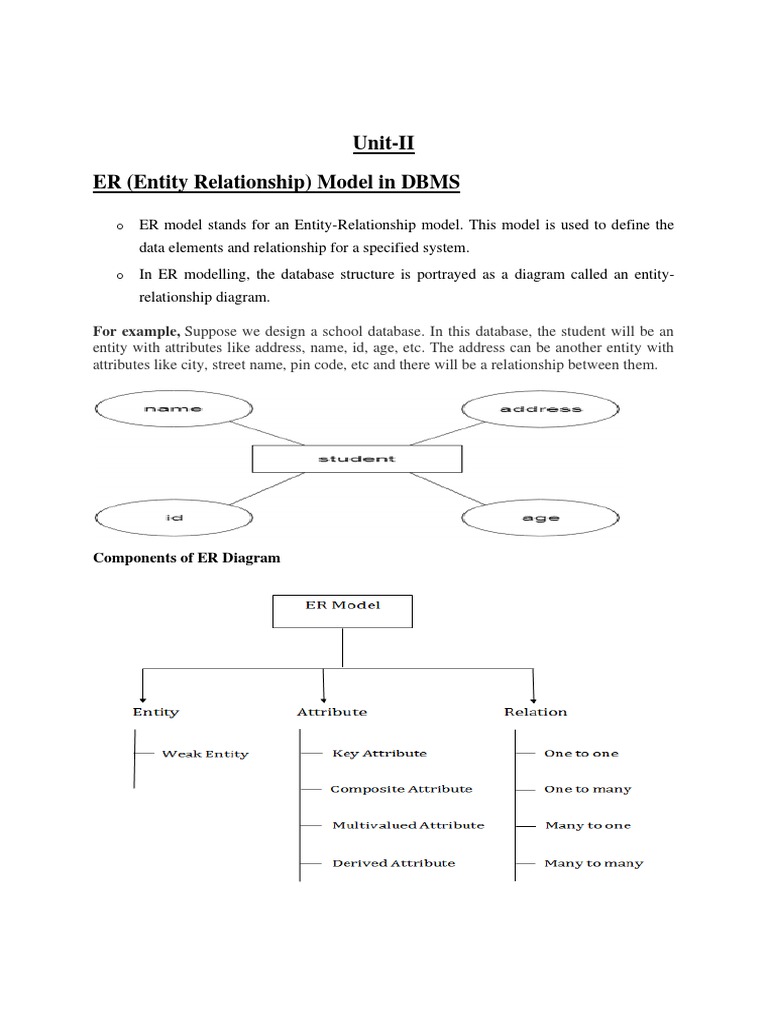

Unit-II

ER (Entity Relationship) Model in DBMS

o ER model stands for an Entity-Relationship model. This model is used to define the
data elements and relationship for a specified system.
o In ER modelling, the database structure is portrayed as a diagram called an entity-
relationship diagram.

For example, Suppose we design a school database. In this database, the student will be an
entity with attributes like address, name, id, age, etc. The address can be another entity with
attributes like city, street name, pin code, etc and there will be a relationship between them.

Components of ER Diagram
1. Attribute

The attribute is used to describe the property of an entity. Ellipse is used to represent an
attribute.

Types of Attributes:

For example, id, age, contact number, name, etc. can be attributes of a student entity.

1. Key Attribute

The key attribute is used to represent the main characteristics of an entity. It represents a
primary key. The key attribute is represented by an ellipse with the text underlined.

Key attributes are those attributes which can identify an entity uniquely in an entity set.
Example-
2. Simple Attribute:
An attribute that cannot be further subdivided into components is a simple attribute.
Simple attributes are those attributes which cannot be divided further.

Example: The roll number of a student, the id number of an employee.

Here, all the attributes are simple attributes as they cannot be divided further.

3. Single-valued Attribute:

The attribute which takes up only a single value for each entity instance is a single-valued
attribute.
Example: The age of a student.

Single valued attributes are those attributes which can take only one value for a given entity
from an entity set.
Example-
Here, all the attributes are single valued attributes as they can take only one specific value for
each entity.

4. Composite Attribute

Composite attributes are those attributes which are composed of many other simple attributes.
Example-

Here, the attributes “Name” and “Address” are composite attributes as they are composed of
many other simple attributes.
The composite attribute is represented by an ellipse, and those ellipses are connected with an
ellipse.
5. Multivalued Attribute

An attribute can have more than one value. These attributes are known as a multivalued
attribute. The double oval is used to represent multivalued attribute.

For example, a student can have more than one phone number

Example-

Here, the attributes “Mob_no” and “Email_id” are multi valued attributes as they can take
more than one values for a given entity.

6. Derived Attribute

An attribute that can be derived from other attribute is known as a derived attribute. It can be
represented by a dashed ellipse.

For example, A person's age can be derived from another attribute like Date of birth.
Entity:

An entity may be any object, class, person or place. In the ER diagram, an entity can be
represented as rectangles.

Consider an organization as an example- manager, product, employee, department etc. can be

taken as an entity.

a. Weak Entity

An entity that depends on another entity called a weak entity. The weak entity doesn't contain
any key attribute of its own. The weak entity is represented by a double rectangle.

Example: An entity with attributes

Relationship

A relationship is used to describe the relation between entities. Diamond or rhombus is used to
represent the relationship.

Types of relationship are as follows:

a. One-to-One Relationship

When only one instance of an entity is associated with the relationship, then it is known as one
to one relationship.

• Country - capital city: Each country has exactly one capital city. Each capital city is
the capital of exactly one country.
• Person - their fingerprints. Each person has a unique set of fingerprints. Each set of
fingerprints identifies exactly one person.

When a single instance of an entity is associated with a single instance of another entity then it
is called one to one relationship. For example, a person has only one passport and a passport is
given to one person.
b. One-to-many relationship

When only one instance of the entity on the left, and more than one instance of an entity on the
right associates with the relationship then this is known as a one-to-many relationship.

When a single instance of an entity is associated with more than one instances of another entity
then it is called one to many relationship. For example – a customer can place many orders but
a order cannot be placed by many customers.

c. Many-to-one relationship

When more than one instance of the entity on the left, and only one instance of an entity on the
right associates with the relationship then it is known as a many-to-one relationship.

When more than one instances of an entity is associated with a single instance of another entity
then it is called many to one relationship. For example – many students can study in a single
college but a student cannot study in many colleges at the same time.

d. Many-to-many relationship

When more than one instance of the entity on the left, and more than one instance of an entity
on the right associates with the relationship then it is known as a many-to-many relationship.

For example, Employee can assign by many projects and project can have many employees.

When the entity types ‘Customer’ and ‘Product’ are combined, each customer can purchase
several products, and a product can be purchased by multiple customers.
When more than one instances of an entity is associated with more than one instances of another
entity then it is called many to many relationship. For example, a can be assigned to many
projects and a project can be assigned to many students.

Different notations used for ER Diagram in DBMS:

Components of ER Diagram in DBMS

As above image describes,

 ▪ Rectangle – It represents entity in the ER Model.
▪ Ellipse – It represents attribute in the ER Model.
▪ Diamond – It represents relationship between entity and attribute.
▪ Line – It links attribute(s) to entity set(s) and entity set(s) to relationship
set(s).
▪ Doubles Ellipses – It represents multivalued attributes.
▪ Dashed Ellipses – It denotes derived attributes.
▪ Double lines – It indicates total participation of an entity in a relationship
set.
▪ Double Rectangle – It represents weak entity set.
▪ Double Diamonds – It represents weak relationships.
▪ Multiple ellipses connected to single ellipse using lines – It represents
composite attribute
▪ Ellipse with line inside it – It represents single values attributes

Connectivity of a Relationship –
It means how many instances of one entity type are linked with how many entity
of another entity set. Different types of connectivity of a relationship are –

(A) one-to-one relationship – If the relationship is one-to-one i.e. each

customer has one account and each account belongs to one customer, then this is
represented as follows. –

Type – 1
(B) many-to-one relationship – If this relationship is many-to-one, i.e. many
customers can share one account then this is represented as follows.
 Type – 2
(C) one-to-many relationship – If the relationship is one-to-many, i.e. one
customer may have any number of accounts, but one account belongs to only one
customer then this cardinality is represented as –

Type – 3
(D) many-to-many relationship – If relationship is many-to-many, i.e. one
customer may have any number of accounts and one acco unt can be shared by
any number of customers, then this is represented as follows.

Type – 4

Examples of E-R Model

ER model is used to represent real life scenarios as entities. The properties of these entities are
their attributes in the ER diagram and their connections are shown in the form of relationships.
Some examples of ER model are −

1. Hospital ER Model
This is an ER model of a Hospital. The entities are represented in rectangular boxes and are
Patient, Tests and Doctor.
Each of these entities have their respective attributes which are −
• Patients - ID(primary key), name, age, visit_date
• Tests- Name(primary key), date, result
• Doctor- ID(primary key), name, specialization
The relationships between different entities are represented by a diamond shaped box.

2. Company ER Model

The entities in this ER model are Employee, Department and Project. These entities have the
following attributes −
• Employee - ENO(Primary Key) , Name, Salary
• Department - DNO(Primary key), Name, Locations
• Project - PNO(Primary key), Name
The relationships in this ER model are represented as Works for and Controls.

Mapping Constraints / Cardinalities:

o A mapping constraint is a data constraint that expresses the number of entities to which
another entity can be related via a relationship set.
o For binary relationship set R on an entity set A and B, there are four possible mapping
cardinalities. These are as follows:
1. One to one (1:1)
 2. One to many (1:M)
3. Many to one (M:1)
4. Many to many (M:M)

One-to-one

In one-to-one mapping, an entity in E1 is associated with at most one entity in E2, and an entity
in E2 is associated with at most one entity in E1.

One-to-many

In one-to-many mapping, an entity in E1 is associated with any number of entities in E2, and
an entity in E2 is associated with at most one entity in E1.

Many-to-one

In many-to-one mapping, an entity in E1 is associated with at most one entity in E2, and an
entity in E2 is associated with any number of entities in E1.
Many-to-many

In many-to-many mapping, an entity in E1 is associated with any number of entities in E2, and
an entity in E2 is associated with any number of entities in E1.

Keys

o Keys play an important role in the relational database.

o It is used to uniquely identify any record or row of data from the table. It is also used
to establish and identify relationships between tables.

For example, ID is used as a key in the Student table because it is unique for each student. In
the PERSON table, passport_number, license_number, SSN are keys since they are unique for
each person.

Types of keys:

1. Primary Key
2. Candidate Key
3. Super Key
4. Foreign Key
5. Alternate Key
6. Composite Key
1. Primary key

o The primary key constraint uniquely identifies each record in a table.

o Primary keys must contain UNIQUE values, and cannot contain NULL (blank)
values.
o A table can have only ONE primary key; and in the table, this primary key can consist
of single or multiple columns (fields).

o In the EMPLOYEE table, ID can be the primary key since it is unique for each
employee. In the EMPLOYEE table, we can even select License_Number and
Passport_Number as primary keys since they are also unique.
o For each entity, the primary key selection is based on requirements and developers.

2. Candidate key
o A candidate key is an attribute or set of attributes that can uniquely identify a tuple
(row).
o Except for the primary key, the remaining attributes are considered a candidate key.
The candidate keys are as strong as the primary key.

For example: In the EMPLOYEE table, id is best suited for the primary key. The rest of the
attributes, like SSN, Passport_Number, License_Number, etc., are considered a candidate key.
3. Super Key

Super key is an attribute set that can uniquely identify a tuple (row). A super key is a superset
of a candidate key.

For example: In the above EMPLOYEE table, for (EMPLOYEE_ID, EMPLOYEE_NAME),

the name of two employees can be the same, but their EMPL0YEE_ID can't be the same.
Hence, this combination can also be a key.

The super key would be EMPLOYEE-ID (EMPLOYEE_ID, EMPLOYEE-NAME), etc.

4. Foreign key
o Foreign keys are the column of the table used to point to the primary key of another
table.
o Every employee works in a specific department in a company, and employee and
department are two different entities. So we can't store the department's information in
the employee table. That's why we link these two tables through the primary key of one
table.
o We add the primary key of the DEPARTMENT table, Department_Id, as a new
attribute in the EMPLOYEE table.
 o In the EMPLOYEE table, Department_Id is the foreign key, and both the tables are
related.

DEPARTMENT

5. Alternate key

There may be one or more attributes or a combination of attributes that uniquely identify each
tuple in a relation. These attributes or combinations of the attributes are called the candidate
keys. One key is chosen as the primary key from these candidate keys, and the remaining
candidate key, if it exists, is termed the alternate key. In other words, the total number of the
alternate keys is the total number of candidate keys minus the primary key. The alternate key
may or may not exist. If there is only one candidate key in a relation, it does not have an
alternate key.

For example, employee relation has two attributes, Employee_Id and PAN_No, that act as
candidate keys. In this relation, Employee_Id is chosen as the primary key, so the other
candidate key, PAN_No, acts as the Alternate key.

6. Composite key

Whenever a primary key consists of more than one attribute, it is known as a composite key.
This key is also known as Concatenated Key.
For example, in employee relations, we assume that an employee may be assigned multiple
roles, and an employee may work on multiple projects simultaneously. So the primary key will
be composed of all three attributes, namely Emp_ID, Emp_role, and Proj_ID in combination.
So these attributes act as a composite key since the primary key comprises more than one
attribute.

Generalization

o Generalization is a bottom-up approach in which two or more entities of lower level

entities combine to form a higher level entity if they have some attributes in common.
o In generalization, an entity of a higher level can also combine with the entities of the
lower level to form a further higher level entity.
o In generalization, entities are combined to form a more generalized entity, i.e.,
subclasses are combined to make a superclass.

For example, Faculty and Student entities can be generalized and create a higher level entity
Person.

Specialization
 o Specialization is a top-down approach, and it is opposite to Generalization. In
specialization, one higher level entity can be broken down into lower level entities.
o The superclass is defined first, the subclass and its related attributes are defined next,
and relationship set are then added.

For example: In an Employee management system, EMPLOYEE entity can be specialized as

TESTER or DEVELOPER based on what role they play in the company.

Aggregation
In aggregation, the relation between two entities is treated as a single entity. In aggregation,
relationship with its corresponding entities is aggregated into a higher level entity.

Example:

The above entity relationship diagram consists of, the Employee, a project, and a manager. The
above ER diagram also has two relationship boxes - they are "Builds" and "Manages". The
manager manages the employee and the project. This is called aggregation. In the above figure,
the Employee and the Project are connected to the "builds" operation. This builds operation is
connected to the "manages" operation that represents the aggregation function.
The "manages" operation is then connected to the new entity called as Manager entity.

DBMS – ER Design Issues

Here are some of the issues that can occur while ER diagram design process:

1. Choosing Entity Set vs Attributes

Choosing an entity set vs an attribute can change the whole ER design semantics. To
understand this lets take an example, let’s say we have an entity set Student with attributes such
as student-name and student-id. Now we can say that the student-id itself can be an entity with
the attributes like student-class and student-section.

Now if we compare the two cases we discussed above, in the first case we can say that the
student can have only one student id, however in the second case when we chose student id as
an entity it implied that a student can have more than one student id.

2. Choosing Entity Set vs. Relationship Sets

It is hard to decide that an object can be best represented by an entity set or relationship set. To
comprehend and decide the perfect choice between these two (entity vs relationship), the user
needs to understand whether the entity would need a new relationship if a requirement arise in
future, if this is the case then it is better to choose entity set rather than relationship set.

Let’s take an example to understand it better: A person takes a loan from a bank, here we have
two entities person and bank and their relationship is loan. This is fine until there is a need to
disburse a joint loan, in such case a new relationship needs to be created to define the
relationship between the two individuals who have taken joint loan. In this scenario, it is better
to choose loan as an entity set rather than a relationship set.

3. Choosing Binary vs n-ary Relationship Sets

In most cases, the relationships described in an ER diagrams are binary. The n-
ary relationships are those where entity sets are more than two, if the entity sets are only two,
their relationship can be termed as binary relationship.

The n-ary relationships can make ER design complex, however the good news is that we can
convert and represent any n-ary relationship using multiple binary relationships.

This may sound confusing so let’s take an example to understand how we can convert an n-ary
relationship to multiple binary relationships. Now let’s say we have to describe a relationship
between four family members: father, mother, son and daughter. This can easily be represented
in forms of multiple binary relationships, father-mother relationship as “spouse”, son and
daughter relationship as “siblings” and father and mother relationship with their child as
“child”.
4. Placing Relationship Attributes
The cardinality ratio in DBMS can help us determine in which scenarios we need to place
relationship attributes. It is recommended to represent the attributes of one to one or one to
many relationship sets with any participating entity sets rather than a relationship set.

For example, if an entity cannot be determined as a separate entity rather it is represented by

the combination of participating entity sets. In such case it is better to associate these entities
to many-to-many relationship sets.

DBMS – ER Diagram to Table Conversion

1. Strong Entity set with Simple attributes
The Strong Entity set becomes the table and the attributes of the Entity set becomes the table
attributes. The key attribute of the entity set becomes the primary key of the table.

Let’s take an example: Here we have an entity set Employee with the attributes Name, Age,
Emp_Id and Salary. When we convert this ER diagram to table, the entity set becomes table so
we have a table named “Employee” as shown in the following diagram. The attributes of the
entity set becomes the attributes of the table.

Table Name: Employee

2. Strong Entity Set With Composite Attributes

Now we will see how to convert Strong entity set with composite attributes ER to table.
The entity set will be the table and the simple attributes of the composite attributes will
become the attributes of the table while the composite attribute itself will be ignored
during conversion.

Let’s take an example. As you can see we have a composite attribute Name and this
composite attribute has two simple attributes First_N and Last_N. While converting
this ER to table we have not used the composite attribute itself in the table instead we
have used the simple attributes of this composite attribute as table’s attributes.

Table Name: Employee

3. Strong Entity Set with Multi Valued Attributes

Entity set with multi-valued attributes will require two tables in the relational model.

We will understand this conversion with the help of a diagram. Let’s take the same
example that we have seen above, here we have added a new multi-valued
attribute Dept. An employee can work in multiple department so we have
this Dept attribute marked as multi-valued. Whenever we have a multi-valued attribute,
there needs to be more than one table to represent the ER diagram. As you can see we
have created two tables to represent this ER.

Table Name: Employee

4. Relationship Set to Table conversion

While converting the relationship set to a table, the primary attributes of the two entity sets
becomes the table attributes and if the relationship set has any attribute that also becomes the
attribute of the table.

In the following example, we have two entity sets Employee and Department. These entity sets
are associated to each other using the Works relationship set. To convert this relationship
set Works to the table, we take the primary attributes of each entity set, these
are Emp_Id and Dept_Id and all the attributes of the relationship set and form a table.
 Table Name: Employee

Example

Reduction of ER diagram to Table

The database can be represented using the notations, and these notations can be reduced to a
collection of tables.

In the database, every entity set or relationship set can be represented in tabular form.

The ER diagram is given below:

There are some points for converting the ER diagram to the table:
 o Entity type becomes a table.

In the given ER diagram, LECTURE, STUDENT, SUBJECT and COURSE forms individual
tables.

o All single-valued attribute becomes a column for the table.

In the STUDENT entity, STUDENT_NAME and STUDENT_ID form the column of

STUDENT table. Similarly, COURSE_NAME and COURSE_ID form the column of
COURSE table and so on.

o A key attribute of the entity type represented by the primary key.

In the given ER diagram, COURSE_ID, STUDENT_ID, SUBJECT_ID, and LECTURE_ID

are the key attribute of the entity.

o The multivalued attribute is represented by a separate table.

In the student table, a hobby is a multivalued attribute. So it is not possible to represent multiple
values in a single column of STUDENT table. Hence we create a table STUD_HOBBY with
column name STUDENT_ID and HOBBY. Using both the column, we create a composite key.

o Composite attribute represented by components.

In the given ER diagram, student address is a composite attribute. It contains CITY, PIN,
DOOR#, STREET, and STATE. In the STUDENT table, these attributes can merge as an
individual column.

o Derived attributes are not considered in the table.

In the STUDENT table, Age is the derived attribute. It can be calculated at any point of time
by calculating the difference between current date and Date of Birth.

Using these rules, you can convert the ER diagram to tables and columns and assign the
mapping between the tables. Table structure for the given ER diagram is as below:
Figure: Table structure

SQL

SQL GROUP FUNCTIONS/AGGREGATE FUNCTIONS

Group functions operate on sets of rows to give one result per group

FUNCTION EXAMPLE RESULT

Avg select avg (total) from table_name; average value of total
Max select max (salary) from table_name; highest value of salary
Min select min (salary) from table_name; lowest value of salary
Sum select sum (total) from table_name; summation of total
Count all rows
Count Select count(*) from table_name; inclusive of duplicates
and null

Syntax:
Select column, groupfunction(column)
From table
[Where condition]
 Name Datatype Remark
EmpNo Number(10) Not Null
EmpName Varchar(10)
DeptNo Number(10)
Designation Varchar(10)
Salary Number(10)
Contact Number(10)

1. SQL count() Function

The count() function returns the number of rows that matches a specified criteria.
Syntax:
SQL>select count(column-name) from table_name;
Example :
Find the number of rows in table EMP
SQL>select count(*) from emp;
output
COUNT(*)
---------
6
Find the number of designations available in emp
SQL> select count(distinct designation) from empl;
output
COUNT(DISTINCTDESIGNATION)
-----------------------------
2
Find the number of employees who work in deptno 20.
SQL> select count(empno) from empl where deptno=20;
COUNT(EMPNO)
------------
2
2. SQL sum() Function
The sum() function returns the total sum of a numeric column.
Syntax:
 SQL>select sum(column-name) from table_name;

Example:
Find total salary paid to employees.
SQL> select sum(salary) from empl;
output
SUM(SALARY)
-------------
3775
3. SQL avg() Function
The AVG() function returns the average value of a numeric column.
Syntax:
SQL>select avg(column-name) from table_name;
Example:
Find average salary of the Employees
SQL> select avg(salary) from emp;
output
AVG(SALARY)
----------
7725
1. SQL Min() Function

The Min() function returns the smallest value of the selected column.
Syntax:
SQL>select min(column-name) from table_name;
Example:
Find minimum salary of the Employees
SQL> select min(salary) from emp;
output
MIN(SALARY)
----------
6000

2. SQL Max() Function

The Max() function returns the largest value of the selected column.
 Syntax:
SQL>select max(column-name) from table_name;
Example:
Find the max salary paid to a clerk
SQL> select max(salary) from empl where designation='clerk';
output
MAX(SALARY)
----------
800

Nested Queries

A nested query is a query that has another query embedded within it. The embedded query is
called a subquery.
A subquery appears within the WHERE clause of a query.
Syntax:
Select select-list from table
Where conditional-exp (select select-list from tablename);
The subquery (inner query) executes once before the main query. The result of the subquery is
used by the main query (outer query).
Example:

List the ename, job, sal of the employee who get minimum salary in the company.
SQL> select ename, job, sal from emp where sal=(select min(sal) from emp);
ENAME JOB SAL
------------------------- --------------- ----------
Smith clerk 800

VIEWS IN SQL

SQL View is a virtual table based on the result-set of an SQL statement. A view contains rows
and columns, just like a real table. The fields in a view are fields from one or more real tables in the
database.
A view is actually a composition of a table in the form of a predefined SQL query. A view can
contain all rows of a table or select rows from a table. A view can be created from one or many tables
which depends on the written SQL query to create a view.

Creating Views:
Database views are created using the CREATE VIEW statement. Views can be created from a single
table, multiple tables, or another view.

To create a view, a user must have the appropriate system privilege according to the specific
implementation.

CREATE VIEW syntax is as follows:

CREATE VIEW view_name AS

SELECT column1, column2.....

FROM table_name

WHERE [condition];

You can include multiple tables in your SELECT statement in very similar way as you use them in
normal SQL SELECT query.

Example:

1. Consider the CUSTOMERS table having the following records:

+----+----------+-----+-----------+----------+

| ID | NAME | AGE | ADDRESS | SALARY |

+----+----------+-----+-----------+----------+

| 1 | Ramesh | 32 | Ahmedabad | 2000.00 |

| 2 | Khilan | 25 | Delhi | 1500.00 |

| 3 | kaushik | 23 | Kota | 2000.00 |

| 4 | Chaitali | 25 | Mumbai | 6500.00 |

| 5 | Hardik | 27 | Bhopal | 8500.00 |

| 6 | Komal | 22 | MP | 4500.00 |

| 7 | Muffy | 24 | Indore | 10000.00 |

+----+----------+-----+-----------+----------+

Now, following is the example to create a view from CUSTOMERS table. This view would be used
to have customer name and age from CUSTOMERS table:

SQL > CREATE VIEW CUSTOMERS_VIEW AS

SELECT name, age

FROM CUSTOMERS;
Now, you can query CUSTOMERS_VIEW in similar way as you query an actual table. Following is
the example:

SQL > SELECT * FROM CUSTOMERS_VIEW;

This would produce the following result:

+----------+-----+

| name | age |

+----------+-----+

| Ramesh | 32 |

| Khilan | 25 |

| kaushik | 23 |

| Chaitali | 25 |

| Hardik | 27 |

| Komal | 22 |

| Muffy | 24 |

Updating a View:
A view can be updated under certain conditions:

• The SELECT clause may not contain the keyword DISTINCT.

• The SELECT clause may not contain summary functions.
• The SELECT clause may not contain set functions.
• The SELECT clause may not contain an ORDER BY clause.
• The FROM clause may not contain multiple tables.
• The WHERE clause may not contain subqueries.
• The query may not contain GROUP BY or HAVING.
• Calculated columns may not be updated.
• All NOT NULL columns from the base table must be included in the view in order for the
INSERT query to function.

So if a view satisfies all the above-mentioned rules then you can update a view. Following is an
example to update the age of Ramesh:

SQL > UPDATE CUSTOMERS_VIEW

SET AGE = 35

WHERE name='Ramesh';

This would ultimately update the base table CUSTOMERS and same would reflect in the view itself.
Now, try to query base table, and SELECT statement would produce the following result:

+----+----------+-----+-----------+----------+
| ID | NAME | AGE | ADDRESS | SALARY |

+----+----------+-----+-----------+----------+

| 1 | Ramesh | 35 | Ahmedabad | 2000.00 |

| 2 | Khilan | 25 | Delhi | 1500.00 |

| 3 | kaushik | 23 | Kota | 2000.00 |

| 4 | Chaitali | 25 | Mumbai | 6500.00 |

| 5 | Hardik | 27 | Bhopal | 8500.00 |

| 6 | Komal | 22 | MP | 4500.00 |

| 7 | Muffy | 24 | Indore | 10000.00 |

+----+----------+-----+-----------+----------+

Deleting Rows into a View:

Rows of data can be deleted from a view. The same rules that apply to the UPDATE and INSERT
commands apply to the DELETE command.

Following is an example to delete a record having AGE= 22.

SQL > DELETE FROM CUSTOMERS_VIEW

WHERE age = 22;

This would delete a row from the base table CUSTOMERS and same would reflect in the view itself.
Now, try to query base table, and SELECT statement would produce the following result:

+----+----------+-----+-----------+----------+

| ID | NAME | AGE | ADDRESS | SALARY |

+----+----------+-----+-----------+----------+

| 1 | Ramesh | 35 | Ahmedabad | 2000.00 |

| 2 | Khilan | 25 | Delhi | 1500.00 |

| 3 | kaushik | 23 | Kota | 2000.00 |

| 4 | Chaitali | 25 | Mumbai | 6500.00 |

| 5 | Hardik | 27 | Bhopal | 8500.00 |

| 7 | Muffy | 24 | Indore | 10000.00 |

+----+----------+-----+-----------+----------+

Dropping Views:
Drop the view if it is no longer needed. The syntax is very simple as given below:

DROP VIEW view_name;
