Module 1

Introduction to MOS Technology

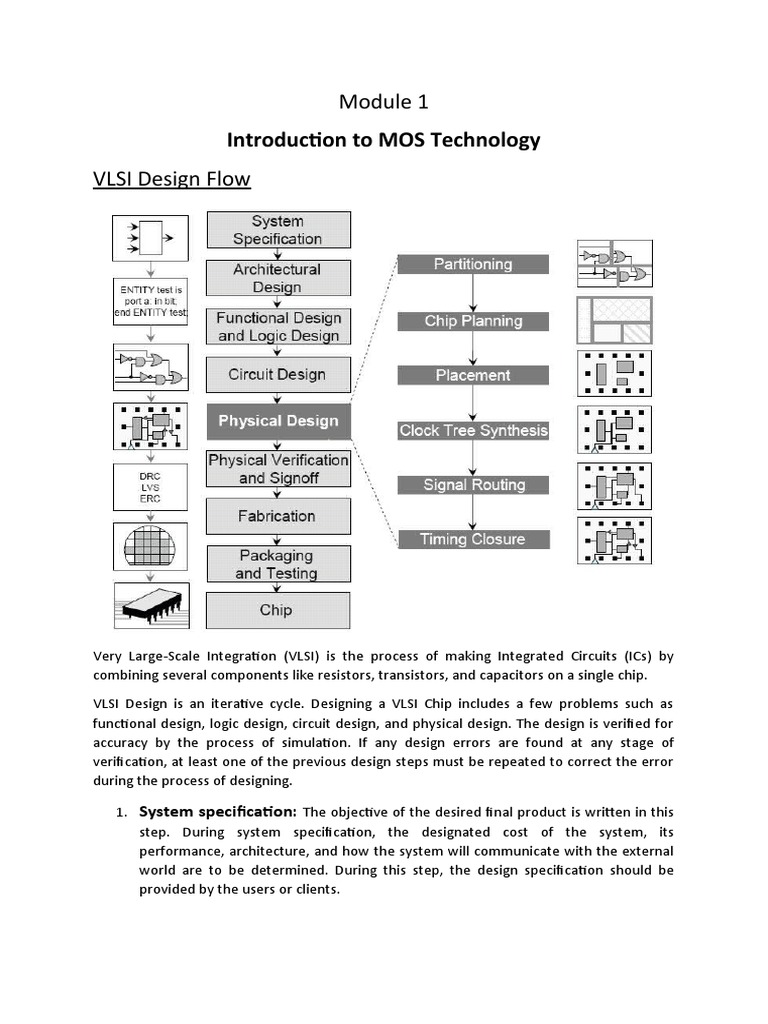

VLSI Design Flow

Very Large-Scale Integration (VLSI) is the process of making Integrated Circuits (ICs) by
combining several components like resistors, transistors, and capacitors on a single chip.
VLSI Design is an iterative cycle. Designing a VLSI Chip includes a few problems such as
functional design, logic design, circuit design, and physical design. The design is verified for
accuracy by the process of simulation. If any design errors are found at any stage of
verification, at least one of the previous design steps must be repeated to correct the error
during the process of designing.

1. System specification: The objective of the desired final product is written in this
step. During system specification, the designated cost of the system, its
performance, architecture, and how the system will communicate with the external
world are to be determined. During this step, the design specification should be
provided by the users or clients.
2. Architectural design: The basic architecture of the desired design must meet the
system specifications of the desired design. The architecture of the desired design is
decided and the layout for the same is designed by design engineers. Architectural
design includes the integration of analog and mixed-signal blocks, memory
management, internal and external communication, power requirements, and
choice of process technology and layer stacks.
3. Functional design or Behavioral design: It consists of refining the design
specification of the desired design to design the functional behavior of the desired
system. The main objective of this is to generate design a high-performance
architectural design within the cost requirements posed by the specifications.
4. Logic Design: In this step, the structure of the desired design is added to the
behavioral representation of the desired design. The main specifications to be
considered for logic design are logic minimization, performance enhancement, and
testability. Logic design must also consider the problems associated with test vector
generation, error detection, and error correction. Many logic synthesis tools have
been developed for the automation of the process of logic design.
5. Circuit Design: In this step, the logic blocks of the desired design are replaced by
the electronic circuits, which are consists of electronic devices such as resistors,
capacitors, and transistors. Circuit simulation of the desired design is done at this
stage, to verify the timing behavior of the desired system. Kirchhoff’s laws are used
to know the behavior of the electronic circuit in terms of node voltages and branch
circuits. The result of differential equations is then solved in discrete- time. SPICE is a
well-known program for circuit simulation.
6. Physical Design: In this step, the actual layout of the desired system is done,
where all the components will be placed in the circuit and all these components are
interconnected. The actual layout of the desired system can affect the area,
correctness, and performance of the final desired product. The correctness of the
chip is also controlled by the physical design. A circuit design that passes the test of a
circuit simulator may be faulty after it has been packaged. This is because of
geometric design rule errors. These design rules must be followed to ensure the
correctness of the chip fabrication. Errors such as short circuits, open circuits, open
channels, etc may result if the design rules are not respected. Due to its high
complexity, physical design is split into several key steps:
a. Partitioning: Breaks up a circuit into smaller subcircuits or modules which can
each be designed or analyzed individually.
b. Floorplanning: Determines the shapes and arrangement of subcircuit or
modules, as well as the locations of external ports and IP or macro blocks.
c. Power and ground routing: Often intrinsic to floorplanning, distributes power
(VDD) and ground (GND) nets throughout the chip.
d. Placement: Finds the spatial locations of all cells within each block.
e. Clock network synthesis: Determines the buffering, gating (e.g., for power
management) and routing of the clock signal to meet prescribed skew and
delay requirements.
 f. Global routing: Allocates routing resources that are used for connections;
example resources include routing tracks in channels and in switchboxes.
g. Detailed routing: Assigns routes to specific metal layers and routing tracks
within the global routing resourses
h. Timing Closure: Optimizes circuit performance by specialized placement and
routing techniques.
7. Physical verification: After physical design is completed, the layout must be fully
verified to ensure correct electrical and logical functionality. Some problems found
during physical verification can be tolerated if their impact on chip yield is negligible.
In other cases, the layout must be changed, but these changes must be minimal and
should not introduce new problems. Therefore, at this stage, layout changes are
usually performed manually by experienced design engineers.
a. Design rule checking (DRC) verifies that the layout meets all technology-
imposed constraints. DRC also verifies layer density for chemical-mechanical
polishing (CMP).
b. Layout vs. schematic (LVS) checking verifies the functionality of the design.
From the layout, a netlist is derived and compared with the original netlist
produced from logic synthesis or circuit design.
c. Parasitic extraction derives electrical parameters of the layout elements
from their geometric representations; with the netlist, these are used to
verify the electrical characteristics of the circuit.
d. Antenna rule checking seeks to prevent antenna effects, which may damage
transistor gates during manufacturing plasma-etch steps through
accumulation of excess charge on metal wires that are not connected to PN-
junction nodes.
e. Electrical rule checking (ERC) Verifies the correctness of power and ground
connection, and that signal transition times (slew), capacitive loads and
fanouts are appropriately bounded.
8. Fabrication: After the actual layout and verification of the desired design, the
design is sent for manufacturing. The handoff of the desired design to the
manufacturing process is called tapeout. Generation of the data for manufacturing is
referred to as streaming out. The desired design is onto the different layers of the
design using the photolithographic process. ICs are manufactured on round silicon
wafers with a diameter from 200mm to 300mm, these ICs are then tested and are
marked as either functional or defective ICs.
9. Packaging and Testing: After fabrication of desired design, functional chips are
then packed. Packaging is configured early in the desired design process and the
application along with the cost and form factor requirements. Packaged types may
include Dual In-Line Packaged (DIPs), Pin Grid Array (PGAs), and Ball Grid Arrays
(BGAs). After a die is positioned in the package cavity, its pins are connected to the
pins of the package, e.g., with wire bonding or solider bumps (flip-chip). The package
of the desired design is then sealed and then sent to the end-users or clients.
