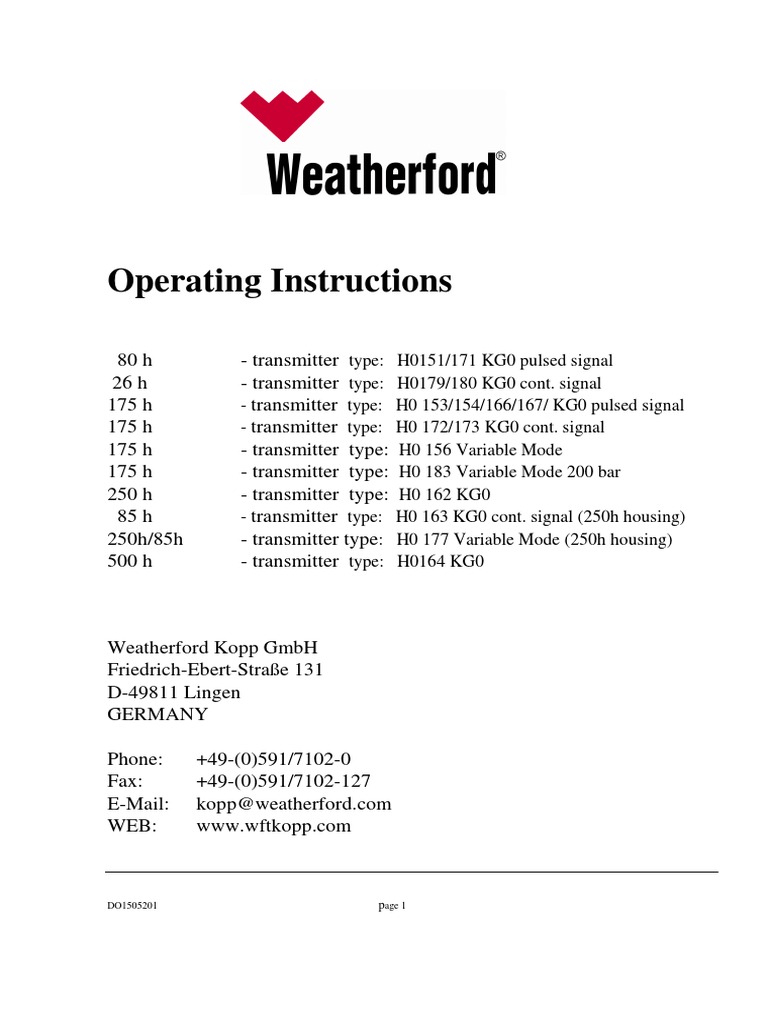

Operating Instructions

80 h - transmitter type: H0151/171 KG0 pulsed signal

26 h - transmitter type: H0179/180 KG0 cont. signal
175 h - transmitter type: H0 153/154/166/167/ KG0 pulsed signal
175 h - transmitter type: H0 172/173 KG0 cont. signal
175 h - transmitter type: H0 156 Variable Mode
175 h - transmitter type: H0 183 Variable Mode 200 bar
250 h - transmitter type: H0 162 KG0
85 h - transmitter type: H0 163 KG0 cont. signal (250h housing)
250h/85h - transmitter type: H0 177 Variable Mode (250h housing)
500 h - transmitter type: H0164 KG0

Weatherford Kopp GmbH

Friedrich-Ebert-Straße 131
D-49811 Lingen
GERMANY

Phone: +49-(0)591/7102-0
Fax: +49-(0)591/7102-127
E-Mail: kopp@weatherford.com
WEB: www.wftkopp.com

DO1505201 page 1
Contents

1. 80 h /26 h transmitter

2. 175 h transmitter

3. 250 h transmitter / 85h transmitter

4. 500 h transmitter

5. Spare parts lists

6. General Warning Notices and Safety Instructions

DO1505301 page 2
1.0 80 h / 26 h built-in transmitter V2 (H0171KG0 / H0179KG0)

1 = flange
2 = plug
3 = retaining ring
4 = O-ring
5 = batteries
6 = special steel housing
7 = polyamide housing

The 80 h built-in transmitter consists of 2 housing parts which are screwed together tightly.
The special steel housing (6) contains the electronics as well as the battery housing. The
polyamide cap (7) serves as receiver for the transmitter coil.

The transmitter has been designed for pressures up to 100 bar and may be used in pipelines
from 4“ on. It is installed onto the corresponding pig by means of a flange (1).

1.0.1 Replacing the battery

In order to take off the plug (2) of the battery housing, the retaining ring (3) has to be
removed with circle pliers (type C for internal retaining rings).
Following removal of the retaining ring, the plug (2) can be carefully removed from the
special steel housing and the batteries can be taken out.
The new batteries should be installed as described in sketch 1.2.

Note:

When looking in the battery housing, the negative pole of the batteries has to be
visible.

Check every installed battery for its correct polarity!

DO1505301 page 3
1.1 80 h / 26h trailing transmitter V2 (H0151 KG0 / H0180 KG0)

1 5
Type H0 151 KG 0

1 = trailer coupling ring

6 4
2 = plug
3 = holding down bolt
4 = O-ring
5 = batteries
6 = PU-sliding cup

The 80 h trailing transmitter consists of a polyamide housing with a special steel plug (2)
containing the electronics, the transmitter coil and the battery housing.
It has been designed for pressures up to 100 bar and may be used in pipelines of 3“ to 5“.
The trailing transmitter is attached to the corresponding pig by means of the trailer coupling
ring (1).
In order to protect the trailing transmitter against mechanical damages, it is covered with a
PU-sliding cup (6). The PU-sliding cup is a wear & tear part and has to be renewed, if
necessary.

1.1.1 Replacing the battery

In order to take off the plug (2) of the battery housing, the holding down bolts (3) have to be
removed.
Following removal of the bolts, the plug (2) can be carefully removed from the housing and
the batteries can be taken out.
The new batteries should be installed as described in sketch 1.2.

Note:

When looking in the battery housing, the negative pole of the batteries has to be
visible.
Check every installed battery for its correct polarity!

DO1505301 page 4
1.2 Inserting the batteries
The example is shown on the transmitter type H0171 KG0 but is also applicable for the 80
h transmitter type H0151 KG0.

11 pcs.
batteries

Quantity and polarity of the batteries is applicable for the following 80 h transmitters only:

H0171 KG0
H0151 KG0
H0179 KG0
H0180 KG0
Insert only the below mentioned battery type:

Battery type: DURACELL CR 2032, 3 Volt

Battery quantity: 11 pcs.

Before inserting the plug (2) back into the special steel housing, the quality of the O-ring
(4) has to be checked. The O-ring should not indicate any damage or wear & tear. In case of
any damage the O-ring has to be renewed. Additionally, the O-ring should be greased with a
non-acid lubricant, i.e. Vaseline. Take care that the O-ring is not damaged when closing the
housing (2). The transmitter is now ready for work.

Finally, either the retaining ring (3) for the type H0171 KG0 or the holding down bolts (3)
for the type H0151 KG0 can be installed.

DO1505301 page 5
1.3 Dimensions and list of parts

Built-in transmitter H0171 KG0 and H0179 KG0

List of parts:

1 = flange with transmitter housing 5-71-051-02-.-3

2 = plug 5-71-051-03-.-4
3 = retaining ring 24x1,2 A2 DIN472
4 = O-ring 19,0x1,5 BL-BN-170

DO1505301 page 6
1.4 Dimensions and list of parts:

Trailing transmitter H0151 KG0 and H0180 KG0

1 5
Type H0 151 KG 0

6 4

List of parts:

1 = trailer coupling ring (link 1420 11007)

2 = plug (5-71-052-04-.-3)
3 = holding down bolt (cylinder screw) DIN 912 M3*8 A2
4 = O-ring (0-19*1,5 BL-BN-170)
5 = batteries (DURACELL CR2032)
6 = PU-sliding cup (5-71-052-06-.-3)

DO1505301 page 7
1.5. Technical Data

Unit number: H0171KG0 / H0151KG0

Temperature range: -20° ... +70° C

Voltage: 14...33 V

Battery type: DURACELL CR 2032, 3 Volt

Battery quantity: 11 pcs.

Average charging rate: 2...3 mA

Range: 5 m (air)

Life duration of batteries: 80 h (20° C)

Possible media: Water, oil, gas

aggressive media on request

max. allowable pressure: 100 bar

weight: 0,6 kg

DO1505301 page 8
2.5.1 Technical Data for Transmitter with Continuous Signal:
H0 179 KG0 and H0 180 KG0

The difference between transmitters with pulsed signals and with continuous signals consists of
the different kind of signal.

Especially in areas with strong noise fields, the transmitter with continuous signals guarantees better
reception conditions.

Attention!! The receiver has to be operated in the „marker“ or „permanent“ mode to correctly
receive the signals of the transmitter with continuous signals!

Signal sequence of transmitters with pulsed signals:

pulse pulse pulse pulse

intermission intermission intermission intermission

Signal sequence of transmitters with continuous signals:

Continuous Signal

Temperature range: -20° ... +70° C

Voltage: 14...33 V

Battery type: DURACELL CR 2032, 3 Volt

Battery quantity: 11 pcs.

Range: 7,5 m (air)

Life duration of batteries: app. 26 h (20° C)

Possible media: Water, oil, gas

aggressive media on request

max. allowable pressure: 100 bar

weight: 0,6 kg

DO1505301 page 9
2. 175 h trailing transmitter

2.1 Construction

With regards to the construction the 175 h trailing transmitter (1) is designed in order to be
pulled by a „simple“ pig. For this purpose two PUR-discs which are slightly smaller in
diameter than the internal diameter of the pipe are mounted. The pig transmitter is made
entirely from polyamide and resists pressures up to 100 bar. It is constructed for pipelines of
8“ up to 20“ and can pass 1.5D bends.

Trailing m odule 175 h transm itter

175 h transm itter

standard H0154KG0

DO1505301 page 10
2.2 Battery Change - 175h Trailing Transmitter

Upon unscrewing of the screws (2) the flange (4), the PUR-discs
(5) and the cap (6) can be removed. Two 9-V-batteries (8) type PP3 (9V-EBlock)
(alkaline/lithium) are required. Prior to the assembly the O-ring (7) has to be lightly
greased; take care of right positioning!

When the batteries have been installed, the transmitter will be active immediately!

2.2.1 Trailing Transmitter Version 1

1 8 7 6 5 4 3 2

2.2.2 Trailing Transmitter Version 2

DO1505301 page 11
2.3 Battery Change - 175h Built-in Transmitter

Upon unscrewing of the screws (1) the cap (3) can be removed.
If necessary, first remove the transport protection from the cap.
Carefully pull out the electronics (5) from the housing (8).The required two 9-V-
batteries (6) type PP3 (9V-EBlock) (alkaline/lithium) can now be inserted.
Prior to the assembly the O-ring (4) has to be lightly greased; take care of right
positioning!

When the batteries have been installed, the transmitter will be active immediately!

Please re-insert the transport protection, in case the transmitter should be transported
or stored without batteries.

DO1505301 page 12
2.4 Type variants

294
158
10 150

ø11,5

ø62 (6xø6,6)
ø180 (6x60°)

ø88,9
ø80
ø210

ø36
H0166KG0: 175 h - transmitter with adapter sleeve
ø76 / 8xø11

ø76 / 8xø6,6
ø76 / 8xø6,6

ø76 / 8xM6
ø100

ø60

ø48

55 184
257

H0167KG0: 175h - transmitter with built-in flange

DO1505301 page 13
2.5 Technical data:

175 h transmitter :

278

ø80
ø62

øA
B 362 362 366 376 376 376
A 120 168 219 273 323 355
Type 6" 8" 10" 12" 14" 16"

Device number: H0154KG0 (standard)

H0156/183KG0 (var.mode set to pulsed)
H0166KG0 (with adapter sleeve)
H0167KG0 (with built-in flange)

Temperature range: -20... +70°C

Supply voltage: 7.....12 V, type 9 v alkaline

Average amperage: 4.......6 mA

Range: 8 m (air)

Life of batteries: 175 h

Possible media: water, oil, gas

aggressive media upon request

Maximum permissible pressure: 100 bar

Maximum permissible pressure: 200 bar for Type H0183 only!

Weight: 2.2 kg

DO1505301 page 14
2.5.1 Technical Data for Transmitter with Continuous Signal:
H0 172 KG0 and H0 173 KG0

The difference between transmitters with pulsed signals and with continuous signals consists of:

a) the different use of batteries, i. e. alkaline batteries for transmitters with pulsed signals and
lithium batteries for transmitter with continuous signals.
b) the different kind of signal.

Especially in areas with strong noise fields, the transmitter with continuous signals guarantees better
reception conditions.

Attention!! The receiver has to be operated in the „marker“ or „permanent“ mode to correctly
receive the signals of the transmitter with continuous signals!

Signal sequence of transmitters with pulsed signals:

pulse pulse pulse pulse
pulse
intermission intermission intermission intermission
pulse

Signal sequence of transmitters with continuous signals:

Continuous Signal

Device Number: H0172KG0 (Built-in Transmitter with Continuous Signal)

H0173KG0 (Standard Trailing Transmitter with Continuous Signal)

Temperature range: -20...+70°C

Supply voltage: Type 9 V Lithium Size U9VL

Average amperage: 14...18 mA

Range: 9,5 m (air)

Life of batteries: 175 h

Possible media: water, oil, gas,

aggressive media upon request

Max. permissible pressure: 100 bar

Weight (excl. discs): 2,2 kg

DO1505301 page 15
2.5.2 Mode Adjustment for 175 h Transmitter:

For transmitter type H0156KG0 and H0183KG0

1
Electronics:

Continuous Signal 2

Pulsed Signal 3

When using transmitters with variable mode, it is possible to adjust the mode to
operation with pulsed signals or to operation with continuous signals.

To adjust the mode, carefully pull out the electronics from the housing. Please also
refer to comments in section “Battery change”. Then remove the insulating tape
(position 1). Under the insulating tape, there is a switch which can be carefully set
into position using a small screw-driver.

Position 2 Continuous signals

Position 3 Pulsed signals

DO1505301 page 16
3. 250 h / 85h transmitter

3.1 Construction

The transmitter consists of an aluminum battery housing and a transmitting part of

polyamide. The maximum work pressure amounts to 200 bar. The 250 h transmitter may be
used for pipelines from 20“ upward. It is installed into the corresponding pig by means of a
flange.

3.2 Replacing the battery - 250 h transmitter

Remove nut (7) from threaded rod (2) and pull off battery housing.
Remove low batteries (3).Install new batteries (3) according to the symbols on the battery
pack (negative pole of batteries always in spring direction).

3 5 2

4 1 6

Required batteries: 24 off type LR 14 (alkaline).As soon as the batteries have been correctly
installed the transmitter will be active immediately.
Assembly vice versa.
DO1505301 page 17
 Note:
When mounting the battery housing (1) it has to be checked whether the O-rings (4 / 5) can
be used again and if required, those have to be replaced. Additionally the O-rings (4 / 5)
should be slightly greased. Place washer (6) under nut (7). The self-locking nut (7) may be
used once only. Then it has to be replaced by a new nut. (See spare parts list).

3.3 Technical data:

250 h transmitter and 85 h transmitter

497
307
289
8
ø180 / 6xø11

ø120
ø210

ø110
ø96

DO1505301 page 18
3.3.1 Technical data - 250h transmitter with pulsed signal:

Device number: H0162KG0/H0177KG0(pulsed mode)

Temperature range: -20....+70°C

Supply voltage: 12.....18 V

Possible media: water, oil, gas

aggressive media upon request

Maximum permissible pressure: 200 bar

Weight: 9.6 kg

Range: 15 m (air)

Life of batteries: 250 h

DO1505301 page 19
3.3.2 Mode Adjustment for 250h/85h Transmitter:

For transmitter type H0177KG0 .

Continuous Signal
2

Pulsed Signal 3

When using transmitters with variable mode, it is possible to adjust the mode to
operation with pulsed signals or to operation with continuous signals.

Position 2 Continuous signals

Position 3 Pulsed signals
DO1505301 page 20
H0163KG0 / H0177KG0(continuous mode)

The difference between transmitters with pulsed signals and with continuous signals consists of the
different kind of signal.
Especially in areas with strong noise fields, transmitters with continuous signals guarantee better
reception conditions. However, the battery life is reduced to a third in comparison to the pulsed
signal transmitter type.

Attention!! The receiver has to be operated in the „marker“ or „permanent“ mode to correctly
receive the signals of the transmitter with continuous signals!

Signal sequence of transmitters with pulsed signals:

pulse pulse pulse pulse

intermission intermission intermission intermission

Signal sequence of transmitters with continuous signals:

Continuous signal

Device Number: H0163KG0/ H0177KG0/

Temperature range: -20...+70°C

Supply voltage: 12...18 V

Average amperage: 210 mA

Range: 20 m (air)

Life of batteries: 85 h

Possible media: water, oil, gas,

aggressive media upon request

Max. permissible pressure: 200 bar

Weight: 9,6 kg

DO1505301 page 21
4. 500 h transmitter

4.1 Construction

The transmitter consists of an aluminum battery housing and a transmitting part of

polyamide. The maximum work pressure amounts to 200 bar. The 500 h transmitter may be
used for pipelines from 20“ upward. It is installed into the corresponding pig by means of a
flange.

4.2 Replacing the battery - 500 h transmitter

Remove nut (7) from threaded rod (2) and pull off battery housing. Remove low batteries (3).
Install new batteries (3) according to the symbols on the battery pack (negative pole of
batteries always in spring direction).Required batteries: 48 off type IEC LR 14 (alkaline).
As soon as the batteries have been correctly installed the transmitter will be active
immediately. Assembly vice versa.

3 5 3

1 4 6

Note:
DO1505301 page 22
 When mounting the battery housing (4) it has to be checked whether the O-rings (1 / 5) can
be used again and if required, those have to be replaced. Additionally the O-rings (1 / 5)
should be slightly greased. Place washer (6) under nut (7). The self-locking nut (7) may be
used once only. Then it has to be replaced by a new nut. (See spare parts list).

4.3 Technical data:

500 h transmitter:

748
558
540
8
ø180 / 6xø11
ø210

ø110
ø120
ø96

Device number: H0164KG0

Temperature range: -20....+70°C

Supply voltage: 12.....18 V

Average amperage: 60.....80 mA

Range: 15 m (air)

Life of batteries: 500 h

Possible media: water, oil, gas

aggressive media upon request

Maximum permissible pressure: 200 bar

Weight: 14 kg

DO1505301 page 23
5.0 Spare parts lists:

80h /26h Built-in transmitter H0171KG0 and H0179 KG0

111
List of parts:
176
1 = flange with transmitter housing 5-71-051-02-.-3
2 = plug 5-71-051-03-.-4
3 = retaining ring 24x1,2 A2 DIN472
4 = O-ring 19,0x1,5 BL-BN-170

80h /26h Trailing transmitter H0151KG0 and H0180KG0

1 5
Type H0 151 KG 0

List of parts:
6 4
1 = trailer coupling ring (link 1420 11007)
2 = plug (5-71-052-04-.-3)
3 = holding down bolt (cylinder screw) DIN 912 M3*8 A2)
4 = O-ring (0-19*1,5 BL-BN-170)
5 = batteries (DURACELL CR2032)
6 = PU-sliding cup (5-71-052-06-.-3)

DO1505301 page 24
175h transmitter standard H0154KG0 a) pulsed signal
175h transmitter standard H0173KG0 b) continuous Signal

B 362 362 366 376 376 376

A 120 168 219 273 323 355
Type 6" 8" 10" 12" 14" 16"

Item Quantity Title Standard, spare part order no.

1 1 housing 5.71.102.04
2 1 housing cover 5.71.102.02
3a 2 supporting ring, type 6“ 5.71.102.11
3b 2 supporting ring, type 8“ 5.71.102.11
3c 2 supporting ring, type 10“ 5.71.102.11
3d 2 supporting ring, type 12“ 5.71.102.11
3e 2 supporting ring, type 14“ 5.71.102.11
3f 2 supporting ring, type 16“ 5.71.102.11
4 2 flange 5.71.102.03
5a 1 transmitter coil with electronics 25024080 pulsed
5b 1 transmitter coil with electronics 25024080 continuous Signal
6 1 disc 5.71.102.05
7a 12 sleeve, type 6“ 5.71.102.01
7b 12 sleeve, type 8“ 5.71.102.01
7c 12 sleeve, type > 10“ 5.71.102.01
8a 6 cap screw if pos. 7 = type 6“ DIN 912-M6x30-A2
8b 6 cap screw if pos. 7 = type 8“ DIN 912-M6x35-A2
8c 6 cap screw if pos. 7 = type > 10“ DIN 912-M6x40-A2
9a 6 cap screw if pos. 7 = type 6“/8“ DIN 912-M6x45-A2
9b 6 cap screw if pos. 7 = type > = 10“ DIN 912-M6x50-A2
10 1 ring nut DIN 582-M8-A2
11 1 retaining ring DIN 472-40x1,75-A2
12 12 washer DIN 125-A6,4-A2

DO1505301 page 25
13 1 O-ring O 35x3 NBR 75
14,15,16 1 cellular rubber
19 2 battery 9V PP3 (9V-EBlock) alkaline/lithium

175h transmitter with adapter sleeve H0166KG0

10 11 1 4 3 12 5 7 13 15 14 10 2 8 6

16 9

Item Quantity Title Standard, spare part order no.

1 1 housing 5.71.102.04
2 1 housing cover 5.71.102.02
3 1 holding sleeve 5.71.105.00
4 1 transmitting coil with electronics 25024080 pulsed
5 1 disc 5.71.102.05
6 6 cap screw DIN 912-M6x35-A2
7 1 retaining ring DIN 472-40x1,75-A2
8 6 washer DIN 125-A6,4-A2
9 1 O-ring O 35x3 NBR 75
10 12 threaded insert 302006050
11 1 cellular rubber
12 2 cellular rubber
DO1505301 page 26
13 1 cellular rubber
14 1 cellular rubber
15 -- --
16 2 battery 9,0V PP3 (9V-EBlock) alkaline/lithium

175h transmitter with installation flange H0167KG0 a) pulsed signal

175h transmitter with installation flange H0172KG0 b) continuous Signal

2 7 3 1 7 4 8 5 13 6

9 11 12 10

Item Quantity Title Standard, spare part order no.

1 1 housing 5.71.106.01
2 1 housing cover 5.71.106.02
3a 1 transmitting coil with electronics 25039110 pulsed
3b 1 transmitting coil with electronics 25039110 continuous
4 1 disc 5.71.106.03
5 2 support 5.71.106.04
6 1 disc 5.71.106.05
7 -- --
8 1 cellular rubber
9 8 cap screw DIN912-M6x10-A2
10 4 hexagonal screw DIN963-M3x16-A2
11 8 washer DIN125-A6,4-A2
12 1 O-ring O 50x3 NB70
13 2 battery PP3 (9V-EBlock)/9,0V alkaline/lithium

DO1505301 page 27
250h - transmitter with installation flange H0162KG0 a) pulsed signal
85h - transmitter with installation flange H0163KG0 b) continuous Signal

1 6 17 18 5 2 19 21 3 4 7 25 20 23 24

11 10 8 9 22 12 13 14 15 16

Item Quantity Title Standard, spare part order no.

1 1 cap 5.71.150.01
2 1 flange 5.71.150.11
3 1 battery body, 250-A 5.71.150.02
4 1 threaded bolt, 250-A 5.71.150.03
5 1 flange 5.71.150.05
6a 1 transmitter coil with electronics 25024820 pulsed
6b 1 transmitter coil with electronics 25024820 cont.
7 1 battery holder 5.71.150.12
8 2 sleeve 5.71.150.04
9 2 laminated plug 22.1100
10 4 hexagonal nut 22.6601
11 2 soldering eye 61-2301-11
12 1 laboratory socket, blue 23.5059-2
13 1 laboratory socket, red 23.5059-1
14 1 strand, blue Lify 1x1,0
15 1 strand, red Lify 1x1,0
16 2 heat-shrinkable sleeve 77 10 48
17 1 cellular rubber
18 1 O-ring O 82x3 BL-BN-170
19 1 O-ring O 98x4 BL-BN-170
20 1 O-ring O 9x2,5 BL-BN-170
21 6 cap screw DIN 912-M8x40-A2
22 8 cap screw DIN 912-M8x16-A2
DO1505301 page 28
23 1 washer DIN 125-B13-A2
24 1 hexagonal nut DIN982-M12-Ms
25 24 battery 1,5V/LR14

500h - transmitter with installation flange H0164KG0

1 19 20 5 2 21 23 27 7 18 3 4 22 25 26

6 11 10 8 9 24 12 13 14 15 16 17

Item Quantity Title Standard, spare part order no.

1 1 cap 5.71.150.01
2 1 flange 5.71.150.11
3 1 battery body, 500-A 5.71.150.02
4 1 threaded bolt, 500-A 5.71.150.03
5 1 flange 5.71.150.05
6 1 transmitter coil with electronics 5.71.150.10
7 2 battery holder 5.71.150.12
8 1 sleeve 5.71.150.04
9 2 laminated plug, ∅ 2mm 22.1100
10 4 hexagonal nut 22.6601
11 2 soldering eye 61-2301-11
12 1 laboratory socket, red 23.5059-2
13 1 laboratory socket, blue 23.5059-1
14 2 heat-shrinkable sleeve 77 10 48
15 1 strand, blue Lify 1x1,0
16 1 strand, red Lify 1x1,0
17 2 strand, blue Lify 1x1,0
18 2 strand, red Lify 1x1,0
19 1 cellular rubber
20 1 O-ring O 82x3 BL-BN-170
21 1 O-ring O 98x4 BL-BN-170
DO1505301 page 29
22 1 O-ring O 9x2,5 BL-BN-170
23 6 cap screw DIN 912-M8x40-A2
24 8 cap screw DIN 912-M6x16-A2
25 1 washer DIN 125-B13-A2
26 1 hexagonal nut DIN 982-M12-Ms
27 48 battery LR14/1,5V

DO1505301 page 30
6. General Warning Notices and Safety Instructions
These operating instructions, and especially all safety instructions have to be strictly
observed by all persons working with this device. Furthermore, please take notice of all
locally prevailing rules for avoiding accidents. The correct and safe operation of this device
depends on appropriate transportation, adequate storage as well as careful operation and
maintenance.

Use correct voltage:

Please only operate your device using the correct voltage. Take care of right connection and
polarity. Insert batteries according to the instructions. In case you do not use the device for a
longer period, please remove batteries.
Used batteries to be removed immediately and to be conveyed to hazardous waste or
recycling. Never throw batteries into fire.

Correct Accessories:
Only use original accessories. Take care of right connection and polarity. Carefully handle
cables, do not bend or damage. Always keep contacts clean. Insert plugs thoroughly and take
care of right polarity.

No Changes!
Do not make any changes to the device. This will lead to loss of warranty claims and loss of
approval !

In case of damaged device or accessories:

Immediately switch off and contact manufacturer. Do not make any repairs on your own.
This may cause severe damage to health or damage to the device and its environment. Loss
of warranty claims and loss of approval !

During thunderstorm:
Do not use the device during thunderstorm etc. Remove all power supplies and antenna
connections.

Use in public buildings, hospitals, planes, etc.:

Please observe all instructions of personnel. Make sure whether you are allowed to operate
your device. Strictly observe legal requirements. Do not use in vicinity of people wearing a
heart pacemaker. When traveling abroad, inform you about local regulations and strictly
observe them.

Only use device for:

Only use the device for those purposes it is determined for. Never use contrary to purpose.
Prior to operating the device, the operator should check whether the device will be suitable
for the intended use.

DO1505301 page 31
 Guarantee/Warranty:
Strictly observe all warning notices, as otherwise this will lead to loss of warranty claims
and loss of approval!

Attention please!!
Prior to operation please carefully read the operating instructions.

Only unscrew the screws indicated in the instructions for changing batteries, lock
this screws with Loctite 243 and check O-rings, as otherwise you will forfeit your
guarantee!

These operating instructions serve for information purposes only and are subject to changes.
Furthermore, Weatherford Kopp GmbH cannot be held responsible for any mistakes in the
present operating instructions as well as for consequential damages relating to the delivery,
performance and use of these materials.
Copying of these documents only with the consent of Weatherford Kopp GmbH.
We reserve all rights for these documents!

DO1505301 page 32
