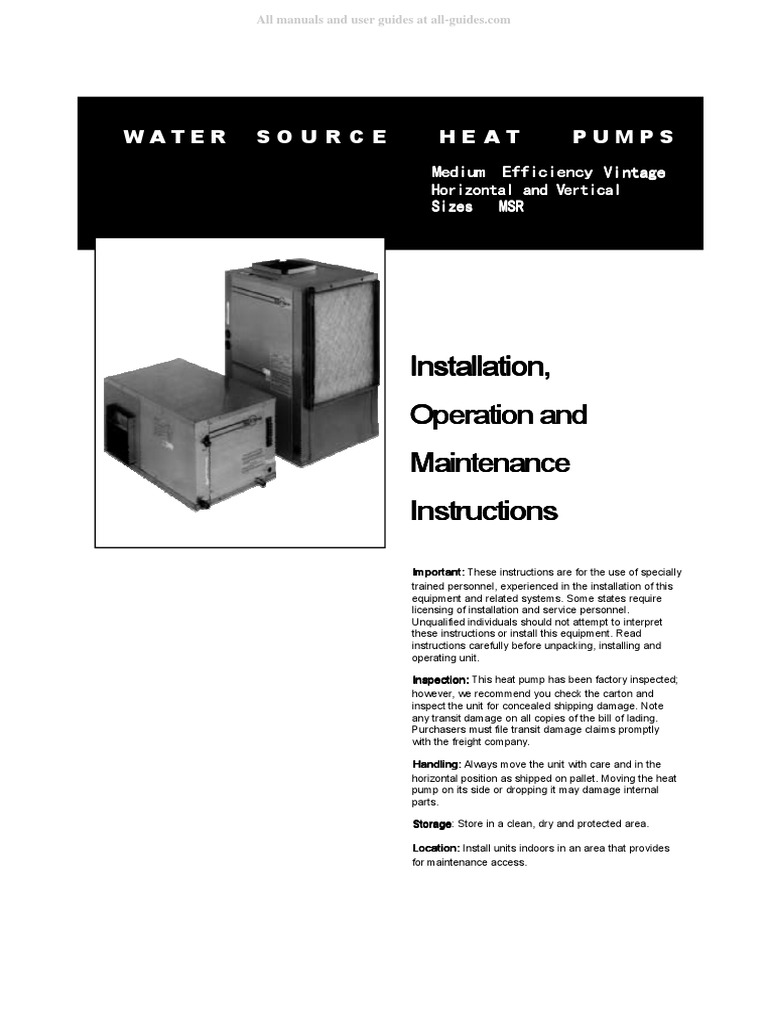

WATER SO U R C E HE AT PUMPS

Installation,
Installation,
Operation and
and
Maintenance
Instructions

Important: These instructions are for the use of specially

trained personnel, experienced in the installation of this
equipment and related systems. Some states require
licensing of installation and service personnel.
Unqualified individuals should not attempt to interpret
these instructions or install this equipment. Read
instructions carefully before unpacking, installing and
operating unit.

Inspection: This heat pump has been factory inspected;

however, we recommend you check the carton and
inspect the unit for concealed shipping damage. Note
any transit damage on all copies of the bill of lading.
Purchasers must file transit damage claims promptly
with the freight company.

Handling: Always move the unit with care and in the

horizontal position as shipped on pallet. Moving the heat
pump on its side or dropping it may damage internal
parts.

Storage:
Storage Store in a clean, dry and protected area.

Location: Install units indoors in an area that provides

for maintenance access.
 All manuals and user guides at all-guides.com

Mammoth concerned about the product quality

and committed to a policy of continuous product
improvements ,Please based on the rating label
and the unit electrical wiring label, and thus
reserves the right to change specifications and
design without notice.

Installation

Definition See Figure 3

Single refrigeration circuit, one unit section with fan outlet.
Unit Placement-
Placement-Horizontal
See Figures 1 and 2
Mammoth’s heat pumps must be hung from the ceiling as
shown in Figure 1. Mounting brackets, rubber grommets,
bolts and washers are in place on the unit. The mounting
brackets are designed to accept up to 3/8-inch threaded
rods. A flat washer and two nuts (not supplied by
Mammoth) should be used to mount the unit on the ceiling-
attached threaded rods. When installed, the heat pump
should be slightly pitched toward the condensate drain
connection.
Mammoth’s heat pumps must be installed on a level
surface. We recommend placing a carpet pad or other
isolating material under the unit to prevent noise from
transmitting to the building structure. If the unit is installed
in a closet adjacent to the conditioned space, provide an
insulated return air duct with at least one 90-degree bend.
If a free return air system is used, position the filter-side of
the unit as close as possible to the return air grille.
Note: The unit is shipped from the factory with access to
the electrical box such that return air enters the unit from
the right side when facing the electric control box.

Unit Placement-
Placement-Vertical

Model Number Nomenclature

Nomenclature

J 036 H H C

Voltage Unit Model number Unit Type Temperature Range Design Series

D = 208-230/60/1 H= H = Standard Range

E = 265/60/1 Horizontal L = Low Temperature
F = 208-230/60/3 Unit
G = 460/60/3
J = 380/50/3 V=
K = 575/60/3 Vertical
L = 220/50/1 Unit

Figure 1: Horizontal mounting detail
SEE GROMMET DETAIL
(SEE FIGURE 2)
WATER OUT FPT CONNECTION
(SEE DIMENSIONAL DATA)
ACCESS TO COMPRESSOR
WATER COIL，REVERSING VALVE
WATER IN FPT CONNECTION
(SEE DIMENSIONAL DATA)
7/8" O.D. COPPER
CONDENSATE DRAIN
Figure 2: Grommet detail
ADJUSTABLE SLOT IN
HANGER BRACKET
Figure 3: Typical vertical installation detail
NOTES:
1) AN INTERNAL BLOWER ACCESS
PANEL IS PROVIDED FOR
SERVICING UNIT. FULL SERVICE
PANELS ARE AVAILABLE ON ALL
SIDES.
2) THE ELECTRICAL CONTROL
PANEL IS LOCATED INSIDE THE
UNIT.
3) DO NOT SCREW DUCTWORK INTO
THE HEAT PUMP CABINET. USE
THE FLANGES PROVIDED ON THE
FILTER GUIDE AND THE BLOWER
OPENING.
4) USE A BACK-UP WRENCH ON
FITTINGS WHEN MAKING WATER
CONNECTIONS.
5) THE ELECTRICAL BOX CAN BE
MOUNTED ON THE OPPOSITE
SIDE OF THE CABINET.
6) THE SIDE DUCT CONNECTOR CAN
BE MOUNTED ON THE OPPOSITE
SIDE TO PROVIDE FILTER FROM
THE OTHER SIDE
All manuals and user guides at all-guides.com
(L009-J072H)
NOTES
1）DOWN ACCESS FILTER GUIDES ARE ABLE AS OPTION
2）USE A BACKUP WRENCH ON FITTINGS WHEN MAKING WATER
CONNECTIONS
3）DO NOT SCREW DUCTWORK INTO THE HEAT PUMP CABINET USE
HANGER RODS THE FLANGES PROVIDED ON FIL TER GUIDES AND BLOWER
（BY OTHERS） OPENING。
ELECTRICAL ACCESS
MAX/MIN
DIVERGE
FLANGE ON FILTER GUIDE
FOR DUCT CONNECTION
FILTER LEFT OR RIGHT SIDE
REMOVAL。DUCTEO RETURN AIR
LIFT AND PULL ON NON-DUC
FLANGE ON FILTER GUIDE
FOR DUCT CONNEC TION
7/8"OR1-3/32"HOLE FOR LINE VOLTAGE
CONDUIT CONNECTION （SEE UNIT
SPECIFICATION SHEET FOR FURTHER DETAILS）
THREADED ROD
(BY OTHERS)
3/8”LOCKING NUT
TOP PANEL
VIBRATION ISOLATION
GROMMET
WASHER
WASHER(BY OTHERS)
MUST COVER ENTIRE
HANGER BRACKET BOTTOM OF GROMMET
RETAINING NUTS
(BY OTHERS)
TERMINAL STRIP
DISCHARGE AIR DUCT
CONNECTION
7/8 OR 1-3/32 DIA HOLE FOR
FILED CONDUIT CONNECTION
NECTION(SEE DIMENSIONAL DATA)
ELECTRICAL CONTROL
PANEL LOCATION
INTERNAL BLOWER
PANEL LOCATION
WATER OUT FPT CONNECTION
(SEE DIMENSIONAL DATA)
WATER IN FPT CONNECTION
(SEE DIMENSIONAL DATA)
SERVICE PANEL
7/8OD COPPER CONDENSATE
DRAIN 1” P-TRAP INTERNALLY SERVICE PANEL
(INSTALLED AT FACTORY)
 All manuals and user guides at all-guides.com

Figure 4 Horizontal mounting detail (J086~142H)

HOISTING FEET AT THE

BOTTOM OF THE UNIT

VIBRATION ISOLATION GROMMET

(SEE FIGURE 5)

Figure 5: Grommet detail

THREADED ROD
（BYOTHERS）

HANGER BRACKET

VIBRATION ISOLATION GROMMET

WASHER（BYOTHERS）
MUST COVER ENTIRE BOTTOM
OF GROMMET

RETAINING NUTS
（BYOTHERS）

Figure 6 Installation space requirement (Dimensions in mm)

This drawing is for left hand piping unit

Maintaence space

Filter length Filter length

Return air

Space needed for filter take out

MIN 500

Space needed for filter take out

(Only L009~J072 )
Compressor access panel
Fan access panel

MIN 600 MIN 500

Horizontal unit
Maintanence space Maintanence space
(top view)

electric access panel

Air discharge

3
 All manuals and user guides at all-guides.com

Water supply
Never operate the heat pump without water flowing through its 5. After it’s been completely cleaned and drained, fill loop with
water-to-refrigerant heat exchanger coil. This may cause severe water at an alkaline level of approximately pH 7.5.
damage to the unit.
6. Connect heat pump to the piping loop.
For proper water flow rates, refer to the unit catalog.
7. Make sure all entrained air is purged from loop and each unit
is operating at its specified flow rate.
Condensate Drain
See Figures 7 and 8

The condensate drain is set up for a 7/8-inch OD copper Figure 8: Condensate trap detail – horizontal unit
connection. The condensate pipe or hose installed must have a
minimum 1-inch trap in the condensate line. All condensate
piping must pitch away from the unit for proper drainage. Check
local codes for compliance.

Note: All vertical units have an internal 1-inch trap built

into the condensate line.

All units require a field-installed condensate line.

7/8" O.D.
Figure 7: Condensate trap detail – vertical unit Condensate

1" Min. Internal

Drain Pan Trap (By Others)

Optional Hose Kits

Water Hoses: 300mm and 600mm flexible water hoses are

available for connections to the heat pump and adapters. Use
two properly sized wrenches, one on the unit FPT fitting and
1" Min. Internal Trap one on the hexagonal fitting when connecting hoses. Do not
(By Mammoth) use wrench on hose or on the sleeve that crimps the fitting onto
the hose. Hoses must not be pulled taut, twisted or kinked.
Connections should not be over tightened.
Closed-
Closed-Loop Systems
Follow these steps to install closed-loop systems.
Before pressurizing the water system, closely inspect hoses
and fittings to be sure there are no cuts, abrasions, twists, or
1. Leave unit unconnected or isolated using shutoff valves as
kinks. Make sure hoses will not be in contact with any sharp
building water loop is initially flushed.
surface or edge while in use.

2. Fill water system with 1 lb. trisodium phosphate for every 50

gallons of water.

3. Purge piping of trapped air; set supplemental heater to

maintain 110 F; and, circulate solution for approximately 8
hours.

4. Drain system completely and repeat the entire flushing

process, if necessary

4
 All manuals and user guides at all-guides.com

Electric supply
Diagram 1: Manual changeover thermostat
Electrical Service and Fusing
Warning: To avoid severe electrical shock, turn off power before
TERMINAL
○
R ○
Y ○
G○O○
B servicing controls.
STRIP

○
C Unit must be installed in compliance with NEC and local codes.
○
R
○
Y
○
G Route power wires through a properly sized disconnect switch.
Consult the wiring diagrams in this manual and inside the cover
○
L
○
O of the electrical box to complete the connection. See nameplate
for proper fuse sizing, minimum circuit ampacity and voltage
○
Sc
requirements. If an auxiliary electrical heater is used, it must be
○
Sy
installed with a power supply separate from the heat pump.
○
2
○
1
Control Wiring
See Diagrams 1 through 4
Diagram 2: Automatic changeover with night
setback All heat pump functions are controlled by remote thermostat and
must be wired as shown, using approved copper wire.

Diagram 3: Automatic changeover

thermostat with night setback/setup and
override

Auxiliary Dry Contact (N.C.)

Common for Night Setback/Setup and Emergency Shutdown Input Signals (—)

5
 All manuals and user guides at all-guides.com

Electric supply
Diagram 5: Model L013～L030HLC -* wiring schematic

SCHEMATIC DIAGRAM B

Diagram 6: Model J036~J072HLC-* wiring schematic

J086-J142H: See the unit label for the detail electric diagram

6
 All manuals and user guides at all-guides.com

NOTES:

1. All units are factory-wired to customer order.

For 208 Volt/60 Hz or 200 Volt/50 Hz, use the black and red transformer leads.
For 230 Volt/60 Hz or 220 Volt/50 Hz or 220/240 Volt/50 Hz units, use the
black and orange transformer leads.
For 265 Volt/60 Hz units, use the black and brown transformer leads.
2. Supply wiring must have copper conductors only.

3. Insulate all unused wire ends.

4. Interrupt 24 VAC power or remove the compressor input to reset the unit.
5. This unit has been factory-set with the jumpers in the indicated positions:
NORM NRS TEST AUTO MAN COM 24 VAC PILOTN NORMAL

6. The optional “Water Temperature Switch” (WT) is also included in the optional “Extended Range Package”
(EP)and the optional “Low Temperature Package” (TL).
7. A 24 VAC signal is produced between this wire and terminal “R” when the N.O. contacts from the optional
“Dirty Filter Switch” (DF) close.
8. The field connection to this optional “DF” lead is made through the perforated plastic grommet beneath the

terminal strip.
9. If the optional “Dirty Filter Switch” (DF) trips, it must be manually reset.

7
 All manuals and user guides at all-guides.com

Figure 7: Discharge conversion

Discharge
Discharge Conversion
Conversion – Horizontal
Horizontal Unit

All horizontal unit sizes from 006H to 072H can be field-converted

from straight discharge to side discharge.
3 6

1. Set the unit on a level surface.

2. Remove blower access panel.
3. Remove top panel.
4. Remove screws that secure the panel in which blower is
mounted.
4
5. Re-install blower panel assembly for side discharge configuration.
(Assembly will be flipped 180 degrees.) See unit specification sheet 7
for dimensional information.
2 5

6. Re-install the top of the unit.

7. Re-install the blower access panel where the blower panel
assembly was for straight-through discharge.
8. After first operation, check all fasteners for tightness.
Figure 8: Ductwork configuration

Ductwork
UNIT

If a return duct is used, it may be fastened to the flanges on the

filter guides; however, be sure to leave enough room for filter
replacement. MIN MAX
MIN STRAIGHT DUCT DUCT
DISCHARGE LENGTH SIZE SIZE
The flanges at the blower opening may be used for a flexible
duct connection between the heat pump and the supply air duct.
Be sure the blower wheel turns freely and is centered before
making this connection. MAX/MIN DIVERGENCE
OF TRANSITION = 7°

The discharge or supply air duct should be insulated and have at

least one 90-degree bend prior to the first discharge grille. Table 1: Duct dimensions
Min.
Max. Duct Min. Duct
Flexible duct connections are recommended to reduce noise Straight
Model
transmission from the unit through the duct. Disch.
Width Height Width Height
Length
Heat pump life expectancy and efficiency depends on adequate
006 23.5 11 7.3 9 5.9
airflow. See unit data sheet for nominal cfm information.
009 23.5 11 7.3 9 5.9
Proper duct installation is essential for full airflow. We recommend
013 23.5 11 7.3 9 5.9
the duct be installed according to AMCA 210 guidelines. (See Table
1.) There should be no turns or duct connections in the minimum 016 25.9 8.9 11 7.2 9
discharge duct length. Otherwise, fan airflow could be greatly
019 25.9 8.9 11 7.2 9
reduced.
024 25.9 8.9 11 7.2 9
030 27.5 9.9 11 8.1 9
036 31 11.3 12.4 9.2 10
043 31 11.3 12.4 9.2 10
052 31 11.3 12.4 9.2 10
062 31 11.3 12.4 9.2 10
072 34.8 14.2 12.4 11.6 10
086 23.5 20 14 17 15
100 23.5 20 14 17 15
120 23.5 20 16 17 15
142 25.9 20 17 17 15

All dimensions in inches.

8
 All manuals and user guides at all-guides.com

Operation
Startup
After installing, connecting ductwork and condensate lines and
wiring, unit is ready for startup. Check all internal wire
connections and connections to external control devices.
Make certain the thermostat system switch is in the “OFF”
position and the fan switch is in the “AUTO” position. Also, the
electric box cover and access panels should be mounted in
place. You are now ready to turn on the power.
Compressor
Mammoth heat pumps have been designed with switches that
protect the unit’s refrigerant system. They will automatically shut
down the compressor if refrigerant pressure rises too high or
drops too low.
Note: Some thermostats will indicate a compressor shut-down
with a “reset” light.
If the compressor shuts down, turn the thermostat system
switch off. Wait 10 minutes, then turn the switch back on and
restart the unit. If the compressor shuts down again after only
brief operation, a problem exists and a qualified service person
must be called in.

1. Turn the thermostat fan switch to the “ON” position. Unit General Service
blower should start.
Any repair or service on the unit must be performed by qualified
Note:: Unit may not start for 2-5 minutes due to random start service personnel.

or anti-short cycle relays.

2. Check the airflow and make sure no supply grilles or

duct dampers are closed to restrict airflow.
3. Set the thermostat temperature setting to low and turn the
systems switch to the heating mode.
4. Gradually increase the temperature to approximate room
temperature until unit starts.
5. After operating the unit for 10 minutes, check the air Options Operation
temperature rise between supply and return airstreams. The
rise should be at least 18 F.
Cooling Only – Allows for no compressor heating operation.
6. Using a surface pyrometer or other device, check entering
and leaving water temperatures. The recommended The reversing valve is omitted.
temperature drop between entering and leaving water may
Extended Range – Allows the unit to operate at lower entering
range from 5-9 F at 45 F EWT (Entering Water Temperature)
or from 8-15 F at 70 F EWT. water temperatures. Includes freezestat, insulated piping and
insulated coaxial heat exchanger.
Note: If any of the above conditions do not exist, one or
Geothermal – Allows unit to operate at geothermal
more of the following problems exist: low airflow, low water
conditions. Includes freezestat, insulated piping and insulated
flow or unit not performing properly. coaxial heat exchanger as well as larger heat transfer
surfaces.
7. Set the thermostat system switch to cooling mode and
reduce temperature setting gradually until unit starts. Dirty Filter Switch – Includes filter switch located
After operating the unit for a few minutes, check if it is downstream of filter which measures filter pressure drop.
functioning properly and providing satisfactory cooling. Switch differential pressure setting is adjustable. If the suction
pressure rises to
Note: Minimum dry bulb temperature drop between supply the set point, the unit sends the common leg of the 24-volt
and return airstreams should be about 16 F. A water transformer out to a device (by others). Connection to this wire
is made through the perforated plastic grommet beneath the
temperature rise of 12-25 F could be anticipated at relatively terminal strip. See the wiring diagrams on the previous pages
low water flow rates. for wiring details.

Terminal Junction Box – Includes an external sheet metal

enclosure over the terminal strip for conduit connection of
thermostat wiring.

75 VA Transformer – Replaces the standard 50 VA transformer

Maintenance and includes an integrated 4 amp resettable circuit breaker.

Air Filters
Do not operate the heat pump without an air filter. Clean the
filters at least once every three months and more frequently in
dusty or unclean environments. Dirty filters will cause inefficient
heat pump performance.

9
 All manuals and user guides at all-guides.com

Freezestat – Includes a leaving water temperature sensor
wired to the microprocessor board. If the water drops below
the set point, the unit will lockout. See the wiring diagrams on the
previous pages for wiring details.
DDC Controls – Includes a hinged sheet metal enclosure
on the electrical corner panel to house the DDC unit controller.
The controller may be furnished by Johnson Controls,
Honeywell, Invensys, Siebe, Delta, Andover, TAC, Wattmaster,
Circon, Staefa; et al. Includes a reversing valve changeover
relay.
Third Service Port – Includes an extra Shrader tap located
between the reversing valve and water-to-refrigerant coaxial
heat exchanger to allow for measurement of head pressure in
the cooling mode and suction pressure in the heating mode
for field-connection of a dual-acting water regulating valve. The to allow the filter to be removed from the top.
tap is labeled and capped.
Sound Packages – Adds additional sound absorbing material
to the unit casing.
Cupro-
Cupro-nickel Heat Exchanger – Replaces the standard
copper inner tube of the water-to-refrigerant coaxial heat
exchanger with cupro-nickel tube.
Down Filter Access – Replaces both the standard top and
bottom filter brackets on single circuit horizontal units with
spring clips connected to two side brackets to hold the filter.
Spread the clips and the filter is removable from the bottom.
(This feature is standard for twin circuit horizontal units.)
Top Filter Access – Replaces the standard top filter bracket on
single circuit vertical units with an additional bracket on the side

Motorized Valve – includes a 2-position, spring return, normally Thermostat Remote Sensor – The specification of the
open water valve in the entering water line. If the compressor is controller on the WL2006 package
on, the valve is open. On loss of power, the
valve will spring open. See the wiring diagrams on the previous
pages for wiring details.

10
 All manuals and user guides at all-guides.com

Microprocessor
Condensate Overflow: A sensor in the drain pan electrically
senses the presence of water. Switch is tied to the safety
lockout circuit.
control
For a complete description of the operation of the Compressor Anti-
Anti-short Cycle: A 5-minute time delay
Microprocessor Control, see Operating Manual D-5. prevents compressor short cycling and extends motor life.

Basic Features
Optional Field Adjustments
Fan Speed Control: Adjusts fan speed 100-80
percent on single-circuit direct-drive units. No Random Start: A jumper allows elimination of the
random start feature.
Diagnostic LEDs:
Red = Fault in safety circuit.
Yellow = Compressor on (not blinking). Test Mode: A jumper allows elimination of all time delays to
Green = Power on (24 VAC is present at board). simplify unit checkout operation by qualified service personnel
only.
Random Start: Prevents power surges by delaying
unit startup by 5-35 seconds so that all units do not
start at the same time. Occurs only when unit comes Auto-
Auto-Reset: A jumper allows auto-reset of the safety trip.
off of either shutdown, The unit will automatically reset after 20 minutes.
unoccupied or high/low voltage modes.

Fault Output: A terminal allows connection of an auto-

changeover thermostat with an LED. Signal may be 24 VAC (+)
or (–).

C
MICROPROCESSOR CCG 24 VAC (–)
R
7 G 24 VAC
SEE NOTE 5 CC 8
13
Y (+) FAN LED STATUS:
ALARM 14 L COMPRESSOR Yellow “On” . . . . . . . . . . . Compressor On
9 1
1
O LOCKOUT ALARM Green “Off” . . . . . . . . . . . No 24 VAC
12
10 2 11 Sy REVERSING VALVE Green “On” . . . . . . . . . . . 24 VAC Present
11 3 3
Sc A.D. CONTACT (N.O.) Green “1 Flash” . . . . . . . . . Low Voltage
12 4 10
13 5 2 A.D. CONTACT (COM) Green “2 Flash” . . . . . . . . . High Voltage
15
14 6 16 1 ※SEE Red “Off” . . . . . . . . . . . . . . No Faults (Normal)
15 7 5 Red “On” . . . . . . . . . . . . . . Emergency Shutdown
16 8 6 4 ※NOTE
Red “1 Flash” . . . . . . . . . . . H.P. Fault
4 3 UNOCCUPIED INPUT
9 Red “2” Flash” . . . . . . . . . . L.P. Fault
6 NSB / U SIGNAL
2 Red “3 Flash” . . . . . . . . . . . W.T. Fault
5 EMERGENCY SHUTDOWN
8
2-HOUR OVERRIDE
7 DRY CONTACT
ALARM OUTPUT
TERMINAL
SIRIP

Fan Speed Control: On a call for fan function . .

Testing “FAN” to “FAN COM” measured voltage should vary with
Procedure adjustment of speed controller stem.

The microprocessor control board should be tested while Compressor: On a call for compressor function . . .
installed in a unit with a thermostat attached. “C” to “Y” terminals should read 24 volts.
Caution: When removing or jumping wires, be extremely Contact terminals “SY” to “SC” should read 0
careful not to short the secondary side or come in contact with line ohms. Terminals “SC” to #2 should now be open.

voltage.

The following procedure outlines how to test the microprocessor
control board’s individual functions while installed in a unit.
1. Move shunt #1 to “test” position.
2. Apply voltage to the unit assuring the microprocessor control
board is accessible for troubleshooting.
3. Take meter readings as indicated below.
Fan Function: On a call for fan operation . . .
“C” to “G” terminals should read 24 volts.
“L1” to “L2” line voltage should match incoming line voltage
(208, 220, 230, 265, 380 or 460 volts).
11
Overflow Detector:
Jumper from “SENSOR” terminal to ground unit should lock
out unit.
“L” to “R” terminals should read 24 volts if “COM / 24 VAC”
shunt is set to “COM”.
Lockout: Pull either wire HPI, LPI or AUX1 while
unit is running.
Unit should lock out.
“L” to “R” terminals should read 24 volts if “COM / 24 VAC”
shunt is set to “COM”.
Return shunt #1 to “RS” (random start) or “NO RS”
depending on application. Remove any additional jumpers
and return all wiring back to its original configuration.
 All manuals and user guides at all-guides.com
Trips and Power Loss
Manual Mode
Check that Shunt #2 is on “MAN” and attach Shunt #1 to one of
the following terminals to select power mode. (NOTE: The
following descriptions assume that the 120 second Initial
Power-up delay and the 5-35 second Random Start function (if
applicable) have occurred.)
RS (Random Start): The unit should start immediately upon
call following 2-second fan time delay, 4-second R.V. time delay
and 6-second compressor time delay. (If the unit has been off
for more than 5 minutes, the compressor will start on a call for
cooling after a 6-second time delay.) There is a minimum 5-
minute, 6-second time delay between cycles and a 2-minute, 6-
second time delay after reset/restart.
Safety Circuit/Condensate Trip - All must be reset. (L.P.
switch bypass of 120 seconds upon startup.)
Loss of Power - Upon resumption of power, the unit restarts
following 120-second initial power-up time delay, random
start function and 2-second fan time delay, 4-second R.V.
time delay and 6-second compressor time delay.
No RS: The unit should start immediately upon call following 2-
second fan time delay, 4-second R.V. time delay and 6-second
compressor time delay. (If the unit has been off for more than 5
minutes, the compressor will start on a call for cooling after a 6-
second time delay.) There is a minimum 5-minute, 6-second
time delay between cycles and a 2-minute, 6-second time delay
after reset/restart.
Safety Circuit/Condensate Trip - All must be reset. (L.P.
switch bypass of 120 seconds upon startup.)
Loss of Power - Upon resumption of power, the unit restarts
following 120-second initial power-up time delay and 2- second
fan time delay, 4-second R.V. time delay and 6- second
compressor time delay.
Test: The unit should start immediately upon call following 2-
second fan time delay, 4-second R.V. time delay and 6-second
compressor time delay. Quick cycling may occur. Unit will
restart immediately after reset following 2-second fan time
delay, 4-second R.V. time delay and 6-second compressor time
delay.
Safety Circuit/Condensate Trip - All must be reset. (L.P.
switch bypass of 120 seconds upon startup.)
Loss of Power - Upon resumption of power, the unit restarts
following 2-second fan time delay, 4-second R.V. time delay
and 6-second compressor time delay.
12
Auto Mode
Check that Shunt #2 is on “AUTO” and attach Shunt #1 to one
of the following terminals to select power mode. (NOTE: the
following descriptions assume that the 120-second Initial Power-
up delay and the 5-35 second Random Start function (if
applicable) have occurred.)
RS (Random Start): The unit should start immediately upon
call following 2-second fan time delay, 4-second R.V. time delay
and 6-second compressor time delay. (If the unit has been off for
more than 5 minutes, the compressor will start on a call for
cooling after a 6-second time delay.) There is a minimum 5-
minute, 6-second time delay between cycles.
Safety Circuit/Condensate Trip - Automatic reset. Compressor
restarts approximately 20 minutes after the lockout condition
occurs.
Loss of Power - Upon resumption of power, the unit restarts
following 120-second initial power-up time delay, random
start function and 2-second fan time delay, 4-second R.V.
time delay and 6-second compressor time delay.
No RS: The unit should start immediately upon call following-2
second fan time delay, 4-second R.V. time delay and 6-second
compressor time delay. (If the unit has been off for more than 5
minutes, the compressor will start on a call for cooling after a 6-
second time delay.) There is a minimum 5-minute, 6-second
time delay between cycles.
Safety Circuit/Condensate Trip - Automatic reset.
Compressor restarts approximately 20 minutes after the
lockout condition occurs.
Loss of Power - Upon resumption of power, the unit restarts
following 120-second initial power-up time delay and 2- second
fan time delay, 4-second R.V. time delay and 6- second
compressor time delay.
Test: The unit should start immediately upon call following 2-
second fan time delay, 4-second R.V. time delay and 6-second
compressor time delay. Quick cycling may occur.
Safety Circuit/Condensate Trip - Automatic reset.
Compressor restarts approximately 20 minutes after the
lockout condition occurs.
Loss of Power - Upon resumption of power, the unit restarts
following 2-second fan time delay, 4-second R.V. time delay
and 6-second compressor time delay.
