07-3672 Table of Contents - 2 Vr-Ii: 4 MTB5500 ASS'Y - L/H

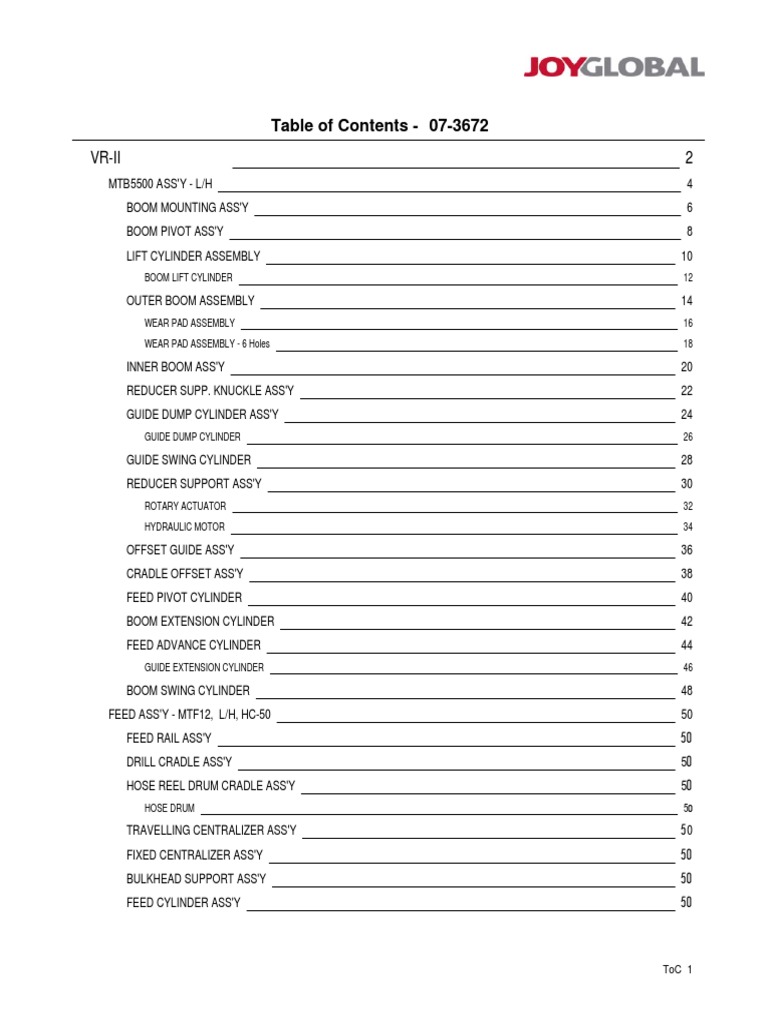

Table of Contents - 07-3672
VR-II 2
MTB5500 ASS'Y - L/H 4
BOOM MOUNTING ASS'Y 6
BOOM PIVOT ASS'Y 8
LIFT CYLINDER ASSEMBLY 10
BOOM LIFT CYLINDER 12
OUTER BOOM ASSEMBLY 14

WEAR PAD ASSEMBLY 16
WEAR PAD ASSEMBLY - 6 Holes 18
INNER BOOM ASS'Y 20

REDUCER SUPP. KNUCKLE ASS'Y 22
GUIDE DUMP CYLINDER ASS'Y 24
GUIDE DUMP CYLINDER 26
GUIDE SWING CYLINDER 28

REDUCER SUPPORT ASS'Y 30
ROTARY ACTUATOR 32
HYDRAULIC MOTOR 34
OFFSET GUIDE ASS'Y 36

CRADLE OFFSET ASS'Y 38
FEED PIVOT CYLINDER 40
BOOM EXTENSION CYLINDER 42
FEED ADVANCE CYLINDER 44
GUIDE EXTENSION CYLINDER 46
BOOM SWING CYLINDER 48

FEED ASS'Y - MTF12, L/H, HC-50 50
FEED RAIL ASS'Y 50
DRILL CRADLE ASS'Y 50
HOSE REEL DRUM CRADLE ASS'Y 50
HOSE DRUM 50
TRAVELLING CENTRALIZER ASS'Y 50

FIXED CENTRALIZER ASS'Y 50
BULKHEAD SUPPORT ASS'Y 50
FEED CYLINDER ASS'Y 50
ToC 1
FEED CYLINDER 50
SLIDE SUPPORT CRADLE ASS'Y 70

AUTO-RETURN CYLINDER 72
SCH, MTF12, SLIDE TUBE HC-50 74
HC-50 DRIFTER 76
DISTRIB. / ACCUM. GROUP @ 78
MOTOR PART GROUP @ 80
HOUSING GROUP @ 82
FRONT GUIDE - R38 @ 90
ADAPTERS @ 92
FIXATION @ 94
COMPLETE SEAL KIT 96
RESTRICTOR 98
SHANK - R38 @ 100
POWERTRAIN ASS'Y 102
ENGINE/TRANS. ASS'Y 104
ENGINE ASS'Y - Cummins QSB4.5 108
TRANSMISSION ASS'Y - 20000 ELEC. 110
TORQ. CONV. / TRANS. 112
CONVERTER HOUSING GROUP @ 114
TRANSMISSION CASE & COVER GROUP @ 116
TURBINE SHAFT GROUP @ 120
DRIVE PLATE GROUP @ 122
TORQUE CONVERTER GROUP @ 124
GEAR GROUP @ 126
REVERSE & 2nd SHAFT GROUP @ 128
FORWARD SHAFT GROUP @ 130
LOW SPEED SHAFT GROUP @ 132
IDLER SHAFT GROUP @ 134
OUTPUT SHAFT GROUP @ 136
AUXILIARY PUMP DRIVE GROUP @ 138
PUMP DRIVE GROUP @ 140
REVERSE IDLER GROUP @ 144
ToC 2
LOW SPEED SHAFT GROUP @ 132
3rd SHAFT GROUP @ 148
3rd SHAFT GROUP @ 150
IDLER SHAFT GROUP @ 134
OUTPUT SHAFT GROUP @ 136
CHARGING PUMP & FILTER GROUP @ 152
CONTROL VALVE GROUP @ 154
CONTROL VALVE ASS'Y 156
CONTROL VALVE HOUSING ASS'Y 158
ELECTRIC SHIFT VALVE 160
COOLING ASS'Y 162

RADIATOR ASS'Y 170
SURGE TANK 174
FAN ASS'Y 176
SURGE TANK 174
RAD GUARD 178
EXHAUST ASS'Y 180

PURIFIER / MUFFLER 184
PURIFIER MOUNT ASS'Y 186
AIR INTAKE ASS'Y 188

AIR CLEANER - ASM W/VACUATOR 190
FUEL SYSTEM 192

FRONT AXLE ASS'Y 194
AXLE ASS'Y 196
AXLE - D45NI 198
BRAKE ASS'Y @ 200
DIFFERENTIAL @ 202
DIFFERENTIAL HOUSING & LOCK @ 206
HYD. DIFF. LOCK CONTROL @ 208
BRAKE ASS'Y 210
REAR AXLE ASS'Y 212

AXLE ASS'Y 196
AXLE - D45NI 198
BRAKE ASS'Y @ 200
ToC 3
DIFFERENTIAL @ 202
DIFFERENTIAL HOUSING & LOCK @ 206
HYD. DIFF. LOCK CONTROL @ 208
BRAKE ASS'Y 210
DRIVELINES ASS'Y 216

DRIVELINE - FRONT AXLE 218
ARTICULATION DRIVESHAFT 220
REAR DRIVESHAFT 222
FRONT FRAME ASS'Y 224

EXTENSION CYLINDER 226
JACK CYLINDER 228
SEAT ASS'Y 230
ROPS CANOPY ASSEMBLY 234
CANOPY CYLINDER - R/H 236
HYDRAULIC SCHEMATIC - CANOPY 238
SCHEMATIC - HYDRAULIC - Front Jacks 240

PRESS. REDUCING / RELIEF VALVE 242
DIR. CONT. VALVE - 3 Bank 244
ARTICULATION ASS'Y 246

STEER CYLINDER PIN ASSEMBLY 248
STEER CYLINDER 250
REAR FRAME ASSEMBLY 252
HYDRAULIC TANK ASS'Y 254
RETURN FILTER 256
HOODS ASS'Y 258

POWER PACK ASS'Y 260
ELECTRIC MOTOR RWK - 60/460 262
CABLE REEL 264

DRUM ASS'Y 266
COLLECTOR ASS'Y 268
TORQUE UNIT 270
HYDRAULIC SCHEMATIC - CABLE REEL 272

DIR. CONT. VALVE - 3 Bank 244
HYDRAULIC SCHEMATIC - REAR JACKS 274
ToC 4
JACK CYLINDER 228
FUEL TANK ASS'Y 276
TIRE AND RIM ASS'Y 280
SCHEMATIC - HYDRAULIC - INTEL II 282
JOYSTICK VALVE ASS'Y 284
HANDLE KIT 286
LEVER LINK & MOUNT PLATE ASS'Y @ 288
SPRING ASSEMBLY @ 290
PRESSURE REDUCING VALVE 292

DRIFTER DIRECTIONAL VALVE 294
HIGH PRESSURE FILTER 296
HYDRAULIC PUMP - PVP48 298
HYDRAULIC PUMP - PAVC 100 310
HYDRAULIC PUMP - PVP16 318
HEAT EXCHANGER - Hydraulic 320
RELIEF VALVE 322
RELIEF VALVE 324
GAUGE ASS'Y - 160 PSI 326
DRILL CONTROL MODIFICATION 330
DRILL CONTROL 332
PERCUSSION INLET PLATE @ 334
V3 PART @ 336
CENTRAL PART @ 338
REGULATOR V4 @ 340
FEED INLET PART @ 342

PILOT VALVE 346
COUNTERBALANCE VALVE 348
HYDRAULIC SCHEMATIC - Carrier 350
HYDRAULIC PUMP - 45CC 352
HIGH PRESSURE FILTER 296
DIR. CONTROL VALVE - 1 Bank 354
ToC 5
DUAL COUNTER BALANCE VALVE 356
L.S. CHARGE VALVE 358
DIRECTIONAL VALVE - 4W/2P, 24V 360
BRAKE PEDAL 362
VALVE 364

RELIEF VALVE 366
RELIEF VALVE 368
HAND PUMP 370
HYD. SCHEMATIC - MTB Boom 372
COUNTERBALANCE VALVE 374
DIR. CONTROL VALVE - 8 BANK 376
PRESS. REDUCING / RELIEF VALVE 242
RELIEF VALVE 368
DUAL COUNTER BALANCE VALVE c/w shuttle 378
TRANSMISSION SCHEMATIC 380
ELECTRICAL SYSTEM 382
MAIN DASH 386
MOTOR CONTROL PANEL 390
HDW AND INTERCONNECTION 394
MAIN HARNESS 396
MAIN HARNESS - BOOM END 398
MAIN HARNESS - ENG END 400
POWER HARNESS 402
POWER HARNESS - BOOM END 404
POWER HARNESS - ENG END 406
THROTTLE PEDAL - Electric 408

HARNESS 410
PEDAL - No Sensor 412
COOLANT LVL SWITCH KIT 414

LIGHT ASS'Y 416
AIR SYSTEM 418
ToC 6
AIR COMPRESSOR 420
INTAKE END ARRANGEMENT @ 422
OIL SEPARATOR & INTAKE END COVER @ 424
ROTOR STATOR UNIT & OIL CHAMBER @ 426
OIL COOLER ARRANGEMENT @ 428
DRIVE MOTOR @ 430
LUBE PUMP - 24VDC 432

WATER SERVICE VALVE 434
FILTER / REGULATOR 436
AIR TANK INSTL'N 438
ELECTRICAL KIT 440
WATER SYSTEM 442
WATER PUMP 444
HEAT EXCHANGER - Hydraulic 320
ELECTRICAL KIT 450
DECAL KIT 452
DECAL - BRAKE TEST 456
OPTIONS GROUP 458
FIRE SUPPRESSION SYSTEM 460
FIRE SUPPRESSION SYSTEM - 4 Nozzle 464
REMOTE GREASE CIRCUIT 466

SHIFTER OPTION - 3 SPEED 468
ALARM / STROBE LT KIT 470
WHEEL CHOCK BRACKET 472
GROUND FAULT PANEL 474
ToC 7
07-3672
(Sheet 1 / 2)
VR-II
2
07-3672
(Sheet 2 / 2)
VR-II
Item Rem. Part No. Description Qty.
1 009052-002 MTB5500 ASS'Y - L/H ( Page 4 ) 1
2 012352-002 FEED ASS'Y - MTF12, L/H, HC-50 ( Page 50 ) 1
3 94440-V4 HC-50 DRIFTER ( Page 76 ) 1
4 010741-005 POWERTRAIN ASS'Y ( Page 102 ) 1
5 010743-008 FRONT FRAME ASS'Y ( Page 224 ) 1
6 010744-001 ARTICULATION ASS'Y ( Page 246 ) 1
7 010745-008 REAR FRAME ASSEMBLY ( Page 252 ) 1
8 010747-003 TIRE AND RIM ASS'Y ( Page 280 ) 4
9 017703-013 SCHEMATIC - HYDRAULIC - INTEL II ( Page 282 ) 1
10 013195-031 HYDRAULIC SCHEMATIC - Carrier ( Page 350 ) 1
11 013687-001 HYD. SCHEMATIC - MTB Boom ( Page 372 ) 1
12 140907-021 TRANSMISSION SCHEMATIC ( Page 380 ) 1
13 020176-001 ELECTRICAL SYSTEM ( Page 382 ) 1
14 014617-021 AIR SYSTEM ( Page 418 ) 1
15 012353-021 WATER SYSTEM ( Page 442 ) 1
16 010752-001 DECAL KIT ( Page 452 ) 1
17 010753-006 OPTIONS GROUP ( Page 458 ) 1
18 014419-016 250 / 500 / 750 HR FILTER KIT REF
19 014419-017 1000 HR SERVICE KIT REF
20 FSL-1115 - DRILL CONTROL REF
3
009052-002
(Sheet 1 / 2)
MTB5500 ASS'Y - L/H
4
009052-002
(Sheet 2 / 2)
MTB5500 ASS'Y - L/H

1 009015-002 BOOM MOUNTING ASS'Y ( Page 6 ) 1
2 009016-002 BOOM PIVOT ASS'Y ( Page 8 ) 1
3 009017-001 LIFT CYLINDER ASSEMBLY ( Page 10 ) 1
4 009018-001 OUTER BOOM ASSEMBLY ( Page 14 ) 1
5 009019-002 INNER BOOM ASS'Y ( Page 20 ) 1
6 009020-002 REDUCER SUPP. KNUCKLE ASS'Y ( Page 22 ) 1
7 009021-001 GUIDE DUMP CYLINDER ASS'Y ( Page 24 ) 1
8 008999-001 GUIDE SWING CYLINDER ( Page 28 ) 1
9 009022-004 REDUCER SUPPORT ASS'Y ( Page 30 ) 1
10 009023-005 OFFSET GUIDE ASS'Y ( Page 36 ) 1
11 009024-003 CRADLE OFFSET ASS'Y ( Page 38 ) 1
12 008998-001 FEED PIVOT CYLINDER ( Page 40 ) 1
13 008997-001 BOOM EXTENSION CYLINDER ( Page 42 ) 1
14 009731-001 FEED ADVANCE CYLINDER ( Page 44 ) 1
15 009000-001 BOOM SWING CYLINDER ( Page 48 ) 1
16 143894 DOWEL PIN 2
5
009015-002
(Sheet 1 / 2)
BOOM MOUNTING ASS'Y
6
009015-002
(Sheet 2 / 2)
BOOM MOUNTING ASS'Y

1 FRONT FRAME REF
2 008975-001 PIVOT 1
3 008918-001 WASHER 2
4 008976-001 BUSHING 1
5 008924-001 BUSHING 4
6 008923-001 CAP 4
7 103572 HHCS - 0.5-13NC X1.250 GR8 16
8 105992 FLAT WASHER - 0.500 A325 16
9 100117 GREASE FITTING -(STR) 1/8 NPT 2
10 018324-001 PIVOT BUSHING CAP REF
11 103585 BOLT - 0.75-10NCX3 REF
12 101227 WASHER REF
7
009016-002
(Sheet 1 / 2)
BOOM PIVOT ASS'Y
8
009016-002
(Sheet 2 / 2)
BOOM PIVOT ASS'Y

1 013672-001 BOOM PIVOT 1
2 008913-002 PIN - BOOM BASE 1
3 008914-002 PIN - OUTER BOOM 1
4 008915-001 WASHER 2
5 008918-001 WASHER 2
6 100126 LOCKNUT - 0.625-11NC GR8,NYLOCK 1
7 008921-001 TAPER LOCK PIN - 2" 1
8 008920-001 END CAP 2
9 136876 HHCS - 0.625-11NC X 2.750 GR8 2
10 136875 WASHER 2
9
009017-001
(Sheet 1 / 2)
LIFT CYLINDER ASSEMBLY
10
009017-001
(Sheet 2 / 2)
LIFT CYLINDER ASSEMBLY

1 009002-001 BOOM LIFT CYLINDER ( Page 12 ) 1
2 008977-001 KNUCKLE 1
3 008978-001 PIN 1
4 008967-001 WASHER 2
5 008979-001 LOCK PLATE 1
6 801623 BOLT 2
7 101140 FLATWASHER - 0.313 A325 2
9 104821 SPHERICAL BEARING 1
10 012274-001 BUSHING 2
11
009002-001
(Sheet 1 / 2)
BOOM LIFT CYLINDER
12
009002-001
(Sheet 2 / 2)
BOOM LIFT CYLINDER

1 009002-010 BARREL 1
2 009002-011 ROD 1
3 013630-013 GLAND 1
4 009002-012 STROKE RESTRICTOR 1
5 013630-015 PISTON 1
6 202645 STEM NUT 1
7 205143 COUNTERBALANCE VALVE 2
8 a PISTON SEAL 1
9 a WEAR RING 2
10 a O-RING 1
11 a BACK-UP RING 2
12 a O-RING 1
13 a BACK-UP RING 1
14 a ROD SEAL 1
15 a WIPER 1
16 a WEAR RING 1
17 a WEAR RING 1
18 013125-025 SPHERICAL BEARING 1
19 205249-001 GREASE FITTING 1
20 014346-010 CB VALVE CAP 2
21 013630-010 SEAL KIT REF
a) Items included in Seal Kit # 013630-010.
13
009018-001
(Sheet 1 / 2)
OUTER BOOM ASSEMBLY
14
009018-001
(Sheet 2 / 2)
OUTER BOOM ASSEMBLY

1 014729-001 OUTER BOOM - MTB5500 1
2 008984-001 BUSHING 2
3 013741-001 CAP 2
4 008920-001 END CAP 2
5 008921-001 TAPER LOCK PIN - 2" 1
6 009010-001 END CAP - 2 1/2" 2
7 009011-001 TAPER LOCK PIN - 2 1/2" 1
8 013746-001 WEAR PAD ASSEMBLY ( Page 16 ) 5
9 015075-001 WEAR PAD ASSEMBLY - 6 Holes ( Page 18 ) 1
10 136876 HHCS - 0.625-11NC X 2.750 GR8 2
11 136875 WASHER 2
12 101140 FLATWASHER - 0.313 A325 6
13 134482 BOLT - HHCS 0.313NCX1 GR8 6
15 009027-001 PIN 1
16 Q95223376 SNAP RING 2
18 012534-001 LOCK BAR 1
19 012205-001 SCRAPER 1
20 012206-001 RETAINER PLATE 2
21 78643 HALF COLLAR 2
15
013746-001
(Sheet 1 / 2)
WEAR PAD ASSEMBLY
16
013746-001
(Sheet 2 / 2)
WEAR PAD ASSEMBLY

1 013743-001 PUSH PLATE 1
2 013744-001 WEAR PAD 1
3 103572 HHCS - 0.5-13NC X1.250 GR8 4
4 013747-001 SET SCREW - 0.750-10NC X 1.500 4
5 104381 JAM NUT - 0.75 X 10-NC 4
6 134044 JAM NUT 2
7 014340-001 SET SCREW - 0.500-13NC X 1.750 2
8 105992 FLAT WASHER - 0.500 A325 4
17
015075-001
(Sheet 1 / 2)
WEAR PAD ASSEMBLY - 6 Holes
18
015075-001
(Sheet 2 / 2)
WEAR PAD ASSEMBLY - 6 Holes

1 015076-001 PUSH PLATE 1
2 013744-001 WEAR PAD 1
3 102199 BOLT - FHCS 0.500-13NC X 1.250 GR8 6
19
009019-002
(Sheet 1 / 2)
INNER BOOM ASS'Y
20
009019-002
(Sheet 2 / 2)
INNER BOOM ASS'Y

1 020049-001 INNER BOOM 1
2 008951-001 END CAP 4
3 008955-001 TAPER LOCK PIN 2
4 136876 HHCS - 0.625-11NC X 2.750 GR8 4
5 136875 WASHER 4
6 100157 HHCS - 0.375-16NC X 1.000 GR8 8
7 106473 FLAT WASHER - 0.375, L9 8
8 013749-001 CAP 2
9 009029-001 BUSHING 2
10 Q95223376 SNAP RING 2
11 008932-001 PIN 1
12 008952-001 TAPER LOCK PIN - 1 1/2" 1
21
009020-002
(Sheet 1 / 2)
REDUCER SUPP. KNUCKLE ASS'Y
22
009020-002
(Sheet 2 / 2)
REDUCER SUPP. KNUCKLE ASS'Y

1 013696-001 KNUCKLE REDUCER SUPP. 1
2 008969-002 PIN 1
3 008968-002 PIN 1
4 008966-001 WASHER 2
5 008967-001 WASHER 2
6 008951-001 END CAP 2
7 008952-001 TAPER LOCK PIN - 1 1/2" 1
8 136876 HHCS - 0.625-11NC X 2.750 GR8 2
9 136875 WASHER 2
11 014542-001 HHCS BOLT 1
23
009021-001
(Sheet 1 / 2)
GUIDE DUMP CYLINDER ASS'Y
24
009021-001
(Sheet 2 / 2)
GUIDE DUMP CYLINDER ASS'Y

1 009001-001 GUIDE DUMP CYLINDER ( Page 26 ) 1
2 008972-001 PIN 1
3 008980-001 KNUCKLE 1
4 008981-001 CAP 2
5 008973-001 WASHER 2
6 009032-001 BUSHING 2
7 801623 BOLT 6
8 101140 FLATWASHER - 0.313 A325 6
25
009001-001
(Sheet 1 / 2)
GUIDE DUMP CYLINDER
26
009001-001
(Sheet 2 / 2)
GUIDE DUMP CYLINDER

1 009001-010 BARREL 1
2 009001-011 ROD 1
3 014346-012 GLAND 1
5 014346-011 PISTON 1
6 021437-012 SET SCREW 1
8 PISTON SEAL 1
9 WEAR RING 1
10 O-RING 1
11 BACK-UP RING 2
12 O-RING 1
13 BACK-UP RING 1
14 WEAR RING 1
15 WEAR RING 1
16 ROD SEAL 1
17 ROD WIPER 1
20 014346-015 SEAL KIT REF
27
008999-001
(Sheet 1 / 2)
GUIDE SWING CYLINDER
28
008999-001
(Sheet 2 / 2)
GUIDE SWING CYLINDER

1 008999-011 BARREL 1
2 008999-012 ROD 1
3 008999-013 GLAND 1
4 008999-014 PISTON 1
5 SET SCREW - 14X38NC 1
6 a 205143 COUNTERBALANCE VALVE 2
7 a PISTON SEAL 1
8 a WEAR RING 1
9 a O-RING 1
10 a O-RING 1
11 a BACK-UP RING 1
12 a WEAR RING 2
13 a WEAR RING 1
14 a ROD SEAL 1
15 a ROD WIPER 1
18 CB VALVE CAP 2
19 PLUG 4
a) Items are included in Seal Kit #008999-010
29
009022-004
(Sheet 1 / 2)
REDUCER SUPPORT ASS'Y
30
009022-004
(Sheet 2 / 2)
REDUCER SUPPORT ASS'Y

1 020007-001 REDUCER SUPPORT 1
2 017992-003 ROTARY ACTUATOR ( Page 32 ) 1
3 008970-002 PIN 1
4 008961-001 CAP 2
5 008962-001 CAP 1
6 008963-002 BUSHING 2
7 013784-001 BUSHING 1
8 008964-001 BUSHING 2
9 013719-001 RETAINER 2
11 100157 HHCS - 0.375-16NC X 1.000 GR8 4
12 105462 HHCS - 0.500-13NCx2.250 GR8 8
13 126035 SHCS 18
14 104199 NUT HEX - 0.500-13NC GR8 8
15 106473 FLAT WASHER - 0.375, L9 4
16 105992 FLAT WASHER - 0.500 A325 16
17 015494-001 FLAT WASHER - M14 4
18 103134 SHCS - 0.375-16 NC X 1.5 GR8 8
19 020366-001 HHCS - M14-2.00 X 45 GR10.9 4
20 020129-001 HYDRAULIC MOTOR ( Page 34 ) 1
21 015246-001 PORT BLOCK - SIDE PORTS 1
22 113236 O-RING 2
31
017992-003
(Sheet 1 / 2)
ROTARY ACTUATOR
32
017992-003
(Sheet 2 / 2)
ROTARY ACTUATOR
5 017992-014 O-RING 1
18 017992-027 SEAL JOINT 1
22 017992-031 O-RING 1
26 017992-035 BACK-UP RING 2
27 017992-036 O-RING 2
28 017992-037 BACK-UP RING 1
29 017992-038 O-RING 1
32 017992-041 SPRING 17
33 017992-042 SPRING RETAINER 1
35 017992-044 O-RING 1
38 017992-047 O-RING 1
33
020129-001
(Sheet 1 / 2)
HYDRAULIC MOTOR
34
020129-001
(Sheet 2 / 2)
HYDRAULIC MOTOR
1 BARREL HOUSING ASS'Y 1
2 b 020129-010 VALVE PLATE 1
3 HEX SOCKET PLUG ASS'Y 1
4 BLEEDER PLUG 1
5 SEAL WASHER 1
6 BEARING HOUSING 1
7 c 020129-011 O-RING 1
8 c O-RING 1
9 c O-RING 1
10 SEAL CARRIER 1
11 c 020129-012 SHAFT SEAL 1
12 SPACER WASHER - 1MM 1
13 RETAINING RING 1
14 RETAINING RING 1
15 BLEEDER PLUG 1
16 SEAL WASHER 1
17 SHAFT 1
18 GUIDE PIN 1
19 FLAT KEY 1
20 b 020129-013 CYLINDER BARREL 1
21 BARREL SUPPORT ASS'Y 1
22 b 020129-014 PISTON ASS'Y 7
23 PISTON RING 21
24 RING GEAR 1
25 TAPERED ROLLER BEARING 1
26 TAPERED ROLLER BEARING 1
27 SPACER WASHER A/R
28 RETAINING RING 1
29 SHIM 2
30 HEX SOCKET SCREW M10X45 4
31 020129-015 SEAL KIT REF
32 020129-016 REPAIR KIT REF
b) Items included in Repair Kit # 020129-016.

c) Items included in Seal Kit and Repair Kit.
35
009023-005
(Sheet 1 / 2)
OFFSET GUIDE ASS'Y
36
009023-005
(Sheet 2 / 2)
OFFSET GUIDE ASS'Y

1 020017-001 OFFSET GUIDE SUPPORT 1
2 014552-001 SPACER 1
3 008951-001 END CAP 2
4 008952-001 TAPER LOCK PIN - 1 1/2" 1
5 009040-001 PIN 1
6 008957-001 BUSHING 2
7 008956-001 END CAP 2
8 014553-001 BOLT 1
9 105787 HHCS - 5/8-11 UNC x 2 1/2" LG GR8 2
10 103583 BOLT 1
11 124811 HHCS - M16 2.00 X 110 18
12 103591 FLATWASHER - 1" A325 2
13 114559 FLATWASHER - M16 18
14 136875 WASHER 2
16 020527-001 SHIM 2
37
009024-003
(Sheet 1 / 2)
CRADLE OFFSET ASS'Y
38
009024-003
(Sheet 2 / 2)
CRADLE OFFSET ASS'Y

1 014548-001 FEED CRADLE 1
2 008952-001 TAPER LOCK PIN - 1 1/2" 1
3 008951-001 END CAP 2
4 012513-001 PIN 1
8 105992 FLAT WASHER - 0.500 A325 8
10 115937 LOCKNUT - 0.500-13NC GR8 NYLOC 4
11 136876 HHCS - 0.625-11NC X 2.750 GR8 2
12 136875 WASHER 2
13 Q95223368 RING 2
14 014555-001 BUSHING 2
15 105981 BOLT - 1/2-13 NC X 2.5" GR8 4
16 022093-001 HOSE CLAMP SPACER 2
39
008998-001
(Sheet 1 / 2)
FEED PIVOT CYLINDER
40
008998-001
(Sheet 2 / 2)
FEED PIVOT CYLINDER

1 008998-010 BARREL 1
2 008998-011 ROD 1
3 014346-012 GLAND 1
5 014346-011 PISTON 1
8 a PISTON SEAL 1
9 a WEAR RING 1
10 a O-RING 1
11 a BACK-UP RING 2
12 a O-RING 1
13 a BACK-UP RING 1
14 a WEAR RING 1
15 a WEAR RING 1
16 a ROD SEAL 1
17 a ROD WIPER 1
19 PLUG 2
21 014346-010 CB VALVE CAP 2
22 PLUG 2
23 014346-015 SEAL KIT REF
a) Items included in Seal Kit # 014346-015.
41
008997-001
(Sheet 1 / 2)
BOOM EXTENSION CYLINDER
42
008997-001
(Sheet 2 / 2)
BOOM EXTENSION CYLINDER

1 008997-011 BARREL 1
2 008997-012 ROD 1
3 001184-012 GLAND 1
5 008997-014 PISTON 1
7 a PISTON SEAL 1
8 a O-RING 1
9 a WEAR RING 1
10 a ROD SEAL 1
11 a ROD WIPER 1
12 a BUFFER SEAL 1
13 a WEAR SEAL 2
14 a O-RING 1
15 a BACK-UP RING 1
16 203351 BEARING 2
17 PLUG 2
43
009731-001
(Sheet 1 / 2)
FEED ADVANCE CYLINDER
44
009731-001
(Sheet 2 / 2)
FEED ADVANCE CYLINDER

1 Q51857209 GUIDE EXTENSION CYLINDER ( Page 46 ) 1
2 009719-001 FEED ANCHOR 1
3 Q51388072 PIN 1
4 Q95223368 RING 2
5 Q51715217 BUSHING 2
45
Q51857209
(Sheet 1 / 2)
GUIDE EXTENSION CYLINDER
46
Q51857209
(Sheet 2 / 2)
GUIDE EXTENSION CYLINDER

2 205236 BARREL 1
3 205237 LOCKNUT 1
5 205132 PISTON 1
9 205238 PACKING GLAND 1
12 205239 ROD 1
13 205135-001 SEAL KIT 1
47
009000-001
(Sheet 1 / 2)
BOOM SWING CYLINDER
48
009000-001
(Sheet 2 / 2)
BOOM SWING CYLINDER

1 009000-011 BARREL 1
2 009000-012 ROD 1
3 009000-013 GLAND 1
4 014346-011 PISTON 1
7 a PISTON SEAL 1
8 a WEAR RING 1
9 a O-RING 1
10 a BACK-UP RING 2
11 a O-RING 1
12 a BACK-UP RING 1
13 a WEAR RING 2
14 a ROD SEAL 1
15 a ROD WIPER 1
16 002803-001 BEARING 2
17 207221-001 HEX PLUG 2
19 CB VALVE CAP 2
20 PLUG 4
21 009000-010 SEAL KIT REF
49
50
008095-003
(Sheet 1 / 2)
DRILL CRADLE ASS'Y
54
008095-003
(Sheet 2 / 2)
DRILL CRADLE ASS'Y

1 011231-001 DRILL CRADLE 1
2 008000-001 WEAR BLOCK - SEE FSL-1036 4
3 008421-001 HHCS - 0.500-13NCx3.750 GR8 8
4 115937 LOCKNUT - 0.500-13NC GR8 NYLOC 8
5 105992 FLAT WASHER - 0.500 A325 16
55
005109-002
(Sheet 1 / 2)
SLIDE SUPPORT CRADLE ASS'Y
70
005109-002
(Sheet 2 / 2)
SLIDE SUPPORT CRADLE ASS'Y

1 004831-001 WEAR STRIP 8
2 004817-001 ADJUSTER BLOCK 8
3 113653 HHCS - 0.500-13NC X 3.5 GR8 16
4 105992 FLAT WASHER - 0.500 A325 16
5 134093 WASHER - DISC-LOCK, 1/2" 16
6 104199 NUT HEX - 0.500-13NC GR8 16
71
139846
(Sheet 1 / 2)
AUTO-RETURN CYLINDER
72
139846
(Sheet 2 / 2)
AUTO-RETURN CYLINDER
1 206108 BASE 1
2 206109 COUPLER 1
3 206110 SCREW 1
4 206111 PLUNGER 1
5 206112 SPRING 1
6 206113 BEARING STOP RING 1
7 a SEAL 1
8 206115 ACORN NUT 1
9 a WASHER 1
10 206117 SCREW 1
11 206118 ROD BEARING 1
12 a SEAL 1
13 a LOCKWASHER 1
14 206121 SADDLE 1
15 206122 DUST CAP 1
16 206123 PROTECTOR 1
17 206124 REPAIR KIT REF
a) Items included in Seal Kit # 206124.
73
012875-011
(Sheet 1 / 2)
SCH, MTF12, SLIDE TUBE HC-50
74
012875-011
(Sheet 2 / 2)
SCH, MTF12, SLIDE TUBE HC-50

1 112566 ADAPTER - TS S3733-8-10 2
2 PLUMBING KIT REF
75
94440-V4
(Sheet 1 / 2)
HC-50 DRIFTER
76
94440-V4
(Sheet 2 / 2)
HC-50 DRIFTER
1 DISTRIB. / ACCUM. GROUP @ ( Page 78 ) 1
2 MOTOR PART GROUP @ ( Page 80 ) 1
3 HOUSING GROUP @ ( Page 82 ) 1
4 FRONT GUIDE - R38 @ ( Page 90 ) 1
5 ADAPTERS @ ( Page 92 ) 1
6 FIXATION @ ( Page 94 ) 1
7 64471 COMPLETE SEAL KIT ( Page 96 ) 1
8 80183 RESTRICTOR ( Page 98 ) 1
9 SHANK - R38 @ ( Page 100 ) 1
77
(Sheet 1 / 2)
DISTRIB. / ACCUM. GROUP @
78
(Sheet 2 / 2)
DISTRIB. / ACCUM. GROUP @

10 86343290 COVER 1
20 f 86363595 O'RING 1
30 e 86343282 PUSH ROD 1
40 e 86343274 PUSH ROD LINER 1
50 e 86333879 VALVE 1
60 e 86343217 DISTRIBUTION COVER 1
70 e 86343225 DISTRIBUTION BOX 1
80 e 86333861 DISTRIBUTOR 1
90 e 64354 THRUST PISTON "E" 1
100 e 57846 PIN 1
110 e 60675 CYLINDER 1
120 f 26492 O-RING 2
130 ! ENERGY CHAMBER 1
140 79926 BODY 1
150 e 79934 COVER 2
160 f 80513 O-RING 2
170 015031-001 DIAPHRAGM KIT 2
180 d 14826 RING 1
190 d 26428 INFLATING SCREW 1
200 e 64420 BOLT - Rear Assembly 4
!) Not sold separately.

d) Items to be changed every 800 hrs.
e) Items to be changed every 1600 hrs.
f) Items included in Seal Kit & to be changed every 800 hrs.
79
(Sheet 1 / 2)
MOTOR PART GROUP @
80
(Sheet 2 / 2)
MOTOR PART GROUP @

10 e 64353 STRIKING PISTON 1
20 e 64472 DOWN CYLINDER 1
30 83345 MOTOR BODY 1
40 e 60987 SPRING 1
50 e 54864 PIN 1
60 e 59419 VALVE 3
70 f 96842 TIGHT SEAL 1
80 f 12717 O-RING 2
90 f 44382 O-RING 1
100 18364 PLUG 1
110 54884 COVER 1
120 f 20894 O-RING 1
130 e 69102 BEARING HOLDER PLATE 1
140 69103 BALL BEARING 1
150 e 69125 DISTRIBUTION PLATE 2
160 f 24852 O-RING 2
170 e 54880 MOTOR CARTRIDGE type 043 1
180 57846 PIN 2
190 f 39328 O-RING 2
200 d 64450 THRUST LINING 1
210 f 12717 O-RING 2
220 f 49010 ROD JOINT 2
230 d 64451 THRUST PISTON 1
240 f 64457 LIP SEAL 2

81
(Sheet 1 / 8)
HOUSING GROUP @
82
(Sheet 2 / 8)
HOUSING GROUP @
10 83225 COMPLETE HOUSING 1
20 26241 HELICOIL THREAD UNF 3/4" 8
30 f 44382 O-RING 2
50 e 59991 SNAP RING 1
60 g 64453 CENTERING PART 1
70 c 64452 SHANK TRUST 1
80 e 59995 TIGHT RING 2
90 f 8082 O-RING 6
120 e 59998 SEAL HOLDER RING 1
130 f 59345 LIP SEAL 2
140 e 59999 RING 1
150 e 59342 SELF-LUBRICATING RING 1
160 e 59343 NEEDLE BEARING 2
170 e 60200 DRIVING GEAR SHAFT 1
180 e 2732 BALL BEARING 1
190 e 64454 GEAR DRIVING 1
200 64455 SPLINE NUT 1
210 c 18833 NEEDLE BEARING 2
220 64475 THRUST WASHER 1
230 f 42068 RING 1
240 e 78071 SLIDE 1
250 e 78070 SLIDE LINING 1
260 e 78074 SPRING 1
270 f 10050 O-RING 1
280 d 9931 O-RING 1
290 e 54408 ADJUSTING RING A/R
300 64456 FLANGE 1
310 21910 HELICOIL THREAD UNF 1" 2
320 f 42112 O-RING 1
330 6178 OILER 1
c) Items to be changed every 400 hrs.

g) Items included in Seal Kit & to be changed every 400 hrs.
83
(Sheet 3 / 8)
HOUSING GROUP @
84
(Sheet 4 / 8)
HOUSING GROUP @
350 d 025837-109 SCREW 4

85
(Sheet 5 / 8)
HOUSING GROUP @
86
(Sheet 6 / 8)
HOUSING GROUP @
10 83225 COMPLETE HOUSING 1
20 26241 HELICOIL THREAD UNF 3/4" 8
30 f 44382 O-RING 2
50 e 59991 SNAP RING 1
60 g 64453 CENTERING PART 1
70 c 64452 SHANK TRUST 1
90 f 8082 O-RING 6
120 e 59998 SEAL HOLDER RING 1
130 f 59345 LIP SEAL 2
140 e 59999 RING 1
150 e 59342 SELF-LUBRICATING RING 1
160 e 59343 NEEDLE BEARING 2
170 e 60200 DRIVING GEAR SHAFT 1
180 e 2732 BALL BEARING 1
190 e 64454 GEAR DRIVING 1
200 64455 SPLINE NUT 1
210 c 18833 NEEDLE BEARING 2
230 f 42068 RING 1
240 e 78071 SLIDE 1
250 e 78070 SLIDE LINING 1
260 e 78074 SPRING 1
270 f 10050 O-RING 1
280 d 9931 O-RING 1
290 e 54408 ADJUSTING RING A/R
300 64456 FLANGE 1
310 21910 HELICOIL THREAD UNF 1" 2
320 f 42112 O-RING 1
330 6178 OILER 1
c) Items to be changed every 400 hrs.

g) Items included in Seal Kit & to be changed every 400 hrs.
87
(Sheet 7 / 8)
HOUSING GROUP @
88
(Sheet 8 / 8)
HOUSING GROUP @
350 d 025837-109 SCREW 4

89
(Sheet 1 / 2)
FRONT GUIDE - R38 @
90
(Sheet 2 / 2)
FRONT GUIDE - R38 @

10 67407 FRONT GUIDE 1
20 4581 PIN 1
30 64459 GUIDING RING 1
40 a 80591 SPRING 1
50 a 80419 BALL 1
60 a 005571-001 SEAL - Green, Above Ground 1
70 d 96842 TIGHT SEAL 1
80 d 42112 O-RING 2
90 51545 LIP SEAL 1
100 52383 BOLT - Front Guide 2
110 64463 RETAINER CHUCK 1
120 51545 LIP SEAL 2
130 64467 SHIELD 1
a) Items included in Seal Kit # 64471.

d) Items included in Seal Kit & to be changed every 800 hrs.
91
(Sheet 1 / 2)
ADAPTERS @
92
(Sheet 2 / 2)
ADAPTERS @
1 e 8745 ADAPTER - Water Flushing 1
2 e 58895 ADAPTER P1-P2 flushing 1
3 e 17365 ADAPTER return 1
4 e 22837 ADAPTER P1a-P1r drain/pressurization 4
93
(Sheet 1 / 2)
FIXATION @
94
(Sheet 2 / 2)
FIXATION @
10 d 63010 BOLT 2
20 d 15094 SPACER 2
30 d 15886 ASSEMBLY NUT 2
95
64471
(Sheet 1 / 2)
COMPLETE SEAL KIT
96
64471
(Sheet 2 / 2)
COMPLETE SEAL KIT

1 80591 SPRING 1
2 39328 O-RING 2
3 20894 O-RING 1
4 4379 O-RING 1
5 7556 O-RING 1
6 8082 O-RING 6
7 9848 O-RING 1
8 10050 O-RING 1
9 12717 O-RING 4
10 17906 RING 1
11 24852 O-RING 2
12 26492 O-RING 2
13 37971 SCRAPER SEAL 1
14 42068 RING 1
15 42112 O-RING 2
16 44382 O-RING 3
17 49010 ROD JOINT 2
18 57115 O-RING 7
19 59345 LIP SEAL 2
20 64453 CENTERING PART 1
21 64457 LIP SEAL 2
22 86363595 O'RING 1
23 80419 BALL 1
24 80513 O-RING 2
25 96842 TIGHT SEAL 12
26 005571-001 SEAL - Green, Above Ground 1
27 FSL-1037 - SEAL KITS REF
97
80183
(Sheet 1 / 2)
RESTRICTOR
98
80183
(Sheet 2 / 2)
RESTRICTOR
10 80184 TEE PIECE 1
20 80185 ADJUSTING SCREW 1
30 80186 PLUG 1
40 18319 NUT 1
50 25528 O-RING 1
99
(Sheet 1 / 2)
SHANK - R38 @
100
(Sheet 2 / 2)
SHANK - R38 @
1 64469 MALE SHANK R38 1
1-A 037073-001 CONTROL GAUGE KIT REF
101
010741-005
(Sheet 1 / 2)
POWERTRAIN ASS'Y
102
010741-005
(Sheet 2 / 2)
POWERTRAIN ASS'Y
1 010759-003 ENGINE/TRANS. ASS'Y ( Page 104 ) 1
2 013208-002 COOLING ASS'Y ( Page 162 ) 1
3 010761-004 EXHAUST ASS'Y ( Page 180 ) 1
4 010760-005 AIR INTAKE ASS'Y ( Page 188 ) 1
5 019316-001 FUEL SYSTEM ( Page 192 ) 1
6 010763-001 FRONT AXLE ASS'Y ( Page 194 ) 1
7 010764-001 REAR AXLE ASS'Y ( Page 212 ) 1
8 019317-001 DRIVELINES ASS'Y ( Page 216 ) 1
103
010759-003
(Sheet 1 / 4)
ENGINE/TRANS. ASS'Y
104
010759-003
(Sheet 2 / 4)
ENGINE/TRANS. ASS'Y
1 014979-001 ENGINE ASS'Y - Cummins QSB4.5 ( Page 108 ) 1
2 019915-001 TRANSMISSION ASS'Y - 20000 ELEC. ( Page 110 ) 1
3 008364-001 FLEX PLATE KIT 1
4 012020-001 FRONT ENGINE MOUNT 1
5 009295-001 TWO-PIECE RUBBER MOUNTS 6
6 009582-001 ENGINE MOUNT WASHER 6
7 020640-001 DIPSTICK 1
8 020636-001 TUBE EXTENSION 1
9 020610-001 ADAPTER - GG308-NP8-22 1
10 100291 ADAPTER - 2021-8-8 1
11 800467 PIPE PLUG - 1/2 1
12 102745 HOSE ASS'Y 1
13 019378-001 TRANS. MOUNT 2
14 100140 BOLT - 0.75-10NCX2 LG 8
15 800657 HHCS - 0.625 11NC X 5.500 GR8 4
16 125579 HHCS - 0.625-11NC X 4.500 GR8 2
17 116721 HHCS - M12 1.75X 50 1
18 117787 HHCS - M12X100 GR10.9 3
19 006149-001 HHCS 12
20 800658 HEX NUT - 5/8-11 UNC GR 8 6
21 103592 FLATWASHER - 0.75" A325 8
22 107888 FLAT WASHER - 0.625 L9 12
23 114570 FLATWASHER - M12 4
24 114557 FLATWASHER - M10 14
25 020646-001 MOUNT 1
26 3646 SCREW 2
27 106473 FLAT WASHER - 0.375, L9 2
28 100157 HHCS - 0.375-16NC X 1.000 GR8 1
29 100954 ADAPTER - 2024-2-4 REF
30 121603 HOSE ASS'Y - 4MP STx90x28"LG REF
31 004350-002 FLB -12PT 0.375-24 UNFX1.5 8
32 115938 NUT - 0.375-16NC GR8 1
105
010759-003
(Sheet 3 / 4)
ENGINE/TRANS. ASS'Y
106
010759-003
(Sheet 4 / 4)
ENGINE/TRANS. ASS'Y
1 014979-001 ENGINE ASS'Y - Cummins QSB4.5 ( Page 108 ) 1
2 019915-001 TRANSMISSION ASS'Y - 20000 ELEC. ( Page 110 ) 1
3 008364-001 FLEX PLATE KIT 1
4 012020-001 FRONT ENGINE MOUNT 1
7 020640-001 DIPSTICK 1
8 020636-001 TUBE EXTENSION 1
9 020610-001 ADAPTER - GG308-NP8-22 1
10 100291 ADAPTER - 2021-8-8 1
11 800467 PIPE PLUG - 1/2 1
12 102745 HOSE ASS'Y 1
13 019378-001 TRANS. MOUNT 2
14 100140 BOLT - 0.75-10NCX2 LG 8
15 800657 HHCS - 0.625 11NC X 5.500 GR8 4
16 125579 HHCS - 0.625-11NC X 4.500 GR8 2
17 116721 HHCS - M12 1.75X 50 1
18 117787 HHCS - M12X100 GR10.9 3
19 006149-001 HHCS 12
20 800658 HEX NUT - 5/8-11 UNC GR 8 6
21 103592 FLATWASHER - 0.75" A325 8
22 107888 FLAT WASHER - 0.625 L9 12
23 114570 FLATWASHER - M12 4
24 114557 FLATWASHER - M10 14
25 020646-001 MOUNT 1
26 3646 SCREW 2
27 106473 FLAT WASHER - 0.375, L9 2
28 100157 HHCS - 0.375-16NC X 1.000 GR8 1
29 100954 ADAPTER - 2024-2-4 REF
30 121603 HOSE ASS'Y - 4MP STx90x28"LG REF
31 004350-002 FLB -12PT 0.375-24 UNFX1.5 8
32 115938 NUT - 0.375-16NC GR8 1
107
014979-001
(Sheet 1 / 2)
ENGINE ASS'Y - Cummins QSB4.5
108
014979-001
(Sheet 2 / 2)
ENGINE ASS'Y - Cummins QSB4.5

1 014979-002 TURBOCHARGER 1
1-A 014979-021 GASKET - TURBOCHARGER 1
1-B 014979-022 GASKET - TURBOCHARGER 1
1-C 014979-023 GASKET - OIL DRAIN 1
1-D 014979-024 GASKET - EXH. OUT CONN. 1
2 014979-003 ELEC. CONTROL MODULE 1
3 014979-004 LUBE OIL PUMP 1
4 014979-005 DIPSTICK 1
5 014979-006 REMOTE FUEL / WATER FILTER 1
6 014979-007 FUEL INJECTION PUMP 1
8 014543-012 ALTERNATOR 1
9 014979-010 THERMOSTAT 1
10 014979-011 WATER PUMP KIT 1
11 014979-012 STARTER 1
12 014979-013 LUBE OIL FILTER 1
13 014979-014 FUEL FILTER 1
14 014979-015 FUEL FILTER - REMOTE 1
15 018345-001 SERPENTINE BELT 1
16 027591-001 COOLANT TEMP. SWITCH 1
19 014979-025 SEAL, O-RING - CAC CONNECTION 1
20 014979-026 CLAMP, V BAND - CAC CONNECTION 1
109
019915-001
(Sheet 1 / 2)
TRANSMISSION ASS'Y - 20000 ELEC.
110
019915-001
(Sheet 2 / 2)
TRANSMISSION ASS'Y - 20000 ELEC.

1 141552 TORQ. CONV. / TRANS. ( Page 112 ) 1
2 a 019998-001 ELECTRIC SHIFT VALVE ( Page 160 ) 1
3 a 018499-001 GASKET 1
4 a 005213-010 BOLT 4
5 a 005499-013 BOLT 3
6 a 004502-156 BOLT 2
7 a 100867 LOCKWASHER 9
8 J230890 FLANGE 2
a) Items 2-8 supersede items found in Transmission assembly.
111
141552
(Sheet 1 / 2)
TORQ. CONV. / TRANS.
112
141552
(Sheet 2 / 2)
TORQ. CONV. / TRANS.

1 CONVERTER HOUSING GROUP @ ( Page 114 ) 1
2 TRANSMISSION CASE & COVER GROUP @ ( Page 116 ) 1
3 TURBINE SHAFT GROUP @ ( Page 120 ) 1
4 DRIVE PLATE GROUP @ ( Page 122 ) 1
5 TORQUE CONVERTER GROUP @ ( Page 124 ) 1
6 GEAR GROUP @ ( Page 126 ) 1
7 AUXILIARY PUMP DRIVE GROUP @ ( Page 138 ) 1
8 PUMP DRIVE GROUP @ ( Page 140 ) 1
9 FORWARD SHAFT GROUP @ 1
10 REVERSE IDLER GROUP @ ( Page 144 ) 1
11 REVERSE & 2nd SHAFT GROUP @ 1
12 LOW SPEED SHAFT GROUP @ ( Page 132 ) 1
13 3rd SHAFT GROUP @ 1
14 IDLER SHAFT GROUP @ ( Page 134 ) 1
15 OUTPUT SHAFT GROUP @ ( Page 136 ) 1
16 CHARGING PUMP & FILTER GROUP @ ( Page 152 ) 1
17 CONTROL VALVE GROUP @ ( Page 154 ) 1
113
(Sheet 1 / 2)
CONVERTER HOUSING GROUP @
114
(Sheet 2 / 2)
CONVERTER HOUSING GROUP @

1 * 141552-029 CONVERTER HOUSING ASS'Y 1
2 141552-030 CONVERTER HOUSING SLEEVE 2
3 004502-157 PIPE PLUG 1
4 001801-010 PIPE PLUG 1
5 * 005096-001 GASKET 1
6 003372-020 CAPSCREW 18
7 004502-026 LOCKWASHER 18
8 141552-031 PIN 1
9 004502-029 WASHER 2
10 004502-023 BOLT 2
11 004502-022 LOCKWASHER 2
12 * 004502-027 TRANS. BREATHER - SEE FSL-1040 1
13 141552-032 PLUG 5
14 *a 004479-001 O-RING 5
15 141552-033 PLUG 1
16 * 141552-034 O-RING 1
17 141552-035 SCREW 1
*) Recommended spare part.

a) Item included in 141552-032.
115
(Sheet 1 / 4)
TRANSMISSION CASE & COVER GROUP @
116
(Sheet 2 / 4)

1 141552-053 TRANSMISSION CASE ASSEMBLY 1
2 b 141552-054 SUCTION TUBE ASSEMBLY 1
3 b 141552-055 O-RING 1
4 b 141552-056 PRESSURE TUBE 1
5 b 004502-033 TUBE SLEEVE 4
6 b 141552-057 TUBE 1
7 b 141552-058 CLIP 1
8 b 141552-059 BOLT 1
9 b 004502-026 LOCKWASHER 1
10 141552-032 PLUG 1
11 c 004479-001 O-RING 1
12 007076-001 PLUG 1
13 d 003372-023 O-RING 1
14 141552-061 REAR COVER & PLUG ASSEMBLY 1
15 e 141552-032 PLUG 1
16 c 004479-001 O-RING 1
17 141552-062 OIL-BAFFLE 1
18 005095-001 GASKET 1
19 002530-001 O-RING 1
20 005382-043 O-RING - TRANS(CHG PUMP) 1
21 141552-031 PIN 2
22 141552-063 BOLT 20
23 004502-026 LOCKWASHER 20
24 004502-048 MAGNETIC PLUG 2
25 141552-064 PLUG 1
26 141552-033 PLUG 2
27 141552-034 O-RING 2
28 141552-035 SCREW 2
30 141552-065 COVER 1
31 J232640 GASKET - COVER 1
32 004012-030 BOLT 2
33 100867 LOCKWASHER 2
34 a 203951-001 DIPSTICK TUBE 1
a) Standard items. May be superseded by custom part nos. found in Transmission/Powertrain

installation drawing.
b) Items included in 141552-053.
c) Items included in 141552-032.
d) Items included in 141552-060.
e) Items included in 141552-061.
117
(Sheet 3 / 4)
118
(Sheet 4 / 4)

35 a J242603 DIPSTICK 1
a) Standard items. May be superseded by custom part nos. found in Transmission/Powertrain

installation drawing.
119
(Sheet 1 / 2)
TURBINE SHAFT GROUP @
120
(Sheet 2 / 2)
TURBINE SHAFT GROUP @

1 * 141552-018 TURBINE SHAFT ASSEMBLY 1
2 a J240617 RETAINING RING 1
3 * 141552-020 BALL BEARING 1
4 * 141552-021 SNAP RING 1
5 141552-022 WASHER 1
6 * 141552-023 RETAINING RING 1
7 * 141552-024 RING - PISTON 1
8 * 141552-025 SUPPORT - STATOR 1
9 141552-026 SCREW 6
10 * 004502-139 PISTON RING 1
11 * 020746-001 OIL BAFFLE & SEAL ASS'Y 1
12 * 001801-083 OIL BAFFLE SEAL 1
13 * 141552-028 RING 1
14 003831-001 RING 1

121
(Sheet 1 / 2)
DRIVE PLATE GROUP @
122
(Sheet 2 / 2)
DRIVE PLATE GROUP @

2 a DRIVE PLATE 3
3 a 008563-004 DRIVE PLATE BACKING RING 1
4 a 008563-005 CAPSCREW 6
5 a 008563-006 LOCKWASHER 6
KIT 004534-001 DRIVE PLATE KIT 1
a) Items included in 004534-001.
123
(Sheet 1 / 2)
TORQUE CONVERTER GROUP @
124
(Sheet 2 / 2)
TORQUE CONVERTER GROUP @

1 * 002863-001 TORQUE CONVERTER ASSEMBLY 1
2 * 141552-003 BEARING 1
3 * 141552-014 SNAP RING 1
4 141552-015 END PLATE 1
5 * 141552-016 O-RING 1
125
(Sheet 1 / 2)
GEAR GROUP @
126
(Sheet 2 / 2)
GEAR GROUP @
1 141552-068 GEAR - Reverse Group 1
1-A REVERSE & 2nd SHAFT GROUP @ After 2004 ( Page 128 ) REF
2 141552-069 GEAR - 1st DRIVE 1
2-A FORWARD SHAFT GROUP @ After 2004 ( Page 130 ) REF
3 141552-070 GEAR - LOW CLUTCH 1
3-A LOW SPEED SHAFT GROUP @ ( Page 132 ) REF
4 141552-071 GEAR - IDLER 1
4-A IDLER SHAFT GROUP @ ( Page 134 ) REF
5 141552-072 GEAR - OUTPUT 1
5-A OUTPUT SHAFT GROUP @ ( Page 136 ) REF
127
(Sheet 1 / 2)
REVERSE & 2nd SHAFT GROUP @ After 2004
128
(Sheet 2 / 2)
REVERSE & 2nd SHAFT GROUP @ After 2004

1 008563-010 DRUM & PLUG ASS'Y 1
2 141552-079 CLUTCH PISTON & SEALS ASS'Y 1
3 b 141552-080 PISTON SEAL - Outer 1
4 b 141552-081 PISTON SEAL - Inner 1
6 c 141552-080 PISTON SEAL - Outer 1
7 c 141552-081 PISTON SEAL - Inner 1
8 141552-083 INNER DISC 8
9 141552-083 INNER DISC 6
10 141552-084 OUTER DISC 8
11 141552-084 OUTER DISC 6
12 141552-085 SPACER 1
13 002740-001 BACKING PLATE 2
14 141552-086 SNAP RING 2
15 141552-087 RETURN SPRING 1
17 002705-001 DISC SPRING ASS'Y c/w 5 washers 1
18 004502-084 SNAP RING 1
19 141552-089 BEARING 1
20 141552-090 BEARING 1
21 141552-091 RETAINING RING 2
22 141552-092 BEARING 1
23 002422-001 RETAINER RING 1
24 004502-095 SNAP RING 1
25 004502-069 PISTON RING 3
26 141552-093 SNAP RING 1
27 141552-094 HUB - 2nd CLUTCH 1
28 004502-084 SNAP RING 1
29 141552-095 NEEDLE BEARING 1
30 141552-096 RETAINER 1
31 141552-097 LOCATING RING 1
32 141552-098 SPACER 1
33 GEAR - REVERSE GROUP REF
b) Items included in 141552-079.

c) Items included in 008563-011.
129
(Sheet 1 / 2)
FORWARD SHAFT GROUP @ After 2004
130
(Sheet 2 / 2)
FORWARD SHAFT GROUP @ After 2004

1 141552-099 FORWARD SHAFT, DRUM & PLUG ASS'Y 1
3 a 141552-080 PISTON SEAL - Outer 1
4 a 141552-081 PISTON SEAL - Inner 1
5 141552-083 INNER DISC 8
6 141552-084 OUTER DISC 8
7 141552-085 SPACER 1
9 141552-086 SNAP RING 1
11 141552-093 SNAP RING 1
12 004502-069 PISTON RING 2
13 141552-100 BEARING 1
14 141552-101 BALL BEARING 1
17 GEAR - 1st DRIVE REF
131
(Sheet 1 / 2)
LOW SPEED SHAFT GROUP @
132
(Sheet 2 / 2)
LOW SPEED SHAFT GROUP @

1 141552-104 LOW SHAFT, HUB, DRUM & BLEED VALVE ASS'Y 1
5 141552-105 INNER DISC 8
6 141552-084 OUTER DISC 8
8 141552-086 SNAP RING 1
9 141552-106 DISC SPRING ASS'Y - Incl. 7 washers. 1
10 004502-084 SNAP RING 1
11 141552-107 SPACER 1
12 002389-001 BEARING 1
13 141552-108 BEARING 1
14 004502-070 SNAP RING 2
15 004502-122 RING 1
16 141552-020 BALL BEARING 1
17 141552-109 SPACER 1
18 141552-110 BALL BEARING 1
19 141552-021 SNAP RING 1
20 141552-111 RETAINER 1
21 GEAR - LOW CLUTCH REF
133
(Sheet 1 / 2)
IDLER SHAFT GROUP @
134
(Sheet 2 / 2)
IDLER SHAFT GROUP @

1 141552-112 SHAFT 1
2 141552-020 BALL BEARING 1
3 141552-021 SNAP RING 1
4 141552-113 ROLLER BEARING 1
5 J222960 NUT 1
6 J222179 WASHER 1
7 002756-001 SPACER 1
8 004012-075 SNAP RING 1
9 SEE GEAR GROUP REF
10 # 141552-065 COVER 1
11 # 008773-001 GASKET - COVER 1
12 # 004012-030 BOLT 2
13 # 100867 LOCKWASHER 2
#) Not shown.
135
(Sheet 1 / 2)
OUTPUT SHAFT GROUP @
136
(Sheet 2 / 2)
OUTPUT SHAFT GROUP @

1 141552-115 SHAFT 1
2 141552-116 BEARING 1
3 002411-001 BEARING 1
4 141552-117 RING 1
6 141552-022 WASHER 1
7 002913-001 SEAL 2
8 002752-001 STUD 4
9 002836-001 LOCKWASHER 4
10 002753-001 NUT 4
11 141552-118 CAP 1
12 J234922 GASKET 1
13 002756-001 SPACER 1
14 002535-001 O-RING 2
15 J222179 WASHER 2
16 J222960 NUT 2
17 GEAR - Output REF
18 141552-002 OUTPUT FLANGE REF
19 141552-002 OUTPUT FLANGE REF
137
(Sheet 1 / 2)
AUXILIARY PUMP DRIVE GROUP @
138
(Sheet 2 / 2)
AUXILIARY PUMP DRIVE GROUP @

1 141552-039 SUPPORT pump drive bearing 1
2 141552-040 BOLT 1
3 141552-041 PIN 1
6 141552-044 GEAR aux pump drive 1
7 141552-045 PUMP COVER 1
8 141552-046 GASKET 1
9 141552-047 BOLT 2
10 002527-001 LOCKWASHER 2
139
(Sheet 1 / 2)
PUMP DRIVE GROUP @
140
(Sheet 2 / 2)
PUMP DRIVE GROUP @

1 141552-039 SUPPORT pump drive bearing 1
2 141552-041 PIN 1
3 141552-040 BOLT 1
6 141552-048 GEAR - CHARGING PUMP DRIVE 1
7 141552-049 GEAR - PUMP DRIVE IDLER 1
8 141552-050 SHAFT 1
9 005331-001 BALL 1
10 001801-019 BEARING 1
141
(Sheet 1 / 2)
FORWARD SHAFT GROUP @ Before 2004
142
(Sheet 2 / 2)
FORWARD SHAFT GROUP @ Before 2004

1 141552-099 FORWARD SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 8
6 141552-084 OUTER DISC 8
7 141552-085 SPACER 1
9 141552-086 SNAP RING 1
11 141552-093 SNAP RING 1
12 004502-069 PISTON RING 2
13 141552-100 BEARING 1
14 141552-101 BALL BEARING 1
17 GEAR - 1st DRIVE REF
143
(Sheet 1 / 2)
REVERSE IDLER GROUP @
144
(Sheet 2 / 2)
REVERSE IDLER GROUP @

1 141552-123 SHAFT 1
2 J247664 REVERSE IDLER GEAR BEARING ASS'Y 1
3 141552-125 WASHER 1
4 141552-126 RETAINER NUT 1
5 141552-127 RETAINING WASHER 1
6 005332-001 LOCKBALL 1
7 141552-128 GEAR - Reverse Idler 1
8 * 141552-129 O-RING 1
145
(Sheet 1 / 2)
REVERSE & 2nd SHAFT GROUP @ Before 2004
146
(Sheet 2 / 2)
REVERSE & 2nd SHAFT GROUP @ Before 2004

1 141552-078 REVERSE & 2nd SHAFT ASSEMBLY 1
8 141552-083 INNER DISC 8
9 141552-083 INNER DISC 6
10 141552-084 OUTER DISC 8
11 141552-084 OUTER DISC 6
12 141552-085 SPACER 1
14 141552-086 SNAP RING 2
18 004502-084 SNAP RING 1
19 141552-089 BEARING 1
20 141552-090 BEARING 1
22 141552-092 BEARING 1
24 004502-095 SNAP RING 1
25 004502-069 PISTON RING 3
26 141552-093 SNAP RING 1
27 141552-094 HUB - 2nd CLUTCH 1
28 004502-084 SNAP RING 1
30 141552-096 RETAINER 1
32 141552-098 SPACER 1
33 GEAR - REVERSE GROUP REF
147
(Sheet 1 / 2)
3rd SHAFT GROUP @ Before 2004
148
(Sheet 2 / 2)
3rd SHAFT GROUP @ Before 2004

1 141552-120 3rd SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 6
6 141552-084 OUTER DISC 6
8 141552-086 SNAP RING 1
11 004502-084 SNAP RING 1
13 * 141552-092 BEARING 1
14 004502-095 SNAP RING 1
15 004502-069 PISTON RING 1
16 141552-121 HUB - 3rd Clutch 1
17 141552-122 RETANING RING 1

149
(Sheet 1 / 2)
3rd SHAFT GROUP @ After 2004
150
(Sheet 2 / 2)
3rd SHAFT GROUP @ After 2004

1 141552-120 3rd SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 6
6 141552-084 OUTER DISC 6
8 141552-086 SNAP RING 1
11 004502-084 SNAP RING 1
13 * 141552-092 BEARING 1
14 004502-095 SNAP RING 1
15 004502-069 PISTON RING 2
16 141552-121 HUB - 3rd Clutch 1
17 141552-122 RETANING RING 1

151
(Sheet 1 / 2)
CHARGING PUMP & FILTER GROUP @
152
(Sheet 2 / 2)
CHARGING PUMP & FILTER GROUP @

1 008563-016 CHARGING PUMP 1
2 204291 FILTER - Spin-on TRANS 1
3 141552-037 GASKET - TRANS(CHG PUMP) 1
4 005382-043 O-RING - TRANS(CHG PUMP) 1
5 141552-038 BOLT 5
6 004502-026 LOCKWASHER 5
153
(Sheet 1 / 2)
CONTROL VALVE GROUP @
154
(Sheet 2 / 2)
CONTROL VALVE GROUP @

1 391016-42 CONTROL VALVE ASS'Y ( Page 156 ) 1
2 141552-130 DETENT SPRING 2
3 002317-001 DETENT BALL 2
4 802819 GASKET 1
5 115059 BOLT 9
155
391016-42
(Sheet 1 / 2)
CONTROL VALVE ASS'Y
156
391016-42
(Sheet 2 / 2)
CONTROL VALVE ASS'Y

7 391016-32 CONTROL VALVE HOUSING ASS'Y ( Page 158 ) 1
8 391016-40 VALVE SPOOL 1
9 391016-33 VALVE SPOOL STOP 1
10 391016-41 CONTROL VALVE SPRING 1
11 002642-001 PLUG 1
157
391016-32
(Sheet 1 / 2)
CONTROL VALVE HOUSING ASS'Y
158
391016-32
(Sheet 2 / 2)
CONTROL VALVE HOUSING ASS'Y

12 391016-38 FORWARD & REVERSE VALVE SPOOL 1
13 391016-28 SPOOL & PLUG ASS'Y 1
14 a 004381-007 PLUG 1
15 391016-35 NEUTRAL SWITCH 1
16 391016-34 PIN 1
17 391016-30 SEAL 2
18 391016-31 PIPE PLUG 4
19 391016-33 VALVE SPOOL STOP 2
159
019998-001
(Sheet 1 / 2)
ELECTRIC SHIFT VALVE
160
019998-001
(Sheet 2 / 2)
ELECTRIC SHIFT VALVE

1 015632-001 SOLENOID 4
1-A 010782-079 O-RING 4
1-B 010782-080 O-RING 4
1-C 010782-081 O-RING 4
1-D 010782-082 O-RING 4
2 001801-010 PIPE PLUG 8
3 ! BODY 1
4 019998-014 COVER 1
5 031361-112 CAPSCREW - M5X10 10
6 ! PLUG 9
161
013208-002
(Sheet 1 / 8)
COOLING ASS'Y
162
013208-002
(Sheet 2 / 8)
COOLING ASS'Y
1 014971-001 RADIATOR ASS'Y ( Page 170 ) 1
2 015417-001 FAN ASS'Y ( Page 176 ) 1
3 017437-001 SURGE TANK ( Page 174 ) REF
4 391081-155 T-BOLT CLAMP - 2" 8
5 018091-001 COUPLING - 2" 3
6 391204-6 ADAPTER - PIPE TO HOSE, 1/4"NPT 5
7 802996 ADAPTER - 3/4"NPT x 7/8" HOSE 1
8 009590-001 T-BOLT CLAMP -1 1/4 2
9 007371-001 HOSE CLAMP - 0.375" TO 0.875" 5
10 015985-001 RUBBER ELBOW - 2" 1
11 019756-001 OUTLET PIPE 1
12 019799-001 COOLING PIPE 1
13 015982-001 COOLING PIPE - RAD INLET 1
14 020660-001 VENT HOSE 1
15 020663-001 VENT HOSE 1
16 020661-001 RAD FILL HOSE 1
17 020666-001 HHCS - M10 1.50X85 GR10.9 4
18 114557 FLATWASHER - M10 4
20 019514-001 FAN SPACER 1
21 012034-001 HOSE CONNECTOR 1
24 138189 WASHER -2 O.D. 4
25 019517-001 RAD MOUNT 1
26 019747-001 UPPER RAD SUPPORT 2
27 803228 THREADED ROD - 8 1/4" LG 2
28 012678-001 RAD TIE ROD BUSHING 4
29 019748-001 UPPER RAD MOUNT 2
30 019751-001 BELT GUARD 1
31 303450 TAP BLOCK 2
32 100157 HHCS - 0.375-16NC X 1.000 GR8 2
33 103573 HHCS - 0.500-13NC X 1.000 GR8 4
34 103572 HHCS - 0.5-13NC X1.250 GR8 4
35 125578 HHCS - 5/8"-11NC X 3 1/2" GR.8 4
36 112334 HHCS - .75-10NC X 1.5 GR8 4
37 104199 NUT HEX - 0.500-13NC GR8 8
38 106473 FLAT WASHER - 0.375, L9 2
39 105992 FLAT WASHER - 0.500 A325 16
40 107888 FLAT WASHER - 0.625 L9 4
41 103592 FLATWASHER - 0.75" A325 4
43 131017 HOSE CLAMP - TB188 2
163
013208-002
(Sheet 3 / 8)
COOLING ASS'Y
164
013208-002
(Sheet 4 / 8)
COOLING ASS'Y
44 020611-001 RAD GUARD ( Page 178 ) 1
45 109208 ADAPTER 2088-12-12 1
46 020662-001 VENT PIPE HOSE 1
47 104081 ADAPTER 1
165
013208-002
(Sheet 5 / 8)
COOLING ASS'Y
166
013208-002
(Sheet 6 / 8)
COOLING ASS'Y
1 014971-001 RADIATOR ASS'Y ( Page 170 ) 1
2 015417-001 FAN ASS'Y ( Page 176 ) 1
3 017437-001 SURGE TANK ( Page 174 ) REF
4 391081-155 T-BOLT CLAMP - 2" 8
5 018091-001 COUPLING - 2" 3
6 391204-6 ADAPTER - PIPE TO HOSE, 1/4"NPT 5
7 802996 ADAPTER - 3/4"NPT x 7/8" HOSE 1
8 009590-001 T-BOLT CLAMP -1 1/4 2
9 007371-001 HOSE CLAMP - 0.375" TO 0.875" 5
10 015985-001 RUBBER ELBOW - 2" 1
11 019756-001 OUTLET PIPE 1
12 019799-001 COOLING PIPE 1
13 015982-001 COOLING PIPE - RAD INLET 1
14 020660-001 VENT HOSE 1
15 020663-001 VENT HOSE 1
16 020661-001 RAD FILL HOSE 1
17 020666-001 HHCS - M10 1.50X85 GR10.9 4
18 114557 FLATWASHER - M10 4
20 019514-001 FAN SPACER 1
21 012034-001 HOSE CONNECTOR 1
24 138189 WASHER -2 O.D. 4
25 019517-001 RAD MOUNT 1
26 019747-001 UPPER RAD SUPPORT 2
27 803228 THREADED ROD - 8 1/4" LG 2
28 012678-001 RAD TIE ROD BUSHING 4
29 019748-001 UPPER RAD MOUNT 2
30 019751-001 BELT GUARD 1
31 303450 TAP BLOCK 2
32 100157 HHCS - 0.375-16NC X 1.000 GR8 2
33 103573 HHCS - 0.500-13NC X 1.000 GR8 4
34 103572 HHCS - 0.5-13NC X1.250 GR8 4
35 125578 HHCS - 5/8"-11NC X 3 1/2" GR.8 4
36 112334 HHCS - .75-10NC X 1.5 GR8 4
37 104199 NUT HEX - 0.500-13NC GR8 8
38 106473 FLAT WASHER - 0.375, L9 2
39 105992 FLAT WASHER - 0.500 A325 16
40 107888 FLAT WASHER - 0.625 L9 4
41 103592 FLATWASHER - 0.75" A325 4
43 131017 HOSE CLAMP - TB188 2
167
013208-002
(Sheet 7 / 8)
COOLING ASS'Y
168
013208-002
(Sheet 8 / 8)
COOLING ASS'Y
44 020611-001 RAD GUARD ( Page 178 ) 1
45 109208 ADAPTER 2088-12-12 1
46 020662-001 VENT PIPE HOSE 1
47 104081 ADAPTER 1
169
014971-001
(Sheet 1 / 4)
RADIATOR ASS'Y
170
014971-001
(Sheet 2 / 4)
RADIATOR ASS'Y
1 014971-010 RADIATOR 1
2 014971-011 FAN SHROUD 1
3 014971-012 FUEL COOLER ASS'Y 1
4 014971-013 FAN RING 1
5 002694-016 FLATWASHER - 3/8 39
6 002694-012 BOLT - 3/8-16 X 1, GR5 26
7 014971-014 COVER 1
8 014971-015 FAN GUARD 1
9 017437-001 SURGE TANK ( Page 174 ) 1
10 006740-009 HEX NUT 12
11 011490-010 BOLT 1
171
014971-001
(Sheet 3 / 4)
RADIATOR ASS'Y
172
014971-001
(Sheet 4 / 4)
RADIATOR ASS'Y
1 014971-010 RADIATOR 1
2 014971-011 FAN SHROUD 1
3 014971-012 FUEL COOLER ASS'Y 1
4 014971-013 FAN RING 1
5 002694-016 FLATWASHER - 3/8 39
6 002694-012 BOLT - 3/8-16 X 1, GR5 26
7 014971-014 COVER 1
8 014971-015 FAN GUARD 1
9 017437-001 SURGE TANK ( Page 174 ) 1
10 006740-009 HEX NUT 12
11 011490-010 BOLT 1
173
017437-001
(Sheet 1 / 2)
SURGE TANK
174
017437-001
(Sheet 2 / 2)
SURGE TANK
1 017437-002 TANK 1
2 391015-5 CAP - 7 PSI 1
3 017437-003 HOSE - OVERFLOW 1
4 017437-004 HOSE CLIP 3
5 017437-005 SIGHT GAUGE 1
175
015417-001
(Sheet 1 / 2)
FAN ASS'Y
176
015417-001
(Sheet 2 / 2)
FAN ASS'Y
1 009649-002 FAN BLADE 9
2 019631-011 HUBSET 1
177
020611-001
(Sheet 1 / 2)
RAD GUARD
178
020611-001
(Sheet 2 / 2)
RAD GUARD
1 101988 HSS - .125W 50W REF
2 101988 HSS - .125W 50W REF
3 102400 PLATE - 0.750 HRS G40.21-50W REF
4 104189 PLATE - 0.625 HRS G40.21-50W REF
5 109491 HHCS - 1/2-13 UNC x 2" LG GR8 1
6 105992 FLAT WASHER - 0.500 A325 2
7 104199 NUT HEX - 0.500-13NC GR8 1
179
010761-004
(Sheet 1 / 4)
EXHAUST ASS'Y
180
010761-004
(Sheet 2 / 4)
EXHAUST ASS'Y
1 009063-001 PURIFIER / MUFFLER ( Page 184 ) 1
2 016011-002 PURIFIER MOUNT ASS'Y ( Page 186 ) 1
3 019895-001 MUFFLER SUPPORT BRACKET 1
4 016033-001 ADAPTER - 3" 1
5 019870-001 CLAMP - V-BAND 2.75 1
6 019885-001 EXHAUST PIPE - TAIL 1
7 019883-001 EXHAUST PIPE - TURBO OUT 1
8 019884-001 EXHAUST PIPE - MUFFLER IN 1
9 019886-001 EXHAUST WRAP 1
10 011668-001 EXHAUST BELLOWS - 3" 1
11 803277 CLAMP TORCTITE - 3" 4
12 019887-001 CLAMP 1
13 100141 SHCS - 0.500-13NC X 2.000 GR8 2
14 115935 HHCS - 0.375-16NC x 1.5 GR8 6
15 115938 NUT - 0.375-16NC GR8 6
16 106473 FLAT WASHER - 0.375, L9 12
181
010761-004
(Sheet 3 / 4)
EXHAUST ASS'Y
182
010761-004
(Sheet 4 / 4)
EXHAUST ASS'Y
1 009063-001 PURIFIER / MUFFLER ( Page 184 ) 1
2 016011-002 PURIFIER MOUNT ASS'Y ( Page 186 ) 1
3 019895-001 MUFFLER SUPPORT BRACKET 1
4 016033-001 ADAPTER - 3" 1
5 019870-001 CLAMP - V-BAND 2.75 1
6 019885-001 EXHAUST PIPE - TAIL 1
7 019883-001 EXHAUST PIPE - TURBO OUT 1
8 019884-001 EXHAUST PIPE - MUFFLER IN 1
9 019886-001 EXHAUST WRAP 1
10 011668-001 EXHAUST BELLOWS - 3" 1
11 803277 CLAMP TORCTITE - 3" 4
12 019887-001 CLAMP 1
13 100141 SHCS - 0.500-13NC X 2.000 GR8 2
14 115935 HHCS - 0.375-16NC x 1.5 GR8 6
15 115938 NUT - 0.375-16NC GR8 6
16 106473 FLAT WASHER - 0.375, L9 12
183
009063-001
(Sheet 1 / 2)
PURIFIER / MUFFLER
184
009063-001
(Sheet 2 / 2)
PURIFIER / MUFFLER
1 009063-002 CLAMP 3
2 009063-003 S.A.M. 1
3 009063-004 GASKET 3
4 009063-005 CENTER BODY 1
5 009063-100 CONE 2
185
016011-002
(Sheet 1 / 2)
PURIFIER MOUNT ASS'Y
186
016011-002
(Sheet 2 / 2)
PURIFIER MOUNT ASS'Y

1 019905-001 UPPER RING 1
2 013444-001 UPPER RING 1
3 106473 FLAT WASHER - 0.375, L9 4
4 115938 NUT - 0.375-16NC GR8 2
5 800734 HHCS - 3/8"-16NC X 2 1/2" GR.8 2
187
010760-005
(Sheet 1 / 2)
AIR INTAKE ASS'Y
188
010760-005
(Sheet 2 / 2)
AIR INTAKE ASS'Y

1 391081-62 AIR CLEANER - ASM W/VACUATOR ( Page 190 ) 1
2 391125-14 AIR FILTER INDICATOR 1
3 117370 REDUCING ELBOW - 5" to 4" 1
4 015940-001 ADAPTER 1
5 015996-001 PIPE - CAC, Engine In 1
6 009373-001 BLUE BELLOWS - 3", CAC 1
7 009590-012 T-BOLT CLAMP 4
8 015999-001 ADAPTER 1
9 015998-001 PIPE - CAC, Turbo Out 1
10 009372-001 BELLOWS - RED - 3" 1
11 391081-11 MOUNT BANDS - 12" 2
12 016777-001 TURBO OUT PIPE - #2 CAC 1
13 016774-001 SILICONE ELBOW - 3"X90, 4PLY 1
14 019816-001 AIR INTAKE PIPE 1
15 124697 HUMP REDUCER 1
16 019827-001 ELBOW PIPE 1
17 140352 AIR INLET HOOD 1
18 106473 FLAT WASHER - 0.375, L9 8
19 115938 NUT - 0.375-16NC GR8 4
20 100157 HHCS - 0.375-16NC X 1.000 GR8 4
21 009590-013 T-BOLT CLAMP 5
22 JTB425 T-BOLT CLAMP - 4 1/4 - 4 9/16 2
23 009590-021 T-BOLT CLAMP 1
24 134928 ADAPTER - 2240-2-4 1
25 119592 ADAPTER - 2022-2-4 1
26 103792 ADAPTER - 2071-4-4 1
27 133483 HOSE ASS'Y - 4MP ST x ST x 70" 1
189
391081-62
(Sheet 1 / 2)
AIR CLEANER - ASM W/VACUATOR
190
391081-62
(Sheet 2 / 2)
AIR CLEANER - ASM W/VACUATOR

1 P109296 DUST CUP - HORIZONTAL 1
2 391081-60 PRIMARY ELEMENT - Air Cleaner 1
3 391081-61 SAFETY ELEMENT - Air Cleaner 1
4 003448-001 CLAMP 1
5 002438-001 GASKET 1
6 201295-006 VACUATOR VALVE 1
7 391125-14 AIR FILTER INDICATOR 1
8 012480-001 WING NUT 1
9 FSL-1097 AIR FILTER OBSOLETE REF
191
019316-001
(Sheet 1 / 2)
FUEL SYSTEM
192
019316-001
(Sheet 2 / 2)
FUEL SYSTEM
2 391050-1 SHUT-OFF VALVE 1
3 016542-001 FITTING - #6, JIC M-M12X1.5M 2
4 016541-001 BONDED SEAL - M12 2
5 016728-001 PLUG -M12X1.5 1
6 034427-001 ADAPTER 2
7 101212 ADAPTER - 2083-6-6 1
8 018125-001 FUEL FILTER MOUNT 1
9 100290 ADAPTER - 2021-8-6 2
10 127028 HOSE ASS'Y - 6MP STRXSTRX56"LG 1
11 100297 ADAPTER - 2021-6-6 1
12 133493 HOSE ASS'Y - 6MP STX90X60"LG 1
13 101849 ADAPTER - 2024-8-6 2
14 101047 ADAPTER 2
15 114146 HOSE ASS'Y - 6MP STRX45X94 1
16 123874 HOSE ASS'Y - 6MP STx45x60"LG 1
193
010763-001
(Sheet 1 / 2)
FRONT AXLE ASS'Y
194
010763-001
(Sheet 2 / 2)
FRONT AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 196 ) 1
2 011945-001 BOLT 8
3 133389 FLATWASHER - 0.875 A325 16
4 800656 HEAVY HEX NUT - 7/8-14UNF 8
5 010799-001 AXLE TIE PLATE 2
6 011529-001 TIE PLATE 2
7 014111-001 SHEAR BLOCK 4
8 J103522 WHEEL NUT - 0.750-16NF-3A 16
195
010614-001
(Sheet 1 / 2)
AXLE ASS'Y
196
010614-001
(Sheet 2 / 2)
AXLE ASS'Y
1 010614-002 AXLE - D45NI ( Page 198 ) 1
2 010614-003 BRAKE ASS'Y ( Page 210 ) 2
3 011939-001 YOKE 1
197
010614-002
(Sheet 1 / 2)
AXLE - D45NI
198
010614-002
(Sheet 2 / 2)
AXLE - D45NI
1 BRAKE ASS'Y @ ( Page 200 ) 1
2 DIFFERENTIAL @ ( Page 202 ) 1
3 DIFFERENTIAL HOUSING & LOCK @ ( Page 206 ) 1
4 HYD. DIFF. LOCK CONTROL @ ( Page 208 ) 1
199
(Sheet 1 / 2)
BRAKE ASS'Y @
200
(Sheet 2 / 2)
BRAKE ASS'Y @
1 010614-004 OUTER HOUSING 1/2
2 010614-005 INNER HOUSING - R/H 1
3 010614-006 INNER HOUSING - L/H 1
4 002548-001 DISC ASSEMBLY 8
5 010614-007 INTERMEDIATE DISC 4
6 010614-008 DISC ASSEMBLY 2
7 010614-009 LINK 4
8 010614-010 BALL 12
9 010614-011 SPRING 8
10 010614-012 PIN 4
11 010614-013 JAM NUT 4
12 010614-014 CAPSCREW - 1/2"-13X4-3/4" 6/12
13 010614-015 STUD 2/4
14 010614-016 NUT - 1/2"-20 2/4
15 010614-017 TORQUE PIN 2
16 204829-001 ROD 2
17 010614-018 COTTER PIN 2
18 010614-019 CLEVIS PIN 2
19 010614-020 SEAL ASSEMBLY 2
201
(Sheet 1 / 4)
DIFFERENTIAL @
202
(Sheet 2 / 4)
DIFFERENTIAL @
1 010614-021 HOUSING ASS'Y - R/H 1
010614-022 HOUSING ASSEMBLY - L.H. 1
2 010614-023 PLUG LESS BRAKES 2
3 010614-024 PLANET RING GEAR 2
6 010614-025 CUP 2
7 010614-026 O-RING 2
8 010614-027 CAP 21
010614-028 CAPSCREW 1
9 010614-029 STUD 4
10 010614-030 NUT 4
11 010614-031 SHAFT & BOLT ASS'Y 2
12 010614-032 BOLT 16
13 010614-033 NUT AR
14 010614-034 SEAL 2
15 010614-035 CONE & ROLLER ASS'Y 2
17 010614-036 CASSETTE OIL SEAL 2
18 010614-037 CARRIER ASS'Y 2
19 010614-038 RETAINER 2
20-A 010614-040 CUP 2
21 010614-041 SHAFT 6
22 010614-042 PLANET GEAR 6
23 010614-043 WASHER 12
24 010614-044 BEARING KIT - PLANET GEAR AR
25 010614-045 SPACER 6
26 010614-046 GEAR 2
28 010614-047 SHAFT WASHER 2
29 010614-048 SHAFT LOCK 2
30 010614-049 HEX BOLT 2
35 010614-050 CUP - L.H. 1
36 010614-051 CUP - R.H. 1
37 010614-052 CONE & ROLLER ASS'Y - L.H. 1
38 010614-053 BEARING ASS'Y - R.H. 1
39 010614-054 CASE ASS'Y 1
40 010614-055 CAPSCREW 8
41 010614-056 GEAR SET 1
42 010614-057 BOLT 12
43 010614-058 NUT - G2 12
44 010614-059 DIFF. SIDE GEAR 1
45 010614-060 DIFF SIDE GEAR - R.H 1
46 010614-061 THRUST WASHER 2
203
(Sheet 3 / 4)
DIFFERENTIAL @
204
(Sheet 4 / 4)
DIFFERENTIAL @
47 010614-062 SPIDER 1
48 010614-063 PINION 4
49 010614-064 WASHER 4
50 010614-065 BUSHING 2
51 010614-066 ADAPTER 1
52 010614-067 SPRING 1
53 010614-068 COUPLING 1
54 010614-069 WASHER 1
55 010614-070 RING 1
56 010614-071 BEARING ASS'Y 1
57 010614-072 LOCK RING 1
59 010614-074 RETAINER ASS'Y 1
60 010614-075 BEARING CUP 1
61 010614-076 CUP 1
62 010614-077 WASHER - 9/16" 6
63 010614-078 CAPSCREW 6
65 006821-001 O-RING 1
66 006822-001 SEAL 1
67 006845-001 RETAINER 1
68 010614-079 HUB 1
69 010614-080 SEAL ASSEMBLY 1
70 010614-081 FLANGE 1
71 205951 SEAL 1
72 205952 WASHER 1
73 010614-082 NUT 1
76 010614-084 THRUST BLOCK 1
77 010614-085 LOCKWASHER 2
78 010614-086 CAP 2
79 010614-087 DIFFERENTIAL ASS'Y 1
80 010614-088 DIFF. SIDE GEAR 2
81 010614-089 RETAINER 2
82 010614-090 SPRING 2
83 010614-091 COUPLING & RING SET 2
84 010614-092 SPIDER & CAM 1
205
(Sheet 1 / 2)
DIFFERENTIAL HOUSING & LOCK @
206
(Sheet 2 / 2)
DIFFERENTIAL HOUSING & LOCK @

1 010614-095 OPERATING LEVER 1
2 010614-096 LOCKING PIN 1
3 010614-097 SHAFT 1
4 010614-098 SHAFT SEAL 1
5 010614-099 FORK 1
010614-100 JAM NUT - 3/8" - 24 1
6 010614-101 SET SCREW 1
7 010614-102 STD. HOUSING 1
8 010614-103 PLUG - 3/4"-14 1
9 010614-104 PLUG 1
10 010614-104 PLUG 1
11 010614-104 PLUG 1
12 010614-105 PLUG 1
207
(Sheet 1 / 2)
HYD. DIFF. LOCK CONTROL @
208
(Sheet 2 / 2)
HYD. DIFF. LOCK CONTROL @

1 010614-107 SNAP RING 1
2 010614-108 PLUG 1
3 010614-109 O-RING 1
4 010614-110 PLUNGER 1
5 010614-111 O-RING 1
6 010614-112 SPRING WASHER 4
7 010614-113 ROD 1
8 010614-114 BODY 1
9 010614-115 PLUG 1
10 010614-116 SHAFT 1
11 010614-101 SET SCREW 1
12 010614-100 JAM NUT - 3/8" - 24 1
13 010614-117 FORK 1
14 010614-118 O-RING 1
15 010614-119 BOLT - 5/16"-18X1" 2
209
010614-003
(Sheet 1 / 2)
BRAKE ASS'Y
210
010614-003
(Sheet 2 / 2)
BRAKE ASS'Y
1 a O-RING REF
2 HOUSING REF
3 a BACK UP RING REF
4 a O-RING REF
5 a O-RING REF
7 PISTON REF
8 SPRING REF
9 a O-RING REF
10 BLEEDER SCREW REF
11 PISTON REF
13 a CUP REF
15 a O-RING REF
16 STOP REF
17 a O-RING REF
18 END PLUG REF
19 RETAINER REF
20 LOCK NUT REF
21 SPRING REF
22 a GASKET REF
23 END PLUG REF
a) Items included in Repair Kit # 010614-173.
211
010764-001
(Sheet 1 / 4)
REAR AXLE ASS'Y
212
010764-001
(Sheet 2 / 4)
REAR AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 196 ) 1
2 010900-001 OSC. AXLE 1
3 134716 AXLE CRADLE PIN 2
6 391410-6 FLATWASHER - 1.25" 2
7 102699 NUT 2
8 112558 BOLT - HHCS 7/8-14NFX10 GR8 8
9 133389 FLATWASHER - 0.875 A325 16
10 800656 HEAVY HEX NUT - 7/8-14UNF 8
11 J103522 WHEEL NUT - 0.750-16NF-3A 16
12 014111-001 SHEAR BLOCK 4
13 109491 HHCS - 1/2-13 UNC x 2" LG GR8 16
14 105992 FLAT WASHER - 0.500 A325 16
213
010764-001
(Sheet 3 / 4)
REAR AXLE ASS'Y
214
010764-001
(Sheet 4 / 4)
REAR AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 196 ) 1
2 010900-001 OSC. AXLE 1
3 134716 AXLE CRADLE PIN 2
6 391410-6 FLATWASHER - 1.25" 2
7 102699 NUT 2
8 112558 BOLT - HHCS 7/8-14NFX10 GR8 8
9 133389 FLATWASHER - 0.875 A325 16
10 800656 HEAVY HEX NUT - 7/8-14UNF 8
11 J103522 WHEEL NUT - 0.750-16NF-3A 16
12 014111-001 SHEAR BLOCK 4
13 109491 HHCS - 1/2-13 UNC x 2" LG GR8 16
14 105992 FLAT WASHER - 0.500 A325 16
215
019317-001
(Sheet 1 / 2)
DRIVELINES ASS'Y
216
019317-001
(Sheet 2 / 2)
DRIVELINES ASS'Y
1 010726-002 DRIVELINE - FRONT AXLE ( Page 218 ) 1
2 207203-001 PILLOW BLOCK 1
3 006531-001 SHIM KIT 1
4 010726-008 ARTICULATION DRIVESHAFT ( Page 220 ) 1
5 010726-009 REAR DRIVESHAFT ( Page 222 ) 1
6 011564-001 DRIVELINE GUARD 2
7 011566-001 MOUNT 1
8 011565-001 DRIVELINE GUARD - MID-SHIP 1
9 103575 HHCS - 0.375-16NC X 1.25 GR8 2
10 103573 HHCS - 0.500-13NC X 1.000 GR8 2
11 110474 HHCS - 0.500-13NC X 1.750 GR8 2
12 109491 HHCS - 1/2-13 UNC x 2" LG GR8 4
13 104199 NUT HEX - 0.500-13NC GR8 4
14 106473 FLAT WASHER - 0.375, L9 2
15 105992 FLAT WASHER - 0.500 A325 12
16 001096-001 FLANGE BOLT - 12PT 0.375-24NF X 1.750 24
217
010726-002
(Sheet 1 / 2)
DRIVELINE - FRONT AXLE
218
010726-002
(Sheet 2 / 2)
DRIVELINE - FRONT AXLE

1 391054-113 U-JOINT 1
219
010726-008
(Sheet 1 / 2)
ARTICULATION DRIVESHAFT
220
010726-008
(Sheet 2 / 2)
ARTICULATION DRIVESHAFT
1 010726-105 U-JOINT 1
4 010726-110 U-JOINT 1
221
010726-009
(Sheet 1 / 2)
REAR DRIVESHAFT
222
010726-009
(Sheet 2 / 2)
REAR DRIVESHAFT
1 010726-105 U-JOINT 2
223
010743-008
(Sheet 1 / 2)
FRONT FRAME ASS'Y
224
010743-008
(Sheet 2 / 2)
FRONT FRAME ASS'Y

1 017748-001 FRONT FRAME 1
2 010898-001 FRONT JACK - L/H 1
3 010651-001 FRONT JACK - R/H 1
4 134591 EXTENSION CYLINDER ( Page 226 ) 1
5 139319 CLEVIS PIN 2
6 101052 HITCH CLIP PIN 2
7 137045 JACK CYLINDER ( Page 228 ) 2
8 136753 JACK PAD 2
9 107257 BOLT - 5/8 x 2 1/4" 12
10 105579 BOLT - 0.75-10NCX6.0 2
11 100661 STOVER LOCKNUT - 0.750-10NC 2
12 140149 STEP ASS'Y 2
13 139612 SEAT ASS'Y ( Page 230 ) 1
14 018300-001 BOOM MOUNT COVER 1
15 010805-001 FENDER - L/H 1
16 010806-001 FENDER - R/H 1
17 4W1121 LIGHT BRACKET 2
18 391091-14 CENTER BONDED MOUNT 4
19 391091-13 TAIL WASHER 4
20 010811-001 ROPS CANOPY ASSEMBLY ( Page 234 ) 1
21 012108-011 SCHEMATIC - HYDRAULIC - Front Jacks ( Page 240 ) 1
22 013942-001 OPERATOR CONSOLE 1
23 013998-001 COVER 1
24 013999-001 HOSE COVER 1
25 014000-001 HOSE GUARD - FLOOR 1
26 017746-001 DRILL CONSOLE 1
27 018982-001 GUAGE SPACER REF
28 013988-001 COVER - BULKHEAD ACCESS 1
29 014403-001 COVER - BRAKE PEDAL VALVE 1
30 017747-001 FRONT CONSOLE COVER 1
31 014583-001 COVER - REAR CONSOLE 1
33 138467 FILLER PLATE 6
225
134591
(Sheet 1 / 2)
EXTENSION CYLINDER
226
134591
(Sheet 2 / 2)
EXTENSION CYLINDER
2 204901 BARREL 1
3 203288 LOCKNUT 1
4 *a SEAL 2
5 201117 PISTON 1
6 *a SEAL 1
7 *a SEAL 1
8 *a SEAL 1
9 204902 GLAND 1
10 *a SEAL 1
11 *a SEAL 1
12 * 204903 STEM 1
13 * 204904 SEAL KIT 1

a) Items included in 204904.
227
137045
(Sheet 1 / 2)
JACK CYLINDER
228
137045
(Sheet 2 / 2)
JACK CYLINDER
2 205330 BARREL 1
3 205167 STEM NUT 1
4 * - BACKING RING 2
5 205242 PISTON 1
6 * - O-RING 1
7 * - SEAL 1
8 * - BACKING RING 1
9 * - O-RING 1
10 * - O-RING 1
11 205243 GLAND 1
12 * - SEAL 1
13 * - SEAL 1
14 205331 ROD 1
15 * 205143 COUNTERBALANCE VALVE 2

Items 4, 6, 7, 8, 9, 10, 12, 13 included in 205245
229
139612
(Sheet 1 / 4)
SEAT ASS'Y
230
139612
(Sheet 2 / 4)
SEAT ASS'Y
1 139612-051 FRAME - 'L' 1
2 139612-052 BRACKET - 'H' 1
3 139612-053 SUSPENSION BOX FRAME 1
4 139612-054 FRAME 1
5 139612-055 BASE PLATE 1
7 139612-057 SLIDE TRACK HANDLE KIT 1
8 a SLIDE TRACK HANDLE SHAFT 1
9 a RETAINER 1
10 a KNOB 1
11 a SPRING CLIP 1
12 a ROLL PIN - 3 X 20 1
13 139612-063 "U" PROFILE SLIDE TRACK BEARING 4
14 139612-064 KNOB 1
15 139612-065 PLASTIC BEARINGS 6
16 139612-066 SPOOLS 2
17 139612-067 SCREW AND KNOB 1
18 139612-068 RIVET 2
19 139612-069 SPACERS - FOR SPRING 2
20 139612-070 ROLL PIN 1
21 139612-071 LONG PIN 1
22 139612-072 SHORT PIN 1
23 139612-073 SHOCK ABSORBER 1
24 139612-074 CIRCLIP 4
25 139612-075 SPACER - M12 2
26 139612-076 SPACER - 7/16" 1
27 139612-077 BOLT - M8 X 20 1
28 139612-078 BOLT - M10 X 35 2
29 139612-079 BOLT - M8 X 15 8
30 139612-080 BUSHING 6
31 139612-081 BUMPER 2
32 139612-082 SPRING 2
33 139612-083 ROLL PIN - 3 X 14 1
34 139612-084 LOCK NUT - M10 1
35 139612-085 SCREW - 4.8 X 25 1
36 139612-086 SEAT CUSHION - BLK VINYL 1
37 139612-087 BACKREST CUSHION - BLK VINYL 1
38 139612-088 SWIVEL 1
39 139612-089 SWIVEL ADAPTER 1
40 001422-001 SEAT BELT - Retractable 1
a) Items included in 139612-057 Kit.
231
139612
(Sheet 3 / 4)
SEAT ASS'Y
232
139612
(Sheet 4 / 4)
SEAT ASS'Y
41 139612-045 SEATBELT BRACKET 1
233
010811-001
(Sheet 1 / 2)
ROPS CANOPY ASSEMBLY
234
010811-001
(Sheet 2 / 2)
ROPS CANOPY ASSEMBLY

1 010671-001 CANOPY 1
2 010684-001 CANOPY MOUNT 2
3 010685-001 OUTER TUBE - R/H 1
4 008247-001 PIN 4
5 205931 RETAINING RING 8
6 011153-001 BOLT 12
7 001307-002 CANOPY CYLINDER - R/H ( Page 236 ) 2
8 MC00135 HITCH CLIP REF
9 011962-001 OUTER TUBE - L/H 1
10 012153-011 HYDRAULIC SCHEMATIC - CANOPY ( Page 238 ) 1
235
001307-002
(Sheet 1 / 2)
CANOPY CYLINDER - R/H
236
001307-002
(Sheet 2 / 2)
CANOPY CYLINDER - R/H

2 205769-001 BARREL 1
3 205770-001 PILOT-TO-OPEN CHECK VALVE 1
4 203288 LOCKNUT 1
5 a SEAL 2
6 205771 PISTON 1
7 a SEAL 1
8 a SEAL 1
9 a SEAL 1
10 205772 GLAND 1
11 a SEAL 1
12 a SEAL 1
13 205773-001 ROD 1
14 * 205774 SEAL KIT 1

237
012153-011
(Sheet 1 / 2)
HYDRAULIC SCHEMATIC - CANOPY
238
012153-011
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - CANOPY

1 PLUMBING KIT REF
239
012108-011
(Sheet 1 / 2)
SCHEMATIC - HYDRAULIC - Front Jacks
240
012108-011
(Sheet 2 / 2)
SCHEMATIC - HYDRAULIC - Front Jacks

1 105333 PRESS. REDUCING / RELIEF VALVE ( Page 242 ) 1
2 010502-001 DIR. CONT. VALVE - 3 Bank ( Page 244 ) 1
3 PLUMBING KIT 1
241
105333
(Sheet 1 / 2)
PRESS. REDUCING / RELIEF VALVE
242
105333
(Sheet 2 / 2)
PRESS. REDUCING / RELIEF VALVE

1 * 202393 CARTRIDGE 1
2 * 102701 SEAL KIT 1
3 * 203004 CARTRIDGE - CHECK 1
4 * 200160 SEAL KIT 1
243
010502-001
(Sheet 1 / 2)
DIR. CONT. VALVE - 3 Bank
244
010502-001
(Sheet 2 / 2)
DIR. CONT. VALVE - 3 Bank

1 010499-002 INLET COVER 1
2 010499-003 COMPENSATOR 1
3 010499-004 WORKING SECTION KIT 1
4 010499-005 SPOOL 1
5 003156-012 SPOOL POSITIONER 1
6 003156-007 LEVER BOX 1
7 010499-006 PORT PLUGS 1
8 010500-002 RETURN COVER 1
9 003156-010 ASSEMBLING KIT 1
10 011246-001 OPTIONAL HANDLEVER 1
245
010744-001
(Sheet 1 / 2)
ARTICULATION ASS'Y
246
010744-001
(Sheet 2 / 2)
ARTICULATION ASS'Y
1 129945 PIN 2
2 391410-6 FLATWASHER - 1.25" 2
3 100819 NUT 2
5 129962 THRUST WASHER - 1/8" 4
6 129963 THRUST WASHER - 5/32" (IF REQUIRED) 4
7 129967 THRUST WASHER - 3/16" (IF REQUIRED) 4
8 009118-001 STEER CYLINDER PIN ASSEMBLY ( Page 248 ) 1
9 011154-001 STEER CYLINDER ( Page 250 ) 2
10 803113 LOCK BAR 1
11 011155-001 PIN 2
12 141666 HOSE WRAP - ARTICULATION 1
247
009118-001
(Sheet 1 / 2)
STEER CYLINDER PIN ASSEMBLY
248
009118-001
(Sheet 2 / 2)
STEER CYLINDER PIN ASSEMBLY

1 104466 SPHERICAL BEARING REF
2 134669 STEER CYLINDER PIN 4
3 101683 LOCKING PIN 4
4 100157 HHCS - 0.375-16NC X 1.000 GR8 4
249
011154-001
(Sheet 1 / 2)
STEER CYLINDER
250
011154-001
(Sheet 2 / 2)
STEER CYLINDER
1 011154-010 BARREL 1
2 011154-011 ROD 1
3 011154-012 GLAND 1
4 011154-013 PISTON 1
6 a PISTON SEAL 2
7 a WEAR RING 1
8 a O-RING 1
9 a BACK-UP RING 2
10 a O-RING 1
11 a BACK-UP RING 1
12 a WEAR RING 2
13 a ROD SEAL 1
14 a ROD WIPER 1
15 203351 BEARING 2
16 103768 PLUG - 900598-06 2
17 011154-016 SEAL KIT 1
a) included in seal kit 011154-016.
251
010745-008
(Sheet 1 / 2)
REAR FRAME ASSEMBLY
252
010745-008
(Sheet 2 / 2)
REAR FRAME ASSEMBLY

1 019318-001 REAR FRAME 1
2 011462-002 HYDRAULIC TANK ASS'Y ( Page 254 ) 1
3 011463-005 HOODS ASS'Y ( Page 258 ) 1
4 BATTERY X2 TBA REF
5 117106 RUBBER MAT 2
6 117130 THREADED ROD 4
7 135842 BATTERY HOLD DOWN 2
8 011475-007 POWER PACK ASS'Y ( Page 260 ) 1
9 119381 DRAW LATCH 1
10 120683 SHOULDER BOLT 1
11 105629 FIBROMOUNT 4
12 011457-001 CABLE GUIDE 1
13 006476-002 CABLE REEL ( Page 264 ) 1
14 012151-001 HYDRAULIC SCHEMATIC - CABLE REEL ( Page 272 ) 1
15 012152-001 HYDRAULIC SCHEMATIC - REAR JACKS ( Page 274 ) 1
16 137045 JACK CYLINDER ( Page 228 ) 2
17 136753 JACK PAD 2
18 110012 BOLT - 0.625-11NCX2.25 12
19 105579 BOLT - 0.75-10NCX6.0 2
20 100661 STOVER LOCKNUT - 0.750-10NC 2
21 013498-001 BATTERY TRAY 1
22 013499-001 CABLE REEL POST 1
23 013500-001 ELEC. PANEL MOUNT 1
24 011466-002 FUEL TANK ASS'Y ( Page 276 ) 1
26 016915-001 FILTER MOUNTS 1
253
011462-002
(Sheet 1 / 2)
HYDRAULIC TANK ASS'Y
254
011462-002
(Sheet 2 / 2)
HYDRAULIC TANK ASS'Y

1 020561-001 HYDRAULIC TANK 1
2 125232 OIL LEVEL SWITCH 1
3 121248 LEVEL SWITCH PLUG 1
4 022268-001 PRESSURIZED BREATHER 1
5 110482 MANIFOLD BLOCK KIT 1
6 117215 RETURN FILTER ( Page 256 ) 1
7 110331 RETURN FILTER MOUNT 1
8 103943 LEVEL GAUGE 1
9 138369 STRAINER - HYD 1
10 102422 O-RING 1
11 104023 ACCESS COVER 1
12 100207 PIPE PLUG - 3/4" (MAGNETIC) 1
13 103572 HHCS - 0.5-13NC X1.250 GR8 9
14 105992 FLAT WASHER - 0.500 A325 9
255
117215
(Sheet 1 / 2)
RETURN FILTER
256
117215
(Sheet 2 / 2)
RETURN FILTER
4 202649 COVER 1
5 * 200318 O-RING 2
6 202650 MAGNETS 2
7 205031 DIVERTER / BYPASS ASSEMBLY 1
8 202652 TUBE 1
9 * 202653 HANDLE 1
10 * 200319 O-RING 347 1
11 202654 HEAD 1
12 202884 FLANGE KIT 1
15 205033 BOWL 1
16 * 205032-002 ELEMENT ASS'Y - Return Filter 1
16-1 a 202889 GROMMET 1
16-2 a 005337-001 FILTER ELEMENT - 05Q 2
20 * 202658 GASKET 2
22 114489 BOLT 4
23 * 205034 INDICATOR 1
24 * 202659 O-RING 2
25 202660 CHECK VALVE 1

a) Included in Element Ass'y # 205032-002.
257
011463-005
(Sheet 1 / 2)
HOODS ASS'Y
258
011463-005
(Sheet 2 / 2)
HOODS ASS'Y
1 019674-001 SUPPORT - FRONT HOOD 1
2 019673-001 RAIL - LEFT HOOD 1
3 019676-001 HOOD RAIL - R/H 1
4 019675-001 HOOD - TOP 1
5 019677-001 HOOD - TOP, HINGED 1
6 100665 HHCS - 0.375-16NC X 0.750 GR8 8
7 100157 HHCS - 0.375-16NC X 1.000 GR8 5
8 115935 HHCS - 0.375-16NC x 1.5 GR8 8
9 100143 HHCS 0.375-16NC X 5.000 GR8 2
10 115938 NUT - 0.375-16NC GR8 10
11 106473 FLAT WASHER - 0.375, L9 34
259
011475-007
(Sheet 1 / 2)
POWER PACK ASS'Y
260
011475-007
(Sheet 2 / 2)
POWER PACK ASS'Y

2 129279-002 ELECTRIC MOTOR RWK - 60/460 ( Page 262 ) 1
3 119094 DRIVE COUPLING 1
4 202208 RUBBER INSERT REF
5 120916 COVER PLATE 2
6 001376-001 MOUNT 1
7 100665 HHCS - 0.375-16NC X 0.750 GR8 4
8 103585 BOLT - 0.75-10NCX3 4
9 103570 HHCS -0.500-13NC X 1.5 GR8 2
10 100131 HHCS - 0.625-1NC X 1.5 GR8 2
11 103576 HHCS - 0.625-11NCx1.750 GR8 4
12 100156 NUT HEX - 0.75-10NC GR8 4
13 106473 FLAT WASHER - 0.375, L9 6
14 105992 FLAT WASHER - 0.500 A325 2
15 102317 FLATWASHER - 0.625 A325 6
16 103592 FLATWASHER - 0.75" A325 8
17 103575 HHCS - 0.375-16NC X 1.25 GR8 2
261
129279-002
(Sheet 1 / 2)
ELECTRIC MOTOR RWK - 60/460
262
129279-002
(Sheet 2 / 2)
ELECTRIC MOTOR RWK - 60/460

1 129279 ELECTRIC MOTOR - 60 HP, 460V 1
2 014349-001 JUNCTION BOX - RND 1
263
006476-002
(Sheet 1 / 2)
CABLE REEL
264
006476-002
(Sheet 2 / 2)
CABLE REEL
1 006476-067 DRUM ASS'Y ( Page 266 ) 1
2 006476-064 COLLECTOR ASS'Y ( Page 268 ) 1
3 006476-066 TORQUE UNIT ( Page 270 ) 1
2A 006476-065 LIMIT SWITCH 1
265
006476-067
(Sheet 1 / 2)
DRUM ASS'Y
266
006476-067
(Sheet 2 / 2)
DRUM ASS'Y
1 006476-068 INNER RING 1
2 006476-005 WHEEL - EXT. 1
3 006476-004 WHEEL - INT. 1
4 006476-007 FLANGE 1
5 006476-069 TIE ROD - M10X345 10
6 010954-039 WASHER 60
7 008493-074 NUT - SELF-LOCKING 36
8 010954-012 SCREW 4
9 008493-042 SCREW 12
10 008493-073 NUT 4
267
006476-064
(Sheet 1 / 2)
COLLECTOR ASS'Y
268
006476-064
(Sheet 2 / 2)
COLLECTOR ASS'Y
1 006476-008 SLIPRING SUPPORT 1
2 006476-009 TIE ROD 3
3 006476-010 PVC TUBE 3
4 012768-016 RING INSULATOR 6
5 006476-011 BUSHING - RUBBER 15
6 006476-012 SLIPRING 5
7 006476-013 WIRING 1
8 006476-014 SCREW 5
9 006476-015 NUT 3
10 006476-016 BEARING 1
11 006476-017 CLAMP 5
12 008493-096 SCREW - S.S. 5
13 006476-018 BASE PLATE 1
14 006476-019 TIE ROD 4
15 006476-020 TUBE 4
16 006476-021 BRUSHGEAR 5
17 006476-022 LOWER HOUSING 1
18 008493-064 SCREW - S.S. 4
19 006476-023 SCREW 1
20 006476-024 GROUND 2
21 006476-025 LOCKWASHER 5
22 010954-021 WASHER 1
23 008493-069 LOCKWASHER - S.S. 7
24 008493-071 NUT 8
25 010954-019 WASHER 7
26 012768-019 NUT 15
27 006476-026 NUT 3
30 006476-027 UPPER HOUSING 1
31 006476-028 GASKET 1
32 008493-090 SHCS 2
34 008493-092 LABEL 1
35 006476-029 RIVET - S.S. 4
36 008493-095 HOUSING GASKET 1
269
006476-066
(Sheet 1 / 2)
TORQUE UNIT
270
006476-066
(Sheet 2 / 2)
TORQUE UNIT
1 006476-030 FLANGED SHAFT 1
2 006476-031 FRONT LEG 1
3 006476-032 OIL SEAL 1
4 006476-033 BEARING 1
5 006476-034 CIRCLIP 1
6 006476-035 GASKET 1
7 006476-036 KEY 1
8 006476-037 CLUTCH PLATE 1
9 006476-038 CROWN GEAR 1
10 006476-039 KEY 1
11 006476-040 CROWN GEAR 1
12 006476-041 SPRING HOLDER - CLUTCH 1
13 006476-042 SPRING 10
14 006476-043 SPRING HOLDER - DISC 1
15 006476-044 NUT 1
16 006476-045 BEARING 1
17 006476-046 CIRCLIP 1
18 006476-047 CARTER 1
19 006476-035 GASKET 1
20 006476-048 SEAL 1
21 006476-049 REAR LEG 1
22 006476-050 SCREW 4
23 006476-050 SCREW 4
24 006476-051 WORM SCREW 1
25 006476-052 BEARING 1
26 006476-053 LOCKWASHER 1
27 006476-054 NUT 1
28 006476-055 O-RING 1
29 006476-056 CAP 1
30 006476-057 SCREW 4
31 008493-030 BEARING 1
32 008493-027 O-RING 1
33 006476-058 BUSHING 1
34 008493-029 PLUG 1
35 008493-028 PLUG 1
36 008493-025 O-RING 1
37 006476-059 PIN 1
38 010954-030 ADAPTER BUSHING 1
39 006476-060 FLANGE COVER 1
40 006476-061 CODE LABEL 1
41 010954-057 RIVET 2
271
012151-001
(Sheet 1 / 2)
HYDRAULIC SCHEMATIC - CABLE REEL
272
012151-001
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - CABLE REEL

1 010502-001 DIR. CONT. VALVE - 3 Bank ( Page 244 ) 1
2 PLUMBING KIT REF
3 103483 SHUTTLE VALVE 1
273
012152-001
(Sheet 1 / 2)
HYDRAULIC SCHEMATIC - REAR JACKS
274
012152-001
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - REAR JACKS

1 PLUMBING KIT REF
275
011466-002
(Sheet 1 / 4)
FUEL TANK ASS'Y
276
011466-002
(Sheet 2 / 4)
FUEL TANK ASS'Y

1 013503-001 FUEL TANK 1
2 028933-001 COVER - FUEL GAUGE 1
3 013502-001 COVER - #2 1
4 604023 UPPER COVER GASKET 2
5 101837 PIPE COUPLING - 1/2" 2
6 802390 BREATHER VENT - 3/8" FUEL 1
7 127154 SIGHT GLASS c/w FLOATING BALL 3
9 014048-001 FILLER NECK 1
10 391048-2 SNAP ACTION FILLER CAP 1
11 391048-4 BRONZE STRAINER - 3" LG - FUEL 1
12 113547 PIPE NIPPLE - 2" 1
13 103925 PIPE COUPLING - 2" 1
14 024127-001 BULKHEAD 1
15 111461 ADAPTER - 2023-6-6 1
16 102456 HOSE ASS'Y - 5MP STX45X12" LG 1
17 028623-002 SENDER - FUEL LEVEL 24 VDC 1
18 028623-001 GAUGE 1
19 100157 HHCS - 0.375-16NC X 1.000 GR8 16
20 103573 HHCS - 0.500-13NC X 1.000 GR8 1
21 103572 HHCS - 0.5-13NC X1.250 GR8 4
22 106473 FLAT WASHER - 0.375, L9 16
23 105992 FLAT WASHER - 0.500 A325 5
277
011466-002
(Sheet 3 / 4)
FUEL TANK ASS'Y
278
011466-002
(Sheet 4 / 4)
FUEL TANK ASS'Y

1 013503-001 FUEL TANK 1
2 028933-001 COVER - FUEL GAUGE 1
3 013502-001 COVER - #2 1
4 604023 UPPER COVER GASKET 2
5 101837 PIPE COUPLING - 1/2" 2
6 802390 BREATHER VENT - 3/8" FUEL 1
7 127154 SIGHT GLASS c/w FLOATING BALL 3
9 014048-001 FILLER NECK 1
10 391048-2 SNAP ACTION FILLER CAP 1
11 391048-4 BRONZE STRAINER - 3" LG - FUEL 1
12 113547 PIPE NIPPLE - 2" 1
13 103925 PIPE COUPLING - 2" 1
14 024127-001 BULKHEAD 1
15 111461 ADAPTER - 2023-6-6 1
16 102456 HOSE ASS'Y - 5MP STX45X12" LG 1
17 028623-002 SENDER - FUEL LEVEL 24 VDC 1
18 028623-001 GAUGE 1
19 100157 HHCS - 0.375-16NC X 1.000 GR8 16
20 103573 HHCS - 0.500-13NC X 1.000 GR8 1
21 103572 HHCS - 0.5-13NC X1.250 GR8 4
22 106473 FLAT WASHER - 0.375, L9 16
23 105992 FLAT WASHER - 0.500 A325 5
279
010747-003
(Sheet 1 / 2)
TIRE AND RIM ASS'Y
280
010747-003
(Sheet 2 / 2)
TIRE AND RIM ASS'Y

1 140956 TIRE - 10:00 X 20 LUGGED SOFTUF 1
2 011478-002 RIM 1
281
017703-013
(Sheet 1 / 2)
SCHEMATIC - HYDRAULIC - INTEL II
282
017703-013
(Sheet 2 / 2)
SCHEMATIC - HYDRAULIC - INTEL II

1 138073 JOYSTICK VALVE ASS'Y ( Page 284 ) 3
2 139791 PRESSURE REDUCING VALVE ( Page 292 ) 1
4 138072 DRIFTER DIRECTIONAL VALVE ( Page 294 ) 1
5 104388 HIGH PRESSURE FILTER ( Page 296 ) 2
6 138069 HYDRAULIC PUMP - PVP48 ( Page 298 ) 1
7 138068 HYDRAULIC PUMP - PAVC 100 ( Page 310 ) 1
8 138952 HYDRAULIC PUMP - PVP16 ( Page 318 ) 1
11 105331 HEAT EXCHANGER - Hydraulic ( Page 320 ) 1
12 391358-22 SOLENOID CARTRIDGE - 3 Way / 2 Pos. 1
13 391358-25 BODY 1
14 391358-28 SOLENOID - 24V DC 1
15 114553 RELIEF VALVE ( Page 322 ) 1
17 391386-13 MANIFOLD - BRAKE PRESSURE 2
18 032292-002 GAUGE ASS'Y - 160 PSI ( Page 326 ) 1
20 145095-002 DRILL CONTROL MODIFICATION ( Page 330 ) 1
22 20983 PILOT VALVE ( Page 346 ) 1
23 106652 COUNTERBALANCE VALVE ( Page 348 ) 1
24 116069 ADAPTER - 0.030 1
25 138542 ADAPTER - 12-12-4 1
26 020234-001 ADAPTER - S3550-12-12 2
27 138397 ADAPTER KIT - SUCTION 1
28 PLUMBING KIT REF
29 38759 BASE PLATE 1
30 391093-16 CHECK VALVE 3
283
138073
(Sheet 1 / 2)
JOYSTICK VALVE ASS'Y
284
138073
(Sheet 2 / 2)
JOYSTICK VALVE ASS'Y

1 * 205965 HANDLE KIT ( Page 286 ) 1
2 LEVER LINK & MOUNT PLATE ASS'Y @ ( Page 288 ) 1
3 * 205964 DETENT KIT 1
4 SPRING ASSEMBLY @ ( Page 290 ) 1
285
205965
(Sheet 1 / 2)
HANDLE KIT
286
205965
(Sheet 2 / 2)
HANDLE KIT
99 a NUT REF
100 a BOOT REF
101 a KNOB REF
102 a HANDLE REF
a) No longer sold separately. Order 205965 Handle Kit.
287
(Sheet 1 / 2)
LEVER LINK & MOUNT PLATE ASS'Y @
288
(Sheet 2 / 2)
LEVER LINK & MOUNT PLATE ASS'Y @

25 a SCREW - M5X20 2
29 b SCREW - M5X12 2
58 a LEVER BRACKET 1
59 a LOCK WASHER 2
60 a SHAFT 1
61 a NUT - M5 2
62 a SET SCREW 2
63 a BEARING PLATE 1
66 b MOUNTING PLATE 1
67 205969 LEVER LINK KIT REF
a) Items included in Lever Link # 205969.

b) Items included in Mounting plate # 205973.
289
(Sheet 1 / 2)
SPRING ASSEMBLY @
290
(Sheet 2 / 2)
SPRING ASSEMBLY @
1 205974 RETURN SPRING 1
2 205975 SPRING PACK KIT 1
3 * 205976 PIN SET 1
5 205977 WIRE COIL 1
6 205978 GUIDE WASHER 1
7 205979 SPRING 1
8 *a 205980 PIN 1
9 *a 205981 BUSH 1
10 *a 205982 O-RING 1
11 *a 205983 SEALING RING 1
12 205984 COLLAR 1
13 205985 SPACER 1
14 205986 COLLAR 1
15 205987 WIRE COIL 1

a) Included in Pin Set # 205976.
291
139791
(Sheet 1 / 2)
PRESSURE REDUCING VALVE
292
139791
(Sheet 2 / 2)
PRESSURE REDUCING VALVE

2 * 200600 SEAL KIT 1
293
138072
(Sheet 1 / 2)
DRIFTER DIRECTIONAL VALVE
294
138072
(Sheet 2 / 2)
DRIFTER DIRECTIONAL VALVE

1 * 205856 PILOT DIR. VALVE - FD (sk#013646-020) 1
2 * 205857 DIRECT ACTING RELIEF VALVE 1
3 * 205858 DIRECTIONAL CONTROL VALVE SECTION 1
4 * 205859 PILOT OPERATED DIRECTIONAL CONTROL VALVE 2
6 * 201067 PRESSURE REDUCING VALVE 1
295
104388
(Sheet 1 / 2)
HIGH PRESSURE FILTER
296
104388
(Sheet 2 / 2)
HIGH PRESSURE FILTER

2 202961 INDICATOR PLATE 1
3 202891 DRIVE SCREW 2
6 * 104727 FILTER ELEMENT - HP 1
7 202892 SPRING 1
8 200558 O-RING 1
9 202962 BOWL 1
10 202894 DRAIN PLUG WITH O-RING 1
11 * 202963 SEAL KIT 1
12 200270 INDICATOR KIT - mechanical 1
297
138069
(Sheet 1 / 12)
HYDRAULIC PUMP - PVP48
298
138069
(Sheet 2 / 12)

1 206058 SWASHPLATE 1
2 206059 SLIPPER PLATE 1
3 * 206060 TRUNNION PIN 2
4 206061 BEARING - Trunnion 2
5 206062 TRUNNION PLATE 2
6 206063 SLIPPER RETAINER 1
7 201818 PISTON ASS'Y 11
8 * 201837 O-RING 2
9 206064 BALL SEAT 1
10 * 206065 BARREL PIN 3
12 206067 BARREL 1
13 206068 SPRING - BARREL 1
14 206069 WASHER - Spring 2
15 * 206070 RETAINING RING 1
16 206071 SWASH PLATE SPRING 1
17 * 206090 SWASH PLATE PIN 1
18 206072 SWASH SPRING GUIDE 1
19 206073 CARPLUG (DRAIN) 1
20 206074 SERVO POST 1
25 * 206078 NEEDLE BEARING 1
26 206100 HOUSING 1
27 * 206079 GASKET COVER 1
28 * 202979 ROLL PIN 1
29 * 201829 ROLL PIN 2
32 202983 PLUG - PORTING 1
33 206082 DRAIN PLUG 1
34 201839 BOLT 8
40 206083 SERVO PISTON 1
50 206084 SHAFT "B" SPLINE 1
57 206088 PORT PLATE - CW 1
58 206089 COVER - REAR PORT-RH 1
60 206085 CAPSCREW 4
61 206086 CAPLUG (PRESS) 1
62 206087 CAPLUG (SUCTION) 1
72 206091 MAX VOLUME SCREW 1
73 206092 JAM NUT 1
299
138069
(Sheet 3 / 12)
300
138069
(Sheet 4 / 12)

74 206093 RETAINING NUT 1
75 * 206094 O-RING 1
76 * 206095 O-RING 1
78 206096 SPLINE "A" PILOT 9T 1
87-A 206097 SHIPPING PLATE 1
87-B 206098 BOLT 2
90 201845 COMPENSATOR 1
95 * 206099 SHAFT SEAL - BUNA 1
96 138069-002 ADAPTER 1
301
138069
(Sheet 5 / 12)
302
138069
(Sheet 6 / 12)

8 * 201837 O-RING 2
10 * 206065 BARREL PIN 3
12 206067 BARREL 1
26 206100 HOUSING 1
28 * 202979 ROLL PIN 1
29 * 201829 ROLL PIN 2
34 201839 BOLT 8
73 206092 JAM NUT 1
303
138069
(Sheet 7 / 12)
304
138069
(Sheet 8 / 12)

75 * 206094 O-RING 1
76 * 206095 O-RING 1
87-B 206098 BOLT 2
96 138069-002 ADAPTER 1
305
138069
(Sheet 9 / 12)
306
138069
(Sheet 10 / 12)

8 * 201837 O-RING 2
10 * 206065 BARREL PIN 3
12 206067 BARREL 1
26 206100 HOUSING 1
28 * 202979 ROLL PIN 1
29 * 201829 ROLL PIN 2
34 201839 BOLT 8
73 206092 JAM NUT 1
307
138069
(Sheet 11 / 12)
308
138069
(Sheet 12 / 12)

75 * 206094 O-RING 1
76 * 206095 O-RING 1
87-B 206098 BOLT 2
96 138069-002 ADAPTER 1
309
138068
(Sheet 1 / 8)
HYDRAULIC PUMP - PAVC 100
310
138068
(Sheet 2 / 8)

1 * 202085 SHAFT SEAL 1
2 202964 BARREL 1
3 202965 BUSHING - BARREL 1
7 202969 SWASH PLATE 1
9 202971 SPRING SERVO 1
12 202974 TRUNNION CAP ASS'Y 2
14 * 202975 SPRING - MOD. 1
15 * 202976 SPRING - UPSTROKE 1
16 201862 RETAINER - SPRING 1
17 202977 SPOOL & SLEEVE ASS'Y 1
18 201861 AIR BLEED ASS'Y 1
20 * 202088 O-RING 1
21 * 202089 LOCK-NUT 1
22 * 202979 ROLL PIN 2
23 * 201829 ROLL PIN 2
24 201867 PLUG 2
28 * 202086 SNAP RING 1
29 * 200998 SNAP RING 3
38 203011 SHAFT-SPLINE ASS'Y 1
40 203012 FRONT HOUSING 1
41 203013 PORT PLATE 1
42 202987 TRUNNION HOUSING 1
46 202991 INLET PLATE 1
47 * 202992 O-RING 1
52 201872 ADJ. DIFF. ASS'Y 1
57 206141 MAX. VOLUME STOP 1
64 126777 ADAPTER KIT B-PAD 1
70 201883 PRESSURE COMPENSATOR ASS'Y 1
71 201884 TORQUE PLUG ASS'Y 1
311
138068
(Sheet 3 / 8)
312
138068
(Sheet 4 / 8)

1 * 202085 SHAFT SEAL 1
2 202964 BARREL 1
14 * 202975 SPRING - MOD. 1
20 * 202088 O-RING 1
21 * 202089 LOCK-NUT 1
22 * 202979 ROLL PIN 2
23 * 201829 ROLL PIN 2
24 201867 PLUG 2
28 * 202086 SNAP RING 1
29 * 200998 SNAP RING 3
47 * 202992 O-RING 1
52 201872 ADJ. DIFF. ASS'Y 1
313
138068
(Sheet 5 / 8)
314
138068
(Sheet 6 / 8)

1 * 202085 SHAFT SEAL 1
2 202964 BARREL 1
14 * 202975 SPRING - MOD. 1
20 * 202088 O-RING 1
21 * 202089 LOCK-NUT 1
22 * 202979 ROLL PIN 2
23 * 201829 ROLL PIN 2
24 201867 PLUG 2
28 * 202086 SNAP RING 1
29 * 200998 SNAP RING 3
47 * 202992 O-RING 1
52 201872 ADJ. DIFF. ASS'Y 1
315
138068
(Sheet 7 / 8)
316
138068
(Sheet 8 / 8)

1 * 202085 SHAFT SEAL 1
2 202964 BARREL 1
14 * 202975 SPRING - MOD. 1
20 * 202088 O-RING 1
21 * 202089 LOCK-NUT 1
22 * 202979 ROLL PIN 2
23 * 201829 ROLL PIN 2
24 201867 PLUG 2
28 * 202086 SNAP RING 1
29 * 200998 SNAP RING 3
47 * 202992 O-RING 1
52 201872 ADJ. DIFF. ASS'Y 1
317
138952
(Sheet 1 / 2)
318
138952
(Sheet 2 / 2)

15 202083 RETAINING RING 1
19 *a GASKET 1
23 *a GASKET 2
60 *a 202084 SHAFT SEAL 1
70 * 202071 SEAL KIT 1

319
105331
(Sheet 1 / 2)
HEAT EXCHANGER - Hydraulic
320
105331
(Sheet 2 / 2)
HEAT EXCHANGER - Hydraulic

1 200114 IN/OUT END BONNET 1
2 200115 RETURN END BONNET 1
3 203617 IN/OUT GASKET 1
4 203618 RETURN GASKET 1
5 200085 MOUNT BRACKET 1
321
114553
(Sheet 1 / 2)
RELIEF VALVE
322
114553
(Sheet 2 / 2)
RELIEF VALVE
1 114553-002 KNOB ADJUST 1
2 200160 SEAL KIT 1
3 004128-010 VALVE BODY 1
323
119683
(Sheet 1 / 2)
RELIEF VALVE
324
119683
(Sheet 2 / 2)
RELIEF VALVE
1 * 200160 SEAL KIT 1
2 * 203001 REPLACEMENT CARTRIDGE 1
325
032292-002
(Sheet 1 / 2)
GAUGE ASS'Y - 160 PSI
326
032292-002
(Sheet 2 / 2)

1 032292-001 HYD. GAUGE - 160 PSI 1
2 037124-001 U CLAMP ASS'Y 1
327
032295-002
(Sheet 1 / 2)
328
032295-002
(Sheet 2 / 2)

1 032295-001 HYD. GAUGE - 5000 PSI 1
2 037124-001 U CLAMP ASS'Y 1
329
145095-002
(Sheet 1 / 2)
DRILL CONTROL MODIFICATION
330
145095-002
(Sheet 2 / 2)
DRILL CONTROL MODIFICATION

1 020041-001 DRILL CONTROL ( Page 332 ) 1
3 144989 ADAPTER - TS 9059-04-04 1
5 002271-001 SEAL 1
331
020041-001
(Sheet 1 / 2)
DRILL CONTROL
332
020041-001
(Sheet 2 / 2)
DRILL CONTROL
1 PERCUSSION INLET PLATE @ ( Page 334 ) REF
2 V3 PART @ ( Page 336 ) REF
3 CENTRAL PART @ ( Page 338 ) REF
4 REGULATOR V4 @ ( Page 340 ) REF
5 FEED INLET PART @ ( Page 342 ) REF
6 020041-010 SEAL KIT REF
333
(Sheet 1 / 2)
PERCUSSION INLET PLATE @
334
(Sheet 2 / 2)
PERCUSSION INLET PLATE @

1 020041-011 REGULATOR BODY 1
2 020041-012 LOCKING PLATE 1
3 a 020041-013 O-RING 1
4 020041-014 SHCS - M6 4
5 020041-015 LINING 1
6 020041-016 SNAP RING 1
7 020041-017 SLIDE 1
8 61012 SPRING 1
9 020041-018 PLUG 1
10 53766 TIGHT RING 1
11 020041-019 STOP 1
12 a 86603 O-RING 1
13 17688 SETSCREW 1
14 18319 NUT 1
15 a 13006 O-RING 1
16 4344 PIN 2
17 a 37453 O-RING 3
18 020041-020 ADAPTER 1
19 020041-021 ADAPTER 4
20 020041-022 ADAPTER 4
21 020041-023 ADAPTER 1
22 020041-024 SHCS - M12 5
23 93742 PRESSURE SOCKET 1
24 020041-025 PLATE 1
25 020041-021 ADAPTER 2
26 020041-027 PLUG 1
27 020041-028 SHCS - M5 4
a) Included in Seal Kit # 020041-010.
335
(Sheet 1 / 2)
V3 PART @
336
(Sheet 2 / 2)
V3 PART @
1 48855 NUT - UNF 1/2" 1
2 020041-029 UNF 1/2" SCREW 1
3 020041-030 PLUG 1
4 16525 TIGHT RING 1
5 020041-031 SPRING SEAT 1
6 b 6848 O-RING 1
7 58291 SPRING 1
8 020041-032 SPRING GUIDE 1
9 020041-033 SHOULDERED RING 1
10 020041-034 SLIDE 1
11 020041-035 SELECTOR BODY 1
12 b 37453 O-RING 8
13 29976 THREADED PLUG 1
14 17906 RING 1
15 54408 ADJUSTING RING 1
16 40408 SPRING 1
17 020041-036 SLIDE 1
18 a 020041-038 REGULATOR BODY 1
19 18732 PLUG 1
20 020041-037 SHCS - M5 4
21 73879 ADAPTER 2
a) Includes plug 18732.

b) Included in Seal Kit #020041-010.
337
(Sheet 1 / 2)
CENTRAL PART @
338
(Sheet 2 / 2)
CENTRAL PART @
1 020041-039 EQUIPPED PLATE 1
2 a 021274-025 PLATE 1
3 a 024113-001 VALVE 1
4 g 13006 O-RING 3
5 g 86603 O-RING 2
6 g 3718 O-RING 3
7 020041-023 ADAPTER 2
8 020041-040 SCREW - M16 1
9 020041-041 THREADED PLUG 1
10 014383-033 PLUG 5
12 43581 SCREW 8
13 93498 PRESSURE LIMITER 1
14 h 37453 O-RING 2
15 93486 PRESSURE LIMITER 1
16 c 94694 SEAL KIT 1
17 93489 PLATE 1
18 i 37453 O-RING 2
19 93997 OIL RESTRICTOR 1
20 003819-010 ADAPTER - BSPP 1/4" 1
21 62922 FLOW REGULATOR 1
22 j O-RING 2
23 020041-042 SHCS - M5 4
24 015228-001 PRESSURE LIMITER 1
25 f 94694 SEAL KIT 1
a) Included in Equipped plate 020041-039.

c) Included in Pressure Limiter 93486.
f) Included in Pressure Limiter 94694.
g) Included in Seal Kit # 020041-010.
h) Included in Pressure Limiter 93498 & Seal kit # 020041-010.
i) Included in Plate 93489 & Seal Kit # 020041-010.
j) Included in Flow Regulator 62922 & Seal Kit #020041-010.
339
(Sheet 1 / 2)
REGULATOR V4 @
340
(Sheet 2 / 2)
REGULATOR V4 @
1 020041-043 HOUSING 1
2 020041-041 THREADED PLUG 1
3 93262 LINER 1
4 d 9656 O-RING 5
5 93263 SLIDE 1
6 020041-044 COVER 1
7 7557 BOLT 8
8 35442 SPRING 1
9 020041-045 COVER 1
10 020041-046 ADAPTER 1
11 020041-047 OIL RESTRICTOR - 13,6MM 1
12 018434-001 RING 1
13 014383-033 PLUG 1
14 020041-048 VALVE 2
15 94673 PRESSURE REDUCER 1
16 e 37453 O-RING 4
17 007528-001 LOCKING PLATE 1
18 f 37453 O-RING 4
19 007527-001 SHCS - M5 4
20 93698 DISTRIBUTOR BODY 1
21 93496 HYDRAULIC DISTRIBUTOR 1
22 c 94701 SEAL KIT 1
23 020041-049 ADAPTER 1
24 d 3601 O-RING 3
25 020041-050 SHCS - M5 4
26 d 13006 O-RING 2
27 4344 PIN 2
29 43637 SHIM 2
30 020041-051 PLUG 1
c) Included with Hydraulic Distributor 93496.

d) Included in Seal Kit # 020041-010.
e) Included in Pressure Reducer 94673 & Seal Kit # 020041-010.
f) Included with Locking Plate 007528-001 & Seal Kit #020041-010.
341
(Sheet 1 / 2)
FEED INLET PART @
342
(Sheet 2 / 2)
FEED INLET PART @

1 020041-052 HEX. SCREW - M12 5
2 020041-053 ADAPTER 2
3 020041-023 ADAPTER 2
4 020041-021 ADAPTER 1
343
032294-002
(Sheet 1 / 2)
344
032294-002
(Sheet 2 / 2)

1 032294-001 HYD. GAUGE - 3000 PSI, PNL MNT 1
2 037124-001 U CLAMP ASS'Y 1
345
20983
(Sheet 1 / 2)
PILOT VALVE
346
20983
(Sheet 2 / 2)
PILOT VALVE
10 023619-001 HOUSING ASS'Y 1
20 018442-001 PLUG 1
30 018444-001 RING 1
40 11365 DRAINING COCK 1
50 20911 CASE 1
60 018442-001 PLUG 1
70 018444-001 RING 1
80 11365 DRAINING COCK 1
90 20912 DIAPHRAGM 1
100 20913 SPRING 1
110 20982 PISTON 1
120 6848 O-RING 2
130 3713 O-RING 1
140 3718 O-RING 2
150 7558 SCREW 2
160 17205 HHCS - M 6 1.00X 25 GR 8.8 12
170 20909 VENTURI TUBE 1
347
106652
(Sheet 1 / 2)
COUNTERBALANCE VALVE
348
106652
(Sheet 2 / 2)
349
013195-031
(Sheet 1 / 2)
HYDRAULIC SCHEMATIC - Carrier
350
013195-031
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - Carrier

1 019222-001 HYDRAULIC PUMP - 45CC ( Page 352 ) 1
2 144419-003 PORT BLOCK 1
4 104388 HIGH PRESSURE FILTER ( Page 296 ) 1
5 010501-001 DIR. CONTROL VALVE - 1 Bank ( Page 354 ) 1
6 129468 DUAL COUNTER BALANCE VALVE ( Page 356 ) 1
7 391386-15 MANIFOLD - 5 Port 1
8 391008-62 L.S. CHARGE VALVE ( Page 358 ) 1
9 140099 PRESSURE SNUBBER - #4 1
10 391386-13 MANIFOLD - BRAKE PRESSURE 1
11 126212 DIRECTIONAL VALVE - 4W/2P, 24V ( Page 360 ) 2
12 144419 PORT BLOCK 1
14 391347-2 ACCUMULATOR - 1/2 Gal. 1
15 391008-76 BRAKE PEDAL ( Page 362 ) 1
17 004128-001 RELIEF VALVE ( Page 366 ) 1
18 PLUMBING KIT REF
19 391126-1 SHUT OFF VALVE 1
22 118608 HAND PUMP ( Page 370 ) 1
23 106111 BALL VALVE - 3/4" 1
24 130239 PRESSURE SWITCH 1
25 138414 ADAPTER 1
351
019222-001
(Sheet 1 / 2)
HYDRAULIC PUMP - 45CC
352
019222-001
(Sheet 2 / 2)
HYDRAULIC PUMP - 45CC

1 019222-010 ROTARY GROUP 1
2 019222-011 CONTROL PISTON 1
3 019222-012 PISTON ROD 1
5 019222-013 PUMP HOUSING 1
6 019222-014 PORT PLATE 1
7 019222-015 SWASHPLATE 1
8 019222-016 DRIVE SHAFT 1
9 LOCKING SCREW 1
10 SPRING 1
12 ADJUSTMENT SHIM 1
14 019222-017 STOP RING 1
15 019222-018 TAPERED-ROLLER BEARING 1
16 019222-019 TAPERED-ROLLER BEARING 1
17 LAGERSCHALE 2
20 019222-020 SHAFT SEAL RING 1
21 019222-021 O-RING 1
24 KANTSIL 1
27 ZYL.SCHR.M 4
31 019222-023 DOUBLE BREAK-OFF PIN 1
33 019222-024 CYLINDER PIN 1
34 LOCKING SCREW 1
35 019222-025 CONTROL VALVE 1
353
010501-001
(Sheet 1 / 2)
DIR. CONTROL VALVE - 1 Bank
354
010501-001
(Sheet 2 / 2)
DIR. CONTROL VALVE - 1 Bank

1 010499-002 INLET COVER 1
2 010499-003 COMPENSATOR 1
4 010501-002 SPOOL 1
6 003156-007 LEVER BOX 1
7 010499-006 PORT PLUGS 1
9 010501-003 ASSEMBLING KIT 1
10 011246-001 OPTIONAL HANDLEVER 1
355
129468
(Sheet 1 / 2)
DUAL COUNTER BALANCE VALVE
356
129468
(Sheet 2 / 2)
DUAL COUNTER BALANCE VALVE

1 * 206125-001 CARTRIDGE 2
2 * 200181 SEAL KIT 1
357
391008-62
(Sheet 1 / 2)
L.S. CHARGE VALVE
358
391008-62
(Sheet 2 / 2)
L.S. CHARGE VALVE

1 PLUG 1
2 a O-RING 1
3 SPRING 3
4 a POPPET 2
5 a O-RING 1
6 SLEEVE 1
7 a O-RING 1
8 a POPPET 1
9 SPRING 1
10 HOUSING 1
11 PLUG 1
12 a O-RING 1
13 SPRING 1
14 STOP 1
15 BALL 1
16 SPOOL 1
17 INSERT 1
18 a O-RING 1
19 a O-RING 1
20 BALL 1
21 RETAINER 1
22 SPRING 1
23 a PIN 1
24 SCREW 1
25 PLUG 1
26 STOP 1
27 SPRING 1
28 a STEEL BALL 1
29 ORIFICE 1
30 a O-RING 1
31 a O-RING 1
32 SLEEVE 1
33 a O-RING 1
34 PLUG 1
1
a) Items included in Repair Kit # 391008-73
359
126212
(Sheet 1 / 2)
DIRECTIONAL VALVE - 4W/2P, 24V
360
126212
(Sheet 2 / 2)
DIRECTIONAL VALVE - 4W/2P, 24V

1 * 105778 CONNECTOR - FEMALE(SERVICE) 1
2 201589 NUT 1
3 * 126212-002 SOLENOID COIL - 24V 1
4 * 126212-004 CARTRIDGE 1
5 * 207304 SEAL KIT 1
361
391008-76
(Sheet 1 / 2)
BRAKE PEDAL
362
391008-76
(Sheet 2 / 2)
BRAKE PEDAL
1 391008-44 BOOT REPAIR KIT 1
2 008428-001 VALVE ( Page 364 ) 1
3 023951-001 BRAKE PEDAL 1
4 391008-67 REPAIR KIT REF
363
008428-001
(Sheet 1 / 2)
VALVE
364
008428-001
(Sheet 2 / 2)
VALVE
1 391008-67 REPAIR KIT 1
365
004128-001
(Sheet 1 / 2)
RELIEF VALVE
366
004128-001
(Sheet 2 / 2)
RELIEF VALVE
1 004128-010 VALVE BODY 1
2 200160 SEAL KIT 1
3 SCREW ADJUST 1
367
111084
(Sheet 1 / 2)
RELIEF VALVE
368
111084
(Sheet 2 / 2)
RELIEF VALVE
2 * 200160 SEAL KIT 1
369
118608
(Sheet 1 / 2)
HAND PUMP
370
118608
(Sheet 2 / 2)
HAND PUMP
1 202487 CASING 1
3 202488 FRONT COVER 1
4 202489 ROTOR 1
6 202490 VANE 3
9 202491 PACKING NUT 1
10 202492 PUMP SHAFT 1
16 * 202493 SPRING 3
17 * 202494 TAPER PIN 3
18 100149 BOLT 4
19 124957 BOLT 1
23 202495 TWISTED PACKING 1
22A 202679 SUCTION PIPE ASS'Y 1
7A * 202486 HANDLE ASSEMBLY 1
371
013687-001
(Sheet 1 / 2)
HYD. SCHEMATIC - MTB Boom
372
013687-001
(Sheet 2 / 2)
HYD. SCHEMATIC - MTB Boom

1 100052 PILOT CHECK VALVE - SEE FSL-1026 4
2 101572 COUNTERBALANCE VALVE ( Page 374 ) 1
3 010500-001 DIR. CONTROL VALVE - 8 BANK ( Page 376 ) 1
4 105333 PRESS. REDUCING / RELIEF VALVE ( Page 242 ) 2
6 116069 ADAPTER - 0.030 1
7 002163-001 DUAL COUNTER BALANCE VALVE c/w shuttle ( Page 378 ) 1
8 PLUMBING KIT REF
9 012905-001 ADAPTER - S01099-06-06 4
10 116069-002 ADAPTER - 0.078" 1
11 116069-003 ADAPTER - 0.090" 1
12 121060 ADAPTER - 0.060 ORIFICE 7
13 012827-001 VELOCITY FUSE VALVE - 17GPM 2
14 012826-001 VELOCITY FUSE VALVE - 10GPM 2
373
101572
(Sheet 1 / 2)
374
101572
(Sheet 2 / 2)
375
010500-001
(Sheet 1 / 2)
DIR. CONTROL VALVE - 8 BANK
376
010500-001
(Sheet 2 / 2)
DIR. CONTROL VALVE - 8 BANK

1 032041-102 LEVER 4
2 010500-100 PLUG - 1/4 BSPP 1
3 032041-100 INLET SECTION 1
6 010499-006 PORT PLUGS 16
8 010500-101 BANKING KIT 1
9 032041-101 JOYSTICK 4
10 010499-005 SPOOL 5
11 003156-005 SPOOL 3
12 010500-004 SEAL KIT REF
377
002163-001
(Sheet 1 / 2)
DUAL COUNTER BALANCE VALVE c/w shuttle
378
002163-001
(Sheet 2 / 2)
DUAL COUNTER BALANCE VALVE c/w shuttle

1 * 002163-003 CARTRIDGE 2
2 002163-002 BODY 1
3 * 002163-004 SEAL KIT 1
379
140907-021
(Sheet 1 / 2)
TRANSMISSION SCHEMATIC
380
140907-021
(Sheet 2 / 2)
TRANSMISSION SCHEMATIC
1 100338 PIPE PLUG 1
2 141016 SPLIT FLANGE KIT 2
3 PLUMBING KIT REF
4 391280-11 TRANS. TEMP. SENDER 1
5 391403-267 PRESSURE SWITCH - 60 PSI 1
6 109705 PRESSURE SWITCH - 100 PSI 1
7 135799 NEUTRAL SWITCH 1
8 138204 TRANSMISSION PRESSURE SENDER - 400 PSI REF
9 802433 SWITCH MANIFOLD 1
381
020176-001
(Sheet 1 / 4)
ELECTRICAL SYSTEM
382
020176-001
(Sheet 2 / 4)
ELECTRICAL SYSTEM
1 020213-001 MAIN DASH ( Page 386 ) 1
2 020227-001 MOTOR CONTROL PANEL ( Page 390 ) 1
3 020228-001 HDW AND INTERCONNECTION ( Page 394 ) 1
4 106334 BATTERY 2
6 391303-35 THROTTLE PEDAL - Electric ( Page 408 ) 1
7 135824 MASTER DISCONNECT SWITCH 1
10 118587-002 HORN - 24V 1
11 120676 AUXILIARY START RELAY - 24V 2
13 142788 CIRCUIT BREAKER - 60A 1
14 802723 MOUNT PLATE - Circuit Breaker 1
21 102017 CABLE - 1/0 36'
22 108111 TERMINAL RING - 3/8 7
23 102194 RING TERMINAL - 1/2" 1
24 143409 BATTERY TERMINAL - Neg. 2
25 131269 TERMINAL COVER - BLACK 2
26 143408 BATTERY TERMINAL - Pos. 2
27 131270 TERMINAL COVER - 7/8" RED 2
28 144666 WIRE LOOM - 3/4" GREEN 36'
29 109466 WIRE - #8 Red 6'
30 144664 WIRE LOOM - 3/8" GREEN 6'
31 112763 RING TERMINAL - 3/8" 2
33 J24144 SOLENOID 1
34 142788-002 CIRCUIT BREAKER - 150A 1
35 018218-007 COOLANT LVL SWITCH KIT ( Page 414 ) 1
36 109623 LIGHT ASS'Y ( Page 416 ) 2
38 138204 TRANSMISSION PRESSURE SENDER - 400 PSI 1
383
020176-001
(Sheet 3 / 4)
ELECTRICAL SYSTEM
384
020176-001
(Sheet 4 / 4)
ELECTRICAL SYSTEM
1 020213-001 MAIN DASH ( Page 386 ) 1
2 020227-001 MOTOR CONTROL PANEL ( Page 390 ) 1
3 020228-001 HDW AND INTERCONNECTION ( Page 394 ) 1
4 106334 BATTERY 2
6 391303-35 THROTTLE PEDAL - Electric ( Page 408 ) 1
7 135824 MASTER DISCONNECT SWITCH 1
10 118587-002 HORN - 24V 1
11 120676 AUXILIARY START RELAY - 24V 2
13 142788 CIRCUIT BREAKER - 60A 1
14 802723 MOUNT PLATE - Circuit Breaker 1
21 102017 CABLE - 1/0 36'
22 108111 TERMINAL RING - 3/8 7
23 102194 RING TERMINAL - 1/2" 1
24 143409 BATTERY TERMINAL - Neg. 2
25 131269 TERMINAL COVER - BLACK 2
26 143408 BATTERY TERMINAL - Pos. 2
27 131270 TERMINAL COVER - 7/8" RED 2
28 144666 WIRE LOOM - 3/4" GREEN 36'
29 109466 WIRE - #8 Red 6'
30 144664 WIRE LOOM - 3/8" GREEN 6'
31 112763 RING TERMINAL - 3/8" 2
33 J24144 SOLENOID 1
35 018218-007 COOLANT LVL SWITCH KIT ( Page 414 ) 1
36 109623 LIGHT ASS'Y ( Page 416 ) 2
38 138204 TRANSMISSION PRESSURE SENDER - 400 PSI 1
385
020213-001
(Sheet 1 / 4)
MAIN DASH
386
020213-001
(Sheet 2 / 4)
MAIN DASH
1 020214-001 ENCLOSURE - RWK 1
2 020215-001 DECAL - MAIN DASH REF
3 010598-001 ENGINE MONITOR 1
4 010598-002 TERMINATOR 1
5 010598-003 CAN & POWER HARNESS 1
6 010598-004 CAN CONNECTOR 1
7 010598-005 POWER CONNECTOR 1
8 391053-29 CAP - Red 2
9 391053-28 PUSHBUTTON - 12V/24V N/C 2
10 144559 LED - Red 8
11 144580 LED - Amber 1
12 116508 KEYLESS SWITCH 1
13 116510 PUSHBUTTON 2
14 009444-001 PUSH / PULL BUTTON - GR 24VDC 3
15 015106-001 9 PIN CONNECTOR 1
17 100583 RAIL 2'
18 132324 HEATER - 24V DC / 15 W 1
19 132322 FAN - Panel Heating 1
20 001403-001 RELAY - 2 Pole 2
21 001403-002 RELAY BASE 2
22 144558 LED - Green 1
23 141734 END BARRIER 2
24 124701 TERMINAL BLOCK END 2
25 001138-001 TERMINAL BLOCK - T35 37
26 134734 CONTACT BLOCK - 2N.C./2N.O. 2
27 136196 PUSHBUTTON - Black 1
28 132822 CONNECTOR - 3/4" 90° 1
29 132820 CONNECTOR 1
30 138116 GAUGE - TRANS. OIL PRES. 1
31 391280-10 TRANS. OIL TEMP. GAUGE 1
32 015106-002 PIN - SOLID #16 9
33 116509-002 LIGHT SWITCH - Marine 2
35 015106-003 PROTECTIVE COVER 1
36 391074-13 DIODE 2
37 391419-2 TERMINAL PLUG 2
38 391419-1 TERMINAL BLOCK 2
39 391419-3 END COVER 1
41 136191 PUSHBUTTON - Red 1
387
020213-001
(Sheet 3 / 4)
MAIN DASH
388
020213-001
(Sheet 4 / 4)
MAIN DASH
42 001411-001 PUSH / PULL BUTTON - Brake 1
43 Q51371557 CIRCUIT BREAKER - 1A 1
389
020227-001
(Sheet 1 / 4)
MOTOR CONTROL PANEL
390
020227-001
(Sheet 2 / 4)
MOTOR CONTROL PANEL

1 020230-001 ENCLOSURE - RWK 1
2 112079 OPERATOR MECHANISM 1
3 127989 HANDLE MECHANISM 1
4 109710 MOTOR CIRCUIT PROTECTOR - 150AMP 1
5 134499 POWER SUPPLY - 120/24 2
6 107548 RECTIFIER 1
7 109907 RELAY - SOCKET 3
8 132322 FAN - Panel Heating 1
9 123904 PHASE VOLTAGE RELAY 1
10 100583 RAIL 3'
11 132175 FUSE BLOCK - 3 POLE 1
12 112098 ROD - 6" 1
13 138428 FUSE - 15A T.D. 2
14 102109 FUSE - 1/2 AMP 3
15 116115 TRANSFORMER 1
16 100566 MOUNTING CHANNEL 2'
17 144293 DECAL - 24V ONLY IN THIS SIDE 1
19 137420 TERMINAL BLOCK 60
21 100578 RELAY SOCKET 6
22 116557 RELAY - 24V 6
23 124086 TIMER RELAY - D.O.B. 3
24 101145 WIRE TROUGH 6'
25 101146 WIRE TROUGH COVER 6'
26 100569 CIRCUIT BREAKER - 10 AMP 4
27 106493 CIRCUIT BREAKER - 15 AMP 2
29 020574-010 CONTACTOR - 10HP@460/575,24VDC REF
30 020574-012 OVERLOAD - 6-10A REF
31 106395 CURRENT TRANSFORMER 1
32 106394 AMMETER 1
33 391280-1 HOURMETER 1
34 127940 WINDOW KIT 1
35 101342 ZENER DIODE 1
38 144559 LED - Red 1
39 144558 LED - Green 1
41 135035 DECAL - POWER ON/OFF 1
42 115143 FUSE - 10 AMP 3
391
020227-001
(Sheet 3 / 4)
MOTOR CONTROL PANEL
392
020227-001
(Sheet 4 / 4)
MOTOR CONTROL PANEL

46 135543-003 MOUNT PLATE 1
47 140297 DECAL - DANGER 1
48 136191 PUSHBUTTON - Red 1
49 128233 DECAL - EMERGENCY STOP 1
50 135036 DECAL - INCORRECT PHASE 1
51 128004 WIRE - #4 24'
52 020574-011 OVERLOAD - 4-6A REF
53 020574-014 STARTER - 24VDC 1
56 105993 POWER BLOCK 1
59 014385-101 DIVIDER - 10" 1
393
020228-001
(Sheet 1 / 2)
HDW AND INTERCONNECTION
394
020228-001
(Sheet 2 / 2)
HDW AND INTERCONNECTION

1 105022-002 CONNECTOR 1
2 101105 STRAIN RELIEF - 1/2" BROWN 5
3 134179-004 CONNECTOR - 1.5" LIQUID TITE FLEX 1
4 002299-001 REDUCER - 1 - 1/2 1
6 015262-001 CONNECTOR - 90° 1
7 101062 CABLE - #14/4 80'
8 101061 CABLE - #16/3 21'
9 101155 CABLE - #18/3 46'
10 103899 CABLE - #16/6 20'
11 144664 WIRE LOOM - 3/8" GREEN 65'
12 134179 CONDUIT - 1 1/4" 30'
14 109467-002 WIRE - #6 BLACK, 125C-600V 200'
15 108110 SERVIT CONNECTOR 9
16 108112 RING TERMINAL 4
17 124757 CABLE - 16/25 30'
18 123772 CABLE - 18/2 35'
19 119954 FITTING - 1/2" 1
20 100799 STRAIN RELIEF - BLUE 12
21 103285 CONNECTOR - Yellow 2
22 103895 COVER - Ground Fault 1
23 103274 RECEPTACLE - GFI 1
24 101075 BOX - Outlet 1
25 101470 PLUG - FEMALE TWISTLOCK 4
26 101469 PLUG - MALE TWISTLOCK 4
27 129579 TRAILING CABLE 20'
28 102019 CABLE - #16/3 124'
29 132822 CONNECTOR - 3/4" 90° 1
30 020220-001 MAIN HARNESS ( Page 396 ) 1
31 020217-001 POWER HARNESS ( Page 402 ) 1
32 004789-001 WIRE - #8 GREEN - TEW 35'
33 109506 WIRE NUT 1
34 013493-001 CONNECTOR - 26 SOCKET, CBL END 90 1
35 013494-001 CONNECTOR - 26 PIN, BULKHEAD 90 1
36 122921 REDUCER - 1" to 3/4" 1
37 015924-001 PLASTIC BUSHING - 1-1/2" 2
38 015919-001 PLASTIC BUSHING - 1-1/4" 1
395
020220-001
(Sheet 1 / 2)
MAIN HARNESS
396
020220-001
(Sheet 2 / 2)
MAIN HARNESS
1 020221-001 MAIN HARNESS - BOOM END ( Page 398 ) 1
2 020222-001 MAIN HARNESS - ENG END ( Page 400 ) 1
397
020221-001
(Sheet 1 / 2)
MAIN HARNESS - BOOM END
398
020221-001
(Sheet 2 / 2)
MAIN HARNESS - BOOM END

2 391358-29 CONNECTOR 3
3 133128 CONNECTOR - 3 Pin 3
4 133129 PIN c/w Seal 9
6 144667 WIRE LOOM -7/8" GREEN 2'
7 144664 WIRE LOOM - 3/8" GREEN 15'
8 144663 WIRE LOOM - 5/16 GREEN 20'
9 136196 PUSHBUTTON - Black 1
10 100799 STRAIN RELIEF - BLUE 1
11 131397 DECAL 1
12 133130 CONNECTOR - 3 Socket 2
13 001405-002 CONNECTOR - 48 PIN BULKHEAD 1
15 133131 SOCKET c/w Seal 8
16 144666 WIRE LOOM - 3/4" GREEN 1'
17 101108 REDUCER - 3/4" to 1/2" 1
18 100694 ENCLOSURE 1
19 142673 MOUNT PLATE - Electric Pump Switch 1
399
020222-001
(Sheet 1 / 2)
MAIN HARNESS - ENG END
400
020222-001
(Sheet 2 / 2)
MAIN HARNESS - ENG END

1 001406-001 CONNECTOR - 48 Pin Cable End 1
4 133129 PIN c/w Seal 9
6 144666 WIRE LOOM - 3/4" GREEN 9'
7 144664 WIRE LOOM - 3/8" GREEN 15'
8 144663 WIRE LOOM - 5/16 GREEN 30'
9 144665 WIRE LOOM - 1/2" GREEN 3'
11 012241-005 BACKSHELL - 90° 1
12 012241-003 CONNECTOR - 50 SOCKET 1
13 015098-001 CONNECTOR - 4 Pin Power 1
14 015098-002 WEDGE 1
15 391390-6 CONTACT 4
16 012241-002 SOCKET - 20# AWG 25
17 012241-004 SEALING PLUG 25
401
020217-001
(Sheet 1 / 2)
POWER HARNESS
402
020217-001
(Sheet 2 / 2)
POWER HARNESS
1 020218-001 POWER HARNESS - BOOM END ( Page 404 ) 1
2 020219-001 POWER HARNESS - ENG END ( Page 406 ) 1
403
020218-001
(Sheet 1 / 2)
POWER HARNESS - BOOM END
404
020218-001
(Sheet 2 / 2)
POWER HARNESS - BOOM END

1 132822 CONNECTOR - 3/4" 90° 1
2 001409-002 CONNECTOR - 9 PIN BULKHEAD 1
3 144666 WIRE LOOM - 3/4" GREEN 11'
4 144663 WIRE LOOM - 5/16 GREEN 16'
5 144664 WIRE LOOM - 3/8" GREEN 5'
6 141108 CONNECTOR - 1 Socket Weatherpack 2
8 109466 WIRE - #8 Red 25'
9 109466-003 WIRE - #8 Black 6.5'
405
020219-001
(Sheet 1 / 2)
POWER HARNESS - ENG END
406
020219-001
(Sheet 2 / 2)
POWER HARNESS - ENG END

1 001410-001 CONNECTOR - 9 Pin Cable End 1
3 144666 WIRE LOOM - 3/4" GREEN 10'
7 144663 WIRE LOOM - 5/16 GREEN 13'
8 109466 WIRE - #8 Red 25'
9 109466-003 WIRE - #8 Black 6.5'
10 144664 WIRE LOOM - 3/8" GREEN 12'
407
391303-35
(Sheet 1 / 2)
THROTTLE PEDAL - Electric
408
391303-35
(Sheet 2 / 2)
THROTTLE PEDAL - Electric

1 391303-44 HARNESS ( Page 410 ) 1
2 027984-001 SENSOR 1
3 027984-002 PEDAL - No Sensor ( Page 412 ) 1
409
391303-44
(Sheet 1 / 2)
HARNESS
410
391303-44
(Sheet 2 / 2)
HARNESS
1 031530-001 INTEGRATED SENSOR HARNESS 1
411
027984-002
(Sheet 1 / 2)
PEDAL - No Sensor
412
027984-002
(Sheet 2 / 2)
PEDAL - No Sensor
10 391303-47 TREADLE COVER 1
50 b 018724-001 ROLLER KIT REF
51 a 027984-100 TREADLE PIN KIT REF
a) Items # 18, 42 & 43 included in Tradle Pin Kit.

b) Items # 19 - 21 included in Roller Kit.
413
018218-007
(Sheet 1 / 2)
COOLANT LVL SWITCH KIT
414
018218-007
(Sheet 2 / 2)
COOLANT LVL SWITCH KIT

1 018218-001 COOLANT LEVEL SWITCH 1
3 133129 PIN c/w Seal 3
4 144664 WIRE LOOM - 3/8" GREEN 1'
5 018218-008 CONNECTOR KIT - FOR -001 1
415
109623
(Sheet 1 / 2)
LIGHT ASS'Y
416
109623
(Sheet 2 / 2)
LIGHT ASS'Y
1 103092 QUARTZ LIGHT C/W 500W BULB 1
2 105201 JUNCTION BOX - QUARTZ LIGHT 1
3 103093 WIRE GUARD 1
5 101061 CABLE - #16/3 20FT
6 101469 PLUG - MALE TWISTLOCK 1
417
014617-021
(Sheet 1 / 2)
AIR SYSTEM
418
014617-021
(Sheet 2 / 2)
AIR SYSTEM
1 003234-001 AIR COMPRESSOR ( Page 420 ) 1
2 022572-001 LUBE PUMP - 24VDC ( Page 432 ) 1
3 139297 WATER SERVICE VALVE ( Page 434 ) 1
4 105187 FILTER / REGULATOR ( Page 436 ) 1
6 140895 DECAL - WATER / AIR FLUSH 1
7 PLUMBING KIT REF
8 140193 MOUNTING PLATE 1
9 106153 DECAL - AIR 1
10 106154 DECAL - WATER 1
12 145528 RELIEF VALVE 1
13 015239-001 AIR TANK INSTL'N ( Page 438 ) 1
14 015152-011 ELECTRICAL KIT ( Page 440 ) 1
15 112313 PET COCK 1
16 110653 MOUNT - 3/4 NPT 1
419
003234-001
(Sheet 1 / 2)
AIR COMPRESSOR
420
003234-001
(Sheet 2 / 2)
AIR COMPRESSOR
1 INTAKE END ARRANGEMENT @ ( Page 422 ) 1
2 OIL SEPARATOR & INTAKE END COVER @ ( Page 424 ) 1
3 ROTOR STATOR UNIT & OIL CHAMBER @ ( Page 426 ) 1
4 OIL COOLER ARRANGEMENT @ ( Page 428 ) 1
5 DRIVE MOTOR @ ( Page 430 ) 1
6 Ì 003234-500 MOUNT 2
7 Ì 132779 AIR COMP. MOUNT 1
Ì) Not sold separately.
421
(Sheet 1 / 2)
INTAKE END ARRANGEMENT @
422
(Sheet 2 / 2)
INTAKE END ARRANGEMENT @

1 204443 COVER 1
2 204444 SCREW 2
3 204445 SCREW 6
4 203867 GAUGE 1
5 204446 SEPARATOR END COVER 1
6 204447 SEPARATOR BAFFLE 1
7 204448 SELF TAPPING SCREW 2
18 * 204459 FILTER ASSEMBLY - COMPRESSOR 1
19 * 204460 O-RING 1
20 * 202153 FILTER - COMPRESSOR 1
21 204461 FILTER SUPPORT 4
22 204462 BOLT 4
23 204463 COVER 1
24 * 204464 GASKET 1
25 204465 PRESSURE CONTROL VALVE - 7 BAR 2
26 * 204467 COPPER GASKET 2
29 204468 BODY 1
31 * 204470 SPRING 1
32 * 204453 O-RING 1
33 204472 PISTON 1
34 204473 VALVE ASSEMBLY 1
25A 204466 PRESSURE CONTROL VALVE - 10 BAR 2
423
(Sheet 1 / 2)
OIL SEPARATOR & INTAKE END COVER @
424
(Sheet 2 / 2)
OIL SEPARATOR & INTAKE END COVER @

1 * 204474 GASKET 1
2 202154 SEPARATOR ELEMENT 1
4 204475 STUD 1
5 204476 BOLT 6
7 204478 SEPARATOR CASE 1
8 204479 RESTRICTOR 1
9 * 204480 CLIP 1
11 204482 OIL RETURN VALVE 1
12 204483 COPPER WASHER 1
13 * 204484 O-RING 1
14 * 204485 GASKET 1
15 204486 INTAKE END COVER - (INCL. BEARING BUSHING) 1
16 204487 PLUG 1
17 204488 RESTRICTOR 1
18 204489 INLET VALVE ASSEMBLY 1
19 204490 LOCKNUT 1
20 204491 SPRING SUPPORT 1
21 * 204492 SPRING 1
22 204493 DAMPER 1
23 204494 BODY 1
24 * 204495 O-RING 1
25 204496 VALVE STEM 1
26 204497 SCREW 2
27 204498 PIPE 1
28 204450 NYLON COATED GRUB SCREW 2
29 204500 ELBOW 1
31 204502 PRIMARY COWL - OUTER 1
425
(Sheet 1 / 2)
ROTOR STATOR UNIT & OIL CHAMBER @
426
(Sheet 2 / 2)
ROTOR STATOR UNIT & OIL CHAMBER @

1 204503 ROTOR 1
2 204504 BLADE 6
3 204505 KEY 1
4 * 204506 TENSION PIN 2
5 % 204507 SHIM - 0.05mm BLUE REF
6 204509 STATOR - 7 BAR 1
7 204511 SCREW 4
8 204512 MANIFOLD 1
9 * 204513 GASKET 1
10 204514 VALVE PLATE 2
11 204515 VALVE SUPPORT 2
13 204517 SCREW 2
14 * 204518 TENSION PIN 4
15 204519 PRIMARY COWL - INNER 1
17 204521 OIL CHAMBER - INCL. BEARING BUSHING 1
18 204522 RESTRICTOR PLUG 1
19 * 204523 BONDED SEAL 1
22 204526 OVERTEMPERATURE SWITCH 1
23 204528 FILLER PLUG 1
24 * 204529 BONDED SEAL 1
26 204531 OIL LEVEL SIGHT GLASS 1
27 204532 OIL LEVEL 1
28 * 204533 CIRCLIP 1
29 * 204534 GASKET 1
22A 204527 THERMISTOR PROBE 1
5A % 204508 SHIM - 0.07mm GREEN REF
6A 204510 STATOR - 10 BAR 1
%) Use as required.
427
(Sheet 1 / 2)
OIL COOLER ARRANGEMENT @
428
(Sheet 2 / 2)
OIL COOLER ARRANGEMENT @

1 * 204535 O-RING 4
2 204536 COOLER COUPLING 2
3 204537 OIL COOLER 1
4 * 204538 GASKET 1
5 204539 LANTERN 1
6 204540 EYE BOLT 1
7 204541 GUARD RING 3
8 204542 WASHER 8
9 204543 SCREW 4
10 204544 MOTOR PLATE. 1
13 * 204557 SPRING WASHER 4
14 204558 NUT 4
429
(Sheet 1 / 2)
DRIVE MOTOR @
430
(Sheet 2 / 2)
DRIVE MOTOR @
3 204548 GRUBSCREW 1
4 204549 GRUB SCREW 4
5 204550 COMPRESSOR COUPLING 1
6 204551 COUPLING SPIDER 1
7 204552 IMPELLER / HUB ASEMBLY 1
8 204553 KEY 1
9 003703-001 ELECTRIC MOTOR - 5HP, 460V 1
10 204556 WASHER 4
11 204557 SPRING WASHER 4
12 204558 NUT 4
431
022572-001
(Sheet 1 / 2)
LUBE PUMP - 24VDC
432
022572-001
(Sheet 2 / 2)
LUBE PUMP - 24VDC

1 021272-013 LOW-LEVEL CONTROL 1
2 011014-013 BREATHER WITH BAFFLE 1
3 011014-012 FLANGE BAYONET 1
4 022572-100 RESERVOIR LID 1
5 022572-101 RESERVOIR 1
6 012814-007 HOSE 1
7 021272-015 STIRRING PADDLE ASS'Y 1
8 021272-016 WASHER 1
9 012814-010 INNER RING 2
10 012814-011 GROOVED BALL BEARING 1
11 012814-012 O-RING 2
12 012814-013 INTERMEDIATE BOTTOM 1
13 012814-014 SHIM 1
14 012814-015 SNAP RING 2
15 012814-016 PRESSURE RING 1
16 012814-017 ECCENTRIC 1
17 012814-018 SELF-TAPPING SCREW - HEXAGON 3
18 012814-019 WASHER 3
19 012814-020 O-RING 3
20 022572-102 HOUSING KIT 1
21 021272-017 ADJUSTABLE PUMP ELEMENT 1
22 012814-022 SEALING RING 1
23 012814-037 CLOSURE PLUG 2
24 022572-103 BAYONET PLUG 1
25 022572-104 BAYONET CABLE 1
26 022572-105 SEALING PLUG 1
26-1 011987-113 O-RING 1
26-2 022572-106 SEALING PLUG 1
27 012814-033 ROTARY SHAFT SEAL 1
28 012814-032 WOODRUFF KEY 1
29 022572-107 CLOSURE PLUG 1
29-1 022572-108 O-RING 1
30 204867 MOTOR KIT - 24V 1
30-1 012814-031 MOTOR CONNECTION - NEW 1
31 022572-109 HOUSING COVER ASS'Y 1
31-1 022572-110 SCREW 10
31-2 012814-029 DRAIN HOSE 1
433
139297
(Sheet 1 / 2)
WATER SERVICE VALVE
434
139297
(Sheet 2 / 2)
WATER SERVICE VALVE

1 139297-003 SPRING CAP 1
2 139297-004 CAGE 1
3 139297-005 3-POSITION DETENT 1
4 139297-006 BALL 12
5 139297-007 O-RING 1
6 139297-008 PIN 1
7 139297-009 SCREW 4
8 139297-010 SPRING CLIP 1
9 139297-011 LEVER CAP 1
10 139297-012 O-RING 1
11 139297-013 FILTER - WATER SERVICE VALVE 1
12 139297-014 BRACKET 1
13 139297-015 PIN 1
14 139297-016 HANDLE 1
15 139297-017 KNOB 1
16 139297-018 LINK ASSEMBLY 1
17 139297-019 SCREW 4
18 139297-020 SCREW 1
19 139297-021 BODY 1
20 139297-022 PLUNGER 1
21 139297-023 O-RING 2
22 139297-024 BUSHING 1
23 139297-025 O-RING 1
24 139297-026 O-RING 2
25 139297-027 RETAINER 1
26 139297-028 O-RING 2
27 139297-029 BEARING 1
28 139297-030 O-RING 1
29 139297-002 SEAL KIT 1
435
105187
(Sheet 1 / 2)
FILTER / REGULATOR
436
105187
(Sheet 2 / 2)
FILTER / REGULATOR
1 * 200094 GAUGE 1
2 *! 200607 FILTER ELEMENT KIT - FILTER/REG 1
*! a - SEAL (Body to bowl) 1
*! a - GASKET (Element) 2
*! a - Element (Filter) 1

a) Item included in kit 200607
437
015239-001
(Sheet 1 / 2)
AIR TANK INSTL'N
438
015239-001
(Sheet 2 / 2)
AIR TANK INSTL'N

1 015231-001 AIR TANK MOUNT - FRONT 1
2 015233-001 AIR TANK MOUNT - REAR 1
4 101214 BOLT 8
5 115938 NUT - 0.375-16NC GR8 4
6 106473 FLAT WASHER - 0.375, L9 12
7 115243 AIR TANK 1
8 015273-001 MOUNT - AIR COMPRESSOR 1
9 003234-500 MOUNT 2
439
015152-011
(Sheet 1 / 2)
ELECTRICAL KIT
440
015152-011
(Sheet 2 / 2)
ELECTRICAL KIT
2 101108 REDUCER - 3/4" to 1/2" 1
3 101062 CABLE - #14/4 80'
5 020574-010 CONTACTOR - 10HP@460/575,24VDC 1
6 020574-012 OVERLOAD - 6-10A 1
8 138427 FUSE - 10 AMP 3
441
012353-021
(Sheet 1 / 2)
WATER SYSTEM
442
012353-021
(Sheet 2 / 2)
WATER SYSTEM
1 123631 Y-STRAINER - 1 1/4" (Screen: *202749) 1
2 108250 PRESSURE REDUCING VALVE 1
3 106085 WATER INLET 1
4 105379 SAFETY VALVE - 175 psi 1
5 006830-002 WATER PUMP ( Page 444 ) 1
6 105331 HEAT EXCHANGER - Hydraulic ( Page 320 ) REF
8 106063 CLOSE NIPPLE 2
9 103174 PIPE PLUG - 1" NPT 1
10 112313 PET COCK 2
11 PLUMBING KIT REF
12 010738-011 ELECTRICAL KIT ( Page 450 ) 1
13 140698 BALL VALVE - 1 1/4" 1
443
006830-002
(Sheet 1 / 4)
WATER PUMP
444
006830-002
(Sheet 2 / 4)
WATER PUMP
2 006830-012 MOTOR STOOL 1
4-A 006830-013 CHAMBER 2
5-A 006830-014 CHAMBER BOTTOM 1
6 006830-015 BASE 1
7 006830-016 COUPLING GUARD 2
7-A 006830-017 SCREW 4
9 006830-018 ALLEN SCREW 4
10 200461 SHAFT RETAINER PIN 1
10-A 200459 COUPLING HALF 2
12 006830-019 OVAL FLANGE 1
18 006623-006 AIR VENT SCREW 1
23 006830-020 PLUG 1
25 006830-021 DRAIN/PRIMING PLUG 1
26 006830-022 STAYBOLT 4
28 006830-023 MOTOR BOLT 4
35 006830-024 HHCS FOR FLANGE 4
36 006830-025 STAYBOLT NUT 4
37 b 006623-009 O-RING 2
38 b 006830-026 DRAIN PLUG O-RING 1
39 b 006830-027 GASKET FOR FLANGE 2
45 b 006830-028 NECK RING 13
47-A b 006830-029 BEARING RING/SPACER 2
49 006830-030 IMPELLER 13
50-A 006830-031 TOP GUIDE VANE 1
51 006830-032 COMPLETE SHAFT 1
55 006830-033 OUTER SLEEVE 1
60 006830-034 STACK COMPRESSION SPRING 1
64-A a 006830-035 SPACING PIPE 2
64-C a 006830-036 SPLINED CLAMP 1
65 a 006830-037 NECK RING RETAINER 13
66 a 006830-038 LOCKWASHER SET FOR SHAFT 1
66-A 006830-039 WASHER FOR STAYBOLT 4
67 a 006830-040 LOCK NUT FOR SHAFT 1
69 006830-041 SPACING PIPE 1
77-A 006623-011 PUMP HEAD COVER 1
a) Included in Wear Parts Kit # 006830-010

b) Included in Gasket Kit # 006830-011
445
006830-002
(Sheet 3 / 4)
WATER PUMP
446
006830-002
(Sheet 4 / 4)
WATER PUMP
100 b 006830-042 PRIMING/VENT PLUG O-RING 2
102 006830-043 O-RING FOR SHAFT SEAL 1
103 006830-044 STATIONARY SEAL RING FOR SHAFT SEAL 1
104 c 006830-045 ROTATING SEAL RING FOR SHAFT SEAL 1
105-B c 006830-046 SHAFT SEAL - NOT AVAILABLE 1
107 006830-047 O-RING FOR SHAFT SEAL 1
108 203752 ELECTRIC MOTOR REF
b) Included in Gasket Kit # 006830-011

c) Included in Shaft Seal kit # 008452-001
447
032293-002
(Sheet 1 / 2)
448
032293-002
(Sheet 2 / 2)

1 032293-001 HYD. GAUGE - 600 PSI 1
2 037124-001 U CLAMP ASS'Y 1
449
010738-011
(Sheet 1 / 2)
ELECTRICAL KIT
450
010738-011
(Sheet 2 / 2)
ELECTRICAL KIT
2 101108 REDUCER - 3/4" to 1/2" 1
5 020574-010 CONTACTOR - 10HP@460/575,24VDC 1
7 020574-011 OVERLOAD - 4-6A 1
8 115143 FUSE - 10 AMP 3
451
010752-001
(Sheet 1 / 4)
DECAL KIT
452
010752-001
(Sheet 2 / 4)
DECAL KIT
1 012443-001 DECAL - TRANSMISSION FLUID 1
2 135816 DECAL - ACCUM. PRECHARGE 1
3 110047 DECAL - ENGINE OIL PRESSURE 1
4 120870 DECAL - MASTER SWITCH 1
5 012444-001 DECAL - FRONT GREASE POINTS 1
6 012445-001 DECAL - REAR GREASE POINTS 1
7 391341-53 DECAL - ARTICULATION PINCH POINT 2
8 137292 DECAL - STEER CYLINDER RELIEF 1
9 137291 DECAL - TRANSMISSION PRESS. - 60 PSI 1
10 137290 DECAL - TRANSMISSION PRESS. - 100 PSI 1
11 144684 DECAL - ENGINE HOURS 1
12 145840 DECAL - DIESEL FUEL 1
13 145757 DECAL - HYDRAULIC OIL 1
14 141383 DECAL - ENGINE OIL 1
15 137293 DECAL - PUMP PRESSURE 1
16 137316 DECAL - PUMP RELIEF 1
17 012897-001 DECAL - BRAKE PRESS. (1600/1300) 1
18 130005 DECAL - EMERGENCY BRAKE 1
19 130006 DECAL - REAR SERVICE BRAKE 1
20 130007 DECAL - FRONT SERVICE BRAKE 1
21 135976 DECAL - 24 VOLT 1
22 003042-001 DECAL - MIDSHIP CRUSH ZONE - ADHESIVE 2
23 111164 DECAL - ENGINE OIL DRAIN 1
24 132408 DECAL - MASTER SWTICH 1
25 133160 DECAL - WARNING (PINCH POINT) 2
26 009981-001 DECAL - MTI NAME PLATE 2
27 012692-001 DECAL - VEINRUNNER II, STEEL 2
28 391341-54 DECAL - TRANSMISSION OIL LEVEL 1
29 145099 DECAL - ACCUMULATOR DRAIN 1
30 143523 DECAL - BRAKE TEST ( Page 456 ) 1
31 017100-001 DECAL - AXLE OIL - D45 2
33 012438-001 DECAL - FEED DRILL (P1, P2, A1) 1
34 106151 DECAL - HP 1
35 012440-001 DECAL - P1/P2/A1/A2 1
36 106353 DECAL - TRAM WARNING 1
37 141362 DECAL - FAST FEED ADVANCE 1
38 012441-001 DECAL - REV ROT/A2/RETRACT 1
39 012442-001 DECAL - FRONT JACKS 1
40 130447 DECAL - AIR INLET 1
41 127497 DECAL - WATER INLET 1
42 128300 DECAL - ROCK DRILL OIL ONLY 1
453
010752-001
(Sheet 3 / 4)
DECAL KIT
454
010752-001
(Sheet 4 / 4)
DECAL KIT
43 137285 DECAL - BOOM CONTROL 1
44 144897 DECAL - FEED PRESSURE 1
45 010070-001 DECAL - CABLE REEL/REAR JACKS 1
46 140895 DECAL - WATER / AIR FLUSH 1
47 012469-001 DECAL - COLLERING ON/OFF 1
48 131811 DECAL - WATER PUMP 1
49 012696-001 DECAL - HYDRAULIC OIL 1
50 134285 DECAL - AIR PRESS. SWITCH 1
51 134286 DECAL - WATER PRESS. SWITCH 1
52 014426-001 DECAL - CAUTION ROTATING BOOM 1
53 016885-001 DECAL - CABLE/ CANOPY/ JACKS 1
54 106169 DECAL - OIL RETURN 1
55 106153 DECAL - AIR 1
56 106154 DECAL - WATER 1
455
143523
(Sheet 1 / 2)
DECAL - BRAKE TEST
456
143523
(Sheet 2 / 2)
DECAL - BRAKE TEST
457
010753-006
(Sheet 1 / 2)
OPTIONS GROUP
458
010753-006
(Sheet 2 / 2)
OPTIONS GROUP
1 013209-001 FIRE SUPPRESSION SYSTEM ( Page 460 ) 1
2 012602-001 REMOTE GREASE CIRCUIT ( Page 466 ) 1
3 803070-007 SHIFTER OPTION - 3 SPEED ( Page 468 ) 1
5 004032-014 ALARM / STROBE LT KIT ( Page 470 ) 1
6 110271 TRAILING CABLE - 250' 1
7 129570 WHEEL CHOCKS 2
8 007338-002 WHEEL CHOCK BRACKET ( Page 472 ) 2
9 144512 FIRE EXTINGUISHER c/w bracket 1
10 001715-001 HEADLIGHT ASS'Y -24V 4
11 135866 GROUND FAULT PANEL ( Page 474 ) 1
459
013209-001
(Sheet 1 / 4)
FIRE SUPPRESSION SYSTEM
460
013209-001
(Sheet 2 / 4)

1 004500-001 FIRE SUPPRESSION SYSTEM - 4 Nozzle ( Page 464 ) 1
2 138895 ELBOW - 1/2" (Galvanized) 5
3 800974 -002 PIPE TEE 1
4 PLUMBING - F.S.S. REF
461
013209-001
(Sheet 3 / 4)
462
013209-001
(Sheet 4 / 4)

1 004500-001 FIRE SUPPRESSION SYSTEM - 4 Nozzle ( Page 464 ) 1
2 138895 ELBOW - 1/2" (Galvanized) 5
3 800974 -002 PIPE TEE 1
4 PLUMBING - F.S.S. REF
463
004500-001
(Sheet 1 / 2)
FIRE SUPPRESSION SYSTEM - 4 Nozzle
464
004500-001
(Sheet 2 / 2)
FIRE SUPPRESSION SYSTEM - 4 Nozzle

1 101491 TANK MOUNTING BRACKET 1
2 004501-002 TANK ASS'Y 1
3 200198 BRACKET ASS'Y 1
4 200197 PNEUMATIC ACTUATOR ASS'Y 1
5 004501-004 CARTRIDGE ASS'Y - LT 30 1
6 101492 ACTUATOR BRACKET - S Style 2
7 391031-34 MANUAL ACTUATOR 2
8 004501-018 CARTRIDGE - LT10R 2
9 140696 CHECK VALVE - 1/4 2
10 004501-019 OPERATING LABELS 2
11 391031-20 LEAD WIRE SEAL 2
12 201717 NOZZLE LOCKWASHER 8
13 391031-38 NOZZLE 4
14 200734 NOZZLE BRACKET 4
15 391031-39 BLOW OFF CAP 4
16 391031-43 PRESSURE RELIEF VALVE 1
17 002646-002 PRESSURE SWITCH 1
18 002646-001 PRESSURE SWITCH KIT REF
465
012602-001
(Sheet 1 / 2)
REMOTE GREASE CIRCUIT
466
012602-001
(Sheet 2 / 2)
REMOTE GREASE CIRCUIT

1 PLUMBING KIT REF
5 136640 GREASE ADAPTER - 1/4" to 1/8" PIPE 1
467
803070-007
(Sheet 1 / 2)
SHIFTER OPTION - 3 SPEED
468
803070-007
(Sheet 2 / 2)
SHIFTER OPTION - 3 SPEED

1 391371-1 ELECTRIC SHIFT CONTROL 3-SPEED 1
3 133129 PIN c/w Seal 5
4 012688-001 PLUG 4
5 144665 WIRE LOOM - 1/2" GREEN 10'
6 144663 WIRE LOOM - 5/16 GREEN 20'
8 144542 CONNECTOR - 6 Pin Weatherpack 1
11 391390-8 TERMINALS 8
12 012688-002 LOCK PART 4
469
004032-014
(Sheet 1 / 2)
ALARM / STROBE LT KIT
470
004032-014
(Sheet 2 / 2)
ALARM / STROBE LT KIT

1 001979-003 RELAY - 24V c/w Connector & Socket 1
2 113821 BACK-UP ALARM 1
3 391296-5 STROBE LIGHT 1
6 133129 PIN c/w Seal 2
8 144663 WIRE LOOM - 5/16 GREEN 8'
10 3B2226 COUPLING 1
12 PLUMBING LIST 1
471
007338-002
(Sheet 1 / 2)
WHEEL CHOCK BRACKET
472
007338-002
(Sheet 2 / 2)
WHEEL CHOCK BRACKET

1 102399 PLATE - 1/4", 50W 0.68
2 101278 CHAIN - 11 LINKS 1.7 '
3 110233 SNAP - 3/4" 1
4 101278 CHAIN - 11 LINKS .1'
5 023509-001 QUICK CONNECTING LINK - 1/4" 2
473
135866
(Sheet 1 / 4)
GROUND FAULT PANEL
474
135866
(Sheet 2 / 4)
GROUND FAULT PANEL

2 112061 OPERATOR FLANGE 1
4 109381 CIRCUIT BREAKER c/w LUGS 1
5 112066 GROUND FAULT MONITOR 1
6 112068 REMOTE KIT 1
7 105699 CURRENT TRANSFORMER - 200A 1
8 200430 CONTROL TRANSFORMER 1
9 112098 ROD - 6" 1
10 100565 FUSE BLOCK 3
11 114950 FUSE - 1 AMP 2
12 100696 FUSE - 3 AMP 1
13 100574 FUSE PULLER 3
17 100697 RETAINING CLIP 4
18 100583 RAIL 1'
19 112076 RECEPTACLE 1
22 126227 DECAL - DANGER 480 VOLTS 1
25 113668 RELAY - UNDERVOLTAGE 1
475
135866
(Sheet 3 / 4)
GROUND FAULT PANEL
476
135866
(Sheet 4 / 4)
GROUND FAULT PANEL

2 112061 OPERATOR FLANGE 1
4 109381 CIRCUIT BREAKER c/w LUGS 1
5 112066 GROUND FAULT MONITOR 1
6 112068 REMOTE KIT 1
7 105699 CURRENT TRANSFORMER - 200A 1
8 200430 CONTROL TRANSFORMER 1
9 112098 ROD - 6" 1
10 100565 FUSE BLOCK 3
11 114950 FUSE - 1 AMP 2
12 100696 FUSE - 3 AMP 1
13 100574 FUSE PULLER 3
17 100697 RETAINING CLIP 4
18 100583 RAIL 1'
19 112076 RECEPTACLE 1
22 126227 DECAL - DANGER 480 VOLTS 1
25 113668 RELAY - UNDERVOLTAGE 1
477
List by Part Number
07-3672 VR-II
Part Number Page Part Number Page Part Number Page
001096-001 217 003819-010 339 005571-001 91,97
001138-001 387 003831-001 121 006006-001 57
001184-012 43 004012-030 117,135 006149-001 105,107
001218-004 387 004012-075 135 006476-002 253,265
001307-002 235,237 004032-014 459,471 006476-004 267
001376-001 261 004128-001 351,367 006476-005 267
001403-001 387 004128-010 323,367 006476-007 267
001403-002 387 004350-002 105,107 006476-008 269
001405-002 399 004381-007 159 006476-009 269
001406-001 401 004479-001 115,117 006476-010 269
001409-002 405 004500-001 461,463,465 006476-011 269
001410-001 407 004501-002 465 006476-012 269
001411-001 387 004501-004 465 006476-013 269
001416-001 383,385 004501-018 465 006476-014 269
001422-001 231 004501-019 465 006476-015 269
001506-001 383,385 004502-018 137 006476-016 269
001715-001 459 004502-022 115 006476-017 269
001801-010 115,161 004502-023 115 006476-018 269
001801-019 141 004502-026 115,117,153 006476-019 269
001801-083 121 004502-027 115 006476-020 269
001979-003 471 004502-029 115 006476-021 269
002147-004 69 004502-033 117 006476-022 269
002163-001 373,379 004502-048 117 006476-023 269
002163-002 379 004502-069 129,131,143,147 006476-024 269
002163-003 379 149,151 006476-025 269
002163-004 379 004502-070 133 006476-026 269
002271-001 331 004502-084 129,133,147,149 006476-027 269
002299-001 395 151 006476-028 269
002317-001 155 004502-095 129,147,149,151 006476-029 269
002389-001 133 004502-122 133 006476-030 271
002411-001 137 004502-139 121 006476-031 271
002422-001 129,147,149,151 004502-156 111 006476-032 271
002438-001 191 004502-157 115 006476-033 271
002527-001 139 004534-001 123 006476-034 271
002530-001 117 004789-001 395 006476-035 271
002535-001 137 004817-001 71 006476-036 271
002548-001 201 004826-001 61 006476-037 271
002642-001 157 004831-001 71 006476-038 271
002646-001 465 004842-006 51,57 006476-039 271
002646-002 465 004843-006 51,61 006476-040 271
002694-012 171,173 004844-002 51,63 006476-041 271
002694-016 171,173 004845-014 51,65 006476-042 271
002705-001 129,131,143,147 004846-004 67,69 006476-043 271
002740-001 129,131,133,143 004846-005 69 006476-044 271
147,149,151 004846-006 69 006476-045 271
002752-001 137 004846-007 69 006476-046 271
002753-001 137 004846-008 69 006476-047 271
002756-001 135,137 004846-009 69 006476-048 271
002803-001 49 004846-010 69 006476-049 271
002836-001 137 004846-012 69 006476-050 271
002863-001 125 004846-013 69 006476-051 271
002864-001 125 004847-001 53 006476-052 271
002913-001 137 004848-001 53 006476-053 271
003042-001 453 004866-001 61 006476-054 271
003097-003 471 004867-001 61 006476-055 271
003156-005 377 004868-001 61 006476-056 271
003156-007 245,355 004885-001 61,67 006476-057 271
003156-010 245 005095-001 117 006476-058 271
003156-012 245,355,377 005096-001 115 006476-059 271
003234-001 419,421 005109-002 51,71 006476-060 271
003234-500 421,439 005213-010 111 006476-061 271
003242-004 61 005331-001 141 006476-064 265,269
003372-020 115 005332-001 145 006476-065 265
003372-023 117 005337-001 257 006476-066 265,271
003448-001 191 005382-043 117,153 006476-067 265,267
003703-001 431 005499-013 111 006476-068 267
NI 1
List by Part Number
07-3672 VR-II
006476-069 267 008440-001 59 008999-011 29
006531-001 217 008442-001 57 008999-012 29
006623-006 445 008493-025 271 008999-013 29
006623-009 445 008493-027 271 008999-014 29
006623-011 445 008493-028 271 009000-001 5,49
006740-009 171,173 008493-029 271 009000-010 49
006821-001 205 008493-030 271 009000-011 49
006822-001 205 008493-042 267 009000-012 49
006830-002 443,445,447 008493-064 269 009000-013 49
006830-012 445 008493-069 269 009001-001 25,27
006830-013 445 008493-071 269 009001-010 27
006830-014 445 008493-073 267 009001-011 27
006830-015 445 008493-074 267 009002-001 11,13
006830-016 445 008493-090 269 009002-010 13
006830-017 445 008493-092 269 009002-011 13
006830-018 445 008493-095 269 009002-012 13
006830-019 445 008493-096 269 009010-001 15
006830-020 445 008563-004 123 009011-001 15
006830-021 445 008563-005 123 009015-002 5,7
006830-022 445 008563-006 123 009016-002 5,9
006830-023 445 008563-010 129 009017-001 5,11
006830-024 445 008563-011 129,151 009018-001 5,15
006830-025 445 008563-016 153 009019-002 5,21
006830-026 445 008773-001 135 009020-002 5,23
006830-027 445 008913-002 9 009021-001 5,25
006830-028 445 008914-002 9 009022-004 5,31
006830-029 445 008915-001 9 009023-005 5,37
006830-030 445 008918-001 7,9 009024-003 5,39
006830-031 445 008920-001 9,15 009027-001 15
006830-032 445 008921-001 9,15 009029-001 21
006830-033 445 008923-001 7 009032-001 25
006830-034 445 008924-001 7 009040-001 37
006830-035 445 008932-001 21 009052-002 3,5
006830-036 445 008951-001 21,23,37,39 009063-001 181,183,185
006830-037 445 008952-001 21,23,37,39 009063-002 185
006830-038 445 008955-001 21 009063-003 185
006830-039 445 008956-001 37 009063-004 185
006830-040 445 008957-001 37 009063-005 185
006830-041 445 008961-001 31 009063-100 185
006830-042 445 008962-001 31 009118-001 247,249
006830-043 447 008963-002 31 009295-001 105,107,163,167
006830-044 447 008964-001 31 009372-001 189
006830-045 447 008966-001 23 009373-001 189
006830-046 447 008967-001 11,23 009444-001 387,441,451
006830-047 447 008968-002 23 009582-001 105,107,163,167
006845-001 205 008969-002 23 009590-001 163,167
007076-001 117 008970-002 31 009590-012 189
007338-002 459,473 008972-001 25 009590-013 189
007371-001 163,167 008973-001 25 009590-021 189
007392-001 69 008975-001 7 009649-002 177
007527-001 341 008976-001 7 009719-001 45
007528-001 341 008977-001 11 009731-001 5,45
007618-001 69 008978-001 11 009981-001 453
008000-001 55,57,61 008979-001 11 010070-001 455
008095-003 51,55 008980-001 25 010499-002 245,355
008247-001 235 008981-001 25 010499-003 245,355
008364-001 105,107 008984-001 15 010499-004 245,355,377
008374-001 63 008997-001 5,43 010499-005 245,377
008378-001 61 008997-011 43 010499-006 245,355,377
008382-001 57 008997-012 43 010500-001 373,377
008421-001 55 008997-013 41,43 010500-002 245,355,377
008428-001 363,365 008997-014 43 010500-004 377
008436-001 57 008998-001 5,41 010500-100 377
008437-001 57 008998-010 41 010500-101 377
008438-001 57 008998-011 41 010501-001 351,355
008439-001 57 008999-001 5,29 010501-002 355
NI 2
List by Part Number
07-3672 VR-II
010501-003 355 010614-060 203 010738-011 443,451
010502-001 241,245,273 010614-061 203 010741-005 3,103
010598-001 387 010614-062 203 010743-008 3,225
010598-002 387 010614-063 205 010744-001 3,247
010598-003 387 010614-064 205 010745-008 3,253
010598-004 387 010614-065 205 010747-003 3,281
010598-005 387 010614-066 205 010752-001 3,453,455
010614-001 195,197,213,215 010614-067 205 010753-006 3,459
010614-002 197,199 010614-068 205 010759-003 103,105,107
010614-003 197,211 010614-069 205 010760-005 103,189
010614-004 201 010614-070 205 010761-004 103,181,183
010614-005 201 010614-071 205 010763-001 103,195
010614-006 201 010614-072 205 010764-001 103,213,215
010614-007 201 010614-073 205 010782-079 161
010614-008 201 010614-074 205 010782-080 161
010614-009 201 010614-075 205 010782-081 161
010614-010 201 010614-076 205 010782-082 161
010614-011 201 010614-077 205 010799-001 195
010614-012 201 010614-078 205 010805-001 225
010614-013 201 010614-079 205 010806-001 225
010614-014 201 010614-080 205 010811-001 225,235
010614-015 201 010614-081 205 010898-001 225
010614-016 201 010614-082 205 010900-001 213,215
010614-017 201 010614-083 205 010954-012 267
010614-018 201 010614-084 205 010954-019 269
010614-019 201 010614-085 205 010954-021 269
010614-020 201 010614-086 205 010954-030 271
010614-021 203 010614-087 205 010954-039 267
010614-022 203 010614-088 205 010954-057 271
010614-023 203 010614-089 205 011014-012 433
010614-024 203 010614-090 205 011014-013 433
010614-025 203 010614-091 205 011153-001 235
010614-026 203 010614-092 205 011154-001 247,251
010614-027 203 010614-095 207 011154-010 251
010614-028 203 010614-096 207 011154-011 251
010614-029 203 010614-097 207 011154-012 251
010614-030 203 010614-098 207 011154-013 251
010614-031 203 010614-099 207 011154-014 251
010614-032 203 010614-100 207,209 011154-016 251
010614-033 203 010614-101 207,209 011155-001 247
010614-034 203 010614-102 207 011231-001 55
010614-035 203 010614-103 207 011246-001 245,355
010614-036 203 010614-104 207 011261-002 59
010614-037 203 010614-105 207 011379-001 51
010614-038 203 010614-107 209 011457-001 253
010614-039 203 010614-108 209 011462-002 253,255
010614-040 203 010614-109 209 011463-005 253,259
010614-041 203 010614-110 209 011466-002 253,277,279
010614-042 203 010614-111 209 011475-007 253,261
010614-043 203 010614-112 209 011478-002 281
010614-044 203 010614-113 209 011490-010 171,173
010614-045 203 010614-114 209 011529-001 195
010614-046 203 010614-115 209 011564-001 217
010614-047 203 010614-116 209 011565-001 217
010614-048 203 010614-117 209 011566-001 217
010614-049 203 010614-118 209 011668-001 181,183
010614-050 203 010614-119 209 011922-002 57,59
010614-051 203 010651-001 225 011939-001 197
010614-052 203 010671-001 235 011945-001 195
010614-053 203 010684-001 235 011962-001 235
010614-054 203 010685-001 235 011987-113 433
010614-055 203 010726-002 217,219 012020-001 105,107
010614-056 203 010726-008 217,221 012034-001 163,167
010614-057 203 010726-009 217,223 012108-011 225,241
010614-058 203 010726-105 221,223 012151-001 253,273
010614-059 203 010726-110 221 012152-001 253,275
NI 3
List by Part Number
07-3672 VR-II
012153-011 235,239 013498-001 253 014979-013 109
012205-001 15 013499-001 253 014979-014 109
012206-001 15 013500-001 253 014979-015 109
012241-002 401 013502-001 277,279 014979-021 109
012241-003 401 013503-001 277,279 014979-022 109
012241-004 401 013630-010 13 014979-023 109
012241-005 401 013630-013 13 014979-024 109
012274-001 11 013630-015 13 014979-025 109
012352-002 3,51 013632-013 27 014979-026 109
012353-021 3,443 013672-001 9 015031-001 79
012400-003 51,53 013687-001 3,373 015075-001 15,19
012404-003 51 013696-001 23 015076-001 19
012406-001 51,67 013719-001 31 015098-001 401
012407-001 53 013741-001 15 015098-002 401
012408-001 53 013743-001 17 015106-001 387
012409-001 67 013744-001 17,19 015106-002 387
012438-001 453 013746-001 15,17 015106-003 387
012440-001 453 013747-001 17 015152-011 419,441
012441-001 453 013749-001 21 015228-001 339
012442-001 453 013784-001 31 015231-001 439
012443-001 453 013942-001 225 015233-001 439
012444-001 453 013988-001 225 015239-001 419,439
012445-001 453 013998-001 225 015246-001 31
012469-001 455 013999-001 225 015262-001 395
012480-001 191 014000-001 225 015273-001 439
012513-001 39 014048-001 277,279 015417-001 163,167,177
012534-001 15 014111-001 195,213,215 015494-001 31
012602-001 459,467 014340-001 17 015632-001 161
012678-001 163,167 014346-010 13,41 015919-001 395
012688-001 469 014346-011 27,41,49 015924-001 395
012688-002 469 014346-012 27,41 015940-001 189
012692-001 453 014346-015 27,41 015982-001 163,167
012696-001 455 014349-001 263 015985-001 163,167
012768-016 269 014383-033 339,341 015996-001 189
012768-019 269 014385-101 393 015998-001 189
012814-007 433 014403-001 225 015999-001 189
012814-010 433 014419-016 3 016011-002 181,183,187
012814-011 433 014419-017 3 016033-001 181,183
012814-012 433 014426-001 455 016541-001 193
012814-013 433 014542-001 23 016542-001 193
012814-014 433 014543-012 109 016728-001 193
012814-015 433 014548-001 39 016774-001 189
012814-016 433 014552-001 37 016777-001 189
012814-017 433 014553-001 37 016870-001 65
012814-018 433 014555-001 39 016885-001 455
012814-019 433 014558-001 63 016915-001 253
012814-020 433 014583-001 225 017100-001 453
012814-022 433 014617-021 3,419 017437-001 163,167,171,173
012814-029 433 014729-001 15 175
012814-031 433 014971-001 163,167,171,173 017437-002 175
012814-032 433 014971-010 171,173 017437-003 175
012814-033 433 014971-011 171,173 017437-004 175
012814-037 433 014971-012 171,173 017437-005 175
012826-001 373 014971-013 171,173 017703-013 3,283
012827-001 373 014971-014 171,173 017746-001 225
012875-011 51,75 014971-015 171,173 017747-001 225
012897-001 453 014979-001 105,107,109 017748-001 225
012905-001 373 014979-002 109 017814-001 65
013125-025 13 014979-003 109 017815-001 65
013195-031 3,351 014979-004 109 017831-001 57
013208-002 103,163,165,167 014979-005 109 017992-003 31,33
169 014979-006 109 017992-014 33
013209-001 459,461,463 014979-007 109 017992-027 33
013444-001 187 014979-010 109 017992-031 33
013493-001 395 014979-011 109 017992-035 33
013494-001 395 014979-012 109 017992-036 33
NI 4
List by Part Number
07-3672 VR-II
017992-037 33 019998-014 161 020227-001 383,385,391,393
017992-038 33 020007-001 31 020228-001 383,385,395
017992-041 33 020017-001 37 020230-001 391
017992-042 33 020041-001 331,333 020234-001 283
017992-044 33 020041-010 333 020366-001 31
017992-047 33 020041-011 335 020515-001 51
018091-001 163,167 020041-012 335 020527-001 37
018125-001 193 020041-013 335 020561-001 255
018218-001 415 020041-014 335 020574-010 391,441,451
018218-007 383,385,415 020041-015 335 020574-011 393,451
018218-008 415 020041-016 335 020574-012 391,441
018300-001 225 020041-017 335 020574-014 393
018324-001 7 020041-018 335 020610-001 105,107
018345-001 109 020041-019 335 020611-001 163,167,179
018434-001 341 020041-020 335 020636-001 105,107
018442-001 347 020041-021 335,343 020640-001 105,107
018444-001 347 020041-022 335 020646-001 105,107
018499-001 111 020041-023 335,339,343 020660-001 163,167
018724-001 413 020041-024 335 020661-001 163,167
018982-001 225 020041-025 335 020662-001 165,169
019222-001 351,353 020041-027 335 020663-001 163,167
019222-010 353 020041-028 335 020666-001 163,167
019222-011 353 020041-029 337 020746-001 121
019222-012 353 020041-030 337 021272-013 433
019222-013 353 020041-031 337 021272-015 433
019222-014 353 020041-032 337 021272-016 433
019222-015 353 020041-033 337 021272-017 433
019222-016 353 020041-034 337 021274-025 339
019222-017 353 020041-035 337 021437-012 27
019222-018 353 020041-036 337 022093-001 39
019222-019 353 020041-037 337 022268-001 255
019222-020 353 020041-038 337 022572-001 419,433
019222-021 353 020041-039 339 022572-100 433
019222-022 353 020041-040 339 022572-101 433
019222-023 353 020041-041 339,341 022572-102 433
019222-024 353 020041-042 339 022572-103 433
019222-025 353 020041-043 341 022572-104 433
019316-001 103,193 020041-044 341 022572-105 433
019317-001 103,217 020041-045 341 022572-106 433
019318-001 253 020041-046 341 022572-107 433
019378-001 105,107 020041-047 341 022572-108 433
019514-001 163,167 020041-048 341 022572-109 433
019517-001 163,167 020041-049 341 022572-110 433
019631-011 177 020041-050 341 023509-001 473
019673-001 259 020041-051 341 023619-001 347
019674-001 259 020041-052 343 023951-001 363
019675-001 259 020041-053 343 024113-001 339
019676-001 259 020049-001 21 024127-001 277,279
019677-001 259 020129-001 31,35 025837-109 85,89
019747-001 163,167 020129-010 35 027591-001 109
019748-001 163,167 020129-011 35 027984-001 409
019751-001 163,167 020129-012 35 027984-002 409,413
019756-001 163,167 020129-013 35 027984-100 413
019799-001 163,167 020129-014 35 028623-001 277,279
019816-001 189 020129-015 35 028623-002 277,279
019827-001 189 020129-016 35 028933-001 277,279
019870-001 181,183 020176-001 3,383,385 031361-112 161
019883-001 181,183 020213-001 383,385,387,389 031530-001 411
019884-001 181,183 020214-001 387 032041-100 377
019885-001 181,183 020215-001 387 032041-101 377
019886-001 181,183 020217-001 395,403 032041-102 377
019887-001 181,183 020218-001 403,405 032292-001 327
019895-001 181,183 020219-001 403,407 032292-002 283,327,419
019905-001 187 020220-001 395,397 032293-001 449
019915-001 105,107,111 020221-001 397,399 032293-002 443,449
019998-001 111,161 020222-001 397,401 032294-001 345
NI 5
List by Part Number
07-3672 VR-II
032294-002 283,345,351 101469 395,417 105333 241,243,373
032295-001 329 101470 395 105369 383,385,441,451
032295-002 283,329,351 101491 465 105379 443
034427-001 193 101492 465 105462 31,65
037073-001 101 101507 395 105574 283
037124-001 327,329,345,449 101572 373,375 105579 225,253
07-3672 3 101683 249 105629 253
100052 373 101837 277,279 105699 475,477
100070 247 101849 193 105778 361
100117 7,9,11,15,23,25 101988 179 105787 37
31,37,467 102017 383,385 105981 39
100118 57 102019 395 105992 7,17,31,39,51,53
100126 9 102101 63 55,57,61,65,71
100131 261 102109 391 163,167,179,213
100140 105,107 102194 383,385 215,217,255,261
100141 181,183 102199 19 277,279
100143 259 102317 57,65,261 105993 393
100149 371 102399 473 106063 443
100156 261 102400 179 106076 419
100157 21,31,51,61,105 102419 57 106085 443
107,163,167,189 102422 255 106111 351
249,259,277,279 102456 277,279 106151 453
100207 255,277,279 102699 213,215 106153 419,455
100290 193 102701 243 106154 419,455
100291 105,107 102745 105,107 106169 455
100297 193 103092 417 106334 383,385
100338 381 103093 417 106353 453
10050 83,87,97 103134 31 106394 391
100532 61 103174 443 106395 391
100559 475,477 103274 395 106473 21,31,51,105,107
100561 383,385 103285 395 163,167,181,183
100565 475,477 103483 273,283,351 187,189,217,259
100566 391 103570 51,65,261 261,277,279,439
100567 475,477 103572 7,17,163,167,255 106493 391
100569 391 277,279 106652 283,349
100574 475,477 103573 163,167,217,277 107257 65,225
100578 391 279 107548 391
100583 387,391,475,477 103574 51,63 107888 105,107,163,167
100661 225,253 103575 217,261 108110 395
100665 259,261 103576 261 108111 383,385
100694 399 103583 37 108112 395
100696 475,477 103585 7,261 108250 443
100697 475,477 103591 37 109208 165,169
100799 395,399 103592 105,107,163,167 109381 475,477
100819 247 261 109466 383,385,405,407
100867 111,117,135,155 103768 251 109466-003 405,407
100954 105,107 103792 189 109467-002 395
101047 193 103895 395 109491 51,53,179,213,215
101052 225 103899 395 217
101061 395,417 103925 277,279 109506 395
101062 395,441 103943 255 109610 475,477
101075 395 104023 255 109623 383,385,417
101105 395,417,441,451 104081 165,169 109705 381
101108 399,441,451 104189 179 109710 391
101110 475,477 104199 31,71,163,167,179 109907 391
101140 11,15,25 217 109924 63
101145 391 104381 17 110012 253
101146 391,475,477 104388 283,297,351 110047 453
101147 391 104466 249 110233 473
101148 391 104727 297 110271 459
101155 395 104821 11,213,215 110331 255
101212 193 105022-002 395 110474 217
101214 439 105187 419,437 110482 255
101227 7 105201 417 110653 419
101278 473 105331 283,321,443 111084 351,369,373
101342 391 105332 283,351 111164 453
NI 6
List by Part Number
07-3672 VR-II
111461 277,279 123631 443 132821 387,399
112061 475,477 123772 395 132822 387,395,405
112066 475,477 123874 193 133128 399,401,415
112068 475,477 123904 391 133129 399,401,415,469
112076 475,477 124086 391 471
112079 391 124697 189 133130 399,401,469
112098 391,475,477 124701 387 133131 399,401,405,407
112313 419,443 124757 395 469,471
112334 163,167 124811 37 133160 453
112558 213,215 124957 371 133389 195,213,215
112566 75 125232 255 133483 189
112763 383,385 125564 53 133493 193
113236 31 125577 57,61 134044 17
113547 277,279 125578 163,167 134093 71
11365 347 125579 105,107 134127 61
113653 57,67,71 126035 31 134179 395
113668 475,477 126212 351,361 134179-004 395
113821 471 126212-002 361 134285 455
114146 193 126212-004 361 134286 455
114489 257 126227 475,477 134482 15
114553 283,323 126378 65 134499 391
114553-002 323 126379 65 134591 225,227
114557 105,107,163,167 126380 65 134669 249
114559 37 126381 65 134716 213,215
114570 105,107 126382 65 134718 213,215
114950 475,477 126383 65 134734 387
115059 155 126384 65 134928 189
115143 391,451 126777 311,313,315,317 135035 391
115243 439 127028 193 135036 393
115792 51,53 127154 277,279 135543-003 391
115935 51,181,183,259 12717 81,97 135799 381
115937 39,55,57,61,63 127497 453 135816 453
65 127940 391 135824 383,385
115938 105,107,181,183 127989 391,475,477 135842 253
187,189,259,439 128004 393 135866 459,475,477
116069 283,373 128233 393 135976 453
116069-002 373 128300 453 136191 387,393
116069-003 373 128617 51 136196 387,399
116115 391 129279 263 136640 467
116508 387 129279-002 261,263 136753 225,253
116509-002 387 129468 351,357 136875 9,15,21,23,37,39
116510 387 129570 459 136876 9,15,21,23,39
116557 391 129579 395 137045 225,229,253
116721 105,107 129588 475,477 137285 453
117106 253 129945 247 137290 453
117130 253 129962 247 137291 453
117215 255,257 129963 247 137292 453
117370 189 129967 247 137293 453
117787 105,107 130005 453 137316 453
118587-002 383,385 130006 453 137420 391
118608 351,371 130007 453 137421 391
119094 261 13006 335,339,341 138068 283,311,313,315
119381 253 130239 351 317
119592 189 130447 453 138069 283,299,301,303
119683 283,325 131017 163,167 305,307,309
119954 395 131269 383,385 138069-002 301,305,309
120676 383,385 131270 383,385 138072 283,295
120683 253 131397 399 138073 283,285
120851 61,63 131811 455 138116 387
120870 453 132175 391,441,451 138189 163,167
120916 261 132176 391 138204 381,383,385
120969 51 132322 387,391 138369 255
121060 373 132324 387 138397 283
121248 255 132408 453 138414 351
121603 105,107 132779 421 138427 441
122921 395 132820 387 138428 391
NI 7
List by Part Number
07-3672 VR-II
138467 225 139612-085 231 141552-056 117
138542 283 139612-086 231 141552-057 117
138895 461,463 139612-087 231 141552-058 117
138952 283,319 139612-088 231 141552-059 117
139297 419,435 139612-089 231 141552-061 117
139297-002 435 139791 283,293 141552-062 117
139297-003 435 139846 51,73 141552-063 117
139297-004 435 140099 351 141552-064 117
139297-005 435 140104 51 141552-065 117,135
139297-006 435 140149 225 141552-068 127
139297-007 435 140193 419 141552-069 127
139297-008 435 140297 393 141552-070 127
139297-009 435 140352 189 141552-071 127
139297-010 435 140696 465 141552-072 127
139297-011 435 140698 443 141552-078 147
139297-012 435 140895 419,455 141552-079 129,131,133,143
139297-013 435 140907-021 3,381 147
139297-014 435 140956 281 141552-080 129,131,133,143
139297-015 435 141016 381 147,149,151
139297-016 435 141107 471 141552-081 129,131,133,143
139297-017 435 141108 405,407,469,471 147,149,151
139297-018 435 141110 399 141552-082 147,149
139297-019 435 141362 453 141552-083 129,131,143,147
139297-020 435 141383 453 149,151
139297-021 435 141552 111,113 141552-084 129,131,133,143
139297-022 435 141552-002 137 147,149,151
139297-023 435 141552-003 125 141552-085 129,131,143,147
139297-024 435 141552-014 125 141552-086 129,131,133,143
139297-025 435 141552-015 125 147,149,151
139297-026 435 141552-016 125 141552-087 129,147,149,151
139297-027 435 141552-017 125 141552-088 129,147,149,151
139297-028 435 141552-018 121 141552-089 129,147
139297-029 435 141552-020 121,133,135 141552-090 129,147
139297-030 435 141552-021 121,133,135 141552-091 129,147
139319 225 141552-022 121,137 141552-092 129,147,149,151
139612 225,231,233 141552-023 121 141552-093 129,131,143,147
139612-045 231,233 141552-024 121 141552-094 129,147
139612-051 231 141552-025 121 141552-095 129,147,149,151
139612-052 231 141552-026 121 141552-096 129,147
139612-053 231 141552-028 121 141552-097 129,147
139612-054 231 141552-029 115 141552-098 129,147
139612-055 231 141552-030 115 141552-099 131,143
139612-056 231 141552-031 115,117 141552-100 131,143
139612-057 231 141552-032 115,117 141552-101 131,143
139612-063 231 141552-033 115,117 141552-102 131,143
139612-064 231 141552-034 115,117 141552-103 131,143
139612-065 231 141552-035 115,117 141552-104 133
139612-066 231 141552-037 153 141552-105 133
139612-067 231 141552-038 153 141552-106 133
139612-068 231 141552-039 139,141 141552-107 133
139612-069 231 141552-040 139,141 141552-108 133
139612-070 231 141552-041 139,141 141552-109 133
139612-071 231 141552-042 139,141 141552-110 133
139612-072 231 141552-043 139,141 141552-111 133
139612-073 231 141552-044 139 141552-112 135
139612-074 231 141552-045 139 141552-113 135
139612-075 231 141552-046 139 141552-115 137
139612-076 231 141552-047 139 141552-116 137
139612-077 231 141552-048 141 141552-117 137
139612-078 231 141552-049 141 141552-118 137
139612-079 231 141552-050 141 141552-120 149,151
139612-080 231 141552-051 141 141552-121 149,151
139612-081 231 141552-052 141 141552-122 149,151
139612-082 231 141552-053 117 141552-123 145
139612-083 231 141552-054 117 141552-125 145
139612-084 231 141552-055 117 141552-126 145
NI 8
List by Part Number
07-3672 VR-II
141552-127 145 200270 297 202892 297
141552-128 145 200318 257 202894 297
141552-129 145 200319 257 202961 297
141552-130 155 200397 375 202962 297
141666 247 200430 475,477 202963 297
141734 387,391 200459 445 202964 311,313,315,317
141908-002 387 200461 445 202965 311,313,315,317
142673 399 200558 297 202966 311,313,315,317
142788 383,385 200600 293 202967 311,313,315,317
142788-002 383,385 200607 437 202968 311,313,315,317
143408 383,385 200734 465 202969 311,313,315,317
143409 383,385 200998 311,313,315,317 202970 311,313,315,317
143523 453 201067 295 202971 311,313,315,317
143625 51 201117 227 202972 311,313,315,317
143894 5,57 201295-006 191 202973 311,313,315,317
144116 51 201589 361 202974 311,313,315,317
144117 51 201717 465 202975 311,313,315,317
144293 391 201818 299,303,307 202976 311,313,315,317
144419 351 201825 299,303,307 202977 311,313,315,317
144419-003 351 201829 299,303,307,311 202979 299,303,307,311
144512 459 313,315,317 313,315,317
144542 469 201837 299,303,307 202981 311,313,315,317
144543 469 201839 299,303,307 202982 311,313,315,317
144558 387,391 201845 301,305,309 202983 299,303,307,311
144559 387,391 201861 311,313,315,317 313,315,317
144580 387 201862 311,313,315,317 202984 311,313,315,317
144663 399,401,405,407 201867 311,313,315,317 202987 311,313,315,317
469,471 201872 311,313,315,317 202991 311,313,315,317
144664 383,385,395,399 201883 311,313,315,317 202992 311,313,315,317
401,405,407,415 201884 311,313,315,317 203001 325
144665 401,469 201956 349 203004 243
144666 383,385,399,401 202071 319 203011 311,313,315,317
405,407 202083 319 203012 311,313,315,317
144667 399 202084 319 203013 311,313,315,317
144684 453 202085 311,313,315,317 203288 227,237
144865 53,61 202086 311,313,315,317 203346 27,29,41
144897 455 202088 311,313,315,317 203351 43,251
144989 331 202089 311,313,315,317 203617 321
145095-002 283,331 202153 423 203618 321
145099 453 202154 425 203752 447
145129 51 202208 261 203867 423
145130 51 202393 243 203951-001 117
145528 419 202486 371 204291 153
145757 453 202487 371 204336 295,369
145840 453 202488 371 204443 423
14826 79 202489 371 204444 423
15094 95 202490 371 204445 423
15886 95 202491 371 204446 423
16525 337 202492 371 204447 423
17205 347 202493 371 204448 423
17365 93 202494 371 204450 425
17688 335 202495 371 204453 423
17906 97,337 202645 13 204459 423
18319 99,335 202649 257 204460 423
18364 81 202650 257 204461 423
18732 337 202652 257 204462 423
18833 83,87 202653 257 204463 423
200085 321 202654 257 204464 423
200094 437 202657 257 204465 423
200114 321 202658 257 204466 423
200115 321 202659 257 204467 423
200160 243,323,325,367 202660 257 204468 423
369 202679 371 204470 423
200181 357 202884 257 204472 423
200197 465 202889 257 204473 423
200198 465 202891 297 204474 425
NI 9
List by Part Number
07-3672 VR-II
204475 425 204542 429 205986 291
204476 425 204543 429 205987 291
204477 425 204544 429 206058 299,303,307
204478 425 204548 431 206059 299,303,307
204479 425 204549 431 206060 299,303,307
204480 425 204550 431 206061 299,303,307
204481 425 204551 431 206062 299,303,307
204482 425 204552 431 206063 299,303,307
204483 425 204553 431 206064 299,303,307
204484 425 204556 431 206065 299,303,307
204485 425 204557 429,431 206067 299,303,307
204486 425 204558 429,431 206068 299,303,307
204487 425 204829-001 201 206069 299,303,307
204488 425 204867 433 206070 299,303,307
204489 425 204901 227 206071 299,303,307
204490 425 204902 227 206072 299,303,307
204491 425 204903 227 206073 299,303,307
204492 425 204904 227 206074 299,303,307
204493 425 205031 257 206075 299,303,307
204494 425 205032-002 257 206076 299,303,307
204495 425 205033 257 206077 299,303,307
204496 425 205034 257 206078 299,303,307
204497 425 205132 47 206079 299,303,307
204498 425 205135-001 47 206081 311,313,315,317
204500 425 205143 13,27,29,41,49 206082 299,303,307
204501 425 229 206083 299,303,307
204502 425 205167 229 206084 299,303,307
204503 427 205236 47 206085 299,303,307
204504 427 205237 47 206086 299,303,307
204505 427 205238 47 206087 299,303,307
204506 427 205239 47 206088 299,303,307
204507 427 205242 229 206089 299,303,307
204508 427 205243 229 206090 299,303,307
204509 427 205245 229 206091 299,303,307
204510 427 205249-001 13,27,29,41,49 206092 299,303,307
204511 427 205330 229 206093 299,303,307
204512 427 205331 229 206094 301,305,309
204513 427 205769-001 237 206095 301,305,309
204514 427 205770-001 237 206096 301,305,309
204515 427 205771 237 206097 301,305,309
204516 427 205772 237 206098 301,305,309
204517 427 205773-001 237 206099 301,305,309
204518 427 205774 237 206100 299,303,307
204519 427 205856 295 206108 73
204520 427 205857 295 206109 73
204521 427 205858 295 206110 73
204522 427 205859 295 206111 73
204523 427 205861 293 206112 73
204524 427 205931 235 206113 73
204525 427 205951 205 206115 73
204526 427 205952 205 206117 73
204527 427 205964 285 206118 73
204528 427 205965 285,287 206121 73
204529 427 205969 289 206122 73
204530 427 205974 291 206123 73
204531 427 205975 291 206124 73
204532 427 205976 291 206125-001 357
204533 427 205977 291 206141 311,313,315,317
204534 427 205978 291 207203-001 217
204535 429 205979 291 207221-001 49
204536 429 205980 291 207304 361
204537 429 205981 291 20894 81,97
204538 429 205982 291 20909 347
204539 429 205983 291 20911 347
204540 429 205984 291 20912 347
204541 429 205985 291 20913 347
NI 10
List by Part Number
07-3672 VR-II
20982 347 391341-53 453 64354 79
20983 283,347 391341-54 453 64420 79
21910 83,87 391347-2 351 64450 81
22837 93 391358-22 283 64451 81
24852 81,97 391358-25 283 64452 83,87
25528 99 391358-28 283 64453 83,87,97
26241 83,87 391358-29 399 64454 83,87
26428 79 391371-1 469 64455 83,87
26492 79,97 391386-13 283,351 64456 83,87
2732 83,87 391386-15 351 64457 81,97
29976 337 391390-6 401 64459 91
303450 163,167 391390-8 469 64463 91
35442 341 391403-261 383,385 64467 91
3601 341 391403-262 383,385 64469 101
3646 105,107 391403-263 383,385 64471 77,97
3713 347 391403-266 383,385 64472 81
3718 339,347 391403-267 381,383,385 64475 83,87
37453 335,337,339,341 391410-6 213,215,247 67407 91
37971 97 391419-1 387 6848 337,347
38759 283 391419-2 387 69102 81
391008-44 363 391419-3 387 69103 81
391008-62 351,359 39328 81,97 69125 81
391008-67 363,365 3B2226 471 73879 337
391008-76 351,363 40408 337 7556 97
391015-5 175 42068 83,87,97 7557 341
391016-28 159 42112 83,87,91,97 7558 347
391016-30 159 4344 335,341 78070 83,87
391016-31 159 43581 339 78071 83,87
391016-32 157,159 43637 341 78074 83,87
391016-33 157,159 4379 97 78643 15,21,39,51,225
391016-34 159 44382 81,83,87,97 79926 79
391016-35 159 4581 91 79934 79
391016-38 159 48855 337 800433 51
391016-40 157 49010 81,97 800467 105,107
391016-41 157 4W1121 225 800656 195,213,215
391016-42 155,157 51545 91 800657 105,107
391031-20 465 52383 91 800658 105,107
391031-34 465 52810X 61,63 800734 187
391031-38 465 53766 335 800758 67
391031-39 465 54408 83,87,337 800974 -002 461,463
391031-43 465 54864 81 801623 11,25
391048-2 277,279 54880 81 80183 77,99
391048-4 277,279 54884 81 80184 99
391050-1 193 57115 97 80185 99
391053-28 387 57846 79,81 80186 99
391053-29 387 58291 337 802390 277,279
391054-113 219 58895 93 802433 381
391074-13 387 59342 83,87 802723 383,385
391081-11 189 59343 83,87 802819 155
391081-155 163,167 59345 83,87,97 802996 163,167
391081-60 191 59419 81 803070-007 459,469
391081-61 191 59991 83,87 803113 247
391081-62 189,191 59995 83,87 803228 163,167
391091-13 225 59996 83,87 803277 181,183
391091-14 225 59997 83,87 80419 91,97
391093-16 283 59998 83,87 80513 79,97
391125-14 189,191 59999 83,87 80591 91,97
391126-1 351 60200 83,87 8082 83,87,97
391204-6 163,167 604023 277,279 83225 83,87
391280-1 391 60675 79 83345 81
391280-10 387 60987 81 86333861 79
391280-11 381,383,385 61012 335 86333879 79
391296-5 471 6178 83,87 86343217 79
391303-35 383,385,409 62922 339 86343225 79
391303-44 409,411 63010 95 86343274 79
391303-47 413 64353 81 86343282 79
NI 11
List by Part Number
07-3672 VR-II
86343290 79
86363595 79,97
86603 335,339
8745 93
93262 341
93263 341
93486 339
93489 339
93496 341
93498 339
93698 341
93742 335,339,341,343
93997 339
94440-V4 3,77
94673 341
94694 339
94701 341
9656 341
96842 81,83,87,91,97
9848 97
9931 83,87
FSL-1097 191
J103522 195,213,215
J222179 135,137
J222960 135,137
J230890 111
J232640 117
J234922 137
J240617 121
J24144 383,385
J242603 117,119
J247664 145
JTB425 189
MC00135 235
P109296 191
Q51371557 389
Q51388072 45
Q51715217 45
Q51857209 45,47
Q95223368 39,45
Q95223376 15,21
NI 12
List of Assemblies by Description
07-3672 VR-II
Description Part Number Page
3rd SHAFT GROUP @ Before 2004 141552-012 148
3rd SHAFT GROUP @ After 2004 141552-012 150
ADAPTERS @ 94440-V4A 92
AIR CLEANER - ASM W/VACUATOR 391081-62 190
AIR COMPRESSOR 003234-001 420
AIR INTAKE ASS'Y 010760-005 188
AIR SYSTEM 014617-021 418
AIR TANK INSTL'N 015239-001 438
ALARM / STROBE LT KIT 004032-014 470
ARTICULATION ASS'Y 010744-001 246
ARTICULATION DRIVESHAFT 010726-008 220
AUTO-RETURN CYLINDER 139846 72
AUXILIARY PUMP DRIVE GROUP @ 141552-008 138
AXLE - D45NI 010614-002 198
AXLE ASS'Y 010614-001 196
BOOM EXTENSION CYLINDER 008997-001 42
BOOM LIFT CYLINDER 009002-001 12
BOOM MOUNTING ASS'Y 009015-002 6
BOOM PIVOT ASS'Y 009016-002 8
BOOM SWING CYLINDER 009000-001 48
BRAKE ASS'Y 010614-003 210
BRAKE ASS'Y @ 010614-002A 200
BRAKE PEDAL 391008-76 362
BULKHEAD SUPPORT ASS'Y 004845-014 64
CABLE REEL 006476-002 264
CANOPY CYLINDER - R/H 001307-002 236
CENTRAL PART @ 020041-001C 338
CHARGING PUMP & FILTER GROUP @ 141552-007 152
COLLECTOR ASS'Y 006476-064 268
COMPLETE SEAL KIT 64471 96
CONTROL VALVE ASS'Y 391016-42 156
CONTROL VALVE GROUP @ 141552-013 154
CONTROL VALVE HOUSING ASS'Y 391016-32 158
CONVERTER HOUSING GROUP @ 141552-006 114
COOLANT LVL SWITCH KIT 018218-007 414
COOLING ASS'Y 013208-002 162
COUNTERBALANCE VALVE 101572 374
COUNTERBALANCE VALVE 106652 348
CRADLE OFFSET ASS'Y 009024-003 38
DECAL - BRAKE TEST 143523 456
DECAL KIT 010752-001 452
DIFFERENTIAL @ 010614-002B 202
DIFFERENTIAL HOUSING & LOCK @ 010614-002C 206
DIR. CONT. VALVE - 3 Bank 010502-001 244
DIR. CONTROL VALVE - 1 Bank 010501-001 354
DIR. CONTROL VALVE - 8 BANK 010500-001 376
DIRECTIONAL VALVE - 4W/2P, 24V 126212 360
DISTRIB. / ACCUM. GROUP @ 94440V4-B 78
DRIFTER DIRECTIONAL VALVE 138072 294
DRILL CONTROL 020041-001 332
DRILL CONTROL MODIFICATION 145095-002 330
DRILL CRADLE ASS'Y 008095-003 54
DRIVE MOTOR @ 16-329 430
DRIVE PLATE GROUP @ 008563-003 122
DRIVELINE - FRONT AXLE 010726-002 218
DRIVELINES ASS'Y 019317-001 216
DRUM ASS'Y 006476-067 266
DUAL COUNTER BALANCE VALVE 129468 356
DUAL COUNTER BALANCE VALVE c/w shuttle 002163-001 378
ELECTRIC MOTOR RWK - 60/460 129279-002 262
ELECTRIC SHIFT VALVE 019998-001 160
ELECTRICAL KIT 010738-011 450
ELECTRICAL KIT 015152-011 440
ELECTRICAL SYSTEM 020176-001 382
ENGINE ASS'Y - Cummins QSB4.5 014979-001 108
ENGINE/TRANS. ASS'Y 010759-003 104
AI 1
07-3672 VR-II
EXHAUST ASS'Y 010761-004 180
EXTENSION CYLINDER 134591 226
FAN ASS'Y 015417-001 176
FEED ADVANCE CYLINDER 009731-001 44
FEED ASS'Y - MTF12, L/H, HC-50 012352-002 50
FEED CYLINDER 004846-004 68
FEED CYLINDER ASS'Y 012406-001 66
FEED INLET PART @ 020041-001E 342
FEED PIVOT CYLINDER 008998-001 40
FEED RAIL ASS'Y 012400-003 52
FILTER / REGULATOR 105187 436
FIRE SUPPRESSION SYSTEM 013209-001 460
FIRE SUPPRESSION SYSTEM - 4 Nozzle 004500-001 464
FIXATION @ 94440V4-F 94
FIXED CENTRALIZER ASS'Y 004844-002 62
FORWARD SHAFT GROUP @ 141552-011 126
FORWARD SHAFT GROUP @ Before 2004 141552-074 142
FORWARD SHAFT GROUP @ After 2004 141552-074 130
FRONT AXLE ASS'Y 010763-001 194
FRONT FRAME ASS'Y 010743-008 224
FRONT GUIDE - R38 @ 94440V4-E 90
FUEL SYSTEM 019316-001 192
FUEL TANK ASS'Y 011466-002 276
GAUGE ASS'Y - 160 PSI 032292-002 326
GAUGE ASS'Y - 3000 PSI 032294-002 344
GAUGE ASS'Y - 5000 PSI 032295-002 328
GAUGE ASS'Y - 600 PSI 032293-002 448
GROUND FAULT PANEL 135866 474
GUIDE DUMP CYLINDER 009001-001 26
GUIDE DUMP CYLINDER ASS'Y 009021-001 24
GUIDE EXTENSION CYLINDER Q51857209 46
GUIDE SWING CYLINDER 008999-001 28
HAND PUMP 118608 370
HANDLE KIT 205965 286
HARNESS 391303-44 410
HC-50 DRIFTER 94440-V4 76
HDW AND INTERCONNECTION 020228-001 394
HEAT EXCHANGER - Hydraulic 105331 320
HIGH PRESSURE FILTER 104388 296
HOODS ASS'Y 011463-005 258
HOSE DRUM 011922-002 58
HOSE REEL DRUM CRADLE ASS'Y 004842-006 56
HOUSING GROUP @ 94440V4-D 82
HYD. DIFF. LOCK CONTROL @ 010614-002D 208
HYD. SCHEMATIC - MTB Boom 013687-001 372
HYDRAULIC MOTOR 020129-001 34
HYDRAULIC PUMP - 45CC 019222-001 352
HYDRAULIC PUMP - PAVC 100 138068 310
HYDRAULIC PUMP - PVP16 138952 318
HYDRAULIC PUMP - PVP48 138069 298
HYDRAULIC SCHEMATIC - CABLE REEL 012151-001 272
HYDRAULIC SCHEMATIC - CANOPY 012153-011 238
HYDRAULIC SCHEMATIC - Carrier 013195-031 350
HYDRAULIC SCHEMATIC - REAR JACKS 012152-001 274
HYDRAULIC TANK ASS'Y 011462-002 254
IDLER SHAFT GROUP @ 141552-076 134
INNER BOOM ASS'Y 009019-002 20
INTAKE END ARRANGEMENT @ 120977A 422
JACK CYLINDER 137045 228
JOYSTICK VALVE ASS'Y 138073 284
L.S. CHARGE VALVE 391008-62 358
LEVER LINK & MOUNT PLATE ASS'Y @ 138073B 288
LIFT CYLINDER ASSEMBLY 009017-001 10
LIGHT ASS'Y 109623 416
LOW SPEED SHAFT GROUP @ 141552-075 132
LUBE PUMP - 24VDC 022572-001 432
AI 2
07-3672 VR-II
MAIN DASH 020213-001 386
MAIN HARNESS 020220-001 396
MAIN HARNESS - BOOM END 020221-001 398
MAIN HARNESS - ENG END 020222-001 400
MOTOR CONTROL PANEL 020227-001 390
MOTOR PART GROUP @ 94440V4-C 80
MTB5500 ASS'Y - L/H 009052-002 4
OFFSET GUIDE ASS'Y 009023-005 36
OIL COOLER ARRANGEMENT @ 120977E 428
OIL SEPARATOR & INTAKE END COVER @ 120977C 424
OPTIONS GROUP 010753-006 458
OUTER BOOM ASSEMBLY 009018-001 14
OUTPUT SHAFT GROUP @ 141552-077 136
PEDAL - No Sensor 027984-002 412
PERCUSSION INLET PLATE @ 020041-001A 334
PILOT VALVE 20983 346
POWER HARNESS 020217-001 402
POWER HARNESS - BOOM END 020218-001 404
POWER HARNESS - ENG END 020219-001 406
POWER PACK ASS'Y 011475-007 260
POWERTRAIN ASS'Y 010741-005 102
PRESS. REDUCING / RELIEF VALVE 105333 242
PRESSURE REDUCING VALVE 139791 292
PUMP DRIVE GROUP @ 141552-009 140
PURIFIER / MUFFLER 009063-001 184
PURIFIER MOUNT ASS'Y 016011-002 186
RAD GUARD 020611-001 178
RADIATOR ASS'Y 014971-001 170
REAR AXLE ASS'Y 010764-001 212
REAR DRIVESHAFT 010726-009 222
REAR FRAME ASSEMBLY 010745-008 252
REDUCER SUPP. KNUCKLE ASS'Y 009020-002 22
REDUCER SUPPORT ASS'Y 009022-004 30
REGULATOR V4 @ 020041-001D 340
RELIEF VALVE 004128-001 366
RELIEF VALVE 111084 368
REMOTE GREASE CIRCUIT 012602-001 466
RESTRICTOR 80183 98
RETURN FILTER 117215 256
REVERSE & 2nd SHAFT GROUP @ Before 2004 141552-073 146
REVERSE & 2nd SHAFT GROUP @ After 2004 141552-073 128
REVERSE IDLER GROUP @ 003260-001 144
ROPS CANOPY ASSEMBLY 010811-001 234
ROTARY ACTUATOR 017992-003 32
ROTOR STATOR UNIT & OIL CHAMBER @ 120977D 426
SCH, MTF12, SLIDE TUBE HC-50 012875-011 74
SCHEMATIC - HYDRAULIC - Front Jacks 012108-011 240
SCHEMATIC - HYDRAULIC - INTEL II 017703-013 282
SEAT ASS'Y 139612 230
SHANK - R38 @ 94440V4-G 100
SHIFTER OPTION - 3 SPEED 803070-007 468
SLIDE SUPPORT CRADLE ASS'Y 005109-002 70
SPRING ASSEMBLY @ 138073A 290
STEER CYLINDER 011154-001 250
STEER CYLINDER PIN ASSEMBLY 009118-001 248
SURGE TANK 017437-001 174
THROTTLE PEDAL - Electric 391303-35 408
TIRE AND RIM ASS'Y 010747-003 280
TORQ. CONV. / TRANS. 141552 112
TORQUE CONVERTER GROUP @ 141552-004 124
TORQUE UNIT 006476-066 270
TRANSMISSION ASS'Y - 20000 ELEC. 019915-001 110
TRANSMISSION CASE & COVER GROUP @ 141552-010 116
TRANSMISSION SCHEMATIC 140907-021 380
AI 3
07-3672 VR-II
TRAVELLING CENTRALIZER ASS'Y 004843-006 60
TURBINE SHAFT GROUP @ 141552-005 120
V3 PART @ 020041-001B 336
VALVE 008428-001 364
VR-II 07-3672 2
WATER PUMP 006830-002 444
WATER SERVICE VALVE 139297 434
WATER SYSTEM 012353-021 442
WEAR PAD ASSEMBLY 013746-001 16
WEAR PAD ASSEMBLY - 6 Holes 015075-001 18
WHEEL CHOCK BRACKET 007338-002 472
AI 4

07-3672 Table of Contents - 2 Vr-Ii: 4 MTB5500 ASS'Y - L/H

Uploaded by

Copyright:

Available Formats

You might also like

07-3672 Table of Contents - 2 Vr-Ii: 4 MTB5500 ASS'Y - L/H

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

07-3672 Table of Contents - 2 Vr-Ii: 4 MTB5500 ASS'Y - L/H

Uploaded by

Copyright:

Available Formats

Table of Contents - 07-3672

OUTER BOOM ASSEMBLY 14

WEAR PAD ASSEMBLY - 6 Holes 18

INNER BOOM ASS'Y 20

GUIDE SWING CYLINDER 28

OFFSET GUIDE ASS'Y 36

BOOM SWING CYLINDER 48

TRAVELLING CENTRALIZER ASS'Y 50

SLIDE SUPPORT CRADLE ASS'Y 70

TRANSMISSION ASS'Y - 20000 ELEC. 110

TORQ. CONV. / TRANS. 112

CONVERTER HOUSING GROUP @ 114

TRANSMISSION CASE & COVER GROUP @ 116

TURBINE SHAFT GROUP @ 120

DRIVE PLATE GROUP @ 122

TORQUE CONVERTER GROUP @ 124

GEAR GROUP @ 126

REVERSE & 2nd SHAFT GROUP @ 128

FORWARD SHAFT GROUP @ 130

LOW SPEED SHAFT GROUP @ 132

IDLER SHAFT GROUP @ 134

OUTPUT SHAFT GROUP @ 136

AUXILIARY PUMP DRIVE GROUP @ 138

PUMP DRIVE GROUP @ 140

FORWARD SHAFT GROUP @ 142

FORWARD SHAFT GROUP @ 130

REVERSE IDLER GROUP @ 144

REVERSE & 2nd SHAFT GROUP @ 128

LOW SPEED SHAFT GROUP @ 132

3rd SHAFT GROUP @ 148

3rd SHAFT GROUP @ 150

IDLER SHAFT GROUP @ 134

OUTPUT SHAFT GROUP @ 136

CHARGING PUMP & FILTER GROUP @ 152

CONTROL VALVE GROUP @ 154

CONTROL VALVE ASS'Y 156

CONTROL VALVE HOUSING ASS'Y 158

ELECTRIC SHIFT VALVE 160

COOLING ASS'Y 162

SURGE TANK 174

FAN ASS'Y 176

SURGE TANK 174

RAD GUARD 178

EXHAUST ASS'Y 180

PURIFIER MOUNT ASS'Y 186

AIR INTAKE ASS'Y 188

FUEL SYSTEM 192

AXLE - D45NI 198

BRAKE ASS'Y @ 200

DIFFERENTIAL HOUSING & LOCK @ 206

HYD. DIFF. LOCK CONTROL @ 208

BRAKE ASS'Y 210

REAR AXLE ASS'Y 212

AXLE - D45NI 198

BRAKE ASS'Y @ 200

DIFFERENTIAL HOUSING & LOCK @ 206

HYD. DIFF. LOCK CONTROL @ 208
