10-4102 VR-II - Chevron Mining 10-4102 2 VR-II - Chevron Mining 009052-002 4 MTB5500 ASS'Y - L/H

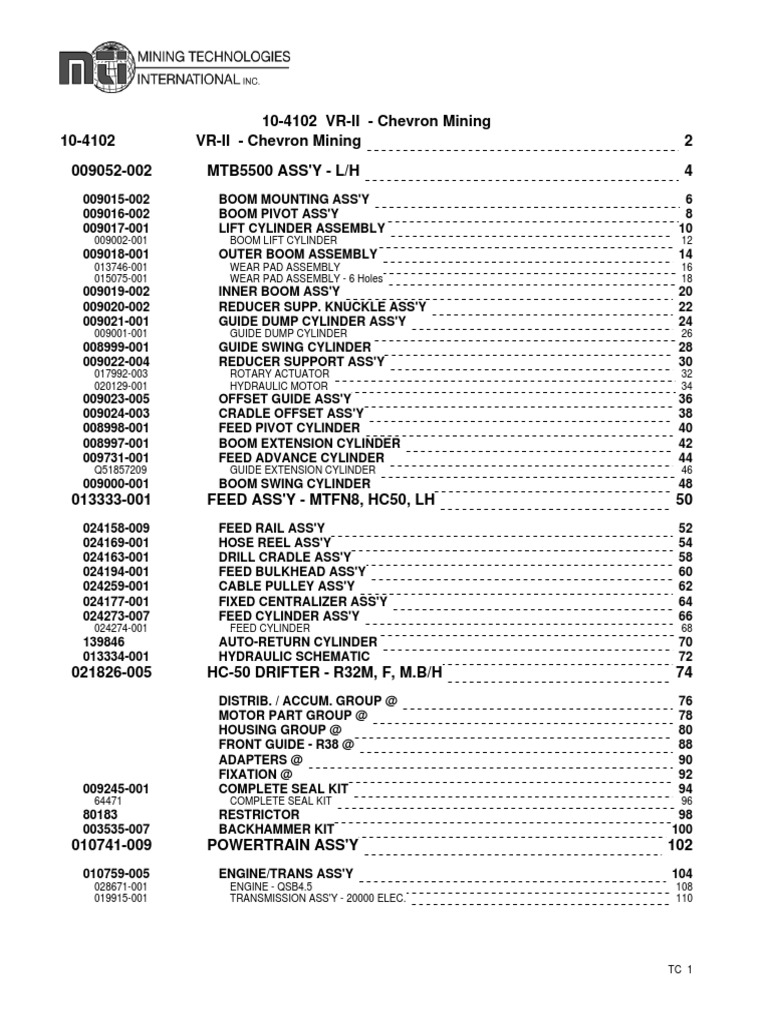

10-4102 VR-II - Chevron Mining
10-4102 VR-II - Chevron Mining 2

009052-002 MTB5500 ASS'Y - L/H 4
009015-002 BOOM MOUNTING ASS'Y 6
009016-002 BOOM PIVOT ASS'Y 8
009017-001 LIFT CYLINDER ASSEMBLY 10
009002-001 BOOM LIFT CYLINDER 12
009018-001 OUTER BOOM ASSEMBLY 14
013746-001 WEAR PAD ASSEMBLY 16
015075-001 WEAR PAD ASSEMBLY - 6 Holes 18
009019-002 INNER BOOM ASS'Y 20
009020-002 REDUCER SUPP. KNUCKLE ASS'Y 22
009021-001 GUIDE DUMP CYLINDER ASS'Y 24
009001-001 GUIDE DUMP CYLINDER 26
008999-001 GUIDE SWING CYLINDER 28
009022-004 REDUCER SUPPORT ASS'Y 30
017992-003 ROTARY ACTUATOR 32
020129-001 HYDRAULIC MOTOR 34
009023-005 OFFSET GUIDE ASS'Y 36
009024-003 CRADLE OFFSET ASS'Y 38
008998-001 FEED PIVOT CYLINDER 40
008997-001 BOOM EXTENSION CYLINDER 42
009731-001 FEED ADVANCE CYLINDER 44
Q51857209 GUIDE EXTENSION CYLINDER 46
009000-001 BOOM SWING CYLINDER 48
013333-001 FEED ASS'Y - MTFN8, HC50, LH 50
024158-009 FEED RAIL ASS'Y 52
024169-001 HOSE REEL ASS'Y 54
024163-001 DRILL CRADLE ASS'Y 58
024194-001 FEED BULKHEAD ASS'Y 60
024259-001 CABLE PULLEY ASS'Y 62
024177-001 FIXED CENTRALIZER ASS'Y 64
024273-007 FEED CYLINDER ASS'Y 66
024274-001 FEED CYLINDER 68
139846 AUTO-RETURN CYLINDER 70
013334-001 HYDRAULIC SCHEMATIC 72
021826-005 HC-50 DRIFTER - R32M, F, M.B/H 74
DISTRIB. / ACCUM. GROUP @ 76
MOTOR PART GROUP @ 78
HOUSING GROUP @ 80
FRONT GUIDE - R38 @ 88
ADAPTERS @ 90
FIXATION @ 92
009245-001 COMPLETE SEAL KIT 94
64471 COMPLETE SEAL KIT 96
80183 RESTRICTOR 98
003535-007 BACKHAMMER KIT 100
010741-009 POWERTRAIN ASS'Y 102
010759-005 ENGINE/TRANS ASS'Y 104
028671-001 ENGINE - QSB4.5 108
019915-001 TRANSMISSION ASS'Y - 20000 ELEC. 110
TC 1
141552 TORQ. CONV. / TRANS. 112
CONVERTER HOUSING GROUP @ 114
TRANSMISSION CASE & COVER GROUP @ 116
TURBINE SHAFT GROUP @ 120
DRIVE PLATE GROUP @ 122
TORQUE CONVERTER GROUP @ 124
GEAR GROUP @ 126
REVERSE & 2nd SHAFT GROUP @ After 2004 128
FORWARD SHAFT GROUP @ After 2004 130
LOW SPEED SHAFT GROUP @ 132
IDLER SHAFT GROUP @ 134
OUTPUT SHAFT GROUP @ 136
AUXILIARY PUMP DRIVE GROUP @ 138
PUMP DRIVE GROUP @ 140
FORWARD SHAFT GROUP @ Before 2004 142
FORWARD SHAFT GROUP @ After 2004 130
REVERSE IDLER GROUP @ 144
REVERSE & 2nd SHAFT GROUP @ Before 2004 146
REVERSE & 2nd SHAFT GROUP @ After 2004 128
LOW SPEED SHAFT GROUP @ 132
3rd SHAFT GROUP @ Before 2004 148
3rd SHAFT GROUP @ After 2004 150
IDLER SHAFT GROUP @ 134
OUTPUT SHAFT GROUP @ 136
CHARGING PUMP & FILTER GROUP @ 152
CONTROL VALVE GROUP @ 154
391016-42 CONTROL VALVE ASSEMBLY 156
391016-32 CONTROL VALVE HOUSING ASSEMBLY 158
019998-001 ELECTRIC SHIFT VALVE 160
013208-002 COOLING ASS'Y 162
014971-001 RADIATOR ASS'Y 170
017437-001 SURGE TANK 174
015417-001 FAN ASS'Y 176
017437-001 SURGE TANK 174
020611-001 RAD GUARD 178
010761-004 EXHAUST ASS'Y 180
016011-002 PURIFIER MOUNT ASS'Y 184
010760-008 INTAKE ASS'Y 186
391081-62 AIR CLEANER - ASM W/VACUATOR 188
019316-001 FUEL SYSTEM 190
010763-001 FRONT AXLE ASS'Y 192
010614-001 AXLE ASS'Y 194
010614-002 AXLE - D45NI 196
BRAKE ASSEMBLY @ 198
DIFFERENTIAL @ 200
DIFFERENTIAL HOUSING & LOCK @ 204
HYD. DIFF. LOCK CONTROL @ 206
010614-003 BRAKE ASSEMBLY 208
010764-001 REAR AXLE ASS'Y 210
010614-001 AXLE ASS'Y 194
010614-002 AXLE - D45NI 196
BRAKE ASSEMBLY @ 198
DIFFERENTIAL @ 200
DIFFERENTIAL HOUSING & LOCK @ 204
HYD. DIFF. LOCK CONTROL @ 206
010614-003 BRAKE ASSEMBLY 208
019317-001 DRIVELINES ASS'Y 214
010726-002 DRIVELINE - FRONT AXLE 216
010726-008 ARTICULATION DRIVESHAFT 218
010726-009 REAR DRIVESHAFT 220
010743-015 FRONT FRAME ASS'Y 222
134591 EXTENSION CYLINDER 226
137045 JACK CYLINDER 228
139612 SEAT ASS'Y 230
TC 2
010811-001 ROPS CANOPY ASSEMBLY 234
001307-002 CANOPY CYLINDER - R/H 236
012153-011 HYDRAULIC SCHEMATIC - CANOPY 238
012108-031 FRONT JACKS SCHEMATIC 240
105333 PRESS. REDUCING / RELIEF VALVE 242
010502-001 DIR. CONT. VALVE - 3 Bank 244
010744-001 ARTICULATION ASS'Y 246
009118-001 STEER CYLINDER PIN ASSEMBLY 248
011154-001 STEER CYLINDER 250
010745-016 REAR FRAME ASS'Y 252
011462-004 HYDRAULIC TANK ASS'Y 256
117215 RETURN FILTER 258
011463-008 HOODS ASSEMBLY 260
011475-028 POWERPACK ASS'Y 264
006476-002 CABLE REEL 266
006476-067 DRUM ASS'Y 268
006476-064 COLLECTOR ASS'Y 270
006476-066 TORQUE UNIT 272
012151-001 HYDRAULIC SCHEMATIC - CABLE REEL 274
010502-001 DIR. CONT. VALVE - 3 Bank 244
012152-001 HYDRAULIC SCHEMATIC - REAR JACKS 276
137045 JACK CYLINDER 228
011466-002 FUEL TANK ASS'Y 278
010747-003 TIRE AND RIM ASS'Y 282
025202-051 HYDRAULIC SCHEMATIC 284
027868-001 PERC/FEED/ROT VALVE 286
024147-101 HANDLE ASS'Y 288
138073 JOYSTICK VALVE ASS'Y 290
205965 HANDLE KIT 292
LEVER LINK & MOUNT PLATE ASS'Y @ 294
SPRING ASSEMBLY @ 296
024946-001 HYDRAULIC PUMP 298
024947-001 HYD. ROTATION PUMP 300
104388 HIGH PRESSURE FILTER 302
105331 HEAT EXCHANGER - Hydraulic 304
032412-001 HYDRAULIC FILLER PUMP 306
018627-001 DRILL CONTROL VALVE 308
025204-001 DIFF PRESS SENSING VALVE 310
013195-061 HYDRAULIC SCHEMATIC - Carrier 312
019222-001 HYDRAULIC PUMP - 45CC 314
104388 HIGH PRESSURE FILTER 302
010501-001 DIR. CONTROL VALVE - 1 Bank 316
129468 DUAL COUNTER BALANCE VALVE 318
391008-62 L.S. CHARGE VALVE 320
126212 DIRECTIONAL VALVE - 4W/2P, 24V 322
391008-76 BRAKE PEDAL 324
008428-001 VALVE 326
004128-001 RELIEF VALVE 328
111084 RELIEF VALVE 330
013687-031 HYDRAULIC SCHEMATIC - MTB5500, LH 332
TC 3
101572 COUNTERBALANCE VALVE 334
010500-001 DIR. CONTROL VALVE - 8 BANK 336
105333 PRESS. REDUCING / RELIEF VALVE 242
111084 RELIEF VALVE 330
002163-001 DUAL COUNTER BALANCE VALVE c/w shuttle 338
140907-021 TRANSMISSION SCHEMATIC 340
025518-201 ELECTRICAL SYSTEM 342
025519-201 MAIN DASH 346
025529-001 MAIN CONTROL PANEL 350
025521-201 HDWR & INTERCONNECTION 354
025524-201 POWER HARNESS - FR. FRAME 356
025525-201 POWER HARNESS - ENG. END 358
025522-201 MAIN HARNESS - FR. FRAME 360
025523-201 MAIN HARNESS - R. FRAME 362
025694-201 DRILL PARAMETERS HARNESS 364
025725-001 FILLER PUMP OPTION 366
803070-007 SHIFTER OPTION - 3 SPEED 368
024983-001 WORK LIGHT - LED 370
010757-001 AIR SYSTEM 372
139297 WATER SERVICE VALVE 374
105187 FILTER / REGULATOR 376
022572-001 LUBE PUMP - 24VDC 378
012353-031 WATER SYSTEM 380
006830-001 WATER PUMP 382
105331 HEAT EXCHANGER - Hydraulic 304
021883-001 ELECTRICAL KIT 386
025687-001 DECAL KIT 388
026755-001 DECAL KIT - VRII,ENG 390
143523 DECAL - BRAKE TEST 394
010753-016 OPTIONS GROUP 396
013209-001 FIRE SUPPRESSION SYSTEM 398
004500-001 FIRE SUPPRESSION SYSTEM - 4 Nozzle 402
012602-001 REMOTE GREASE CIRCUIT 404
803070-007 SHIFTER OPTION - 3 SPEED 368
004032-014 ALARM/STROBE LT KIT 406
007338-002 WHEEL CHOCK BRACKET 408
024983-001 WORK LIGHT - LED 370
010848-004 DRAWING TUBE OPTIONS 410
025676-001 BOOM ADAPTER 412
TC 4
This page intentionally blank.
10-4102
(Sheet 1 / 2 )
VR-II - Chevron Mining
2
10-4102
(Sheet 2 / 2)
VR-II - Chevron Mining

NO. PART No. DESCRIPTION QTY.
1 009052-002 MTB5500 ASS'Y - L/H ( Page 4 ) 1
2 013333-001 FEED ASS'Y - MTFN8, HC50, LH ( Page 50 ) 1
3 021826-005 HC-50 DRIFTER - R32M, F, M.B/H ( Page 74 ) 1
4 010741-009 POWERTRAIN ASS'Y ( Page 102 ) 1
5 010743-015 FRONT FRAME ASS'Y ( Page 222 ) 1
6 010744-001 ARTICULATION ASS'Y ( Page 246 ) 1
7 010745-016 REAR FRAME ASS'Y ( Page 252 ) 1
8 010747-003 TIRE AND RIM ASS'Y ( Page 282 ) 4
9 025202-051 HYDRAULIC SCHEMATIC ( Page 284 ) 1
10 013195-061 HYDRAULIC SCHEMATIC - Carrier ( Page 312 ) 1
11 013687-031 HYDRAULIC SCHEMATIC - MTB5500, LH ( Page 332 ) 1
12 140907-021 TRANSMISSION SCHEMATIC ( Page 340 ) 1
13 025518-201 ELECTRICAL SYSTEM ( Page 342 ) 1
14 010757-001 AIR SYSTEM ( Page 372 ) 1
15 012353-031 WATER SYSTEM ( Page 380 ) 1
16 025687-001 DECAL KIT ( Page 388 ) 1
17 010753-016 OPTIONS GROUP ( Page 396 ) 1
18 025676-001 BOOM ADAPTER ( Page 412 ) 1
19 014419-048 250/500/750 HR FILTER KIT REF
20 014419-049 1000 HR FILTER KIT REF
When Ordering, Give Part No., Part Name, Model & Serial No.
3
009052-002
(Sheet 1 / 2 )
MTB5500 ASS'Y - L/H
4
009052-002
(Sheet 2 / 2)
MTB5500 ASS'Y - L/H

1 009015-002 BOOM MOUNTING ASS'Y ( Page 6 ) 1
2 009016-002 BOOM PIVOT ASS'Y ( Page 8 ) 1
3 009017-001 LIFT CYLINDER ASSEMBLY ( Page 10 ) 1
4 009018-001 OUTER BOOM ASSEMBLY ( Page 14 ) 1
5 009019-002 INNER BOOM ASS'Y ( Page 20 ) 1
6 009020-002 REDUCER SUPP. KNUCKLE ASS'Y ( Page 22 ) 1
7 009021-001 GUIDE DUMP CYLINDER ASS'Y ( Page 24 ) 1
8 008999-001 GUIDE SWING CYLINDER ( Page 28 ) 1
9 009022-004 REDUCER SUPPORT ASS'Y ( Page 30 ) 1
10 009023-005 OFFSET GUIDE ASS'Y ( Page 36 ) 1
11 009024-003 CRADLE OFFSET ASS'Y ( Page 38 ) 1
12 008998-001 FEED PIVOT CYLINDER ( Page 40 ) 1
13 008997-001 BOOM EXTENSION CYLINDER ( Page 42 ) 1
14 009731-001 FEED ADVANCE CYLINDER ( Page 44 ) 1
15 009000-001 BOOM SWING CYLINDER ( Page 48 ) 1
16 143894 DOWEL PIN 2
5
009015-002
(Sheet 1 / 2 )
BOOM MOUNTING ASS'Y
6
009015-002
(Sheet 2 / 2)
BOOM MOUNTING ASS'Y

1 FRONT FRAME REF
2 008975-001 PIVOT 1
3 008918-001 WASHER 2
4 008976-001 BUSHING 1
5 008924-001 BUSHING 4
6 008923-001 CAP 4
7 103572 HHCS - 0.5-13NC X1.250 GR8 16
8 105992 FLAT WASHER - 0.500 A325 16
9 100117 GREASE FITTING -(STR) 1/8 NPT 2
10 018324-001 PIVOT BUSHING CAP REF
11 103585 BOLT - 0.75-10NCX3 REF
12 101227 WASHER REF
7
009016-002
(Sheet 1 / 2 )
BOOM PIVOT ASS'Y
8
009016-002
(Sheet 2 / 2)
BOOM PIVOT ASS'Y

1 013672-001 BOOM PIVOT 1
2 008913-002 PIN - BOOM BASE 1
3 008914-002 PIN - OUTER BOOM 1
4 008915-001 WASHER 2
5 008918-001 WASHER 2
6 100126 LOCKNUT 1
7 008921-001 TAPER LOCK PIN - 2" 1
8 008920-001 END CAP 2
9 136876 HHCS - 0.625-11NC X 2.750 GR8 2
10 136875 WASHER 2
9
009017-001
(Sheet 1 / 2 )
LIFT CYLINDER ASSEMBLY
10
009017-001
(Sheet 2 / 2)
LIFT CYLINDER ASSEMBLY

1 009002-001 BOOM LIFT CYLINDER ( Page 12 ) 1
2 008977-001 KNUCKLE 1
3 008978-001 PIN 1
4 008967-001 WASHER 2
5 008979-001 LOCK PLATE 1
6 801623 BOLT 2
7 101140 FLATWASHER - 0.313 A325 2
9 104821 SPHERICAL BEARING 1
10 012274-001 BUSHING 2
11
009002-001
(Sheet 1 / 2 )
BOOM LIFT CYLINDER
12
009002-001
(Sheet 2 / 2)
BOOM LIFT CYLINDER

1 009002-010 BARREL 1
2 009002-011 ROD 1
3 013630-013 GLAND 1
4 009002-012 STROKE RESTRICTOR 1
5 013630-015 PISTON 1
6 202645 STEM NUT 1
7 205143 COUNTERBALANCE VALVE 2
8 a PISTON SEAL 1
9 a WEAR RING 2
10 a O-RING 1
11 a BACK-UP RING 2
12 a O-RING 1
13 a BACK-UP RING 1
14 a ROD SEAL 1
15 a WIPER 1
16 a WEAR RING 1
17 a WEAR RING 1
18 013125-025 SPHERICAL BEARING 1
19 205249-001 GREASE FITTING 1
20 014346-010 CB VALVE CAP 2
21 013630-010 SEAL KIT REF
a) Items included in Seal Kit # 013630-010.
13
009018-001
(Sheet 1 / 2 )
OUTER BOOM ASSEMBLY
14
009018-001
(Sheet 2 / 2)
OUTER BOOM ASSEMBLY

1 014729-001 OUTER BOOM - MTB5500 1
2 008984-001 BUSHING 2
3 013741-001 CAP 2
4 008920-001 END CAP 2
5 008921-001 TAPER LOCK PIN - 2" 1
6 009010-001 END CAP - 2 1/2" 2
7 009011-001 TAPER LOCK PIN - 2 1/2" 1
8 013746-001 WEAR PAD ASSEMBLY ( Page 16 ) 5
9 015075-001 WEAR PAD ASSEMBLY - 6 Holes ( Page 18 ) 1
10 136876 HHCS - 0.625-11NC X 2.750 GR8 2
11 136875 WASHER 2
12 101140 FLATWASHER - 0.313 A325 6
13 134482 BOLT - HHCS 0.313NCX1 GR8 6
15 009027-001 PIN 1
16 Q95223376 SNAP RING 2
18 012534-001 LOCK BAR 1
19 012205-001 SCRAPER 1
20 012206-001 RETAINER PLATE 2
21 78643 HALF COLLAR 2
15
013746-001
(Sheet 1 / 2 )
WEAR PAD ASSEMBLY
16
013746-001
(Sheet 2 / 2)
WEAR PAD ASSEMBLY

1 013743-001 PUSH PLATE 1
2 013744-001 WEAR PAD 1
3 103572 HHCS - 0.5-13NC X1.250 GR8 4
4 013747-001 SET SCREW - 0.750-10NC X 1.500 4
5 104381 JAM NUT - 0.75 X 10-NC 4
6 134044 JAM NUT 2
7 014340-001 SET SCREW - 0.500-13NC X 1.750 2
8 105992 FLAT WASHER - 0.500 A325 4
17
015075-001
(Sheet 1 / 2 )
WEAR PAD ASSEMBLY - 6 Holes
18
015075-001
(Sheet 2 / 2)
WEAR PAD ASSEMBLY - 6 Holes

1 015076-001 PUSH PLATE 1
2 013744-001 WEAR PAD 1
3 102199 BOLT - FHCS 0.500-13NC X 1.250 GR8 6
19
009019-002
(Sheet 1 / 2 )
INNER BOOM ASS'Y
20
009019-002
(Sheet 2 / 2)
INNER BOOM ASS'Y

1 020049-001 INNER BOOM 1
2 008951-001 END CAP 4
3 008955-001 TAPER LOCK PIN 2
4 136876 HHCS - 0.625-11NC X 2.750 GR8 4
5 136875 WASHER 4
6 100157 HHCS -0.375-16NC X 1.000 GR8 8
7 106473 FLAT WASHER - 0.375, L9 8
8 013749-001 CAP 2
9 009029-001 BUSHING 2
10 Q95223376 SNAP RING 2
11 008932-001 PIN 1
12 008952-001 TAPER LOCK PIN - 1 1/2" 1
21
009020-002
(Sheet 1 / 2 )
REDUCER SUPP. KNUCKLE ASS'Y
22
009020-002
(Sheet 2 / 2)
REDUCER SUPP. KNUCKLE ASS'Y

1 013696-001 KNUCKLE REDUCER SUPP. 1
2 008969-002 PIN 1
3 008968-002 PIN 1
4 008966-001 WASHER 2
5 008967-001 WASHER 2
6 008951-001 END CAP 2
7 008952-001 TAPER LOCK PIN - 1 1/2" 1
8 136876 HHCS - 0.625-11NC X 2.750 GR8 2
9 136875 WASHER 2
11 014542-001 HHCS BOLT 1
23
009021-001
(Sheet 1 / 2 )
GUIDE DUMP CYLINDER ASS'Y
24
009021-001
(Sheet 2 / 2)
GUIDE DUMP CYLINDER ASS'Y

1 009001-001 GUIDE DUMP CYLINDER ( Page 26 ) 1
2 008972-001 PIN 1
3 008980-001 KNUCKLE 1
4 008981-001 CAP 2
5 008973-001 WASHER 2
6 009032-001 BUSHING 2
7 801623 BOLT 6
8 101140 FLATWASHER - 0.313 A325 6
25
009001-001
(Sheet 1 / 2 )
GUIDE DUMP CYLINDER
26
009001-001
(Sheet 2 / 2)
GUIDE DUMP CYLINDER

1 009001-010 BARREL 1
2 009001-011 ROD 1
3 014346-012 GLAND 1
5 014346-011 PISTON 1
6 021437-012 SET SCREW 1
8 PISTON SEAL 1
9 WEAR RING 1
10 O-RING 1
11 BACK-UP RING 2
12 O-RING 1
13 BACK-UP RING 1
14 WEAR RING 1
15 WEAR RING 1
16 ROD SEAL 1
17 ROD WIPER 1
20 014346-015 SEAL KIT REF
27
008999-001
(Sheet 1 / 2 )
GUIDE SWING CYLINDER
28
008999-001
(Sheet 2 / 2)
GUIDE SWING CYLINDER

1 008999-011 BARREL 1
2 008999-012 ROD 1
3 008999-013 GLAND 1
4 008999-014 PISTON 1
5 SET SCREW - 14X38NC 1
6 a 205143 COUNTERBALANCE VALVE 2
7 a PISTON SEAL 1
8 a WEAR RING 1
9 a O-RING 1
10 a O-RING 1
11 a BACK-UP RING 1
12 a WEAR RING 2
13 a WEAR RING 1
14 a ROD SEAL 1
15 a ROD WIPER 1
18 CB VALVE CAP 2
19 PLUG 4
a) Items are included in Seal Kit #008999-010
29
009022-004
(Sheet 1 / 2 )
REDUCER SUPPORT ASS'Y
30
009022-004
(Sheet 2 / 2)
REDUCER SUPPORT ASS'Y

1 020007-001 REDUCER SUPPORT 1
2 017992-003 ROTARY ACTUATOR ( Page 32 ) 1
3 008970-002 PIN 1
4 008961-001 CAP 2
5 008962-001 CAP 1
6 008963-002 BUSHING 2
7 013784-001 BUSHING 1
8 008964-001 BUSHING 2
9 013719-001 RETAINER 2
11 100157 HHCS -0.375-16NC X 1.000 GR8 4
12 105462 HHCS - 0.500-13NCx2.250 GR8 8
13 126035 SHCS 18
14 104199 NUT HEX - 0.500-13NC GR8 8
15 106473 FLAT WASHER - 0.375, L9 4
16 105992 FLAT WASHER - 0.500 A325 16
17 015494-001 FLAT WASHER - M14 4
18 103134 SHCS - 0.375-16 NC X 1.5 GR8 8
19 020366-001 HHCS - M14-2.00 X 45 GR10.9 4
20 020129-001 HYDRAULIC MOTOR ( Page 34 ) 1
21 015246-001 PORT BLOCK - SIDE PORTS 1
22 113236 O-RING 2
31
017992-003
(Sheet 1 / 2 )
ROTARY ACTUATOR
32
017992-003
(Sheet 2 / 2)
ROTARY ACTUATOR
5 017992-014 O-RING 1
18 017992-027 SEAL JOINT 1
22 017992-031 O-RING 1
26 017992-035 BACK-UP RING 2
27 017992-036 O-RING 2
28 017992-037 BACK-UP RING 1
29 017992-038 O-RING 1
32 017992-041 SPRING 17
33 017992-042 SPRING RETAINER 1
35 017992-044 O-RING 1
38 017992-047 O-RING 1
33
020129-001
(Sheet 1 / 2 )
HYDRAULIC MOTOR
34
020129-001
(Sheet 2 / 2)
HYDRAULIC MOTOR
1 BARREL HOUSING ASS'Y 1
2 b 020129-010 VALVE PLATE 1
3 HEX SOCKET PLUG ASS'Y 1
4 BLEEDER PLUG 1
5 SEAL WASHER 1
6 BEARING HOUSING 1
7 c 020129-011 O-RING 1
8 c O-RING 1
9 c O-RING 1
10 SEAL CARRIER 1
11 c 020129-012 SHAFT SEAL 1
12 SPACER WASHER - 1MM 1
13 RETAINING RING 1
14 RETAINING RING 1
15 BLEEDER PLUG 1
16 SEAL WASHER 1
17 SHAFT 1
18 GUIDE PIN 1
19 FLAT KEY 1
20 b 020129-013 CYLINDER BARREL 1
21 BARREL SUPPORT ASS'Y 1
22 b 020129-014 PISTON ASS'Y 7
23 PISTON RING 21
24 RING GEAR 1
25 TAPERED ROLLER BEARING 1
26 TAPERED ROLLER BEARING 1
27 SPACER WASHER A/R
28 RETAINING RING 1
29 SHIM 2
30 HEX SOCKET SCREW M10X45 4
31 020129-015 SEAL KIT REF
32 020129-016 REPAIR KIT REF
b) Items included in Repair Kit # 020129-016.

c) Items included in Seal Kit and Repair Kit.
35
009023-005
(Sheet 1 / 2 )
OFFSET GUIDE ASS'Y
36
009023-005
(Sheet 2 / 2)
OFFSET GUIDE ASS'Y

1 020017-001 OFFSET GUIDE SUPPORT 1
2 014552-001 SPACER 1
3 008951-001 END CAP 2
4 008952-001 TAPER LOCK PIN - 1 1/2" 1
5 009040-001 PIN 1
6 008957-001 BUSHING 2
7 008956-001 END CAP 2
8 014553-001 BOLT 1
9 105787 HHCS - 5/8-11 UNC x 2 1/2" LG GR8 2
10 103583 BOLT 1
11 124811 HHCS - M16 2.00 X 110 18
12 103591 FLATWASHER - 1" A325 2
13 114559 FLATWASHER - M16 18
14 136875 WASHER 2
16 020527-001 SHIM 2
37
009024-003
(Sheet 1 / 2 )
CRADLE OFFSET ASS'Y
38
009024-003
(Sheet 2 / 2)
CRADLE OFFSET ASS'Y

1 014548-001 FEED CRADLE 1
2 008952-001 TAPER LOCK PIN - 1 1/2" 1
3 008951-001 END CAP 2
4 012513-001 PIN 1
8 105992 FLAT WASHER - 0.500 A325 8
10 115937 LOCKNUT - 0.500-13NC GR8 NYLOC 4
11 136876 HHCS - 0.625-11NC X 2.750 GR8 2
12 136875 WASHER 2
13 Q95223368 RING 2
14 014555-001 BUSHING 2
15 105981 BOLT - 1/2-13 NC X 2.5" GR8 4
16 022093-001 HOSE CLAMP SPACER 2
39
008998-001
(Sheet 1 / 2 )
FEED PIVOT CYLINDER
40
008998-001
(Sheet 2 / 2)
FEED PIVOT CYLINDER

1 008998-010 BARREL 1
2 008998-011 ROD 1
3 014346-012 GLAND 1
5 014346-011 PISTON 1
8 a PISTON SEAL 1
9 a WEAR RING 1
10 a O-RING 1
11 a BACK-UP RING 2
12 a O-RING 1
13 a BACK-UP RING 1
14 a WEAR RING 1
15 a WEAR RING 1
16 a ROD SEAL 1
17 a ROD WIPER 1
19 PLUG 2
21 014346-010 CB VALVE CAP 2
22 PLUG 2
23 014346-015 SEAL KIT REF
41
008997-001
(Sheet 1 / 2 )
BOOM EXTENSION CYLINDER
42
008997-001
(Sheet 2 / 2)
BOOM EXTENSION CYLINDER

1 008997-011 BARREL 1
2 008997-012 ROD 1
3 001184-012 GLAND 1
5 008997-014 PISTON 1
7 a PISTON SEAL 1
8 a O-RING 1
9 a WEAR RING 1
10 a ROD SEAL 1
11 a ROD WIPER 1
12 a BUFFER SEAL 1
13 a WEAR SEAL 2
14 a O-RING 1
15 a BACK-UP RING 1
16 203351 BEARING 2
17 PLUG 2
43
009731-001
(Sheet 1 / 2 )
FEED ADVANCE CYLINDER
44
009731-001
(Sheet 2 / 2)
FEED ADVANCE CYLINDER

1 Q51857209 GUIDE EXTENSION CYLINDER ( Page 46 ) 1
2 009719-001 FEED ANCHOR 1
3 Q51388072 PIN 1
4 Q95223368 RING 2
5 Q51715217 BUSHING 2
45
Q51857209
(Sheet 1 / 2 )
GUIDE EXTENSION CYLINDER
46
Q51857209
(Sheet 2 / 2)
GUIDE EXTENSION CYLINDER

2 205236 BARREL 1
3 205237 LOCKNUT 1
5 205132 PISTON 1
9 205238 PACKING GLAND 1
12 205239 ROD 1
13 205135-001 SEAL KIT 1
47
009000-001
(Sheet 1 / 2 )
BOOM SWING CYLINDER
48
009000-001
(Sheet 2 / 2)
BOOM SWING CYLINDER

1 009000-011 BARREL 1
2 009000-012 ROD 1
3 009000-013 GLAND 1
4 014346-011 PISTON 1
7 a PISTON SEAL 1
8 a WEAR RING 1
9 a O-RING 1
10 a BACK-UP RING 2
11 a O-RING 1
12 a BACK-UP RING 1
13 a WEAR RING 2
14 a ROD SEAL 1
15 a ROD WIPER 1
16 002803-001 BEARING 2
17 207221-001 HEX PLUG 2
19 CB VALVE CAP 2
20 PLUG 4
21 009000-010 SEAL KIT REF
49
013333-001
(Sheet 1 / 2 )
FEED ASS'Y - MTFN8, HC50, LH
50
013333-001
(Sheet 2 / 2)
FEED ASS'Y - MTFN8, HC50, LH

1 024158-009 FEED RAIL ASS'Y ( Page 52 ) 1
2 024169-001 HOSE REEL ASS'Y ( Page 54 ) 1
3 024163-001 DRILL CRADLE ASS'Y ( Page 58 ) 1
4 024194-001 FEED BULKHEAD ASS'Y ( Page 60 ) 1
5 024259-001 CABLE PULLEY ASS'Y ( Page 62 ) 1
6 024177-001 FIXED CENTRALIZER ASS'Y ( Page 64 ) 1
7 024273-007 FEED CYLINDER ASS'Y ( Page 66 ) 1
8 024258-007 FRONT CABLE 1
9 024257-007 REAR CABLE 1
10 024288-001 FIXED CENTRALIZER SUPPORT 2
11 144116 CYLINDER MOUNT - L/H 1
12 027637-002 CYLINDER MOUNT - Spacer-Return 1
13 139846 AUTO-RETURN CYLINDER ( Page 70 ) 1
14 144117 LH HOSE HOLDER 1
15 143625 SPACER - Hose Holder 2
16 027657-001 HOSE GUIDE 5
17 013334-001 HYDRAULIC SCHEMATIC ( Page 72 ) 1
18 800433 HHCS 0.250-20NC X 1.000 GR8 2
19 102055 HHCS - 0.250-20NC X 1.500 GR8 5
20 103575 HHCS - 0.375-16NC X 1.25 GR8 10
21 100157 HHCS -0.375-16NC X 1.000 GR8 3
22 108407 HHCS - 3/8"-16NC X 3" GR.8 6
23 020515-001 HHCS - 0.375-16NC X 4.750 GR8 4
24 118674 HHCS - 3/8-16UNC X 5 1/2 LG 3
25 103570 HHCS -0.500-13NC X 1.5 GR8 4
26 140104 HHCS - 3/4"-16NF X 1/2" GR.8 1
27 027653-001 SHCS -5/8' X 7.5" 7
28 106473 FLAT WASHER - 0.375, L9 26
29 128617 FLAT WASHER - 0.250 GR9 7
30 105992 FLAT WASHER - 0.500 A325 4
31 120969 HEX NUT - M16-2.0 4
32 114559 FLATWASHER - M16 4
51
024158-009
(Sheet 1 / 2 )
FEED RAIL ASS'Y
52
024158-009
(Sheet 2 / 2)
FEED RAIL ASS'Y

1 024157-009 FEED RAIL 1
2 024159-010 WEAR RAIL 4
3 004847-001 BARREL NUT 16
4 111347 BOLT - 1.25" GR8 8
5 108193 BOLT - 1.5 " GR8 8
53
024169-001
(Sheet 1 / 4 )
HOSE REEL ASS'Y
54
024169-001
(Sheet 2 / 4)
HOSE REEL ASS'Y

1 024170-001 HOSE DRUM CRADLE 1
2 024166-001 WEAR BLOCK 2
3 024200-001 SUPPORT POST 1
4 008437-001 PULLEY BUSHING 1
5 024222-001 CABLE PULLEY - 1/2" 1
6 008442-001 CAP 1
7 017831-004 TRIP BAR 1
8 024198-001 HOSE DRUM 1
9 143894 DOWEL PIN 2
11 103573 HHCS - 0.500-13NC X 1.000 GR8 4
12 115792 HHCS - 0.500-13NC X 3.000 GR8 2
13 113653 HHCS - 0.500-13NC X 3.5 GR8 2
14 006006-001 HHCS - 0.625-11NC x 7.5 GR8 3
16 105992 FLAT WASHER - 0.500 A325 10
17 102317 FLATWASHER - 0.625 A325 3
18 027604-003 TRIP BAR MOUNT 1
19 104846 BOLT 2
55
024169-001
(Sheet 3 / 4 )
HOSE REEL ASS'Y
56
024169-001
(Sheet 4 / 4)
HOSE REEL ASS'Y

1 024170-001 HOSE DRUM CRADLE 1
2 024166-001 WEAR BLOCK 2
3 024200-001 SUPPORT POST 1
4 008437-001 PULLEY BUSHING 1
5 024222-001 CABLE PULLEY - 1/2" 1
6 008442-001 CAP 1
7 017831-004 TRIP BAR 1
8 024198-001 HOSE DRUM 1
11 103573 HHCS - 0.500-13NC X 1.000 GR8 4
12 115792 HHCS - 0.500-13NC X 3.000 GR8 2
13 113653 HHCS - 0.500-13NC X 3.5 GR8 2
14 006006-001 HHCS - 0.625-11NC x 7.5 GR8 3
16 105992 FLAT WASHER - 0.500 A325 10
17 102317 FLATWASHER - 0.625 A325 3
18 027604-003 TRIP BAR MOUNT 1
19 104846 BOLT 2
57
024163-001
(Sheet 1 / 2 )
DRILL CRADLE ASS'Y
58
024163-001
(Sheet 2 / 2)
DRILL CRADLE ASS'Y

1 024164-001 DRILL CRADLE 1
2 024166-001 WEAR BLOCK 4
4 105992 FLAT WASHER - 0.500 A325 16
5 B1158 HHCS - 1/2"-13NC X 3 1/4" GR.8 8
6 024488-001 LYNCH PIN - 11/32" 2
7 027671-001 SPACER 1
59
024194-001
(Sheet 1 / 2 )
FEED BULKHEAD ASS'Y
60
024194-001
(Sheet 2 / 2)
FEED BULKHEAD ASS'Y

1 024196-001 MOUNT 1
2 126378 TENSION TUBE - #8 2
3 126379 TENSION TUBE - #10 3
4 126380 TENSION TUBE - #12 1
5 126381 TENSION TUBE - #16 1
6 024204-001 EYE BOLT - SHORT 3
7 024206-001 EYE BOLT - #16 1
8 024205-001 EYE BOLT - LONG 3
9 105992 FLAT WASHER - 0.500 A325 7
61
024259-001
(Sheet 1 / 2 )
CABLE PULLEY ASS'Y
62
024259-001
(Sheet 2 / 2)
CABLE PULLEY ASS'Y

1 024262-001 CABLE PULLEY CRADLE 1
2 024166-001 WEAR BLOCK 2
3 024272-001 BUSHING 1
4 024271-001 CABLE PULLEY - 1/2" 1
5 024261-001 POST 1
6 024260-001 CAP 1
7 024284-001 CYLINDER MOUNT 1
10 103572 HHCS - 0.5-13NC X1.250 GR8 4
11 B1158 HHCS - 1/2"-13NC X 3 1/4" GR.8 4
12 136876 HHCS - 0.625-11NC X 2.750 GR8 3
14 105992 FLAT WASHER - 0.500 A325 8
15 107888 FLAT WASHER - 0.625 L9 3
16 024514-001 O-RING 1
17 027598-001 SHIM 2
63
024177-001
(Sheet 1 / 2 )
FIXED CENTRALIZER ASS'Y
64
024177-001
(Sheet 2 / 2)
FIXED CENTRALIZER ASS'Y

1 024176-001 FIXED CENTRALIZER 1
2 52810X CENTRALIZER 1
3 024187-001 PLATE 1
4 024487-001 STINGER PAD 1
5 120851 HHCS - 0.500-13NC X 5.500 GR8 2
7 105992 FLAT WASHER - 0.500 A325 8
65
024273-007
(Sheet 1 / 2 )
FEED CYLINDER ASS'Y
66
024273-007
(Sheet 2 / 2)
FEED CYLINDER ASS'Y

1 024274-001 FEED CYLINDER ( Page 68 ) 1
2 024285-005 FEED CYL. EXT. 1
3 024514-001 O-RING 1
4 105981 BOLT - 1/2-13 NC X 2.5" GR8 2
67
024274-001
(Sheet 1 / 2 )
FEED CYLINDER
68
024274-001
(Sheet 2 / 2)
FEED CYLINDER
1 024274-100 BARREL 1
2 024274-101 ROD 1
3 024274-102 GLAND 1
4 024274-103 PISTON 1
5 024274-104 SHCS - Repl. by 022725-006 1
6 024274-105 REAR PLATE 1
7 024274-106 WASHER 1
8 024274-107 NUT 1
9 a PISTON SEAL 2
10 a WEAR RING 1
11 a O-RING 1
12 a BACK UP RING 2
13 a O-RING 1
14 a BACK UP RING 1
15 a ROD SEAL 1
16 a WIPER 1
17 a O-RING 1
18 a O-RING 1
19 a O-RING 1
20 024274-108 SEAL KIT REF
69
139846
(Sheet 1 / 2 )
AUTO-RETURN CYLINDER
70
139846
(Sheet 2 / 2)
AUTO-RETURN CYLINDER
1 206108 BASE 1
2 206109 COUPLER 1
3 206110 SCREW 1
4 206111 PLUNGER 1
5 206112 SPRING 1
6 206113 BEARING STOP RING 1
7 a SEAL 1
8 206115 ACORN NUT 1
9 a WASHER 1
10 206117 SCREW 1
11 206118 ROD BEARING 1
12 a SEAL 1
13 a LOCKWASHER 1
14 206121 SADDLE 1
15 206122 DUST CAP 1
16 206123 PROTECTOR 1
17 206124 REPAIR KIT REF
a) Items included in Seal Kit # 206124.
71
013334-001
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC
72
013334-001
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC
1 112566 ADAPTER - TS S3733-8-10 2
2 PLUMBING KIT REF
73
021826-005
(Sheet 1 / 2 )
HC-50 DRIFTER - R32M, F, M.B/H
74
021826-005
(Sheet 2 / 2)
HC-50 DRIFTER - R32M, F, M.B/H

1 DISTRIB. / ACCUM. GROUP @ ( Page 76 ) 1
2 MOTOR PART GROUP @ ( Page 78 ) 1
3 HOUSING GROUP @ ( Page 80 ) 1
4 FRONT GUIDE - R38 @ ( Page 88 ) 1
5 ADAPTERS @ ( Page 90 ) 1
6 FIXATION @ ( Page 92 ) 1
7 009245-001 COMPLETE SEAL KIT ( Page 94 ) 1
8 80183 RESTRICTOR ( Page 98 ) 1
9 003535-007 BACKHAMMER KIT ( Page 100 ) 1
75
(Sheet 1 / 2 )
DISTRIB. / ACCUM. GROUP @
76
(Sheet 2 / 2)
DISTRIB. / ACCUM. GROUP @

10 68499 COVER 1
20 f 77213 O-RING 1
30 e 68498 PUSH ROD 1
40 e 68497 LINER push rod 1
50 e 64360 VALVE 1
60 e 68493 DISTRIBUTION COVER 1
70 e 68494 DISTRIBUTION BOX 1
80 e 64356 DISTRIBUTOR 1
90 e 86256 THRUST PISTON - EP 1
100 e 57846 PIN 1
110 e 60675 CYLINDER 1
120 f 26492 O-RING 2
130 ENERGY CHAMBER 1
140 79926 BODY 1
150 e 79934 COVER 2
160 f 80513 O-RING 2
170 015031-001 DIAPHRAGM KIT 2
180 d 14826 RING 1
190 d 26428 INFLATING SCREW 1
200 e 64420 BOLT - Rear Assembly 4
d) Items to be changed every 800 hrs.

e) Items to be changed every 1600 hrs.
f) Items included in Seal Kit & to be changed every 800 hrs.
77
(Sheet 1 / 2 )
MOTOR PART GROUP @
78
(Sheet 2 / 2)
MOTOR PART GROUP @

10 e 64353 STRIKING PISTON 1
20 e 64472 DOWN CYLINDER 1
30 83345 MOTOR BODY 1
40 e 60987 SPRING 1
50 e 54864 PIN 1
60 e 59419 VALVE 3
70 f 96842 TIGHT SEAL 1
80 f 12717 O-RING 2
90 f 44382 O-RING 1
100 18364 PLUG 1
110 54884 COVER 1
120 f 20894 O-RING 1
130 e 69102 BEARING HOLDER PLATE 1
140 69103 BALL BEARING 1
150 e 69125 DISTRIBUTION PLATE 2
160 f 24852 O-RING 2
170 e 54880 MOTOR CARTRIDGE type 043 1
180 57846 PIN 2
190 f 39328 O-RING 2
200 d 64450 THRUST LINING 1
210 f 12717 O-RING 2
220 f 49010 ROD JOINT 2
230 d 64355 THRUST PISTON - F 1
240 f 64457 LIP SEAL 2

79
(Sheet 1 / 8 )
HOUSING GROUP @
80
(Sheet 2 / 8)
HOUSING GROUP @
10 83225 COMPLETE HOUSING 1
20 26241 HELICOIL THREAD UNF 3/4" 8
30 f 44382 O-RING 2
50 e 59991 SNAP RING 1
60 g 64453 CENTERING PART 1
70 c 64452 SHANK TRUST 1
80 e 59997 TIGHT RING 2
90 f 8082 O-RING 6
120 e 59998 SEAL HOLDER RING 1
130 f 59345 LIP SEAL 2
140 e 59999 RING 1
150 e 59342 SELF-LUBRICATING RING 1
160 e 59343 NEEDLE BEARING 2
170 e 60200 DRIVING GEAR SHAFT 1
180 e 2732 BALL BEARING 1
190 e 64454 GEAR DRIVING 1
200 64455 SPLINE SHANK 1
210 c 18833 NEEDLE BEARING 2
220 64475 THRUST WASHER 1
230 f 42068 RING 1
240 e 78071 SLIDE 1
250 e 78070 SLIDE LINING 1
260 e 78074 SPRING 1
270 f 10050 O-RING 1
280 d 9931 O-RING 1
290 e 54408 ADJUSTING RING A/R
300 64456 FLANGE 1
310 21910 HELICOIL THREAD UNF 1" 2
320 f 42112 O-RING 1
330 6178 OILER 1
c) Items to be changed every 400 hrs.

g) Items included in Seal Kit & to be changed every 400 hrs.
81
(Sheet 3 / 8 )
HOUSING GROUP @
82
(Sheet 4 / 8)
HOUSING GROUP @
350 d 42226 BOLT - Front Assembly 4

83
(Sheet 5 / 8 )
HOUSING GROUP @
84
(Sheet 6 / 8)
HOUSING GROUP @
10 83225 COMPLETE HOUSING 1
20 26241 HELICOIL THREAD UNF 3/4" 8
30 f 44382 O-RING 2
50 e 59991 SNAP RING 1
60 g 64453 CENTERING PART 1
70 c 64452 SHANK TRUST 1
90 f 8082 O-RING 6
120 e 59998 SEAL HOLDER RING 1
130 f 59345 LIP SEAL 2
140 e 59999 RING 1
150 e 59342 SELF-LUBRICATING RING 1
160 e 59343 NEEDLE BEARING 2
170 e 60200 DRIVING GEAR SHAFT 1
180 e 2732 BALL BEARING 1
190 e 64454 GEAR DRIVING 1
200 64455 SPLINE SHANK 1
210 c 18833 NEEDLE BEARING 2
230 f 42068 RING 1
240 e 78071 SLIDE 1
250 e 78070 SLIDE LINING 1
260 e 78074 SPRING 1
270 f 10050 O-RING 1
280 d 9931 O-RING 1
290 e 54408 ADJUSTING RING A/R
300 64456 FLANGE 1
310 21910 HELICOIL THREAD UNF 1" 2
320 f 42112 O-RING 1
330 6178 OILER 1
c) Items to be changed every 400 hrs.

g) Items included in Seal Kit & to be changed every 400 hrs.
85
(Sheet 7 / 8 )
HOUSING GROUP @
86
(Sheet 8 / 8)
HOUSING GROUP @
350 d 42226 BOLT - Front Assembly 4

87
(Sheet 1 / 2 )
FRONT GUIDE - R38 @
88
(Sheet 2 / 2)
FRONT GUIDE - R38 @

10 67407 FRONT GUIDE 1
20 4581 PIN 1
30 64459 GUIDING RING 1
40 a 80591 SPRING 1
50 a 80419 BALL 1
60 a SEAL 1
70 d 96842 TIGHT SEAL 1
80 d 42112 O-RING 2
90 51545 LIP SEAL 1
100 97062 BOLT 2
110 64463 RETAINER CHUCK 1
120 51545 LIP SEAL 2
130 64467 SHIELD 1
140 72101 SHANK - R32 (from R38) drilling 1
a) Items included in Seal Kit # 64471.

d) Items included in Seal Kit & to be changed every 800 hrs.
89
(Sheet 1 / 2 )
ADAPTERS @
90
(Sheet 2 / 2)
ADAPTERS @
1 e 8745 ADAPTER - Water Flushing 1
2 e 58895 ADAPTER P1-P2 flushing 1
3 e 17365 ADAPTER return 1
4 e 22837 ADAPTER P1a-P1r drain/pressurization 4
91
(Sheet 1 / 2 )
FIXATION @
92
(Sheet 2 / 2)
FIXATION @
10 d 63010 BOLT 2
20 d 15094 SPACER 2
30 d 15886 ASSEMBLY NUT 2
93
009245-001
(Sheet 1 / 2 )
COMPLETE SEAL KIT
94
009245-001
(Sheet 2 / 2)
COMPLETE SEAL KIT

1 64471 COMPLETE SEAL KIT ( Page 96 ) 1
2 004802-001 U-CUP SEAL - Blue, Underground 1
3 FSL-1037 - SEAL KITS REF
95
64471
(Sheet 1 / 2 )
COMPLETE SEAL KIT
96
64471
(Sheet 2 / 2)
COMPLETE SEAL KIT

1 80591 SPRING 1
2 39328 O-RING 2
3 20894 O-RING 1
4 4379 O-RING 1
5 7556 O-RING 1
6 8082 O-RING 6
7 9848 O-RING 1
8 10050 O-RING 1
9 12717 O-RING 4
10 17906 RING 1
11 24852 O-RING 2
12 26492 O-RING 2
13 37971 SCRAPER SEAL 1
14 42068 RING 1
15 42112 O-RING 2
16 44382 O-RING 3
17 49010 ROD JOINT 2
18 57115 O-RING 7
19 59345 LIP SEAL 2
20 64453 CENTERING PART 1
21 64457 LIP SEAL 2
22 77213 O-RING 1
23 80419 BALL 1
24 80513 O-RING 2
25 96842 TIGHT SEAL 12
26 005571-001 SEAL - Green, Above Ground 1
27 FSL-1037 - SEAL KITS REF
97
80183
(Sheet 1 / 2 )
RESTRICTOR
98
80183
(Sheet 2 / 2)
RESTRICTOR
10 80184 TEE PIECE 1
20 80185 ADJUSTING SCREW 1
30 80186 PLUG 1
40 18319 NUT 1
50 25528 O-RING 1
99
003535-007
(Sheet 1 / 2 )
BACKHAMMER KIT
100
003535-007
(Sheet 2 / 2)
BACKHAMMER KIT
1 S8996 RETAINER CHUCK 1
2 S8997 WASHER STOP 1
101
010741-009
(Sheet 1 / 2 )
POWERTRAIN ASS'Y
102
010741-009
(Sheet 2 / 2)
POWERTRAIN ASS'Y
1 010759-005 ENGINE/TRANS ASS'Y ( Page 104 ) 1
2 013208-002 COOLING ASS'Y ( Page 162 ) 1
3 010761-004 EXHAUST ASS'Y ( Page 180 ) 1
4 010760-008 INTAKE ASS'Y ( Page 186 ) 1
5 019316-001 FUEL SYSTEM ( Page 190 ) 1
6 010763-001 FRONT AXLE ASS'Y ( Page 192 ) 1
7 010764-001 REAR AXLE ASS'Y ( Page 210 ) 1
8 019317-001 DRIVELINES ASS'Y ( Page 214 ) 1
103
010759-005
(Sheet 1 / 4 )
ENGINE/TRANS ASS'Y
104
010759-005
(Sheet 2 / 4)
ENGINE/TRANS ASS'Y
1 028671-001 ENGINE - QSB4.5 ( Page 108 ) 1
2 019915-001 TRANSMISSION ASS'Y - 20000 ELEC. ( Page 110 ) 1
3 012020-001 FRONT ENGINE MOUNT 1
4 009295-001 TWO-PIECE RUBBER MOUNTS 6
5 009582-001 ENGINE MOUNT WASHER 6
6 020640-001 DIPSTICK 1
7 020636-001 TUBE EXTENSION 1
8 801767 ADAPTER - GG308-NP 08-18 1
9 100291 ADAPTER - 2021-8-8 1
10 800476 PIPE PLUG - 1/2" NPT. C-SUNK 1
11 019378-001 TRANS. MOUNT 2
12 100140 BOLT - 0.75-10NCX2 LG 6
13 800657 HHCS - 0.625 11NC X 5.500 GR8 4
14 125579 HHCS - 0.625-11NC X 4.500 GR8 2
15 116721 HHCS - M12 1.75X 50 1
16 117787 HHCS - M12X100 GR10.9 3
17 006149-001 HHCS 12
18 800658 HEX NUT - 5/8-11 UNC GR 8 6
19 103592 FLATWASHER - 0.75" A325 6
20 102317 FLATWASHER - 0.625 A325 12
21 114570 FLATWASHER - M12 4
22 114557 FLATWASHER - M10 14
23 020646-001 MOUNT 1
24 3646 SCREW 2
25 106473 FLAT WASHER - 0.375, L9 2
26 100157 HHCS -0.375-16NC X 1.000 GR8 1
27 100954 ADAPTER - 2024-2-4 REF
28 121603 HOSE ASS'Y - 4MP STx90x28"LG REF
29 004350-002 FLB -12PT 0.375-24 UNFX1.5 8
30 115938 NUT - 0.375-16NC GR8 1
31 008364-001 FLEX PLATE KIT 1
32 102745 HOSE ASS'Y 1
105
010759-005
(Sheet 3 / 4 )
ENGINE/TRANS ASS'Y
106
010759-005
(Sheet 4 / 4)
ENGINE/TRANS ASS'Y
1 028671-001 ENGINE - QSB4.5 ( Page 108 ) 1
2 019915-001 TRANSMISSION ASS'Y - 20000 ELEC. ( Page 110 ) 1
3 012020-001 FRONT ENGINE MOUNT 1
6 020640-001 DIPSTICK 1
7 020636-001 TUBE EXTENSION 1
8 801767 ADAPTER - GG308-NP 08-18 1
9 100291 ADAPTER - 2021-8-8 1
10 800476 PIPE PLUG - 1/2" NPT. C-SUNK 1
11 019378-001 TRANS. MOUNT 2
12 100140 BOLT - 0.75-10NCX2 LG 6
13 800657 HHCS - 0.625 11NC X 5.500 GR8 4
14 125579 HHCS - 0.625-11NC X 4.500 GR8 2
15 116721 HHCS - M12 1.75X 50 1
16 117787 HHCS - M12X100 GR10.9 3
17 006149-001 HHCS 12
18 800658 HEX NUT - 5/8-11 UNC GR 8 6
19 103592 FLATWASHER - 0.75" A325 6
20 102317 FLATWASHER - 0.625 A325 12
21 114570 FLATWASHER - M12 4
22 114557 FLATWASHER - M10 14
23 020646-001 MOUNT 1
24 3646 SCREW 2
25 106473 FLAT WASHER - 0.375, L9 2
26 100157 HHCS -0.375-16NC X 1.000 GR8 1
27 100954 ADAPTER - 2024-2-4 REF
28 121603 HOSE ASS'Y - 4MP STx90x28"LG REF
29 004350-002 FLB -12PT 0.375-24 UNFX1.5 8
30 115938 NUT - 0.375-16NC GR8 1
31 008364-001 FLEX PLATE KIT 1
32 102745 HOSE ASS'Y 1
107
028671-001
(Sheet 1 / 2 )
ENGINE - QSB4.5
108
028671-001
(Sheet 2 / 2)
ENGINE - QSB4.5
1 028671-100 TURBOCHARGER 1
2 028671-101 ELECTRONIC CONTROL MODULE 1
3 028671-102 LUBRICATING OIL PUMP 1
4 020777-016 OIL DIPSTICK 1
5 027065-106 INJECTION PUMP - FUEL 1
6 028671-103 ALTERNATOR 1
7 028671-104 THERMOSTAT 1
8 019436-017 WATER PUMP KIT 1
9 028671-105 STARTER 1
10 014979-013 LUBE OIL FILTER 1
11 014543-015 FUEL FILTER 1
12 014979-015 FUEL FILTER - REMOTE 1
13 018345-001 SERPENTINE BELT 1
14 019436-012 CYLINDER HEAD GASKET 1
15 027065-108 INJECTOR 4
16 027065-118 SEAL - INJ 4
17 027065-119 SEAL RING - INJ 4
18 019436-016 VALVE COVER GASKET 1
109
019915-001
(Sheet 1 / 2 )
TRANSMISSION ASS'Y - 20000 ELEC.
110
019915-001
(Sheet 2 / 2)
TRANSMISSION ASS'Y - 20000 ELEC.

1 141552 TORQ. CONV. / TRANS. ( Page 112 ) 1
2 a 019998-001 ELECTRIC SHIFT VALVE ( Page 160 ) 1
3 a 018499-001 GASKET 1
4 a 005213-010 BOLT 4
5 a 005499-013 BOLT 3
6 a 004502-156 BOLT 2
7 a 100867 LOCKWASHER 9
8 J230890 FLANGE 2
a) Items 2-8 supersede items found in Transmission assembly.
111
141552
(Sheet 1 / 2 )
TORQ. CONV. / TRANS.
112
141552
(Sheet 2 / 2)
TORQ. CONV. / TRANS.

1 CONVERTER HOUSING GROUP @ ( Page 114 ) 1
2 TRANSMISSION CASE & COVER GROUP @ ( Page 116 ) 1
3 TURBINE SHAFT GROUP @ ( Page 120 ) 1
4 DRIVE PLATE GROUP @ ( Page 122 ) 1
5 TORQUE CONVERTER GROUP @ ( Page 124 ) 1
6 GEAR GROUP @ ( Page 126 ) 1
7 AUXILIARY PUMP DRIVE GROUP @ ( Page 138 ) 1
8 PUMP DRIVE GROUP @ ( Page 140 ) 1
9 FORWARD SHAFT GROUP @ 1
10 REVERSE IDLER GROUP @ ( Page 144 ) 1
11 REVERSE & 2nd SHAFT GROUP @ 1
12 LOW SPEED SHAFT GROUP @ ( Page 132 ) 1
13 3rd SHAFT GROUP @ 1
14 IDLER SHAFT GROUP @ ( Page 134 ) 1
15 OUTPUT SHAFT GROUP @ ( Page 136 ) 1
16 CHARGING PUMP & FILTER GROUP @ ( Page 152 ) 1
17 CONTROL VALVE GROUP @ ( Page 154 ) 1
113
(Sheet 1 / 2 )
CONVERTER HOUSING GROUP @
114
(Sheet 2 / 2)
CONVERTER HOUSING GROUP @

1 * 141552-029 CONVERTER HOUSING ASSEMBLY 1
2 141552-030 CONVERTER HOUSING SLEEVE 2
3 004502-157 PIPE PLUG 1
4 001801-010 PIPE PLUG 1
5 * 005096-001 GASKET 1
6 003372-020 CAPSCREW 18
7 004502-026 LOCKWASHER 18
8 141552-031 PIN 1
9 004502-029 WASHER 2
10 004502-023 BOLT 2
11 004502-022 LOCKWASHER 2
12 * 004502-027 TRANS. BREATHER - SEE FSL-1040 1
13 141552-032 PLUG 5
14 * a 004479-001 O-RING 5
15 141552-033 PLUG 1
16 * 141552-034 O-RING 1
17 141552-035 SCREW 1
*) Recommended spare part.

a) Item included in 141552-032.
115
(Sheet 1 / 4 )
TRANSMISSION CASE & COVER GROUP @
116
(Sheet 2 / 4)

1 141552-053 TRANSMISSION CASE ASSEMBLY 1
2 b 141552-054 SUCTION TUBE ASSEMBLY 1
3 b 141552-055 O-RING 1
4 b 141552-056 PRESSURE TUBE 1
5 b 004502-033 TUBE SLEEVE 4
6 b 141552-057 TUBE 1
7 b 141552-058 CLIP 1
8 b 141552-059 BOLT 1
9 b 004502-026 LOCKWASHER 1
10 141552-032 PLUG 1
11 c 004479-001 O-RING 1
12 007076-001 PLUG 1
13 d 003372-023 O-RING 1
14 141552-061 REAR COVER & PLUG ASSEMBLY 1
15 e 141552-032 PLUG 1
16 c 004479-001 O-RING 1
17 141552-062 OIL-BAFFLE 1
18 005095-001 GASKET 1
19 002530-001 O-RING 1
20 005382-043 O-RING - TRANS(CHG PUMP) 1
21 141552-031 PIN 2
22 141552-063 BOLT 20
23 004502-026 LOCKWASHER 20
24 004502-048 MAGNETIC PLUG 2
25 141552-064 PLUG 1
26 141552-033 PLUG 2
27 141552-034 O-RING 2
28 141552-035 SCREW 2
30 141552-065 COVER 1
31 J232640 GASKET - COVER 1
32 004012-030 BOLT 2
33 100867 LOCKWASHER 2
34 a 203951-001 DIPSTICK TUBE 1
a) Standard items. May be superseded by custom part nos. found in

Transmission/Powertrain installation drawing.
b) Items included in 141552-053.
c) Items included in 141552-032.
d) Items included in 141552-060.
e) Items included in 141552-061.
117
(Sheet 3 / 4 )
118
(Sheet 4 / 4)

35 a J242603 DIPSTICK 1
a) Standard items. May be superseded by custom part nos. found in

Transmission/Powertrain installation drawing.
119
(Sheet 1 / 2 )
TURBINE SHAFT GROUP @
120
(Sheet 2 / 2)
TURBINE SHAFT GROUP @

1 * 141552-018 TURBINE SHAFT ASSEMBLY 1
2 a J240617 RETAINING RING 1
3 * 141552-020 BALL BEARING 1
4 * 141552-021 SNAP RING 1
5 141552-022 WASHER 1
6 * 141552-023 RETAINING RING 1
7 * 141552-024 RING - PISTON 1
8 * 141552-025 SUPPORT - STATOR 1
9 141552-026 SCREW 6
10 * 004502-139 PISTON RING 1
11 * 020746-001 OIL BAFFLE & SEAL ASS'Y 1
12 * 001801-083 OIL BAFFLE SEAL 1
13 * 141552-028 RING 1
14 003831-001 RING 1

121
(Sheet 1 / 2 )
DRIVE PLATE GROUP @
122
(Sheet 2 / 2)
DRIVE PLATE GROUP @

2 a DRIVE PLATE 3
3 a 008563-004 DRIVE PLATE BACKING RING 1
4 a 008563-005 CAPSCREW 6
5 a 008563-006 LOCKWASHER 6
KIT 004534-001 DRIVE PLATE GROUP 1
a) Items included in 004534-001.
123
(Sheet 1 / 2 )
TORQUE CONVERTER GROUP @
124
(Sheet 2 / 2)
TORQUE CONVERTER GROUP @

1 * 002863-001 TORQUE CONVERTER ASSEMBLY 1
2 * 141552-003 BEARING 1
3 * 141552-014 SNAP RING 1
4 141552-015 END PLATE 1
5 * 141552-016 O-RING 1
125
(Sheet 1 / 2 )
GEAR GROUP @
126
(Sheet 2 / 2)
GEAR GROUP @
1 141552-068 GEAR - Reverse Group 1
1-A REVERSE & 2nd SHAFT GROUP @ After 2004 ( Page 128 ) REF
2 141552-069 GEAR - 1st DRIVE 1
2-A FORWARD SHAFT GROUP @ After 2004 ( Page 130 ) REF
3 141552-070 GEAR - LOW CLUTCH 1
3-A LOW SPEED SHAFT GROUP @ ( Page 132 ) REF
4 141552-071 GEAR - IDLER 1
4-A IDLER SHAFT GROUP @ ( Page 134 ) REF
5 141552-072 GEAR - OUTPUT 1
5-A OUTPUT SHAFT GROUP @ ( Page 136 ) REF
127
(Sheet 1 / 2 )
REVERSE & 2nd SHAFT GROUP @ After 2004
128
(Sheet 2 / 2)
REVERSE & 2nd SHAFT GROUP @ After 2004

1 008563-010 DRUM & PLUG ASSEMBLY 1
2 141552-079 CLUTCH PISTON & SEALS ASS'Y 1
3 b 141552-080 PISTON SEAL - Outer 1
4 b 141552-081 PISTON SEAL - Inner 1
6 c 141552-080 PISTON SEAL - Outer 1
7 c 141552-081 PISTON SEAL - Inner 1
8 141552-083 INNER DISC 8
9 141552-083 INNER DISC 6
10 141552-084 OUTER DISC 8
11 141552-084 OUTER DISC 6
12 141552-085 SPACER 1
13 002740-001 BACKING PLATE 2
14 141552-086 SNAP RING 2
15 141552-087 RETURN SPRING 1
17 002705-001 DISC SPRING ASSEMBLY c/w 5 washers 1
18 004502-084 SNAP RING 1
19 141552-089 BEARING 1
20 141552-090 BEARING 1
21 141552-091 RETAINING RING 2
22 141552-092 BEARING 1
23 002422-001 RETAINER RING 1
24 004502-095 SNAP RING 1
25 004502-069 PISTON RING 3
26 141552-093 SNAP RING 1
27 141552-094 HUB - 2nd CLUTCH 1
28 004502-084 SNAP RING 1
29 141552-095 NEEDLE BEARING 1
30 141552-096 RETAINER 1
31 141552-097 LOCATING RING 1
32 141552-098 SPACER 1
33 GEAR - REVERSE GROUP REF
b) Items included in 141552-079.

c) Items included in 008563-011.
129
(Sheet 1 / 2 )
FORWARD SHAFT GROUP @ After 2004
130
(Sheet 2 / 2)
FORWARD SHAFT GROUP @ After 2004

1 141552-099 FORWARD SHAFT, DRUM & PLUG ASS'Y 1
3 a 141552-080 PISTON SEAL - Outer 1
4 a 141552-081 PISTON SEAL - Inner 1
5 141552-083 INNER DISC 8
6 141552-084 OUTER DISC 8
7 141552-085 SPACER 1
9 141552-086 SNAP RING 1
11 141552-093 SNAP RING 1
12 004502-069 PISTON RING 2
13 141552-100 BEARING 1
14 141552-101 BALL BEARING 1
17 GEAR - 1st DRIVE REF
131
(Sheet 1 / 2 )
LOW SPEED SHAFT GROUP @
132
(Sheet 2 / 2)
LOW SPEED SHAFT GROUP @

1 141552-104 LOW SHAFT, HUB, DRUM & BLEED VALVE ASS'Y 1
5 141552-105 INNER DISC 8
6 141552-084 OUTER DISC 8
8 141552-086 SNAP RING 1
9 141552-106 DISC SPRING ASSEMBLY 1
10 004502-084 SNAP RING 1
11 141552-107 SPACER 1
12 002389-001 BEARING 1
13 141552-108 BEARING 1
14 004502-070 SNAP RING 2
15 004502-122 RING 1
16 141552-020 BALL BEARING 1
17 141552-109 SPACER 1
18 141552-110 BALL BEARING 1
19 141552-021 SNAP RING 1
20 141552-111 RETAINER 1
21 GEAR - LOW CLUTCH REF
133
(Sheet 1 / 2 )
IDLER SHAFT GROUP @
134
(Sheet 2 / 2)
IDLER SHAFT GROUP @

1 141552-112 SHAFT 1
2 141552-020 BALL BEARING 1
3 141552-021 SNAP RING 1
4 141552-113 ROLLER BEARING 1
5 J222960 NUT 1
6 J222179 WASHER 1
7 002756-001 SPACER 1
8 004012-075 SNAP RING 1
9 SEE GEAR GROUP REF
10 # 141552-065 COVER 1
11 # 008773-001 GASKET - COVER 1
12 # 004012-030 BOLT 2
13 # 100867 LOCKWASHER 2
#) Not shown.
135
(Sheet 1 / 2 )
OUTPUT SHAFT GROUP @
136
(Sheet 2 / 2)
OUTPUT SHAFT GROUP @

1 141552-115 SHAFT 1
2 141552-116 BEARING 1
3 002411-001 BEARING 1
4 141552-117 RING 1
6 141552-022 WASHER 1
7 002913-001 SEAL 2
8 002752-001 STUD 4
9 002836-001 LOCKWASHER 4
10 002753-001 NUT 4
11 141552-118 CAP 1
12 J234922 GASKET 1
13 002756-001 SPACER 1
14 002535-001 O-RING 2
15 J222179 WASHER 2
16 J222960 NUT 2
17 GEAR - Output REF
18 OUTPUT FLANGE REF
19 OUTPUT FLANGE REF
137
(Sheet 1 / 2 )
AUXILIARY PUMP DRIVE GROUP @
138
(Sheet 2 / 2)
AUXILIARY PUMP DRIVE GROUP @

1 141552-039 SUPPORT pump drive bearing 1
2 141552-040 BOLT 1
3 141552-041 PIN 1
6 141552-044 GEAR aux pump drive 1
7 141552-045 PUMP COVER 1
8 141552-046 GASKET 1
9 141552-047 BOLT 2
10 009915-046 LOCKWASHER 2
139
(Sheet 1 / 2 )
PUMP DRIVE GROUP @
140
(Sheet 2 / 2)
PUMP DRIVE GROUP @

1 141552-039 SUPPORT pump drive bearing 1
2 141552-041 PIN 1
3 141552-040 BOLT 1
6 141552-048 GEAR - CHARGING PUMP DRIVE 1
7 141552-049 GEAR - PUMP DRIVE IDLER 1
8 141552-050 SHAFT 1
9 005331-001 BALL 1
10 001801-019 BEARING 1
141
(Sheet 1 / 2 )
FORWARD SHAFT GROUP @ Before 2004
142
(Sheet 2 / 2)
FORWARD SHAFT GROUP @ Before 2004

1 141552-099 FORWARD SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 8
6 141552-084 OUTER DISC 8
7 141552-085 SPACER 1
9 141552-086 SNAP RING 1
11 141552-093 SNAP RING 1
12 004502-069 PISTON RING 2
13 141552-100 BEARING 1
14 141552-101 BALL BEARING 1
17 GEAR - 1st DRIVE REF
143
(Sheet 1 / 2 )
REVERSE IDLER GROUP @
144
(Sheet 2 / 2)
REVERSE IDLER GROUP @

1 141552-123 SHAFT 1
2 J247664 REVERSE IDLER GEAR BEARING ASS'Y 1
3 141552-125 WASHER 1
4 141552-126 RETAINER NUT 1
5 141552-127 RETAINING WASHER 1
6 005332-001 LOCKBALL 1
7 141552-128 GEAR - Reverse Idler 1
8 * 141552-129 O-RING 1
145
(Sheet 1 / 2 )
REVERSE & 2nd SHAFT GROUP @ Before 2004
146
(Sheet 2 / 2)
REVERSE & 2nd SHAFT GROUP @ Before 2004

1 141552-078 REVERSE & 2nd SHAFT ASSEMBLY 1
8 141552-083 INNER DISC 8
9 141552-083 INNER DISC 6
10 141552-084 OUTER DISC 8
11 141552-084 OUTER DISC 6
12 141552-085 SPACER 1
14 141552-086 SNAP RING 2
18 004502-084 SNAP RING 1
19 141552-089 BEARING 1
20 141552-090 BEARING 1
22 141552-092 BEARING 1
24 004502-095 SNAP RING 1
25 004502-069 PISTON RING 3
26 141552-093 SNAP RING 1
27 141552-094 HUB - 2nd CLUTCH 1
28 004502-084 SNAP RING 1
30 141552-096 RETAINER 1
32 141552-098 SPACER 1
33 GEAR - REVERSE GROUP REF
147
(Sheet 1 / 2 )
3rd SHAFT GROUP @ Before 2004
148
(Sheet 2 / 2)
3rd SHAFT GROUP @ Before 2004

1 141552-120 3rd SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 6
6 141552-084 OUTER DISC 6
8 141552-086 SNAP RING 1
11 004502-084 SNAP RING 1
13 * 141552-092 BEARING 1
14 004502-095 SNAP RING 1
15 004502-069 PISTON RING 1
16 141552-121 HUB - 3rd Clutch 1
17 141552-122 RETANING RING 1

149
(Sheet 1 / 2 )
3rd SHAFT GROUP @ After 2004
150
(Sheet 2 / 2)
3rd SHAFT GROUP @ After 2004

1 141552-120 3rd SHAFT, DRUM & PLUG ASS'Y 1
5 141552-083 INNER DISC 6
6 141552-084 OUTER DISC 6
8 141552-086 SNAP RING 1
11 004502-084 SNAP RING 1
13 * 141552-092 BEARING 1
14 004502-095 SNAP RING 1
15 004502-069 PISTON RING 2
16 141552-121 HUB - 3rd Clutch 1
17 141552-122 RETANING RING 1

151
(Sheet 1 / 2 )
CHARGING PUMP & FILTER GROUP @
152
(Sheet 2 / 2)
CHARGING PUMP & FILTER GROUP @

1 008563-016 CHARGING PUMP 1
2 204291 FILTER - Spin-on TRANS 1
3 141552-037 GASKET - TRANS(CHG PUMP) 1
4 005382-043 O-RING - TRANS(CHG PUMP) 1
5 141552-038 BOLT 5
6 004502-026 LOCKWASHER 5
153
(Sheet 1 / 2 )
CONTROL VALVE GROUP @
154
(Sheet 2 / 2)
CONTROL VALVE GROUP @

1 391016-42 CONTROL VALVE ASSEMBLY ( Page 156 ) 1
2 141552-130 DETENT SPRING 2
3 002317-001 DETENT BALL 2
4 802819 GASKET 1
5 115059 BOLT 9
155
391016-42
(Sheet 1 / 2 )
CONTROL VALVE ASSEMBLY
156
391016-42
(Sheet 2 / 2)
CONTROL VALVE ASSEMBLY

7 391016-32 CONTROL VALVE HOUSING ASSEMBLY ( Page 158 ) 1
8 391016-40 VALVE SPOOL 1
9 391016-33 VALVE SPOOL STOP 1
10 391016-41 CONTROL VALVE SPRING 1
11 002642-001 PLUG 1
157
391016-32
(Sheet 1 / 2 )
CONTROL VALVE HOUSING ASSEMBLY
158
391016-32
(Sheet 2 / 2)
CONTROL VALVE HOUSING ASSEMBLY

12 391016-38 FORWARD & REVERSE VALVE SPOOL 1
13 391016-28 SPOOL & PLUG ASS'Y 1
14 a 004381-007 PLUG 1
15 391016-35 NEUTRAL SWITCH 1
16 391016-34 PIN 1
17 391016-30 SEAL 2
18 391016-31 PIPE PLUG 4
19 391016-33 VALVE SPOOL STOP 2
159
019998-001
(Sheet 1 / 2 )
ELECTRIC SHIFT VALVE
160
019998-001
(Sheet 2 / 2)
ELECTRIC SHIFT VALVE

1 015632-001 SOLENOID 4
1-A 010782-079 O-RING 4
1-B 010782-080 O-RING 4
1-C 010782-081 O-RING 4
1-D 010782-082 O-RING 4
2 001801-010 PIPE PLUG 8
3 ! BODY 1
4 019998-014 COVER 1
5 031361-112 CAPSCREW - M5X10 10
6 ! PLUG 9
!) Not sold separately.
161
013208-002
(Sheet 1 / 8 )
COOLING ASS'Y
162
013208-002
(Sheet 2 / 8)
COOLING ASS'Y
1 014971-001 RADIATOR ASS'Y ( Page 170 ) 1
2 015417-001 FAN ASS'Y ( Page 176 ) 1
3 017437-001 SURGE TANK ( Page 174 ) REF
4 391081-155 T-BOLT CLAMP - 2" 8
5 018091-001 COUPLING - 2" 3
6 391204-6 ADAPTER - PIPE TO HOSE, 1/4"NPT 5
7 802996 ADAPTER - 3/4"NPT x 7/8" HOSE 1
8 009590-001 T-BOLT CLAMP -1 1/4 2
9 007371-001 HOSE CLAMP - 0.375" TO 0.875" 5
10 015985-001 RUBBER ELBOW - 2" 1
11 019756-001 OUTLET PIPE 1
12 019799-001 COOLING PIPE 1
13 015982-001 COOLING PIPE - RAD INLET 1
14 020660-001 VENT HOSE 1
15 020663-001 VENT HOSE 1
16 020661-001 RAD FILL HOSE 1
17 020666-001 HHCS - M10 1.50X85 GR10.9 4
18 114557 FLATWASHER - M10 4
20 019514-001 FAN SPACER 1
21 012034-001 HOSE CONNECTOR 1
24 138189 WASHER -2 O.D. 4
25 019517-001 RAD MOUNT 1
26 019747-001 UPPER RAD SUPPORT 2
27 803228 THREADED ROD - 8 1/4" LG 2
28 012678-001 RAD TIE ROD BUSHING 4
29 019748-001 UPPER RAD MOUNT 2
30 019751-001 BELT GUARD 1
31 303450 TAP BLOCK 2
32 100157 HHCS -0.375-16NC X 1.000 GR8 2
33 103573 HHCS - 0.500-13NC X 1.000 GR8 4
34 103572 HHCS - 0.5-13NC X1.250 GR8 4
35 125578 HHCS - 5/8"-11NC X 3 1/2" GR.8 4
36 112334 HHCS - .75-10NC X 1.5 GR8 4
37 104199 NUT HEX - 0.500-13NC GR8 8
38 106473 FLAT WASHER - 0.375, L9 2
39 105992 FLAT WASHER - 0.500 A325 16
40 107888 FLAT WASHER - 0.625 L9 4
41 103592 FLATWASHER - 0.75" A325 4
43 131017 HOSE CLAMP - TB188 2
163
013208-002
(Sheet 3 / 8 )
COOLING ASS'Y
164
013208-002
(Sheet 4 / 8)
COOLING ASS'Y
44 020611-001 RAD GUARD ( Page 178 ) 1
45 109208 ADAPTER 2088-12-12 1
46 020662-001 VENT PIPE HOSE 1
47 104081 ADAPTER 1
165
013208-002
(Sheet 5 / 8 )
COOLING ASS'Y
166
013208-002
(Sheet 6 / 8)
COOLING ASS'Y
1 014971-001 RADIATOR ASS'Y ( Page 170 ) 1
2 015417-001 FAN ASS'Y ( Page 176 ) 1
3 017437-001 SURGE TANK ( Page 174 ) REF
4 391081-155 T-BOLT CLAMP - 2" 8
5 018091-001 COUPLING - 2" 3
6 391204-6 ADAPTER - PIPE TO HOSE, 1/4"NPT 5
7 802996 ADAPTER - 3/4"NPT x 7/8" HOSE 1
8 009590-001 T-BOLT CLAMP -1 1/4 2
9 007371-001 HOSE CLAMP - 0.375" TO 0.875" 5
10 015985-001 RUBBER ELBOW - 2" 1
11 019756-001 OUTLET PIPE 1
12 019799-001 COOLING PIPE 1
13 015982-001 COOLING PIPE - RAD INLET 1
14 020660-001 VENT HOSE 1
15 020663-001 VENT HOSE 1
16 020661-001 RAD FILL HOSE 1
17 020666-001 HHCS - M10 1.50X85 GR10.9 4
18 114557 FLATWASHER - M10 4
20 019514-001 FAN SPACER 1
21 012034-001 HOSE CONNECTOR 1
24 138189 WASHER -2 O.D. 4
25 019517-001 RAD MOUNT 1
26 019747-001 UPPER RAD SUPPORT 2
27 803228 THREADED ROD - 8 1/4" LG 2
28 012678-001 RAD TIE ROD BUSHING 4
29 019748-001 UPPER RAD MOUNT 2
30 019751-001 BELT GUARD 1
31 303450 TAP BLOCK 2
32 100157 HHCS -0.375-16NC X 1.000 GR8 2
33 103573 HHCS - 0.500-13NC X 1.000 GR8 4
34 103572 HHCS - 0.5-13NC X1.250 GR8 4
35 125578 HHCS - 5/8"-11NC X 3 1/2" GR.8 4
36 112334 HHCS - .75-10NC X 1.5 GR8 4
37 104199 NUT HEX - 0.500-13NC GR8 8
38 106473 FLAT WASHER - 0.375, L9 2
39 105992 FLAT WASHER - 0.500 A325 16
40 107888 FLAT WASHER - 0.625 L9 4
41 103592 FLATWASHER - 0.75" A325 4
43 131017 HOSE CLAMP - TB188 2
167
013208-002
(Sheet 7 / 8 )
COOLING ASS'Y
168
013208-002
(Sheet 8 / 8)
COOLING ASS'Y
44 020611-001 RAD GUARD ( Page 178 ) 1
45 109208 ADAPTER 2088-12-12 1
46 020662-001 VENT PIPE HOSE 1
47 104081 ADAPTER 1
169
014971-001
(Sheet 1 / 4 )
RADIATOR ASS'Y
170
014971-001
(Sheet 2 / 4)
RADIATOR ASS'Y
1 014971-010 RADIATOR 1
2 014971-011 FAN SHROUD 1
3 014971-012 FUEL COOLER ASS'Y 1
4 014971-013 FAN RING 1
5 002694-016 FLATWASHER 39
6 002694-012 BOLT 26
7 014971-014 COVER 1
8 014971-015 FAN GUARD 1
9 017437-001 SURGE TANK ( Page 174 ) 1
10 006740-009 HEX NUT 12
11 011490-010 BOLT 1
171
014971-001
(Sheet 3 / 4 )
RADIATOR ASS'Y
172
014971-001
(Sheet 4 / 4)
RADIATOR ASS'Y
1 014971-010 RADIATOR 1
2 014971-011 FAN SHROUD 1
3 014971-012 FUEL COOLER ASS'Y 1
4 014971-013 FAN RING 1
5 002694-016 FLATWASHER 39
6 002694-012 BOLT 26
7 014971-014 COVER 1
8 014971-015 FAN GUARD 1
9 017437-001 SURGE TANK ( Page 174 ) 1
10 006740-009 HEX NUT 12
11 011490-010 BOLT 1
173
017437-001
(Sheet 1 / 2 )
SURGE TANK
174
017437-001
(Sheet 2 / 2)
SURGE TANK
1 017437-002 TANK 1
2 391015-5 CAP - 7 PSI 1
3 017437-003 HOSE - OVERFLOW 1
4 017437-004 HOSE CLIP 3
5 017437-005 SIGHT GAUGE 1
175
015417-001
(Sheet 1 / 2 )
FAN ASS'Y
176
015417-001
(Sheet 2 / 2)
FAN ASS'Y
1 009649-002 FAN BLADE 9
2 019631-011 HUBSET 1
177
020611-001
(Sheet 1 / 2 )
RAD GUARD
178
020611-001
(Sheet 2 / 2)
RAD GUARD
1 101988 HSS - .125W 50W REF
2 101988 HSS - .125W 50W REF
3 102400 PLATE - 0.750 HRS G40.21-50W REF
4 104189 PLATE - 0.625 HRS G40.21-50W REF
5 109491 HHCS - 1/2-13 UNC x 2" LG GR8 1
6 105992 FLAT WASHER - 0.500 A325 2
7 104199 NUT HEX - 0.500-13NC GR8 1
179
010761-004
(Sheet 1 / 4 )
EXHAUST ASS'Y
180
010761-004
(Sheet 2 / 4)
EXHAUST ASS'Y
1 009063-001 PURIFIER / MUFFLER 1
2 016011-002 PURIFIER MOUNT ASS'Y ( Page 184 ) 1
3 019895-001 MUFFLER SUPPORT BRACKET 1
4 016033-001 ADAPTER - 3" 1
5 019870-001 CLAMP - V-BAND 2.75 1
6 019885-001 EXHAUST PIPE - TAIL 1
7 019883-001 EXHAUST PIPE - TURBO OUT 1
8 019884-001 EXHAUST PIPE - MUFFLER IN 1
9 019886-001 EXHAUST WRAP 1
10 011668-001 EXHAUST BELLOWS - 3" 1
11 803277 CLAMP TORCTITE - 3" 4
12 019887-001 CLAMP 1
13 100141 SHCS - 0.500-13NC X 2.000 GR8 2
14 115935 HHCS - 0.375-16NC x 1.5 GR8 6
15 115938 NUT - 0.375-16NC GR8 6
16 106473 FLAT WASHER - 0.375, L9 12
181
010761-004
(Sheet 3 / 4 )
EXHAUST ASS'Y
182
010761-004
(Sheet 4 / 4)
EXHAUST ASS'Y
1 009063-001 PURIFIER / MUFFLER 1
2 016011-002 PURIFIER MOUNT ASS'Y ( Page 184 ) 1
3 019895-001 MUFFLER SUPPORT BRACKET 1
4 016033-001 ADAPTER - 3" 1
5 019870-001 CLAMP - V-BAND 2.75 1
6 019885-001 EXHAUST PIPE - TAIL 1
7 019883-001 EXHAUST PIPE - TURBO OUT 1
8 019884-001 EXHAUST PIPE - MUFFLER IN 1
9 019886-001 EXHAUST WRAP 1
10 011668-001 EXHAUST BELLOWS - 3" 1
11 803277 CLAMP TORCTITE - 3" 4
12 019887-001 CLAMP 1
13 100141 SHCS - 0.500-13NC X 2.000 GR8 2
14 115935 HHCS - 0.375-16NC x 1.5 GR8 6
15 115938 NUT - 0.375-16NC GR8 6
16 106473 FLAT WASHER - 0.375, L9 12
183
016011-002
(Sheet 1 / 2 )
PURIFIER MOUNT ASS'Y
184
016011-002
(Sheet 2 / 2)
PURIFIER MOUNT ASS'Y

1 019905-001 UPPER RING 1
2 013444-001 UPPER RING 1
3 106473 FLAT WASHER - 0.375, L9 4
4 115938 NUT - 0.375-16NC GR8 2
5 800734 HHCS - 3/8"-16NC X 2 1/2" GR.8 2
185
010760-008
(Sheet 1 / 2 )
INTAKE ASS'Y
186
010760-008
(Sheet 2 / 2)
INTAKE ASS'Y
1 016774-001 SILICONE ELBOW - 3"X90, 4PLY 2
2 015996-001 PIPE - CAC, Engine In 1
3 009373-001 BLUE BELLOWS - 3", CAC 1
4 009590-013 T-BOLT CLAMP 7
5 JTB425 T-BOLT CLAMP - 4 1/4 - 4 9/16 2
6 391081-133 T-BOLT CLAMP - 5" 1
7 015940-001 ADAPTER 1
8 391081-11 MOUNT BANDS - 12" 2
9 391081-62 AIR CLEANER - ASM W/VACUATOR ( Page 188 ) 1
10 391081-19 ELBOW - 45° 1
11 117370 REDUCING ELBOW - 5" to 4" 1
12 124697 HUMP REDUCER 1
13 019827-001 ELBOW PIPE 1
14 106473 FLAT WASHER - 0.375, L9 8
15 115938 NUT - 0.375-16NC GR8 4
16 100157 HHCS -0.375-16NC X 1.000 GR8 4
17 016777-001 TURBO OUT PIPE - #2 CAC 1
18 119592 ADAPTER - 2022-2-4 1
19 103792 ADAPTER - 2071-4-4 1
20 133483 HOSE ASS'Y - 4MP ST x ST x 70" 1
21 140352 AIR INLET HOOD 1
22 009590-012 T-BOLT CLAMP 2
187
391081-62
(Sheet 1 / 2 )
AIR CLEANER - ASM W/VACUATOR
188
391081-62
(Sheet 2 / 2)
AIR CLEANER - ASM W/VACUATOR

1 P109296 DUST CUP - HORIZONTAL 1
2 391081-60 PRIMARY ELEMENT - Air Cleaner 1
3 391081-61 SAFETY ELEMENT - Air Cleaner 1
4 003448-001 CLAMP 1
5 002438-001 GASKET 1
6 201295-006 VACUATOR VALVE 1
7 391125-14 AIR FILTER INDICATOR 1
8 FSL-1097 AIR FILTER OBSOLETE REF
189
019316-001
(Sheet 1 / 2 )
FUEL SYSTEM
190
019316-001
(Sheet 2 / 2)
FUEL SYSTEM
2 391050-1 SHUT-OFF VALVE 1
3 016542-001 FITTING - #6, JIC M-M12X1.5M 2
4 016541-001 BONDED SEAL - M12 2
5 016728-001 PLUG -M12X1.5 1
6 034427-001 ADAPTER 2
7 101212 ADAPTER - 2083-6-6 1
8 018125-001 FUEL FILTER MOUNT 1
9 100290 ADAPTER - 2021-8-6 2
10 127028 HOSE ASS'Y - 6MP STRXSTRX56"LG 1
11 100297 ADAPTER - 2021-6-6 1
12 133493 HOSE ASS'Y - 6MP STX90X60"LG 1
13 101849 ADAPTER - 2024-8-6 2
14 101047 ADAPTER 2
15 114146 HOSE ASS'Y - 6MP STRX45X94 1
16 123874 HOSE ASS'Y - 6MP STx45x60"LG 1
191
010763-001
(Sheet 1 / 2 )
FRONT AXLE ASS'Y
192
010763-001
(Sheet 2 / 2)
FRONT AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 194 ) 1
2 011945-001 BOLT 8
3 133389 FLATWASHER - 0.875 A325 16
4 800656 HEAVY HEX NUT - 7/8-14UNF 8
5 010799-001 AXLE TIE PLATE 2
6 011529-001 TIE PLATE 2
7 014111-001 SHEAR BLOCK 4
8 J103522 WHEEL NUT - 0.750-16NF-3A 16
193
010614-001
(Sheet 1 / 2 )
AXLE ASS'Y
194
010614-001
(Sheet 2 / 2)
AXLE ASS'Y
1 010614-002 AXLE - D45NI ( Page 196 ) 1
2 010614-003 BRAKE ASSEMBLY ( Page 208 ) 2
3 011939-001 YOKE 1
195
010614-002
(Sheet 1 / 2 )
AXLE - D45NI
196
010614-002
(Sheet 2 / 2)
AXLE - D45NI
1 BRAKE ASSEMBLY @ ( Page 198 ) 1
2 DIFFERENTIAL @ ( Page 200 ) 1
3 DIFFERENTIAL HOUSING & LOCK @ ( Page 204 ) 1
4 HYD. DIFF. LOCK CONTROL @ ( Page 206 ) 1
197
(Sheet 1 / 2 )
BRAKE ASSEMBLY @
198
(Sheet 2 / 2)
BRAKE ASSEMBLY @
1 010614-004 OUTER HOUSING 1/2
2 010614-005 INNER HOUSING - R/H 1
3 010614-006 INNER HOUSING - L/H 1
4 002548-001 DISC ASSEMBLY 8
5 010614-007 INTERMEDIATE DISC 4
6 010614-008 DISC ASSEMBLY 2
7 010614-009 LINK 4
8 010614-010 BALL 12
9 010614-011 SPRING 8
10 010614-012 PIN 4
11 010614-013 JAM NUT 4
12 010614-014 CAPSCREW - 1/2"-13X4-3/4" 6/12
13 010614-015 STUD 2/4
14 010614-016 NUT - 1/2"-20 2/4
15 010614-017 TORQUE PIN 2
16 204829-001 ROD 2
17 010614-018 COTTER PIN 2
18 010614-019 CLEVIS PIN 2
19 010614-020 SEAL ASSEMBLY 2
199
(Sheet 1 / 4 )
DIFFERENTIAL @
200
(Sheet 2 / 4)
DIFFERENTIAL @
1 010614-021 HOUSING ASS'Y - R/H 1
010614-022 HOUSING ASSEMBLY - L.H. 1
2 010614-023 PLUG LESS BRAKES 2
3 010614-024 PLANET RING GEAR 2
6 010614-025 CUP 2
7 010614-026 O-RING 2
8 010614-027 CAP 21
010614-028 CAPSCREW 1
9 010614-029 STUD 4
10 010614-030 NUT 4
11 010614-031 SHAFT & BOLT ASS'Y 2
12 010614-032 BOLT 16
13 010614-033 NUT AR
14 010614-034 SEAL 2
15 010614-035 CONE & ROLLER ASS'Y 2
17 010614-036 CASSETTE OIL SEAL 2
18 010614-037 CARRIER ASSEMBLY 2
19 010614-038 RETAINER 2
20-A 010614-040 CUP 2
21 010614-041 SHAFT 6
22 010614-042 PLANET GEAR 6
23 010614-043 WASHER 12
24 010614-044 BEARING KIT - PLANET GEAR AR
25 010614-045 SPACER 6
26 010614-046 GEAR 2
28 010614-047 SHAFT WASHER 2
29 010614-048 SHAFT LOCK 2
30 010614-049 HEX BOLT 2
35 010614-050 CUP - L.H. 1
36 010614-051 CUP - R.H. 1
37 010614-052 CONE & ROLLER ASS'Y - L.H. 1
38 010614-053 BEARING ASS'Y - R.H. 1
39 010614-054 CASE ASSEMBLY 1
40 010614-055 CAPSCREW 8
41 010614-056 GEAR SET 1
42 010614-057 BOLT 12
43 010614-058 NUT - G2 12
44 010614-059 DIFF. SIDE GEAR 1
45 010614-060 DIFF SIDE GEAR - R.H 1
46 010614-061 THRUST WASHER 2
201
(Sheet 3 / 4 )
DIFFERENTIAL @
202
(Sheet 4 / 4)
DIFFERENTIAL @
47 010614-062 SPIDER 1
48 010614-063 PINION 4
49 010614-064 WASHER 4
50 010614-065 BUSHING 2
51 010614-066 ADAPTER 1
52 010614-067 SPRING 1
53 010614-068 COUPLING 1
54 010614-069 WASHER 1
55 010614-070 RING 1
56 010614-071 BEARING ASS'Y 1
57 010614-072 LOCK RING 1
59 010614-074 RETAINER ASS'Y 1
60 010614-075 BEARING CUP 1
61 010614-076 CUP 1
62 010614-077 WASHER - 9/16" 6
63 010614-078 CAPSCREW 6
65 006821-001 O-RING 1
66 006822-001 SEAL 1
67 006845-001 RETAINER 1
68 010614-079 HUB 1
69 010614-080 SEAL ASSEMBLY 1
70 010614-081 FLANGE 1
71 205951 SEAL 1
72 205952 WASHER 1
73 010614-082 NUT 1
76 010614-084 THRUST BLOCK 1
77 010614-085 LOCKWASHER 2
78 010614-086 CAP 2
79 010614-087 DIFFERENTIAL ASS'Y 1
80 010614-088 DIFF. SIDE GEAR 2
81 010614-089 RETAINER 2
82 010614-090 SPRING 2
83 010614-091 COUPLING & RING SET 2
84 010614-092 SPIDER & CAM 1
203
(Sheet 1 / 2 )
DIFFERENTIAL HOUSING & LOCK @
204
(Sheet 2 / 2)
DIFFERENTIAL HOUSING & LOCK @

1 010614-095 OPERATING LEVER 1
2 010614-096 LOCKING PIN 1
3 010614-097 SHAFT 1
4 010614-098 SHAFT SEAL 1
5 010614-099 FORK 1
010614-100 JAM NUT - 3/8" - 24 1
6 010614-101 SET SCREW 1
7 010614-102 STD. HOUSING 1
8 010614-103 PLUG - 3/4"-14 1
9 010614-104 PLUG 1
10 010614-104 PLUG 1
11 010614-104 PLUG 1
12 010614-105 PLUG 1
205
(Sheet 1 / 2 )
HYD. DIFF. LOCK CONTROL @
206
(Sheet 2 / 2)
HYD. DIFF. LOCK CONTROL @

1 010614-107 SNAP RING 1
2 010614-108 PLUG 1
3 010614-109 O-RING 1
4 010614-110 PLUNGER 1
5 010614-111 O-RING 1
6 010614-112 SPRING WASHER 4
7 010614-113 ROD 1
8 010614-114 BODY 1
9 010614-115 PLUG 1
10 010614-116 SHAFT 1
11 010614-101 SET SCREW 1
12 010614-100 JAM NUT - 3/8" - 24 1
13 010614-117 FORK 1
14 010614-118 O-RING 1
15 010614-119 BOLT - 5/16"-18X1" 2
207
010614-003
(Sheet 1 / 2 )
BRAKE ASSEMBLY
208
010614-003
(Sheet 2 / 2)
BRAKE ASSEMBLY
1 a O-RING REF
2 HOUSING REF
3 a BACK UP RING REF
4 a O-RING REF
5 a O-RING REF
7 PISTON REF
8 SPRING REF
9 a O-RING REF
10 BLEEDER SCREW REF
11 PISTON REF
13 a CUP REF
15 a O-RING REF
16 STOP REF
17 a O-RING REF
18 END PLUG REF
19 RETAINER REF
20 LOCK NUT REF
21 SPRING REF
22 a GASKET REF
23 END PLUG REF
a) Items included in Repair Kit # 010614-173.
209
010764-001
(Sheet 1 / 4 )
REAR AXLE ASS'Y
210
010764-001
(Sheet 2 / 4)
REAR AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 194 ) 1
2 010900-001 OSC. AXLE 1
3 134716 AXLE CRADLE PIN 2
6 391410-6 FLATWASHER - 1.25" 2
7 102699 NUT 2
8 112558 BOLT - HHCS 7/8-14NFX10 GR8 8
9 133389 FLATWASHER - 0.875 A325 16
10 800656 HEAVY HEX NUT - 7/8-14UNF 8
11 J103522 WHEEL NUT - 0.750-16NF-3A 16
12 014111-001 SHEAR BLOCK 4
13 109491 HHCS - 1/2-13 UNC x 2" LG GR8 16
14 105992 FLAT WASHER - 0.500 A325 16
211
010764-001
(Sheet 3 / 4 )
REAR AXLE ASS'Y
212
010764-001
(Sheet 4 / 4)
REAR AXLE ASS'Y

1 010614-001 AXLE ASS'Y ( Page 194 ) 1
2 010900-001 OSC. AXLE 1
3 134716 AXLE CRADLE PIN 2
6 391410-6 FLATWASHER - 1.25" 2
7 102699 NUT 2
8 112558 BOLT - HHCS 7/8-14NFX10 GR8 8
9 133389 FLATWASHER - 0.875 A325 16
10 800656 HEAVY HEX NUT - 7/8-14UNF 8
11 J103522 WHEEL NUT - 0.750-16NF-3A 16
12 014111-001 SHEAR BLOCK 4
13 109491 HHCS - 1/2-13 UNC x 2" LG GR8 16
14 105992 FLAT WASHER - 0.500 A325 16
213
019317-001
(Sheet 1 / 2 )
DRIVELINES ASS'Y
214
019317-001
(Sheet 2 / 2)
DRIVELINES ASS'Y
1 010726-002 DRIVELINE - FRONT AXLE ( Page 216 ) 1
2 207203-001 PILLOW BLOCK 1
3 006531-001 SHIM KIT 1
4 010726-008 ARTICULATION DRIVESHAFT ( Page 218 ) 1
5 010726-009 REAR DRIVESHAFT ( Page 220 ) 1
6 011564-001 DRIVELINE GUARD 2
7 011566-001 MOUNT 1
8 011565-001 DRIVELINE GUARD - MID-SHIP 1
9 103575 HHCS - 0.375-16NC X 1.25 GR8 2
10 103573 HHCS - 0.500-13NC X 1.000 GR8 2
11 110474 HHCS - 0.500-13NC X 1.750 GR8 2
12 109491 HHCS - 1/2-13 UNC x 2" LG GR8 4
13 104199 NUT HEX - 0.500-13NC GR8 4
14 106473 FLAT WASHER - 0.375, L9 2
15 105992 FLAT WASHER - 0.500 A325 12
16 001096-001 FLANGE BOLT - 12PT 0.375-24NF X 1.750 24
215
010726-002
(Sheet 1 / 2 )
DRIVELINE - FRONT AXLE
216
010726-002
(Sheet 2 / 2)
DRIVELINE - FRONT AXLE

1 391054-113 U-JOINT 1
2 015077-001 YOKE 1
3 015078-001 TUBING REF
4 015079-001 BEARING, STUB 1
5 802427-002 YOKE, END 1
6 391054-66 LOCKNUT 1
217
010726-008
(Sheet 1 / 2 )
ARTICULATION DRIVESHAFT
218
010726-008
(Sheet 2 / 2)
ARTICULATION DRIVESHAFT
1 010726-105 U-JOINT 1
2 010726-106 YOKE, SLIP 1
3 010726-109 YOKE SHAFT 1
4 010726-110 U-JOINT 1
219
010726-009
(Sheet 1 / 2 )
REAR DRIVESHAFT
220
010726-009
(Sheet 2 / 2)
REAR DRIVESHAFT
1 010726-105 U-JOINT 2
2 010726-101 YOKE, SLIP 1
3 010726-102 STUB, SLIP 1
4 TUBING REF
5 010726-104 YOKE 1
221
010743-015
(Sheet 1 / 4 )
FRONT FRAME ASS'Y
222
010743-015
(Sheet 2 / 4)
FRONT FRAME ASS'Y

1 017748-001 FRONT FRAME 1
2 010898-001 FRONT JACK - L/H 1
3 010651-001 FRONT JACK - R/H 1
4 134591 EXTENSION CYLINDER ( Page 226 ) 1
5 139319 CLEVIS PIN 2
6 101052 HITCH CLIP PIN 2
7 137045 JACK CYLINDER ( Page 228 ) 2
8 136753 JACK PAD 2
9 107257 BOLT - 5/8 x 2 1/4" 12
10 105579 BOLT - 0.75-10NCX6.0 2
11 100661 STOVER LOCKNUT - 0.750-10NC 2
12 140149 STEP ASS'Y 2
13 139612 SEAT ASS'Y ( Page 230 ) 1
14 024953-001 BOOM MOUNT COVER 1
15 010805-001 FENDER - L/H 1
16 010806-001 FENDER - R/H 1
17 4W1121 LIGHT BRACKET 2
18 391091-14 CENTER BONDED MOUNT 4
19 391091-13 TAIL WASHER 4
20 010811-001 ROPS CANOPY ASSEMBLY ( Page 234 ) 1
21 012108-031 FRONT JACKS SCHEMATIC ( Page 240 ) 1
22 013942-001 OPERATOR CONSOLE 1
23 013998-001 COVER 1
24 013999-001 HOSE COVER 1
25 014000-001 HOSE GUARD - FLOOR 1
26 024941-001 DRILL CONSOLE 1
27 024938-001 COVER PLATE 1
28 013988-001 COVER - BULKHEAD ACCESS 1
29 014403-001 COVER - BRAKE PEDAL VALVE 1
30 024939-001 COVER PLATE 1
31 024940-001 COVER PLATE 1
33 024935-001 GAUGE PLATE 1
34 025683-001 GAUGE PLATE 1
223
010743-015
(Sheet 3 / 4 )
FRONT FRAME ASS'Y
224
010743-015
(Sheet 4 / 4)
FRONT FRAME ASS'Y

1 017748-001 FRONT FRAME 1
2 010898-001 FRONT JACK - L/H 1
3 010651-001 FRONT JACK - R/H 1
4 134591 EXTENSION CYLINDER ( Page 226 ) 1
5 139319 CLEVIS PIN 2
6 101052 HITCH CLIP PIN 2
8 136753 JACK PAD 2
9 107257 BOLT - 5/8 x 2 1/4" 12
10 105579 BOLT - 0.75-10NCX6.0 2
12 140149 STEP ASS'Y 2
13 139612 SEAT ASS'Y ( Page 230 ) 1
14 024953-001 BOOM MOUNT COVER 1
15 010805-001 FENDER - L/H 1
16 010806-001 FENDER - R/H 1
17 4W1121 LIGHT BRACKET 2
18 391091-14 CENTER BONDED MOUNT 4
19 391091-13 TAIL WASHER 4
20 010811-001 ROPS CANOPY ASSEMBLY ( Page 234 ) 1
21 012108-031 FRONT JACKS SCHEMATIC ( Page 240 ) 1
22 013942-001 OPERATOR CONSOLE 1
23 013998-001 COVER 1
24 013999-001 HOSE COVER 1
25 014000-001 HOSE GUARD - FLOOR 1
26 024941-001 DRILL CONSOLE 1
27 024938-001 COVER PLATE 1
28 013988-001 COVER - BULKHEAD ACCESS 1
29 014403-001 COVER - BRAKE PEDAL VALVE 1
30 024939-001 COVER PLATE 1
31 024940-001 COVER PLATE 1
33 024935-001 GAUGE PLATE 1
34 025683-001 GAUGE PLATE 1
225
134591
(Sheet 1 / 2 )
EXTENSION CYLINDER
226
134591
(Sheet 2 / 2)
EXTENSION CYLINDER
2 204901 BARREL 1
3 203288 LOCKNUT 1
4 *a SEAL 2
5 201117 PISTON 1
6 *a SEAL 1
7 *a SEAL 1
8 *a SEAL 1
9 204902 GLAND 1
10 *a SEAL 1
11 *a SEAL 1
12 * 204903 STEM 1
13 * 204904 SEAL KIT 1

a) Items included in 204904.
227
137045
(Sheet 1 / 2 )
JACK CYLINDER
228
137045
(Sheet 2 / 2)
JACK CYLINDER
2 205330 BARREL 1
3 205167 STEM NUT 1
4 * - BACKING RING 2
5 205242 PISTON 1
6 * - O-RING 1
7 * - SEAL 1
8 * - BACKING RING 1
9 * - O-RING 1
10 * - O-RING 1
11 205243 GLAND 1
12 * - SEAL 1
13 * - SEAL 1
14 205331 ROD 1
15 * 205143 COUNTERBALANCE VALVE 2

Items 4, 6, 7, 8, 9, 10, 12, 13 included in 205245
229
139612
(Sheet 1 / 4 )
SEAT ASS'Y
230
139612
(Sheet 2 / 4)
SEAT ASS'Y
1 139612-051 FRAME - 'L' 1
2 139612-052 BRACKET - 'H' 1
3 139612-053 SUSPENSION BOX FRAME 1
4 139612-054 FRAME 1
5 139612-055 BASE PLATE 1
7 139612-057 SLIDE TRACK HANDLE KIT 1
8 a SLIDE TRACK HANDLE SHAFT 1
9 a RETAINER 1
10 a KNOB 1
11 a SPRING CLIP 1
12 a ROLL PIN - 3 X 20 1
13 139612-063 "U" PROFILE SLIDE TRACK BEARING 4
14 139612-064 KNOB 1
15 139612-065 PLASTIC BEARINGS 6
16 139612-066 SPOOLS 2
17 139612-067 SCREW AND KNOB 1
18 139612-068 RIVET 2
19 139612-069 SPACERS - FOR SPRING 2
20 139612-070 ROLL PIN 1
21 139612-071 LONG PIN 1
22 139612-072 SHORT PIN 1
23 139612-073 SHOCK ABSORBER 1
24 139612-074 CIRCLIP 4
25 139612-075 SPACER - M12 2
26 139612-076 SPACER - 7/16" 1
27 139612-077 BOLT - M8 X 20 1
28 139612-078 BOLT - M10 X 35 2
29 139612-079 BOLT - M8 X 15 8
30 139612-080 BUSHING 6
31 139612-081 BUMPER 2
32 139612-082 SPRING 2
33 139612-083 ROLL PIN - 3 X 14 1
34 139612-084 LOCK NUT - M10 1
35 139612-085 SCREW - 4.8 X 25 1
36 139612-086 SEAT CUSHION - BLK VINYL 1
37 139612-087 BACKREST CUSHION - BLK VINYL 1
38 139612-088 SWIVEL 1
39 139612-089 SWIVEL ADAPTER 1
40 001422-001 SEAT BELT - Retractable 1
a) Items included in 139612-057 Kit.
231
139612
(Sheet 3 / 4 )
SEAT ASS'Y
232
139612
(Sheet 4 / 4)
SEAT ASS'Y
41 139612-045 SEATBELT BRACKET 1
233
010811-001
(Sheet 1 / 2 )
ROPS CANOPY ASSEMBLY
234
010811-001
(Sheet 2 / 2)
ROPS CANOPY ASSEMBLY

1 010671-001 CANOPY 1
2 010684-001 CANOPY MOUNT 2
3 010685-001 OUTER TUBE - R/H 1
4 008247-001 PIN 4
5 205931 RETAINING RING 8
6 011153-001 BOLT 12
7 001307-002 CANOPY CYLINDER - R/H ( Page 236 ) 2
8 MC00135 HITCH CLIP REF
9 011962-001 OUTER TUBE - L/H 1
10 012153-011 HYDRAULIC SCHEMATIC - CANOPY ( Page 238 ) 1
235
001307-002
(Sheet 1 / 2 )
CANOPY CYLINDER - R/H
236
001307-002
(Sheet 2 / 2)
CANOPY CYLINDER - R/H

2 205769-001 BARREL 1
3 205770-001 PILOT-TO-OPEN CHECK VALVE 1
4 203288 LOCKNUT 1
5 a SEAL 2
6 205771 PISTON 1
7 a SEAL 1
8 a SEAL 1
9 a SEAL 1
10 205772 GLAND 1
11 a SEAL 1
12 a SEAL 1
13 205773-001 ROD 1
14 * 205774 SEAL KIT 1

a) Items included in 205774.
237
012153-011
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC - CANOPY
238
012153-011
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - CANOPY

1 PLUMBING KIT REF
239
012108-031
(Sheet 1 / 2 )
FRONT JACKS SCHEMATIC
240
012108-031
(Sheet 2 / 2)
FRONT JACKS SCHEMATIC

1 105333 PRESS. REDUCING / RELIEF VALVE ( Page 242 ) 1
2 010502-001 DIR. CONT. VALVE - 3 Bank ( Page 244 ) 1
3 PLUMBING KIT REF
241
105333
(Sheet 1 / 2 )
PRESS. REDUCING / RELIEF VALVE
242
105333
(Sheet 2 / 2)
PRESS. REDUCING / RELIEF VALVE

1 * 202393 CARTRIDGE 1
2 * 102701 SEAL KIT 1
3 * 203004 CARTRIDGE - CHECK 1
4 * 200160 SEAL KIT 1
243
010502-001
(Sheet 1 / 2 )
DIR. CONT. VALVE - 3 Bank
244
010502-001
(Sheet 2 / 2)
DIR. CONT. VALVE - 3 Bank

1 010499-002 INLET COVER 1
2 010499-003 COMPENSATOR 1
3 010499-004 WORKING SECTION KIT 1
4 010499-005 SPOOL 1
5 003156-012 SPOOL POSITIONER 1
6 003156-007 LEVER BOX 1
7 010499-006 PORT PLUGS 1
8 010500-002 RETURN COVER 1
9 003156-010 ASSEMBLING KIT 1
10 011246-001 OPTIONAL HANDLEVER 1
245
010744-001
(Sheet 1 / 2 )
ARTICULATION ASS'Y
246
010744-001
(Sheet 2 / 2)
ARTICULATION ASS'Y
1 129945 PIN 2
2 391410-6 FLATWASHER - 1.25" 2
3 100819 NUT 2
5 129962 THRUST WASHER - 1/8" 4
6 129963 THRUST WASHER - 5/32" (IF REQUIRED) 4
7 129967 THRUST WASHER - 3/16" (IF REQUIRED) 4
8 009118-001 STEER CYLINDER PIN ASSEMBLY ( Page 248 ) 1
9 011154-001 STEER CYLINDER ( Page 250 ) 2
10 803113 LOCK BAR 1
11 011155-001 PIN 2
12 141666 HOSE WRAP - ARTICULATION 1
247
009118-001
(Sheet 1 / 2 )
STEER CYLINDER PIN ASSEMBLY
248
009118-001
(Sheet 2 / 2)
STEER CYLINDER PIN ASSEMBLY

1 104466 SPHERICAL BEARING REF
2 134669 STEER CYLINDER PIN 4
3 101683 LOCKING PIN 4
4 100157 HHCS -0.375-16NC X 1.000 GR8 4
249
011154-001
(Sheet 1 / 2 )
STEER CYLINDER
250
011154-001
(Sheet 2 / 2)
STEER CYLINDER
1 011154-010 BARREL 1
2 011154-011 ROD 1
3 011154-012 GLAND 1
4 011154-013 PISTON 1
6 a PISTON SEAL 2
7 a WEAR RING 1
8 a O-RING 1
9 a BACK-UP RING 2
10 a O-RING 1
11 a BACK-UP RING 1
12 a WEAR RING 2
13 a ROD SEAL 1
14 a ROD WIPER 1
15 203351 BEARING 2
16 011154-015 PLUG - Repl. by 103768 2
17 011154-016 SEAL KIT 1
a) included in seal kit 011154-016.
251
010745-016
(Sheet 1 / 4 )
REAR FRAME ASS'Y
252
010745-016
(Sheet 2 / 4)
REAR FRAME ASS'Y

1 019318-001 REAR FRAME 1
2 011462-004 HYDRAULIC TANK ASS'Y ( Page 256 ) 1
3 011463-008 HOODS ASSEMBLY ( Page 260 ) 1
4 BATTERY REF
5 117106 RUBBER MAT 2
6 117130 THREADED ROD 4
7 135842 BATTERY HOLD DOWN 2
8 011475-028 POWERPACK ASS'Y ( Page 264 ) 1
9 119381 DRAW LATCH 1
10 120683 SHOULDER BOLT 1
11 105629 FIBROMOUNT 4
12 011457-001 CABLE GUIDE 1
13 006476-002 CABLE REEL ( Page 266 ) 1
14 012151-001 HYDRAULIC SCHEMATIC - CABLE REEL ( Page 274 ) 1
15 012152-001 HYDRAULIC SCHEMATIC - REAR JACKS ( Page 276 ) 1
17 136753 JACK PAD 2
18 110012 BOLT - 0.625-11NCX2.25 12
19 105579 BOLT - 0.75-10NCX6.0 2
21 013498-001 BATTERY TRAY 1
22 013499-001 CABLE REEL POST 1
23 013500-001 ELEC. PANEL MOUNT 1
24 011466-002 FUEL TANK ASS'Y ( Page 278 ) 1
26 016915-001 FILTER MOUNTS 1
253
010745-016
(Sheet 3 / 4 )
REAR FRAME ASS'Y
254
010745-016
(Sheet 4 / 4)
REAR FRAME ASS'Y

1 019318-001 REAR FRAME 1
2 011462-004 HYDRAULIC TANK ASS'Y ( Page 256 ) 1
3 011463-008 HOODS ASSEMBLY ( Page 260 ) 1
4 BATTERY REF
5 117106 RUBBER MAT 2
6 117130 THREADED ROD 4
7 135842 BATTERY HOLD DOWN 2
8 011475-028 POWERPACK ASS'Y ( Page 264 ) 1
9 119381 DRAW LATCH 1
10 120683 SHOULDER BOLT 1
11 105629 FIBROMOUNT 4
12 011457-001 CABLE GUIDE 1
13 006476-002 CABLE REEL ( Page 266 ) 1
14 012151-001 HYDRAULIC SCHEMATIC - CABLE REEL ( Page 274 ) 1
15 012152-001 HYDRAULIC SCHEMATIC - REAR JACKS ( Page 276 ) 1
17 136753 JACK PAD 2
18 110012 BOLT - 0.625-11NCX2.25 12
19 105579 BOLT - 0.75-10NCX6.0 2
21 013498-001 BATTERY TRAY 1
22 013499-001 CABLE REEL POST 1
23 013500-001 ELEC. PANEL MOUNT 1
24 011466-002 FUEL TANK ASS'Y ( Page 278 ) 1
26 016915-001 FILTER MOUNTS 1
255
011462-004
(Sheet 1 / 2 )
HYDRAULIC TANK ASS'Y
256
011462-004
(Sheet 2 / 2)
HYDRAULIC TANK ASS'Y

1 025289-001 HYDRAULIC TANK 1
2 125232 OIL LEVEL SWITCH 1
3 121248 LEVEL SWITCH PLUG 1
4 129814 TANK BREATHER (element #008176-001) 1
5 110482 MANIFOLD BLOCK KIT 1
6 117215 RETURN FILTER ( Page 258 ) 1
7 110331 RETURN FILTER MOUNT 1
8 103943 LEVEL GAUGE 1
9 138369 STRAINER - HYD 1
10 102422 O-RING 1
11 104023 ACCESS COVER 1
12 100207 PIPE PLUG - 3/4" (MAGNETIC) 1
13 103572 HHCS - 0.5-13NC X1.250 GR8 9
14 105992 FLAT WASHER - 0.500 A325 17
17 103573 HHCS - 0.500-13NC X 1.000 GR8 8
257
117215
(Sheet 1 / 2 )
RETURN FILTER
258
117215
(Sheet 2 / 2)
RETURN FILTER
4 202649 COVER 1
5 * 200318 O-RING 2
6 202650 MAGNETS 2
7 205031 DIVERTER / BYPASS ASSEMBLY 1
8 202652 TUBE 1
9 * 202653 HANDLE 1
10 * 200319 O-RING 1
11 202654 HEAD 1
12 202884 FLANGE KIT 1
15 205033 BOWL 1
16 * 205032-002 ELEMENT ASS'Y - Return Filter 1
16-1 a 202889 GROMMET 1
16-2 a 005337-001 FILTER ELEMENT - 05Q 2
20 * 202658 GASKET 2
22 114489 BOLT 4
23 * 205034 INDICATOR 1
24 * 202659 O-RING 2
25 202660 CHECK VALVE 1

a) Included in Element Ass'y # 205032-002.
259
011463-008
(Sheet 1 / 4 )
HOODS ASSEMBLY
260
011463-008
(Sheet 2 / 4)
HOODS ASSEMBLY
1 024878-001 HOOD SUPPORT 1
2 019673-001 RAIL - LEFT HOOD 1
3 024879-001 RAIL - R/H 1
4 024880-001 HOOD - TOP 1
5 024881-001 HINGED HOOD 1
6 100665 HHCS - 0.375-16NC X 0.750 GR8 8
7 100157 HHCS -0.375-16NC X 1.000 GR8 5
8 115935 HHCS - 0.375-16NC x 1.5 GR8 8
9 103962 HHCS - 0.375-16NC X 4.500 GR8 2
10 115938 NUT - 0.375-16NC GR8 10
11 106473 FLAT WASHER - 0.375, L9 33
261
011463-008
(Sheet 3 / 4 )
HOODS ASSEMBLY
262
011463-008
(Sheet 4 / 4)
HOODS ASSEMBLY
1 024878-001 HOOD SUPPORT 1
2 019673-001 RAIL - LEFT HOOD 1
3 024879-001 RAIL - R/H 1
4 024880-001 HOOD - TOP 1
5 024881-001 HINGED HOOD 1
6 100665 HHCS - 0.375-16NC X 0.750 GR8 8
7 100157 HHCS -0.375-16NC X 1.000 GR8 5
8 115935 HHCS - 0.375-16NC x 1.5 GR8 8
9 103962 HHCS - 0.375-16NC X 4.500 GR8 2
10 115938 NUT - 0.375-16NC GR8 10
11 106473 FLAT WASHER - 0.375, L9 33
263
011475-028
(Sheet 1 / 2 )
POWERPACK ASS'Y
264
011475-028
(Sheet 2 / 2)
POWERPACK ASS'Y
1 001199-002 ELECTRIC MOTOR - 100 HP 1
2 024846-001 MOUNT 1
3 024861-001 DRIVE COUPLING 1
4 024906-001 COVER PLATE 2
5 100665 HHCS - 0.375-16NC X 0.750 GR8 4
6 103573 HHCS - 0.500-13NC X 1.000 GR8 6
7 100131 HHCS - 0.625-1NC X 1.5 GR8 8
8 106473 FLAT WASHER - 0.375, L9 4
9 105992 FLAT WASHER - 0.500 A325 6
10 102317 FLATWASHER - 0.625 A325 8
265
006476-002
(Sheet 1 / 2 )
CABLE REEL
266
006476-002
(Sheet 2 / 2)
CABLE REEL
1 006476-067 DRUM ASS'Y ( Page 268 ) 1
2 006476-064 COLLECTOR ASS'Y ( Page 270 ) 1
3 006476-066 TORQUE UNIT ( Page 272 ) 1
2A 006476-065 LIMIT SWITCH 1
267
006476-067
(Sheet 1 / 2 )
DRUM ASS'Y
268
006476-067
(Sheet 2 / 2)
DRUM ASS'Y
1 006476-068 INNER RING 1
2 006476-005 WHEEL - EXT. 1
3 006476-004 WHEEL - INT. 1
4 006476-007 FLANGE 1
5 006476-069 TIE ROD - M10X345 10
6 010954-039 WASHER 60
7 008493-074 NUT - SELF-LOCKING 36
8 010954-012 SCREW 4
9 008493-042 SCREW 12
10 008493-073 NUT 4
269
006476-064
(Sheet 1 / 2 )
COLLECTOR ASS'Y
270
006476-064
(Sheet 2 / 2)
COLLECTOR ASS'Y
1 006476-008 SLIPRING SUPPORT 1
2 006476-009 TIE ROD 3
3 006476-010 PVC TUBE 3
4 012768-016 RING INSULATOR 6
5 006476-011 BUSHING - RUBBER 15
6 006476-012 SLIPRING 5
7 006476-013 WIRING 1
8 006476-014 SCREW 5
9 006476-015 NUT 3
10 006476-016 BEARING 1
11 006476-017 CLAMP 5
12 008493-096 SCREW - S.S. 5
13 006476-018 BASE PLATE 1
14 006476-019 TIE ROD 4
15 006476-020 TUBE 4
16 006476-021 BRUSHGEAR 5
17 006476-022 LOWER HOUSING 1
18 008493-064 SCREW - S.S. 4
19 006476-023 SCREW 1
20 006476-024 GROUND 2
21 006476-025 LOCKWASHER 5
22 010954-021 WASHER 1
23 008493-069 LOCKWASHER - S.S. 7
24 008493-071 NUT 8
25 010954-019 WASHER 7
26 012768-019 NUT 15
27 006476-026 NUT 3
30 006476-027 UPPER HOUSING 1
31 006476-028 GASKET 1
32 008493-090 SHCS 2
34 008493-092 LABEL 1
35 006476-029 RIVET - S.S. 4
36 008493-095 HOUSING GASKET 1
271
006476-066
(Sheet 1 / 2 )
TORQUE UNIT
272
006476-066
(Sheet 2 / 2)
TORQUE UNIT
1 006476-030 FLANGED SHAFT 1
2 006476-031 FRONT LEG 1
3 006476-032 OIL SEAL 1
4 006476-033 BEARING 1
5 006476-034 CIRCLIP 1
6 006476-035 GASKET 1
7 006476-036 KEY 1
8 006476-037 CLUTCH PLATE 1
9 006476-038 CROWN GEAR 1
10 006476-039 KEY 1
11 006476-040 CROWN GEAR 1
12 006476-041 SPRING HOLDER - CLUTCH 1
13 006476-042 SPRING 10
14 006476-043 SPRING HOLDER - DISC 1
15 006476-044 NUT 1
16 006476-045 BEARING 1
17 006476-046 CIRCLIP 1
18 006476-047 CARTER 1
19 006476-035 GASKET 1
20 006476-048 SEAL 1
21 006476-049 REAR LEG 1
22 006476-050 SCREW 4
23 006476-050 SCREW 4
24 006476-051 WORM SCREW 1
25 006476-052 BEARING 1
26 006476-053 LOCKWASHER 1
27 006476-054 NUT 1
28 006476-055 O-RING 1
29 006476-056 CAP 1
30 006476-057 SCREW 4
31 008493-030 BEARING 1
32 008493-027 O-RING 1
33 006476-058 BUSHING 1
34 008493-029 PLUG 1
35 008493-028 PLUG 1
36 008493-025 O-RING 1
37 006476-059 PIN 1
38 010954-030 ADAPTER BUSHING 1
39 006476-060 FLANGE COVER 1
40 006476-061 CODE LABEL 1
41 010954-057 RIVET 2
273
012151-001
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC - CABLE REEL
274
012151-001
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - CABLE REEL

1 010502-001 DIR. CONT. VALVE - 3 Bank ( Page 244 ) 1
2 PLUMBING KIT REF
3 103483 SHUTTLE VALVE 1
275
012152-001
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC - REAR JACKS
276
012152-001
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - REAR JACKS

1 PLUMBING KIT REF
277
011466-002
(Sheet 1 / 4 )
FUEL TANK ASS'Y
278
011466-002
(Sheet 2 / 4)
FUEL TANK ASS'Y

1 013503-001 FUEL TANK 1
2 028933-001 COVER - FUEL GAUGE 1
3 013502-001 COVER - #2 1
4 604023 UPPER COVER GASKET 2
5 101837 PIPE COUPLING - 1/2" 2
6 802390 BREATHER VENT - 3/8" FUEL 1
7 127154 SIGHT GLASS c/w FLOATING BALL 3
9 014048-001 FILLER NECK 1
10 391048-2 SNAP ACTION FILLER CAP 1
11 391048-4 BRONZE STRAINER - 3" LG - FUEL 1
12 113547 PIPE NIPPLE - 2" 1
13 103925 PIPE COUPLING - 2" 1
14 024127-001 BULKHEAD 1
15 111461 ADAPTER - 2023-6-6 1
16 102456 HOSE ASS'Y - 5MP STX45X12" LG 1
17 028623-002 SENDER - FUEL LEVEL 24 VDC 1
18 028623-001 GAUGE 1
19 100157 HHCS -0.375-16NC X 1.000 GR8 16
20 103573 HHCS - 0.500-13NC X 1.000 GR8 1
21 103572 HHCS - 0.5-13NC X1.250 GR8 4
22 106473 FLAT WASHER - 0.375, L9 16
23 105992 FLAT WASHER - 0.500 A325 5
279
011466-002
(Sheet 3 / 4 )
FUEL TANK ASS'Y
280
011466-002
(Sheet 4 / 4)
FUEL TANK ASS'Y

1 013503-001 FUEL TANK 1
2 028933-001 COVER - FUEL GAUGE 1
3 013502-001 COVER - #2 1
4 604023 UPPER COVER GASKET 2
5 101837 PIPE COUPLING - 1/2" 2
6 802390 BREATHER VENT - 3/8" FUEL 1
7 127154 SIGHT GLASS c/w FLOATING BALL 3
9 014048-001 FILLER NECK 1
10 391048-2 SNAP ACTION FILLER CAP 1
11 391048-4 BRONZE STRAINER - 3" LG - FUEL 1
12 113547 PIPE NIPPLE - 2" 1
13 103925 PIPE COUPLING - 2" 1
14 024127-001 BULKHEAD 1
15 111461 ADAPTER - 2023-6-6 1
16 102456 HOSE ASS'Y - 5MP STX45X12" LG 1
17 028623-002 SENDER - FUEL LEVEL 24 VDC 1
18 028623-001 GAUGE 1
19 100157 HHCS -0.375-16NC X 1.000 GR8 16
20 103573 HHCS - 0.500-13NC X 1.000 GR8 1
21 103572 HHCS - 0.5-13NC X1.250 GR8 4
22 106473 FLAT WASHER - 0.375, L9 16
23 105992 FLAT WASHER - 0.500 A325 5
281
010747-003
(Sheet 1 / 2 )
TIRE AND RIM ASS'Y
282
010747-003
(Sheet 2 / 2)
TIRE AND RIM ASS'Y

1 140956 TIRE - 10:00 X 20 LUGGED SOFTUF 1
2 011478-002 RIM 1
283
025202-051
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC
284
025202-051
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC
1 027868-001 PERC/FEED/ROT VALVE ( Page 286 ) 1
2 138073 JOYSTICK VALVE ASS'Y ( Page 290 ) 3
3 010541-001 PRESSURE REDUCING / RELIEF VALVE 1
5 205856 PILOT DIR. VALVE - FD (sk#013646-020) 1
6 010976-001 SUBPLATE 1
7 114915 BOLT KIT 1
9 100514 GAUGE, 0-4000 psi - Repl. by 032295-002 5
10 100513 GAUGE, 0-2000 psi - Repl. by 032294-002 2
11 105356 GAUGE, 100 psi - Repl. by 032292-002 1
12 116069 ADAPTER - 0.030 1
13 024946-001 HYDRAULIC PUMP ( Page 298 ) 1
14 024947-001 HYD. ROTATION PUMP ( Page 300 ) 1
15 104388 HIGH PRESSURE FILTER ( Page 302 ) 1
17 391386-16 RETURN MANIFOLD 2
18 105331 HEAT EXCHANGER - Hydraulic ( Page 304 ) REF
19 032412-001 HYDRAULIC FILLER PUMP ( Page 306 ) 1
21 018627-001 DRILL CONTROL VALVE ( Page 308 ) 1
22 025204-001 DIFF PRESS SENSING VALVE ( Page 310 ) 1
23 027130-001 P.O. CHECK VALVE 1
24 138542 ADAPTER - 12-12-4 1
25 031337-002 KNOB 1
26 031337-004 CARTRIDGE BODY 1
27 031337-003 MOD. CAVITY PLUG 1
28 PLUMBING KIT REF
29 391358-24 SOLENOID VALVE BODY 4 way/2 pos 1
30 391358-21 CARTRIDGE 4 way/2 pos. 1
31 391358-28 SOLENOID - 24V DC 1
285
027868-001
(Sheet 1 / 2 )
PERC/FEED/ROT VALVE
286
027868-001
(Sheet 2 / 2)
PERC/FEED/ROT VALVE
1 027868-100 MAIN BODY 1
2 024147-100 SECTIONAL SEAL KIT 2
3 027868-101 MAIN BODY 3
4 027868-102 MAIN SPOOL 1
5 020376-107 B PORT ANTI CAV VALVE 3
6 024147-104 SECTIONAL SEAL KIT 3
7 024147-106 COVER PLATE 2
8 025371-100 MAIN BODY 1
9 027868-103 MAIN SPOOL 1
10 020376-126 MAIN SPOOL 1
11 024147-106 COVER PLATE 1
12 024147-109 BOLT AND SEAL KIT 1
13 024147-101 HANDLE ASS'Y ( Page 288 ) 3
14 024147-102 SEAL KIT 6
15 020376-012 PILOT ASS'Y 3
287
024147-101
(Sheet 1 / 2 )
HANDLE ASS'Y
288
024147-101
(Sheet 2 / 2)
HANDLE ASS'Y
1 024147-115 LEVER ASS'Y 1
2 024147-114 BASE 1
289
138073
(Sheet 1 / 2 )
JOYSTICK VALVE ASS'Y
290
138073
(Sheet 2 / 2)
JOYSTICK VALVE ASS'Y

1 * 205965 HANDLE KIT ( Page 292 ) 1
2 LEVER LINK & MOUNT PLATE ASS'Y @ ( Page 294 ) 1
3 * 205964 DETENT KIT 1
4 SPRING ASSEMBLY @ ( Page 296 ) 1
291
205965
(Sheet 1 / 2 )
HANDLE KIT
292
205965
(Sheet 2 / 2)
HANDLE KIT
99 a NUT REF
100 a BOOT REF
101 a KNOB REF
102 a HANDLE REF
a) No longer sold separately. Order 205965 Handle Kit.
293
(Sheet 1 / 2 )
LEVER LINK & MOUNT PLATE ASS'Y @
294
(Sheet 2 / 2)
LEVER LINK & MOUNT PLATE ASS'Y @

25 a SCREW - M5X20 2
29 b SCREW - M5X12 2
58 a LEVER BRACKET 1
59 a LOCK WASHER 2
60 a SHAFT 1
61 a NUT - M5 2
62 a SET SCREW 2
63 a BEARING PLATE 1
66 b MOUNTING PLATE 1
a) Items included in Lever Link # 205969.

b) Items included in Mounting plate # 205973.
295
(Sheet 1 / 2 )
SPRING ASSEMBLY @
296
(Sheet 2 / 2)
SPRING ASSEMBLY @
1 205974 RETURN SPRING 1
2 205975 SPRING PACK KIT 1
3 * 205976 PIN SET 1
5 205977 WIRE COIL 1
6 205978 GUIDE WASHER 1
7 205979 SPRING 1
8 * a 205980 PIN 1
9 * a 205981 BUSH 1
10 * a 205982 O-RING 1
11 * a 205983 SEALING RING 1
12 205984 COLLAR 1
13 205985 SPACER 1
14 205986 COLLAR 1
15 205987 WIRE COIL 1

a) Included in Pin Set # 205976.
297
024946-001
(Sheet 1 / 2 )
HYDRAULIC PUMP
298
024946-001
(Sheet 2 / 2)
HYDRAULIC PUMP
1 024946-100 OVERHAUL SEAL KIT 1
2 024946-101 LS CONTROL 1
299
024947-001
(Sheet 1 / 2 )
HYD. ROTATION PUMP
300
024947-001
(Sheet 2 / 2)
HYD. ROTATION PUMP

1 025236-100 OVERHAUL SEAL KIT 1
2 023350-030 CONTROL KIT 1
301
104388
(Sheet 1 / 2 )
HIGH PRESSURE FILTER
302
104388
(Sheet 2 / 2)
HIGH PRESSURE FILTER

2 202961 INDICATOR PLATE 1
3 202891 DRIVE SCREW 2
6 * 104727 FILTER ELEMENT - HP 1
7 202892 SPRING 1
8 200558 O-RING 1
9 202962 BOWL 1
10 202894 DRAIN PLUG WITH O-RING 1
11 * 202963 SEAL KIT 1
12 200270 INDICATOR KIT - mechanical 1
303
105331
(Sheet 1 / 2 )
HEAT EXCHANGER - Hydraulic
304
105331
(Sheet 2 / 2)
HEAT EXCHANGER - Hydraulic

1 200114 IN/OUT END BONNET 1
2 200115 RETURN END BONNET 1
3 203617 IN/OUT GASKET 1
4 203618 RETURN GASKET 1
5 200085 MOUNT BRACKET 1
305
032412-001
(Sheet 1 / 2 )
HYDRAULIC FILLER PUMP
306
032412-001
(Sheet 2 / 2)
HYDRAULIC FILLER PUMP

1 032412-100 PUMP 1
2 032412-101 MOTOR 1
307
018627-001
(Sheet 1 / 2 )
DRILL CONTROL VALVE
308
018627-001
(Sheet 2 / 2)
DRILL CONTROL VALVE

10 018627-010 REGULATOR BODY 1
20 018627-011 DISTRIBUTOR 1
30 018627-012 PRESSURE REDUCER 1
40 018627-013 LOCKING PLATE 1
50 018627-014 SELECTOR 2
60 018627-015 CARTRIDGE 1
70 018627-016 CARTRIDGE 2
80 018627-017 PRESSURE REDUCER 1
90 018627-018 VALVE 3
100 018627-019 GAUGE PORT 5
110 020041-050 SHCS - M5 4
120 3601 O-RING 16
130 018627-020 SCREW 4
140 018627-021 VALVE 1
150 018627-022 BANJO FITTING 2
160 018627-023 TUBE 1
309
025204-001
(Sheet 1 / 2 )
DIFF PRESS SENSING VALVE
310
025204-001
(Sheet 2 / 2)
DIFF PRESS SENSING VALVE

1 025204-010 CARTRIDGE 1
2 025204-011 HOUSING 1
311
013195-061
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC - Carrier
312
013195-061
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - Carrier

1 019222-001 HYDRAULIC PUMP - 45CC ( Page 314 ) 1
2 144419-003 PORT BLOCK 1
4 104388 HIGH PRESSURE FILTER ( Page 302 ) 1
5 010501-001 DIR. CONTROL VALVE - 1 Bank ( Page 316 ) 1
6 129468 DUAL COUNTER BALANCE VALVE ( Page 318 ) 1
7 391386-15 MANIFOLD - 5 Port 1
8 391008-62 L.S. CHARGE VALVE ( Page 320 ) 1
9 140099 PRESSURE SNUBBER - #4 1
10 391386-13 MANIFOLD - BRAKE PRESSURE 1
11 126212 DIRECTIONAL VALVE - 4W/2P, 24V ( Page 322 ) 2
12 144419 PORT BLOCK 1
13 100514 GAUGE, 0-4000 psi - Repl. by 032295-002 1
14 391347-2 ACCUMULATOR - 1/2 Gal. 1
15 391008-76 BRAKE PEDAL ( Page 324 ) 1
16 100513 GAUGE, 0-2000 psi - Repl. by 032294-002 2
17 004128-001 RELIEF VALVE ( Page 328 ) 1
18 PLUMBING KIT REF
19 391126-1 SHUT OFF VALVE 1
20 111084 RELIEF VALVE ( Page 330 ) 1
21 138414 ADAPTER 1
22 130239 PRESSURE SWITCH 1
313
019222-001
(Sheet 1 / 2 )
HYDRAULIC PUMP - 45CC
314
019222-001
(Sheet 2 / 2)
HYDRAULIC PUMP - 45CC

1 019222-010 ROTARY GROUP 1
2 019222-011 CONTROL PISTON 1
3 019222-012 PISTON ROD 1
5 019222-013 PUMP HOUSING 1
6 019222-014 PORT PLATE 1
7 019222-015 SWASHPLATE 1
8 019222-016 DRIVE SHAFT 1
9 LOCKING SCREW 1
10 SPRING 1
12 ADJUSTMENT SHIM 1
14 019222-017 STOP RING 1
15 019222-018 TAPERED-ROLLER BEARING 1
16 019222-019 TAPERED-ROLLER BEARING 1
17 LAGERSCHALE 2
20 019222-020 SHAFT SEAL RING 1
21 019222-021 O-RING 1
24 KANTSIL 1
27 ZYL.SCHR.M 4
31 019222-023 DOUBLE BREAK-OFF PIN 1
33 019222-024 CYLINDER PIN 1
34 LOCKING SCREW 1
35 019222-025 CONTROL VALVE 1
315
010501-001
(Sheet 1 / 2 )
DIR. CONTROL VALVE - 1 Bank
316
010501-001
(Sheet 2 / 2)
DIR. CONTROL VALVE - 1 Bank

1 010499-002 INLET COVER 1
2 010499-003 COMPENSATOR 1
4 010501-002 SPOOL 1
6 003156-007 LEVER BOX 1
7 010499-006 PORT PLUGS 1
9 010501-003 ASSEMBLING KIT 1
10 011246-001 OPTIONAL HANDLEVER 1
317
129468
(Sheet 1 / 2 )
DUAL COUNTER BALANCE VALVE
318
129468
(Sheet 2 / 2)
DUAL COUNTER BALANCE VALVE

1 * 206125-001 CARTRIDGE 2
2 * 200181 SEAL KIT 1
319
391008-62
(Sheet 1 / 2 )
L.S. CHARGE VALVE
320
391008-62
(Sheet 2 / 2)
L.S. CHARGE VALVE

1 PLUG 1
2 a O-RING 1
3 SPRING 3
4 a POPPET 2
5 a O-RING 1
6 SLEEVE 1
7 a O-RING 1
8 a POPPET 1
9 SPRING 1
10 HOUSING 1
11 PLUG 1
12 a O-RING 1
13 SPRING 1
14 STOP 1
15 BALL 1
16 SPOOL 1
17 INSERT 1
18 a O-RING 1
19 a O-RING 1
20 BALL 1
21 RETAINER 1
22 SPRING 1
23 a PIN 1
24 SCREW 1
25 PLUG 1
26 STOP 1
27 SPRING 1
28 a STEEL BALL 1
29 ORIFICE 1
30 a O-RING 1
31 a O-RING 1
32 SLEEVE 1
33 a O-RING 1
34 PLUG 1
1
a) Items included in Repair Kit # 391008-73
321
126212
(Sheet 1 / 2 )
DIRECTIONAL VALVE - 4W/2P, 24V
322
126212
(Sheet 2 / 2)
DIRECTIONAL VALVE - 4W/2P, 24V

1 * 105778 CONNECTOR - FEMALE(SERVICE) 1
2 201589 NUT 1
3 * 126212-002 SOLENOID COIL - 24V 1
4 * 126212-004 CARTRIDGE 1
5 * 207304 SEAL KIT 1
323
391008-76
(Sheet 1 / 2 )
BRAKE PEDAL
324
391008-76
(Sheet 2 / 2)
BRAKE PEDAL
1 391008-44 BOOT REPAIR KIT 1
2 008428-001 VALVE ( Page 326 ) 1
3 023951-001 BRAKE PEDAL 1
4 391008-67 REPAIR KIT REF
325
008428-001
(Sheet 1 / 2 )
VALVE
326
008428-001
(Sheet 2 / 2)
VALVE
1 391008-67 REPAIR KIT 1
327
004128-001
(Sheet 1 / 2 )
RELIEF VALVE
328
004128-001
(Sheet 2 / 2)
RELIEF VALVE
1 004128-010 VALVE BODY 1
2 200160 SEAL KIT 1
3 SCREW ADJUST 1
329
111084
(Sheet 1 / 2 )
RELIEF VALVE
330
111084
(Sheet 2 / 2)
RELIEF VALVE
2 * 200160 SEAL KIT 1
331
013687-031
(Sheet 1 / 2 )
HYDRAULIC SCHEMATIC - MTB5500, LH
332
013687-031
(Sheet 2 / 2)
HYDRAULIC SCHEMATIC - MTB5500, LH

1 100052 PILOT CHECK VALVE - SEE FSL-1026 4
2 101572 COUNTERBALANCE VALVE ( Page 334 ) 1
3 010500-001 DIR. CONTROL VALVE - 8 BANK ( Page 336 ) 1
4 105333 PRESS. REDUCING / RELIEF VALVE ( Page 242 ) 2
5 111084 RELIEF VALVE ( Page 330 ) 2
6 116069 ADAPTER - 0.030 1
7 002163-001 DUAL COUNTER BALANCE VALVE c/w shuttle ( Page 338 ) 1
8 PLUMBING REF
9 012905-001 ADAPTER - S01099-06-06 4
10 116069-002 ADAPTER - 0.078" 1
11 116069-003 ADAPTER - 0.090" 1
12 121060 ADAPTER - 0.060 ORIFICE 7
13 012827-001 VELOCITY FUSE VALVE - 17GPM 2
14 012826-001 VELOCITY FUSE VALVE - 10GPM 2
333
101572
(Sheet 1 / 2 )
COUNTERBALANCE VALVE
334
101572
(Sheet 2 / 2)
COUNTERBALANCE VALVE
335
010500-001
(Sheet 1 / 2 )
DIR. CONTROL VALVE - 8 BANK
336
010500-001
(Sheet 2 / 2)
DIR. CONTROL VALVE - 8 BANK

1 032041-102 LEVER 4
2 010500-100 PLUG - 1/4 BSPP 1
3 032041-100 INLET SECTION 1
6 010499-006 PORT PLUGS 16
8 010500-101 BANKING KIT 1
9 032041-101 JOYSTICK 4
10 010499-005 SPOOL 5
11 003156-005 SPOOL 3
12 010500-004 SEAL KIT REF
337
002163-001
(Sheet 1 / 2 )
DUAL COUNTER BALANCE VALVE c/w shuttle
338
002163-001
(Sheet 2 / 2)
DUAL COUNTER BALANCE VALVE c/w shuttle

1 * 002163-003 CARTRIDGE 2
2 002163-002 BODY 1
3 * 002163-004 SEAL KIT 1
339
140907-021
(Sheet 1 / 2 )
TRANSMISSION SCHEMATIC
340
140907-021
(Sheet 2 / 2)
TRANSMISSION SCHEMATIC
1 100338 PIPE PLUG 1
2 141016 SPLIT FLANGE KIT 2
3 PLUMBING KIT REF
4 391280-11 TRANS. TEMP. SENDER 1
5 391403-267 PRESSURE SWITCH - 60 PSI 1
6 109705 PRESSURE SWITCH - 100 PSI 1
7 135799 NEUTRAL SWITCH 1
8 138204 TRANSMISSION PRESSURE SENDER - 400 PSI REF
9 802433 SWITCH MANIFOLD 1
341
025518-201
(Sheet 1 / 4 )
ELECTRICAL SYSTEM
342
025518-201
(Sheet 2 / 4)
ELECTRICAL SYSTEM
1 025519-201 MAIN DASH ( Page 346 ) 1
2 025529-001 MAIN CONTROL PANEL ( Page 350 ) 1
3 025521-201 HDWR & INTERCONNECTION ( Page 354 ) 1
4 106334 BATTERY 2
6 025694-201 DRILL PARAMETERS HARNESS ( Page 364 ) 1
7 135824 MASTER DISCONNECT SWITCH 1
10 118587-002 HORN - 24V 1
11 120676 AUXILIARY START RELAY - 24V 1
12 017970-001 TRANSDUCER, PRESSURE - 500 BAR 4
13 142788 CIRCUIT BREAKER - 60A 1
15 391280-14 OIL PRESSURE SENDER - Engine 1
18 025393-001 ENGINE TEMP. SENDER 1
21 102017 CABLE - 1/0 34.5'
22 108111 TERMINAL RING - 3/8 10
23 025725-001 FILLER PUMP OPTION ( Page 366 ) 1
24 143409 BATTERY TERMINAL - Neg. 2
25 131269 TERMINAL COVER - BLACK 2
26 143408 BATTERY TERMINAL - Pos. 2
27 131270 TERMINAL COVER - 7/8" RED 2
28 144666 WIRE LOOM - 3/4" GREEN 34.5'
29 109466 WIRE - #8 Red 6'
30 144664 WIRE LOOM - 3/8" GREEN 6'
31 112763 RING TERMINAL - 3/8" 2
32 017055-001 MODULE DISPLAY MD3 1
33 803070-007 SHIFTER OPTION - 3 SPEED ( Page 368 ) REF
34 126163 OIL TEMPERATURE SWITCH 1
36 024983-001 WORK LIGHT - LED ( Page 370 ) 6
38 138204 TRANSMISSION PRESSURE SENDER - 400 PSI 1
40 142788-004 CIRCUIT BREAKER - 105A 1
343
025518-201
(Sheet 3 / 4 )
ELECTRICAL SYSTEM
344
025518-201
(Sheet 4 / 4)
ELECTRICAL SYSTEM
1 025519-201 MAIN DASH ( Page 346 ) 1
2 025529-001 MAIN CONTROL PANEL ( Page 350 ) 1
3 025521-201 HDWR & INTERCONNECTION ( Page 354 ) 1
4 106334 BATTERY 2
6 025694-201 DRILL PARAMETERS HARNESS ( Page 364 ) 1
7 135824 MASTER DISCONNECT SWITCH 1
10 118587-002 HORN - 24V 1
11 120676 AUXILIARY START RELAY - 24V 1
13 142788 CIRCUIT BREAKER - 60A 1
15 391280-14 OIL PRESSURE SENDER - Engine 1
18 025393-001 ENGINE TEMP. SENDER 1
21 102017 CABLE - 1/0 34.5'
22 108111 TERMINAL RING - 3/8 10
23 025725-001 FILLER PUMP OPTION ( Page 366 ) 1
24 143409 BATTERY TERMINAL - Neg. 2
25 131269 TERMINAL COVER - BLACK 2
26 143408 BATTERY TERMINAL - Pos. 2
27 131270 TERMINAL COVER - 7/8" RED 2
28 144666 WIRE LOOM - 3/4" GREEN 34.5'
29 109466 WIRE - #8 Red 6'
30 144664 WIRE LOOM - 3/8" GREEN 6'
31 112763 RING TERMINAL - 3/8" 2
32 017055-001 MODULE DISPLAY MD3 1
33 803070-007 SHIFTER OPTION - 3 SPEED ( Page 368 ) REF
34 126163 OIL TEMPERATURE SWITCH 1
38 138204 TRANSMISSION PRESSURE SENDER - 400 PSI 1
345
025519-201
(Sheet 1 / 4 )
MAIN DASH
346
025519-201
(Sheet 2 / 4)
MAIN DASH
1 025520-001 ENCLOSURE 1
2 142940 RESISTOR - 120 OHM, 1/4 WATT 1
3 141026 TEFLON WIRE - Black 20'
4 141027 TEFLON WIRE - Red 20'
5 141029 TEFLON WIRE - Yellow 30'
6 141030 TEFLON WIRE - Green 30'
7 141031 TEFLON WIRE -#18 Blue 140'
8 391053-29 CAP - Red
9 391053-28 PUSHBUTTON - 12V N/C 1
10 144559 LED - Red 8
11 144580 LED - Amber 2
12 116508 KEYLESS SWITCH 1
13 116510 PUSHBUTTON 2
14 009444-001 PUSH / PULL BUTTON - GR 24VDC 1
15 391280-30 VOLTMETER - 24V 1
17 100583 RAIL 1.5'
18 132324 HEATER - 24V DC / 15 W 1
19 132322 FAN - Panel Heating 1
20 001403-001 RELAY - 2 Pole 3
21 001403-002 RELAY BASE 3
22 144558 LED - Green 1
23 141734 END BARRIER 2
24 124701 TERMINAL BLOCK END 2
25 001138-001 TERMINAL BLOCK - T35 41
26 134734 CONTACT BLOCK - 2N.C./2N.O. 2
27 136196 PUSHBUTTON - Black 1
28 132822 CONNECTOR - 3/4" 90° 3
29 015106-001 9 PIN CONNECTOR 1
30 138116 GAUGE - TRANS. OIL PRES. 1
31 391280-10 TRANS. OIL TEMP. GAUGE 1
32 015106-002 PIN - SOLID #16 4
33 116509-002 LIGHT SWITCH - Marine 2
34 124086 TIMER RELAY - D.O.B. 1
35 100799-002 CONNECTOR - 1/2" 90° 1
36 391074-13 DIODE 2
37 391419-2 TERMINAL PLUG 2
38 391419-1 TERMINAL BLOCK 2
39 391419-3 END COVER 1
40 001218-007 CIRCUIT BREAKER - 30AMP 1
41 136191 PUSHBUTTON - Red 1
347
025519-201
(Sheet 3 / 4 )
MAIN DASH
348
025519-201
(Sheet 4 / 4)
MAIN DASH
42 001411-001 PUSH / PULL BUTTON - Brake 1
43 025393-002 ENGINE TEMP GAUGE 1
44 109907 RELAY - SOCKET 1
45 024189-001 RESISTOR 1
46 391280-32 RESISTOR KIT - 24V 1
349
025529-001
(Sheet 1 / 4 )
MAIN CONTROL PANEL
350
025529-001
(Sheet 2 / 4)
MAIN CONTROL PANEL

1 025723-001 ENCLOSURE REWORK 1
2 112079 OPERATOR MECHANISM 1
3 127989 HANDLE MECHANISM 1
4 109710 MOTOR CIRCUIT PROTECTOR - 150AMP 1
5 134499 POWER SUPPLY - 120/24 2
6 107548 RECTIFIER 1
7 109907 RELAY - SOCKET 3
8 132322 FAN - Panel Heating 1
9 119117 PHASE VOLTAGE RELAY - 600V/60HZ 1
10 100583 RAIL 4'
11 132175 FUSE BLOCK - 3 POLE 1
12 112098 ROD - 6" 1
13 138428 FUSE - 15A T.D. 2
14 102109 FUSE - 1/2 AMP 3
15 100520 TRANSFORMER 1
17 144293 DECAL - 24V ONLY IN THIS SIDE 1
19 137420 TERMINAL BLOCK 60
21 100578 RELAY SOCKET 6
22 116557 RELAY - 24V 6
23 124086 TIMER RELAY - D.O.B. 3
24 101145 WIRE TROUGH 6'
25 101146 WIRE TROUGH COVER 6'
26 100569 CIRCUIT BREAKER - 10 AMP 2
31 106395 CURRENT TRANSFORMER 1
32 106394 AMMETER 1
33 391280-1 HOURMETER 1
34 127940 WINDOW KIT 1
35 101342 ZENER DIODE 1
38 144559 LED - Red 1
39 144558 LED - Green 1
41 135035 DECAL - POWER ON/OFF 1
43 101147 WIRE TROUGH 6'
44 101148 WIRE TROUGH COVER 6'
46 135543-003 MOUNT PLATE 1
47 136137 DECAL - DANGER 1
48 136191 PUSHBUTTON - Red 1
49 128233 DECAL - EMERGENCY STOP 1
351
025529-001
(Sheet 3 / 4 )
MAIN CONTROL PANEL
352
025529-001
(Sheet 4 / 4)
MAIN CONTROL PANEL

50 135036 DECAL - INCORRECT PHASE 1
51 128004 WIRE - #4 24'
53 020574-001 STARTER - 100HP, 24VDC 1
56 105993 POWER BLOCK 1
59 014385-101 DIVIDER - 10" 1
353
025521-201
(Sheet 1 / 2 )
HDWR & INTERCONNECTION
354
025521-201
(Sheet 2 / 2)
HDWR & INTERCONNECTION

1 105022-002 CONNECTOR 1
2 101105 STRAIN RELIEF - 1/2" BROWN 6
3 134179-004 CONNECTOR - 1.5" LIQUID TITE FLEX 1
4 001517-103 CONNECTOR - 35 SOCKET, 90° 1
5 101507 CONNECTOR 14
6 015262-001 CONNECTOR - 90° 1
7 001520-001 CONNECTOR - 35 Pin, Cable End 1
8 101149 CHASE NIPPLE 1
10 141033 TEFLON WIRE - #18 White 6'
11 001517-101 BULKHEAD CONNECTOR - 35 PIN 1
12 134179-003 CONDUIT - 1.5" LIQUID TITE FLEX 30'
14 109467-002 WIRE - #6 BLACK, 125C-600V 200'
15 108110 SERVIT CONNECTOR 9
16 108112 RING TERMINAL 4
17 101144 CABLE - 18/37 CONDUCTOR 30'
18 123772 CABLE - 18/2 153'
19 119954 FITTING - 1/2" 1
20 004789-001 WIRE - #8 GREEN - TEW 35'
21 103285 CONNECTOR - Yellow 1
22 103895 COVER - Ground Fault 1
23 103274 RECEPTACLE - GFI 1
24 101075 BOX - Outlet 1
25 015924-001 PLASTIC BUSHING - 1-1/2" 2
26 015919-001 PLASTIC BUSHING - 1-1/4" 1
27 129579 TRAILING CABLE 20'
28 025524-201 POWER HARNESS - FR. FRAME ( Page 356 ) 1
29 025525-201 POWER HARNESS - ENG. END ( Page 358 ) 1
30 025522-201 MAIN HARNESS - FR. FRAME ( Page 360 ) 1
31 025523-201 MAIN HARNESS - R. FRAME ( Page 362 ) 1
32 002299-001 REDUCER - 1 - 1/2 1
355
025524-201
(Sheet 1 / 2 )
POWER HARNESS - FR. FRAME
356
025524-201
(Sheet 2 / 2)
POWER HARNESS - FR. FRAME

1 109466-003 WIRE - #8 Black 6.5'
2 001409-103 CONNECTOR - 9 PIN, 90° 1
3 144666 WIRE LOOM - 3/4" GREEN 1.5'
4 144663 WIRE LOOM - 5/16 GREEN 21'
5 144664 WIRE LOOM - 3/8" GREEN 5'
6 141108 CONNECTOR - 1 Socket Weatherpack 2
7 133131 SOCKET c/w Seal 2
8 109466 WIRE - #8 Red 25'
357
025525-201
(Sheet 1 / 2 )
POWER HARNESS - ENG. END
358
025525-201
(Sheet 2 / 2)
POWER HARNESS - ENG. END

1 001410-001 CONNECTOR - 9 Pin Cable End 1
2 015098-001 CONNECTOR - 4 Pin Power 1
3 144666 WIRE LOOM - 3/4" GREEN 8'
4 015098-002 WEDGE 1
7 144663 WIRE LOOM - 5/16 GREEN 23.5'
8 141024 TEFLON WIRE - #10 Red 19'
9 141025 TEFLON WIRE - #10 Black 19.5'
10 144664 WIRE LOOM - 3/8" GREEN 28'
11 391390-6 CONTACT 4
359
025522-201
(Sheet 1 / 2 )
MAIN HARNESS - FR. FRAME
360
025522-201
(Sheet 2 / 2)
MAIN HARNESS - FR. FRAME

2 391358-29 CONNECTOR 3
3 133128 CONNECTOR - 3 Pin 6
4 133129 PIN c/w Seal 13
5 101108 REDUCER - 3/4" to 1/2" 1
6 144665 WIRE LOOM - 1/2" GREEN 2'
7 141110 CONNECTOR - 2 Socket 2
8 144663 WIRE LOOM - 5/16 GREEN 62.5'
9 100694 ENCLOSURE 1
10 101507 CONNECTOR 1
11 391280-1 HOURMETER 1
13 001405-301 CONNECTOR - 3 SOCKET 1
14 026289-005 WIRE - 18AWG GXL GR 46'
15 026289-004 WIRE - 18AWG GXL YL 29'
16 026289-006 WIRE - 18AWG GXL BL 20'
17 026289-003 WIRE - 18AWG GXL OR 12'
18 026289-002 WIRE - 18AWG GXL RD 4'
19 026289-010 WIRE - 18AWG GXL BK 4'
20 026289-009 WIRE - 18AWG GXL WH 12'
21 026289-001 WIRE - 18AWG GXL BR 2'
361
025523-201
(Sheet 1 / 2 )
MAIN HARNESS - R. FRAME
362
025523-201
(Sheet 2 / 2)
MAIN HARNESS - R. FRAME

1 001406-001 CONNECTOR - 48 Pin Cable End 1
4 133129 PIN c/w Seal 9
5 141024 TEFLON WIRE - #10 Red 27'
6 144666 WIRE LOOM - 3/4" GREEN 13'
7 144664 WIRE LOOM - 3/8" GREEN 9'
8 144663 WIRE LOOM - 5/16 GREEN 51'
9 144665 WIRE LOOM - 1/2" GREEN 13'
11 012241-005 BACKSHELL - 90° 1
14 130568 TWISTED CABLE 12'
15 141031 TEFLON WIRE -#18 Blue 12'
16 012241-002 SOCKET - 20# AWG 25
17 012241-004 SEALING PLUG 25
363
025694-201
(Sheet 1 / 2 )
DRILL PARAMETERS HARNESS
364
025694-201
(Sheet 2 / 2)
DRILL PARAMETERS HARNESS

1 144663 WIRE LOOM - 5/16 GREEN 31'
2 017055-002 CONNECTOR - C1 1
3 017055-003 CONNECTOR - C2 1
4 391390-8 TERMINALS 15
6 144665 WIRE LOOM - 1/2" GREEN 9'
10 130568 TWISTED CABLE 15'
11 101507-002 CONNECTOR 1
365
025725-001
(Sheet 1 / 2 )
FILLER PUMP OPTION
366
025725-001
(Sheet 2 / 2)
FILLER PUMP OPTION

1 J24144 SOLENOID 1
2 142673 MOUNT PLATE - Electric Pump Switch 1
3 100694 ENCLOSURE 1
4 136196 PUSHBUTTON - Black 1
5 101108 REDUCER - 3/4" to 1/2" 1
6 003205-001 STRAIN RELIEF - WHITE 2
7 100799 STRAIN RELIEF - BLUE 1
8 123772 CABLE - 18/2 20'
9 128966 CABLE - 10/2 20'
11 142533 DECAL - FILLER PUMP 1
367
803070-007
(Sheet 1 / 2 )
SHIFTER OPTION - 3 SPEED
368
803070-007
(Sheet 2 / 2)
SHIFTER OPTION - 3 SPEED

1 391371-1 ELECTRIC SHIFT CONTROL 3-SPEED 1
3 133129 PIN c/w Seal 5
4 012688-001 PLUG 4
5 144665 WIRE LOOM - 1/2" GREEN 10'
6 144663 WIRE LOOM - 5/16 GREEN 20'
8 144542 CONNECTOR - 6 Pin Weatherpack 1
11 391390-8 TERMINALS 8
12 012688-002 LOCK PART 4
369
024983-001
(Sheet 1 / 2 )
WORK LIGHT - LED
370
024983-001
(Sheet 2 / 2)
WORK LIGHT - LED

1 024983-003 SPOT/FLOOD LIGHT 1
3 133129 PIN c/w Seal 2
371
010757-001
(Sheet 1 / 2 )
AIR SYSTEM
372
010757-001
(Sheet 2 / 2)
AIR SYSTEM
1 123631 Y-STRAINER - 1 1/4" (Screen: *202749) 1
2 106085 WATER INLET 1
3 139297 WATER SERVICE VALVE ( Page 374 ) 2
4 105187 FILTER / REGULATOR ( Page 376 ) 1
5 103174 PIPE PLUG - 1" NPT 1
6 105356 GAUGE, 100 psi - Repl. by 032292-002 1
7 PLUMBING KIT REF
8 140193 MOUNTING PLATE 2
9 106153 DECAL - AIR 2
10 106154 DECAL - WATER 2
11 140895 DECAL - WATER / AIR FLUSH 2
12 022572-001 LUBE PUMP - 24VDC ( Page 378 ) 1
14 140698 BALL VALVE - 1 1/4" 1
15 106063 CLOSE NIPPLE 2
16 030480-002 AIR SOLENOID VALVE 1
373
139297
(Sheet 1 / 2 )
WATER SERVICE VALVE
374
139297
(Sheet 2 / 2)
WATER SERVICE VALVE

1 139297-003 SPRING CAP 1
2 139297-004 CAGE 1
3 139297-005 3-POSITION DETENT 1
4 139297-006 BALL 12
5 139297-007 O-RING 1
6 139297-008 PIN 1
7 139297-009 SCREW 4
8 139297-010 SPRING CLIP 1
9 139297-011 LEVER CAP 1
10 139297-012 O-RING 1
11 139297-013 FILTER - WATER SERVICE VALVE 1
12 139297-014 BRACKET 1
13 139297-015 PIN 1
14 139297-016 HANDLE 1
15 139297-017 KNOB 1
16 139297-018 LINK ASSEMBLY 1
17 139297-019 SCREW 4
18 139297-020 SCREW 1
19 139297-021 BODY 1
20 139297-022 PLUNGER 1
21 139297-023 O-RING 2
22 139297-024 BUSHING 1
23 139297-025 O-RING 1
24 139297-026 O-RING 2
25 139297-027 RETAINER 1
26 139297-028 O-RING 2
27 139297-029 BEARING 1
28 139297-030 O-RING 1
29 139297-002 SEAL KIT 1
375
105187
(Sheet 1 / 2 )
FILTER / REGULATOR
376
105187
(Sheet 2 / 2)
FILTER / REGULATOR
1 * 200094 GAUGE 1
2 *! 200607 FILTER ELEMENT KIT - FILTER/REG 1
*! a - SEAL (Body to bowl) 1
*! a - GASKET (Element) 2
*! a - Element (Filter) 1
!) Not sold separately.

a) Item included in kit 200607
377
022572-001
(Sheet 1 / 2 )
LUBE PUMP - 24VDC
378
022572-001
(Sheet 2 / 2)
LUBE PUMP - 24VDC

1 021272-013 LOW-LEVEL CONTROL 1
2 011014-013 BREATHER WITH BAFFLE 1
3 011014-012 FLANGE BAYONET 1
4 022572-100 RESERVOIR LID 1
5 022572-101 RESERVOIR 1
6 012814-007 HOSE 1
7 021272-015 STIRRING PADDLE ASS'Y 1
8 021272-016 WASHER 1
9 012814-010 INNER RING 2
10 012814-011 GROOVED BALL BEARING 1
11 012814-012 O-RING 2
12 012814-013 INTERMEDIATE BOTTOM 1
13 012814-014 SHIM 1
14 012814-015 SNAP RING 2
15 012814-016 PRESSURE RING 1
16 012814-017 ECCENTRIC 1
17 012814-018 SELF-TAPPING SCREW - HEXAGON 3
18 012814-019 WASHER 3
19 012814-020 O-RING 3
20 022572-102 HOUSING KIT 1
21 021272-017 ADJUSTABLE PUMP ELEMENT 1
22 012814-022 SEALING RING 1
23 012814-037 CLOSURE PLUG 2
24 022572-103 BAYONET PLUG 1
25 022572-104 BAYONET CABLE 1
26 022572-105 SEALING PLUG 1
26-1 011987-113 O-RING 1
26-2 022572-106 SEALING PLUG 1
27 012814-033 ROTARY SHAFT SEAL 1
28 012814-032 WOODRUFF KEY 1
29 022572-107 CLOSURE PLUG 1
29-1 022572-108 O-RING 1
30 204867 MOTOR KIT - 24V 1
30-1 012814-031 MOTOR CONNECTION - NEW 1
31 022572-109 HOUSING COVER ASS'Y 1
31-1 022572-110 SCREW 10
31-2 012814-029 DRAIN HOSE 1
379
012353-031
(Sheet 1 / 2 )
WATER SYSTEM
380
012353-031
(Sheet 2 / 2)
WATER SYSTEM
1 123631 Y-STRAINER - 1 1/4" (Screen: *202749) 1
2 108250 PRESSURE REDUCING VALVE 1
3 106085 WATER INLET 1
4 105379 SAFETY VALVE - 175 psi 1
5 006830-001 WATER PUMP ( Page 382 ) 1
6 105331 HEAT EXCHANGER - Hydraulic ( Page 304 ) REF
7 105357 GAUGE, 0-500 psi - Repl. by 032293-002 1
8 106063 CLOSE NIPPLE 2
9 103174 PIPE PLUG - 1" NPT 1
10 112313 DRAIN COCK 2
11 PLUMBING KIT REF
12 021883-001 ELECTRICAL KIT ( Page 386 ) 1
13 140698 BALL VALVE - 1 1/4" 1
381
006830-001
(Sheet 1 / 4 )
WATER PUMP
382
006830-001
(Sheet 2 / 4)
WATER PUMP
2 006830-012 MOTOR STOOL 1
4-A 006830-013 CHAMBER 2
5-A 006830-014 CHAMBER BOTTOM 1
6 006830-015 BASE 1
7 006830-016 COUPLING GUARD 2
7-A 006830-017 SCREW 4
9 006830-018 ALLEN SCREW 4
10 200461 SHAFT RETAINER PIN 1
10-A 200459 COUPLING HALF 2
12 006830-019 OVAL FLANGE 1
18 006623-006 AIR VENT SCREW 1
23 006830-020 PLUG 1
25 006830-021 DRAIN/PRIMING PLUG 1
26 006830-022 STAYBOLT 4
28 006830-023 MOTOR BOLT 4
35 006830-024 HHCS FOR FLANGE 4
36 006830-025 STAYBOLT NUT 4
37 b 006623-009 O-RING 2
38 b 006830-026 DRAIN PLUG O-RING 1
39 b 006830-027 GASKET FOR FLANGE 2
45 b 006830-028 NECK RING 13
47-A b 006830-029 BEARING RING/SPACER 2
49 006830-030 IMPELLER 13
50-A 006830-031 TOP GUIDE VANE 1
51 006830-032 COMPLETE SHAFT 1
55 006830-033 OUTER SLEEVE 1
60 006830-034 STACK COMPRESSION SPRING 1
64-A a 006830-035 SPACING PIPE 2
64-C a 006830-036 SPLINED CLAMP 1
65 a 006830-037 NECK RING RETAINER 13
66 a 006830-038 LOCKWASHER SET FOR SHAFT 1
66-A 006830-039 WASHER FOR STAYBOLT 4
67 a 006830-040 LOCK NUT FOR SHAFT 1
69 006830-041 SPACING PIPE 1
77-A 006623-011 PUMP HEAD COVER 1
a) Included in Wear Parts Kit # 006830-010

b) Included in Gasket Kit # 006830-011
383
006830-001
(Sheet 3 / 4 )
WATER PUMP
384
006830-001
(Sheet 4 / 4)
WATER PUMP
100 b 006830-042 PRIMING/VENT PLUG O-RING 2
102 006830-043 O-RING FOR SHAFT SEAL 1
103 006830-044 STATIONARY SEAL RING FOR SHAFT SEAL 1
104 c 006830-045 ROTATING SEAL RING FOR SHAFT SEAL 1
105-B c 006830-046 SHAFT SEAL - NOT AVAILABLE 1
107 006830-047 O-RING FOR SHAFT SEAL 1
108 203873 ELECTRIC MOTOR REF
b) Included in Gasket Kit # 006830-011

c) Included in Shaft Seal kit # 008452-001
385
021883-001
(Sheet 1 / 2 )
ELECTRICAL KIT
386
021883-001
(Sheet 2 / 2)
ELECTRICAL KIT
1 101105 STRAIN RELIEF - 1/2" BROWN 2
2 101108 REDUCER - 3/4" to 1/2" 1
5 020574-010 CONTACTOR - 10HP@460/575,24VDC 1
7 020574-015 OVERLOAD - 2.4-4A 1
8 138427 FUSE - 10 AMP 3
11 009444-001 PUSH / PULL BUTTON - GR 24VDC 1
387
025687-001
(Sheet 1 / 2 )
DECAL KIT
388
025687-001
(Sheet 2 / 2)
DECAL KIT
1 026755-001 DECAL KIT - VRII,ENG ( Page 390 ) 1
2 003042-001 DECAL - MIDSHIP CRUSH ZONE - ADHESIVE 2
3 009981-001 DECAL - MTI NAME PLATE 2
4 012692-001 DECAL - VEINRUNNER II, STEEL 2
5 105129 DECAL - SERIAL No. I.D. 1
389
026755-001
(Sheet 1 / 4 )
DECAL KIT - VRII,ENG
390
026755-001
(Sheet 2 / 4)

1 012443-001 DECAL - TRANSMISSION FLUID 1
2 135816 DECAL - ACCUM. PRECHARGE 1
3 110047 DECAL - ENGINE OIL PRESSURE 1
4 120870 DECAL - MASTER SWITCH 1
5 012444-001 DECAL - FRONT GREASE POINTS 1
6 012445-001 DECAL - REAR GREASE POINTS 1
7 391341-53 DECAL - ARTICULATION PINCH POINT 2
8 137292 DECAL - STEER CYLINDER RELIEF 1
9 137291 DECAL - TRANSMISSION PRESS. - 60 PSI 1
10 137290 DECAL - TRANSMISSION PRESS. - 100 PSI 1
11 144684 DECAL - ENGINE HOURS 1
12 145840 DECAL - DIESEL FUEL 1
13 145757 DECAL - HYDRAULIC OIL 1
14 141383 DECAL - ENGINE OIL 1
15 137293 DECAL - PUMP PRESSURE 1
16 137316 DECAL - PUMP RELIEF 1
17 012897-001 DECAL - BRAKE PRESS. (1600/1300) 1
18 130005 DECAL - EMERGENCY BRAKE 1
19 130006 DECAL - REAR SERVICE BRAKE 1
20 130007 DECAL - FRONT SERVICE BRAKE 1
21 135976 DECAL - 24 VOLT 1
22 111164 DECAL - ENGINE OIL DRAIN 1
23 132408 DECAL - MASTER SWTICH 1
24 133160 DECAL - WARNING (PINCH POINT) 2
25 391341-54 DECAL - TRANSMISSION OIL LEVEL 1
26 145099 DECAL - ACCUMULATOR DRAIN 1
27 143523 DECAL - BRAKE TEST ( Page 394 ) 1
28 017100-001 DECAL - AXLE OIL - D45 2
29 026757-001 DECAL - FUEL LEVEL GAUGE 1
33 106353 DECAL - TRAM WARNING 1
34 141362 DECAL - FAST FEED ADVANCE 1
35 012442-001 DECAL - FRONT JACKS 1
36 130447 DECAL - AIR INLET 1
37 127497 DECAL - WATER INLET 1
38 128300 DECAL - ROCK DRILL OIL ONLY 1
39 137285 DECAL - BOOM CONTROL 1
40 144897 DECAL - FEED PRESSURE 1
41 024920-001 DECAL - DRILL CONTROLS, 2 PUMP 1
42 131811 DECAL - WATER PUMP 1
43 012696-001 DECAL - HYDRAULIC OIL 1
44 134285 DECAL - AIR PRESS. SWITCH 1
391
026755-001
(Sheet 3 / 4 )
392
026755-001
(Sheet 4 / 4)

45 134286 DECAL - WATER PRESS. SWITCH 1
46 014426-001 DECAL - CAUTION ROTATING BOOM 1
47 016885-001 DECAL - CABLE/ CANOPY/ JACKS 1
48 024930-001 DECAL - AIR/WATER/HP/RET 1
49 026732-001 DECAL - P1,P2, A1, VRII 1
393
143523
(Sheet 1 / 2 )
DECAL - BRAKE TEST
394
143523
(Sheet 2 / 2)
DECAL - BRAKE TEST
395
010753-016
(Sheet 1 / 2 )
OPTIONS GROUP
396
010753-016
(Sheet 2 / 2)
OPTIONS GROUP
1 013209-001 FIRE SUPPRESSION SYSTEM ( Page 398 ) 1
2 012602-001 REMOTE GREASE CIRCUIT ( Page 404 ) 1
3 803070-007 SHIFTER OPTION - 3 SPEED ( Page 368 ) 1
4 004032-014 ALARM/STROBE LT KIT ( Page 406 ) 1
5 129579 TRAILING CABLE 250'
6 391031-68 FIRE EXTINGUISHER - 20# 1
7 391031-69 BRACKET - 20# Extinguisher 1
8 129570 WHEEL CHOCKS 2
9 007338-002 WHEEL CHOCK BRACKET ( Page 408 ) 2
10 024983-203 FLOOD LIGHT - LED Oval 2
13 010848-004 DRAWING TUBE OPTIONS ( Page 410 ) 1
14 031284-001 AUTO DRILL CABLE 3
15 036376-001 MUFFLER GUARD 1
16 036377-001 COVER - LWR CONSOLE 1
17 036388-001 MOUNT - WHEEL CHOCK 1
18 036358-001 MOUNT - AIR FILTER 1
397
013209-001
(Sheet 1 / 4 )
FIRE SUPPRESSION SYSTEM
398
013209-001
(Sheet 2 / 4)

1 004500-001 FIRE SUPPRESSION SYSTEM - 4 Nozzle ( Page 402 ) 1
2 138895 ELBOW - 1/2" (Galvanized) 5
3 800974 -002 PIPE TEE 1
4 PLUMBING - F.S.S. REF
399
013209-001
(Sheet 3 / 4 )
400
013209-001
(Sheet 4 / 4)

1 004500-001 FIRE SUPPRESSION SYSTEM - 4 Nozzle ( Page 402 ) 1
2 138895 ELBOW - 1/2" (Galvanized) 5
3 800974 -002 PIPE TEE 1
4 PLUMBING - F.S.S. REF
401
004500-001
(Sheet 1 / 2 )
FIRE SUPPRESSION SYSTEM - 4 Nozzle
402
004500-001
(Sheet 2 / 2)
FIRE SUPPRESSION SYSTEM - 4 Nozzle

1 101491 TANK MOUNTING BRACKET 1
2 004501-002 TANK ASS'Y 1
3 200198 BRACKET ASS'Y 1
4 200197 PNEUMATIC ACTUATOR ASS'Y 1
5 004501-004 CARTRIDGE ASS'Y - LT 30 1
6 101492 ACTUATOR BRACKET - S Style 2
7 391031-34 MANUAL ACTUATOR 2
8 004501-018 CARTRIDGE - LT10R 2
9 140696 CHECK VALVE - 1/4 2
10 004501-019 OPERATING LABELS 2
11 391031-20 LEAD WIRE SEAL 2
12 201717 NOZZLE LOCKWASHER 8
13 391031-38 NOZZLE 4
14 200734 NOZZLE BRACKET 4
15 391031-39 BLOW OFF CAP 4
16 391031-43 PRESSURE RELIEF VALVE 1
17 002646-002 PRESSURE SWITCH 1
18 002646-001 PRESSURE SWITCH KIT REF
403
012602-001
(Sheet 1 / 2 )
REMOTE GREASE CIRCUIT
404
012602-001
(Sheet 2 / 2)
REMOTE GREASE CIRCUIT

1 PLUMBING KIT REF
5 136640 GREASE ADAPTER - 1/4" to 1/8" PIPE 1
405
004032-014
(Sheet 1 / 2 )
ALARM/STROBE LT KIT
406
004032-014
(Sheet 2 / 2)
ALARM/STROBE LT KIT
1 001979-003 RELAY - 24V c/w Connector & Socket 1
2 113821 BACK-UP ALARM 1
3 391296-5 STROBE LIGHT 1
6 133129 PIN c/w Seal 2
8 144663 WIRE LOOM - 5/16 GREEN 8'
10 3B2226 COUPLING 1
12 PLUMBING LIST 1
407
007338-002
(Sheet 1 / 2 )
WHEEL CHOCK BRACKET
408
007338-002
(Sheet 2 / 2)
WHEEL CHOCK BRACKET

1 102399 PLATE - 1/4", 50W 0.68
2 101278 CHAIN - 11 LINKS 1.7 '
3 110233 SNAP - 3/4" 1
4 101278 CHAIN - 11 LINKS .1'
5 023509-001 QUICK CONNECTING LINK - 1/4" 2
409
010848-004
(Sheet 1 / 2 )
DRAWING TUBE OPTIONS
410
010848-004
(Sheet 2 / 2)
DRAWING TUBE OPTIONS

1 010851-002 HOLDER 1
2 011402-001 CAP - 3" 1
3 011403-001 ADAPTER 1
4 011404-001 PLUG - 3" 1
5 391081-148 CLAMP - 3 1/2" 2
6 106769 LOCK NUT 2
7 128617 FLAT WASHER - 0.250 GR9 5
8 Q95079679 HHCS 1
9 101279 STEEL CHAIN 1
10 800433 HHCS 0.250-20NC X 1.000 GR8 1
411
025676-001
(Sheet 1 / 2 )
BOOM ADAPTER
412
025676-001
(Sheet 2 / 2)
BOOM ADAPTER
1 024296-001 FEED ANCHOR 1
2 025663-001 ADAPTOR PLATE 3
3 025668-001 SPACER - FEED ANCHOR 1
4 025671-001 SUPPORT - MTFN ADAPTER 2
5 024166-001 WEAR BLOCK 6
6 109491 HHCS - 1/2-13 UNC x 2" LG GR8 4
7 105981 BOLT - 1/2-13 NC X 2.5" GR8 12
8 113653 HHCS - 0.500-13NC X 3.5 GR8 12
9 104199 NUT HEX - 0.500-13NC GR8 12
11 105992 FLAT WASHER - 0.500 A325 52
12 Q95785572 DOWEL PIN 2
413
10-4102
NUMERICAL INDEX
Part Number Page Part Number Page Part Number Page
001096-001 215 004350-002 105,107 006476-035 273

001138-001 347 004381-007 159 006476-036 273
001184-012 43 004479-001 115,117 006476-037 273
001199-002 265 004500-001 399,401,403 006476-038 273
001218-004 347 004501-002 403 006476-039 273
001218-007 347 004501-004 403 006476-040 273
001307-002 235,237 004501-018 403 006476-041 273
001403-001 347 004501-019 403 006476-042 273
001403-002 347 004502-018 137 006476-043 273
001405-201 363 004502-022 115 006476-044 273
001405-301 361 004502-023 115 006476-045 273
001406-001 363 004502-026 115,117,153 006476-046 273
001409-101 359 004502-027 115 006476-047 273
001409-103 357 004502-029 115 006476-048 273
001410-001 359 004502-033 117 006476-049 273
001411-001 347 004502-048 117 006476-050 273
001416-001 343,345 004502-069 129,131,143,147 006476-051 273
001422-001 231 149,151 006476-052 273
001506-001 343,345 004502-070 133 006476-053 273
001517-101 355 004502-084 129,133,147,149 006476-054 273
001517-103 355 151 006476-055 273
001520-001 355 004502-095 129,147,149,151 006476-056 273
001801-010 115,161 004502-122 133 006476-057 273
001801-019 141 004502-139 121 006476-058 273
001801-083 121 004502-156 111 006476-059 273
001979-003 407 004502-157 115 006476-060 273
002163-001 333,339 004534-001 123 006476-061 273
002163-002 339 004789-001 355 006476-064 267,271
002163-003 339 004802-001 95 006476-065 267
002163-004 339 004847-001 53 006476-066 267,273
002299-001 355 005095-001 117 006476-067 267,269
002317-001 155 005096-001 115 006476-068 269
002389-001 133 005213-010 111 006476-069 269
002411-001 137 005331-001 141 006531-001 215
002422-001 129,147,149,151 005332-001 145 006623-006 383
002438-001 189 005337-001 259 006623-009 383
002530-001 117 005382-043 117,153 006623-011 383
002535-001 137 005499-013 111 006740-009 171,173
002548-001 199 005571-001 97 006821-001 203
002642-001 157 006006-001 55,57 006822-001 203
002646-001 403 006149-001 105,107 006830-001 381,383,385
002646-002 403 006476-002 253,255,267 006830-012 383
002694-012 171,173 006476-004 269 006830-013 383
002694-016 171,173 006476-005 269 006830-014 383
002705-001 129,131,143,147 006476-007 269 006830-015 383
002740-001 129,131,133,143 006476-008 271 006830-016 383
147,149,151 006476-009 271 006830-017 383
002752-001 137 006476-010 271 006830-018 383
002753-001 137 006476-011 271 006830-019 383
002756-001 135,137 006476-012 271 006830-020 383
002803-001 49 006476-013 271 006830-021 383
002836-001 137 006476-014 271 006830-022 383
002863-001 125 006476-015 271 006830-023 383
002864-001 125 006476-016 271 006830-024 383
002913-001 137 006476-017 271 006830-025 383
003042-001 389 006476-018 271 006830-026 383
003097-003 407 006476-019 271 006830-027 383
003156-005 337 006476-020 271 006830-028 383
003156-007 245,317 006476-021 271 006830-029 383
003156-010 245 006476-022 271 006830-030 383
003156-012 245,317,337 006476-023 271 006830-031 383
003205-001 367 006476-024 271 006830-032 383
003372-020 115 006476-025 271 006830-033 383
003372-023 117 006476-026 271 006830-034 383
003448-001 189 006476-027 271 006830-035 383
003535-007 75,101 006476-028 271 006830-036 383
003831-001 121 006476-029 271 006830-037 383
004012-030 117,135 006476-030 273 006830-038 383
004012-075 135 006476-031 273 006830-039 383
004032-014 397,407 006476-032 273 006830-040 383
004128-001 313,329 006476-033 273 006830-041 383
004128-010 329 006476-034 273 006830-042 383
NI 1
10-4102
NUMERICAL INDEX
006830-043 385 008997-013 41,43 010614-003 195,209

006830-044 385 008997-014 43 010614-004 199
006830-045 385 008998-001 5,41 010614-005 199
006830-046 385 008998-010 41 010614-006 199
006830-047 385 008998-011 41 010614-007 199
006845-001 203 008999-001 5,29 010614-008 199
007076-001 117 008999-011 29 010614-009 199
007338-002 397,409 008999-012 29 010614-010 199
007371-001 163,167 008999-013 29 010614-011 199
008247-001 235 008999-014 29 010614-012 199
008364-001 105,107 009000-001 5,49 010614-013 199
008428-001 325,327 009000-010 49 010614-014 199
008437-001 55,57 009000-011 49 010614-015 199
008442-001 55,57 009000-012 49 010614-016 199
008493-025 273 009000-013 49 010614-017 199
008493-027 273 009001-001 25,27 010614-018 199
008493-028 273 009001-010 27 010614-019 199
008493-029 273 009001-011 27 010614-020 199
008493-030 273 009002-001 11,13 010614-021 201
008493-042 269 009002-010 13 010614-022 201
008493-064 271 009002-011 13 010614-023 201
008493-069 271 009002-012 13 010614-024 201
008493-071 271 009010-001 15 010614-025 201
008493-073 269 009011-001 15 010614-026 201
008493-074 269 009015-002 5,7 010614-027 201
008493-090 271 009016-002 5,9 010614-028 201
008493-092 271 009017-001 5,11 010614-029 201
008493-095 271 009018-001 5,15 010614-030 201
008493-096 271 009019-002 5,21 010614-031 201
008563-004 123 009020-002 5,23 010614-032 201
008563-005 123 009021-001 5,25 010614-033 201
008563-006 123 009022-004 5,31 010614-034 201
008563-010 129 009023-005 5,37 010614-035 201
008563-011 129,151 009024-003 5,39 010614-036 201
008563-016 153 009027-001 15 010614-037 201
008773-001 135 009029-001 21 010614-038 201
008913-002 9 009032-001 25 010614-039 201
008914-002 9 009040-001 37 010614-040 201
008915-001 9 009052-002 3,5 010614-041 201
008918-001 7,9 009063-001 181,183 010614-042 201
008920-001 9,15 009118-001 247,249 010614-043 201
008921-001 9,15 009245-001 75,95 010614-044 201
008923-001 7 009295-001 105,107,163,167 010614-045 201
008924-001 7 009373-001 187 010614-046 201
008932-001 21 009444-001 347,387 010614-047 201
008951-001 21,23,37,39 009491-004 365 010614-048 201
008952-001 21,23,37,39 009582-001 105,107,163,167 010614-049 201
008955-001 21 009590-001 163,167 010614-050 201
008956-001 37 009590-012 187 010614-051 201
008957-001 37 009590-013 187 010614-052 201
008961-001 31 009649-002 177 010614-053 201
008962-001 31 009719-001 45 010614-054 201
008963-002 31 009731-001 5,45 010614-055 201
008964-001 31 009915-046 139 010614-056 201
008966-001 23 009981-001 389 010614-057 201
008967-001 11,23 010499-002 245,317 010614-058 201
008968-002 23 010499-003 245,317 010614-059 201
008969-002 23 010499-004 245,317,337 010614-060 201
008970-002 31 010499-005 245,337 010614-061 201
008972-001 25 010499-006 245,317,337 010614-062 201
008973-001 25 010500-001 333,337 010614-063 203
008975-001 7 010500-002 245,317,337 010614-064 203
008976-001 7 010500-004 337 010614-065 203
008977-001 11 010500-100 337 010614-066 203
008978-001 11 010500-101 337 010614-067 203
008979-001 11 010501-001 313,317 010614-068 203
008980-001 25 010501-002 317 010614-069 203
008981-001 25 010501-003 317 010614-070 203
008984-001 15 010502-001 241,245,275 010614-071 203
008997-001 5,43 010541-001 285 010614-072 203
008997-011 43 010614-001 193,195,211,213 010614-073 203
008997-012 43 010614-002 195,197 010614-074 203
NI 2
10-4102
NUMERICAL INDEX
010614-075 203 010799-001 193 012696-001 391

010614-076 203 010805-001 223,225 012768-016 271
010614-077 203 010806-001 223,225 012768-019 271
010614-078 203 010811-001 223,225,235 012814-007 379
010614-079 203 010848-004 397,411 012814-010 379
010614-080 203 010851-002 411 012814-011 379
010614-081 203 010898-001 223,225 012814-012 379
010614-082 203 010900-001 211,213 012814-013 379
010614-083 203 010954-012 269 012814-014 379
010614-084 203 010954-019 271 012814-015 379
010614-085 203 010954-021 271 012814-016 379
010614-086 203 010954-030 273 012814-017 379
010614-087 203 010954-039 269 012814-018 379
010614-088 203 010954-057 273 012814-019 379
010614-089 203 010976-001 285 012814-020 379
010614-090 203 011014-012 379 012814-022 379
010614-091 203 011014-013 379 012814-029 379
010614-092 203 011153-001 235 012814-031 379
010614-095 205 011154-001 247,251 012814-032 379
010614-096 205 011154-010 251 012814-033 379
010614-097 205 011154-011 251 012814-037 379
010614-098 205 011154-012 251 012826-001 333
010614-099 205 011154-013 251 012827-001 333
010614-100 205,207 011154-014 251 012897-001 391
010614-101 205,207 011154-015 251 012905-001 333
010614-102 205 011154-016 251 013125-025 13
010614-103 205 011155-001 247 013195-061 3,313
010614-104 205 011246-001 245,317 013208-002 103,163,165,167
010614-105 205 011402-001 411 169
010614-107 207 011403-001 411 013209-001 397,399,401
010614-108 207 011404-001 411 013333-001 3,51
010614-109 207 011457-001 253,255 013334-001 51,73
010614-110 207 011462-004 253,255,257 013444-001 185
010614-111 207 011463-008 253,255,261,263 013498-001 253,255
010614-112 207 011466-002 253,255,279,281 013499-001 253,255
010614-113 207 011475-028 253,255,265 013500-001 253,255
010614-114 207 011478-002 283 013502-001 279,281
010614-115 207 011490-010 171,173 013503-001 279,281
010614-116 207 011529-001 193 013630-010 13
010614-117 207 011564-001 215 013630-013 13
010614-118 207 011565-001 215 013630-015 13
010614-119 207 011566-001 215 013632-013 27
010651-001 223,225 011668-001 181,183 013672-001 9
010671-001 235 011939-001 195 013687-031 3,333
010684-001 235 011945-001 193 013696-001 23
010685-001 235 011962-001 235 013719-001 31
010726-002 215,217 011987-113 379 013741-001 15
010726-008 215,219 012020-001 105,107 013743-001 17
010726-009 215,221 012034-001 163,167 013744-001 17,19
010726-101 221 012108-031 223,225,241 013746-001 15,17
010726-102 221 012151-001 253,255,275 013747-001 17
010726-104 221 012152-001 253,255,277 013749-001 21
010726-105 219,221 012153-011 235,239 013784-001 31
010726-106 219 012205-001 15 013942-001 223,225
010726-109 219 012206-001 15 013988-001 223,225
010726-110 219 012241-002 363 013998-001 223,225
010741-009 3,103 012241-003 363 013999-001 223,225
010743-015 3,223,225 012241-004 363 014000-001 223,225
010744-001 3,247 012241-005 363 014048-001 279,281
010745-016 3,253,255 012274-001 11 014111-001 193,211,213
010747-003 3,283 012353-031 3,381 014340-001 17
010753-016 3,397 012442-001 391 014346-010 13,41
010757-001 3,373 012443-001 391 014346-011 27,41,49
010759-005 103,105,107 012444-001 391 014346-012 27,41
010760-008 103,187 012445-001 391 014346-015 27,41
010761-004 103,181,183 012513-001 39 014385-101 353
010763-001 103,193 012534-001 15 014403-001 223,225
010764-001 103,211,213 012602-001 397,405 014419-048 3
010782-079 161 012678-001 163,167 014419-049 3
010782-080 161 012688-001 369 014426-001 393
010782-081 161 012688-002 369 014542-001 23
010782-082 161 012692-001 389 014543-015 109
NI 3
10-4102
NUMERICAL INDEX
014548-001 39 018324-001 7 020129-014 35

014552-001 37 018345-001 109 020129-015 35
014553-001 37 018499-001 111 020129-016 35
014555-001 39 018627-001 285,309 020366-001 31
014729-001 15 018627-010 309 020376-012 287
014971-001 163,167,171,173 018627-011 309 020376-107 287
014971-010 171,173 018627-012 309 020376-126 287
014971-011 171,173 018627-013 309 020515-001 51
014971-012 171,173 018627-014 309 020527-001 37
014971-013 171,173 018627-015 309 020574-001 353
014971-014 171,173 018627-016 309 020574-010 387
014971-015 171,173 018627-017 309 020574-015 387
014979-013 109 018627-018 309 020611-001 163,167,179
014979-015 109 018627-019 309 020636-001 105,107
015031-001 77 018627-020 309 020640-001 105,107
015075-001 15,19 018627-021 309 020646-001 105,107
015076-001 19 018627-022 309 020660-001 163,167
015077-001 217 018627-023 309 020661-001 163,167
015078-001 217 019222-001 313,315 020662-001 165,169
015079-001 217 019222-010 315 020663-001 163,167
015098-001 359 019222-011 315 020666-001 163,167
015098-002 359 019222-012 315 020746-001 121
015106-001 347 019222-013 315 020777-016 109
015106-002 347 019222-014 315 021272-013 379
015246-001 31 019222-015 315 021272-015 379
015262-001 355 019222-016 315 021272-016 379
015417-001 163,167,177 019222-017 315 021272-017 379
015494-001 31 019222-018 315 021437-012 27
015632-001 161 019222-019 315 021826-005 3,75
015919-001 355 019222-020 315 021883-001 381,387
015924-001 355 019222-021 315 022093-001 39
015940-001 187 019222-022 315 022572-001 373,379
015982-001 163,167 019222-023 315 022572-100 379
015985-001 163,167 019222-024 315 022572-101 379
015996-001 187 019222-025 315 022572-102 379
016011-002 181,183,185 019316-001 103,191 022572-103 379
016033-001 181,183 019317-001 103,215 022572-104 379
016541-001 191 019318-001 253,255 022572-105 379
016542-001 191 019378-001 105,107 022572-106 379
016728-001 191 019436-012 109 022572-107 379
016774-001 187 019436-016 109 022572-108 379
016777-001 187 019436-017 109 022572-109 379
016885-001 393 019514-001 163,167 022572-110 379
016915-001 253,255 019517-001 163,167 023350-030 301
017055-001 343,345 019631-011 177 023509-001 409
017055-002 365 019673-001 261,263 023951-001 325
017055-003 365 019747-001 163,167 024127-001 279,281
017100-001 391 019748-001 163,167 024147-100 287
017437-001 163,167,171,173 019751-001 163,167 024147-101 287,289
175 019756-001 163,167 024147-102 287
017437-002 175 019799-001 163,167 024147-104 287
017437-003 175 019827-001 187 024147-106 287
017437-004 175 019870-001 181,183 024147-109 287
017437-005 175 019883-001 181,183 024147-114 289
017748-001 223,225 019884-001 181,183 024147-115 289
017831-004 55,57 019885-001 181,183 024157-009 53
017970-001 343,345 019886-001 181,183 024158-009 51,53
017972-001 343,345 019887-001 181,183 024159-010 53
017992-003 31,33 019895-001 181,183 024163-001 51,59
017992-014 33 019905-001 185 024164-001 59
017992-027 33 019915-001 105,107,111 024166-001 55,57,59,63,413
017992-031 33 019998-001 111,161 024169-001 51,55,57
017992-035 33 019998-014 161 024170-001 55,57
017992-036 33 020007-001 31 024176-001 65
017992-037 33 020017-001 37 024177-001 51,65
017992-038 33 020041-050 309 024187-001 65
017992-041 33 020049-001 21 024189-001 349
017992-042 33 020129-001 31,35 024194-001 51,61
017992-044 33 020129-010 35 024196-001 61
017992-047 33 020129-011 35 024198-001 55,57
018091-001 163,167 020129-012 35 024200-001 55,57
018125-001 191 020129-013 35 024204-001 61
NI 4
10-4102
NUMERICAL INDEX
024205-001 61 025676-001 3,413 100207 257,279,281

024206-001 61 025683-001 223,225 100290 191
024222-001 55,57 025687-001 3,389 100291 105,107
024257-007 51 025694-201 343,345,365 100297 191
024258-007 51 025723-001 351 100338 341
024259-001 51,63 025725-001 343,345,367 10050 81,85,97
024260-001 63 026289-001 361 100513 285,313
024261-001 63 026289-002 361 100514 285,313
024262-001 63 026289-003 361 100520 351
024271-001 63 026289-004 361 100561 343,345
024272-001 63 026289-005 361 100569 351
024273-007 51,67 026289-006 361 100578 351
024274-001 67,69 026289-009 361 100583 347,351
024274-100 69 026289-010 361 100661 223,225,253,255
024274-101 69 026732-001 393 100665 261,263,265
024274-102 69 026755-001 389,391,393 100694 361,367
024274-103 69 026757-001 391 100799 367
024274-104 69 027065-106 109 100799-002 347
024274-105 69 027065-108 109 100819 247
024274-106 69 027065-118 109 100867 111,117,135,155
024274-107 69 027065-119 109 100954 105,107
024274-108 69 027130-001 285 101047 191
024284-001 63 027598-001 63 101052 223,225
024285-005 67 027604-003 55,57 101075 355
024288-001 51 027637-002 51 101105 355,387
024296-001 413 027653-001 51 101108 361,367,387
024487-001 65 027657-001 51 101140 11,15,25
024488-001 59 027671-001 59 101144 355
024514-001 63,67 027868-001 285,287 101145 351
024846-001 265 027868-100 287 101146 351
024861-001 265 027868-101 287 101147 351
024878-001 261,263 027868-102 287 101148 351
024879-001 261,263 027868-103 287 101149 355
024880-001 261,263 028623-001 279,281 101212 191
024881-001 261,263 028623-002 279,281 101227 7
024906-001 265 028671-001 105,107,109 101278 409
024920-001 391 028671-100 109 101279 411
024930-001 393 028671-101 109 101342 351
024935-001 223,225 028671-102 109 101491 403
024938-001 223,225 028671-103 109 101492 403
024939-001 223,225 028671-104 109 101507 355,361
024940-001 223,225 028671-105 109 101507-002 365
024941-001 223,225 028933-001 279,281 101572 333,335
024946-001 285,299 030480-002 373 101683 249
024946-100 299 031284-001 397 101837 279,281
024946-101 299 031337-002 285 101849 191
024947-001 285,301 031337-003 285 101988 179
024953-001 223,225 031337-004 285 102017 343,345
024983-001 343,345,371,397 031361-112 161 102055 51
024983-003 371 032041-100 337 102109 351
024983-203 397 032041-101 337 102199 19
025202-051 3,285 032041-102 337 102317 55,57,105,107,265
025204-001 285,311 032412-001 285,307 102399 409
025204-010 311 032412-100 307 102400 179
025204-011 311 032412-101 307 102422 257
025236-100 301 034427-001 191 102456 279,281
025289-001 257 036358-001 397 102699 211,213
025371-100 287 036376-001 397 102701 243
025393-001 343,345 036377-001 397 102745 105,107
025393-002 349 036388-001 397 103134 31
025518-201 3,343,345 100052 333 103174 373,381
025519-201 343,345,347,349 100070 247 103274 355
025520-001 347 100117 7,9,11,15,23,25 103285 355
025521-201 343,345,355 31,37,55,57,63 103483 275,285,313
025522-201 355,361 405 103570 51
025523-201 355,363 100126 9 103572 7,17,63,163,167
025524-201 355,357 100131 265 257,279,281
025525-201 355,359 100140 105,107 103573 55,57,163,167,215
025529-001 343,345,351,353 100141 181,183 257,265,279,281
025663-001 413 100157 21,31,51,105,107 103575 51,215
025668-001 413 163,167,187,249 103583 37
025671-001 413 261,263,279,281 103585 7
NI 5
10-4102
NUMERICAL INDEX
103591 37 109491 413 125232 257

103592 105,107,163,167 109705 341,343,345 125578 163,167
103792 187 109710 351 125579 105,107
103895 355 109907 349,351 126035 31
103925 279,281 110012 253,255 126163 343,345
103943 257 110047 391 126212 313,323
103962 261,263 110233 409 126212-002 323
104023 257 110331 257 126212-004 323
104081 165,169 110474 215 126378 61
10-4102 3 110482 257 126379 61
104189 179 111084 313,331,333 126380 61
104199 31,163,167,179 111164 391 126381 61
215,413 111347 53 127028 191
104381 17 111461 279,281 127154 279,281
104388 285,303,313 112079 351 12717 79,97
104466 249 112098 351 127497 391
104727 303 112313 381 127940 351
104821 11,211,213 112334 163,167 127989 351
104846 55,57 112558 211,213 128004 353
105022-002 355 112566 73 128233 351
105129 389 112763 343,345 128300 391
105187 373,377 113236 31 128617 51,411
105331 285,305,381 113547 279,281 128966 367
105332 285 113653 55,57,413 129468 313,319
105333 241,243,333 113821 407 129570 397
105334 285 114146 191 129579 355,397
105356 285,373 114489 259 129814 257
105357 381 114557 105,107,163,167 129945 247
105369 343,345,387 114559 37,51 129962 247
105379 381 114570 105,107 129963 247
105462 31 114915 285 129967 247
105574 285 115059 155 130005 391
105579 223,225,253,255 115792 55,57 130006 391
105629 253,255 115935 181,183,261,263 130007 391
105778 323 115937 39,55,57,59,61 130239 313
105787 37 63,65,67,413 130447 391
105981 39,67,413 115938 105,107,181,183 130568 363,365
105992 7,17,31,39,51,55 185,187,261,263 131017 163,167
57,59,61,63,65 116069 285,333 131269 343,345
163,167,179,211 116069-002 333 131270 343,345
213,215,257,265 116069-003 333 131811 391
279,281,413 116508 347 132175 351,387
105993 353 116509-002 347 132176 351
106063 373,381 116510 347 132322 347,351
106085 373,381 116557 351 132324 347
106153 373 116721 105,107 132408 391
106154 373 117106 253,255 132822 347
106334 343,345 117130 253,255 133128 361,363
106353 391 117215 257,259 133129 361,363,369,371
106394 351 117370 187 407
106395 351 117787 105,107 133130 361,363,369
106473 21,31,51,105,107 118587-002 343,345 133131 357,359,361,363
163,167,181,183 118674 51 369,407
185,187,215,261 119117 351 133160 391
263,265,279,281 119381 253,255 133389 193,211,213
106493 351 119592 187 133483 187
106769 411 119954 355 133493 191
107257 223,225 120676 343,345 134044 17
107548 351 120683 253,255 134179-003 355
107888 63,163,167 120851 65 134179-004 355
108110 355 120870 391 134285 391
108111 343,345 120969 51 134286 391
108112 355 121060 333 134482 15
108193 53 121248 257 134499 351
108250 381 121603 105,107 134591 223,225,227
108407 51 123631 373,381 134669 249
109208 165,169 123772 355,367 134716 211,213
109367 367 123874 191 134718 211,213
109466 343,345,357 124086 347,351 134734 347
109466-003 357 124697 187 135035 351
109467-002 355 124701 347 135036 351
109491 179,211,213,215 124811 37 135543-003 351
NI 6
10-4102
NUMERICAL INDEX
135799 341 139612-063 231 141552-033 115,117

135816 391 139612-064 231 141552-034 115,117
135824 343,345 139612-065 231 141552-035 115,117
135842 253,255 139612-066 231 141552-037 153
135976 391 139612-067 231 141552-038 153
136137 351 139612-068 231 141552-039 139,141
136191 347,351 139612-069 231 141552-040 139,141
136196 347,367 139612-070 231 141552-041 139,141
136640 405 139612-071 231 141552-042 139,141
136753 223,225,253,255 139612-072 231 141552-043 139,141
136875 9,15,21,23,37,39 139612-073 231 141552-044 139
136876 9,15,21,23,39,63 139612-074 231 141552-045 139
137045 223,225,229,253 139612-075 231 141552-046 139
255 139612-076 231 141552-047 139
137285 391 139612-077 231 141552-048 141
137290 391 139612-078 231 141552-049 141
137291 391 139612-079 231 141552-050 141
137292 391 139612-080 231 141552-051 141
137293 391 139612-081 231 141552-052 141
137316 391 139612-082 231 141552-053 117
137420 351 139612-083 231 141552-054 117
137421 351 139612-084 231 141552-055 117
138073 285,291 139612-085 231 141552-056 117
138116 347 139612-086 231 141552-057 117
138189 163,167 139612-087 231 141552-058 117
138204 341,343,345 139612-088 231 141552-059 117
138369 257 139612-089 231 141552-061 117
138414 313 139846 51,71 141552-062 117
138427 387 140099 313 141552-063 117
138428 351 140104 51 141552-064 117
138542 285 140149 223,225 141552-065 117,135
138895 399,401 140193 373 141552-068 127
139297 373,375 140352 187 141552-069 127
139297-002 375 140696 403 141552-070 127
139297-003 375 140698 373,381 141552-071 127
139297-004 375 140895 373 141552-072 127
139297-005 375 140907-021 3,341 141552-078 147
139297-006 375 140956 283 141552-079 129,131,133,143
139297-007 375 141016 341 147
139297-008 375 141024 359,363 141552-080 129,131,133,143
139297-009 375 141025 359 147,149,151
139297-010 375 141026 347,363,365 141552-081 129,131,133,143
139297-011 375 141027 347,355,363,365 147,149,151
139297-012 375 141029 347 141552-082 147,149
139297-013 375 141030 347,355,363 141552-083 129,131,143,147
139297-014 375 141031 347,363 149,151
139297-015 375 141033 355,363,365 141552-084 129,131,133,143
139297-016 375 141107 407 147,149,151
139297-017 375 141108 357,359,369,407 141552-085 129,131,143,147
139297-018 375 141109 371 141552-086 129,131,133,143
139297-019 375 141110 361 147,149,151
139297-020 375 141362 391 141552-087 129,147,149,151
139297-021 375 141383 391 141552-088 129,147,149,151
139297-022 375 141552 111,113 141552-089 129,147
139297-023 375 141552-003 125 141552-090 129,147
139297-024 375 141552-014 125 141552-091 129,147
139297-025 375 141552-015 125 141552-092 129,147,149,151
139297-026 375 141552-016 125 141552-093 129,131,143,147
139297-027 375 141552-017 125 141552-094 129,147
139297-028 375 141552-018 121 141552-095 129,147,149,151
139297-029 375 141552-020 121,133,135 141552-096 129,147
139297-030 375 141552-021 121,133,135 141552-097 129,147
139319 223,225 141552-022 121,137 141552-098 129,147
139612 223,225,231,233 141552-023 121 141552-099 131,143
139612-045 231,233 141552-024 121 141552-100 131,143
139612-051 231 141552-025 121 141552-101 131,143
139612-052 231 141552-026 121 141552-102 131,143
139612-053 231 141552-028 121 141552-103 131,143
139612-054 231 141552-029 115 141552-104 133
139612-055 231 141552-030 115 141552-105 133
139612-056 231 141552-031 115,117 141552-106 133
139612-057 231 141552-032 115,117 141552-107 133
NI 7
10-4102
NUMERICAL INDEX
141552-108 133 200319 259 205931 235

141552-109 133 200397 335 205951 203
141552-110 133 200459 383 205952 203
141552-111 133 200461 383 205964 291
141552-112 135 200558 303 205965 291,293
141552-113 135 200607 377 205974 297
141552-115 137 200734 403 205975 297
141552-116 137 201117 227 205976 297
141552-117 137 201295-006 189 205977 297
141552-118 137 201589 323 205978 297
141552-120 149,151 201717 403 205979 297
141552-121 149,151 202393 243 205980 297
141552-122 149,151 202645 13 205981 297
141552-123 145 202649 259 205982 297
141552-125 145 202650 259 205983 297
141552-126 145 202652 259 205984 297
141552-127 145 202653 259 205985 297
141552-128 145 202654 259 205986 297
141552-129 145 202657 259 205987 297
141552-130 155 202658 259 206108 71
141666 247 202659 259 206109 71
141734 347,351 202660 259 206110 71
142533 367 202884 259 206111 71
142673 367 202889 259 206112 71
142788 343,345 202891 303 206113 71
142788-004 343,345 202892 303 206115 71
142940 347 202894 303 206117 71
143408 343,345 202961 303 206118 71
143409 343,345 202962 303 206121 71
143523 391 202963 303 206122 71
143625 51 203004 243 206123 71
143894 5,55,57,63 203288 227,237 206124 71
144116 51 203346 27,29,41 206125-001 319
144117 51 203351 43,251 207203-001 215
144293 351 203617 305 207221-001 49
144419 313 203618 305 207304 323
144419-003 313 203873 385 20894 79,97
144542 369 203951-001 117 21910 81,85
144543 369 204291 153 22837 91
144558 347,351 204336 331 24852 79,97
144559 347,351 204829-001 199 25528 99
144580 347 204867 379 26241 81,85
144663 357,359,361,363 204901 227 26428 77
365,369,407 204902 227 26492 77,97
144664 343,345,357,359 204903 227 2732 81,85
363 204904 227 303450 163,167
144665 361,363,365,369 205031 259 3601 309
144666 343,345,357,359 205032-002 259 3646 105,107
363 205033 259 37971 97
144684 391 205034 259 391008-44 325
144897 391 205132 47 391008-62 313,321
145099 391 205135-001 47 391008-67 325,327
145757 391 205143 13,27,29,41,49 391008-76 313,325
145840 391 229 391015-5 175
14826 77 205167 229 391016-28 159
15094 93 205236 47 391016-30 159
15886 93 205237 47 391016-31 159
17365 91 205238 47 391016-32 157,159
17906 97 205239 47 391016-33 157,159
18319 99 205242 229 391016-34 159
18364 79 205243 229 391016-35 159
18833 81,85 205245 229 391016-38 159
200085 305 205249-001 13,27,29,41,49 391016-40 157
200094 377 205330 229 391016-41 157
200114 305 205331 229 391016-42 155,157
200115 305 205769-001 237 391031-20 403
200160 243,329,331 205770-001 237 391031-34 403
200181 319 205771 237 391031-38 403
200197 403 205772 237 391031-39 403
200198 403 205773-001 237 391031-43 403
200270 303 205774 237 391031-68 397
200318 259 205856 285 391031-69 397
NI 8
10-4102
NUMERICAL INDEX
391048-2 279,281 59419 79 80591 89,97

391048-4 279,281 59991 81,85 8082 81,85,97
391050-1 191 59996 81,85 83225 81,85
391053-28 347 59997 81,85 83345 79
391053-29 347 59998 81,85 86256 77
391054-113 217 59999 81,85 8745 91
391054-66 217 60200 81,85 96842 79,81,85,89,97
391074-13 347 604023 279,281 97062 89
391081-11 187 60675 77 9848 97
391081-133 187 60987 79 9931 81,85
391081-148 411 6178 81,85 B1158 59,63
391081-155 163,167 63010 93 FSL-1097 189
391081-19 187 64353 79 J103522 193,211,213
391081-60 189 64355 79 J222179 135,137
391081-61 189 64356 77 J222960 135,137
391081-62 187,189 64360 77 J230890 111
391091-13 223,225 64420 77 J232640 117
391091-14 223,225 64450 79 J234922 137
391125-14 189 64452 81,85 J240617 121
391126-1 313 64453 81,85,97 J24144 367
391189-1 343,345 64454 81,85 J242603 117,119
391204-6 163,167 64455 81,85 J247664 145
391280-1 351,361 64456 81,85 JTB425 187
391280-10 347 64457 79,97 MC00135 235
391280-11 341,343,345 64459 89 P109296 189
391280-14 343,345 64463 89 Q51388072 45
391280-30 347 64467 89 Q51715217 45
391280-32 349 64471 95,97 Q51857209 45,47
391296-5 407 64472 79 Q95079679 411
391341-53 391 64475 81,85 Q95223368 39,45
391341-54 391 67407 89 Q95223376 15,21
391347-2 313 68493 77 Q95785572 413
391358-21 285 68494 77 S8996 101
391358-24 285 68497 77 S8997 101
391358-28 285 68498 77
391358-29 361 68499 77
391371-1 369 69102 79
391386-13 313 69103 79
391386-15 313 69125 79
391386-16 285 72101 89
391390-6 359 7556 97
391390-8 365,369 77213 77,97
391403-262 343,345 78070 81,85
391403-263 343,345 78071 81,85
391403-266 343,345 78074 81,85
391403-267 341,343,345 78643 15,21,39,223,225
391410-6 211,213,247 79926 77
391419-1 347 79934 77
391419-2 347 800433 51,411
391419-3 347 800476 105,107
39328 79,97 800656 193,211,213
3B2226 407 800657 105,107
42068 81,85,97 800658 105,107
42112 81,85,89,97 800734 185
42226 83,87 800974 -002 399,401
4379 97 801623 11,25
44382 79,81,85,97 801767 105,107
4581 89 80183 75,99
49010 79,97 80184 99
4W1121 223,225 80185 99
51545 89 80186 99
52810X 65 802390 279,281
54408 81,85 802427-002 217
54864 79 802433 341
54880 79 802819 155
54884 79 802996 163,167
57115 97 803070-007 343,345,369,397
57846 77,79 803113 247
58895 91 803228 163,167
59342 81,85 803277 181,183
59343 81,85 80419 89,97
59345 81,85,97 80513 77,97
NI 9
ALPHABETICAL INDEX
Description Part Number Page
3rd SHAFT GROUP @ Before 2004 141552-012 148

3rd SHAFT GROUP @ After 2004 141552-012 150
ADAPTERS @ 94440-V4A 90
AIR CLEANER - ASM W/VACUATOR 391081-62 188
AIR SYSTEM 010757-001 372
ALARM/STROBE LT KIT 004032-014 406
ARTICULATION ASS'Y 010744-001 246
ARTICULATION DRIVESHAFT 010726-008 218
AUTO-RETURN CYLINDER 139846 70
AUXILIARY PUMP DRIVE GROUP @ 141552-008 138
AXLE - D45NI 010614-002 196
AXLE ASS'Y 010614-001 194
BACKHAMMER KIT 003535-007 100
BOOM ADAPTER 025676-001 412
BOOM EXTENSION CYLINDER 008997-001 42
BOOM LIFT CYLINDER 009002-001 12
BOOM MOUNTING ASS'Y 009015-002 6
BOOM PIVOT ASS'Y 009016-002 8
BOOM SWING CYLINDER 009000-001 48
BRAKE ASSEMBLY 010614-003 208
BRAKE ASSEMBLY @ 010614-002A 198
BRAKE PEDAL 391008-76 324
CABLE PULLEY ASS'Y 024259-001 62
CABLE REEL 006476-002 266
CANOPY CYLINDER - R/H 001307-002 236
CHARGING PUMP & FILTER GROUP @ 141552-007 152
COLLECTOR ASS'Y 006476-064 270
COMPLETE SEAL KIT 009245-001 94
COMPLETE SEAL KIT 64471 96
CONTROL VALVE ASSEMBLY 391016-42 156
CONTROL VALVE GROUP @ 141552-013 154
CONTROL VALVE HOUSING ASSEMBLY 391016-32 158
CONVERTER HOUSING GROUP @ 141552-006 114
COOLING ASS'Y 013208-002 162
COUNTERBALANCE VALVE 101572 334
CRADLE OFFSET ASS'Y 009024-003 38
DECAL - BRAKE TEST 143523 394
DECAL KIT 025687-001 388
DECAL KIT - VRII,ENG 026755-001 390
DIFF PRESS SENSING VALVE 025204-001 310
DIFFERENTIAL @ 010614-002B 200
DIFFERENTIAL HOUSING & LOCK @ 010614-002C 204
DIR. CONT. VALVE - 3 Bank 010502-001 244
DIR. CONTROL VALVE - 1 Bank 010501-001 316
DIR. CONTROL VALVE - 8 BANK 010500-001 336
DIRECTIONAL VALVE - 4W/2P, 24V 126212 322
DISTRIB. / ACCUM. GROUP @ 005566-014 76
DRAWING TUBE OPTIONS 010848-004 410
DRILL CONTROL VALVE 018627-001 308
DRILL CRADLE ASS'Y 024163-001 58
DRILL PARAMETERS HARNESS 025694-201 364
DRIVE PLATE GROUP @ 008563-003 122
DRIVELINE - FRONT AXLE 010726-002 216
DRIVELINES ASS'Y 019317-001 214
DRUM ASS'Y 006476-067 268
DUAL COUNTER BALANCE VALVE 129468 318
DUAL COUNTER BALANCE VALVE c/w shuttle 002163-001 338
ELECTRIC SHIFT VALVE 019998-001 160
ELECTRICAL KIT 021883-001 386
ELECTRICAL SYSTEM 025518-201 342
ENGINE - QSB4.5 028671-001 108
ENGINE/TRANS ASS'Y 010759-005 104
EXHAUST ASS'Y 010761-004 180
EXTENSION CYLINDER 134591 226
FAN ASS'Y 015417-001 176
FEED ADVANCE CYLINDER 009731-001 44
FEED ASS'Y - MTFN8, HC50, LH 013333-001 50
FEED BULKHEAD ASS'Y 024194-001 60
FEED CYLINDER 024274-001 68
FEED CYLINDER ASS'Y 024273-007 66
AI 1
ALPHABETICAL INDEX
FEED PIVOT CYLINDER 008998-001 40

FEED RAIL ASS'Y 024158-009 52
FILLER PUMP OPTION 025725-001 366
FILTER / REGULATOR 105187 376
FIRE SUPPRESSION SYSTEM 013209-001 398
FIRE SUPPRESSION SYSTEM - 4 Nozzle 004500-001 402
FIXATION @ 005566-013 92
FIXED CENTRALIZER ASS'Y 024177-001 64
FORWARD SHAFT GROUP @ 141552-011 126
FORWARD SHAFT GROUP @ Before 2004 141552-074 142
FORWARD SHAFT GROUP @ After 2004 141552-074 130
FRONT AXLE ASS'Y 010763-001 192
FRONT FRAME ASS'Y 010743-015 222
FRONT GUIDE - R38 @ 021826-005A 88
FRONT JACKS SCHEMATIC 012108-031 240
FUEL SYSTEM 019316-001 190
FUEL TANK ASS'Y 011466-002 278
GUIDE DUMP CYLINDER 009001-001 26
GUIDE DUMP CYLINDER ASS'Y 009021-001 24
GUIDE EXTENSION CYLINDER Q51857209 46
GUIDE SWING CYLINDER 008999-001 28
HANDLE ASS'Y 024147-101 288
HANDLE KIT 205965 292
HC-50 DRIFTER - R32M, F, M.B/H 021826-005 74
HDWR & INTERCONNECTION 025521-201 354
HEAT EXCHANGER - Hydraulic 105331 304
HIGH PRESSURE FILTER 104388 302
HOODS ASSEMBLY 011463-008 260
HOSE REEL ASS'Y 024169-001 54
HOUSING GROUP @ 005566-016 80
HYD. DIFF. LOCK CONTROL @ 010614-002D 206
HYD. ROTATION PUMP 024947-001 300
HYDRAULIC FILLER PUMP 032412-001 306
HYDRAULIC MOTOR 020129-001 34
HYDRAULIC PUMP 024946-001 298
HYDRAULIC PUMP - 45CC 019222-001 314
HYDRAULIC SCHEMATIC 013334-001 72
HYDRAULIC SCHEMATIC 025202-051 284
HYDRAULIC SCHEMATIC - CABLE REEL 012151-001 274
HYDRAULIC SCHEMATIC - CANOPY 012153-011 238
HYDRAULIC SCHEMATIC - Carrier 013195-061 312
HYDRAULIC SCHEMATIC - MTB5500, LH 013687-031 332
HYDRAULIC SCHEMATIC - REAR JACKS 012152-001 276
HYDRAULIC TANK ASS'Y 011462-004 256
IDLER SHAFT GROUP @ 141552-076 134
INNER BOOM ASS'Y 009019-002 20
INTAKE ASS'Y 010760-008 186
JACK CYLINDER 137045 228
JOYSTICK VALVE ASS'Y 138073 290
L.S. CHARGE VALVE 391008-62 320
LEVER LINK & MOUNT PLATE ASS'Y @ 138073B 294
LIFT CYLINDER ASSEMBLY 009017-001 10
LOW SPEED SHAFT GROUP @ 141552-075 132
LUBE PUMP - 24VDC 022572-001 378
MAIN CONTROL PANEL 025529-001 350
MAIN DASH 025519-201 346
MAIN HARNESS - FR. FRAME 025522-201 360
MAIN HARNESS - R. FRAME 025523-201 362
MOTOR PART GROUP @ 021826-005B 78
MTB5500 ASS'Y - L/H 009052-002 4
OFFSET GUIDE ASS'Y 009023-005 36
OPTIONS GROUP 010753-016 396
OUTER BOOM ASSEMBLY 009018-001 14
OUTPUT SHAFT GROUP @ 141552-077 136
PERC/FEED/ROT VALVE 027868-001 286
POWER HARNESS - ENG. END 025525-201 358
POWER HARNESS - FR. FRAME 025524-201 356
POWERPACK ASS'Y 011475-028 264
POWERTRAIN ASS'Y 010741-009 102
PRESS. REDUCING / RELIEF VALVE 105333 242
AI 2
ALPHABETICAL INDEX
PUMP DRIVE GROUP @ 141552-009 140

PURIFIER MOUNT ASS'Y 016011-002 184
RAD GUARD 020611-001 178
RADIATOR ASS'Y 014971-001 170
REAR AXLE ASS'Y 010764-001 210
REAR DRIVESHAFT 010726-009 220
REAR FRAME ASS'Y 010745-016 252
REDUCER SUPP. KNUCKLE ASS'Y 009020-002 22
REDUCER SUPPORT ASS'Y 009022-004 30
RELIEF VALVE 004128-001 328
RELIEF VALVE 111084 330
REMOTE GREASE CIRCUIT 012602-001 404
RESTRICTOR 80183 98
RETURN FILTER 117215 258
REVERSE & 2nd SHAFT GROUP @ Before 2004 141552-073 146
REVERSE & 2nd SHAFT GROUP @ After 2004 141552-073 128
REVERSE IDLER GROUP @ 003260-001 144
ROPS CANOPY ASSEMBLY 010811-001 234
ROTARY ACTUATOR 017992-003 32
SEAT ASS'Y 139612 230
SHIFTER OPTION - 3 SPEED 803070-007 368
SPRING ASSEMBLY @ 138073A 296
STEER CYLINDER 011154-001 250
STEER CYLINDER PIN ASSEMBLY 009118-001 248
SURGE TANK 017437-001 174
TIRE AND RIM ASS'Y 010747-003 282
TORQ. CONV. / TRANS. 141552 112
TORQUE CONVERTER GROUP @ 141552-004 124
TORQUE UNIT 006476-066 272
TRANSMISSION ASS'Y - 20000 ELEC. 019915-001 110
TRANSMISSION CASE & COVER GROUP @ 141552-010 116
TRANSMISSION SCHEMATIC 140907-021 340
TURBINE SHAFT GROUP @ 141552-005 120
VALVE 008428-001 326
VR-II 10-4102 2
WATER PUMP 006830-001 382
WATER SERVICE VALVE 139297 374
WATER SYSTEM 012353-031 380
WEAR PAD ASSEMBLY 013746-001 16
WEAR PAD ASSEMBLY - 6 Holes 015075-001 18
WHEEL CHOCK BRACKET 007338-002 408
WORK LIGHT - LED 024983-001 370
AI 3

10-4102 VR-II - Chevron Mining 10-4102 2 VR-II - Chevron Mining 009052-002 4 MTB5500 ASS'Y - L/H

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

10-4102 VR-II - Chevron Mining 10-4102 2 VR-II - Chevron Mining 009052-002 4 MTB5500 ASS'Y - L/H

Uploaded by

Copyright:

Available Formats

10-4102 VR-II - Chevron Mining

10-4102 VR-II - Chevron Mining 2

VR-II - Chevron Mining

VR-II - Chevron Mining

MTB5500 ASS'Y - L/H

MTB5500 ASS'Y - L/H

BOOM MOUNTING ASS'Y

BOOM MOUNTING ASS'Y

BOOM PIVOT ASS'Y

BOOM PIVOT ASS'Y

LIFT CYLINDER ASSEMBLY

LIFT CYLINDER ASSEMBLY

BOOM LIFT CYLINDER

BOOM LIFT CYLINDER

a) Items included in Seal Kit # 013630-010.

OUTER BOOM ASSEMBLY

OUTER BOOM ASSEMBLY

WEAR PAD ASSEMBLY

WEAR PAD ASSEMBLY

WEAR PAD ASSEMBLY - 6 Holes

WEAR PAD ASSEMBLY - 6 Holes

INNER BOOM ASS'Y

INNER BOOM ASS'Y

REDUCER SUPP. KNUCKLE ASS'Y

REDUCER SUPP. KNUCKLE ASS'Y

GUIDE DUMP CYLINDER ASS'Y

GUIDE DUMP CYLINDER ASS'Y

GUIDE DUMP CYLINDER

GUIDE DUMP CYLINDER

GUIDE SWING CYLINDER

GUIDE SWING CYLINDER

a) Items are included in Seal Kit #008999-010

REDUCER SUPPORT ASS'Y

REDUCER SUPPORT ASS'Y

b) Items included in Repair Kit # 020129-016.

OFFSET GUIDE ASS'Y

OFFSET GUIDE ASS'Y

CRADLE OFFSET ASS'Y

CRADLE OFFSET ASS'Y

FEED PIVOT CYLINDER

FEED PIVOT CYLINDER

a) Items included in Seal Kit # 014346-015.

BOOM EXTENSION CYLINDER

BOOM EXTENSION CYLINDER

a) Items are included in Seal Kit #008997-010

FEED ADVANCE CYLINDER

FEED ADVANCE CYLINDER

GUIDE EXTENSION CYLINDER

GUIDE EXTENSION CYLINDER

BOOM SWING CYLINDER

BOOM SWING CYLINDER

a) Items are included in Seal Kit #009000-010

FEED ASS'Y - MTFN8, HC50, LH

FEED ASS'Y - MTFN8, HC50, LH

FEED RAIL ASS'Y

FEED RAIL ASS'Y

HOSE REEL ASS'Y

HOSE REEL ASS'Y

HOSE REEL ASS'Y

HOSE REEL ASS'Y

DRILL CRADLE ASS'Y

DRILL CRADLE ASS'Y
