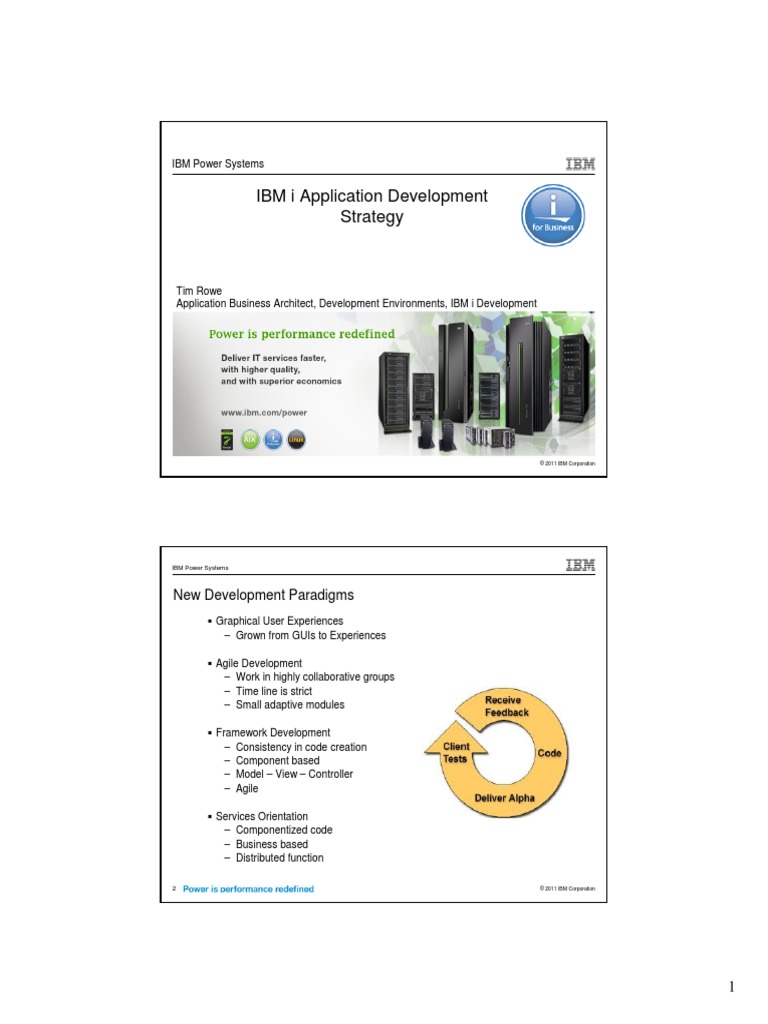

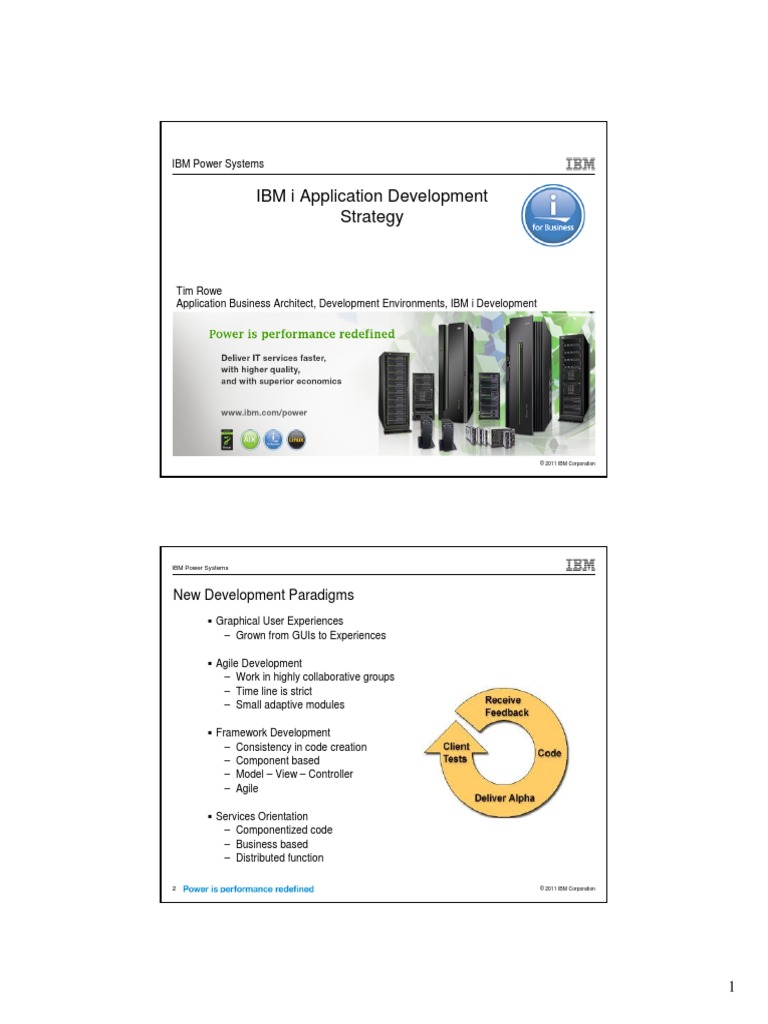

IBM I Application Development Rational Developer

IBM Power Systems
IBM i Application Development

Strategy
Tim Rowe
Application Business Architect, Development Environments, IBM i Development
© 2011 IBM Corporation
IBM Power Systems
New Development Paradigms

Graphical User Experiences
– Grown from GUIs to Experiences
Agile Development
– Work in highly collaborative groups
– Time line is strict
– Small adaptive modules
Framework Development
– Consistency in code creation
– Component based
– Model – View – Controller
– Agile
Services Orientation
– Componentized code
– Business based
– Distributed function
2 © 2011 IBM Corporation
1
IBM Power Systems
Services Orientation - SOA

Modular
Reusable
Loosely Coupled
Standards based
y
ector
es Dir
Servic
IBM Power Systems
Application Development in the Power Market
SOA
2
IBM Power Systems
Application Development Strategy for IBM i
High performance compilers

reaching to new technologies
Compilers
Common developer desktop across

operating systems
and languages
Common development
infrastructure for Power and the
world around Power
Embrace Open Source Solutions and

Partners to Complete Application
Development Portfolio
IBM Power Systems
Compilers for Optimized Performance
Compilers tightly integrated with operating systems and POWER7 hardware

Binary compatibility
– Applications will move to POWER7 with no recompile required
S/36 and S/38 environment applications also
Rational Open Access: RPG Edition - new offering for RPG
– Long requested feature from customers and partners
3
IBM Power Systems
i Architecture
Language Runtimes (RPG, COBOL, C, C++)
Optimizes underlying IBM i and hardware
Single Level Store Object Based Architecture
Automates & optimizes storage management Enables integrity, security, virus-resistance
Integration Work Management

... ...
Integrates business components, e.g. database Provides built-in application virtualization
Technology Independent Machine Interface

Ensures application compatibility across multiple technology generations
Multi-core
Multi-threads
IBM Power Systems
Commitment to RPG and COBOL
Hayden Lindsey
Vice President and Distinguished Engineer
Enterprise Modernization, Modeling,
Construction and Compilers
IBM Rational
4
IBM Power Systems
Compilers on IBM i
Rational Development Studio

– RPG, COBOL, C, and C++ compilers for IBM i
– Previously called WDS: “WebSphere Development Studio for System i”
– Designed for creating modern business applications
WebSphere Development Rational Development Studio for i

Studio for IBM i 5770-WDS
New Enhancements Stabilized Stabilized

Feature: ILE Compilers Feature: Heritage Compilers Feature: ADTS
• ILE RPG • S/36 Compatible RPG II • PDM
• ILE RPG *PRV Compiler • S/38 Compatible RPG II • SEU
• ILE COBOL • RPG/400 (RPG III)_ • SDA
• ILE COBOL *PRV Compiler • S/36 Compatible COBOL • RLU
• ILE C • S/38 Compatible COBOL
• ILE C++ • OPM COBOL
• IXLC for C/C++
IBM Power Systems
RPG IV Goals for the Language
Three main goals for RPG IV

– Interoperability
• Java
• XML
• SQL
– Readability
• Free form
• Blank lines
• Comments
– Functionality
• Procedures
• Data areas/data structures
• More data types
• Extended file support
5
IBM Power Systems
Modern RPG
/FREE
read file; // Get next record
dow not %eof(file); // Keep looping while we have a record
if %error;
dsply ‘The read failed’;
leave;
else;
chain(n) name database data;
time = hours * num_employees
+ overtime_saved;
pos = %scan (‘,’ : name);
name = %xlate(upper : lower : name);
exsr handle_record;
read file;
endif;
enddo;
begsr handle_record;
eval(h) time = time + total_hours_array (empno);
temp_hours = total_hours - excess_hours;
record_transaction();
endsr;
/end-free
IBM Power Systems
ILE RPG enhancements
New and updated built-in functions %LEN, %SCANRPL,

%PARMNUM
Implicit unicode conversion for parameters
Sort and search data structures
Sort Ascend or descend
Performance when returning large values
Optional prototypes
Support for ALIAS names in externally-described data structures
New options for XML-INTO (also available with a PTF for 6.1)
Support for Open Access RPG Edition (also available with a PTF
for 6.1)
12 IBM
Confidenti
al
6
IBM Power Systems
Rational Open Access: RPG Edition
Extending RPG to reach new

interfaces
<?xml?>
Custom
Devices
XML
Future
Interfaces
Devices
Rich
RPG IV Mobile
Clients
+ Open Browsers
Access
SOA
Interface Databases
Web
Browsers
13 © 2011 IBM Corporation13
IBM Power Systems

*DSPF example 5250 Screens
RPG Application
WRITE record program 5250 datastream

I/O buffer Display file
object
* DSPF
Other information:
•state
•names
•pointers
RPG Runtime Display Manager
IBM i
7
IBM Power Systems

*DSPF example
?
RPG Application
Handler code to manage building the
interface and proprietary information
Handler Defined
program
I/O buffer
WRITE record
Other information:
•state
•names
•pointers
RPG Runtime Display Manager
IBM i
IBM Power Systems
IBM i Open Source Strategy
Encourage Open Source vendors to port to IBM i (PASE)

Encourage Open Source vendors to provide support
PHP and MySQL run on IBM i
IBM i PASE Development Team is testing other Open Source products
8
IBM Power Systems
Over one-third of the Web runs on PHP

17
IBM Power Systems
Open Source Solutions for i
Zend Server Community Edition for i

– Preloaded with IBM i 7.1, 6.1, 5.4
Zend Server for i
– Provides advanced functions
– Available from IBM with advanced support
offerings
Zend Studio for i
– Eclipse-based development environment
– Available with one year of Silver support from
Zend for no additional charge
Other Open Source Products:
DB2
Community
Edition
9
IBM Power Systems
Modernization on IBM i with PHP
Leverage Existing Infrastructure to Develop &

Run Dynamic Web Applications Easily
Expose part of New/Packaged Web

RPG Application Application on IBM i
Access DB2/400 Access RPG Programs

Data via Browser & Data as Web Services
19 © |2011
22-Sep-11 | 19
IBM Corporation
19 Modernizing IBM I legacy applications with PHP
IBM Power Systems
New Application Development Support

Web
Service
Web Services
– New client support – WSDL2RPG - Delivered 12/10
Call Web Services natively from RPG Native calls!
WSDL converted to native RPG to encapsulate Web Service call
Zend PHP
– New IBM i PHP Toolkit – GA EOY 2011
Call *PGM, *SVRPGM, *CMD, PASE utilities
– Enhanced Database support – May 2011
Local DB support for MySQL, DB2
Remote DB support for MsSQL, Oracle
DB2
DB2
Oracle
Oracle
Remote DB Connection
IBM/Zend MsSQL
–
MsSQL
PHP Toolkit MySQL
MySQL
10
IBM Power Systems
PHP Integration with i - ToolKit
Easy access to IBM i data and resources from PHP

(similar to IBM ToolBox for Java)
–DB2 for i – SQL and Native
–Program call
–Procedure call
–Data Area
–Data Queue
–Message Queue
–Commands
–System values
–Spool files
http://174.79.32.155/wiki/XMLService/XMLService
IBM Power Systems
XMLSERVICE RAW XML PHP Interfaces
The basic idea of XMLSERVICE is to allow any scripting language to use XML input/output
documents to drive XMLSERVICE job(s) calling PGMs, SRVPGMS, CMDs, PASE shells.
Call ILE or shell scripts from local PHP OR remote PHP environment
XML based
11
IBM Power Systems
Leveraging Open Source Application Portfolio
Customer Relationship Management Help Desk

Portal
Portal
Portal
Course Management System

e-Commerce
Wiki
Bulletin Board
Content Management System
IBM Power Systems
Rational Developer for Power Systems Software
Rational Developer for Power V8.0

•RPG and COBOL for IBM i
•COBOL for AIX IBM XL C/C++ for AIX and Linux V11.1
•C/C++ for AIX IBM XL Fortran for AIX and Linux V13.1
•C/C++ for Linux on Power IBM COBOL for AIX V4.1
•C/C++ Development Studio for AIX
IBM PL/I for AIX V2
•COBOL Development Studio for AIX
•Power Tools for AIX IBM Rational Development Studio V7.1
•Power Tools for IBM i IBM i compilers
•Power Tools for Linux on Power Rational Open Access: RPG Edition V1.1
•Linux Desktop Support
24
12
IBM Power Systems
Rational Developer for Power: RPG and COBOL

Remote System Explorer (RSE)
Perspective for access to

remote IBM i servers
Reusable actions, dialogs,
widgets, APIs
Editor for traditional IBM i
application code
– RPG, COBOL, C,
C++, Java & DDS
Interface to the compilers
Debugger
– Multi-language
IBM Power Systems
Productivity & Innovation – why its important
Productivity: The measure of output from a process, such as output per labor-hour.
Higher More
Higher Cost
More Application
Profit Output
Profit Effectiveness
Output Modernization
Job Accelerate 20% Boost

Growth Growth
Satisfaction Innovation In developer
Productivity1
¹ Based on IBM customer study, “Making a Business Case for IBM Rational Developer for i”
13
IBM Power Systems
Why RD Power? Developer View (the fun stuff!)

Modern, Eclipse-based, development tools for IBM i
Visual editors, outline views, content assist, integrated language help
Integrated file management, search, edit, compile/build, debug capabilities
Analysis tools (application diagram, call hierarchies, type hierarchies)
Easily debug batch, interactive, and Web applications and Web services with a common
visual debugger
Visual DDS design tools: Screen and Report Designer
Integration with Rational Team Concert
IBM Power Systems
Show me the features
Remote Systems LPEX Editor
28 © Copyright 2011 IBM Corporation © 2011 IBM Corporation

28
14
IBM Power Systems
From this…
PDM & SEU – the editor…

29
IBM Power Systems
To this… Best of Both Worlds
SEU look and feel

– Prefix commands
– Format bar
Modern look and feel
– Colors!
– Modern editor features
Shortcut to open a
member, Ctrl + Shift +
A
30
15
IBM Power Systems
Undo / Redo * means editor has Number of changes

unsaved changes made since last save.
Unlimited undo / redo inside of LPEX editor

– Undo changes right back to when member was originally opened
– Even if editor was saved during the editing period
– Edit > Undo | Redo or use more common keyboard shortcuts Ctrl + Z | Ctrl + Y

31
IBM Power Systems
Copy and Paste
Block copy / paste
Prefix commands for

copy / paste Stream based copy / paste
(typical of Workstation software)
Uses Windows Clipboard, paste
into another editor, email, or
document editor.
32
16
IBM Power Systems
Outline View and Content Assist
Cross reference
information
Content assist helps jog

your memory (opcodes,
BIFs, fields)
Templates provide a quick way

to insert common code patterns
(free form and SQL). Predefined
33 or ©define
Copyrightyour own!
2011 IBM Corporation © 2011 IBM Corporation
33
IBM Power Systems
From this…
Compile Errors

34
17
IBM Power Systems
…To This
Launch compiles
directly from editor or
pop-up menu.
Compile errors
automatically downloaded
and shown in Error List
Double clicking on an error opens editor and

35
positions to the line © 2011 IBM Corporation
© Copyright 2011 IBM Corporation 35
IBM Power Systems
From this…
Application Diagram ???

36
18
IBM Power Systems
Application Diagram
Subroutine ChgOrder calls
something inside the
ROUTINES member
ORDENTR
ORDENTRmembermember
expanded
expandedtotoview
viewaa
call
callgraph
graph
Subroutine RqsPart calls

subroutine Process
Subroutine WrtDtaQ calls

program QSNDDTAQ

37
IBM Power Systems
Application Diagram
Application Diagram
– Provides developers with a graphical overview of the structure of their native i5/OS
applications
Call graph showing subroutine, procedure, and program calls
ILE program and service program bindings
– Currently supports ILE RPG, ILE COBOL, CL, programs and service programs

38
19
IBM Power Systems
From this…
Build DDM Screens

39
IBM Power Systems

Report Designer & Screen Designer
Screen controls allow you Outline view for

to specify which records navigating in the editor
should be visualized and selecting the file,
together in the design area. records and fields.
Palette: drag and drop

parts from the palette
to the design area.
Design, source and
Design area
preview modes
Use properties view to

modify attributes and
keywords for the file,
records and fields.

40
20
IBM Power Systems
From this…
Integrated Debugger

41
IBM Power Systems
Debug View controls

Work with breakpoints Real time monitoring
the debugger
(enable / disable, remove, of the field values
add, conditional)
Breakpoint (set / remove

by double clicking)

42
21
IBM Power Systems
Launching the Debugger Attach to a job

One Click Actions (STRSRVJOB)
Always use Service Entry

Points to debug any ILE
program / service program!
Single click debug for batch

(don’t use for interactive – use
service entry points or debug
job)
43
IBM Power Systems
JVM Improves Java Performance

V5R4 GA V6R1 GA
1400
Transactions per Second
+68% +78%
1200
1000
800
600
400
200
0
Native JDBC Toolbox JDBC
IBM 32-bit & 64-bit Java™ Virtual Machine

– Shared technology with AIX & Linux improves performance & portability
Exceptional Java environment and performance. Built by IBM for Power
– Fully compatible with other industry standard Java applications
– Can be called by APIs or directly from RPG
IBM Java ToolBox
– Pre-coded Java classes to access native IBM i artifacts – files, data queues, etc
22
IBM Power Systems
IBM Rational Application Developer (RAD)

• Eclipse-based Java development environment
• Full support for J2EE, web, web services, etc
IBM Power Systems
Rational Application Developer Standard Edition
Java Web Development tool

Use RAD SE to build rich Java internet
applications
– improve online user experience
– increase customer satisfaction
Visual development for Web 2.0
– significant productivity benefits
Award winning! – 2009 Evans Data Users Choice:
Software Development
23
IBM Power Systems
New RPG stuff for IBM i 7.1

the Details…..
47 IBM
Confidenti
al
IBM Power Systems
RPG: %LEN(varying : *MAX)

Problem solved by %LEN(*MAX):
Starting in V6R1, calculations involving the size of the varying-length prefix
became error-prone because the size might be either 2 or 4.
In V6R1, %ADDR was enhanced with %ADDR(*DATA) to simplify getting the
address of the data part. Previously, programmers added 2 to %ADDR.
%LEN(*MAX) simplifies getting the maximum length of the data part.
Previously, programmers subtracted 2 from %SIZE, and then divided by 2 for
UCS-2 and DBCS.
Get the maximum number of characters for a varying field.

D char_varying S 5000A VARYING
/free
// Pass address and length of the data
conv (%addr(char_varying : *data)
: %len(char_varying : *max));
48 IBM
Confidenti
al
24
IBM Power Systems
RPG: New built-in function %SCANRPL
Problem solved by %SCANRPL:

Hand-written versions of scan-and-replace tend to be large, error prone,
and difficult to maintain.
The %SCANRPL built-in function replaces all occurrences a string with
another string.
fileErr = ’File &1 not found. Please create &1.’;

msg = %scanrpl (’&1’ : filename : fileErr);
// msg = ’File MYFILE not found. Please create MYFILE.’
49 IBM
Confidenti
al
IBM Power Systems
RPG: New built-in function %PARMNUM
Problem solved by %PARMNUM:

Parameter-information APIs such as CEEDOD or CEETSTA
require a parameter’s number.
The %PARMNUM built-in function returns a parameter’s
position in the parameter list.
Soft-coding the parameter’s number makes the code easier to
read and maintain.
D myProc pi 10A OPDESC

D company 25A OPTIONS(*VARSIZE)
D city 25A OPTIONS(*VARSIZE)
CEEDOD (2 : more parms); // hard to understand

CEEDOD (%PARMNUM(city) : more parms); // better
50 IBM
Confidenti
al
25
IBM Power Systems
RPG: Implicit CCSID conversion - parms

Implicit CCSID conversion is now supported for prototyped parameters passed by VALUE
and by read-only reference (CONST)
This reduces the number of code changes that have to be made when a database field is
changed from alphanumeric or DBCS to Unicode (UCS-2 or UTF-16).
Prior to this change, if the type (A, C or G) of a passed parameter was not the same as the
prototype, the compiler would issue a diagnostic. With this change, the compiler will
implicitly convert the passed parameter to the type of the prototype.
In the example below, there is only one “makeTitle” procedure with a UCS-2 parameter and return
value. If the passed parameter is alpha or DBCS, it will be converted to UCS-2 on the call. The
procedure will work with the UCS-2 parameter and return a UCS-2 value. This returned value can
then be converted on assignment to alpha or DBCS, if necessary.
// makeTitle() upper-cases the parameter

// and centers it within the provided length
alphaTitle = makeTitle(alphaValue : 50);
ucs2Title = makeTitle(ucs2Value : 50);
dbcsTitle = makeTitle(dbcsValue : 50);
51 © 2011 IBM Corporation IBM

Confidenti
al
IBM Power Systems
Sort & Search
SORT AND SEARCH DATA STRUCTURE ARRAYS:

To sort or search a data structure array, one subfield is identified as the
"key" for the array, using the syntax ARRAY(*).KEYSUBFIELD.
Example: Sort the INFO array by the SALARY subfield and search for the
name. Note that 'Jack' in the NAME subfield of the INFO array.
Sort a data structure array using one subfield as a key
// sort by name
SORTA info(*).name;
// sort by due date

SORTA info(*).dueDate;
Search a data structure array using one subfield as a key

// search for a name
pos = %LOOKUP(‘Jack’ : info(*).name);
// search for today’s date

pos = %LOOKUP(%date() : info(*).dueDate);
26
IBM Power Systems
RPG: Sort and search data structure arrays
The (*) index identifies the array to be sorted. Any other arrays in the expression
must have a numeric index.
The subfields preceding the (*) index indicate the array to be sorted. The subfields
following the (*) array represent the key to be searched or sorted.
// sort family array by age of first child

SORTA family(*).child(1).age;
// sort child array in each family by age
for i = 1 to numFamily;
SORTA family(i).child(*).age;
endfor;
53 IBM
Confidenti
al
IBM Power Systems
RPG: Sort ascending or descending
Non-sequenced arrays can be sorted either ascending or descending.
Extender indicates a descending sort.

Extender indicates ascending (default).
D meetings S D DIM(100)
/free
// sort descending, with the
// most recent date first
sorta(d) meetings;
54 IBM
Confidenti
al
27
IBM Power Systems
RPG: Performance returning large values
RTNPARM keyword greatly improves performance when a procedure

returns a large value
The speed of using a parameter with the convenience of using a return
value
Especially noticeable when the prototyped return value is a large
varying
length value
D center pr 100000a varying

D rtnparm
D text 50000a const varying
D len 10i 0 value
D title s 100a varying
/free
title = center ('Chapter 1' : 60);
55 IBM
Confidenti
al
IBM Power Systems
RPG: Optional prototypes
If a program or procedure is not called by another

RPG module, it is optional to specify the prototype.
These are some of the programs and procedures that

do not require an RPG prototype
An exit program, or the command-processing
program for a command
A program or procedure that is never intended to be
called from RPG
A procedure that is not exported from the module
56 IBM
Confidenti
al
28
IBM Power Systems
RPG: Optional prototypes
Here is an RPG module with a main procedure and a subprocedure.

No prototypes are necessary.
H main(hello)
P hello b
D pi
extpgm('HELLO')
D name 10a const
/free
sayHello();
...
P sayHello b
/free
dsply ('Hello ' + name);
...
57 © 2011 IBM Corporation57
IBM Power Systems
RPG: Support for ALIAS names

Background
Fields in externally described files can have a standard name up to 10 characters and an alternate (ALIAS) name up to 128
characters.
RPG III only allowed 6 characters, so many customers have files with cryptic names like CUSNAM, CUSADR. The files often
have alternate names such as CUSTOMER_NAME and CUSTOMER_ADDRESS, that can be used in SQL queries.
RPG programmers would like to use the alternate names in their RPG programs.
New ALIAS keyword for RPG

When ALIAS is specified, RPG will use the alternate name instead of the 10-character standard name.
Supported on F specs for any file that will not have Input or Output specs generated. Used for LIKEREC data structures.
Supported on D specs for any externally-described data structure.
A R CUSTREC
A CUSTNM 25A ALIAS(CUSTOMER_NAME)
A CUSTAD 25A ALIAS(CUSTOMER_ADDRESS)
A ID 10P 0
D custDs e ds ALIAS
D QUALIFIED EXTNAME(custFile)
/free
custDs.customer_name = 'John Smith';
custDs.customer_address = '123 Mockingbird Lane';
custDs.id = 12345;
58 IBM
Confidenti
al
29
IBM Power Systems
RPG XML-INTO: new option datasubf

The new datasubf option enables XML-INTO to support XML elements in this form
<emp type=“regular” id=“13573”>John Smith</emp>
Problem solved by datasubf:

When an XML element has attributes or child elements, the XML element (emp)
itself matches an RPG data structure and the attributes (type, id) match the
subfields. (Child elements would also match subfields.) If there is text data for the
data structure (“John Smith”), there is no XML name available for subfield
matching.
Without the datasubf option, two XML-INTO operations would be needed to get
the data from that XML element.
– One XML-INTO would get the type and id values
– One XML-INTO would get the value “John Smith”
– The allowextra=yes option would be needed for both XML-INTOs
59 IBM
Confidenti
al
IBM Power Systems
RPG XML-INTO: datasubf example
<emp type=“regular” id=“13573”>John Smith</emp>

RPG coding to get the information with one XML-INTO operation:
D emp ds
D id 7p 0
D type 10a
D value 100a
/free
XML-INTO emp %xml(‘emp.xml’ :
: ‘datasubf=value doc=file’);
// emp.id = 13573
// emp.type = ‘regular’
// emp.value = ‘John Smith’
60 IBM
Confidenti
al
30
IBM Power Systems
RPG XML-INTO: new option countprefix
The new countprefix option enables RPG programmers to get more information about an
XML document using XML-INTO.
Problem solved by countprefix:

When an XML element has a variable number repeating elements, it matches an RPG
array. The RPG programmer has to code the maximum elements for the RPG array, but
the XML document will usually have fewer elements.
Without the countprefix option,
– The allowmissing=yes option would be required, also allowing other necessary data to
be missing
– The RPG programmer would have to figure out how many XML elements there were
by looking for some default value.
61 IBM
Confidenti
al
IBM Power Systems
RPG XML-INTO: countprefix
The countprefix option gives the prefix for the subfields to receive the count of the number of
XML elements used to fill the RPG array.
<team>
<manager>Jack Spratt</manager>
<emp>John Smith</emp>
<emp>Mary Jones</emp>
</team>
The RPG data structure.
D team DS
D manager 25A
D emp 25A dim(100)
D numemp 10i 0
No "numemp" tag in the XML for subfield "numemp".
62 IBM
Confidenti
al
31

IBM I Application Development Rational Developer

Uploaded by

Copyright:

Available Formats

You might also like

IBM I Application Development Rational Developer

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

IBM I Application Development Rational Developer

Uploaded by

Copyright:

Available Formats

IBM Power Systems
