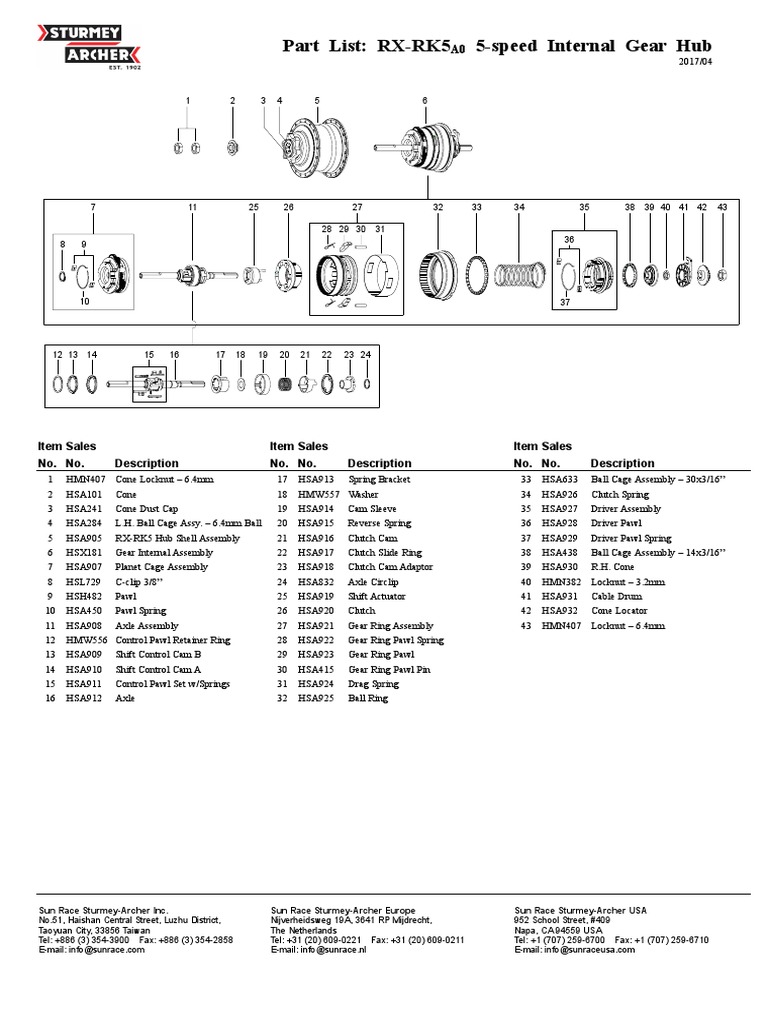

Part List: RX-RK5A0 5-speed Internal Gear Hub

2017/04

1 2 3 4 5 6

7 11 25 26 27 32 33 34 35 38 39 40 41 42 43

28 29 30 31
36
8 9

10 37

12 13 14 15 16 17 18 19 20 21 22 23 24

Item Sales Item Sales Item Sales

No. No. Description No. No. Description No. No. Description
1 HMN407 Cone Locknut – 6.4mm 17 HSA913 Spring Bracket 33 HSA633 Ball Cage Assembly – 30x3/16”
2 HSA101 Cone 18 HMW557 Washer 34 HSA926 Clutch Spring
3 HSA241 Cone Dust Cap 19 HSA914 Cam Sleeve 35 HSA927 Driver Assembly
4 HSA284 L.H. Ball Cage Assy. – 6.4mm Ball 20 HSA915 Reverse Spring 36 HSA928 Driver Pawl
5 HSA905 RX-RK5 Hub Shell Assembly 21 HSA916 Clutch Cam 37 HSA929 Driver Pawl Spring
6 HSX181 Gear Internal Assembly 22 HSA917 Clutch Slide Ring 38 HSA438 Ball Cage Assembly – 14x3/16”
7 HSA907 Planet Cage Assembly 23 HSA918 Clutch Cam Adaptor 39 HSA930 R.H. Cone
8 HSL729 C-clip 3/8” 24 HSA832 Axle Circlip 40 HMN382 Locknut – 3.2mm
9 HSH482 Pawl 25 HSA919 Shift Actuator 41 HSA931 Cable Drum
10 HSA450 Pawl Spring 26 HSA920 Clutch 42 HSA932 Cone Locator
11 HSA908 Axle Assembly 27 HSA921 Gear Ring Assembly 43 HMN407 Locknut – 6.4mm
12 HMW556 Control Pawl Retainer Ring 28 HSA922 Gear Ring Pawl Spring
13 HSA909 Shift Control Cam B 29 HSA923 Gear Ring Pawl
14 HSA910 Shift Control Cam A 30 HSA415 Gear Ring Pawl Pin
15 HSA911 Control Pawl Set w/Springs 31 HSA924 Drag Spring
16 HSA912 Axle 32 HSA925 Ball Ring

Sun Race Sturmey-Archer Inc. Sun Race Sturmey-Archer Europe Sun Race Sturmey-Archer USA
No.51, Haishan Central Street, Luzhu District, Nijverheidsweg 19A, 3641 RP Mijdrecht, 952 School Street, #409
Taoyuan City, 33856 Taiwan The Netherlands Napa, CA 94559 USA
Tel: +886 (3) 354-3900 Fax: +886 (3) 354-2858 Tel: +31 (20) 609-0221 Fax: +31 (20) 609-0211 Tel: +1 (707) 259-6700 Fax: +1 (707) 259-6710
E-mail: info@sunrace.com E-mail: info@sunrace.nl E-mail: info@sunraceusa.com
 Part List: RX-RK5A0 5-speed Internal Gear Hub
2017/04

1 2 3 4 5 6 7 2 1

10 12
8 9

11

Item Sales Item Sales Item Sales

No. No. Description No. No. Description No. No. Description
1 HMN433 Dome Nut 13/32” – Stainless 5 HSL981 Sprocket Circlip 8 HSJ999 TSC50 Shifter w/Cable
HMN388 Dome Nut 13/32” – CP 6 HSJ212 Fulcrum Lever 9 HSJ201 SLC50 (T-type) Shifter w/Cable
2 HMW529 Lockwasher – Xylan 7 HSL996 Fulcrum Lever Clip –Stainless HSJ202 SLC50 (H-type) Shifter w/Cable
HMW518 Lockwasher – CP HSL983 Fulcrum Lever Clip 10 HSJ973 Cable/Casing with Rotary Cable
3 HSL982 Sprocket Dustcap Anchorage –2000x2250mm
4 HSL993 Sprocket 17T – 1/8”, Flat 11 HSL802 Rotary Cable Anchorage
HSL991 Sprocket 18T – 1/8”, Flat 12 HTR148 Ball Ring Spanner
HSL992 Sprocket 19T – 1/8”, Flat
HSL997 Sprocket 20T – 1/8”, Flat
HSL998 Sprocket 22T – 1/8”, Flat
HSL986 Sprocket 17T – 3/32”, Flat
HSL987 Sprocket 18T – 3/32”, Flat
HSL988 Sprocket 19T – 3/32”, Flat
HSL999 Sprocket 19T – 1/8”, Dished
HSL200 Sprocket 20T – 1/8”, Dished
HSL201 Sprocket 19T – 3/32”, Dished
HSL202 Sprocket 20T – 3/32”, Dished
