ELL833 : CMOS RFIC Design

Interim Project Report

Submitted by: Tenin K Sen (2022EEN2124)

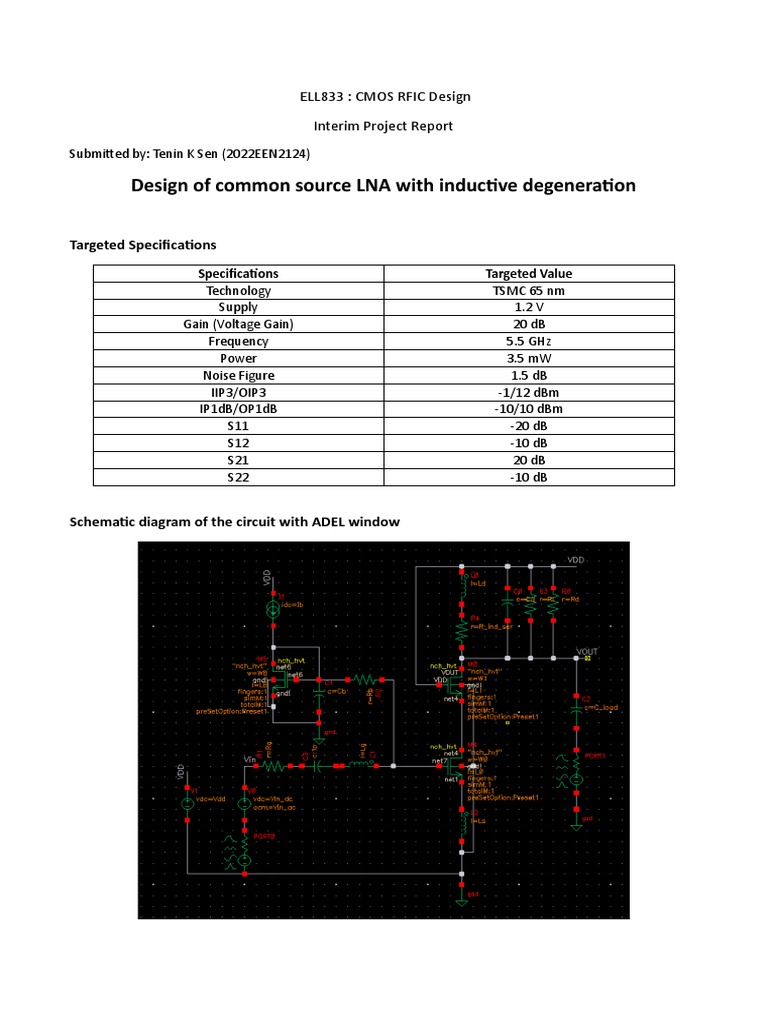

Design of common source LNA with inductive degeneration

Targeted Specifications
Specifications Targeted Value
Technology TSMC 65 nm
Supply 1.2 V
Gain (Voltage Gain) 20 dB
Frequency 5.5 GHz
Power 3.5 mW
Noise Figure 1.5 dB
IIP3/OIP3 -1/12 dBm
IP1dB/OP1dB -10/10 dBm
S11 -20 dB
S12 -10 dB
S21 20 dB
S22 -10 dB

Schematic diagram of the circuit with ADEL window

DC Operating points

Note that all the MOSFETs are biased in the region 2 (Saturation).
Achieved Gain and Frequency
My aim is to design the circuit to have a gain of 20 dB at 5.5 GHz. I achieved a gain of 18.81 dB at 5.49 GHz.

I need to further optimize the design to get more accuracy.

I kept the targeted total power consumption as 4 mW and achieved about 4.46 mW. This also needs further
optimization.

Noise Figure
My aim is to design the circuit to have a noise figure of 20 dB at 5.5 GHz. I achieved a noise figure of 5.67 dB
at 5.49 GHz. I need to further optimize the design to get more accuracy.
IP1dB
My aim is to design the circuit to have a IP1dB of 20 dBm. I achieved a IP1dB of -22.47 dBm. I need to further
optimize the design to get more accuracy.

OP1dB
My aim is to design the circuit to have a OP1dB of 20 dBm. I achieved a IP1dB of 7.2 dBm. I need to further
optimize the design to get more accuracy.
IIP3
My aim is to design the circuit to have a IIP3 of 20 dBm. I achieved a IIP3 of -8.2 dBm. I need to further
optimize the design to get more accuracy.

OIP3
My aim is to design the circuit to have a OIP3 of 20 dBm. I achieved a OIP3 of 16.45 dBm. I need to further
optimize the design to get more accuracy.
S – Parameters
S11
My aim is to design the circuit to have a S11 of -20 dB. I achieved a S11 of -470.12 mdB. I need to further
optimize the design to get more accuracy.

S12
My aim is to design the circuit to have a S12 of -50 dB. I achieved a S12 of -51.09 dB. I need to further
optimize the design to get more accuracy.
S21
My aim is to design the circuit to have a S21 of 20 dBm. I achieved a S21 of 7.89 dB. I need to further
optimize the design to get more accuracy.

S22
My aim is to design the circuit to have a S22 of -10 dBm. I achieved a S22 of -8.345 dBm. I need to further
optimize the design to get more accuracy.
Achieved specifications (till now)
Specifications Targeted Value Achieved Value
Technology TSMC 65 nm TSMC 65 nm
Supply 1.2 V 1.2 V
Gain (Voltage Gain) 20 dB 18.13 dB
Frequency 5.5 GHz 5.49 GHz
Power 4 mW 4.46 mW
Noise Figure 1.5 dB 5.67 dB
IIP3/OIP3 -1/12 dBm -8.2/16.45dBm
IP1dB/OP1dB -10/10 dBm -22.47/7.2 dBm
S11 -20 dB -470.12 mdB
S12 -50 dB -51.09 dB
S21 20 dB 7.89 dB
S22 -10 dB -8.345 dB

References
[1] “RF Microelectronics”, B. Razavi.
[2] “Cascode Common Source LNA with Inductive Degeneration Topology utilizing Different Output
Matching Circuits in 45nm CMOS Technology”, Malti Bansal , Diksha Singh in Fourth International
Conference on Communication and Electronics Systems (ICCES 2019)
[3] “Design of an Inductive Source Degenarative Low Noise Amplifier using 180nm CMOS Technology”,
M. Kiran Kumar, Amrita Sajja, Katti Blessy Beulah ,K. Sree Deepthi , Ravalika D, International Research
Journal of Engineering and Technology (IRJET), 2019
[4] “Design of a 6GHz High-Gain Low Noise Amplifier”, Xusheng Tang, Fengyi Huang, Dawei Zhao.
