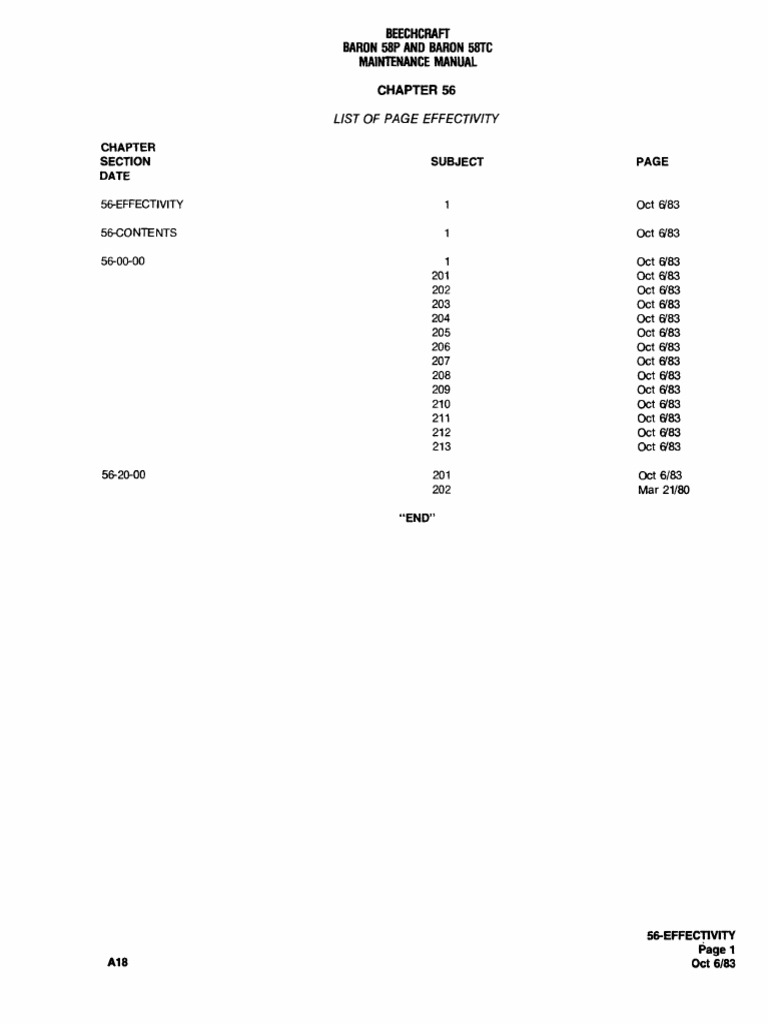

BEECHCRAFT

BARON 58P AND BARON 58TC

MAINTENANCE MANUAL
CHAPTER 56

LIST OF PAGE EFFECTIVITY

CHAPTER
SECTION SUBJECT PAGE
DATE

56-EFFECTIVITY Oct 6'83

56-CONTENTS 1 Oct 6'83

56-00-00 1 Oct 6'83

201 Oct 6'83
202 Oct 6'83
203 Oct 6'83
204 Oct 6'83
205 Oct 6'83
206 Oct 6'83
207 Oct 6'83
208 Oct 6'83
209 Oct 6'83
210 Oct 6'83
211 Oct 6'83
212 Oct 6'83
213 Oct 6'83

56-20-00 201 Oct 6/83

202 Mar 21/80

"END"

56-EFFECTIVITY
Page 1
A18 OCt 6/83
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL
CHAPTER 56 - WINDOWS

TABLE OF CONTENTS

CHAPTER
SECTION
SUBJECT SUBJECT PAGE

GENERAL 56-00-00
Description and Operation 1
Maintenance Practices 201
Cleaning Plastic Windows 201
Windshield Removal (TJ-3 and after) 201
Windshield Installation (TJ-3 and after) 201
Windshield Removal (TK-1 and after) 202
Windshield Installation (TK-1 and after) 202
LH Window Removal (TJ-3 and after) 202
LH Window Installation (TJ-3 and after) 202
Storm Window Latch Removal (TJ-3 and after) 203
Storm Window Latch Installation (TJ-3 and after) 203
Storm Window Hinge Removal (TJ-3 and after) 203
Storm Window Hinge Installation (TJ-3 and after) 203
LH Window Removal (TK-1 and after) 203
LH Window Installation (TK-1 and after) 203
Storm Window Removal (TK-1 and after) 204
Storm Window Installation (TK-1 and after) 204
Door Window Removal (TK-1 and after) 204
Door Window Installation (TK-1 and after) 204
Cabin Window Removal (TJ-3 and after) 204
Cabin Window Installation (Except Middle Left) 205
(TJ-3 and after)
Cabin Window Installation (Left Side Middle) 205
(TJ-3 and after)
Window Inspection Procedures 208
Window Repair-Scratch Removal 211

CABIN 56-20-00
Maintenance Practices 201
Cabin Window Removal (TJ-3 and after) 201
Cabin Window Installation (TJ-3 and after) 201
Second Window Removal (TK-1 and after) 201
Second Window Installation (TK-1 and after) 201
Third or Fourth Window Removal (TK-1 and after) 201
Third or Fourth Window Installation (TK-1 and after) 201

"END"

56-CONTENTS
Page 1
A18 OCt 6/83
 BEECHCRAFT
BARON 58P AND BARON 58fC
MAINTENANCE MANUAL

GENERAL - DESCRIPTION AND OPERATION
The windshield and windows for TJ-3 and after are
manufactured of tinted stretched-modified acrylic plastic.
The windows are secured with Hi-Lok fasteners spaced
evenly with a distance of .40 inch from the centerline of the
fasteners to the edge of the plastic. The plastic is stretched
before forming to a thickness of .250 inch for the windshield,
right and left front cockpit windows, and .195 inch for the I
remaining cabin windows.
The windshield for TK-1 and after is manufactured of clear
or tinted acrylic plastic of .250-inch thickness. The cabin
windows may also be clear or tinted and are .125-inch thick.
The windshield and windows are held in a frame which is
riveted in place by MS20470AD4 rivets

"END"

56-00-00
Page 1
A18 Oet6/83
 BEECHCRAFr
BARON 58P AND BARON 58fC
MAINTENANCE MANUAL
GENERAL - MAINTENANCE PRACTICES
CLEANING PLASTIC WINDOWS
The plastic windows should be kept clean and waxed at all
times. To prevent scratches and crazing, wash the windows
carefully with plenty of soap and water. Use the palm of the
hand to feel and dislodge dirt and mud. A soft cloth,
chamois or sponge may be used only for the purpose of
carrying water to the surface of the window. After washing,
rinse the window thoroughly with running water and dry it
with a clean, moist chamois. Do not rub the plastic window
with a dry cloth, because this will cause an electrostatic
charge which attracts dust.
Remove oil and grease with a cloth moistened with
kerosene, aliphatic naphtha or hexane, then rinse the
window with clear water.
CAUTION
Never use gasoline, bezene, alcohol, acetone,
carbon tetrachloride, fire extinguisher or anti-ice
fluid, lacquer thinner, or glass cleaner with a
base of these materials, for such materials will
soften the plastic and may cause crazing.
Aliphatic naphtha and similar solvents are highly
flammable and extreme care must be exercised
when using these chemicals.
If it is desirable to use a commerical cleaner to clean the
plastic windows, use only cleaners that are approved by
Beech Aircraft Corporation. There are several cleaners
available commercially that state that they are approved for
use on acrylic surfaces. However, it has been discovered
that some of these cleaners cause acrylic plastic to craze.
Therefore, only the following products are approved by
Beech as cleaners tor acrylic plastic windows: Federal
Specification P-P-560, Part No. 4030 (66, Chart 207,91-00-
00), Parks Anti-Static Plastic Polish (66, Chart 207, 91-00-
00) and Meguiar's MGH-10 (66, Chart 207, 91-00-00).
Follow the directions on the container.
After washing plastic windows with soap and water, wax
them with a good grade of commercial wax. The wax will fill
in minor scratches and help prevent further scratches. Apply
a thin, even coat of wax and bring it to a high polish by
rubbing lightly with a clean, dry, soft flannel doth. Never use
a power buffer, as the heat generated by the buffing pad
may soften the plastic.
A18
If the windows were cleaned with one of the three
commercial cleaners mentioned previously, it wifl not be
necessary to apply wax. Each of these cleaners contains
I
wax, as well as cleaning agents.
WINDSHIELD REMOVAL (TJ-3 and after)
a. Remove the molding inside the cabin to allow
access to the Hi-Lok fasteners.
b. Remove the Hi-Lok fasteners and remove the
windshield.
c. Remove the old sealer from the area of the
windshield frame with toluol (22, Chart 207, 91-00-00).
WINDSHIELD INSTALLATION (TJ-3 and after)
a. Clean the contact edges of the windshield with a
clean white cloth.
b. Clean the windshield frame with toluol (22, Chart
207, 91-00-00) to remove all the old sealer.
c. Apply PR1425 B-2 sealer (14, Chart 205, 91-00-00),
with a sealant roller (Warner, #222 or #30, Carl Graham
Co., Wichita, Kansas). Apply to a uniform thickness of
approximatety .007 inch to the windshield frame so that
compression of the windshield against the frame will
squeeze the sealer around the fasteners to the edge of the
metal.
d. CarefUlly fit the windshield into place and install a
new Hl18PB70-5-7 fastener with washer at each comer
(skin lap) and in the center install new HL18PB70-5-6
fasteners with washers to hold the windshield in that
position.
e. Install the remainder of the new Hl18PB70-5-6
fasteners and washers and draw the windshield down
evenly.
1. After the windshield is installed, wipe off the
excess filler. inside and out, with clean white rags.
NOTE
looking through the edge of the windshield,
ascertain that there are no voids in the sealant
as the fasteners are secured. If any voids are
evident, force additional sealant up into the area
and wipe away any excess with clean white
rags.
g. Reinstall the molding inside the cabin.
56-00-00
Page 201
Oet6/83
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINtENANCE MANUAl
NOTE
Allow a curing time of 24 hours before
pressurizing the cabin.
WINDSHIELD REMOVAL (TK-1 and after)
a. Remove the glareshield and outside air
temperature gage (if installed).
b. Remove the attaching screws from the defroster
duct and move the duct to clear the lower row of rivets on
the windshield.
c. Remove the screws and spacers from the
glareshield angles.
d. Remove the molding from around the inside of the
windshield.
e. To facilitate reinstallation, mark the location of the
molding clips.
f. Remove the rivets from around the windshield.
g. Remove the windshield. The one piece windshield
is removed by moving it to the left.
NOTE
Due to the windshield being sealed,
considerable effort may be required to break the
windshield loose from the canopy section.
WINDSHIELD INSTALLATlON (TK-1 and after)
a. Clean the sealer from the canopy section where
the old windshield was removed using naphtha (50, Chart
207, 91-00-00).
b. Trim the tooling tabs from the windshield, place
the windshield in position and mark the areas where
material must be removed from the windshield to obtain a
proper fit.
c. Remove the windshield and trim off excess
material as determined in step "b".
d. Place the windshield in position and cleeo in place
using the pilot holes provided.
e. Back drill the windshield frame using the existing
holes in the canopy section as a guide.
f. Remove the windshield, burr all holes and apply
RTV-108 sealant (51, Chart 207, 91-00-00) to the
windshield frame where it makes contact with the canopy
section.
g. Place the windshield in position and cleco in
place.
h. Using MS20470AD4 rivets, secure the windshield
to the canopy section.
56-00-00
Page202
Oct 6183
NOTE
When riveting the windshield in place, install the
molding clips in the same locations as marked
in step "e" of the windshield removal procedure.
i. Secure the glareshield angles in place with
attaching screws, nuts and spacers.
j. Position the defroster duct and secure in place
with the attaching screws.
k. Install the molding.
I. Install the glareshield and outside air temperature
gage (if removed).
m. Clean and paint as necessary.
LH WINDOW REMOVAL (TJ-3 and after)
a. Remove the molding around the window to allow
access to the Hi-Lok fasteners.
NOTE
New fasteners are required for installation,
however the washers can be retained and used
again.
b. Remove the Hi-Lok fasteners and remove the
window. Remove the old sealer with toluol (22, Chart 207,
91-00-00).
LH WINDOW INSTALLATION (TJ·3 and after)
All cabin windows are installed using Hi-Lok fasteners.
Predrilled replacement windows are available and only
minor preparation is necessary before installation.
NOTE
If blank windows are used for replacement
windows, the following procedures should be
used for drilling holes:
1. Place the window in position against the
skin (window should not contact any structure
along edges.)
2. Insert a drill guide in the existing holes in
the skin and drill No. 40 pilot holes thru the-
window.
3. Remove the window and, with special
ground bits (see Figure 201 in Chapter 56-20-
00) using the No. 40 pilot holes as a center, drill
A18
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL
halfway thru the window. Tum the window over
and finish drilling the holes from the opposite
side to prevent chipping of the window around
the edge of the holes.
Installation of pre-drilled windows may be accomplished as
follows·
a. Clean the edge of the window with a clean white
cloth.
l
b. Apply PR1425 B-2 sealer (14, Chart 205,91-00-00),
with a sealant roller (Warner, #222 or #30, Carl Graham
Co., Wichita, Kansas) to a uniform thickness of
approximately .007 inch.
c. Install the window using enough new HL18PB70·
5-5 fasteners spaced around the window to maintain
alignment while the nuts are being installed.
d. Install the new HL18PB70-5-5 fasteners. with a
washer under each nut. drawing the window down evenly all
around the frame.
NOTE
Looking through the window, ascertain that
there are no voids in the sealant as the
fasteners are secured.
A uniform pad of sealant JXJ7 inch thick will
assure a good seal. If the plastic is too thick. the
shanks of the fasteners may wobble in the holes
as the cabin is pressurized.
e. Clean off any excess sealant with clean white
rags and reinstall the molding.
STORM WINDOW LATCH REMOVAL (TJ-3 and
after)
a. Using an Allen wrench in the end of the latch
attaching bolts to prevent the bolts from turning. remove the
nuts from the bolts.
b. Remove the latch.
NOTE
Care should be taken not to damage the
attaching bolts or the plexiglass block to which
the hinge attaches. If either of these are
damaged beyond use. the entire window
assembly must be replaced.
A18
STORM WINDOW LA TCH INSTALLATION (TJ-3 and
after)
a. Position the latch on the storm window.
b. Using an Allen wrench in the end of the latch
attaching bolts to prevent the bolts from turning. install the
nuts on the bolts and secure.
STORM WINDOW HINGE REMOVAL (TJ-3 and
after)
a. Loosen the two set screws in the plexiglass hinge
block and punch the hinge pin out from one end.
b. Remove the hinge block.
NOTE
The hinge pin and the set screws are the only
replaceable parts in the hinge. If either hinge
block is damaged, the window assembly to
which it is attached must be replaced.
STORM WINDOW HINGE INSTALLATION (TJ-3 and
after)
a. Position the hinge block and install the hinge pin.
b. Secure the hinge pin and the set screws.
LH WINDOW REMOVAL (TK-t and after)
a. Remove the upholstery panels as required to gain
access to the window frame.
b. Remove the molding from around the inside of the
window.
c. Remove the rivets from around the window.
d. Remove the window.
LH WINDOW INSTALLATION (TK-1 and after)
a. Clean the sealer from the canopy section where
the old window was removed using naphtha (50. Chart 207,
91-00-00).
b. Place the window in position and mark the area
where material must be removed to obtain a proper fit
c. Remove the window and trim off the excess
material as determined in step "b" and check for proper fit.
d. Burr all holes and apply sealer (51. Chart 207, 91-
00-(0) to an area approximately 1/2 inch wide on the
canopy section where the old sealer was removed.
e. Place the window in position and c1eco in place.
t. Using MS20470AD4 rivets. secure the window to
the canopy section.
56-00-00
P898203
Oct 6183
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAlNlENANCE MANUAL
g. Install the molding.
h. If the new window does not have a storm window
installed and the storm window from the old window is to be
used, the following procedures are to be used.
1. Remove the storm window, hinges and latch
plate from the old window.
2. With the hinges still attached to the storm
window, fit the storm window to the new window.
3. Using the hinges as a guide, mark the new
window for drilling the hinge attachment holes.
4. Install the storm window and hinges.
5. Place the latch striker plate to the new
window so the latch will make proper contact to secure the
storm window closed and mark window for drilling the plate
attachment holes.
6. Install the striker plate.
NOTE
If air leaks around the storm window, replace
the storm window seal.
STORM WINDOW REMOVAL (TK-1 and after)
a. Remove the two internally threaded hinge pins.
b. Remove windOWS.
STORM WINDOW INSTALLA TlON (TK-1 and after)
a. Install window.
b. Install the two internally threaded hinge pins.
DOOR WINDOW REMOVAL (TK-1 and after)
a. Remove the inboard door handle, ash tray and
arm rest.
b. Remove the center upholstery panel.
c. Remove the molding around the inside of the
window.
d. To facilitate reinstallation, mark the location of the
molding clips.
e. Remove the rivets around the window.
f. Remove the window.
DOOR WINDOW INSTALLA TION (TK-1 and after)
a. Clean the sealer from the door where the old
window was removed using naphtha (50. Chart 207,91-00-
00).
b. Place the window in position and mark the areas
where material must be removed to obtain a proper fit.
56-00-00
Page 204
Oct 6/83
c. Remove the window and trim off excess material
as determined in step "b".
d. Place the window in position and cleco in place
using the two pilot holes on the aft side of the window
frame.
NOTE
To eliminate the possibility of the door being
warped, the door must be closed and latched
when drilling the attaching holes and securing
the window in place.
e. Back drill the window frame using the existing
holes in the doors as a guide.
f. Remove the window, burr all holes and apply
sealer, (51, Chart 207, 91.QO-OO) to an area approximately
1/2 inch wide on the door where the old sealer was
removed.
g. Place the window in position and cleco in place.
h. Using MS20470AD4 rivets. secure the window to
the door.
NOTE
When riveting the window in place, install the
molding clips in the same locations as marked
in step "d" of the window removal procedure.
i. Install the molding.
j. Clean the paint as necessary.
k. Reinstall the center upholstery panel.
I. Reinstall the inboard door handle, ash tray and
arm rest.
CABIN WINDOW REMOVAL (TJ-3 and after)
a. Remove the molding around the window to allow
access to the Hi-Lok fasteners.
NOTE
New Hi-Loks and collars (nuts) are required for
installation; however, the existing washers may
be acceptable for reuse.
b. Remove the Hi-Lok fasteners (see Figure 201)
and remove the strap, spacer and window.
A18
 BEECHCRAFT
BARON 58P AND BARON 58fC
MAINTENANCE MANUAL

entire window installation, be very careful with

NOTE the window pane. Do not allow tools, rings,
rough cloths or any other objects that might
Some earlier airplanes (prior to TJ-59) may not scratch the window to come into contact with
be equipped with a spacer and strap the window.

c. Remove the old sealer with toluol (22, Chart 207,
91-00-00)
CAUTION
Do not allow the toluol to contact any Plexiglas,
as it may cause the plastic to soften or craze.
CABIN WINDOW INSTALLA TION (EXCEPT MIDDLE
LEFT) (TJ-3 and after)
To facilitate installation of Hi-Lok fasteners, a power tool (Hi-
Lok HLA2030) may be used to drive the nuts. At the proper
torque, the hexagonal portion of the Hi-Lok nut will twist off,
leaving only a smooth ribbed nut. Window installation
instructions will provide information for proper shank length
by providing specific fastener part numbers. Different length
fasteners are required for different areas.
All cabin windows are installed using Hi-Lok fasteners. If the
replacement window does not have fastener holes already
drilled, the window must be drilled and installed according to
the procedures listed below. If the replacement window has
been pre-drilled, proceed to step "h." of this procedure.

NOTE a. Place the window in position against the skin. The

window should not contact any structure along the edges,
Middle cabin windows are located at fuselage and there should be equal edge ovelap around the
station 106. periphery of the window.
b. Have an assistant hold the window in this position
from inside the airplane.
c. Working outside the aircraft, insert a drill bushing
CAUTION (Beech Part No. 102-5004-0406) in the existing holes in the
skin at each comer of the window. Drill four No. 40 pilot
Plexiglas scratches very easily. During the holes through the window at each corner.

Al1.EN WRENCH

PLIERSOR VISE GRIPS --+--1--"1----1

Removing Hi-Lok Fasteners

Agure 201

5~
Page 205
A18 OCt6183
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL
d. Remove the window. Using the No. 40 pilot holes
as a center, drill half way through the window with a 102-
5004-0701-1 (Beech part number) drill bit or with a special
#10 drill bit fabricated according to the dimensions shown in
Figure 202. Turn the window over and finish drilling the
holes from the opposite side. Following this procedure will
help prevent chipping of the window around the holes.
CAUTION
Use extreme care in drilling the Plexiglas
windows. Do not force the drill bit, as the
window may crack or chip.
e. Install the window using temporary fasteners in
the four holes just drilled.
f. Using the drill bushing in the existing holes in the
skin, drill No. 40 pilot holes in the remainder of the window.
g. Remove the window. Use one of the drill bits
specified in step "d." to drill half way through the window.
Turn the window over and finish drilling the holes from the
opposite side. Do not force the drill bit.
NOTE
Before installing the window, burr all fastener
holes.
h. Clean the edge of the window with a clean, soft
flannel cloth.
i. Apply PR1425B-2 sealer (14, Chart 205,91-00-00)
with a sealant roller (Warner #222 or #30, Carl Graham Co.,
Wichita, Kansas) to a uniform thickness of approximately
.007 inch. The sealer can be applied to either the window or
the fuselage skin.
j. Install the window using enough new HL1BPB70-
5-5 fasteners (HL 1BPB7D-S-6 fasteners on the middle right
side cabin window) spaced around the window to maintain
alignment while the nuts are being installed.
NOTE
New Hi-Loks and collars (nuts) are required for
installation; however, the existing washers may
be acceptable for reuse.
k. Using a washer under each nut, install the new
fasteners. Draw the window down evenly all the way
around.
SfHJO.OO
Page 206
Oct 6/83
NOTE
As the fasteners are tightened, be sure that
there are no voids in the sealer. A uniform pad
of sealer .007-inch thick will assure a good seal.
If the sealer is too thick, the shanks of the
fasteners may wobble in the holes as the cabin
is being pressurized.
l. Clean off any excess sealer with soft, clean white
rags and reinstall the molding around the window.
CABIN WINDOW INSTALLA TlON (LEFT SIDE
MIDDLE) (TJ-3 and after)
NOTE
Middle cabin windows are located at fuselage
station 106.
CAUTION
Plexiglas scratches very easily. During t~e
entire window installation, be very careful With
the window pane. Do not allow tools, rings,
rough cloths or any other objects that mi~ht
scratch the window to come into contact with
the window.
To facilitate installation of Hi-Lok fasteners, a power tool (Hi-
Lok HLA2030) may be used to drive the nuts. At the proper
torque, the hexagonal portion of the Hi-Lok nut will twist off,
leaving only a smooth ribbed nut. HL18PB70-S-6 Hi-Lok
fasteners are used to install the middle left side cabin
window. If the replacement window does not have fastener
holes already drilled, the window must be drilled and
installed according to the procedures listed below. If the
replacement window has been pre-drilled, proceed to step
"h." of this procedure.
a. Place the window in position against the skin. The
window should not contact any structure along the ~ges,
and there should be equal edge overlap around the
periphery of the window.
b. Have an assistant hold the window in this position
from inside the airplane.
A18
 BEECHCRAFr
BARON 58P AND BARON 5SfC
MAINTENANCE MANUAL

\:!--/
1° NEGATIVE RAKE \/

L
(03 FLAT WIDTH) - -.........

L 5° CLEARANCE

NO. 10 STOVE BURNER

Jr+---- TYPE BIT (NO FLUTE
RELIEF)

JOBBER FLUTE LENGTH & JOBBER

LENGTH OVERALL

+ 0000
DRILL DIAMETER TOLERANCE = _ 0005

TOTAL INDICATED RUNOUT = 0002

SSP 1727

Fabrication of Drill Bit for Acrylic Plastic

Figure 202

c. Working outside the aircraft, insert a 102-5004-
0406 drill bushing (included in the 102-4008-1 or -3 left side
middle cabin window installation kit) in the existing holes in
the skin at the four locations indicated in Figure 203. Drill
No. 40 pilot holes through the window with the 102-5004-
0701 drill bit which is included in the kit.
d. Remove the window. Using the No. 40 pilot holes
as a center, use the 102-5004-0701-1 drill bit or a special
# 10 drill bit fabricated according to the dimensions shown in
Figure 202 to drill half way through the window. Turn the
window over and finish drilling the holes from the opposite
side. Following this procedure will help prevent chipping of
the window around the holes.
1. Using the drill bushing in the existing holes in the
skin, drill No. 40 pilot holes in the remainder of the window.
g. Remove the window. Use one of the drill bits
specified in step "d." to drill half way through the window.
Tum the window over and finish drilling the holes from the
opposite side. Do not force the drill bit.
h. On airplanes that did not have a spacer and strap
installed on the upper and aft portion of the window, insert a
piece of metal (preferably stainless steel) between the
fuselage skin and the upper longeron flange around the aft
upper window opening. Trim off the flange of the upper
longeron to allow for installation of the appropriate spacer
(see Figure 204).

CAUTION
Use extreme care in drilling the Plexiglas
windows. Do not force the drill bit, as the
window may crack or chip.
NOTE
The stainless steel between the skin and the
longeron flange must be used to prevent
damaging the skin while trimming the-Iongeron
flange.

e. Install the window using temporary fasteners in i, Install the window with the four temporary
the four holes just drilled. fasteners located in the positions indicated in Figure 203.

~
Page 207
A18 Oet6183
 BEECHCRAFT
BARON SSP AND BARON 58TC
MAINTENANCE MANUAL
j. Place the new spacer in it's installed position near
the edge of the window pane (see Figure 203). Be sure to
maintain .09-inch clearance between the edge of the
window pane and the edge of the spacer (see Figure 205).
k. On airplanes that did not have a strap and spacer
installed, drill .164/.16B-inch holes through each end of the
spacer and the middle of the spacer. Drill the holes from the
inside through the spacer and the fuselage skin. Position
the holes midway between the existing window fastener
holes (see Figure 203). Hold the spacer in position by
installing temporary fasteners in the three holes just drilled.
Drill the remaining ten holes in the spacer and fuselage
skin. Position the holes as indicated in Figures 203 and 205.
CAUTION
When drilling holes in the fuselage skin for
attachment of the spacer, be sure to maintain
adequate edge distance for all fasteners. Refer
to Figure 205 for proper distance between
eXisting window fastener holes and those holes
to be drilled for spacer fasteners.
NOTE
On airplanes that did have a spacer and strap
installed, drill and secure the spacer as directed
in step "k.": however, the holes should be drilled
from the outside, using the existing fastener
holes as a guide.
I. After drilling the holes in the spacer, adjust the
temporary fasteners so that they will continue to hold the
spacer to the fuselage skin but will not protrude through the
spacer.
m. Place the new strap in it's installed position
covering the spacer and the edge of the window. Align the
lower and forward edges of the strap with the lower and
forward edges of the doubler which is bonded to the
window.
n. Have an assistant hold the strap in the proper
position. Working from the outside, use the eXisting fastener
holes as a guide and drill 10 .164/.168-inch diameter holes
in the area where the fasteners hold the spacer and strap to
the fuselage skin. Secure the spacer and strap in position
by installing three more temporary fasteners. Remove the
temporary fasteners that were previously installed and drill
the strap at these three locations.
56-00-00
Page 208
Oct 6/83
o. Use the existinq fastener holes as a guide, drill 16
.164/.16B-inch diameter holes in the area where the
fasteners hold the window and the strap to the fuselage
skin.
p. Remove the window and strap. Clean the edge of
the window with a clean, soft flannel cloth. Leave the spacer
installed on the fuselage skin.
NOTE
Before final installation of the window, burr all
holes.
q. Apply PR1425 B-2 sealer (14, Chart 205,91-00-00)
with a sealant roller (Warner #222 or #30, Carl Graham Co.,
Wichita, Kansas) to a uniform thickness of approximately
.007 inch. The sealer can be applied to either the window or
the fuselage skin. Do not apply sealer to the spacer or strap.
r. Install the window with the four temporary
fasteners located in the positions indicated in Figure 203.
s. Install the strap with temporary fasteners.
t. Using a washer under each nut, install new
HL18PB70-5-6 fasteners. Draw the window down evenly all
the way around. After new fasteners have been installed in
open holes, remove the temporary fasteners and replace
them with new HL18PB70-5-6 fasteners.
NOTE
New Hi-Loks and collars (nuts) are required for
installation; however, the existing washers may
be acceptable for reuse. As the fasteners are
tightened, be sure that there are no voids in the
sealer. A uniform pad of sealer .D07-inch thick
will assure a good seal. If the sealer is too thick,
the shanks of the fasteners may wobble in the
holes as the cabin is pressurized.
u. Clean off any excess sealer with clean white rags
and reinstall the molding around the window.
WINDOW INSPECTION PROCEDURES
TK-1 AND AFTER
Inspect windows for scratches, crazing, fissures and general
condition.
A18
 BEECHCRAFT
BARON 58P AND BARON 58fC
MAINTENANCE MANUAL

CABIN HEADLINER------..,
UPPER LONGERON - - - . ' >

______ 0 o 0

~O
SPACER
STRAP
0

0
10
0 0
-AFT
0 0
0
0
0

~LJ2...!----- HI-LOK FASTENERS

INTERIOR VIEW

o DRILL THESE LOCATIONS FOR

TEMPORARY INSTALLATION
OF WINDOW

• DRILL THESE LOCATIONS FOR

TEMPORARY INSTALLATION
OF SPACER
SPACER

o I
I I
t+ ~I
I AFT-
r+ +1
I
I
\+
\ EXTERIOR VIEW
+1 ,
.,.1
\~
I
\ ,)(.... )(
'/
/

~",/'

FUSELAGE STATION 106.25 58P-llo-31

Left Side Middle cabin Window Installation

Figure 203

56-00-00
Page 209
OCt6183
A18
 BEECHCRAFf
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL

TRIM FLANGE OF CANOPY LONGERON

TO CLEAR STRAP

LONGERON

:..=~
...'

SKIN 58P-110-30

Trim Range of Longeron

Figure 204

TJ-3 AND AFTER CAUTION

Perform the following inspection at each annual inspection
or at intervals of 300 hours. whichever comes first:
NOTE
The window inspection described in the
If window replacement is required and cannot
be accomplished prior to the next flight of the
airplane, a placard which states
"PRESURIZATION FLIGHT PROHIBITED"
must be installed next to the pressurization
system controls. Only unpressurized flight can
be permitted until affected windows are

following steps should be accomplished with the
airplane in a darkened area. preferably at night.
A good lighting source should be used with the
light moved at various angles around the entire
area of each window. Figure 206 illustrates an
example of light placement.
a. Remove the window moldings and the inner
windows if installed.
b. Inspect the windshield. cockpit side windows and
all cabin windows. Using a low power (3x to 5x) magnifying
glass, look through the window at various angles. Carefully
inspect the areas around the Hi·Lok mounting fasteners for
cracks. scratches, crazing and fissures (see Figure 206 and
Figure 207).
c. Windows with any crack must be replaced.
Replacement is described in this chapter.
I
replaced.
d. Inspect the Hi-Lok mounting fasteners for proper
installation. Check specifically for: 1) perpendicularity to the
surface of the window with no gaps under the head or
locking collar and 2) loose washers. If improperly installed
fasteners are found. replace them.
Acrylic plastic windows that have minor scratches (such as
those caused by rubbing of clothing against the window.
grit, dust cloths or sponges) need not be replaced. These
scratches can be polished out by following the procedures
in WINDOW REPAIR - SCRATCH REMOVAL in this
chapter.

56-00-00
Page 210
0CI6/83 A18
 BEECHCRAfT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL

69-INCH CLEARANCE BETWEEN

FASTENER HOLES ON TJ-3 THRU
TJ-S6, EXCEPT TJ-20, TJ-46. TJ-48
AND TJ-55
72·INCH CLEARANCE BETWEEN
FASTENER HOLES ON TJ-48, TJ·57
AND TJ-58

WINDOW

SPACER

MAINTAIN 09·INCH CLEARANCE

BETWEEN EDGE OF SPACER AND
EDGE OF WINDOW

58p·110·29

Spacer and Fastener Positioning

Figure 205

WINDOW REPAIR - SCRATCH REMOVAL must be replaced. Do not attempt to repair this
type of damage.

Minor crazing or scratches may be safely removed from the

CAUTION
Windows which have been damaged by paint
thinner, paint remover or other softening agents
outer pane without weakening the window structurally. Such
scratches should be polished out using products available
from Micro-Mesh Cushioned Abrasives (65, Chart 207, 91-
00-00) or Polysand Cushioned Abrasives (65, Chart 207,
91-00-00).

56-00-00
Page 211
A18 OCt6183
 BEECHCRAFT
BARON SSP AND BARON 58TC
MAINTENANCE MANUAL

VIEW
~LAMP
A-A VIEW LOOKING DOWN

VIEW
VIEW

LAMP ---..a
VIEW VIEW/

LOOKING INTO SIDE

OF FUSELAGE
FUSELAGE SKIN VIEW B-B

Viewing Angles and Light Placement for Window Inspection

Figure 206

56-00-00
Page 212
Oct 6/83 A18
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL

Example of Crazing
Figure 207

"END"

56-00-00
Page 213
A18 Oct 6183
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL
CABIN - MAINTENANCE PRACTICES
CABIN WINDOW REMOVAL (TJ-3 and after)
a. Remove the molding around the window to allow
access to the Hi-Lok fasteners.
NOTE
New fasteners are required for installation,
however the washers can be retained and
used again.
b. Remove the Hi-Lok fasteners and remove the
window. Remove the old sealer with toluol (22, Chart 207,
91-00-00).
CABIN WINDOW INSTALLATION (TJ-3 and after)
All cabin windows are installed using Hi-Lok fasteners. Pre-
drilled replacement windows are available and only minor
preparation is necessary before installation.
NOTE
If blank windows are used for replacement
windows, the following procedures should be
used for drilling holes:
1. Place the window in position against the
skin (window should not contact any structure
along edges.)
2. Insert a drill guide in the existing holes in
the skin and drill No. 40 pilot holes thru the
window.
3. Remove the window and with special
ground bits (see Rgure 201), using the No. 40
pilot holes as a center, drill halfway thru the
window. Turn the window over and finish
drilling the holes from the opposite side to
prevent chipping of the window around the
edge of the holes.
Installation of pre-drilled windows may be accomplished as
follows:
a. Clean the edge of the window with a clean white
cloth.
l
b. Apply PR1425 B-2 sealer (14, Chart 205, 91-00-00),
with a sealant roller (Warner, #222 or #30, Car! Graham
Co., Wichita, Kansas) to a uniform thickness of
approximately .007 inch.
A18
c. Install the window using enough new HL18PB70-
5-5 fasteners spaced around the window to maintain
alignment while the nuts are being installed.
d. Install the new HL18PB70-5-5 fasteners, with a
washer under each nut, drawing the window down evenly
all around the frame.
NOTE
Looking through the window, ascertain that
there are no voids in the sealant as the
fasteners are secured.
A uniform pad of sealant .007 inch thick will
assure a good seal. If the plastic is too thick,
the shanks of the fasteners may wobble in the
holes, as the cabin is pressurized.
e. Clean off any excess sealant with clean white
rags and reinstall the molding.
SECOND WINDOW REMOVAL (TK-1 and after)
a. Remove the emergency release pin.
b. Remove the hinge pin.
c. Remove the window.
SECOND WINDOW INSTALLA TlON (TK-1 and after)
a. Install window.
b. Install hinge pin.
c. Secure emergency release pin.
THIRD OR FOURTH WINDOW REMOVAL (TK-1
and after)
a. Remove the upholstery panels as required to
gain access to the window frame.
b. Remove the molding from around the inside of
the window.
c. To facilitate reinstallation, mark the location of
the molding clips.
d. Remove the rivets from around the window.
e. Remove the window.
THIRD OR FOURTH WINDOW INSTAliA TlON (TK-
1 and after)
a. Clean the sealer from the cabin section where
the window was removed using naphtha (50, Chart 207,
91-00-00).
56-20-00
Page 201
Oct 6/83
 BEECHCRAFT
BARON 58P AND BARON 58TC
MAINTENANCE MANUAL

b. Place the window in position and mark the areas the cabin section.
where material must be removed to obtain a proper fit.
c. Remove the window and trim off the excess
material as determined in step "b". NOTE
d. Place the window in position and cleco in place
using the pilot holes provided. When riveting the window in place, install the
e. Back drill the window frame using the existing molding clips in the same location as described
holes in the back section as a guide in step "c" of the window removal procedure.
f. Remove the window, burr all holes and apply
sealer (51, Chart 207, 91-00-00) to an area approximately
1/2 inch wide on the canopy section where the old sealer h. Install the molding.
was removed. i. Clean and paint as necessary.
g. Using MS20470AD4 rivets, secure the window to j. Reinstall the upholstery panels.

1° NEGATIVE RAKE
(.03 FLAT WIDTH) ---.

5° CLEARANCE

1 - . - - - STOVE BURNER TYPE BIT

(NO FLUTE RELIEF)

JOBBER FLUTE LENGTH & JOBBER

LENGTH OVERALL

DRILL DIAMETER TOLERANCE = ~:=

TOTAL INDICATED RUNOUT = .0002

ssp. 17·27

Acrylic Plastic Drill Bit Fabrication

Figure 201

"END"

56-20-00
Page 202
Mar 21/80
