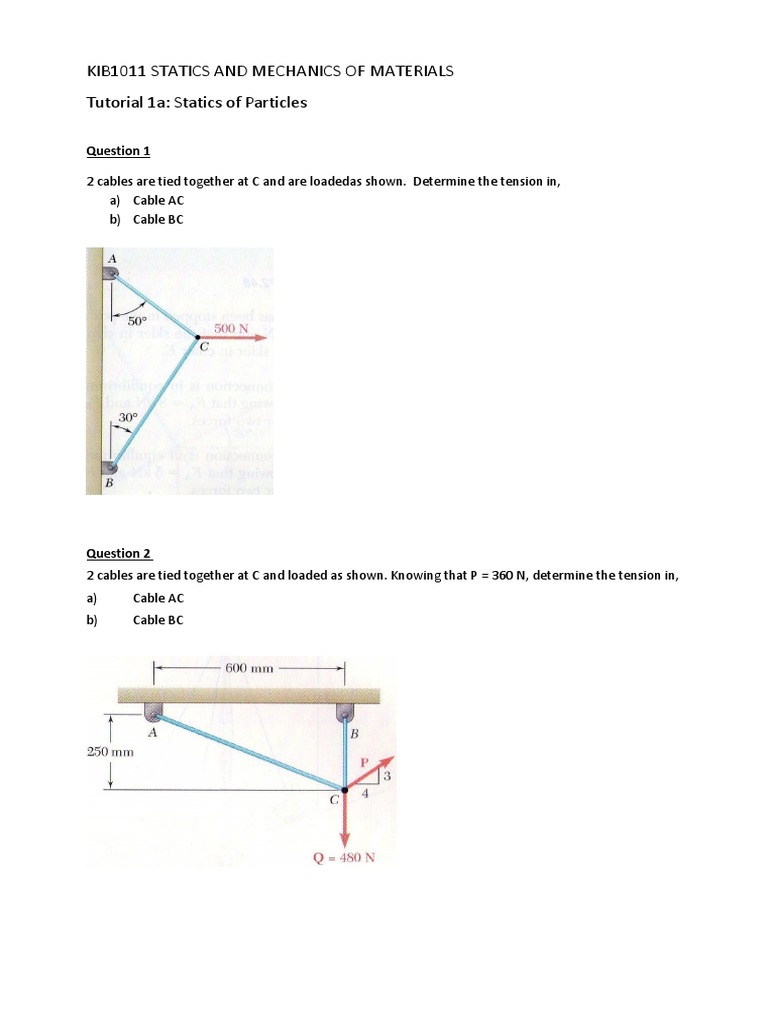

Question 1
2 cables are tied together at C and are loadedas shown. Determine the tension in,
a) Cable AC
b) Cable BC
Question 2
2 cables are tied together at C and loaded as shown. Knowing that P = 360 N, determine the tension in,
a) Cable AC
b) Cable BC
Tutorial 1b: Equilibrium of Rigid Body
Question 1
Determine the reactions at A and B when h =
200 mm. (586N, 520N)
Question 4
Neglecting friction, determine the tension in
cable ABD and the reaction at support C.
Question 2 (90N, 100.6N, 26.6°)
Question 5
Knowing that the tension in wire BD is 1.35
kN, determine the reaction at fixed support C
for the frame shown.(2047.3N, 88.1°, 81.5Nm)
Question 3
Beam AD carries the two 180 N loads shown.
The beam is held by a fixed support at D and
by the cable BE which is attached to the
counter-weight W. Determine the reaction at D
when
(a) W = 450 N,
(b) W = 400 N.(90N, 27Nm, 40N, 48Nm)
