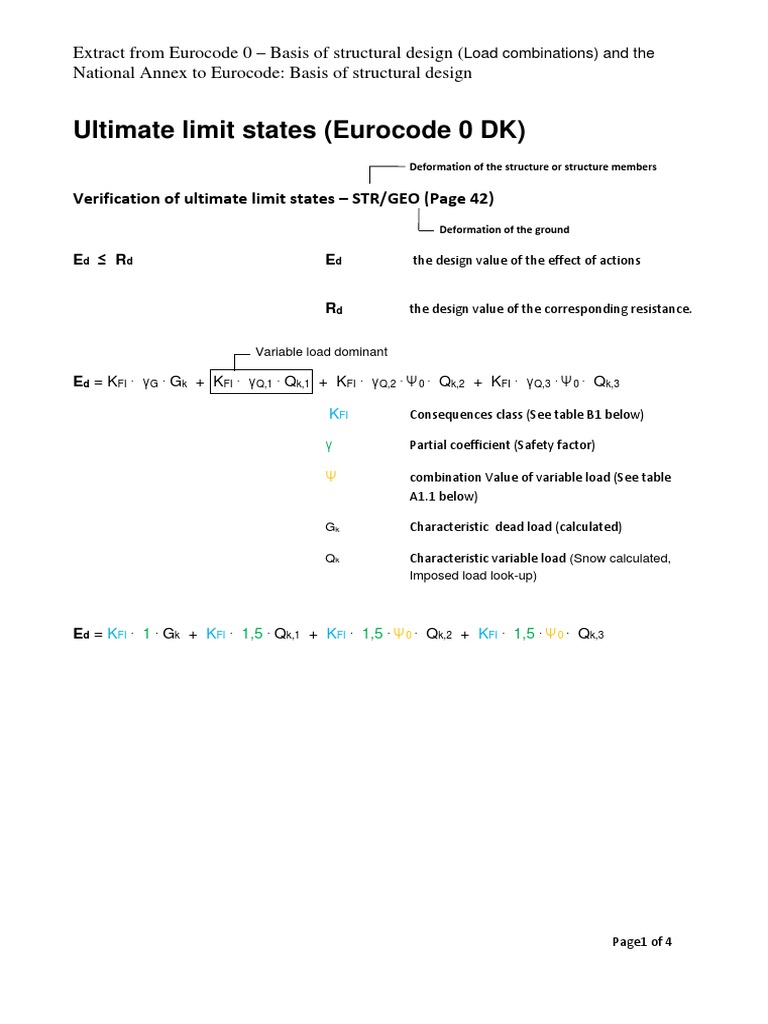

    Extract from Eurocode 0 – Basis of structural design (Load combinations) and the

    National Annex to Eurocode: Basis of structural design

    Ultimate limit states (Eurocode 0 DK)


    Deformation of the structure or structure members

    Verification of ultimate limit states – STR/GEO (Page 42)


    Deformation of the ground

    Ed ≤ Rd Ed the design value of the effect of actions

    Rd the design value of the corresponding resistance.

    Variable load dominant

    Ed = KFI . γG . Gk + KFI . γQ,1 . Qk,1 + KFI . γQ,2 . Ψ0 . Qk,2 + KFI . γQ,3 . Ψ0 . Qk,3

    KFI Consequences class (See table B1 below)

    γ Partial coefficient (Safety factor)

    Ψ combination Value of variable load (See table


    A1.1 below)

    Gk Characteristic dead load (calculated)

    Qk Characteristic variable load (Snow calculated,


    Imposed load look-up)

    Ed = KFI . 1 . Gk + KFI . 1,5 . Qk,1 + KFI . 1,5 . Ψ0 . Qk,2 + KFI . 1,5 . Ψ0 . Qk,3

    Page1 of 4
    Extract from Eurocode 0 – Basis of structural design (Load combinations) and the
    National Annex to Eurocode: Basis of structural design

    From National Annex to Eurocode 0: Basis of structural design, page5

    Page2 of 4
    Extract from Eurocode 0 – Basis of structural design (Load combinations) and the
    National Annex to Eurocode: Basis of structural design

    Page3 of 4
    Extract from Eurocode 0 – Basis of structural design (Load combinations) and the
    National Annex to Eurocode: Basis of structural design

    Page4 of 4
