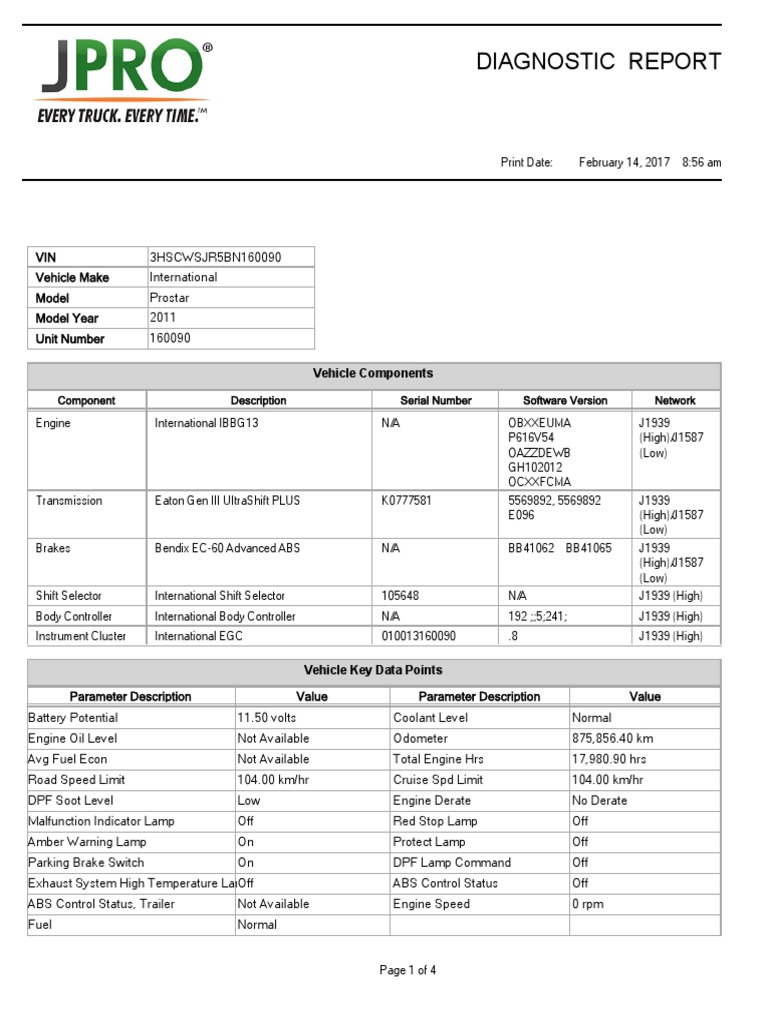

DIAGNOSTIC REPORT

Print Date: February 14, 2017 8:56 am

VIN 3HSCWSJR5BN160090
Vehicle Make International
Model Prostar
Model Year 2011
Unit Number 160090

Vehicle Components

Component Description Serial Number Software Version Network

Engine International IBBG13 N/A OBXXEUMA J1939

P616V54 (High)/J1587
OAZZDEWB (Low)
GH102012
OCXXFCMA
Transmission Eaton Gen III UltraShift PLUS K0777581 5569892, 5569892 J1939
E096 (High)/J1587
(Low)
Brakes Bendix EC-60 Advanced ABS N/A BB41062 BB41065 J1939
(High)/J1587
(Low)
Shift Selector International Shift Selector 105648 N/A J1939 (High)
Body Controller International Body Controller N/A 192 ;;5;241; J1939 (High)
Instrument Cluster International EGC 010013160090 .8 J1939 (High)

Vehicle Key Data Points

Parameter Description Value Parameter Description Value

Battery Potential 11.50 volts Coolant Level Normal
Engine Oil Level Not Available Odometer 875,856.40 km
Avg Fuel Econ Not Available Total Engine Hrs 17,980.90 hrs
Road Speed Limit 104.00 km/hr Cruise Spd Limit 104.00 km/hr
DPF Soot Level Low Engine Derate No Derate
Malfunction Indicator Lamp Off Red Stop Lamp Off
Amber Warning Lamp On Protect Lamp Off
Parking Brake Switch On DPF Lamp Command Off
Exhaust System High Temperature Lamp
Off Command ABS Control Status Off
ABS Control Status, Trailer Not Available Engine Speed 0 rpm
Fuel Normal

Page 1 of 4
 DIAGNOSTIC REPORT

Print Date: February 14, 2017 8:56 am

Vehicle Issues

4 Active Fault(s) Present

Faults

Status Component Description Lookup Code FMI Count

Active Body Controller Rear Heating Ventilation/Air Conditioning (HVAC) data SPN 2058 14 6
link communication failure. Faulty rear HVAC or body
builder data link
Active Body Controller Switch 6-Pack #1 data link communication failure. Faulty SPN 520461 9 2
switch pack #1 or switch data link.
Active Body Controller Switch 6-Pack #2 data link communication failure. Faulty SPN 520462 9 2
switch pack #2 or switch data link.
Inactive Body Controller Cruise Control Switch reading above normal range. SPN 596 0 6
Short to high or open in cruise control switches circuit.
Inactive Body Controller Brake Switch Inputs Do Not Match. High resistance in SPN 597 2 6
the wire harness defective brake switch, or a defective
Body Controller or defective ABS controller or Data link.
Inactive Body Controller J1708 (J1587) Switch Data Link Lost. Faulty Body SPN 608 9 1
Controller (BC) or Switch Data Link
Inactive Body Controller Heating Ventilation/Air Conditioning (HVAC) Compressor SPN 876 5 126
Clutch Engagement Undercurrent. Open in HVAC AC
Compressor Clutch Circuit
Inactive Body Controller Heating Ventilation/Air Conditioning (HVAC) inlet temp SPN 1547 0 4
sensor reading above normal range. HVAC refrigerant
inlet temperature sensor shorted high or open circuit or
faulty sensor system.
Inactive Body Controller Rear Heating Ventilation/Air Conditioning (HVAC) data SPN 2058 9 6
link communication failure. Faulty rear HVAC or body
builder data link
Inactive Body Controller Work Light Over current. Short to ground or overload in SPN 2362 6 109
work light circuit
Inactive Body Controller Fog Light Switch Error. Faulty switch actuator or SPN 2387 2 46
microswitch for fog lights switch
Inactive Body Controller Right Fog Light Undercurrent. Open right fog light circuit SPN 4008 5 32

Inactive Body Controller Left High Beam Open Circuit. Open in left high beam SPN 4011 5 1
circuit.
Inactive Body Controller Wiper Motor Over current. Short to ground or overload in SPN 4057 6 2
wiper motor circuit.
Inactive Body Controller Left Fog Light Undercurrent. Open in left fog light circuit. SPN 520750 5 11

Page 2 of 4
 DIAGNOSTIC REPORT

Print Date: February 14, 2017 8:56 am

Status Component Description Lookup Code FMI Count

Inactive Body Controller Unexpected switch in switchpack 2 (MID 7) position 6 SPN 520857 13 1
from left (Switch 6 of 6). Switch actuator installed or bad
microswitch in location configured as empty.
Inactive Brakes SA Right WSS Open or Shorted (Flash Code 3-3) SID 2 2 17

Inactive Brakes DA Left WSS Loss of Sensor Signal (Flash Code 4-4) SID 3 10 1

Inactive Brakes Stop Lamp Switch Defective (Flash Code 12-2) SID 55 2 1

Inactive Brakes PMV Common Shorted to Ground (Flash Code 12-7) SID 93 4 2

Inactive Brakes J1939 Engine Communications -OR- J1939 Invalid Data SID 231 2 52
(Engine/Retarder) -OR- J1939 Supply Pressure -OR-
J1939 ESP Messages Invalid Data -OR- Invalid Data
From Transmission -OR- Timeout or invalid data on
ETC7/VP15 (for HSA function) -OR- Timeout or invalid
data on XBR -OR- J1939 HSA switch error or unavailable
-OR- Timeout or Invalid data for ESP AWD operation
(Flash Code 11-10 or 11-12 or 11-13 or 11-3 or 11-4 or
11-5 or 11-6 or 11-7 or 11-8)
Inactive Brakes J1939 Retarder (Flash Code 11-2) SID 231 14 64

Active Engine Intake Throttle Valve (ITV) no input signal (Flash Code SPN 51 5 63
1297)
Inactive Engine Manifold Absolute Pressure (MAP) signal out-of-range SPN 102 4 47
LOW (Flash Code 1122)
Inactive Engine Engine Coolant Temperature (ECT) value reached SPN 110 14 3
de-rate temperature (Flash Code 2325)
Inactive Engine Engine Coolant Level (ECL)l below warning/critical level SPN 111 1 7
(Flash Code 2323)
Inactive Engine Lambda (O2) sensor not detected in exhaust system SPN 1119 12 8
(Flash Code 1629)
Inactive Engine Intake Air Temperature 2 (IAT2) signal out-of-range SPN 1131 3 104
HIGH (Flash Code 1159)
Inactive Engine Fuel Pressure Controller output high at low idle (Flash SPN 8352 1 1
Code 2245)
Inactive Instrument Cluster Loss of data link from Engine Controller - Abnormal SPN 2000 9 30
update rate. Faulty ECM or drivetrain data link.
Inactive Shift Selector SAE - Transmission Secondary Shift Up Selector - SPN 3655 3 1
Voltage above normal or shorted to high source
Inactive Transmission Power Down In Gear (Flash Code 75) SID 60 14 22

Inactive Transmission J-1939 Engine Message (Flash Code 36) SID 231 14 2

Inactive Transmission Power Down In Gear (Flash Code 75) SPN 560 14 22

Page 3 of 4
 DIAGNOSTIC REPORT

Print Date: February 14, 2017 8:56 am

Status Component Description Lookup Code FMI Count

Inactive Transmission J-1939 Engine Message (Flash Code 36) SPN 639 14 2

Page 4 of 4
