Centrimaster GT-1: Direct Driven, Single Inlet Centrifugal Fans Technical Data

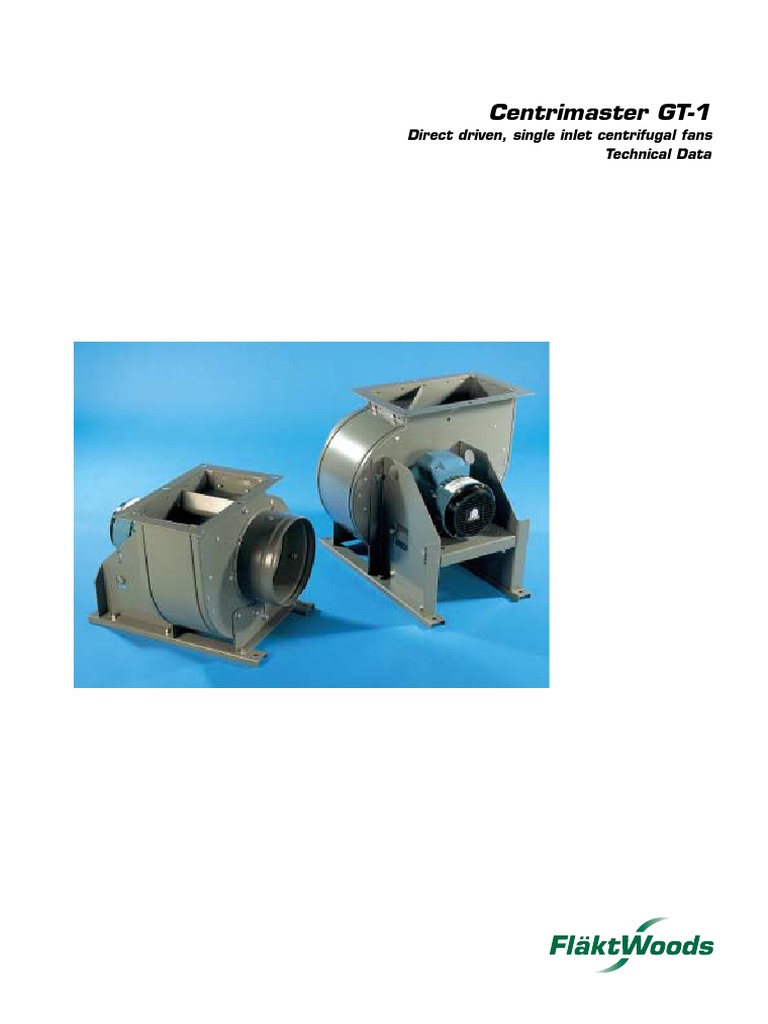

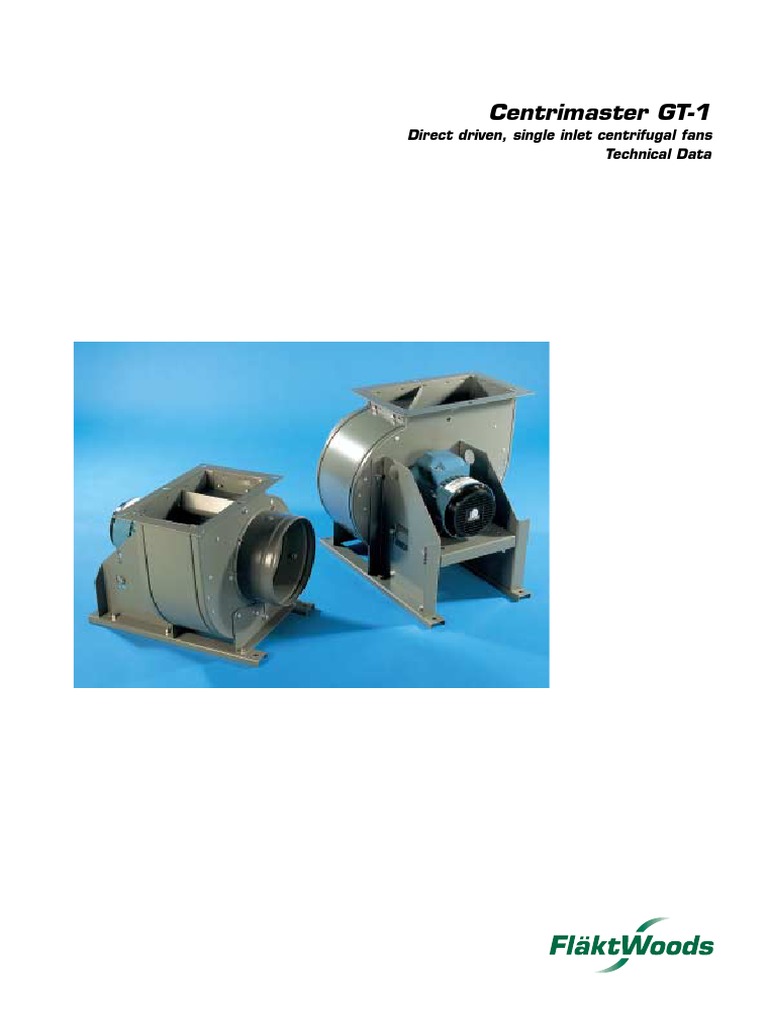

Centrimaster GT-1
Direct driven, single inlet centrifugal fans

Technical Data
Centrimaster GT-1 CATALOGUE
Contents
Contents ...................................................................3
Direct driven, Single-inlet Centrifugal Fans ...........4
Versions..............................................................5
General Survey Charts .............................................6
Design
Fan casing ..........................................................7
Fan inlet.............................................................7
Impellers ............................................................7
Materials and Finish, Motor ....................................8
Tolerances and Quality ............................................8
Specification Text
GTLF.................................................................9
GTLB ..............................................................10
Fan Charts – Explanation......................................11
Acoustic Data – Explanation ............................12-13
Dimensions and Weights, Motor Data, Fan Charts,
Acoustic Data
GTLF-1-020 ...............................................14-15
GTLF-1-022 ...............................................16-17
GTLB-1-022 .............................................18-19
GTLF-1-025 ...............................................20-21
GTLB-1-025...............................................22-23
GTLF-1-028 ...............................................24-25
GTLB-1-028 .............................................26-27
GTLF-1-031 ...............................................28-29
GTLB-1-031 .............................................30-31
GTLF-1-035 ...............................................32-33
GTLB-1-035 .............................................34-35
GTLF-1-040 ...............................................36-37
GTLB-1-040 .............................................38-39
GTLF-1-045 ...............................................40-41
GTLB-1-045 .............................................42-43
GTLF-1-050 ...............................................44-45
GTLB-1-050...............................................46-47
GTLB-1-056...............................................48-49
GTLB-1-063...............................................50-51
GTLB-1-071...............................................52-53
Accessories
Flexible connections, inlet................................54
Protective screen, inlet .....................................54
Flexible connections, outlet..............................55
Protective screen, outlet ...................................55
Counterflange, outlet .......................................55
Inspection cover ...............................................56
Drain ...............................................................56
Anti-vibration mountings .................................56
Flow measurement device.................................57
Painted finish...................................................58
Ordering codes..................................................59-60
Fläkt Woods Oy FIFLO 4469 GB 02.12 3 Specifications are subject to alteration without notice
Direct-driven, Single-inlet Centrifugal Fans
The type GT CENTRIMASTER direct driven, single-

inlet centrifugal fans cover air flows up to 7 m3/s and
pressure rises up to 2.000 Pa. The fan series consists
of centrifugal fans available with two types of impel-
ler:
– Impeller with forward-curved blades for the GTLF
fans.
– Impeller with backward-curved blades for the
GTLB fans.
Versions
Besides the normal version, the fans are also available
in a spark-proof version. The smoke extraction version
of GT has been tested by the French CTICM institu-
te and by the Russian VNIIPO institute.
CTICM has tested the fans for +400 °C, 2 hours and
the tests cover GTLB-1-025–071 as well as GTLF-1-
031–050. VNIIPO has tested the fans for +400 °C, 2
hours and for +600 °C, 1 hour and the tests cover all
single inlet GT-fans.
The fans in the spark-proof version conform to the

provisions of German Standard VDMA 24 169 3.1 –
3.2 and 3.4.
The inlet cone is made of brass and in the GTLF fans
the inlet is fitted with a brass band.
The single-inlet fans are rated for continuous opera-

tion at temperatures up to +80 °C if the inlet of the
fan is connected to the ducting. If the motor is expo-
sed to the air stream, i.e. on afree inlet fan, the ambi-
ent temperature must not exceed +40 °C. Motors for
higher temperatures are available to special order.
General Survey Charts

GTLF-1-
250 5000 1000 2500 5000 10 000 25 000 50 000
Air flow, m3/h

3000
Sizes 020–050
2000
022
020 040
1000
035
031
Total pressure rise, Pa
500 050
028 045
025
200
100
0 0,1 0,2 0,5 1 2 3 4 5 10 15
Air flow, m3/s
GTLB-1-
200 250 500 1000 2500 5000 10 000 25 000 50 000
Air flow, m3/h

4000
Sizes 022–071
2000
035 040
1000 031
028
025 071
500
063
022 056
Total pressure rise, Pa
045
200 050
100
0 0,1 0,2 0,5 1 2 3 4 5 10 15
Air flow, m3/s
Design
Fan Casing Fan Inlet
The fan casing is made of Sendzimir galvanised sheet The design of the fan inlet is of vital importance to high
steel. The casing side plates are stamped in one piece fan efficiency and a low level of sound generated by the
and the inlets are deep-pressed in the end walls. The fan fan. On the size GTLF fans, the inlet is directly deep-
casing is jointed by the "Pittsburg folding method" pressed into the end walls. On the GTLB fans the inlet
which produces tight, strong joints. This jointing met- must be deeper and must also extend into the impeller
hod and the deep-pressed inlets guarantee a stable with a certain amount of overlap and a small, accurately
design and high, consistent quality. The fan tongue has predetermined radial gap.
been specially designed to offer optimised aerodynamic The inlet cones of the GTLB fans are deep-drawn in
properties. one piece and are fitted to end walls of GTLF fans. This
means that the GTLB fans have a "double inlet" that
gives the fan casing additional rigidity.
Fan Impellers
The fan impellers with backward-curved blades (GTLB )

are made of sheet steel and welded, coated with 60 mm
thick epoxy powder, (colour: AM 8043, dark grey). The
fan impellers with forward-curved blades (GTLF) are
made of Sendzimir galvanised sheet steel. The impellers
of the size 035–071 GTLB fans are dynamically balan-
ced to an accuracy to ISO 1940–1973 G 2.5 at the
Pittsburg maximum speed. The impeller of the size 022–031
GTLB fans and all sizes of GTLF fans are dynamically
balanced to accuracy according to ISO Standard
1940–1973 G 6.3 at the maximum speed.
Tongue of the GTLB fans.
Fan impeller of the type GTLB fans
Fan impeller of the type GTLF fans
Materials and Finish, Motor – Tolerances and Quality

Materials and Finish Tolerances
The GX fans in the standard version meet the provi- The particulars in the charts are given with the toleran-
sions of Environmental Class M2. ce specified in the DIN 24 166 Standard, Class 2.
Fan casing: Sendzimir galvanised sheet steel,

(275 g/ m2 thick zinc) Tolerance Class
DIN 24166 1 2 3
Inlet cone: Sendzimir galvanised sheet steel in the
normal version. Brass in the spark-proof
version. Air flow qv: ±2.5% ±5.0% ±10.0%
Pressure rise, ∆pt: ±2.5% ±5.0% ±10,0%

Shaft: Centreless-ground steel with anti-corro-
sion protection. Shaft power demand*, P: +3.0% +5.0% +16.0%
Efficiency**, h: –2.0% –5.0% –

Fan impeller: GTLB: Sheet steel, welded, coated with
60 mm epoxy powder and baked, A-weighted sound power level*, LWA: +3 dB +4 dB +6 dB
colour: AM8043, dark grey.
GTLF: Sendzimir galvanised steel. * Negative tolerance permissible
** Positive tolerance permissible
Motor ISO 9001 and ISO 14001 Quality
The GT fans are normally supplied with the motor ABB Fans has received quality management certifi-
mounted. This enables the fan to be trial run prior to cation in accordance with ISO 9001. We document
dispatch and ABB can assume undivided warranty liabi- our quality management responsibility at every
lity. stage of our business activities from the product
development to production, procurement and mar-
Detailed motor data is tabulated in separate tables. See
keting.
under Motor Data.
We have received environmental management cer-
tification in accordance with ISO 14001. We aim to
minimise the impact of our business activities and
our products on the environment.
Specification Text – GTLF
GXLF
GTLF
Single-inlet centrifugal fan for a direct-drive. The fan casing Fan details for the GTLF in accordance with
is made of Sendzimir galvanised sheet steel, jointed by the DIN 24166, Class 2
"Pittsburg folding method". Fan impeller with forward-cur- The quality management system of the supplier has
ved blades, made of Sendzimir galvanised sheet steel. The been granted ISO 9001 certification and his envi-
fan impeller is dynamically balanced to accuracy according ronmental management system has been granted
to ISO Standard 1940 – 1973 G 6.3. ISO 14001 certification.
The specified aerodynamic performance has been measured
in accordance with AMCA 210-85 and 300-85.
Air flow, qv .........................................................m3/s
– Normal version Total pressure rise, ∆pt ........................................Pa
– Smoke extraction version – can withstand 400 °C for 2 Power demand, P................................................kW
hours
– Spark-proof version
Min. fan efficiency, η .........................................%
Max. A-weighted total sound power level, LWA ...dB
Specification Text – GTLB
GTLB
Single-inlet centrifugal fan for a direct-drive. The fan Fan details for the GTLB in accordance with
casing is made of Sendzimir galvanised sheet steel, join- DIN 24166, Class 2
ted by the "Pittsburg folding method". Fan impeller The quality management system of the supplier has been
with backward-curved blades, made of sheet steel, wel- granted ISO 9001 certification and his environmental
ded and coated with 60 mm thick epoxy powder. The management system has been granted ISO 14001 certifi-
fan impeller is dynamically balanced to accuracy accor- cation.
ding to ISO Standard 1940 – 1973 G 2.5 (sizes 035–071)
or G 6.3 (sizes 022–031).
The specified aerodynamic performance has been mea- Air flow, qv................................................................m3/s
sured in accordance with AMCA 210-85 and 300-85. Total pressure rise, ∆pt ..............................................Pa
Power demand, P ......................................................kW
– Normal version
– Smoke extraction version – can withstand 400 °C for Min. fan efficiency, η ................................................%
2 hours Max. A-weighted total sound power level, LWA .........dB
– Spark-proof version
Fan Charts – Explanation

2500
75
The GT fan charts on the following pages are applicable 2-pole
80
81
2000 4
to air with a density of 1.2 kg/m3. 80
η%
75
1 = Air flow, m3/s (x-axis) 70
1000 60
2 = Air flow, m3/h (x-axis)
500 40
3 = Total pressure rise, Pa (y-axis)
3 5 L wA,dB 75 80 85 90 95
= Fan efficiency η, % 200
∆p t ,Pa
4
100
50 4-pole
5 = Total sound power level LwA (dB), broken line 4/6-pole(6)
4/8-pole(8) 8 GTLB-1-040
6 = Power demand, P (kW) 0 0.4 0.8 1.2 1.6 2 2.4 2.6m 3/s 1
qv
1000 2000 3000 4000 5000 6000 7000 8000 9000 m 3/h 2
7 = Moment of inertia, J (kg m2) 0.02
4/8-pole(8)
0.1 4/6-pole(6) 7 J = 0.24 kgm 2
8 = Fan size
P,kW
4-pole
0.4
9 = Dynamic pressure at the outlet, pd 6

0.8
1
10 = Connection loss at the inlet, ∆p1

2
11 = Connection loss at the outlet, ∆p2 + pd 2-pole

4
12 = Protective screen at the inlet, ∆p3 10 9 pd 10 20 60 80 100 120 160 200 Pa
11 ∆p 1 5 10 20 30 40 50 60 Pa
13 = Protective screen at the outlet, ∆p4 ∆ p 2 + pd 40 100 200 300 Pa

12
∆p 3 10 20 40 Pa
13
∆p 4 10 20 40 Pa
Acoustic Data – Explanation

Acoustic Data Correction Kokt, dB LWA(s) – LWt(s) –
A-weighted sound power levels Speed range Octave band, mid-frequency, Hz LWA LWA(s)
LWA on the outlet side of a Sound path (s) r/min 63 125 250 500 1 000 2 000 4 000 8 000 dB dB
fan with the inlet and outlet To outlet duct 0 – 1928 1 -2 2 -5 -5 -8 -15 -18 0 6.3
ducted are specified in the (1) 1929 – 3000 -1 -3 -7 -2 -5 -7 -12 -17 0 4.4
chart. Correction figures can
be read from the adjacent
table. The following formula To inlet duct 0 – 1928 2 0 -2 -3 -6 -9 -11 -11 -0.3 6.6
(2) 1929 – 3000 -1 -4 -10 -2 -4 -6 -8 -15 1.1 3.3
is used for breaking down the
sound each octave band and
each sound path: Through the 0 – 1928 -7 -9 -6 -10 -10 -14 -23 -33 -6.2 5.3
casing 1929 – 3000 -10 -13 -10 -9 -9 -15 -23 -36 -6.0 3.3
LWokt(s) = LWA + Kokt(s) (3)
Where Kokt can be obtained To fan outlet 0 – 1928 -11 -7 0 -6 -5 -8 -15 -18 -0.8 3.9
from the table. The following (open-discharge fan) 1929 – 3000 -16 -8 -9 -3 -5 -7 -12 -17 -0.3 1.8
formula can be used for calcu- (4)
lating the A-weighted sound
power level on each sound
path:
LWA(s) = LWA + [LWA(s) – LWA]
where the correction figure LWA(s) – LWA can be obtai-

ned from the table.
The table also includes correction figures LWt(s) – LWA(s)
that can be used for obtaining the total sound power
level on each sound path:
LWt(s) = LWA(s) + [LWt(s) – LWA(s)]
Description of sound path Test arrangement
1 = To outlet duct
2
2 = To inlet duct
3 = Through the casing 1
3
4 = To fan outlet
(for open-discharge fan) 2
2 = To inlet duct
3 = Through the casing 4
3
Symbols used
LWA A-weighted sound power level emitted to outlet duct dB(A)

s Sound path -
LWA(s) A-weighted sound power level equivalent to sound path s dB(A)
LWt(s) Total sound power level (without frequency weighting A), (corresponding to sound path s) dB
LWokt(s) Total sound power level at each octave band (without frequency weighting A),
(corresponding to sound path s) dB
Kokt(s) Correction figure for breaking down sound level at each octave band,
(corresponding to sound path s) dB
L Distance m
∆L Distance absorption (applicable to ideal conditions with hemispherical sound propagation) dB
LpA(s) A-weighted sound power level at distance L from fan, (corresponding to sound path s) dB(A)
Acoustic Data – Explanation

Distance absorption
The following formula is used to obtain the sound pres-

sure level LpA(s) on free sound emission to the surroun-
dings (sound paths 3 and 4) at various distances L:
LpA(s) = LWA(s) – ∆L
where the distance absorption ∆L can be obtained from

the table below:
L, m 1 3 5 10 15 20 25 30 40 50 75 100
∆L, dB 8 17 22 28 31 34 36 37 40 42 45 48
Example:
GTLB-1-040: Air flow qv = 1.6 m3/s, total pressure rise ∆pt = 1800 Pa.
From fan chart: Speed n = 2871 r/min.

Power demand P = 3.56 kW.
Fan efficiency η = 80.9 %.
A-weighted sound power level to outlet duct LWA = 94.6 dB(A).
If the fan has a ducted inlet and outlet, the sound level at each octave band and the
total sound power level for each sound path will be the following:
Inlet duct: LW63Hz = 94.6 – 1 = 93.6 dB

LWA(2) = 94.6 + 1.1 = 95.7 dB(A)
LWt(2) = 95.7 + 3.3 = 99.0 dB
Sound path 63 Hz 125 Hz 250 Hz 500 Hz 1 kHz 2 kHz 4 kHz 8 kHz LwA, dB(A) Lwt, dB
Outlet duct 93.6 91.6 87.6 92.6 89.6 87.6 82.6 77.6 94.6 99.0
(s = 1)
Inlet duct 93.6 90.6 84.6 92.6 90.6 88.6 86.6 79.6 95.7 99.0
(s = 2)
Surroundings – 84.6 81.6 84.6 85.6 85.6 79.6 71.6 58.6 88.6 91.9
through the casing
(the fan inlet and
outlet ducted) (s = 3)
The A-weighted sound power level at a distance of one metre from the fan will be: LpA(3) = 88.6–8 = 80.6
dB(A)
If the fan has an open discharge, the A-weighted sound power level at the fan outlet will be:
LwA(4) = 94.6–0,3 = 94.3 dB(A).
The corresponding sound power level at a distance of 50 metres will be: LpA(4) = 94.3–42 = 52.3 dB(A).
Dimensions and Weights – Motor Data – GTLB-1-028

Dimensions and Weights 567
1)
Right-hand version with 90° 466 257

direction of discharge shown 192
215
30
581
361
ø 275
371
248 190
110
36
21
484 244
ø 30
514 284
Right-hand version 541 466 1) With max. motor size

(viewed from drive side) 421 215
333
482 431 551

343
267 221
10
Left-hand version
(same dimensions as
the right-hand version)
90° 0° 270°
Weight (kg) Outlet flange

GTLB-1-028: 14,9 257
ø10 15 10,5
4,5
15 200,5
10,5 400
421
ø10 391
361
4,5
197
227
236
Motor data
Number
of Rated output IEC Motor code Speed Weight, Hub code Remark
poles kW Size kg
4 0,25 71A APAL-4-90025-c-d 1410 5,5 HULB-1-028-c-14-0 Motor code: c, d: see ordering codes
2 0,75 80A APAL-2-90075-c-d 2870 9,0 HULB-1-028-c-19-0 page 59
4/6 0,3/0,1 71B ATAL-4-90030-c-d 1350/900 6,5 HULB-1-028-c-14-0 Hub code: c = 1, right-hand version
4/8 0,37/0,09 71B ARAL-4-90037-c-d 1360/700 6,5 HULB-1-028-c-14-0 c = 2, left-hand versionrande
2/4 0,75/0,15 80A ARAL-2-90075-c-d 2850/1430 9,0 HULB-1-028-c-19-0
Fan Charts – Acoustic Data – GTLB-1-028

Direct driven, single-inlet, 2-pole
66 70 75
backward-curved blades 1000 79
η%
75
Impeller diameter: 280 mm
70
500 60
40
200
100 L wA,dB 70 75 80 85
∆p t ,Pa
50
Only the GTLB is available in 4-pole
4/6-pole(6)
the smoke extraction version. 4/8-pole(8) GTLB-1-028
0 0.2 0.4 0.6 0.8 1 m 3/s
qv
500 1000 1500 2000 2500 3000 3500 m 3/h
0
J = 0.06 kgm 2
0.01 4/8-pole(8)
P,kW
0.02 4/6-pole(6)
0.06 4-pole
Acoustic Data 0.1
A-weighted sound power levels 0.2

LWA on the outlet side of a
fan with the inlet and outlet 0.4
2-pole
ducted are specified in the 0.6
chart. Correction figures can 0.8
be read from the adjacent pd 10 20 60 80 100 120 Pa
table. The following formula
is used for breaking down the ∆p 1 5 10 15 20 25 30 35 Pa
sound each octave band and ∆ p 2 + pd 40 100 Pa

each sound path:
∆p 3 10 20 Pa
Lwokt(s)=LWA+Kokt(s)
∆p 4 10 20 30 Pa
where Kokt can be obtained

from the table. The following
formula can be used for calcu-
Correction Kokt, dB LWA(s) – LWt(s) –
power level on each sound Speed range Octave band, mid-frequency, Hz LWA LWA(s)
path: Sound path (s) r/min 63 125 250 500 1 000 2 000 4 000 8 000 dB dB
To outlet duct 0 – 1928 1 2 3 -4 -7 -8 -13 -16 0 7,6
LWA(s)=LWA+[LwA(s)–LWA]
(1) 1929 – 3000 -1 -1 -7 -1 -6 -8 -12 -16 0 4,9
where the correction figure

To inlet duct 0 – 1928 1 1 3 -2 -5 -10 -12 -17 0,6 6,9
LwA(s) – LwA can be obtai- (2) 1929 – 3000 -2 -2 -8 0 -4 -10 -11 -17 0,7 4,1
ned from the table.
The table also includes correc-
tion figure Lwt(s) – LwA(s) Through the 0 – 1928 -7 -5 -4 -9 -12 -14 -21 -31 -6,1 6,7
casing 1929 – 3000 -9 -8 -10 -8 -12 -15 -23 -35 -6,9 5,0
that can be used for obtaining
(3)
the total sound power level on
each sound path: To fan outlet 0 – 1928 -14 -5 0 -5 -7 -8 -13 -16 -1,1 4,3
(open-discharge fan) 1929 – 3000 -20 -9 -10 -2 -6 -8 -12 -16 -0,5 1,9
Lwt(s)=LWA(s)+[Lwt(s)–LWA(s)] (4)

1)

212
30
646
404
ø 310
414
275 212
119
36
21
507 280
ø 30
537 320
604 518 1) With max. motor size

Right-hand version
371
533 477 617

384
297 245
13
Left-hand version
(same dimensions as
90° 0° 270°

GTLB-1-031: 18,0 277
ø10 15 19,5
15
19,5
2 x 217
15 444
464
ø10 434
404
4,5
217
247
257
Motor data
Number
poles kW Size kg
2 1,5 90S APAL-2-90150-c-d 2870 13,0 HULB-1-031-c-24-0 page 59
4/8 0,37/0,09 71B ARAL-4-90037-c-d 1360/700 6,5 HULB-1-031-c-14-0 c = 2, left-hand versionrande
2/4 1,5/0,33 90S ARAL-2-90150-c-d 2860/1460 13,0 HULB-1-031-c-24-0

Direct driven, single-inlet, 66 70 75
backward-curved blades 2-pole η%
79
Impeller diameter: 310 mm 1000 75

70
60
500
40
200 L wA,dB 75 80 85 90
∆p ,Pa
100
50
Only the GTLB is available in 4-pole
the smoke extraction version. 4/6-pole(6)
4/8-pole(8) GTLB-1-031
0
0 0.4 0.8 1.00 1.2 1.4 m 3/s
qv
1000 2000 3000 4000 5000 m 3/h
0
J = 0.09 kgm 2
4/8-pole(8)
P,kW
4/6-pole(6)
0.05
0.1 4-pole
Acoustic Data 0.2
A-weighted sound power levels

LWA on the outlet side of a 0.6
fan with the inlet and outlet 2-pole
ducted are specified in the 1

be read from the adjacent pd 10 20 60 80 100 120 140 160 Pa
is used for breaking down the ∆p 1 5 10 15 20 25 30 35 40 50 Pa

∆ p 2 + pd 40 100 200 Pa
each sound path:
∆p 3 10 20 40 Pa
∆p 4 10 20 30 40 Pa

To outlet duct 0 – 1928 1 -1 4 -4 -7 -8 -15 -17 0 7,3
(1) 1929 – 3000 -1 -2 -6 -2 -6 -7 -12 -16 0 4,5

To inlet duct 0 – 1928 1 -1 3 -1 -5 -10 -11 -16 0,9 6,4
LwA(s) – LwA can be obtai- (2) 1929 – 3000 -2 -5 -9 0 -4 -8 -10 -16 1,0 3,4
ned from the table.
casing 1929 – 3000 -10 -12 -9 -9 -10 -15 -23 -35 -6,4 3,8
(3)

1)

290
30
793
507
ø 388
510
329 256
134
36
11
589 355
ø 30
639 415
Right-hand version 759 648 1) With max. motor size

464
678 593 784

489
386 310
25
Left-hand version
(same dimensions as
90° 0° 270°

GTLB-1-040: 34,2 329
-
149,5
ø10 15 19,5
15
19,5
4x
546 134,3
15
567
ø10 537
507
4,5
269
299
308
Motor data
Number
poles kW Size kg
2 4 112M APAL-2-00400-c-d 2850 25,0 HULB-1-040-c-28-0 page 59
4/8 0,55/0,11 80A ARAL-4-90055-c-d 1410/690 8,5 HULB-1-040-c-19-0 c = 2, left-hand versionrande
2/4 4,5/1 112M ARAL-2-00450-c-d 2875/1450 32,0 HULB-1-040-c-28-0

Direct driven, single-inlet, 2500
75 80
backward-curved blades 2000
2-pole 81
80
η%
Impeller diameter: 400 mm 75
70
1000 60
500 40
L wA,dB 75 80 85 90 95
200
∆p t ,Pa
100
Only the GTLB is available in 50 4-pole
the smoke extraction version. 4/6-pole(6)
4/8-pole(8)
GTLB-1-040
0 0.4 0.8 1.2 1.6 2 2.4 2.6m 3/s
qv
1000 2000 3000 4000 5000 6000 7000 8000 9000 m 3/h
0.02
4/8-pole(8)
0.1 4/6-pole(6) J = 0.24 kgm 2
P,kW
4-pole
0.4
Acoustic Data 0.8

1
LWA on the outlet side of a 2
fan with the inlet and outlet
ducted are specified in the 2-pole
chart. Correction figures can 4
be read from the adjacent pd 10 20 60 80 100 120 160 200 Pa
is used for breaking down the ∆p 1 5 10 20 30 40 50 60 Pa

∆ p 2 + pd 40 100 200 300 Pa
each sound path:
∆p 3 10 20 40 Pa
∆p 4 10 20 40 Pa

To outlet duct 0 – 1928 1 -2 2 -5 -5 -8 -15 -18 0 6,3
(1) 1929 – 3000 -1 -3 -7 -2 -5 -7 -12 -17 0 4,4

To inlet duct 0 – 1928 2 0 -2 -3 -6 -9 -11 -11 -0,3 6,6
LwA(s) – LwA can be obtai- (2) 1929 – 3000 -1 -4 -10 -2 -4 -6 -8 -15 1,1 3,3
ned from the table.
casing 1929 – 3000 -10 -13 -10 -9 -9 -15 -23 -36 -6,0 3,3
(3)

1)

352
30
972
638
ø 495
622
400 304
151
36
11
776 390
ø 30
826 450
939 800 1) With max. motor size

Right-hand version
570
825 726 969

593
473 378
30
Left-hand version
(same dimensions as
90° 0° 270°

GTLB-1-050: 50,7 394
-
182
ø10 15 19,5
15
19,5
4 x 167
15 677
698
ø10 668
638
4,5
334
364
373
Motor data
Number
poles kW Size kg
4 1,5 90L APAL-4-90150-c-d 1420 16,0 HULB-1-050-c-24-0 Motor code: c, d: see ordering codes
6 0,55 80B APAL-6-90055-c-d 900 10,0 HULB-1-050-c-19-0 page 59
4/6 1,5/0,45 90L ATAL-4-90150-c-d 1400/930 16,0 HULB-1-050-c-24-0 Hub code: c = 1, right-hand version
4/8 1,7/0,35 90L ARAL-4-90170-c-d 1390/700 16,0 HULB-1-050-c-24-0 c = 2, left-hand versionrande

Direct driven, single-inlet, 1000
71 75 80
backward-curved blades 4-pole 82
η%
80
Impeller diameter: 500 mm
75
500 70
6-pole 60
50
200
L wA,dB 70 75 80 85 90
100
∆p t ,Pa
50
Only the GTLB is available in 4/8-pole(8)
the smoke extraction version.
GTLB-1-050
0
0 0.2 0.6 1.0 1.4 1.8 2.2 2.6 2.8 m 3/s
qv
2000 4000 6000 8000 10000 m 3/h
0.1
4/8-pole(8)
J = 0.70 kgm 2
0.2
P,kW
0.3
6-pole
Acoustic Data 0.5

LWA on the outlet side of a
fan with the inlet and outlet 1
4-pole
ducted are specified in the
be read from the adjacent pd 10 20 60 80 100 Pa
is used for breaking down the ∆p 1 5 10 20 30 Pa

∆ p 2 + pd 40 100 Pa
each sound path:
∆p 3 10 20 Pa
∆p 4 10 20 Pa

To outlet duct 0 – 964 -4 5 2 -5 -5 -9 -14 -19 0 7,7
(1) 965 – 1500 -4 0 3 -5 -5 -9 -14 -17 0 6,2

To inlet duct 0 – 964 4 2 -1 -3 -3 -10 -13 -17 0,4 7,4
LwA(s) – LwA can be obtai- (2) 965 – 1500 1 -2 1 -4 -4 -8 -11 -16 0,4 5,8
ned from the table.
casing 965 – 1500 -12 -7 -5 -12 -11 -16 -25 -36 -7,2 6,0
(3)
each sound path: To fan outlet 0 – 964 -12 1 1 -5 -5 -9 -14 -19 -0,5 5,8
(open-discharge fan) 965 – 1500 -13 -4 2 -5 -5 -9 -14 -17 -0,4 5,0
Accessories
Flexible connections, inlet Protective screen, inlet
GTLZ-11-1-ccc-1-0 Normal version, max. +80 °C GTLZ-13-1-ccc-1-0 Protective screen
GTLZ-12-1-ccc-1-0 Smoke extraction version,

max. +400 °C/2 hours
Accessories
Flexible connections, outlet Protective screen, outlet
GTLZ-21-1-ccc-1-0 Normal version, max. +80 °C GTLZ-23-1-ccc-1-0 Protective screen, outlet
GTLZ-22-1-ccc-1-0 Smoke extraction version,

max. +400 °C/2 hours
Counterflange, outlet
Dimension sketch GTLZ-24-1-ccc-1-0 Counterflange

B out
Z X
L YxW
A2
A in
A1
A out
B in
B1
B2
Size A in A out A1 A2 B in B out B1 B2 Z X Y W n D L

020 256 310 280 290 142 196 166 175 – – 1 140,0 6 10 115
022 288 348 318 328 159 219 189 198 – – 1 159,0 6 10 115
025 322 382 352 362 179 239 209 219 – – 2 176,0 6 10 115
028 361 421 391 400 197 257 227 236 – – 2 200,5 6 10 115
031 404 465 434 444 217 277 247 257 – – 2 217,0 6 10 115
035 453 513 483 492 242 302 272 281 136,0 – 2 241,5 6 10 115
040 507 567 537 546 269 329 299 308 149,5 – 4 134,3 12 10 115
045 569 629 599 608 299 359 329 338 164,5 – 4 149,8 12 10 150
050 638 698 668 677 334 394 364 373 182,0 – 4 167,0 12 10 150
056 715 775 745 754 375 435 405 414 109,3 186,3 4 186,3 14 10 150
063 801 861 831 840 417 477 447 456 119,6 207,8 4 207,8 14 10 150
071 898 958 928 937 466 526 496 505 132,0 232,0 4 232,0 14 10 150
Accessories
Inspection cover Anti-vibration mountings
GTLZ-32-1-ccc-d-0 Inspection cover GTLZ-42-1-ccc-d-0 Anti-vibration mountings,

Mounted on the back plate of the rubber
fan. Made of galvanised sheet steel. d = 1 GTLB and GTLF
d = location on fan casing, 0 – 4,
see illustration
0
Drain
GTLZ-34-1-ccc-d-0 Drain
Mounted on the back plate of the
fan. Made of galvanised sheet steel.
d = location on fan casing, 0 – 4,
see illustration
0
Note! The position of the inspection cover and drain

depends on the discharge direction.
Recommended positions are:
GT…-1-bbb-c-d1-00 GTLZ-32-1-ccc-4-0
(0°) GTLZ-34-1-ccc-2-0
(90°) GTLZ-34-1-ccc-4-0
(270°) GTLZ-34-1-ccc-0-0
Accessories
Flow Measurement Device Flow Measurement Device with manometer
GTLZ-50-1-ccc-1-0 Flow measurement device GTLZ-53-1-ccc-1-0 Flow measurement device with

for the GTLF manometer for the GTLF
GTLZ-51-1-ccc-1-0 Flow measurement device GTLZ-54-1-ccc-1-0 Flow measurement device with

for the GTLB manometer for the GTLB
GTLZ-50, 51 Flow measurement devices GTLZ-53, 54 Flow measurement devices

The flow measurement device is used for measuring the The flow measurement device is supplied with a mano-
air flow in type GT fans. This is done by measuring meter as well. The supply includes flow measuring
the differential pressure in the device. The flow measu- device, manometer with scale and mounting bracket for
rement device should be mounted in the fan inlet. The the measuring device and hoses. For a technical specifi-
air flow is calculated as a function of coefficient k and cation, see the GTLZ-50, 51 on the preceding page.
the differential pressure reading ∆pm in the following
manner:
1
q=— x pm
k
3
there q = air flow (m /s)
∆pm = differential pressure reading (Pa)
k = coefficient unique to the fan selected
The air flow that corresponds to the differential pressu-

re reading can most easily be read with a manometer
whose scale is graduated in accordance with the func-
tion above for a specific fan. On request, detailed
charts can be supplied. The accuracy of the readings is
±10 %. If the flow measurement device is recalibrated
at the site (for instance in an air handling unit), an
accuracy of ±5 % can be achieved.
Accessories
Painted finish
GTLZ-60-1-ccc-d-0 Painted finish, inner and

outer surfaces
d = 1 Epoxy powder coated
and baked.
60 µm, colour: AM
8043, dark grey, M2
d = 2 Epoxy powder coated
and baked.
100 µm, colour: AM
8043, dark grey, M3
d = 3 Wet-painted finish in
three layers.
250 µm, colour: SSG28,
light grey
d =1 60 µm thick painted finish

The fan casing, impeller and bearing bracket as well
as accessories are coated with 60 mm thick epoxy
powder and baked. The colour is AM 8043, dark
grey. All bolts and nuts must be made of stainless
steel.
Painting process: Motor cover

– Alkali degreasing
– Iron phosphate pre-treatment GTLZ-77-1-ccc-d-0 Motor cover, made of galvanised
– Flushing with +40 °C water steel.
– Drying at 150 °C
– Powder painting, 60 µm coat in one layer d = motor sizw (IEC)
– Drying at 215 °C
1 = 071–100
Epoxy powder is well suited for coating objects that are 2 = 112–132
subject to mechanical and chemical stress. It is an excel- 3 = 160–180
lent rust-inhibitor and can withstand acids, alkaline solu-
tions, greases and solvents.
d =2 100 µm thick painted finish; meets the provisions for

Environmental Class M3. The fan casing, impeller and bear-
ing bracket as well as accessories are coated with 100 µm
thick epoxy powder and baked. The colour is AM 8043, dark
grey. All bolts and nuts must be made of stainless steel. The
coating process and epoxy powder are the same as in version
d = 1; the coat is 100 µm thick in one layer.
d = 3 250 µm wet painted finish in three coats.

The fan casing and bearing bracket as well as accessories
are painted with 250 µm thick epoxy in 3 layers. The
colour is SSG28, light grey. The impeller is coated with
100 µm thick epoxy powder and baked. The colour is
AM 8043, dark grey. All bolts and nuts must be made of
stainless steel.
Ordering Codes
Centrifugal fan GTLB-a-bbb-c-dd-00 Accessoris GTLZ-aa-b-ccc-d-e
GTLF -a-bbb-c-dd-00
(aa) Type of accessory
LB = centrifugal fan with backward -
curved blades (Sizes 022–071) (b) 1 = Accessory for the GT…-1
LF = centrifugal fan with forward -
curved blades (Sizes 020–050) (ccc) Fan size
Fan type (a) (d) 1 = to be supplied with fan (specify d = 0 if you
1 = single-inlet fan for direct drive are placing an order for individual accessories
only). See the ordering code as well.
Size (bbb)
020, 022, 025, 028, 031,035, 040, 045, (e) Generation digit.
050, 056, 063, 071
Version (c)
1 = normal version
6 = smoke extraction version Flexible connection, inlet GTLZ-11-1-ccc-1-0
8 = spark-proof version Normal version, max. +80 °C
Version and direction of discharge (dd)
First d: 1 = right-hand version Fan size (ccc)
2 = left-hand version
Second d: 1 = 0º Flexible connection, inlet GTLZ-12-1-ccc-1-0
3 = 90º Smoke extraction version, max. +400 °C
7 = 270º
Fan size (ccc)
Single speed motor 2, 4, 6, 8-pole APAL -a-bbbbb-c-d
Two speed motor, 2/4, 4/8-pole Protective screen, inlet GTLZ-13-1-ccc-1-0

Dahlander-wound,
speed relation 1:2 ARAL-a-bbbbb-c-d Fan size (ccc)
Two speed motor, 4/6-pole
two separate Flexible connection, outlet GTLZ-21-1-ccc-1-0
windings, speed relation 1:1.5 ATAL -a-bbbbb-c-d Normal version, max. +80 °C
Number of poles (a)
2, 4, 6, 8 Fan size (ccc)
Rated output (bbbbb)
The three first digits in “b” code indicate whole Flexible connection, outlet GTLZ-22-1-ccc-1-0
kilowatts, the two last digits indicate decimals Smoke extraction version, max. +400 °C
for example 00300 = 3 kW
Fan size (ccc)
Note: Due to generation change of motors the first
digit “b” is 9 instead of 0 in motor sizes IEC 071–100.
Voltage (c) Protective screen, outlet GTLZ-23-1-ccc-1-0
Single speed motor
1 = 220-240 VD/ 380-420VY Fan size (ccc)
2 = 380-420 VD/ 660-690 VY
Two speed motor
2 = 380-400 V
Temperature sensor in the stator winding (d)
0 = without
1 = with bemetal temperature contacts
2 = with thermistor
Ordering Codes
Accessories Accessories
Counterflange, outlet GTLZ-24-1-ccc-1-0 Anti-vibration mountings GTLZ-42-1-ccc-d-0
Fan size (ccc) Fan size (ccc)
Version (d)
1 = for GTLB and GTLF
Inspection cover GTLZ-32-1-ccc-d-0
Fan size (ccc) Flow measurement device GTLZ-50-1-ccc-1-0

for GTLF
Location, see illustration (d)
d= 0 Fan size (ccc)
1
2 0
3 1 Flow measurement device GTLZ-51-1-ccc-1-0

4 for GTLB
Fan size (ccc)

2
Flow measurement device GTLZ-53-1-ccc-1-0

with manometer GTLF
3
Fan size (ccc)

4
Flow measurement device GTLZ-54-1-ccc-1-0

with manometer GTLB
Drain GTLZ-34-1-ccc-d-0
Fan size (ccc)
Fan size (ccc)
Location, see illustration (d) Painted finish, inner and outer GTLZ-60-1-ccc-d-0
d= 0 surfaces
1
2 0 Fan size (ccc)
3 1
4 Version (d)
1 = painted finish, 60 µm
2 = painted finish, 100 µm
3 = wet-painted finish, 250 µm in three layers
2
Motor cover GTLZ-77-1-ccc-d-0
Centrifugal fan Technical data
CENTRIMASTER
Project name : Date : 23.7.2012 9:45

Position/Item : E-3, Galley Project notes :
Your reference :
Our reference : Position notes :
Fan : Construct.: Normal fan

GTHB-1-050-1-d3-00 1 Pcs
Air flow input : 2.500 m³/s Density : 1.200 kg/m³
Input Static pressure 1000 Pa Temperature : 20.0 °C
Air flow selected : 2.500 m³/s Elevation : 0m
Total pressure rise : 1089 Pa Max speed : 2800 r/min
Static pressure rise : 1000 Pa Max power : 10.575 kW
Dynamic pressure : 89 Pa Reinforced Backward Curved
Pressure losses : 0 Pa Single Inlet, Direct Drive
Outlet velocity : 12.2 m/s Handed Undefined
Speed : 1923 r/min Discharge Forward (90 deg)
Fan shaft power : 3.423 kW Ducted inlet - Ducted outlet
Efficiency : 79.6 %
Total sound power : 92.1 dB(A) Motor selection to freq.conv use
LpA in the surroundings 57.0 dB(A)
at distance 10 m
Fan data according to AMCA standards 210-85 and 300-85.
The octave sound power level at BPF can reach unpredictable higher values than calculated below.
Lwoct (dB) 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz Lwt LwA
Ducted inlet 93.1 90.1 93.1 88.1 88.1 84.1 81.1 76.1 98.3 92.5
Ducted outlet 88.1 92.1 95.1 87.1 87.1 83.1 78.1 75.1 98.3 92.0
Surroundings 80.1 85.1 87.1 80.1 81.1 76.1 67.1 56.1 90.9 84.9
Motor : APAM-4-00460-6-d-1 Hub : HUHB-1-050-d-28-0

Rated power : 4.600 kW Motor shaft diam : 28 mm
Rated speed : 1740 r/min If Freq.conv.
Efficiency : 87.6 % Operating freq. : 66.30 Hz
Current : 8.80 A Max motor Hz : 73.16 Hz
Phase/Freq./Voltage : 3~60Hz 440V ABB Marine, 60 Hz
IEC size : 112M Weights / unit :
Starting method : Direct on line Fan : 50.7 kg
Starting time : 2.42 s Motor : 34.0 kg
Power from mains : 4.049 kW Accessories : 0.0 kg
SFP value : 1.620 kW/m³/s Total weight : 84.7 kg
Accessories :
Version 2.0M / 28.01.2011

Control system Technical data
STYR

Your reference :
STYR code : 1 Pcs

Output current : A Operating freq. : 66.30 Hz
Supply Phase/Freq./Volt. : 3~60Hz 440V Max motor freq. : 73.16 Hz
Input current : A
Control connections:
Max motor cable length :
Dimensions H*W*L :
IP Closure class :
Weight : kg
Accessories :
Version 2.0M / 28.01.2011

Centrifugal fan Fan diagram
CENTRIMASTER

Your reference :
Fan : GTHB-1-050-1-d3-00
Dynamic pressure : 89 Pa
Pressure losses : 0 Pa Motor :
Outlet velocity : 12.2 m/s APAM-4-00460-6-d-1
Speed : 1923 r/min Rated power : 4.600 kW
Fan shaft power : 3.423 kW Rated speed : 1740 r/min
Efficiency : 79.6 %
Total sound power : 92.1 dB(A) Efficiency values in fan curve apply lines by max rpm
GTHB-1-050-1-d3-00
r/min
3250 2800
80 %
3000
2750 2600
2500
80 %
2400
2250 78 %
2000 2200 75 %
1750 70 %
pt[Pa]
2000
1500 65 %
1800 60 %
1250
O
1000 1600 50 %
750 1400 40 %
500 1200 30 %
1000
250
800
98 dB(A)
94 dB(A)
90 dB(A)
0 85 dB(A)
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5
q[m³/s]
rho = 1.200 kg/m³
Version 2.0M / 28.01.2011
Centrifugal fan Technical data
CENTRIMASTER

Position/Item : E-4, Cellar dk Project notes :
Your reference :
Fan : Construct.: Normal fan

GTLB-1-040-1-d3-00 1 Pcs
Dynamic pressure : 93 Pa Backward Curved Impeller
Pressure losses : 0 Pa Single Inlet, Direct Drive
Outlet velocity : 12.5 m/s Handed Undefined
Speed : 2539 r/min Discharge Forward (90 deg)
Fan shaft power : 2.457 kW Ducted inlet - Ducted outlet
Efficiency : 75.6 %
Total sound power : 93.6 dB(A) Motor selection to freq.conv use
LpA in the surroundings 59.6 dB(A)
at distance 10 m
Fan data according to AMCA standards 210-85 and 300-85.
The octave sound power level at BPF can reach unpredictable higher values than calculated below.
Lwoct (dB) 63 Hz 125 Hz 250 Hz 500 Hz 1000 Hz 2000 Hz 4000 Hz 8000 Hz Lwt LwA
Ducted inlet 92.6 89.6 83.6 91.6 89.6 87.6 85.6 78.6 98.0 94.7
Ducted outlet 92.6 90.6 86.6 91.6 88.6 86.6 81.6 76.6 98.0 93.7
Surroundings 83.6 80.6 83.6 84.6 84.6 78.6 70.6 57.6 90.9 87.6
Motor : APAM-4-00350-6-d-1 Hub : HULB-1-040-d-28-0

Rated power : 3.500 kW Motor shaft diam : 28 mm
Rated speed : 1735 r/min If Freq.conv.
Efficiency : 86.5 % Operating freq. : 87.81 Hz
Current : 6.50 A Max motor Hz : 98.64 Hz
Phase/Freq./Voltage : 3~60Hz 440V ABB Marine, 60 Hz
IEC size : 100L Weights / unit :
Starting method : Direct on line Fan : 34.2 kg
Starting time : 2.40 s Motor : 24.0 kg
Power from mains : 3.078 kW Accessories : 0.0 kg
SFP value : 1.811 kW/m³/s Total weight : 58.2 kg
Accessories :
Version 2.0M / 28.01.2011

Control system Technical data
STYR

Your reference :
STYR code : 1 Pcs

Output current : A Operating freq. : 87.81 Hz
Supply Phase/Freq./Volt. : 3~60Hz 440V Max motor freq. : 98.64 Hz
Input current : A
Control connections:
Max motor cable length :
Dimensions H*W*L :
IP Closure class :
Weight : kg
Accessories :
Version 2.0M / 28.01.2011

Centrifugal fan Fan diagram
CENTRIMASTER

Your reference :
Fan : GTLB-1-040-1-d3-00
Dynamic pressure : 93 Pa
Pressure losses : 0 Pa Motor :
Outlet velocity : 12.5 m/s APAM-4-00350-6-d-1
Speed : 2539 r/min Rated power : 3.500 kW
Fan shaft power : 2.457 kW Rated speed : 1735 r/min
Efficiency : 75.6 %
Total sound power : 93.6 dB(A) Efficiency values in fan curve apply lines by max rpm
GTLB-1-040-1-d3-00
r/min
2500
78 %
2250 3000 80 %
81 %
2000 81 %
2750 80 %
1750
78 %
2500 75 %
1500
70 %
pt[Pa]
1250 2250
65 %
O
1000 2000 60 %
750 1750 50 %
1500 40 %
500
30 %
1250
2501000
96 dB(A)
93 dB(A)
0 85 dB(A)90 dB(A)
0.25 0.5 1.0 1.5 2.0 2.5 3.0
q[m³/s]
rho = 1.200 kg/m³
Version 2.0M / 28.01.2011
CK 200 B 220V 60Hz Sida 1 av 3
CK 200 B 220V 60Hz
Description
The CK 60 Hz is an in-line centrifugal duct fan with high capacity and excellent reliability. The
straight through radial fan is compact and very easy to install. It can cope with high pressure and
long duct runs, whilst still operating at acceptable noise levels.
The CK range of fans have casings manufactured from galvanized steel and are moisture resistant.
They are approved for installation in humid or damp environments being rated IP44 when installed
in a duct system.
The fan speed can be controlled by voltage variation regulators. Several fans can be connected to
the same controller providing the total rating of the controller is not exceeded.
The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball
bearings and are protected from over heating by thermo contacts.
The fans must not be used for transporting grinding dust, soot or similar.
Technical data
Parameter Value Unit
Current 0,98 A
Pow er 214 W
R.p.m . 2730 r.p.m .
Voltage 220 V
Frequency 60 Hz
Phase 1 ~
M ax. tem perature of transported air 50 °C
M ax. tem perature of transported air w hen speed-controlled 50 °C
Sound pressure levelat 3 m 50 dB(A)
W eight 5,1 kg
Capacitor 5 µF
Length 228 mm
W idth 344 mm
H eight 344 mm
Enclosure class, m otor 44 IP
Insulation class, m otor F
D uct connection o200 m m
Diagrams
Selected
point
Work
point
Flow [l/s]
0,157
Stat. pres.
[Pa]
631
http://products.ostberg.com/Item/Print/348 2012-07-23
Pow er [W ]
118
C urrent
[A]
0,572
Speed
[r.p.m .]
3404
Efficiency
[% ]
-
SFP
[kW /m 3/s]
34,8
Voltage
[V]
230
Sound
Selected D istance: 3
point
Propagation type: Sem i-spherical
Work point
Flow [l/s] Equivalent absorption area: 20
0,157
Tot 63 125 250 500 1k 2k 4k 8k
Stat. pres. [Pa]
631 Inlet Lw
86 57 70 79 83 80 74 68 62
Totalpress. dB(A)
[Pa]
O utlet Lw
631 84 58 73 80 79 76 72 68 61
dB(A)
Pow er [W ]
118
Surrounding 65 31 44 52 58 61 59 54 48
C urrent [A]
Lw dB(A)
0,572
Speed [r.p.m .]
3404 Surrounding 59 24 37 46 51 55 52 47 41
Lp dB(A)
Efficiency [% ]
-
120
SFP [kW /m 3/s]
34,8
Voltage [V] 80
230
40
0
Tot 63 125 250 500 1k 2k 4k 8k
Dimensions
Wiring diagram
Accessories
Accessory
FLF 200 » FLK 200 » BSV 200 » MK 200 » VK 20 » YG 200 » LDC 200 »
Documents
Directions of use
1270031_utg3_CK_sveng_low .pdf
CK 315 C 220V 60Hz Sida 1 av 3
CK 315 C 220V 60Hz
Description
The CK 60 Hz is an in-line centrifugal duct fan with high capacity and excellent reliability. The
straight through radial fan is compact and very easy to install. It can cope with high pressure and
long duct runs, whilst still operating at acceptable noise levels.
The CK range of fans have casings manufactured from galvanized steel and are moisture resistant.
They are approved for installation in humid or damp environments being rated IP44 when installed
in a duct system.
The fan speed can be controlled by voltage variation regulators. Several fans can be connected to
the same controller providing the total rating of the controller is not exceeded.
The motors are an external rotor type asynchrony motor. They have maintenance free sealed ball
bearings and are protected from over heating by thermo contacts.
The fans must not be used for transporting grinding dust, soot or similar.
Technical data
Parameter Value Unit
Current 1,4 A
Pow er 305 W
R.p.m . 2655 r.p.m .
Voltage 220 V
Frequency 60 Hz
Phase 1 ~
M ax. tem perature of transported air 50 °C
M ax. tem perature of transported air w hen speed-controlled 50 °C
Sound pressure levelat 3 m 50 dB(A)
W eight 6,5 kg
Capacitor 8 µF
Length 255 mm
W idth 402 mm
H eight 402 mm
Enclosure class, m otor 44 IP
Insulation class, m otor F
D uct connection o315 m m
Diagrams
Selected
point
Work
point
Flow [l/s]
0,438
Stat. pres.
[Pa]
849
Pow er [W ]
167
C urrent
[A]
0,86
Speed
[r.p.m .]
-
Efficiency
[% ]
-
SFP
[kW /m 3/s]
33
Voltage
[V]
220
Sound
Selected D istance: 3
point
Propagation type: Sem i-spherical
Flow [l/s]
0 Equivalent absorption area: 20
Stat. pres.
[Pa] Tot 63 125 250 500 1k 2k 4k 8k
850
Inlet Lw
73 55 61 63 64 65 67 66 60
Work point dB(A)
O utlet Lw
75 53 62 66 67 69 68 67 60
dB(A)
Surrounding 57 27 37 40 50 52 52 45 34
Lw dB(A)
Surrounding 50 21 31 34 43 46 46 38 27
Lp dB(A)
120
80
40
0
Tot 63 125 250 500 1k 2k 4k 8k
Dimensions
Wiring diagram
Accessories
Accessory
FLF 315 » FLK 315 » BSV 315 » MK 315 » VK 35 » YG 315 » LDC 315 »
Documents
Directions of use
1270031_utg3_CK_sveng_low .pdf

Centrimaster GT-1: Direct Driven, Single Inlet Centrifugal Fans Technical Data

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Centrimaster GT-1: Direct Driven, Single Inlet Centrifugal Fans Technical Data

Uploaded by

Copyright:

Available Formats

Centrimaster GT-1

Direct driven, single inlet centrifugal fans

Direct-driven, Single-inlet Centrifugal Fans

The type GT CENTRIMASTER direct driven, single-

The fans in the spark-proof version conform to the

The single-inlet fans are rated for continuous opera-

General Survey Charts

Air flow, m3/h

Air flow, m3/h

Air flow, m3/s

The fan impellers with backward-curved blades (GTLB )

Tongue of the GTLB fans.

Fan impeller of the type GTLB fans

Fan impeller of the type GTLF fans

Materials and Finish, Motor – Tolerances and Quality

Fan casing: Sendzimir galvanised sheet steel,

Pressure rise, ∆pt: ±2.5% ±5.0% ±10,0%

Efficiency**, h: –2.0% –5.0% –

** Positive tolerance permissible

Motor ISO 9001 and ISO 14001 Quality

Specification Text – GTLF

Specification Text – GTLB

Fan Charts – Explanation

9 = Dynamic pressure at the outlet, pd 6

10 = Connection loss at the inlet, ∆p1

11 = Connection loss at the outlet, ∆p2 + pd 2-pole

12 = Protective screen at the inlet, ∆p3 10 9 pd 10 20 60 80 100 120 160 200 Pa

13 = Protective screen at the outlet, ∆p4 ∆ p 2 + pd 40 100 200 300 Pa

Acoustic Data – Explanation

LWA(s) = LWA + [LWA(s) – LWA]

where the correction figure LWA(s) – LWA can be obtai-

Description of sound path Test arrangement

LWA A-weighted sound power level emitted to outlet duct dB(A)

Acoustic Data – Explanation

The following formula is used to obtain the sound pres-

where the distance absorption ∆L can be obtained from

From fan chart: Speed n = 2871 r/min.

Inlet duct: LW63Hz = 94.6 – 1 = 93.6 dB

Dimensions and Weights – Motor Data – GTLB-1-028

Right-hand version with 90° 466 257

Right-hand version 541 466 1) With max. motor size

482 431 551

Weight (kg) Outlet flange

Fan Charts – Acoustic Data – GTLB-1-028

A-weighted sound power levels 0.2

sound each octave band and ∆ p 2 + pd 40 100 Pa

where Kokt can be obtained

where the correction figure

Dimensions and Weights – Motor Data – GTLB-1-031

Right-hand version with 90° 518 277

604 518 1) With max. motor size

533 477 617

Weight (kg) Outlet flange

Fan Charts – Acoustic Data – GTLB-1-031

Impeller diameter: 310 mm 1000 75

A-weighted sound power levels

chart. Correction figures can 1.5

sound each octave band and

where Kokt can be obtained

where the correction figure

Dimensions and Weights – Motor Data – GTLB-1-040

Right-hand version with 90° 648 329

Right-hand version 759 648 1) With max. motor size
