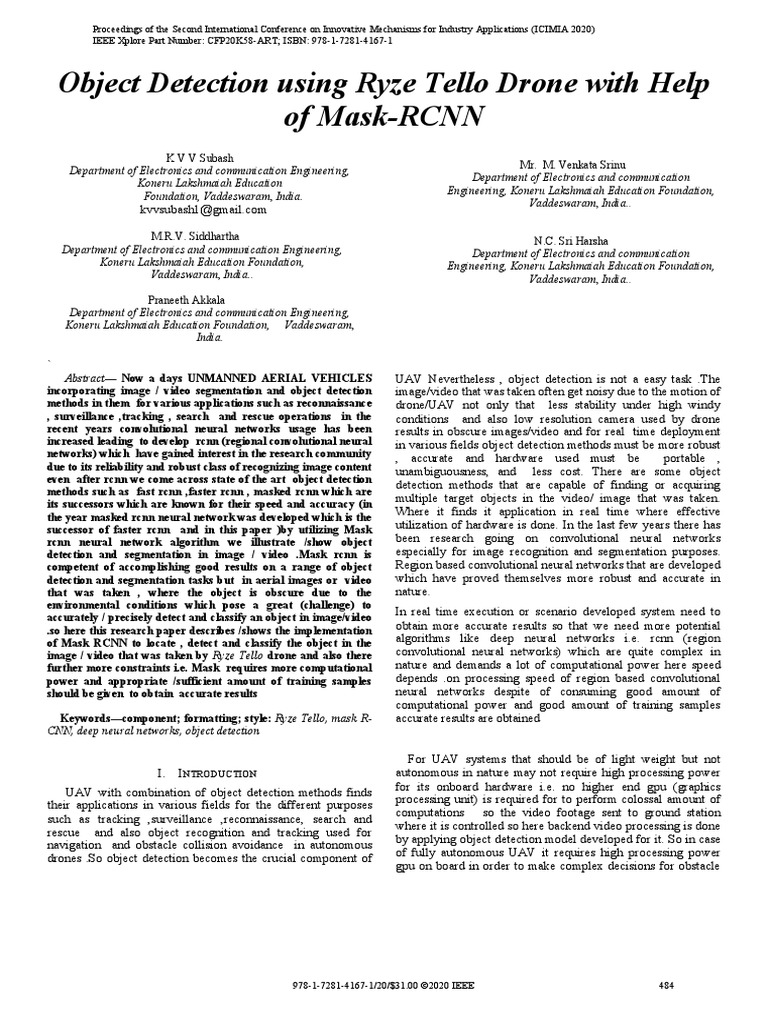

Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
Object Detection using Ryze Tello Drone with Help
of Mask-RCNN
K V V Subash
Department of Electronics and communication Engineering,
Koneru Lakshmaiah Education
Foundation, Vaddeswaram, India.
kvvsubash1@gmail.com
M.R.V. Siddhartha
Department of Electronics and communication Engineering,
Koneru Lakshmaiah Education Foundation,
Vaddeswaram, India..
Praneeth Akkala
Department of Electronics and communication Engineering,
Koneru Lakshmaiah Education Foundation, Vaddeswaram,
India.
`
Abstract— Now a days UNMANNED AERIAL VEHICLES
incorporating image / video segmentation and object detection
methods in them for various applications such as reconnaissance
, surveillance ,tracking , search and rescue operations in the
recent years convolutional neural networks usage has been
increased leading to develop rcnn (regional convolutional neural
networks) which have gained interest in the research community
due to its reliability and robust class of recognizing image content
even after rcnn we come across state of the art object detection
methods such as fast rcnn ,faster rcnn , masked rcnn which are
its successors which are known for their speed and accuracy (in
the year masked rcnn neural network was developed which is the
successor of faster rcnn and in this paper )by utilizing Mask
rcnn neural network algorithm we illustrate /show object
detection and segmentation in image / video .Mask rcnn is
competent of accomplishing good results on a range of object
detection and segmentation tasks but in aerial images or video
that was taken , where the object is obscure due to the
environmental conditions which pose a great (challenge) to
accurately / precisely detect and classify an object in image/video
.so here this research paper describes /shows the implementation
of Mask RCNN to locate , detect and classify the object in the
image / video that was taken by Ryze Tello drone and also there
further more constraints i.e. Mask requires more computational
power and appropriate /sufficient amount of training samples
should be given to obtain accurate results
Keywords—component; formatting; style: Ryze Tello, mask R-
CNN, deep neural networks, object detection
I. INTRODUCTION
UAV with combination of object detection methods finds
their applications in various fields for the different purposes
such as tracking ,surveillance ,reconnaissance, search and
rescue and also object recognition and tracking used for
navigation and obstacle collision avoidance in autonomous
drones .So object detection becomes the crucial component of
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
Mr. M. Venkata Srinu
Department of Electronics and communication
Engineering, Koneru Lakshmaiah Education Foundation,
Vaddeswaram, India..
N.C. Sri Harsha
Department of Electronics and communication
Engineering, Koneru Lakshmaiah Education Foundation,
Vaddeswaram, India..
UAV Nevertheless , object detection is not a easy task .The
image/video that was taken often get noisy due to the motion of
drone/UAV not only that less stability under high windy
conditions and also low resolution camera used by drone
results in obscure images/video and for real time deployment
in various fields object detection methods must be more robust
, accurate and hardware used must be portable ,
unambiguousness, and less cost. There are some object
detection methods that are capable of finding or acquiring
multiple target objects in the video/ image that was taken.
Where it finds it application in real time where effective
utilization of hardware is done. In the last few years there has
been research going on convolutional neural networks
especially for image recognition and segmentation purposes.
Region based convolutional neural networks that are developed
which have proved themselves more robust and accurate in
nature.
In real time execution or scenario developed system need to
obtain more accurate results so that we need more potential
algorithms like deep neural networks i.e. rcnn (region
convolutional neural networks) which are quite complex in
nature and demands a lot of computational power here speed
depends .on processing speed of region based convolutional
neural networks despite of consuming good amount of
computational power and good amount of training samples
accurate results are obtained
For UAV systems that should be of light weight but not
autonomous in nature may not require high processing power
for its onboard hardware i.e. no higher end gpu (graphics
processing unit) is required for to perform colossal amount of
computations so the video footage sent to ground station
where it is controlled so here backend video processing is done
by applying object detection model developed for it. So in case
of fully autonomous UAV it requires high processing power
gpu on board in order to make complex decisions for obstacle
484
 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
collision avoidance, autonomous navigation etc. on its own
without intervention of ground station so mostly video
footage will be processed by onboard hardware for example
self-driving cars, ucav developed by us navy etc. formatter will
need to create these components, incorporating the applicable
criteria that follow.
II. LITERATURE SURVEY
Neural Networks is one of the prominent machine learning
algorithms nowadays. So these Neural Networks and Deep
learning have definitively demonstrated that they can exceed
other algorithms when comes to accuracy and speed been at
the same time colossal amount of data has to be processed by
them i.e. incase of object detection methods. Actually any
neural network comprises of neurons and activation functions
which are referred as basic building blocks of a neural
network. First and foremost in order to understand a neural
network we need to checkout the layers that are present in a
neural network .It is an assortment of neurons when fed up
with inputs leads to formation of outputs. Generally it has one
input layer ,one output layer and middle layer of nodes is
known as hidden layer.
Generally neural network with more than one hidden layer
is referred as deep neural network . Some applications require
high processing power such as image processing and object
identification paved the way for development of deep neural
networks such as convolutional neural networks .So its
named after the hidden layers that comprises of convolutional
layers, pooling layers, normalization layers and fully
connected layers and also one of the downside of general
CNN is that it can describe the class of objects present in that
scene and it is achievable to regress bounding boxes from the
cnn. It can be done for one object at a time to may not give
information where the objects located but it can be done .For
suppose conglomerate of objects in the scene/field of view
bounding box regression may not work well due to the
interference.
In case of rcnn where cnn is contrived to concentrate on a
single region of image/ frame in a video. So there is a
contraction of interference to a maximum extent and here
image or frame in a video is divided into nearly 2000 regions
of recommendations . After that cnn is enforced for each and
every region of image or frame in a video because only
Single object of interest influence in a given region.
Thereupon that a Selective search algorithm detects the
regions in a given image or video and pursued by rescaling
leads to formation of regions of same sizes prior victualed to
cnn for classification and bounding box regressor when
compared to RCNN here Fast RCNN uses single
convolutional neural networks instead of 2000 convolutional
networks used by rcnn for each image and fast rcnn uses
selective search algorithm i.e softmax which exceed in terms
of performance when compared to svm algorithm used by
rcnn and also inorder to increase object recognition accuracy
fast rcnn employs multitask loss on training of deep
convolutional neural networks. So here after rcnn fast rcnn,
faster rcnn were discovered
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
Here image is given as input to cnn which provides
convolutional feature map .Faster RCNN is faster when
compared to fast rcnn , rcnn because here selective search
algorithm is not deployed to predict and recognize the region
of proposals and then they are mutated here after that adopted
by ROI pooling layer. So that is used to classify the image
with in prospective region to forecast the offset values of
bounding boxes. Mask rcnn is almost similar to faster rcnn but
some improvements are made. When compared to faster rcnn
mask rcnn employs a distant branch was included following roi
pooling layer and roi align. So that the branch added is binary
the described pixel will give response to query i.e. whether to
mask or not .So if it is one it will be masked and if it is zero it
so after getting won’t be masked so after getting feature map
from faster rcnn . We move to the masking step.
III. RELATED WORK
In [6] Authors had alluded to detect cars in the aerial images
using faster rcnn, yolo i.e. (you only look once). The contrast
between yolov3 and faster rcnn is evaluated on different
parameters in order to deploy which is suitable for distinct
environments and applications. Same datasets were fed to
them, but yolo v3 (you only look at once) surpasses faster rcnn
in average precision parameters. So it is also known for its
speed in object detection .Here faster rcnn is one of the
prominent rcnn algorithms. In order to know the speed of
execution and accuracy on various datasets .Some external
factors that are responsible for disturbances in the field of
view such as environment so comparison done for state of the
art algorithms based on different performance parameters
their application can be determined
In [3] Authors had developed a model that acclimates and
scales down the object detection module i.e. especially for
vehicles thereupon to curtail the inductive reasoning time in
order to predict more than one object in a region. So they have
adjoined a small section of code or component to faster rcnn
i.e. search area reduction module which cleave the input image
into regions. To cardinally reduce the inductive reasoning time
in further stages or steps the images that do not have vehicles
are filtered or refined through this way of approach. So that
here leading edge results of object detection are obtained on
the publicly available dataset, while the inductive reasoning
for object detection module is reduced to a vast extent.
In [2] Authors had prefaced a model which over shadow the
typical methods in object detection task for precise detection
of multiple objects like vehicles in aerial images. So due to the
minute size of objects in aerial images some of the models
such asVGG-16 or miniature networks are pertinent to obtain
an adequate high feature map resolution but these feature
maps results in obtaining only slighter amount of semantic
and contextual information. This leads to inaccurate object
detection and trigger false alarm for different object of similar
shape Resolution is sustained amply high for localization of
minute objects. So before that for faster rcnn we add
deconvolutional module .So that up samples low dimensional
485
 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
feature maps of deep layers and merges up sample features
with components of the Shallow layers so the frame work.
In [1] Author had introduced a model that propels the
implementation of instance segmentation in VHR (very high
resolution) remote sensing .So they have improved a precision
Mask RCNN neural network i.e. for object detection and
instance segmentation .PMRCNN is executed on VHR
remote sensing images for each and every occurrence of object
in an image produce bounding boxes and segmentation masks
in paradoxical to ROI (region of interest) align. Where size of
the bin does not acclimates for the sample points that are
preconfigured. In order to evade loss of precision two orders
integral is performed by precise. ROI pooling on progressive
feature map by deploying state of the art PMRCNN on VHR
dataset .So NWPU VHR -10 dataset which overshadowed
other neural networks in terms of accuracy or precision for
object detection and instance segmentation. So it displayed
promising results and proven it was robust on VHR Images
and it can be deployed for real time application on VHR
images was taken by satellite.
IV. HARDWARE PLATFORM
We use Ryze Tello drones as a low-cost hardware
platform to test our cloud-based recognition approach. The
Ryze Tello drone costs about US$ 100, is small and light
weight (98mm*92.5mm*41mm. Propeller: 3 inches. Built-
In Functions: Range Finder, Barometer, LED, Vision
System, WIFI 802.11n 2.4G, 720P Live View. Port: Micro
USB Charging Port.) And can be operated indoors and
outdoors. The RYZE TELLO Drone is fitted with a single
camera, an IMU, including a 3-axis gyroscope, a 3-axis
accelerometer, and a 3- axis magnetometer, and a pressure
and IR-based altitude detector. The front-facing camera has
a resolution of 8mp and it can take a video of resolution
1280 × 720 at 30fps
Fig 1tello drone
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
V. METHODOLOGY
Mask R-CNN consists of three networks: feature pyramid
network (FPN), regional proposal network (RPN) and faster
R-CNN. Fpn is fundamentally a neural network which serves
as an extractor of data for exceptional depiction of multiscale
objects ,so this was invented by author of Mask RCNN .so the
initial layers detect low level traits like edges and corners and
high level traits like person, aircraft etc are sensed
subsequently in the following layers so that here by inclusion
of another pyramid that enhances the default pyramid
extraction function so here Rendered image attains a attribute
chart of 32x32x2048 as long as it is transiting by dint of
Backbone network for a sample RGB image of resolution
1024x1024pxx 3 ,some of the backbone networks that are
utilized i.e. resnet50,resnet101etc.Actually backbone network
architecture i.e. like resnet 101 is utilized to extract features
from image or frame of video so that these features serve as an
inputs for the upcoming layer .so here to achieve 256 channels
the feature map generated at layer 2 is imposed to 1 X 1
convolutions. The precursory iteration output is up sampled
and appended in an elementwise manner. A 3 X 3
convolutional layer is imposed on the outputs obtained from
the previous process to generate from the 4 feature maps here
fifth feature map obtained by max pooling of last feature map
i.e. p5 so here (w/32, h/32)is the tiniest size feature map
embroiled in up sampling
Fig 2 FPN EXTRACTION
The main task of rpn is exploring an object in a sliding
window format and analyzing object encompassing regions.
486
 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
So here regions partitioned by the rpn which are known as
Anchors .So they overrun over on picture field typically there
are enormous number of anchors of distinct dimensions and
aspect ratios but typically. We deploy colossal images and
additional anchors specifically for Mask RCNN. So it
consumes good amount of time, so here rotating gate facilitate
to explore all regions simultaneously on a gpu because of
intricacy design of rpn .In order to eradicate superfluous
computations. It reuses the eliminated functions .Primarily
each anchor produces two outputs namely anchor class and
bounding box refinement in anchor class produces foreground
and background A 3 X 3 convolution layers is imposed on
every feature map obtained from previous process. After that
obtained output is traversed through two branches i.e. one to
bounding box regressor and other to obtain object scores.
Three anchor ratios and single anchor stride is utilized for a
feature pyramid .therefore 12 channels allocated for bounding
box regressor and three channels for objectness.
Fig 3 RPN Head
There is a bit of a problem to overcome until we start.
Classifiers do not accommodate variable input size very
well. Usually, they need a constant input size .In the next
step we go for generation of proposals after that choosing of
anchor depends on their respective objectness score .Here
selection of anchors based on respective objectness scores
.Altered image dimensions will be width and height. In the
next step eliminate the bounding boxes in which any of the
coordinate that lies outside the image in order to remove
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
boxes non max suppression is used that imbricate greater
than threshold. From anchor selection to non max
suppression process is executed for every feature of
pyramid produced by FPN backbone ,and after that every
anchor box present in coordinate system of rescaled image
are grouped but data of ROI produced from fpn layer is not
stored.
Further we move into box head here we come across
fpn roi mapping. Here depending upon area of specific ROI
gets associated with pertinent feature map of FPN by
alluding pooler scales. All feature maps from p2 to p5 are
utilized in rpn to produce proposals .By the help of above
equation we can obtain integer level respectively for
specific ROI.
The prominent changes done for Mask RCNN
compared to FASTER RCNN is by substituting ROI Align
in the place of ROI pooling. Here for every ROI a uniform
P X P matrix is produced by ROI Align and ROI Pool .ROI
Pool doesn’t handle well when comes to instance
segmentation task because due to the involvement of large
number of quantization steps that influence production of
masks. In the next level output is traversed through a fully
connected layer after output obtained from every ROI is
reshaped, so number of output channels is one of the hyper
parameters known as representation size and traversed
through other fully connected layer with equal number of
input and output channels.
Fig 4 Box Head
In the upcoming step a predictor containing two
branches where ROI vectors are traversed through it .In order
to obtain bounding box regression values ROI vectors
traversed through first branch. By traversing through second
branch we predict the object class.
487
 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
Fig 5 Bounding Box Processing
The mask division is a convolutional network which takes
the optimistic regions chosen by the ROI classifier and
produces masks for them. The masks produced are low
resolution: 28x28 pixels. These are soft masks, though,
represented by float numbers, so they have more information
than binary masks. The small size of the mask helps keep the
branch light for the mask. The ground- truth masks should be
scaled down to 28x28 during the training to measure the loss,
And scale up the predicted masks to the size of the ROI
bounding box during inferencing which gives us the final
masks, one per object. After that generated masks can be
rescaled to the dimensions of input image. In order to avoid
boundary effect because of up- sampling that is done previous
step by padding the mask tensors. As per the new mask
bounding box coordinates are rescaled according to image
dimensions for this an interpolation method is utilized i.e.
bilinear. We finally obtain Image height and image width i.e.
mask of the object by the help of one of hyper parameters
known as Mask threshold .According to it for every pixel if the
value of Mask threshold is greater than 0.5 then the object is
expected to be present in the respective pixel if it is less than
0.5 then object is expected to be absent in that respective pixel
Fig 6 Processing of Masks
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
Fig 7 Architecture of MASK RCNN
VI. DEVELOPMENT OF MODEL
In this project we are making use of some of the libraries
such as numpy, scipy, cython , h5 py, pillow , matpolit,open
cv libraries after that keras mask rcnn , tensorflow frame
works have to be installed which are vital for backend
processing. So object detection model we have developed for
drone utilizes the frameworks and hardware in more efficient
way and is executed on different operating systems .Here we
are giving a dataset comprises of 100 classes of objects which
contains 10000 images or photographs and xml annotation are
done. After that you need to describe a model configuration
element. This is a new class that extends the mrcnn.config.
Config class and defines the prediction problem properties
such as name, number of classes. The model training
algorithm learning rate can be known.
The configuration must define the name of the
configuration via the name attribute this will be used during
the run to save details and models to be filed. The
specification also needs to define the number of classes in the
question of prediction via the attribute ' NUM CLASSES’.
Eventually, the number of samples or photos used in each
training epoch must be specified. This is the number of
pictures in the training dataset, 100 in this situation. We
trained the considered approach using one GPU with batch
size of 2 for 100 epochs in Mask R-CNN. The pre-trained
network on our own COCO dataset The first step is to
download the model file architecture and weights for the pre-
fit Mask R-CNN model Download the model weights is used
for fine tuning in the first 40 epochs. We trained the network
488
 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1

with learning rate of 0.001. The Mask R- CNN template can

be used as a starting.
VII . RESULTS AND DISCUSSION

The algorithm has been tested on the above-mentioned

configuration, but I'm pretty sure that other combinations
would also work effectively. But please make sure that you
use appropriate suitable TF/Keras versions combination
should be checked. Open CV 3.4 would suffice. If you have
a GPU in your laptop and use CUDA-accelerated learning
this version will work better. In a legion Gtx 1650 laptop
and i5-9300h and 8GB RAM, the FPS obtained is 7.12.and
we have got best accuracy in detection 0.99 and we have
received mean accuracy of 0.956 which is of
95.6percentage Even, make sure you have the Ryze Tello
drone switched on and connected to your Wi-Fi network to
check it on a Tello. Fig 10 MASK RCNN DETECTING LAPTOP,
KEYBOARD AND PERSON

8 MASK RCNN DETECTING TV AND PERSONS

Fig 11 MASK RCNN DETECTING TV AND BED

VIII. CONCLUSION AND FUTURE WORK

Object Detection, Classification and Detection are one of the
broad problems. Obstacle avoidance, search and rescue
purpose, reconnaissance, navigation and mapping of unknown
territories etc. are some of the features seen in autonomous
drone/UAV. Real time deployments of autonomous
drone/UAV in various fields require object detection methods
embedded in them should be more robust and accurate so that
we use deep neural networks i.e. MASK RCNN to detect and
classify the objects in image/frame of video. There are some
disadvantages as well because MASK RCNN demands good
amount of processing, large dataset in which all classes were
Fig 9 MASK RCNN DETECTING MULTIPLE uniformly distributed across several altitude or zoom
CHAIRS AND PERSONS thresholds would significantly increase accuracy. That said,
the relatively small number of periods trained also hinders
detection accuracy, range of drone is less, video resolution of

978-1-7281-4167-1/20/$31.00 ©2020 IEEE 489

 Proceedings of the Second International Conference on Innovative Mechanisms for Industry Applications (ICIMIA 2020)
IEEE Xplore Part Number: CFP20K58-ART; ISBN: 978-1-7281-4167-1
Drone is 720p and megapixels of camera is 8mp .Some of
Applications require camera of high resolution and our drone
do not have optical image stabilization but it has electronic
image stabilization. The Environment conditions are also
responsible for obtaining obscure images and our drone cannot
fly under heavy windy conditions. But it is cost effective i.e.
hundred dollars. Our future work will be controlling drone
with hand gestures human and pose estimation with help of
MASK RCNN neural network.
. aerial images,” in Pacific-Rim Conference on Multimedia, Springer,
REFERENCES
[1] Su, H., Wei, S., Yan, M., Wang, C., Shi, J., & Zhang, X. (2019). Object
Detection and Instance Segmentation in Remote Sensing IEEE
International Geoscience and Remote Sensing Symposium.
doi:10.1109/igarss.2019.8898573
[2] Sommer, L., Schumann, A., Schuchert, T., & Beyerer, J. (2018). Multi
Feature Deconvolutional Faster R-CNN for Precise Vehicle Detection in
Aerial Imagery. 2018 IEEE Winter Conference on Applications of
Computer Vision (WACV). doi:10.1109/wacv.2018.00075 .
[3] Sommer, L., Schmidt, N., Schumann, A., & Beyerer, J. (2018). Search
Area Reduction Fast-RCNN for Fast Vehicle Detection in Large Aerial
Imagery. 2018 25th IEEE International Conference on Image
Processing (ICIP). doi:10.1109/icip.2018.8451189
[4] K. He, et al. “Mask r-cnn,” in Computer Vision (ICCV), 2017 IEEE
International conference on, IEEE, 2017, pp.2980-2988.
[5] R. Girshick. “Fast r-cnn,” in Proceedings of the IEEE international
conference on computer vision, 2015, pp.1440-1448.
[6] Adel Ammar,Anis Koubaa, Mohammed Ahmed , Abdulrahman Saad
“Aerial Image Processing for car Detection using Convolutional Neural
Networks: Comparison between Faster R-CNN and YoloV3” in
arXiv:1910.07234v1 [cs.CV] 16 Oct 2019
[7] A. Borji, et al. “Salient object detection: A benchmark,” in IEEE
transactions on image processing, vol. 24, no. 12, 2015, pp.5706-5722.
978-1-7281-4167-1/20/$31.00 ©2020 IEEE
[8] M. Bhaskaranand, and J. D. Gibson, “Low-complexity video encoding
for UAV reconnaissance and surveillance,” in Proc. IEEE Military
Communications Conference (MILCOM), pp. 1633-1638, 2011
[9] Anantharaman, R., Velazquez, M., & Lee, Y. (2018). Utilizing Mask R-
CNN for Detection and Segmentation of Oral Diseases. 2018 IEEE
International Conference on Bioinformatics and Biomedicine (BIBM).
doi:10.1109/bibm.2018.8621112
[10] Open Source Computer Vision (OpenCV): http://opencv.org/ (access
28.05.2017).
[11] R. Baran, A. Glowacz, and A. Matiolanski. “The efficient real-and non-
real-time make and model recognition of cars,” in Multimedia Tools and
Applications, vol 74, no. 12, 2015, pp.4269-4288.
[12] H. Chung-Hsien, etal. “A hybrid moving object detection method for
Berlin, Heidelberg, 2010, pp.357- 368.
[13] T.Y. Lin, et al. “Microsoft coco: Common objects in context,” in
European conference on computer vision, Springer, Cham, 2014,
pp.740-755.
[14] S. Nadim and B. Bhanu. “Physical models for moving shadow and
object detection in video,” in IEEE transactions on pattern analysis and
machine intelligence, vol. 26, no. 8, 2004, pp.1079-1087
[15] M. Nagao, T. Matsuyama, and Y. Ikeda. “Region extraction and shape
analysis in aerial photographs,” in Computer Graphics and Image
Processing, vol. 10, no. 3, 1979, pp.195-223
[16] S. Ren, et al. “Faster r-cnn: Towards real-time object detection with
region proposal networks,” in Advances in neural information
processing systems, 2015, pp.91-99.
[17] M. Abadi et al. (2016). ‘‘TensorFlow: Large-scale machine learning on
heterogeneous distributed systems.’’ [Online]. Available: https://
arxiv.org/abs/1603.04467
[18] A. Krizhevsky, I. Sutskever, and G. E. Hinton, ‘‘ImageNet classification
with deep convolutional neural networks,’’ in Proc. Adv. Neural Inf.
Process. Syst., 2012, pp. 1097–1105
[19] He, Kaiming, Zhang, Xiangyu, Ren, Shaoqing, Sun, Jian, 2016. Deep
residual learning for image recognition. Proceedings of the IEEE
conference on computer vision and pattern recognition, 770–778.
.
490
