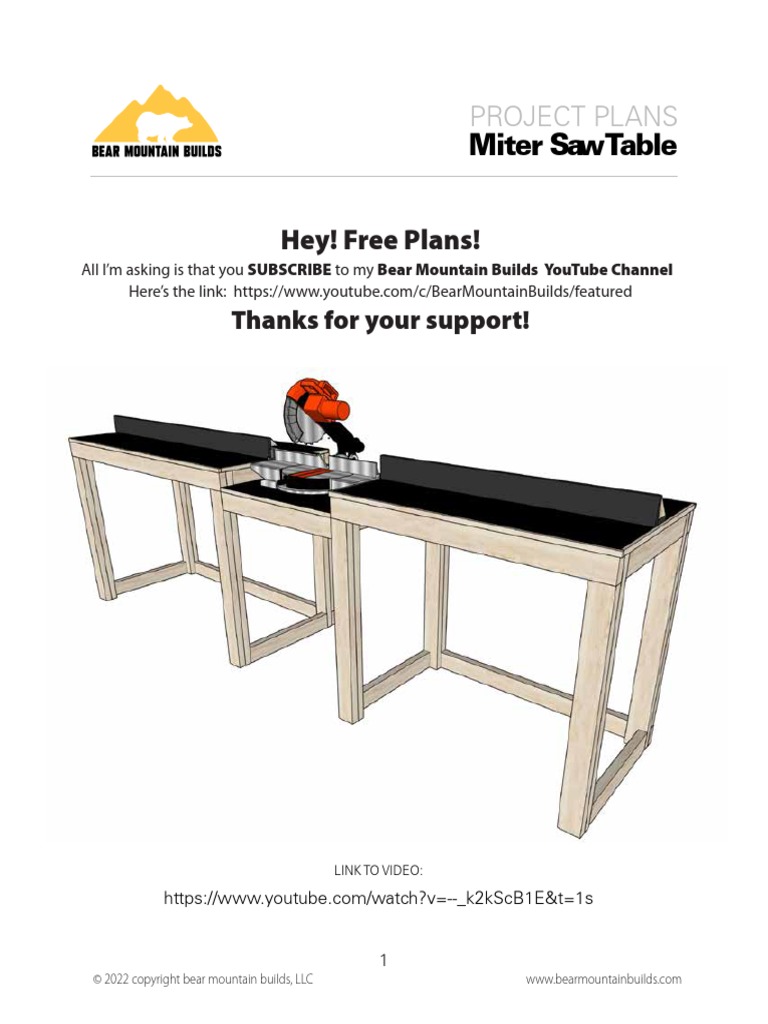

Hey! Free Plans!: Miter Saw Table
Hey! Free Plans!: Miter Saw Table
LINK TO VIDEO:
https://www.youtube.com/watch?v=--_k2kScB1E&t=1s
1
© 2022 copyright bear mountain builds, LLC www.bearmountainbuilds.com
MATERIALS
16 - 2” x 4” x 8 foot
2
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
CUT PLAN 2 x 4s
3
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
CUT PLAN MELAMINE
A C
D
E
F
G
4
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
CUT PLAN FLAT STOCK MOULDING
5
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
POCKET HOLE PLAN
6
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
DIMENSIONS
29 1/2”
41” 34”
371/2”
23 1/2”
26 1/2”
7
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
3 1/2”
STEP 1 LEGS
3 1/2”
3 1/2”
3 1/2”
3 1/2”
3 1/2”
8
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 2 LEG ASSEMBLY
Add cross pieces as shown. I used 2 1/2” pocket screws because they go in across
the wood grain and are less likely to pull out.
9
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 3 HORIZONTAL SUPPORTS
Connect two frames on three corners using the notches in the legs to make
two free-standing frames. Using 3” deck screws attach from the back to hide screws.
10
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 4 TABLE TOP SUPPORTS
11
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 5 SAW BASE
Assemble the saw base and connect to the two side tables. Adjust height so that
the “table” surface of the miter saw is level with table top.
12
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 6 SURFACE TRIM
Glue and brad nail front trim on each each side section first.
Center on front with extra trim extending off both sides.
m
Tri
m
Tri
m
Tri
13
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 7 TABLE TOP
Attach the table tops using 2” black sheet rock screws. You probably don’t need to use
this many screws...but thought it gave the table a cool look.
14
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 8 FENCES
15
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
STEP 9 ATTACHING FENCES
BASE OF FENCE
TABLE TOP
FRONT OF TABLE
16
© 2020 copyright bear mountain builds, LLC www.bearmountainbuilds.com
BEAR MOUNTAIN BUILDS YOU’RE DONE
www.bearmountainbuilds.com
40Pcs Anwenk 1/4"-20 x 15mm Furniture Screw in Nut Threaded Wood Inserts
https://www.amazon.com/gp/product/B07HR63VF5/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1
