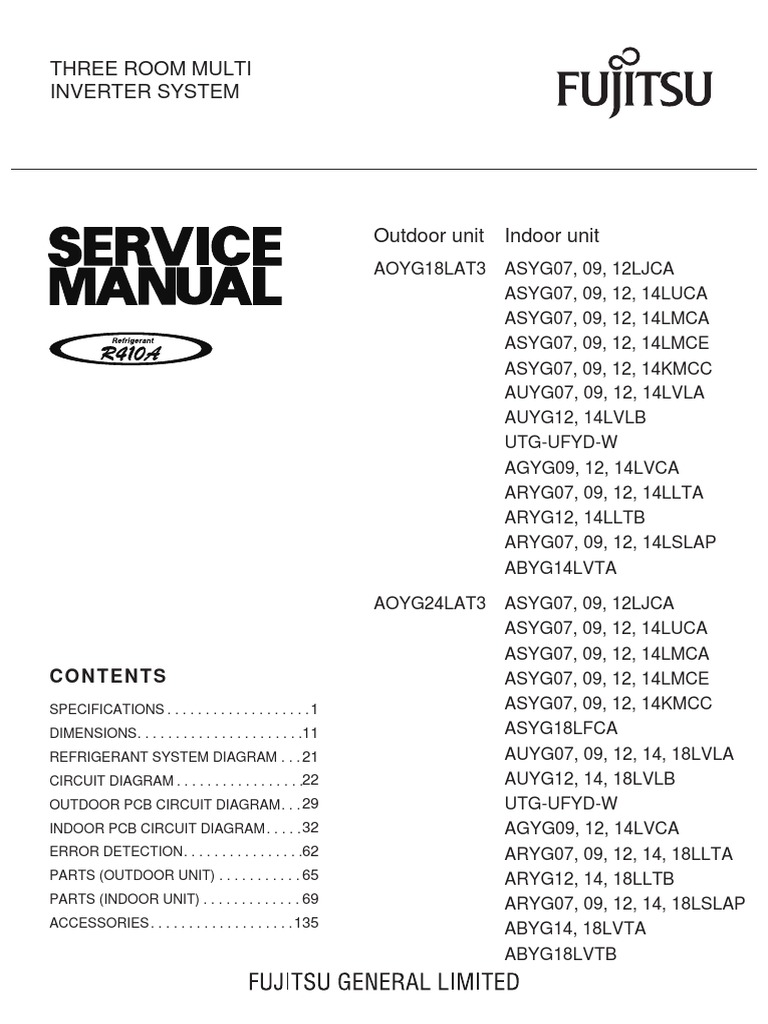

ServiceManual AOYG24LAT3

THREE ROOM MULTI
INVERTER SYSTEM
Outdoor unit Indoor unit

AOYG18LAT3 ASYG07, 09, 12LJCA
ASYG07, 09, 12, 14LUCA
ASYG07, 09, 12, 14LMCA
ASYG07, 09, 12, 14LMCE
ASYG07, 09, 12, 14KMCC
AUYG07, 09, 12, 14LVLA
AUYG12, 14LVLB
UTG-UFYD-W
AGYG09, 12, 14LVCA
ARYG07, 09, 12, 14LLTA
ARYG12, 14LLTB
ARYG07, 09, 12, 14LSLAP
ABYG14LVTA
AOYG24LAT3 ASYG07, 09, 12LJCA

ASYG07, 09, 12, 14LUCA
ASYG07, 09, 12, 14LMCA
CO NTENT S ASYG07, 09, 12, 14LMCE
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . 1 ASYG07, 09, 12, 14KMCC
DIMENSIONS. . . . . . . . . . . . . . . . . . . . . .11 ASYG18LFCA
REFRIGERANT SYSTEM DIAGRAM . . . 21 AUYG07, 09, 12, 14, 18LVLA
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . .22 AUYG12, 14, 18LVLB
OUTDOOR PCB CIRCUIT DIAGRAM . . . 29 UTG-UFYD-W
INDOOR PCB CIRCUIT DIAGRAM . . . . . 32 AGYG09, 12, 14LVCA
ERROR DETECTION. . . . . . . . . . . . . . . .62 ARYG07, 09, 12, 14, 18LLTA
PARTS (OUTDOOR UNIT) . . . . . . . . . . . 65 ARYG12, 14, 18LLTB
PARTS (INDOOR UNIT) . . . . . . . . . . . . . 69 ARYG07, 09, 12, 14, 18LSLAP
ACCESSORIES . . . . . . . . . . . . . . . . . . . 135
ABYG14, 18LVTA
ABYG18LVTB
S PEC IF ICATI ONS
OUTDOOR UNIT
ELECTRICAL SPECIFICATIONS COMPRESSOR AND REFRIGERANT

TYPE Three room multi inverter system Hermetic type, Inverter, 4 poles,
TYPE
MODEL NAME AOYG18LAT3 AOYG24LAT3 3-phase, DC motor, Twin Rotary
COOLING CAPACITY 5.4 kW 6.8 kW DISCRIMINATION DA150A1F-20NA

HEATING CAPACITY 6.8 kW 8.0 kW WEIGHT (with oil) 10.0 kg
POWER SUPPLY 230V PRECHARGED REFRIGERANT 2,200 g
FREQUENCY 50 Hz REFRIGERANT TYPE R410A
Cooling 5.9 A 8.5 A Total pipe length 30 m 2,200 g
RUNNING CURRENT
Heating 7.1 A 8.8 A FULL CHARGE 40 m 2,400 g
Cooling 1.35 kW 1.94 kW 50 m 2,600 g
INPUT
Heating 1.62 kW 2.00 kW ADDITIONAL CHARGE 20 g/m
Cooling 4.00 kW/kW 3.50 kW/kW MAXIMUM PIPE LENGTH (total) 50 m
EER
Heating 4.20 kW/kW 4.00 kW/kW MINIMUM PIPE LENGTH (total) 15 m
Cooling 3,050 m3/hr 3,300 m3/hr MAXIMUM PIPE LENGTH (each unit) 25 m
AIR CIRCULATION HIGH 3 3
Heating 2,750 m /hr 3,300 m /hr MINIMUM PIPE LENGTH (each unit) 5m
MAX ELEVATION (between indoor units) 10 m
FAN MOTOR MAX ELEVATION (between indoor and outdoor) 15 m
DISCRIMINATION MFE-60TVT
HIGH SPEED (COOL) 730 r.p.m. 780 r.p.m. MEASUREMENT
HIGH SPEED (HEAT) 660 r.p.m. 780 r.p.m. DIMENSIONS HxWxD 700 x 900 x 330 mm
WEIGHT Net / Shipping 55 kg / 63 kg
NOISE LEVEL
HIGH SPEED (COOL) 46 dB 48 dB
HIGH SPEED (HEAT) 47 dB 49 dB
2011.04.20 1
INDOOR UNIT INDOOR UNIT
COMPACT WALL MOUNTED COMPACT WALL MOUNTED
ELECTRICAL DATA ELECTRICAL DATA
MODEL NAME ASYG07LJCA ASYG09LJCA ASYG12LJCA MODEL NAME ASYG07LUCA ASYG09LUCA ASYG12LUCA ASYG14LUCA
CAPACITY 2.0 kW class 2.5 kW class 3.5 kW class CAPACITY 2.0 kW class 2.5 kW class 3.5 kW class 4.0 kW class
FAN MOTOR FAN MOTOR

DISCRIMINATION MFD-12TYAN DISCRIMINATION MFE-60TVT
High 1,050 r.p.m. 1,100 r.p.m. 1,200 r.p.m. High 980 r.p.m. 1,030 r.p.m. 1,110 r.p.m. 1,180 r.p.m.
Medium 950 r.p.m. 980 r.p.m. 1,050 r.p.m. Medium 910 r.p.m. 950 r.p.m. 1,030 r.p.m. 1,080 r.p.m.
Cooling Cooling
Low 850 r.p.m. 850 r.p.m. 880 r.p.m. Low 850 r.p.m. 850 r.p.m. 930 r.p.m. 980 r.p.m.
Quiet 710 r.p.m. 710 r.p.m. 710 r.p.m. Quiet 650 r.p.m. 650 r.p.m. 650 r.p.m. 740 r.p.m.
FAN SPEED FAN SPEED
High 1,050 r.p.m. 1,100 r.p.m. 1,200 r.p.m. High 980 r.p.m. 1,030 r.p.m. 1,110 r.p.m. 1,180 r.p.m.
Medium 950 r.p.m. 980 r.p.m. 1,050 r.p.m. Medium 910 r.p.m. 950 r.p.m. 1,030 r.p.m. 1,080 r.p.m.
Heating Heating
Low 850 r.p.m. 850 r.p.m. 910 r.p.m. Low 850 r.p.m. 850 r.p.m. 930 r.p.m. 1,010 r.p.m.
Quiet 720 r.p.m. 720 r.p.m. 720 r.p.m. Quiet 650 r.p.m. 650 r.p.m. 650 r.p.m. 790 r.p.m.
3 3 3
High 3
560 m /h 3
600 m /h 3
660 m /h High 570 m /h 600 m /h 660 m /h 710 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h Medium 520 m3/h 550 m3/h 600 m3/h 640 m3/h
Cooling Cooling
Low 430 m3/h 430 m3/h 450 m3/h Low 470 m3/h 470 m3/h 530 m3/h 570 m3/h
Quiet 310 m3/h 310 m3/h 310 m3/h Quiet 330 m3/h 330 m3/h 330 m3/h 390 m3/h
AIR FLOW AIR FLOW
High 560 m3/h 600 m3/h 660 m3/h High 570 m3/h 600 m3/h 660 m3/h 710 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h Medium 520 m3/h 550 m3/h 600 m3/h 640 m3/h
Heating Heating
Low 430 m3/h 430 m3/h 470 m3/h Low 470 m3/h 470 m3/h 530 m3/h 590 m3/h
Quiet 330 m3/h 330 m3/h 330 m3/h Quiet 330 m3/h 330 m3/h 330 m3/h 430 m3/h
High 36 dB(A) 37 dB(A) 40 dB(A) High 35 dB(A) 36 dB(A) 37 dB(A) 41 dB(A)
Medium 32 dB(A) 33 dB(A) 36 dB(A) Medium 30 dB(A) 32 dB(A) 34 dB(A) 36 dB(A)

Cooling Cooling
Low 29 dB(A) 29 dB(A) 30 dB(A) Low 28 dB(A) 28 dB(A) 31 dB(A) 33 dB(A)
Quiet 21 dB(A) 21 dB(A) 21 dB(A) Quiet 21 dB(A) 21 dB(A) 21 dB(A) 25 dB(A)
NOISE LEVEL NOISE LEVEL
High 36 dB(A) 37 dB(A) 40 dB(A) High 35 dB(A) 36 dB(A) 37 dB(A) 41 dB(A)
Medium 32 dB(A) 33 dB(A) 36 dB(A) Medium 30 dB(A) 32 dB(A) 34 dB(A) 36 dB(A)

Heating Heating
Low 29 dB(A) 29 dB(A) 31 dB(A) Low 28 dB(A) 28 dB(A) 31 dB(A) 34 dB(A)
Quiet 22 dB(A) 22 dB(A) 22 dB(A) Quiet 21 dB(A) 21 dB(A) 21 dB(A) 27 dB(A)
MEASUREMENTS MEASUREMENTS
DIMENSIONS HxWxD 280 x 790 x 203 mm DIMENSIONS HxWxD 282 x 870 x 185 mm
WEIGHT Net / Shipping 8.0 kg / 10.5 kg WEIGHT Net / Shipping 9.5 kg / 12.0 kg
2013.06.20 2
Model name ASYG07KMCC ASYG09KMCC ASYG12KMCC ASYG14KMCC
Power supply 1Ø 230 V ~50 Hz

Available voltage range 198—264 V
Capacity kW class 2.0 2.5 3.5 4.0
Input power W 23 27 27 33
Running current A 0.20 0.24 0.24 0.30
HIGH 650 700 700 770
MED 540 560 560 600
Cooling
LOW 430 430 430 450
QUIET 270 270 270 280
Airflow rate m3/h
HIGH 720 750 770 800
Fan
MED 580 610 640 660
Heating
LOW 460 470 520 520
QUIET 330 330 330 340
Type × Q'ty Cross flow fan × 1
Motor output W 30 49
HIGH 38 40 40 43
MED 33 34 35 36
Cooling
LOW 29 29 30 30
QUIET 21 21 21 21
Sound pressure level *1 dB (A)
HIGH 41 42 42 44
MED 35 36 38 39
Heating
LOW 31 31 33 33
QUIET 22 22 22 24
Cooling 55 55 55 57
Sound power level dB (A)
Heating 56 57 58 59
Main1: 210 × 670 × 26.6
Main1: 210 × 670 × 26.6
Dimensions (H × W × D) mm Main2: 112 × 670 × 20.0
Main2: 112 × 670 × 20.0
Sub: 84 × 670 × 13.3
Main1: 1.2, Main2: 1.1
Fin pitch mm Main1: 1.2, Main2: 1.1
Sub: 1.4
Heat exchanger type
Main1: 2 × 10
Rows × Stages Main1: 2 × 10, Main2: 2 × 7 Main2: 2 × 7
Sub: 1 × 4
Pipe type Copper tube
Fin type Aluminum
Material Polystyrene
Enclosure White + Pearl white (painted)
Color
Approximate color of Munsell N 9.25/
Dimensions Net 270 × 834 × 222
mm
(H × W × D) Gross 277 × 914 × 332
Net 10.0
Weight kg
Gross 12.5 13.0
Liquid Ø6.35 (Ø1/4)
Size mm (in)
Connection pipe Gas Ø9.52 (Ø3/8)
Method Flare
Material PP + HDPE
Drain hose
Size mm Ø13.8 (I.D.), Ø15.8 to Ø16.7 (O.D.)
°C 18 to 32
Cooling
Operation range %RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless (Option: Wired, Mobile app*2 [FGLair™])
NOTES:
• The protective function might work when using it outside the operation range.
• *1: Sound pressure level:
– These are the measured values in the manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *2: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
2020.09.03 3
COMPACT WALL MOUNTED WALL MOUNTED
ELECTRICAL DATA ELECTRICAL DATA
MODEL NAME ASYG07LMCA ASYG09LMCA ASYG12LMCA ASYG14LMCA MODEL NAME ASYG18LFCA
CAPACITY 2.0 kW class 2.5 kW class 3.5 kW class 4.0 kW class CAPACITY 5.0 kW class
FAN MOTOR FAN MOTOR

DISCRIMINATION MFD-12CYN DISCRIMINATION MFD-50RON
High 1,050 r.p.m. 1,090 r.p.m. 1,190 r.p.m. 1,280 r.p.m. High 1,250 r.p.m.
Medium 950 r.p.m. 980 r.p.m. 1,050 r.p.m. 1,120 r.p.m. Medium 1,020 r.p.m.
Cooling Cooling
Low 850 r.p.m. 850 r.p.m. 880 r.p.m. 1,050 r.p.m. Low 900 r.p.m.
Quiet 680 r.p.m. 680 r.p.m. 680 r.p.m. 750 r.p.m. Quiet 770 r.p.m.
FAN SPEED FAN SPEED
High 1,050 r.p.m. 1,090 r.p.m. 1,190 r.p.m. 1,280 r.p.m. High 1,250 r.p.m.
Medium 950 r.p.m. 980 r.p.m. 1,050 r.p.m. 1,120 r.p.m. Medium 1,020 r.p.m.
Heating Heating
Low 850 r.p.m. 850 r.p.m. 910 r.p.m. 1,040 r.p.m. Low 900 r.p.m.
Quiet 710 r.p.m. 710 r.p.m. 710 r.p.m. 770 r.p.m. Quiet 790 r.p.m.
3 3 3 3
High 560 m /h 600 m /h 660 m /h 730 m /h High 920 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h 600 m3/h Medium 740 m3/h
Cooling Cooling
Low 430 m3/h 430 m3/h 450 m3/h 530 m3/h Low 620 m3/h
Quiet 310 m3/h 310 m3/h 310 m3/h 360 m3/h Quiet 550 m3/h
AIR FLOW AIR FLOW
High 560 m3/h 600 m3/h 660 m3/h 730 m3/h High 920 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h 615 m3/h Medium 740 m3/h
Heating Heating
Low 430 m3/h 430 m3/h 470 m3/h 560 m3/h Low 620 m3/h
Quiet 330 m3/h 330 m3/h 330 m3/h 375 m3/h Quiet 550 m3/h
High 36 dB(A) 37 dB(A) 40 dB(A) 42 dB(A) High 43 dB(A)
Medium 32 dB(A) 33 dB(A) 36 dB(A) 38 dB(A) Medium 37 dB(A)
Cooling Cooling
Low 29 dB(A) 29 dB(A) 30 dB(A) 33 dB(A) Low 33 dB(A)
Quiet 21 dB(A) 21 dB(A) 21 dB(A) 25 dB(A) Quiet 26 dB(A)
NOISE LEVEL NOISE LEVEL
High 36 dB(A) 37 dB(A) 40 dB(A) 42 dB(A) High 42 dB(A)
Medium 32 dB(A) 33 dB(A) 36 dB(A) 38 dB(A) Medium 37 dB(A)
Heating Heating
Low 29 dB(A) 29 dB(A) 31 dB(A) 35 dB(A) Low 33 dB(A)
Quiet 22 dB(A) 22 dB(A) 22 dB(A) 27 dB(A) Quiet 25 dB(A)
MEASUREMENTS MEASUREMENTS
DIMENSIONS HxWxD 268 x 840 x 203 mm DIMENSIONS H x W x D 320 x 998 x 238 mm
WEIGHT Net / Shipping 8.5 kg / 10.5 kg WEIGHT Net / Shipping 14 kg / 18 kg
2013.06.20 4
INDOOR UNIT
COMPACT CASSETTE
ELECTRICAL DATA
AUYG12LVLA AUYG14LVLA AUYG18LVLA
MODEL NAME AUYG07LVLA AUYG09LVLA
AUYG12LVLB AUYG14LVLB AUYG18LVLB
CAPACITY 2.0 kW class 2.5 kW class 3.5 kW class 4.0 kW class 5.0 kW class
FAN MOTOR
DISCRIMINATION MFF-24RVL
High 590 r.p.m. 590 r.p.m. 660 r.p.m. 730 r.p.m. 790 r.p.m.
Medium 540 r.p.m. 540 r.p.m. 580 r.p.m. 630 r.p.m. 660 r.p.m.
Cooling
Low 490 r.p.m. 490 r.p.m. 520 r.p.m. 540 r.p.m. 570 r.p.m.
Quiet 440 r.p.m. 440 r.p.m. 460 r.p.m. 460 r.p.m. 460 r.p.m.
FAN SPEED
High 590 r.p.m. 590 r.p.m. 650 r.p.m. 740 r.p.m. 840 r.p.m.
Medium 540 r.p.m. 540 r.p.m. 580 r.p.m. 670 r.p.m. 750 r.p.m.
Heating
Low 490 r.p.m. 490 r.p.m. 520 r.p.m. 600 r.p.m. 650 r.p.m.
Quiet 440 r.p.m. 440 r.p.m. 460 r.p.m. 480 r.p.m. 500 r.p.m.
High 540 m3/h 540 m3/h 610 m3/h 680 m3/h 750 m3/h
Medium 490 m3/h 490 m3/h 530 m3/h 580 m3/h 610 m3/h
Cooling
Low 440 m3/h 440 m3/h 470 m3/h 490 m3/h 520 m3/h
Quiet 390 m3/h 390 m3/h 410 m3/h 410 m3/h 410 m3/h
AIR FLOW
High 540 m3/h 540 m3/h 610 m3/h 700 m3/h 800 m3/h
Heating
Low 440 m3/h 440 m3/h 470 m3/h 550 m3/h 600 m3/h
High 33 dB(A) 33 dB(A) 37 dB(A) 40 dB(A) 42 dB(A)
Medium 31 dB(A) 31 dB(A) 33 dB(A) 35 dB(A) 37 dB(A)
Cooling
Low 29 dB(A) 29 dB(A) 31 dB(A) 32 dB(A) 33 dB(A)
Quiet 27 dB(A) 27 dB(A) 28 dB(A) 29 dB(A) 29 dB(A)
NOISE LEVEL
Heating
MEASUREMENTS
DIMENSIONS HxWxD 245 x 570 x 570 mm
PANEL
MEASUREMENTS
MODEL NAME UTG-UFYD-W
WEIGHT Net / Shipping 2.6 kg / 4.5 kg
2011.01.25 5
INDOOR UNIT
FLOOR
ELECTRICAL DATA
MODEL NAME AGYG09LVCA AGYG12LVCA AGYG14LVCA
CAPACITY 2.5 kW class 3.5 kW class 4.0 kW class
FAN MOTOR (upper fan)

DISCRIMINATION MFD-14TXN
High 1,120 r.p.m. 1,240 r.p.m. 1,330 r.p.m.
Medium 960 r.p.m. 1,050 r.p.m. 1,100 r.p.m.
Cooling
Low 820 r.p.m. 860 r.p.m. 890 r.p.m.
Quiet 660 r.p.m. 660 r.p.m. 660 r.p.m.
FAN SPEED
High 1,120 r.p.m. 1,240 r.p.m. 1,330 r.p.m.
Medium 1,000 r.p.m. 1,080 r.p.m. 1,140 r.p.m.
Heating
Low 860 r.p.m. 910 r.p.m. 940 r.p.m.
Quiet 660 r.p.m. 660 r.p.m. 660 r.p.m.
FAN MOTOR (lower fan)

DISCRIMINATION MFD-14SXN
High 950 r.p.m. 1,050 r.p.m. 1,120 r.p.m.
Medium 820 r.p.m. 890 r.p.m. 930 r.p.m.
Cooling
Low 700 r.p.m. 730 r.p.m. 750 r.p.m.
Quiet 560 r.p.m. 560 r.p.m. 560 r.p.m.
FAN SPEED
High 950 r.p.m. 1,050 r.p.m. 1,120 r.p.m.
Medium 850 r.p.m. 920 r.p.m. 970 r.p.m.
Heating
Low 730 r.p.m. 770 r.p.m. 800 r.p.m.
Quiet 560 r.p.m. 560 r.p.m. 560 r.p.m.
2 FAN RUNNING
High 530 m3/hr 600 m3/hr 650 m3/hr
Medium 440 m3/hr 490 m3/hr 520 m3/hr
Cooling
Low 360 m3/hr 380 m3/hr 400 m3/hr
AIR Quiet 270 m3/hr 270 m3/hr 270 m3/hr
CIRCULATION
High 530 m3/hr 600 m3/hr 650 m3/hr
HIGH
Medium 460 m3/hr 510 m3/hr 540 m3/hr
Heating
Low 380 m3/hr 440 m3/hr 430 m3/hr
Quiet 270 m3/hr 270 m3/hr 270 m3/hr
High 39 dB(A) 42 dB(A) 44 dB(A)
Medium 34 dB(A) 36 dB(A) 38 dB(A)
Cooling
Low 28 dB(A) 30 dB(A) 31 dB(A)
Quiet 22 dB(A) 22 dB(A) 22 dB(A)
NOISE LEVEL
High 39 dB(A) 42 dB(A) 44 dB(A)
Medium 35 dB(A) 38 dB(A) 39 dB(A)
Heating
Low 30 dB(A) 32 dB(A) 33 dB(A)
Quiet 22 dB(A) 22 dB(A) 22 dB(A)
MEASUREMENT
2013.06.20 6
INDOOR UNIT
SLIM DUCT
ELECTRICAL DATA
ARYG12LLTA ARYG14LLTA ARYG18LLTA
MODEL NAME ARYG07LLTA ARYG09LLTA
ARYG12LLTB ARYG14LLTB ARYG18LLTB
CAPACITY 2.0 kW class 2.5 kW class 3.5 kW class 4.0 kW class 5.0 kW class
FAN MOTOR
DISCRIMINATION MFG-09WVL MFG-14WVAL MFG-24WVAL
High 1,160 r.p.m. 1,260 r.p.m. 1,340 r.p.m. 1,560 r.p.m. 1,380 r.p.m.
Medium 1,000 r.p.m. 1,160 r.p.m. 1,240 r.p.m. 1,400 r.p.m. 1,300 r.p.m.
Cooling
Low 940 r.p.m. 1,060 r.p.m. 1,140 r.p.m. 1,240 r.p.m. 1,220 r.p.m.
Quiet 880 r.p.m. 960 r.p.m. 1,030 r.p.m. 1,030 r.p.m. 1,140 r.p.m.
FAN SPEED
High 1,160 r.p.m. 1,260 r.p.m. 1,340 r.p.m. 1,560 r.p.m. 1,380 r.p.m.
Medium 1,000 r.p.m. 1,160 r.p.m. 1,240 r.p.m. 1,400 r.p.m. 1,300 r.p.m.
Heating
Low 940 r.p.m. 1,060 r.p.m. 1,140 r.p.m. 1,240 r.p.m. 1,220 r.p.m.
Quiet 880 r.p.m. 960 r.p.m. 1,030 r.p.m. 1,030 r.p.m. 1,140 r.p.m.
High 550 m3/h 600 m3/h 650 m3/h 800 m3/h 940 m3/h
Cooling
Low 470 m3/h 500 m3/h 550 m3/h 600 m3/h 820 m3/h
AIR FLOW
High 550 m3/h 600 m3/h 650 m3/h 800 m3/h 940 m3/h
Heating
Low 470 m3/h 500 m3/h 550 m3/h 600 m3/h 820 m3/h
Cooling
NOISE LEVEL
Heating
MEASUREMENTS
DIMENSIONS HxWxD 198 x 700 x 620 mm 198 x 900 x 620
WEIGHT Net / Shipping 17 kg / 24 kg 19 kg / 26 kg 23 kg / 30 kg
2013.06.20 7
INDOOR UNIT
FLOOR / CEILING
ELECTRICAL DATA
ABYG18LVTA
MODEL NAME ABYG14LVTA
ABYG18LVTB
CAPACITY 4.0 kW class 5.00 kW class
FAN MOTOR
DISCRIMINATION MFH-24RVL
High 1,380 r.p.m. 1,460 r.p.m.

Medium 1,300 r.p.m. 1,360 r.p.m.
Cooling
Low 1,220 r.p.m. 1,260 r.p.m.
Quiet 1,140 r.p.m. 1,180 r.p.m.
FAN SPEED
High 1,380 r.p.m. 1,460 r.p.m.
Medium 1,300 r.p.m. 1,360 r.p.m.
Heating
Low 1,220 r.p.m. 1,260 r.p.m.
Quiet 1,140 r.p.m. 1,180 r.p.m.
High 640 m3/h 780 m3/h
Medium 590 m3/h 700 m3/h
Cooling
Low 540 m3/h 560 m3/h
Quiet 480 m3/h 500 m3/h
AIR FLOW
High 640 m3/h 780 m3/h
Medium 590 m3/h 700 m3/h
Heating
Low 540 m3/h 560 m3/h
Quiet 480 m3/h 500 m3/h
High 36 dB(A) 41 dB(A)
Medium 34 dB(A) 38 dB(A)
Cooling
Low 33 dB(A) 34 dB(A)
Quiet 29 dB(A) 32 dB(A)

NOISE LEVEL
High 36 dB(A) 41 dB(A)
Medium 34 dB(A) 38 dB(A)
Heating
Low 33 dB(A) 34 dB(A)
Quiet 29 dB(A) 32 dB(A)
MEASUREMENTS
2013.06.20 8
MODEL NAME ASYG07LMCE ASYG09LMCE ASYG12LMCE ASYG14LMCE
DIMENSIONS H x W x D 270 x 870 x 204 mm
WEIGHT Net / Shipping 8.5 kg / 11.0 kg
FAN MOTOR MFD-12CYBL
FAN REVOLUTION
High 1,320 rpm 1,320 rpm 1,320 rpm 1,360 rpm
Medium 1,160 rpm 1,160 rpm 1,160 rpm 1,220 rpm
Cooling
Low 930 rpm 930 rpm 930 rpm 990 rpm
Quiet 680 rpm 680 rpm 680 rpm 750 rpm
High 1,320 rpm 1,320 rpm 1,320 rpm 1,360 rpm
Medium 1,160 rpm 1,160 rpm 1,160 rpm 1,220 rpm
Heating
Low 980 rpm 980 rpm 980 rpm 1,040 rpm
Quiet 710 rpm 710 rpm 710 rpm 790 rpm
AIR FLOW
High 560 m3/h 600 m3/h 660 m3/h 730 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h 600 m3/h
Cooling
Low 430 m3/h 430 m3/h 450 m3/h 530 m3/h
Quiet 310 m3/h 310 m3/h 310 m3/h 360 m3/h
High 560 m3/h 600 m3/h 660 m3/h 730 m3/h
Medium 500 m3/h 520 m3/h 560 m3/h 615 m3/h
Heating
Low 430 m3/h 430 m3/h 470 m3/h 560 m3/h
Quiet 330 m3/h 330 m3/h 330 m3/h 375 m3/h
NOISE LEVEL
High 36 dB 37 dB 40 dB 42 dB
Medium 32 dB 33 dB 36 dB 38 dB
Cooling
Low 29 dB 29 dB 30 dB 33 dB
Quiet 21 dB 21 dB 21 dB 25 dB
High 36 dB 37 dB 40 dB 42 dB
Medium 32 dB 33 dB 36 dB 38 dB
Heating
Low 29 dB 29 dB 31 dB 35 dB
Quiet 22 dB 22 dB 22 dB 27 dB
2017.03.10 9
MODEL NAME ARYG07LSLAP ARYG09LSLAP ARYG12LSLAP ARYG14LSLAP ARYG18LSLAP
DIMENSIONS H x W x D 198 x 700 x 450 mm 198 x 900 x 450
WEIGHT Net / Shipping 15.5 kg / 19.5 kg 18.5 kg / 23 kg
FAN MOTOR MFG-X75VA2F MFG-X80VA2F
FAN REVOLUTION
High 1,100 rpm 1,170 rpm 1,240 rpm 1,300 rpm 1,290 rpm
Medium 890 rpm 890 rpm 960 rpm 1,220 rpm 1,060 rpm
Cooling
Low 810 rpm 810 rpm 850 rpm 1,030 rpm 800 rpm
Quiet 750 rpm 750 rpm 730 rpm 730 rpm 730 rpm
High 1,100 rpm 1,170 rpm 1,240 rpm 1,300 rpm 1,290 rpm
Medium 890 rpm 890 rpm 960 rpm 1,220 rpm 1,060 rpm
Heating
Low 810 rpm 810 rpm 850 rpm 1,030 rpm 800 rpm
Quiet 750 rpm 750 rpm 730 rpm 730 rpm 730 rpm
AIR FLOW
High 550 m3/h 600 m3/h 650 m3/h 800 m3/h 940 m3/h
Cooling
Low 390 m3/h 400 m3/h 430 m3/h 530 m3/h 540 m3/h
High 550 m3/h 600 m3/h 650 m3/h 800 m3/h 940 m3/h
Heating
Low 390 m3/h 400 m3/h 430 m3/h 530 m3/h 540 m3/h
NOISE LEVEL
High 29 dB 29 dB 31 dB 35 dB 33 dB
Medium 26 dB 26 dB 27 dB 30 dB 29 dB
Cooling
Low 24 dB 24 dB 25 dB 27 dB 26 dB
Quiet 23 dB 23 dB 23 dB 23 dB 23 dB
High 29 dB 29 dB 31 dB 35 dB 33 dB
Medium 26 dB 26 dB 27 dB 30 dB 29 dB
Heating
Low 24 dB 24 dB 25 dB 27 dB 26 dB
Quiet 23 dB 23 dB 23 dB 23 dB 23 dB
2017.03.10 10
DIMENSIONS
OUTDOOR UNIT
900 mm 40 31 330 mm 12
700 mm
21
400 mm
Air Flow
370 mm
650 mm
2011.03.23 11
205 : Installed state
INDOOR UNIT 790 mm
COMPACT WALL MOUNTED 203 mm
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
280 mm
140 *1
*1
145 *1
10
*1: Vertical flap is downward
INDOOR UNIT 870 mm 185 mm

COMPACT WALL MOUNTED
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
282 mm
Drain hose length : 600 mm

2013.04.19 12
Models: ASYG07KMCC, ASYG09KMCC, ASYG12KMCC
and ASYG14KMCC
Unit: mm
834 222
270
3.0
(834)
Outline of indoor unit 327
273 273 54
9.5
(270)
220
43
63 182 182 63
43
48 346 356 84
for pipe inlet Ø65 for pipe inlet Ø65
2020.09.03 13
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA
268 mm
ASYG14LMCA
Drain hose
600 mm Diameter
Outside
15.8 to 16.7
Inside : 13.8 mm
998 mm
INDOOR UNIT
WALL MOUNTED
ASYG18LFCA
320 mm
520 mm
590 mm
721 mm 238 mm
2013.04.25 14
INDOOR UNIT
COMPACT CASSETTE Unit : mm
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA AUYG12LVLB
Bottom view
Decoration panel mounting state
530 : Hanging bolt position
540 : Hanging bolt position
Ceiling openings
700 mm
75
150 to 200
135 250
Top view 700 mm
Min. 450
Be sure to leave
Maintenance space maintenance space
Side view
30
49
for future service
at the designated
position.
Min. 450
Drain port
102 40 99 102 Drain port
114
30
108
30
146
245
262
215
Side view
123
30
58
Ceiling
2013.01.22 15
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
655 mm
AGYG14LVCA
740 mm
990 mm 199 mm
200
Rear view
500 mm
600 mm
530 mm
200
175
900 mm
2013.06.20 16
INDOOR UNIT 774 mm
574 mm SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA INDOOR UNIT
174
ARYG14LLTA SLIM DUCT
174
ARYG12LLTB ARYG18LLTA
ARYG14LLTB ARYG18LLTB
(Serial number : T) (Serial number : T)
734 mm 934 mm
30
30
377 mm
377 mm
620 mm
620 mm
10
10
100 x 6 = 600 100 x 8 = 800

55 78 55 78
650 mm 850 mm
700 mm 900 mm
55
55
168
151
198
198
151
168
78
78
664 mm
864 mm
2013.01.22 17
574 mm 774 mm
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA INDOOR UNIT
174
174
ARYG12LLTB SLIM DUCT

ARYG14LLTB ARYG18LLTB
(Serial number : R) (Serial number : R)
734 mm 934 mm
30
30
377 mm
377 mm
620 mm
620 mm
10
10
100 x 6 = 600 100 x 8 = 800

55 78 55 78
650 850 mm
700 900 mm
55
55
198
151
168
198
151
168
78
78
664
864 mm
2012.02.28 18
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
270 mm
ASYG14LMCE
Drain hose
600 mm Diameter
Outside
15.8 to 16.7
Inside : 13.8 mm
2017.02.28 19
MINI DUCT MINI DUCT
ARYG07LSLAP ARYG18LSLAP
ARYG09LSLAP
ARYG12LSLAP
ARYG14LSLAP
450 mm
450 mm
700 mm 900 mm
198
198
2017.03.10 20
REFRIGERANT
SYSTEM DIAGRAM
OUTDOOR UNIT
Outdoor thermistor
Pipe
Discharge thermistor
thermistor
Compressor
thermistor Heat exchanger
COOL
Mufller
Compressor
HEAT
Receiver tank
Pressure
switch (A) Heat exchanger
4-way valve Strainer

Accumulator
Pressure
switch (B)
Distributor
Expansion Expansion Expansion

valve valve valve
Pipe Pipe Pipe

Thermistor Thermistor Thermistor
Pipe Pipe Pipe
Strainer Strainer Strainer
3-way 3-way 3-way

valve valve valve
2-way 2-way 2-way

valve valve valve
1/2 inch 1/4 inch 3/8 inch 1/4 inch 3/8 inch 1/4 inch
Room Room Room

Pipe Pipe Pipe

Heat Heat Heat

exchanger exchanger exchanger
INDOOR UNIT A INDOOR UNIT B INDOOR UNIT C
2011.02.21 21
CIRCUIT DI AGRAM 4-WAY
VALVE
CONSTRUCTION
( HEATSINK TEMP. )
OUTDOOR UNIT 4WV CHECK SWITCH
( COMP. TEMP. )
BLACK
BLACK
THERMISTOR
THERMISTOR
3 2 1 SW150 RED
CN30 CN37 1
DC FAN WHITE RED 2
RED PRESSURE SWITCH 1
DC COMPRESSOR
MOTOR WHITE
W CN36 1
PRESSURE SWITCH 2
( DISCHARGE TEMP. )
WHITE 2 WHITE
FM
( OUTDOOR TEMP. )
RED
1
( PIPE TEMP. )
THERMISTOR
THERMISTOR
THERMISTOR
2 BROWN
U V BLUE
CN27 3
RED 4
ORANGE EV EXPANSION VALVE A
YELLOW
5
WHITE
YELLOW
BLACK
BROWN
BROWN
BROWN
WHITE
6
BLACK
BLACK
WHITE
BLACK
RED
BLUE
RED
BLACK
1 1 1 2WV-A
U V W
1 2 3 4 5 6 7 1 2 1 2 1 2 1 2 1 2 F4 FUSE 3 WHITE
2 2
BLACK
CN800 CN25 CN26 CN23 CN22 CN21 T 5A 250V WHITE
W305 W304 W303 4 3 3 3WV-A
WHITE BLACK GREEN BLUE RED YELLOW
CN39 5 WHITE
4 4
BLACK THERMISTOR
IPM WHITE 6 WHITE
5 5 2WV-B ( VALVE A, B TEMP. )
W17 W16 WHITE BLACK
7 6 6
WHITE
DIODE 8 7 7 3WV-B
RED
BLACK
WHITE BLACK
BRIDGE MAIN PCB 9 8 8
WHITE
- + YELLOW 1 BLACK
1 1 2WV-C
6 RED BLACK THERMISTOR
ORANGE 2 2 2
ACTPM 3 RED ( VALVE C TEMP. )
2
RED 4 3 3 3WV-C
BROWN LED1 LED2 LED3 CN40 5
RED
4 4 BLACK
1 RED
TERMINAL D150 D151 D152 WHITE 6
RED
5 5
1 2 3 4 5 7 6 6
BLACK WHITE RED
L1 W12 CN407 8 7 7
P CN34 RED
YELLOW WHITE 9 8 8
CHOKE COIL YELLOW
RED
BLACK BROWN 3 2 1 AC I N
L2 N1 W13 F2 FUSE
BLUE T 3.15A 250V BLACK RED
EMI FILTER
1 1 1
EMI FILTER CN1 2
WHITE
2 2 BROWN
2T W200 W201 W202 W11 W10 WHITE BLUE
2T
1 3 4 CN50 4 3 3
WHITE
WHITE 5 WHITE
4 4 ORANGE EV EXPANSION VALVE B
WHITE
BROWN
BLACK
BLACK
RED
BLACK
WHITE YELLOW
6 5 5
RED WHITE WHITE
7 6 6
YELLOW WHITE
TM102 TM101 1 2 3
CN1 W8 W9
PINK BLACK RED
WHITE 1 1 1
GREEN BROWN
3 2 2
POWER SUPPLY PCB GREEN BLUE
CN51 4 3 3
WHITE 5
GREEN
4 4 ORANGE EV EXPANSION VALVE C
W3 W6 W7 W4 W5 GREEN YELLOW
6 5 5
GREEN WHITE
7 6 6
WHITE
GREEN
WHITE
BLACK
BLACK
GREEN
FUSE FUSE
10A 25A
AC250V EMI FILTER EMI FILTER
AC250V
WHITE WHITE
BLACK BLACK
TERMINAL L N
1 2 3 1 2 3 1 2 3
UNIT A UNIT B UNIT C
TERMINAL
2021.04.21 22
EX OUT EX IN COMMUNICATION KIT
( OPTION ) ( OPTION ) UTY-XCBXZ1
1 2 1 2 3 COMMUNICATION PCB
5 CN304 CN303
The limitation is option of
REMOTE CONTROL 4
ASYG07, 09 and 12LJCA
3 CN305
( OPTION )
2 INDOOR UNIT
1
CN301 COMPACT WALL MOUNTED
1 2 3 4 5 6 7 8 ASYG07LUCA
1 2 3 4 5 6 7 8
ASYG09LUCA MAIN PCB
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
INDOOR UNIT ASYG12LUCA CN201
RED RED
COMPACT WALL MOUNTED 1 1 1 1 1
1 2 3 4 5 6 7 8
ASYG14LUCA WHITE ORANGE
2 2 2 2 2
ASYG07LJCA WHITE YELLOW LOUVER
To MAIN PCB 3 3 3 CN5 3 3 M
WHITE PINK ( UP / DOWN )
ASYG09LJCA 4 4 4
CN3
4 4
BLUE
WHITE
INDICATOR PCB 5 5 5 5 5
ASYG12LJCA To COMMUNICATION PCB 6 WHITE
6 6
( OPTION ) RED
7 WHITE
7 7 1 1
8 WHITE
8 8 2 2
ORANGE M
CN12
3 3 OPEN PANEL
BLUE YELLOW
1 1 4 4
1 2 3 4 5 6 7 8 YELLOW PINK
CN201 2 2 5 5
CN8 WHITE BLUE
RED RED 3 3 6 6
1 1 1 1 1 BLACK CN7
2
WHITE
2 2 2 2
ORANGE FAN MOTOR FM 4 4
3
WHITE
3 3 CN5 3 3
YELLOW M LOUVER 5 5
RED
INDICATOR PCB WHITE PINK 6 6
4
WHITE
4 4 CN3 4 4
BLUE BLACK
THERMISTOR
5 5 5 5 5 1 1 ( PIPE TEMP. )
WHITE
6
1 BLACK
6 6 2 2
WHITE 2 CN4 BLACK
7 7 7 MAIN PCB 3
3 3
BLACK
THERMISTOR
4 4 ( ROOM TEMP. )
1 1
BLACK THERMISTOR to COMMUNICATION 4
BLACK
2 2 (PIPE TEMP. ) PCB ( OPTION ) 5 CN8 1
BLUE CN4 BLACK 6
1 1 3 3
YELLOW BLACK THERMISTOR 2
2 2 4 4 7
WHITE
3 3 (ROOM TEMP. ) 8
CN6 3 TEST
BLACK CN7 4
FAN MOTOR F M 4 4 REMOTE CONTROL 9
5 5 5
RED ( OPTION )
6 6 1
WHITE
2 5 4 3 2 1 CN11 1 1 1 1 PANEL LIMIT
WHITE
CN6 3 TEST 2 2 2 2 SWITCH
EX OUT ( OPTION ) 1 CNC01 1 1 1
4
ERROR STATUS 2 2 2 2 CN1
5 CNB02
3 3 3 1 2 3 4 5 W4
EX OUT ( OPTION ) 1 4 4 4 1 2 3 4 5
CN1 CNB01
W4 OPERATION STATUS 2 5 to MAIN
CND01 5 5
BLACK
WHITE
RED
1 2 3 4 5
1 6 6 6 PCB
1 2 3 4 5
GREEN
2 CNA01 7 7 7
EX IN ( OPTION )
BLACK
GREEN
WHITE
RED
3 8 8 8
9 9 9
THERMAL
FUSE 102 EARTH TERMINAL
COMMUNICATION PCB
THERMAL
FUSE 102 1 2 3
TERMINAL
EARTH
TERMINAL
1 2 3
TERMINAL
2013.06.20 23
UTY-XCBXZ2 (OPTION) REMOTE CONTROL
COMMUNICATION PCB ( OPTION )
1 2 3 4 5 MAIN PCB
INDOOR UNIT 1 1 1 CNC01 1 EX OUT ( OPTION ) INDOOR UNIT
COMPACT WALL MOUNTED 2 2 2 2 ERROR STATUS WALL MOUNTED TEST
CNB02
3 3 3 1 2 3 4 5
ASYG07LMCA 1 EX OUT ( OPTION ) ASYG18LFCA
4 4 4 CNB01 CN13
ASYG09LMCA 2 OPERATION STATUS EX. OUT 2 1 1 BLUE
5 5 5 CND01 CN16
ASYG12LMCA TO MAIN PCB ( OPTION ) 1 2 2 YELLOW
6 6 6 1 WHITE
ASYG14LMCA 3 3
7 7 7 CNA01 2 CN10 BLACK
ASYG07LMCE EX IN ( OPTION ) 3 4 4 FM FAN MOTOR
8 8 8 3 EX. IN
ASYG09LMCE 2 CN14 5 5
9 9 9 ( OPTION ) RED
ASYG12LMCE 1 6 6
ASYG14LMCE BLUE
6 6
PINK
RED THERMISTOR BLACK 5 5
CN201 1 1 M LOUVER
ORANGE ( PIPE TEMP. ) BLACK 4 4
WHITE 2 2 CN8 YELLOW ( DIFFUSER )
1 1 1 1 3 3
WHITE YELLOW 3 3 WHITE
2 2 2 2 CN10 3 3 M LOUVER 2 2 2 ORANGE
WHITE 4 4 PINK ( UP / DOWN ) 2 2 RED CN3 RED
3 3 3 3 1 1 1
INDICATOR WHITE BLUE 1 1
4 4 4 4 CN3 5 5
PCB WHITE BLACK
5 5 5 5 THERMISTOR 2
WHITE 1 BLACK CN1
6 6 6 6 ( ROOM TEMP. ) 1 6 6 BLUE
WHITE 2
7 7 7 7 PINK
CN6 3 TEST 5 5
5 YELLOW LOUVER
4 4 4 M ( UP / DOWN )
MAIN PCB 4 CN5 ORANGE
BLUE
1 1 5 REMOTE CONTROL 3 3
YELLOW ( OPTION )
3 CN6 2 2
2 2 BLACK 2 RED
WHITE 1 1 THERMISTOR 1 1
3 3 BLACK ( PIPE TEMP. ) 1
BLACK CN7 2 2
FAN MOTOR FM 4 4 CN4 BLACK
3 3 CN201
5 5 BLACK THERMISTOR 7
WHITE
7 7
RED 4 4 5 5
BLUE
6 6 ( ROOM TEMP. ) WHITE
6 6 6 PINK
1 WHITE 4 4
5 5 5 YELLOW LOUVER
2 WHITE CN2 3 3 M ( RIGHT / LEFT )
1 1 INDICATOR PCB 4 4 4 CN11 ORANGE
RED WHITE 2 2
2 2 3 3 3 3 RED
ORANGE WHITE
2 1 1
3 3 4 2 2
YELLOW CN5 TO COMMUNICATION KIT 1
RED
1 1
DIFFUSER M 4 4 CN2 5
( OPTION )
PINK 6
5 5
BLUE 7
6 6 WHITE
TM1
8
GREEN CN1
W4 9 GREEN
BLACK TM4
1 2 3 4 5 TM2 W5
EARTH 1 2 3 4 5
RED
BLACK
WHITE
RED
TERMINAL
TERMINAL
1 2 3
THERMAL
1 2 3 TERMINAL FUSE 102
2017.05.26 24
Models: ASYG07KMCC, ASYG09KMCC, ASYG12KMCC and
ASYG14KMCC
2020.09.03 25
INDICATOR
PCB
INDOOR UNIT MAIN PCB
INDOOR UNIT CN203
COMPACT CASSETTE FLOOR RED
6 5 4 3 2 1 6 6
AUYG07LVLA AGYG09LVCA 5 5 DC FAN MOTOR
1 2 3 4 5 6 BLACK FM
AGYG12LVCA
CN10
4 4 ( UPPER )
AUYG09LVLA CN202
3 3
WHITE
AUYG12LVLA AGYG14LVCA 9 WHITE

1 1 2 2
YELLOW
WHITE BLUE
AUYG14LVLA 8 2 2 1 1
WHITE
7 3 3
AUYG18LVLA 6 WHITE
4 4 7 7
RED
CN201
CN11
AUYG12LVLB ( SWITCH PCB ) 5
WHITE
5 5 6 6
GRAY THERMISTOR WHITE
DC FAN MOTOR
4 6 6 5 5 FM
CN17
AUYG14LVLB GRAY
( PIPE TEMP. ) 3
WHITE
7 7 4 4
BLACK ( LOWER )
WHITE
AUYG18LVLB BLACK
2
WHITE
8 8 3 3
YELLOW
BLACK THERMISTOR 1 RED
9 9 2 2
BLUE
( ROOM TEMP. ) 1 1
1 2 1 2
1 2 1 2 1 2 BLUE DAMPER LOCK
1 5 5 M
1 1 RED
1 1 CN5 CN7 CN8 4 4 PINK ( LEFT )
2
CN12
ORANGE
LOUVER 2 2 2 2 THERMISTOR GRAY
2 2 YELLOW
CN3
YELLOW 3 3 3
M 3 3 3 3 CN12 CN3 GRAY ORANGE
( RIGHT / LEFT ) PINK 4 ( PIPE TEMP. ) 1 1 2 2
4 4 4 4 5 1 1
RED
BLUE BLACK
5 5 5 5 6 2
CN1
THERMISTOR BLACK BLUE
MAIN PCB 1 6 6
1 1 RED
1 1 1 1 BROWN
1 1 1 ( ROOM TEMP. ) PINK
RED 5 5
ORANGE 2 2 2 2 2
LOUVER 2 2 2 2 4 4 DAMPER LOCK
CN8
YELLOW 3 3 ORANGE
3 3 3 5 M
( UP / DOWN ) M 3 3
PINK
3 3 CN11 YELLOW 4 3 3
YELLOW
( RIGHT )
CN13 4 4 4 4 4
CN13
4 4 4 4 WHITE INDICATOR PCB TEST 2 2
ORANGE
5 5 BLUE
5 5 5 5 5 5 5 3
BLUE RED
6 6 6 6 6 2 1 1
PURPLE
BLACK
7 7 7 7 7 1 BLUE
1 1 DAMPER LIMIT 6 6
2 2 CN9 RED PINK
BLACK
1 1 SWITCH ( OPEN ) BLUE
4 4 5 5
3 3 CN14 2 2 WHITE
4 4 YELLOW
CN5
BLACK
CN18
BLACK 3 3 ORANGE
3 3 BLUE 3 3
2 2
FLOAT SWITCH 1 DAMPER LIMIT BLACK
1 2 2
CN10 CN6 1 FRESH AIR 1 RED LOUVER
2 1 2 3 TERMINAL SWITCH ( CLOSE ) 1 1 M
CN4 CN1 2 ( OPTION ) ( UP / DOWN )
5 BLUE
1 2 3 4 5 6 7 8 1 2 3 5 5
4
1 2 3 4 5 6 7 8 1 2 3 4 4 PINK
CN6
WIRED REMOTE 3
CN2
WIRED REMOTE CONTROL YELLOW
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
2 3 3
( OPTION ) CONTROL ( OPTION ) 2 2
ORANGE
1 RED
1 2 3 4 5 6 7 8 1 2 3 1 1
1 2 3 4 5 6 7 8 1 2 3 7 M DAMPER
BROWN 3
1 1 1 1 CN104 CN101
CN14
6
2 2 YELLOW
2 2 CN105 W105
RED
TERMINAL 2 EX INPUT
WHITE WHITE 5
( OPTION )
CN9
3 3 3 3 W102 FLASH 4 1
FAN MOTOR FM 4 4
BLACK
4 4 POWER SUPPLY W101 BLACK
3 3
5 5 5 5 PCB
CN15
RED 1 2 3 2 2
6 6 6 6
7 7 CN102 CN103 CN106 1 1
8 8 E101 E102 1 2 3 1 2 1 2
1 2
CN21 CN22
2 3
CN16
GREEN
GREEN
YELLOW
YELLOW
EX IN ( OPTION )
EX OUT ( OPTION )
1 2
1
2
EX OUTPUT
CN20
1 2
M DRAIN PUMP MOTOR
1 ( OPTION )
TM5
BLACK
TM1 TM2
WHITE
RED
THERMAL 1 2 3
FUSE 102
2011.01.06 26 TERMINAL
GRAY
INDOOR UNIT GRAY THERMISTOR INDOOR UNIT
SLIM DUCT ( PIPE TEMP. ) FLOOR / CEILING
BLACK
ARYG07LLTA BLACK THERMISTOR
ABYG14LVTA BLACK GRAY THERMISTOR
1 1
ARYG09LLTA ( ROOM TEMP. ) ABYG18LVTA BLACK
2 2 GRAY ( PIPE TEMP. )
ARYG12LLTA 1 2 1 2 ABYG18LVTB BLACK
ARYG14LLTA 1 2 1 2 1 2 BLACK THERMISTOR

CN5 CN7 CN8 1 ( ROOM TEMP. )
ARYG18LLTA 1 2 1 2 1 2
2 3 1 2 1 2 1 2
ARYG12LLTB 3 CN12 CN3 1
4 BROWN CN5 CN7 CN8
ARYG14LLTB 4 5
1 1
RED
1 1 2
LOUVER 2 2 2 2 3
ARYG18LLTB 5 6 M 3 3 ORANGE
3 3 CN12 CN3
( RIGHT / LEFT ) YELLOW 4
MAIN PCB 4 4
WHITE
4 4 5
1 1 5 5 5 5 6
LOUVER 2 2 1 1 1
( OPTION )
MAIN PCB RED
3 CN11 3 1 1 BROWN
1 1 1 1 2 2 2
CN13 4 INDICATOR PCB RED 2 2 ORANGE
3 3 3
4 LOUVER 2 2 2 2
5 ( OPTION ) ORANGE 3 3 YELLOW
4 4 4 INDICATOR
FLOAT SWITCH
5 ( UP / DOWN ) M 3 3
YELLOW
3 3 CN11 WHITE
6 4 4 4 4 CN13 4 4 5 5 5 PCB
WHITE BLUE
7 5 5 5 5 5 5 6 6 6
BLACK PURPLE
1 1 6 6 7 7 7
GRAY
2 2 CN9 1 1 RED 7 7 8 8 8
BLACK
3 3 1
CN14 2 2 WHITE 2 CN9 RED
1 1
3 3 BLACK 3 WHITE
TERMINAL CN14 2 2
HEATER 1 3 3 BLACK
CN10 CN6 1 FRESH AIR TERMINAL
( OPTION ) 2 1 2 3 1
CN4 CN1 2 ( OPTION ) CN10 CN6 1
2 1 2 3
1 2 3 4 5 6 7 8 1 2 3 CN4 CN1 2
1 2 3 4 5 6 7 8 1 2 3 1 2 3 4 5 6 7 8 1 2 3
TO REMOTE CONTROL 1 2 3 4 5 6 7 8 1 2 3
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
WIRED REMOTE CONTROL
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
GRAY
( OPTION )
1 2 3 4 5 6 7 8 1 2 3
1 2 3 4 5 6 7 8 1 2 3 1 2 3 4 5 6 7 8 1 2 3
FAN BROWN FAN 1 2 3 4 5 6 7 8 1 2 3
1 1 CN104 CN101 TERMINAL MOTOR BROWN
1 1 1 1 CN104 CN101
MOTOR YELLOW
2 2 W105 RED YELLOW W105 RED TERMINAL
WHITE WHITE 2 2 2 2 CN105 WHITE
3 3 W102 3 3 WHITE
3 3 W102
FM BLACK CN105 POWER SUPPLY W101
BLACK FM BLACK POWER SUPPLY BLACK
4 4 4 4 4 4 W101
5 5 PCB 5 5 5 5 PCB ASSY
RED 1 1 2 3 RED 1 2 3
6 6 CN103 GREEN / 6 6 6 6
2 CN102 CN103 CN106
YELLOW 7 7
CN102 CN106 CN108 8 8 E101 E102 1 2 3 1 2 1 2
E101 E102 E103 1 2 3 1 2 1 2 3
GREEN
GREEN
1 2 1 2 3
EX OUT ( OPTION )
EX IN ( OPTION )
GREEN
GREEN
GREEN
TO OUTDOOR UNIT
WHITE
WHITE
YELLOW
YELLOW
M
REACTOR
DRAIN PUMP MOTOR
2010.10.12 27
Models : ARYG07LSLAP
ARYG09LSLAP
ARYG12LSLAP
ARYG14LSLAP
ARYG18LSLAP
1 Trans board Indicator PCB

To Remote To Remote 2 non-polar ( Option )
CN1
Y1 3 CN1
control control 4
2-wire
Y2 1 2 3 4 5 6 7 8 9
2-wire ( Ex. in ) 5 CN2
1 2 3 4 5 6 7 8 9
Y3 1 2 3 4 5 6 7 8 9 1011
non-polarized Terminal 1 2 3 4 5 6 7 8 9 1011
Red Green
To Remote
CN300
Y1 1 1 CN320
White 1 2 3 4 5 6 7 8 9
control Y2 2 2 1 2 3 4 5 6 7 8 9
Black W260
3 3
3-wire polarized Y3 CN48
Blue
1 1 Main PCB
CN46
X1 2 2
( Ex. in ) Orange
X2 3 3
CN47
1
2 CN11 CN700 CN65
Terminal ( Ex. out ) 1 2 3 4 5 1 2 3 4 5 6 7 8 9 101112 1 2 3 4
Black White 1 2 3 4 5 1 2 3 4
L (1) 1 1 1 1 1 1 Test
CN205
2 2 White
White 2 2 2 2
Power source N (2) 3 3 3 3
White
3 3 1 2 3 4
To Outdoor unit 4 4 4 4
White
4 4 M Louver ( Up / Down )
1 2 3 4 Wireless
CN263
CN261
Red
Serial (3) 5 5 5 5
White
5 5 ( Option )
( indoor unit ) 6 6
White
6 6 LAN adapter
Red White
1 1 Power 7 7 7 7 Gray ( Option )
2 2 8 8
White
8 8 1 1
CN6
supply 2 2 Thermisotr ( Heat ex. mid. temp. )
9 9 White
CN520
3 3 9 9 Gray
Fan motor FM Black
4 4 PCB 1010
White
1010 3 3
White Green
5 5 Black
Yellow W202 1 1
6 6
CN9
Brown
Fuse 2 2 Float switch
7 7 White
F200 1 1 1 1 3 3
Black
CN262
CN260
White
5A 250V 2 2 2 2
CN106
Yellow White Black

1 1
CN8
Drain pump motor M 3 3 3 3 1 1

Yellow
2 2 4 4
White
4 4 2 2
Black Thermistor ( Room temp. )
2017.02.07 28
OUTD OOR PCB CIRCUIT DIAGRAM
CHOKE COIL
3P TERMINAL L=0.32mH 30A
HP-T3061-3-3P UL1015 UL1015
FUSE
UL1015 25A UL1015 INVERTER ASSEMBLY AWG14
BLACK
AWG14
BLACK
AWG14 AC250V AWG14
L
BLACK
UL1015
BLACK
AOYG18LAT3 : EZ-0121YHUE TERMINAL
HP-T4005-21
POWER SOURCE
AC230V
50Hz N
AWG14
WHITE AOYG24LAT3 : EZ-01220HUE UL1015
AWG14
UL1015
AWG14
WHHITE BROWN
UL1015
AWG14
L1 L2 YELLOW W12
UL1015 FUSE + P B
6P TERMINAL AWG20 UL1015 10A
HP-T3036-2 BLACK
AWG20 AC250V
1 BLACK W305 RED
UL1015
AWG20
UL1015
UL1015
AWG14
UL1015
AWG14
ACTPM B
AWG20 W4 BLACK W10 W16
I NDOOR UNIT A 2 RED
WHITE
WHITE
UL1015 B TM101 B B I C404 W304 WHITE
CM
AWG20 B
3 UL1015 BLACK W6 SACT32010F1 W303
AWG20 B BLACK
UL1015 B
1
EMI FILTER
RED
POWER SUPPLY UL1015 UL1015 AWG14
BLUE W13
UL1015 AWG14 COMPRESSOR
ZCAT1518-0730 W5
AWG14
W11
AWG14 - N1 B
x3
1T UL1015
AWG20
B PCB ASSEMBLY TM102
WHITE
B
W17
B
BLACK
N2 EMI FILTER
I NDOOR UNIT B 2 UL1015 WHITE TFC25-15-12A
W7
AWG20
YELLOW B K04BA-0505HUE-P0 IO
2T
3 EMI FILTER 1 BROWN 1
UL1015 CN407
UL1015 TFC25-15-12A
AWG20 UL1015 2 RED
06 PH / 172520
BLACK AWG16 W3 2T
GREEN
AWG20 3 ORANGE 3 1007 L=480
6P TERMINAL EMI FILTER B W9 WHITE 1 CN34 WHITE
03 VH / S I N B 4 4
HP-T3031-3-L1 ZCAT1518-0730 UL1015 B2P3-VH-B-Y
1015 L=250 AWG20 YELLOW 5
1T 5 ACTPM CONTROL
1 W8 BLACK 3
AC VOLT I N 6 YELLOW
UL1015 B
AWG20 EARTH UL1007 AWG24
I NDOOR UNIT C 2 UL1015 WHITE x4
AWG20 CN1
PINK CN1 1 BLACK 1
3 B3B-XASK-1-A 03 XA / 172520
2 BROWN
WHITE 1007 L=180
3 RED 3 WHITE
CT OUT UL1007 AWG24 4

CT
x3
W201
B SERIAL A
W202 SERIAL B
B
W203 SERIAL C
B
RED 1
2
3 CN800
BLACK 4
DC FAN MOTOR FM WHITE 5 B7B-XASK-1-A
YELLOW 6 WHITE
BROWN 7
RED 1
BROWN 2 CN27
BLUE 3 1
EXPANSION VALVE A M ORANGE
YELLOW
4
5
B6B-XARK-1-A
WHITE 6
RED 2
3
EXPANSION VALVE B RED BLACK 1 4
BROWN WHITE 2 CN50 CN602
BLUE WHITE 5
M 06 XA / 172520 B10B-PASK-1
ORANGE
YELLOW
WHITE
WHITE
WHITE
WHITE
4
5
6 1007
WHITE
CONTROLLER PCB ASSEMBLY WHITE 6 SUB FLASH
7 7
EXPANSION VALVE C
WHITE / WHITE
RED BLACK 1 ( MAIN PCB ) 8
BROWN GREEN CN51 9
M
BLUE
ORANGE
YELLOW
GREEN
GREEN
GREEN
3
4
5
06 XA / 172520
1007
AOYG18LAT3 : K11BY-1202HUE-C1 10
WHITE GREEN 6
EXPANSION VALVE D
GREEN / WHITE
7 WHITE
AOYG24LAT3 : K11BY-1203HUE-C1
1
4-WAY VALVE 2
BLACK 1 CN30 3
BLACK 3 179844-1 4
WHITE
PRESSURE SWITCH 1 CN601 5
CN37 MAIN FLASH
RED 1 B10B-PASK-1 6
RED 2 B2B-XARK-1-A WHITE
PRESSURE SWITCH 2 RED
7
WHITE 1 CN36
WHITE 2 8
B2B-XASK-1-A
THERMISTOR ( COMP. TEMP. ) WHITE 9
BROWN 1 CN36
BROWN 2 10
B2B-XAMK-1-A
THERMISTOR ( HEATSINK TEMP. ) GREEN
BLACK 1 CN25
BLACK 2
B2B-XAKK-1-A
THERMISTOR ( DISCHARGE TEMP. ) BLACK
BROWN 1 CN21
BROWN 2
THERMISTOR ( PIPE TEMP. ) B2B-XH-AM YEL
BLACK 1 CN22
BLACK 2
B2B-XH-AM RED
THERMISTOR ( OUTDOOR TEMP. )
BLUE 1 CN23
BLUE 2 B2B-XAEK-1-A
THERMISTOR ( VALVE A, B TEMP. ) 1 BLUE
BLACK BLACK 1
2-WAY VALVE A BLACK WHITE
BLACK WHITE 3
3-WAY VALVE A BLACK WHITE 4
CN39
BLACK WHITE 5 08 XA / 172520
2-WAY VALVE B BLACK WHITE 6
BLACK WHITE 7 1007
3-WAY VALVE B BLACK WHITE 8 WHITE
9
WHITE / WHITE
THERMISTOR ( VALVE C TEMP. ) 1
BLACK BLACK 1
2-WAY VALVE C BLACK RED 2
BLACK RED CN40
3-WAY VALVE C BLACK RED 4
RED 5 08 XA / 172520
RED 6
RED 7 1007
RED 8 WHITE
9
RED / WHITE
2013.01.07 29
OUTDOOR UNIT
MAIN PCB
AOYG18LAT3 : K11BY-1202HUE-C1 W12
B
R200
ZPR0RCH400
AOYG24LAT3 : K11BY-1203HUE-C1 YELLOW
R201 +C201 +C202 C116
R111, R86
R112, R89
220k 660/ R370, R373, R374
660/ 0.1 R110, R88
W16 <2W> 450V R375, R378, R379
W10 450V <HCP> 195k <RN-1/2W>
B W13 0.033 <2W> x 6
B 4 3 x6
12V 2 1 C115 RED B 15V
BLACK + BLUE PFC5000
1 2
0.1
W11 K101 DX12D1
3
- 4
<HCP>
W17 -0702 L300 C333
B B x2 BL02Rn1 47/
R450, R451
WHITE D101 BLACK FH3 35V
R50 47k 15V 195k
D15XB60 R51 R55 F2 + D307 W305
C361 330k<1/10W>
<RN-1/2W> R360 C332
C409
47/35V<PJ>
F4 <1/10W> 27k 4.7k L100 3.15A 0.1 <F> ZP1027 B
5V 10/ R402 R400, R440 1% 39
5A <1/10W> <1/10W> 250V 0.1 <F> x 3
RED
HYIC1 25V 2.2k 180k <1/2W>
C323 0.1<F>
FH2 250V FH1 R52 R56 5V FH4 C327 R302 W304
HU2001R3
D301
<PS> <1/4W> <RN-1/2W> C324
0.022 1.0k
1 UP VN I 14
1.0k 1.0k 5V B
x3
x3
C305 3
14 15V + D402 x2 D450 2 1 2 VP I VNC 15
5V 55 44 33 22 11 <F> <1/10W>
18 10
<1/10W> WHITE
x
CN34 3 8 7 6 <1/10W> P-S I 3 VUFB CIN 16
PFC5000-0702 x 2 3 RD3.3ES DAN217U + W303
AC VOLT I N B2P3-VH-B-Y Q51 C180 R407, R403 4 VUFS CFO 17
C328
D303 D302
1 1 8
<B2> 3
C325
C51 B
U1JU44 x 3
5 VP FO 18
YELLOW VA103 2SC2412K 0.1 10k <1/10W> x 2 R406 2200p
5V 0.01 2
<BQ> 1 - 2 R435 R453 1.0k R104, R106 6 VP I UN 19 BLACK
470V HYIC2 P-AFE + 3 2.87k 7 VVFB VN 20
 195k +
C322
C363
C304
<TNR> HU2001R3 - 6 <1/10W> <1/10W> 8 VVFS WN 21
R57 47k R53 4.7k P-POWER P-AFDC
7
C450 R452 <RN-1/2W> C326
I C400-1, + 5 R441 1% 9 WP P 22
18 14 10
5V 55 44 33 22 11 <1/10W> <1/10W> 1.0k <1/10W> 0.1 3.83k 1% 10 VP I U 23
W200 8 7 6 P-S I 2
C35, C36 I C400-2 4 R401 <F> x2 + 11 VPC V 24
C321
x2 <1/10W>
C362
C303
SERIAL - A B R58 27k R54 3 C167 0.01 <F> x 2 C414, C411
1 uPC393 2.94k 12 VWFB W 25
RED
<1/10W> 1.0k 0.1 C412 0.01 <F> x 2 13 VWFS N 26
5V Q52 2<1/10W> x2 <1/10W> R340
W201 HYIC3 0.1 R341 5V
2SC2412K <BQ> P-AN-DC 1% D81, D82 R105 2.49k I C310 R33
SERIAL - B B HU2001R3 5V <F> 15V 15V R342
YELLOW R162 47k R160 47k R113 DAN217U x 2 <1/10w> 1% R87 PS21265-AP 10k
R102 R343
14 <1/10W> 1.0k C89 2.94k R344
W202
18
8 7
10
6 5V 55 44 33 22 11 <1/10W> 22k I C11-1 2 1 2 1 <1/10W>
SERIAL - C 3 P-S I 3 <1/10W> 470p <1/10W> R345
B R163 27k R161 C168 <1/10W> uPC393
1 P-CP-POS
3
2 3 3 1% 1.0k
PINK
<1/10W> 0.1 - C311 - C316 R40 1.0k
2 1.0k
1
C95 R114 1
+ 3 R108 <1/10W>
Q150 R103 R107 1000p
<1/10W> 100p 27k <1/10W>
2
2.87k 680 x6
2SC2412K <BQ> <CH> <1/10W> 4.7k x6
<1/10W> <1/10W> C33 0.01 <F> 1 CN800
Q91 <1/10W> C88 C87 15V
1% 1% Q801 B07B-XASK-1-A
2SC2412K 0.1 330p 15V L800 2
DTA143EUA 1BL02Rn1 C802 WHITE
<BQ> <F> 3
D801 0.1
R801 ZP1027 <F> 4 DC FAN MOTOR
Q800 2
C4 C5 1.0k 5
DTC143
R193 R192 R2 1.0k T1 R5 470/ 220/ 12V <1/2W>
R6, R1 EUA 3 3 6
1.0k 100k 5V 100k <RS-3W> JPZ-200 D1FL20U 10k 25V 16V 2 C800 R802 7
D150 - D152 5V 5V
SLR-332VR <RED>
<1/10W> <1/10W> <2W> C1 16 1 x 2 <1/10W><PJ> <PJ>
R803 100/ + 560
C176, C175 2 I C8 1 2
<1/4W>
Q1 x 2
15
x3 I C3 I C153 220p D8 1 10k 16V
C179 BD4742G 0.1 <F>
13 3
NJM7805 5V <PJ>
uLN2003A 2 SUB VCC 5 5V 2SC5354 12 6 <1/10W> 3
R182 - R184 0.1 x2 1 I O 3 C6
16 1C 1B 1
VOUT 4 C174 R3 100 C2 0.047
10 7
+ + G +100/ C801 R804 D803
2.2k <1/4W> <F> 1 NC GND 3 I C150 + 4.7/ 9 8 D7
CR5 15 2C 2B 2 <1W> <ECQV> 2
16V 0.01 1.0k DAN217U
x3 14 3C 3B 3 P-V2 MB95F108H 50V 2
RE1202 D100 15V <PS> <F> <1/10W>
13 4C 4B 4 P-4WV-AC 2 AVR VCC 17
<PS> D10
1
D2 I C407
0.2/120 12V 12 5C 5B 5 D1FL20U
P-LED TAUX3-2 13 MOD AVCC 1
RD5.6ES D1FL20U
3 BA178818CP 18V
CN30 1 11 6C 6B 6
P-PR 21 RSTX P30 63 PANT3WV2 +
RSTX-2
D152
D151
D150
10 7C 7B 7 <B2> C3 C7 1 I O 3
4-WAY VALVE 179844-1 2 3 2 P-SO1 P-LED1 6 PE0 P31 62 PANT2WV2 G
WHITE 12V 12V 9 COM E 8 5 PE1 P32 61 PANT3WV1 100/16V + 220/35V D401 C406 2 C418
P-LED2
4 PE2 P33 60 PANT2WV1 D1FL20U + + 10/
1 4 P-LED3 <PJ> 220/
I C151 P-LED4
3 PE3 P34 59
R140 D1 R4 35V
K17 C177 50V
R184
R183
R182
18 PG0 P35 58
uLN2003A 1.2 D1FL20U 330 <PS>
FTR-F3 0.1 22 P00 P36 57
PANT3WV3 <PJ>
5V 16 1C 1B 1 P-LED1 23 P01 P37 56 <1/2W> <1/4W> A
15 2C 2B 2 <F> 24 P02 P40 55
PANT2WV3 P-EPV2-D
P-LED2 P-POWER
CN37 1 R91, R90 R93, R92 14 3C 3B 3 P-LED3 25 P03 P41 54 P-EPV2-C P-U
13 4C 4B 4 26 P04 P42 53 P-EPV2-A P-V
B02B-XARK-1-A 2 2.2k <1/10W> 1.0k <1/10W> P-LED4 P-EPV2-B P-W
RED x2 x2
12 5C 5B 5
P-SO4 27 P05 P43 52 C161 P-X
PRESSURE SWITCH - 1 11 6C 6B 6
P-SO3
28 P06 P50 40 C160 10k P-Y
10 7C 7B 7 P-SO1 29 P07 P51 41 P-Z
12V 9 P-SO2 10k <1/10W> 5V
COM E 8 TTXD-2 30 P10 P52 42 P-TR I P CN1
CN36 1 L202 C71
C70 <1/10W> P-EPV3-B
P-FM1POW D61
R69 1
TRXD-2 31 P11 P53 43 P-EPV3-A 5V 03 XA / 172520
B02B-XASK-1-A 2 BL02Rn1 0.1
0.1 32 P12 P60 44 P-EPV3-C FM1FDB DAN217U
1.0M 2
C73 C72 TCK-2
R194 10k P-FM2POW 1007 L180
PRESSURE SWITCH - 2
WHITE
<F>
<F> I C201 33 P13 P61 45
5V 5V P-EPV3-D 1 2
<1/10W> 3
5V 0.01 0.01 <1/10W> R186 - R188 R189, R190
WHITE
S-93C66BD0 I P-SO2 34 P14 P62 46 CN407 C29
CN26 1 L201 BL02Rn1 <F> <F> 5V 35 P20 P63 47 4 CT
8 VCC CS 1 P-SO3 22k <1/10W> 10k <1/10W> 06 PH / 172520 P-AN-CT
3
0.1
THERMISTOR B02B-XAMK-1-A 2 C91 P-E2PCS1 P-SO4 36 P21 P64 48
C162 R100 R101 C60 4 DO SK 2
P-E2PSK1 x3 x2 1007 L480 R97, R96, R95, R94 I C4
GREEN
0.1 P-EPV1-A 37 P22 P65 49 SUB-CLK <F>
( COMP. TEMP. ) 0.1 6.65k 10k 0.1
7 NC DI 3
P-E2PD I 1 38 P23 P66 50
SUB-FWD
WHITE
1.5k <1/10W> x 4 TD62064 12V
<F> 5 GND NC 6
C56
P-EPV1-B Q403 18V 18V
CN25 1 <F> <1/10W> <1/10W> <F> 39 P24 P67 51
SUB-BKWD P-EPV1-A 3 I1 O1 2 1 CN27
1.0k 14 X0 P70 12 DTA143 C415 ACTPM CONTROL
THERMISTOR B02B-XAKK-1-A 2 R409 P-EPV1-B 6 I2 O2 7
2 B06B-XARK-1-A
BLACK R98 1.0k R99 C61 <1/10W> X150
1 3 15 X1 P71 11
SW150
1
0.01 P-EPV1-C 11 I3 O3 9 RED
( HEATSINK TEMP. ) R206 19 X1A P80 10 R411 1.0k 1 14 I4 3
<1/10W> 10k 0.1 8.00MHz KSMC632B <F> A P-EPV1-D O4 16
10k 20 X0A P81 9 C181 R196 22k <1/4W> 2 12V 1 COM1 4 EXPANSION VALVE - A
CN21 1 1% <1/10W> <F> <CSTLS> AGND P82 8 3 2 GND1 4
<1/10W> 2 64
0.1 1.0k <1/10W> 2 8 COM2
GND2
5
THERMISTOR B2B-XH-AM-Y 2 R63 R62 C37 16 GND P83 7 3 3 10 NC1 12 5
YELLOW P-SWPRS1 P-EPV1-C <F> <1/10W> P-S I 1 P-AFS GND3
( DISCHARGE TEMP. ) 6.65k 10k 0.1 P-S I 2 C416 JM400 4
15 NC2
GND4
13
6
P-SWPRS2 P-EPV1-D
<1/10W> <1/10W> <F> MICOM-SUB P-S I 3 1000p R437,
1
R173, R172, R171, R170
1 5 12V
THERMISTOR CN22 5V C19, C18 5V A Q401 A R438 C413 1.5k <1/10W> x 4
CN50
2 R65 4.75k R64 C38 1
DTC124EUA 270 0.01
I1 O1 2
( PIPE TEMP. ) B2B-XH-AM-R R11, R195 IC1 0.1 <F> x 2 C20 C169 P-EPV2-A 3
<1/10W> 10k 0.1 5V CN602 P-EPV2-B 6 I2 O2 7 2 06 XA / 172520
RED
10k <1/10W> MB90F462 10k <1/10W> <F>
1% <1/10W> <F> P-CMPTH + 4.7/ A 1
B10B-PASK-1 P-EPV2-C 11 I3 O3 9 1007 L250
CN23 1 x2 <1/10W> 1% x 2 14 I4 O4 16 3
P-AN-HT 17 P63 VCC 56 50V R612, R610, R609 2 WHITE P-EPV2-D
12V
WHITE
B02B-XAEK-1-A R67 38.3k R66 C39 P-AN-TD R608 10k 1 COM1 4

4
THERMISTOR 2 C804 SUB-CLK 16 P62 AVCC 11 <PS> 10k <1/10W> 3 COM2
GND1
5 EXPANSION VALVE - B
BLACK <1/10W> 10k 0.1 P-AN-TT 2 P46 P00 25 <1/10W> 5V 8
GND2
( OUTDOOR TEMP. ) 10k TAUX-1 5V 10 NC1 12 5
5V 1% <1/10W> <F> P-AN-TA P-POWER 35 P12 P01 26
P-E2PCS1 R613 x3 4
15 NC2
GND3
13
1
<1/10W> P-AN-CT
3 P50 P17 40
22k 5
GND4 6
PANT2WV1 59 P37 P13 36 FM1FDB
R117 14k R116 C43 <1/10W> SUB FLASH I C20 7
2 L203 P-FM1POW 58 P36 P14 37 P-E2PD I 1
TTXD-2 6 R177, R176, R175, R174
2-WAY VALVE A BL02Rn1 <1/10W> 10k 0.1 TTXD-1 60 P40 P15 38 P-E2PSK1 TD62064 12V
3 P-AFDC TRXD-2 7 1.5k <1/10W> x 4
1% <1/10W> <F> TAUX3-1 21 MD2 P16 39
P-AFE TAUX3-2 P-EPV3-A 3 I1 O1 2 1 CN51
4 PANT3WV1 P-AFS 34 P11 AVR 12
P-U 8
CN39 R119 14k R118 C44 47 P26 P24 45
TCK-2 P-EPV3-B 6 I2 O2 7 2 06 XA / 172520
5 P-CP-POS P-X RSTX-2 9 11 I3 O3 9
3-WAY VALVE A 08 XA / 1725200 <1/10W> 10k 0.1 27 P02 P25 46 P-V R611 P-EPV3-C
3 1007 L250
14 I4 O4 16
1007 L250 6 C53 28 P03 P30 50 U P-Y 10 P-EPV3-D WHITE
1% <1/10W> <F> P-W
4.7k 12V 1 COM1
GND1
4
4
WHITE 29 P04 P31 51 X
7 PANT2WV2 10k P-PR P-Z 5V <1/10W> 5V CN601 8 COM2 5 EXPANSION VALVE - C
2-WAY VALVE B R121 14k R120 C45 P-LED
30 P05 P32 52 V
5V 5V GND2 5
8 <1/10w> 31 P06 P33 53 Y B10B-PASK-1
10 NC1 12
<1/10W> 10k 0.1 P-4WV-AC R605 1 15 NC2
GND3
13
6
3-WAY VALVE B 9
32 P07 P34 54 W R126 - R128 WHITE GND4
1% <1/10W> <F> P-V2 33 P10 P35 55 Z 22k 2
PANT3WV2 P-TR I P C40 01 10k <1/10W> x 3 I C21 7
R123 14k R122 C46 57 C P60 14
SUB-FWD <1/10W> 3
TAUX-1 TD62064
P-EPV-A <F> 41 P20 P61 15
SUB-BKWD
<1/10W> 10k 0.1 P-EPV-B 42 P21 MD0 18
TTXD-1 4
TMODE-1 TRXD-1
1% <1/10W> <F> P-EPV-C 43 P22 MD1 20 5
5V TMODE-1
P-EPV-D 44 P23 P44 64 P-SWPRS2
TAUX3-1
MAIN FLASH
1 10 P57 P43 63 6
PANT2WV3 P-AN-DC P-SWPRS1
R151 14k R150 C158 TCK-1
2 L204 9 P56 P42 62
TCK-1 7
2-WAY VALVE C <1/10W> 10k 0.1 C78 8 P55 P41 61 RSTX-1
3 BL02Rn1 P-AN-HT
7 P54 P45 1
TRXD-1
R604, R21, R603, R602, R601 8
1% <1/10W> <F> 1.0k P-CMPTH R73 100k
4 PANT3WV3 P-AN-TT
5 P52 RSTX 19 RSTX-1 5V 10k <1/10W> 9
CN40 <1/10W> 6 P53 P27 48 <1/10W>
5 R153 14k R152 C159 P-ANTA x5 R20 10
3-WAY VALVE C 08 XA / 1725200 <1/10W> 10k 0.1 P-AN-TD
4 P51 AGND 13
C17 R72
1007 L250 6 22 X0 GND 24 10k
WHITE 1% <1/10W> <F> 23 X1 GND 49 0.1 1.0k 2 SUB VCC 5
<1/10W>
7 <F><1/10W> VOUT 4 I C6
X1 1 3
5V 1 NC GND 3 BD4742G
8 MICOM-MAIN
9
8.00MHz R36 R158
<CSTLS> 1.0k 10k
2
<1/10W> <1/10W>
C79
0.1
<F>
2021.04.21 30
OUTDOOR UNIT
POWER SUPPLY PCB ASSEMBLY
K04BA-0505HUE-P0
TM100
86028
L1 L2 L4
W4 RCV2515-010PF05 N200500K1D7C-02N RCV2515-010PF05
B 4 3 4 3 TM101
BLACK VA101 C104 86028
470V 0.015
POWER SOURCE C101 C106 C107 C111
<TNR> <YE>
AC230V 1.0 2.2 2.2 2.2
VA102 C105 <LE>
50Hz <LE> <LE> <LE>
470V 0.015
W5 <TNR> <YE>
B 1 2 1 2 TM102
86028
WHITE
SA100
RA-302M
W6
B
BLACK
TO I NDOOR UNIT 5 4
W7
B CT1
WHITE CT-1B
D60 VR1 5V
W3 5V CN1
EARTH DAN217U VG067TL1 C65
B R68 B03B-XASK-1-A
GREEN
1
B202 0.1 WHITE
1 3 3 22k <F> 1
2
+ <1/10W>
2
CT OUT
W8 3
B C64
AC VOLT OUT BLACK
R60 C60 R61 0.1
680 220/ 3.74k <F>
W9
B <1/10W> 16V <1/10W>
WHITE
1% <PJ> 1%
2010.12.21 31
TERMINAL
HP-T3064A-A29-L1
F1
AC250V 3.15A
MAIN PCB
L
1
UL1015 AWG24 BLACK 1 ASYG07LJCA : K09DS-1208HSE-C1
BRANCH BOX UNIT 2
CN1
POWER SOURCE
AC230V
N 2 UL1015 AWG24 WHITE 3
4
2013485-1
WHITE
ASYG09LJCA : K09DS-1209HSE-C1
50Hz SERIAL
3 UL1015 AWG24 RED 5
ASYG12LJCA : K09DS-120AHSE-C1
E
INDOOR PCB
1
CIRCUIT DIAGRAM 2
3
CN9
B07B-PASK-1
WHITE
4
5
FLASH
6
7
W4
COMPACT WALL MOUNTED UL1015 E
EARTH
AWG22
CONTROL UNIT GREEN
1 BLACK
THERMISTOR
2
( PIPE TEMPERATURE. )
ASYG07LJCA : EZ-01235HSE CN4
B04B-PL I SK-1 3
BLACK
BLACK
EARTH WHITE
4 BLACK
THERMISTOR
ASYG09LJCA : EZ-01236HSE ( ROOM TEMPERATURE )
ASYG12LJCA : EZ-01237HSE
1 RED
2 ORANGE
CN5
M
BLUE 1
B05B-PL I SK-1
WHITE
3
4
YELLOW
PINK
LOUVER
YELLOW 2
5 BLUE
WHITE 3 CN7
DC FAN MOTOR FM BLACK 4 B5 ( 6-5 ) B-XARK-1-A
RED
UL1061 AWG28 x 5
5
RED 6
UL3226 AWG22 x 5
1 RED 1
2 WHITE 2
3 WHITE 3
CN3 CN201
4 WHITE 4
B07B-PL I SK-1 JB20-07
WHITE 5 WHITE 5 WHITE
OPTION 6 WHITE 6
7
7 WHITE
UL1061 AWG28 x 7
CN6-1 RED 1
CN6-2 2
CN6-3
WHITE
BLACK 3
CN305
B05B-XASK-1-A
1 WHITE 1 INDICATOR PCB
2 WHITE 2
4
5
WHITE
3 WHITE 3 K07BJ-0900HSD-D0
CN301 4 WHITE 4 CN8 1
UL1061 AWG26 x 3
SJH20-08WSF 5 WHITE 5 SJH20-08WSFB
WHITE WHITE 2
CN6
WIRED REMOTE CONTROL 1
6 6
B5B-PH-K-S 3
TEST
CN303 7 7 WHITE 4
( OPTION ) 2
B3B-XH-AM 8 WHITE 8 5
EXTERNAL INPUT 3 WHITE
COMMUNICATION PCB UL1007 AWG24 x 6
K08DG-0801HSE-CA0
1 CN304
EXTERNAL OUTPUT 2 B2B-XH-AM
WHITE
2013.01.25 32
INDOOR UNIT
MAIN PCB
ASYG12LJCA : K09DS-120AHSE-C1
W4 GREEN
B 340V
E
F1 L5 R3
CN1 C3, C2 L1 56k C5
2013485-1 250V 0.01 <KH> 18mH 20*20*18 0.01 T1
<1/4W> D3 15V
WHITE FH1 3.15A FH2 TP0035-31 x 2 x2 <SS11V> 0.6A - 10mH D5 <ECQE> MY082N
1 D1FL20U
1 2 S1NBC60 10 15V 15V-2 15V-3
3 R2
AC I N 2 1 R53, R54
5 VA1 C1 + 22k <1/4W> 100 2 9
C10 + JM1 R57
C9 L2 5V
470V 0.1 3 4 x2 <1/4W> 220/ 0R0 0R0
- C4 + 3 8 330/ BLm18
<TND07V> <ECQU> 25V <BD102>
68/ D2 25V
4 7
420V UF4007
4 3
5 6 D4 +
D1FL20U
R6 R7
A
I C8 150 1.0k
TNY274PN <1/10W> <1/10W>
R11
5 S D 4 D7 27k R10
6 S 1SS355 <1/10W> 10k
IC2 7 S BP_M 2
C11 <1/10W>
HI2003R3 8 S EN_UV 1 1
Q6 0.1 1%
2
2SA1576A <F>
5V <R>
3 3
18 14 10 5 4 3 2 1 C12 C
REF
8 7 6 5 4 3 2 1 0.1
2 1
3 R9 15V
<F> Q5 R8 I C6 A 10k
1 9
C29 A 2SC4081 1.0k TL431 I Z 2 <1/10W>
1000p <R> <1/10W> 1% VCC I C13-8
R15 15V CN5
<E> JM2 1.0k G/V
uLN2003ADR
A B05B-PL I SK-1
0R0 <1/10W> A 8
1
WHITE
R12, R48 I C1-32 A R31 - R34
470 <1/4W> C21 47 <1/10W> x 4
x2 1 16 2
0.01 I C1-54
 I C1-53
2 15 3 LOUVER
A
3 14 4
12 5
I C1-52
I C1-31 4 13 5
I C1-51
I C13-5 I C13-1 - I C13-4
5V
uLN2003ADR uLN2003ADR x 4
R13 CN3
10k 5V B07B-PL I SK-1
WHITE
<1/10W> R29, R28, R27
I C1-42 1
3 270 <1/10W> x 3
2 R14 C20 2
1.0k 0.01 I C1-23
Q1 1 3
I C13-6 5V
<1/10W> A
RT1N241M I C1-22
A 4
uLN2003ADR I C1-21 I NDICATOR PCB ASSY
R55
5V 5
11 6
I C1-30 10k
R45 6
<1/10W> BZ1 5V
15V 10k
1 CS VCC 8 PS1240P02BT 7
I C1-73 C36 <1/10W> R36 R37
3 DI DO 4 10 7
I C1-71 BZ I C1-80 10k 47
2 SK NC 7 0.1 I C1-36 A
5V I C1-72 C41 R46 <1/10W> <1/10W>
5V I C1-70
5 GND TEST 6 <F>
I C13-7 0.1 1.0k
R44 C50
CN6 R49, R51 R43 uLN2003ADR <F> A <1/10W> C25
10k 1000p
B5B-PH-K-S I C1-1 1000p
10k <1/10W> <1/10W> I C12 10k <R>
WHITE
A
x2 A S-93C66BD0 I A <1/10W> A<R>
1 I C1-79
2 I C1-76 15V-2 340V
TEST 3 I C1-77
CN7
4 C42 C44 15V-3 B5 ( 6-5 ) B-XARK-1-A
RED
5 1000p 1000p 5V 5V Q3
DTA124EUA 1 R25 5
<R> <R>
10k 4
A
A
Q2 2
<1/10W>
IC1 + C18 C24 C19 RT1N241M 3 3 1%
3 DC FAN MOTOR
uPD78F1154AGK 10/ 1.0 1.0 2 2
25V <F> <F> I C1-39
R86 - R88 5V 74 P00 VCC 19 A 1
5V I C1-40 1
CN9 10k <1/10W> x 3 I C1-73 73 P01 EVCC 20
A A R26
72 P02 AVREF0 59 C6 +
B07B-PASK-1 I C1-72 8.2k
WHITE R89 I C1-71 71 P03 AVREF1 56 10/
R56, R58, R59 10k I C1-70 70 P04 P51 42
I C1-42 <1/10W> 25V
1 I C1-39 39 P05 P52 43 1%
100 <1/10W> x 3 <1/10W> 38 P06 P53 44 A A 5V A
2
I C1-10 I C1-54 54 P10 P54 45
3 I C1-53 53 P11 P55 46
I C1-8 R21
52 P12 P60 21
4 I C1-52 I C1-21
FLASH I C1-9 I C1-51 51 P13 P61 22 10k
I C1-22
5 I C1-13 50 P14 P62 23 <1/10W>
I C1-23
49 P15 P63 24
6
48 P16 P64 26
7 C80 R47 47 P17 P65 27 C23 R20
1000p 10k 68 P20 P66 28 5V 340V
1000p 1.0k CN8
67 P21 P67 29
<R> <1/10W> <R> <1/10W> SJH20-08WSF
A 66 P22 P70 37
A A WHITE
65 P23 P71 36 I C1-36 R19 R30 R22
5V 64 P24 P72 35
I C1-35 R23 8
63 P25 P73 34
10k 100k 10k
62 P26
1.0k <1/10W> <1/10W> <1/10W> 5
P74 33
I C1-62 I C1-33 <1/10W> A
L4 R39 61 P27 P75 32
I C1-32 4
I C1-61 I C1-35
CN4 R38 40 P30 P76 31
I C1-31 ( COMMUNICATION PCB ASSY )
0R0 10k I C1-40
I C1-4 3
B04B-PL I SK-1 L6 1.0k
25 P31 P77 30 I C1-30
WHITE <1/10W> 9 P40 P90 55 2
I C1-9 I C1-55 I C1-41
0R0 1% <1/10W> 8 P41 P110 57
4 I C1-8 1
I C1-61 7 P42 P111 58 I C1-55
3 L3 C28 P120 1 C14 C15 R42 5V
6 P43 I C1-1
THERMISTOR 2 0R0 R40 0.1 5 P44 P121 15 1 1000p 0.1 1.0k 5V
I C1-5
<F> I C1-4 4 P45 P122 14 2 X1 <R> <F> <1/10W>
1 1.0k P123 12 A A A R72 R71 R52
A A 3 P46 8.00MHz
<1/10W> 2 P47 P124 11 3
1.0k 10k 100k
I C1-62 R60, R61 <FCR>
41 P50 P130 69 A
R41 C31 I C1-41 <1/10W> <1/10W> <1/10W>
I C1-10
10 *RESET P140 80 10k <1/10W> x 2 I C1-80 I C1-33
49.9k 0.1 I C1-13
13 FLMD0 P141 79
I C1-79
16 REGC P142 78 I C1-5
<1/10W> <F> C17 17 GND 77
P143
1% A A I C1-77 C51
1.0 60 AGND P144 76
I C1-76
18 EGND P145 75
0.1
<F>
<F>
A A
2010.09.08 33
INDOOR UNIT
ASYG07LJCA
ASYG09LJCA 5V 5V
ASYG12LJCA CN201
7 - JB / PL I
INDICATOR PCB L=230 #26 / 1061
K07BJ-0900HSD-D0
1
D201 SLR-343MC GREEN 2
D202 SLR-343DC ORANGE 3
D203 SLR-343MC GREEN 4
5
SW201 6
KSHC611BT 7
A
I C201 5V
GP1UM261 A
VCC 2
OUT 1
GND 3
C202 + R202 C203
47/ 47 0.1
A 10V <1/4W> <F>
A
2010.09.08 34
TO MAIN PCB POWER
13V
390V
CN301 R301 C302 T301 D303 JM303
SJH20-08WSF 390k 1000p SW161-1 RF101L2S 0R0
1 10
POWER 8 <1/4W> <E> 2
3
GND 5
5
HA / EX I N 4 4 6 C306 R309
+ 18k
HA / EX OUT 3 R302 100/
25V <1/10W>
WIRED I N 2 270
WIRED OUT 1 <1/4W>
D301
UF4007 (Option)
+
C301
4.7/ D302 12V Communication kit
450V RF101L2S
I C301 12V
R306 1.0k
UTY-XCBXZ1
LNK603PG
5
6
S
S
D 4
R303
18k
1%
R304 36k C311

+
for ASYG07LJCA
7 S BP_M 2 <1/10W> 100/
8 S FB 1
C305
1%
R305 6.2k
25V ASYG09LJCA
1.0 1%
 ASYG12LJCA
A A
COMMUNICATION PCB
13V
K08DG-0801HSE-CA0
E. X. L301
0R0
R312
1.2k
<1/4W> CN303
B3B-XH-AM
C313
I C306 0.01 1
EXTERNAL I NPUT
PS2501L-1 2
4 1 3
3 2
A
L302
0R0
WIRED REMOTE CONTROL UNIT

CN304
12V K301 B2B-XH-AM
G5NB-1A
1 EXTERNAL OUTPUT
1 3
Q301 2
DTC123EUA
3 4 2
2
1
A 12V 13V
R331
22k I C308 13V 8
3 PS2501L-1 I C304-1 C304
<1/10W>
Q304 2 4 1 BA10393F I C304 0.1
DTC143EUA 3 2 1 +
3 <F>
2 4
1 -
R315
13V
A
2.7k
A <1/10W> R318
15.4k
<1/10W>
1%
R319
12V 13V 5
I C304-2 + 7 28k
6 -
<1/10W> 13V 13V 13V
BA10393F
R316 1% CN305
R322 R317 B05B-XASK-1-A
1.2k I C309 10k D307
<1/4W> 10k D1F60
PS2501L-1 <1/10W>
1 4
<1/10W>
1% 1
1 TO WIRED
2
3 2 3
3
2
REMOTE CONTROL
2 C310 R320 L303 3
D306
1000p 390 0R0 4
1 R330 DAN217U
Q302 <R> <1/4W> 5
2.7k
DTC143EUA <1/10W> 3 1%
2
A Q303
1
DTC143EUA
C309
0.01

2010.09.08 35
EARTH TERMINAL
INDOOR UNIT
CONTROL UNIT 3
GREEN
ASYG07LUCA : EZ-0121CHSE OUTDOOR 2 THERMAL
EMI FILTER
ASYG09LUCA : EZ-0121DHSE UNIT FUSE 102
ESD-R-19
or
ASYG12LUCA : EZ-0121EHSE 1
RED RTCB-19-10-10
3T
ASYG14LUCA : EZ-0121FHSE WHITE
TERMINAL BLACK
W4
1 2 3 4 5
1
RED 6 CN1
BLACK
THERMISTOR ( PIPE TEMP. )
CN4 2 BLACK
5 2013485-1 3
BLACK 4 B04B-PLIRK-1 BLACK
THERMISTOR ( ROOM TEMP. )
CN7
FAN MOTOR FM WHITE 3
B5 ( 6-5 ) B-XNISK-A-1
4 BLACK
YELLOW 2
BLUE 1
1 RED
2 ORANGE
CN5 3 YELLOW M LOUVER ( UP / DOWN )
B05B-PLISK-1 4 PINK
5 BLUE
CN1 1 WHITE
2 WHITE PANEL LIMIT SWITCH

B02B-PLIRK-1 3
1 RED
2
CN12 3 ORANGE
M OPEN PANEL
4
B06B-PLIRK-1 YELLOW
5 PINK
MAIN PCB 6 BLUE
ASYG07LUCA : K10CH-1205HSE-C1
ASYG12LUCA : K10CH-1207HSE-C1 1 RED 1 INDICATOR PCB
ASYG14LUCA : K10CH-1208HSE-C1 2 WHITE 2
3 WHITE 3
K10CX-1000HSE-D0
CN3 4 WHITE 4 CN201
5 WHITE 5 JB20-08
B08B-PLIRK-1 6 WHITE 6
7 WHITE 7
8 WHITE 8
COMMUNICATION PCB 9
8
WHITE 9
8
( OPTION ) 7 7
6 WHITE 6 1
K10DC-1000HSE-CA0 5 WHITE 5 CN8 CN6 2
CND01
4 WHITE 4 SJH20-09WSF B5B-PH-K-S
3
TEST
3 WHITE 3 4
SJH20-09WSF
2 WHITE 2 5
1 WHITE 1
2012.10.31 36
POWER SOURCE D3
AC230V CN1 TP00351-31 x 2
D1FL20U
15V
INDOOR UNIT
50Hz 2013485-1 FH1 FH2 L1
<SS11V>
L5
0.6A - 10mH 340V
1 D5 C10 R24
+
TO TERMINAL
BLK
WHT 3
F1
C3
4 3 S1NBC60 100/
25V
100k
<1/10W> 13V
MAIN PCB
5 0.01 2
RED 3.15A
250V
VA1
470V
C1
0.1
<F>
3
+
1
4
C2 -
<ERZ10V> <LE>
0.01
<F>
T1
EE16
D11
D1FL20U
JM2 ASYG09LUCA : K10CH-1206HSE-C1
1 2 0R0
D12
ST03D-140
1 10
C16 +
330/ D4
L2
BLm18 D13 5V 5V-2 ASYG12LUCA : K10CH-1207HSE-C1
C4 + 2 9 JM3
25V
W4
68/
420V
3
4
8
7
D1FL20U <BD102> RD8.2FM 0R0 ASYG14LUCA : K10CH-1208HSE-C1
5 6 +
A C9
470/
JM4 I C8 25V
0R0 TNY277
5 S D 4
R7
6 S R6 1.2k
7 S BP_M 2 150
8 S EN_UV 1 C11 R10
R11 1
Q6 0.1 10k
2
27k 2SA1576A <F> 1%
<R> 3 C
C26 + 3 5V
1
2 I C6
10/ REF R9 CN11
HIC2 Q5 TL431 A
25V 1 R8 2
3 10k R70 R69 B02B-PL I RK-1
GK-LV3011E5 2SC4081
5V 2.7k 1% 1.0k 1.0k
<R> 1 PANEL LIMIT SWITCH
P-SW
C40 2
18 14 10 5 4 3 2 1 A R15 15V
C29 A 15V 0.1
1.0k
1000p 9 9 <F> A
S-D I
<E> C21 A CN12
5V I C13-8 VCC VCC
I C14-8
A 0.01 15V 15V-2 uLN2003 G/V G/V uLN2003 13V B06B-PL I RK-1
R12 R13
R14 A
8 8 1
1.0k 10k A A
<1/2W> 1.0k 1 3 2 OPEN PANEL MOTOR
3
WARIKOMI 1 16 I C14-1 uLN2003 3
2
Q1 C20 Q7 I C14-7
0.01 DTA124 2
uLN2003 2 15 I C14-2 uLN2003 4
1 RT1N241M
I C14-3 uLN2003 5
A
3 14
A 10 7
15V CUT
4 13 I C14-4 uLN2003 6
5V 5V
16 1
S-DO 13V
1
I C13-1 I C1 + C18 C24 C19
uLN2003 10/ 1.0 1.0 2 15 I C13-2 uLN2003 2
78F1154AGK
5V 25V <F> <F> 3 14 I C13-3 uLN2003 3
13VTR-CUT 74 P00 VCC 19 A LOUVER ( UP / DOWN )
73 P01 EVCC 20 4 13 I C13-4 uLN2003 4
R55 A
72 P02 AVREF0 59 5 12 I C13-5 uLN2003 5
10k I C15 71 P03 AVREF1 56
C92 70 P04 P51 42 13V
470 5V S-93C66B0 I P52
WARIKOMI
CN5
39 P05 43
PWM
<1/16W> 15V CUT 38 P06 P53 44 Q13 B05B-PL I SK-1
8 VCC CS 1
R29 1.0k <1/4W> R75 5V
4 DO DI 3
54 P10 P54 45 DTC143EUA
C36 53 P11 P55 46 0R0
A 7 NC SK 2 3 1
0.1 52 P12 P60 21 2
6 TEST GND 5
51 P13 P61 22 LED1 2
<F> R44 R28 1.0k <1/4W>
50 P14 P62 23 1 3
10k LED3 49 P15 P63 24 A
A 48 P16 P64 26 3 4
LED2
A LED1 47 P17 P65 27 2 Q15 INDICATOR PCB
5
P-SW 68 P20 P66 28 LED2 DTC143EUA
67 P21 P67 29 1 R27 1.0k <1/4W> 6
5V A
66 P22 P70 37
SSR 7
65 P23 P71 36 3
64 P24 P72 35
R80 2 8
HA-I N LED3 Q16
63 P25 P73 34
C7 HA-OUT DTC143EUA
R89 R87, R88 62 P26 P74 33 1
CN3
470 61 P27 P75 32 A
470 10k x 2 R52, R48, R47 S-D I
B08B-PL I RK-1
40 P30 P76 31
100 x 3 <1/16W> FB S-DO
25 P31 P77 30
A
9 P40 P90 55
W-OUT 5 12
8 P41 P110 57 A
7 P42 P111 58
ERROR
LED-DEM 6 P43 P120 1 I C14-5
5 P44 P121 15 uLN2003
4 P45 P122 14 5V
3 P46 P123 12 3 1 X1
2 P47 P124 11 8.00MHz
41 P50 P130 69
5V R46 R45
W-I N R65 <FCR>
10 RESET P140 80 2 1.0k 10k
5V 13 FLMD0 P141 79
0R0
C30 R36 C41
16 REGC P142 78
R53 C17 5VCUT 10k R37
R54 17 GND P143 77 12p 0.1
CN6 100 1.0 60 AGND P144 76
C32 22 <F>
5V R49 R51 470 18 EGND P145 75
A
B5B-PH-K-S A <F> LED-PWM X3 12p
10k 10k
A 32.768kHz A C25 C50
1
<MC-146> R43 15V 1000p 1000p
2
10k
3 A A
TEST 6 11 CN7
4
R62 - R64 7 10 I C13-6 B5 ( 6-5 ) B-XN I SK-A-1
5 340V
100 <1/10W> x 3 BZ 15V-2 uLN2003
I C14-6 5
I C13-7
BZ1 uLN2003 R25 15V-2 4 FAN MOTOR
A uLN2003 1
KPT-1340P22 6 11 2
10k 3
PWM 1%
3 2
R30 R22 5V 340V Q3
CN8
100k 10k DTA124EUA 1
R38 SJH20-09WSF R26 C6 +
5V
1.0k 9 8.2k 10/
R19 R71 1% 25V
5V-2 10k 100k 6
COMMUNICATION PCB R21
R39 C28 5 ( OPTION ) A A A
HA-I N 10k
10k 0.1 4
L4 HA-OUT FB
CN4 1% <F>
0R0 L6 W-I N 3 C23 R20
B04B-PL I RK-1
0R0 A A W-OUT 2 1000p 1.0k
4
ERROR 1
THERMISTOR ( ROOM TEMP. ) 3
R40 A
1.0k C14 C15 R23 1.0k
2 A
0.01 0.1 R60 100
THERMISTOR ( PIPE TEMP. ) 1 L3 R41 C31 <F> R42 1.0k
0R0 49.9k 0.1 A A R61 100
1% <F> R59 100
A A
2012.10.31 37
INDOOR UNIT
ASYG07LUCA 13V 5V
ASYG09LUCA CN201
ASYG12LUCA 8 - JB / PL I
D204 L=250 #26 / 1061
ASYG14LUCA UDZS6.2B
INDICATOR PCB D201
1
SLR-343ECT
K10CX-1000HSE-D0 <GREEN> 2
D205 3
UDZS6.2B 4
D202
SL I-343DCT 5
<ORANGE> 6
SW201
D206 KSHC611BT 7
UDZS6.2B A 8
D203
A
SLR-343ECT
<GREEN>
R202 13V
47 5V
<1/4W>
VCC 2
OUT 1
C204 + C203
GND 3
47/ 0.1
A 10V <F>
I C201
GP1UM271R A
R201
22
<1/4W>
2012.10.26 38
13V
390V
CN301 T301 D303 JM303
SJH20-09WSF SW1614-1 RF101L2S 0R0
1 10
9 2
6 R301 C302 3
5
390k 1000p
5 4 6 C306 R309
<1/4W> <E> +
TO MAIN PCB 4 100/ 18k
R302 <1/10W>
3 25V
270
2 <1/4W>
1
D301
UF4007
+ C301 12V
47/ D302
450V RF101L2S
12V R306
I C301 1.0k
5
LNK603
S D 4
R303 1% (Option)
18k R304 C311 +
6
7
S
S BP_M 2 <1/10W> 36k
1%
100/ Communication kit
8 S FB 1 25V
C305
1.0
R305
6.2k
UTY-TWBXF
 1%
for ASYG07LUCA
A
13V
A
ASYG09LUCA
L301 CNA01
ASYG12LUCA
0R0 B3B-XH-AM
ASYG14LUCA
R312 1
1.2k EX ( I N )
2
<1/4W>
3
C313 COMMUNICATION PCB
0.01
I C306
PS2501L-1
 K10DC-1000HSE-CA0
4 1
3 2
L302
0R0
12V 13V
Q304 R331
CNB01
K301 DTC143EUA 22k I C308 13V
B2B-XH-AM R315 I C304-1 8
12V FTR-F3 3 <1/10W> PS2501L-1 C304
1 2.7k BA10393F I C304
3 1 EX ( OUT ) 2 4 1 0.1
<1/10W> 3
2 3 2 1 + <F>
4
1 - 2 13V
3
4 2
R318
2
A 15.4k
Q301 A
1 <1/10W>
DTC123EUA 1%
A
R319
I C304-2 28k
BA10393F 5
+ 7
<1/10W>
6 - 1% 13V 13V 13V
12V 13V
R322 R317
10k D307
R316 10k
<1/10W> C310 L303 D1F60
1.2k 1000p
<1/10W>
0R0 1 WIRED REMOTE
I C309 1%
1
<1/4W> R330 <R> 3 2 CONTROL
PS2501L-1
Q302 1 4
2.7k 2
3
<1/10W> 3 R320
DTC143EUA D306 4
3 2 3 2 390
2 Q303 <1/4W> DAN217U
5
C309 1 DTC143EUA
1%
1 0.01
A
 CNC01
12V B05B-XASK-1-A
CNB02
K304 B2B-XH-AM
FTR-F3
3 1 1 EX ( ERROR OUT )
2
3
2 4 2
Q305
1
DTC123EUA
A
2012.10.31 39
Models : ASYG07LMCA CONTROL UNIT
ASYG07LMCE ASYG07LMCA : EZ-0124CHSE
ASYG09LMCA ASYG07LMCE : EZ-0124CHSE
ASYG09LMCE ASYG09LMCA : EZ-0120MHSE
ASYG12LMCA ASYG09LMCE : EZ-0120MHSE
ASYG12LMCE EARTH TERMINAL ASYG12LMCA : EZ-0120SHSE
ASYG14LMCA ASYG12LMCE : EZ-0120SHSE
ASYG14LMCE ASYG14LMCA : EZ-0124DHSE
ASYG14LMCE : EZ-0124DHSE
OUTDOOR UNIT 2
GREEN
BLACK
WHITE
RED
CN7 DC Fan motor
CN4 Thermistor Characteristics.
Terminal Lead wire TERMINAL
Pin No. Function of terminal Temperature
code color ( 0 ) ( 20 ) ( 30 )
Thermistor
6 Vm Motor power voltage input Red
176.0 k 62.9 k 39.6 k
5 Thermistor ( Pipe temp. )
1.1 V 2.2 V 2.8 V
4 GND GND Black
W4
3 Vcc Control power voltage input White 33.6 k 12.5 k 8.0 k
1 2 3 4 5 Thermistor ( Room temp. )
2 Vsp Speed control voltage input Yellow 1.1 V 2.2 V 2.8 V
CN1
1 PG Revolution pulse output Blue SC25-05WSA
WHITE
RED 6 DC340V
1 BLACK
5 THERMISTOR ( PIPE TEMP. )
CN4 2 BLACK
BLACK 4 DC15V
B4B-PH-K-S 3 BLACK
DC FAN MOTOR FM WHITE 3 WHITE
4 BLACK
THERMISTOR ( ROOM TEMP. )
YELLOW 2
BLUE 1
A DC15V
MAIN PCB 1 RED
CN7
ASYG07LMCA : K12JY-1202HSE-C1 B5 ( 6-5 ) B-XARK-1-A 2 ORANGE
RED CN10 M LOUVER ( UP / DOWN )
ASYG07LMCE : K12JY-1202HSE-C1 B5B-PH-K-S
3 YELLOW
PINK
WHITE 4
ASYG09LMCA : K12JY-1200HSE-C1 5 BLUE
ASYG09LMCE : K12JY-1200HSE-C1
ASYG12LMCA : K12JY-1201HSE-C1
ASYG12LMCE : K12JY-1201HSE-C1
ASYG14LMCE : K12JY-1203HSE-C1 DC5V
1 WHITE 1
INDICATOR PCB
CN5
BLUE 6
B6B-PH-K-S 2 WHITE 2 K12JZ-1200HSE-D0
PINK 5 WHITE
3 WHITE 3
DIFFUSER M YELLOW 4 CN3
4 WHITE 4 CN201
ORANGE 3 DC15V B7B-PH-K-FN S7B-PH-K-S
WHITE 5 WHITE 5
RED 2 WHITE
6 6
1 7 WHITE 7
CN2
B7 ( 9-7.8 ) B-PLISK
WHITE
9pin
CN6
DC340V
B5B-PH-K-R 1
9 RED
2
6 DC5V 3
5 TEST
4
COMMUNICATION KIT 4
5
( OPTION ) 3
2 A
1
A
2017.01.31 40
INDOOR UNIT
MAIN PCB
CN1 FC51FL x 2
L1
L5
0.6A - 10mH 340V
SC25-05WSA FH1 FH2
BLACK 1
SS21V-R060330 20*20*18
D5 ASYG14LMCA : K12JY-1203HSE-C1
TERMINAL WHITE 3 4 3 S1NBC60
F1 C3
RED 5 3.15A VA1 C1 4700p 2 1 T1 15V
+ D3
250V 470V 0.1 <E> LLC-1
3
- 4 RF101L2S
<TNR> <LE-MX> C2 D20 10 15V-2
15V
4700p ST03D-200 R57
<E> 1 2
2 9
C10 C9 L2 5V 470
+
C29 R12 3 8
220/ D4 330/ BLm18 <1/8W>
W4 C16 + 25V
1000p 1.0k 22/ RF101L2S 25V <BD102>
UL1015 4 7
<E> <1/2W> R63 450V
AWG22
220k 5 6
+
GREEN
<2W> C26
L=160 D8 0.1
D10 5V UDZS12B <F>
A
D1F60 I C8
TNY274PN
I C16 A A
R590 - R592 R65 5 S D 4
R6 R7 R10
TLP181 6 S 6
13k <1/3W> x 3 200 3
1 4 150 1.0k 10k
7 S BP_M 2
R69
<1/8W>
2 3 8 S EN_UV 1 <1/10W>1 <1/16W> C11 <1/16W>
2 1 2
0.1 1%
100 I C17 Q6
R61 <F>
<1/10W> TLP165J D12 2SA1576A 3
6 1 1.0k C12 3 C 15V 15V
DAN202U <R> 1 REF
C55 <1/16W> 0.1 2
3 R9 9 9
4 3
1000p <F> Q5 R8 I C6 I C13 I C14
R64 C54 R62 A 10k
<X7R> 2SC40811 1.0k TL431 2 uLN2003A uLN2003A
12k 0.022 12k C53 <1/16W>
I C15 <R> <1/16W> 8 8
R67 <1/16W> <R> <1/10W> 0.047 1% 15V
TLP181 A
A CN10
560 2 3 <R> A B5B-PH-K-S
<1/10W> 1 4
R31 - R34 WHITE
A 47 <1/10W> 1% x 4
R15 C21 2 15 I C13-2 uLN2003A 5
1.0k 0.01 A 3 14 I C13-3 uLN2003A 4
D11
R593 - R595
D1F60
<1/16W> A 4 13 I C13-4 uLN2003A 3 LOUVER
13k <1/3W> x 3 12 I C13-5 uLN2003A
5 2 ( UP / DOWN )
16 1 5V 1
5V 1
I C13-1 R13 R81 R82 2
uLN2003 10k 1.0k 1.0k 5V
3
<1/16W> <1/16W> <1/16W>
3
1
2
C20 R29 270 <1/10W> 2
R14
Q1 1 1.0k 0.01 R28 1.0k <1/10W> 3
RT1N241M INDICATOR
5V A <1/16W> A R27 270 <1/10W> 4
R55
5 PCB
10k 6
<1/16W> 5V
7
5V 21 20 19 18 17 16 15 14 16
23 22
24 P147 P146 P10 P11 P12 P13 P14 P15 P16 P17 P51 P50
8 VCC CS 1 R45 CN3
C36 4 DO SK 2 12 10k B7B-PH-K-FN
25 P27 P30
0.1 6 TEST DI 3 R44 R46 <1/16W>
WHITE
5 GND NC 7
<F> 10k 26 P26 P70
11
1.0k
I C12 <1/16W> 15V BZ1 I C13-7 <1/16W>
27 10 A
A A PS1240P02BT uLN2003 P25 P71
M93C66
5V R49 - R51 5V 10 7 28 9
P24 P72 C41 5V
10k <1/16W> x 3
CN6 29 8 0.1
P23 P73
B5B-PH-K-S R43 <F> R36
A
RED 10k 30 P22 IC2 P74
7 10k
1
<1/16W> R5F100GEAFB <1/16W>
31 6
P21 P75 340V
2 CN7
32 P20 P31
5 C25 R37
TEST 3 47 B5 ( 6-5 ) B-XARK-1-A
1000p C50 RED
4 33 P130 P63 4 15V-2 <1/16W> 1000p
R75 - R77
A R25 15V 5
5 330 <1/16W> x 3 34 P01 P62
3 1
2
1.8k 4
35 P00 P61
2 <1/16W> 3
A
1 2
3
Q3
3
1% A
2
FAN MOTOR
36
5V 5V P140 P60
DTA124EUA 1
R78 C19 5V 1
P120 P41 P40 *RST P124 P123 P137 P122 P121 REGC VSS VDD
1.0k 1.0 A R26 C6
<1/16W> 37 38 39 40 41 42 43 44 45 46 47 48 <F> Q2 2.2k 47/ +
1 <1/16W> 35V A
RT1N241M
2 5V C17 1%
R48 A A
3 A 100 R79 R80 1.0
4 <1/16W> 1.0k 100 5V
A
<1/16W> <1/16W> A
R21
R1, R2 10k
10k <1/16W> <1/16W>
CN4 5V x2
B4B-PH-K-S 5V
C23 R20
WHITE R39 R38 C28
A 1000p 1.0k 340V
10k 1.0k 0.1
4 <1/16W>
<1/16W> <1/16W> <F>
THERMISTOR ( ROOM TEMP. ) 3 A 1%
A A
CN2
2
R89 R92 B7 ( 9-7.8 ) B-PL I SK
10k 100k WHITE
THERMISTOR ( PIPE TEMP. ) 1 R41 R40 C31 <1/16W> <1/16W>
49.9k 1.0k 0.1 R88 100 <1/16W> 1
<1/16W> <1/16W> <F> R87 100 <1/16W> 2
A 1% A R85 1.0k <1/16W> 3
R86 100 <1/16W> 4
CN5 R84 1.0k <1/16W> 5
B6B-PH-K-FN 15V R91 R90 6
WHITE 100k 10k 7
1 <1/16W> <1/16W>
R71 - R74
2
47 <1/10W> 1% x 4
3 I C14-1 uLN2003A 16 1
C63 C64 A
DIFFUSER CONTROL 4 I C14-3 uLN2003A 14 3 0.01 0.1
5 I C14-5 uLN2003A 12 5 <F>
6 I C14-7 uLN2003A 10 7
A A
2013.06.20 41
INDOOR UNIT
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA 5V
ASYG14LMCA 5V
CN201
D201 SL I-343M GREEN
INDICATOR PCB S7B-PH-K-S
D202 SL I-343D ORANGE
K12JZ-1200HSE-D0 D203 SL I-343M GREEN
1
2
3
4
5
6
SW201 7
KSHC611BT
A
A
I C201
GP1UM261R 5V
VCC 2
OUT 1
C202 R202 C203
GND 3 +
47/ 47 0.1
10V <1/4W>
2012.11.27 42
13V
390V
CN301 T301 D303 JM303
SJH20-09WSF SW1614-1 RF101L2S 0R0
1 10
9 2
6 R301 C302 3
5
390k 1000p
5 4 6 C306 R309
<1/4W> <E> +
TO MAIN PCB 4 100/ 18k
R302 <1/10W>
3 25V
270
2 <1/4W>
1
D301
UF4007
+ C301 12V
47/ D302
450V RF101L2S
12V R306
I C301 1.0k
LNK603 1%
R303
5
6
S
S
D 4
18k
<1/10W>
R304
36k
C311 + (Option)
7 S BP_M 2 100/
8 S FB 1
C305
1%
R305
25V Communication kit
1.0

6.2k
1% UTY-XCBXZ2
A A
for ASYG07LMCA
13V
ASYG09LMCA
L301
0R0
CNA01
B3B-XH-AM
ASYG12LMCA
R312
1.2k
1
EX ( I N )
ASYG14LMCA
2
<1/4W>
3
C313
I C306
0.01 Communication PCB

PS2501L-1
4 1
K10DC-1000HSE-CA0
3 2
L302
0R0
12V 13V
Q304 R331
CNB01
K301 DTC143EUA 22k I C308 13V
B2B-XH-AM R315 I C304-1 8
12V FTR-F3 3 <1/10W> PS2501L-1 C304
1 2.7k BA10393F I C304
3 1 EX ( OUT ) 2 4 1 0.1
<1/10W> 3
2 3 2 1 + <F>
4
1 - 2 13V
3
4 2
R318
2
A 15.4k
Q301 A
1 <1/10W>
DTC123EUA 1%
A
R319
I C304-2 28k
BA10393F 5
+ 7
<1/10W>
6 - 1% 13V 13V 13V
12V 13V
R322 R317
10k D307
R316 C310
10k
L303 D1F60
WIRED REMOTE
<1/10W> <1/10W>
1.2k
I C309 1000p
1%
1 0R0 1 CONTROL
<1/4W> R330 <R> 3 2
PS2501L-1
Q302 1 4
2.7k 2
3
<1/10W> 3 R320
DTC143EUA D306 4
3 2 3 2 390
2 Q303 <1/4W> DAN217U
5
C309 1 DTC143EUA
1%
1 0.01
A
 CNC01
12V B05B-XASK-1-A
CNB02
K304 B2B-XH-AM
FTR-F3
3 1 1 EX ( ERROR OUT )
2
3
2 4 2
Q305
1
DTC123EUA
A
2013.03.13 43
Models : ASYG07KMCC
ASYG09KMCC
ASYG12KMCC
ASYG14KMCC
CONTROL UNIT
ASYG07KMCC : EZ-019CHSE
ASYG09KMCC : EZ-019DHSE
ASYG12KMCC : EZ-019EHSE
ASYG14KMCC : EZ-019FHSE
COMMUNICATION KIT ( OPTION )

UTY-TWBXF2
F1
L
OUTDOOR UNIT 1 BLACK 1
CN1 3.15A 250V 1
N WHITE 3
2013485-1 CNC01 2
POWER SOURCE 2 WHITE 1 WHITE 1 CND01 3 REMOTE
AC230V RED 5 B05B-XASK-1-A
4
50Hz S 2 WHITE 2 B7 ( 9-7.8 ) B-PLISK WHITE
5
CONTROL
3 UL1015 AWG22 x 3 CN2 3 WHITE 3 WHITE
B7 ( 9-7.8 ) B-PLISK 4
5
WHITE
WHITE
4
5
COMMUNICATION PCB
WHITE
UL1015 AWG22 GREEN W4 6 WHITE 6 K10DC-1000HSE-CA0

B DC340V CNB01 CNB02 CNA01
B2B-XH-AM B2B-XH-AM-BK B3B-XH-AM
MAIN PCB
9 WHITE 9 WHITE BLACK WHITE
EARTH 1 2 1 2 1 2 3
UL1007 AWG24 x 7
ASYG07KMCC : K15CA-1900HSE-C1
D
EX. OUT ERROR EX. IN
UL1061 AWG28 WHITE x 7

1
DC5V
CN200 2
JB20-10HG 3 1
WHITE
4 2
BLACK THERMISTOR ( PIPE TEMP. )
5 3 CN3 1 BLACK
INDICATOR PCB 6 4 SZT15-07WS
CN4
B04B-PLIRK-1
2 BLACK
3 BLACK
K18RB-1900HSE-D0 7 5 WHITE
RED 4 BLACK
8 6 BLACK THERMISTOR ( ROOM TEMP. )
9 7
10
A
CN4
Thermistor Characteristics.
Temperature
Thermistor ( 0 ) (20 ) (30 )
176.03 k 62.91 k 39.57 k

Thermistor ( Pipe temp. )
1.10 V 2.21 V 2.79 V
33.62 k 12.54 k 8.04 k
Thermistor ( Room temp. )
1.15 V 2.22 V 2.77 V
DC5V
1
CN7 DC Fan motor DC5V 2
CN7
1 3 FLASH
Terminal Lead wire
BLUE B5 ( 6-5 ) B-XARK-1-A 4
Pin No. Function of terminal YELLOW 2 RED CN11
code color WHITE 3 B4B-PH-K-S
DC FAN MOTOR FM BLACK 4 DC340V WHITE
1 FG Revolution pulse output Blue A
2 Vsp Speed control voltage input Yellow RED 6
3 Vcc Control power voltage input White

D 1
4 GND GND Black DC5V 2
5 3 TEST
CN6 4
6 Vm Motor power voltage input Red DC13V 5
B5B-PH-K-S
RED
ORANGE
1
2 CN10
WHITE
WIRELESS LAN ADAPTER ( OPTION )
M
UTY-TFSXW1
LOUVER ( UP / DOWN ) YELLOW
A
3 B05B-PLISK-1
PINK 4 WHITE
BLUE 5
DC13V WIRELESS LAN ADAPTER
1 UL1430 AWG26 WHITE x 4 UL1061 AWG24 GRAY 1 AP-WD1E
CN12 2 UL1061 AWG24 RED 2 J2
B04B-PASK-1 3 UL1061 AWG24 ORANGE 3 S04B-PASK-1
WHITE WHITE
4 UL1061 AWG24 YELLOW 4
44
2020.09.03
INDOOR UNIT
WALL MOUNTED
CONTROL UNIT
ASYG18LFCA : EZ-1212HSE
ASYG24LFCA : EZ-1238HSE
ASYG24LFCC : EZ-1211HSE
TERMINAL L IN
HP-T3064A-A29-L1 TM4 F1
22007 AC250V 3.15A
BLACK
BRANCH BOX UNIT UL1015 AWG24 BLACK
L 1 1
UL1015 AWG24 WHITE
N IN 2
POWER SOURCE N 2 TM1
AC230V CN9 3
UL1015 AWG24 RED
22007
50Hz SERIAL 3 WHITE B07B-PASK-1 4
FLASH
WHITE
5
SERIAL I N
E 6
TM2
22007 7
EMI FILTER RED
ESD-R19
4 TURNS EARTH
UL1015
E
AWG22
WIRED REMOTE CONTROL GREEN
W5
( OPTION ) GREEN
CN6-1 RED 1 MAIN PCB

CN6-2 WHITE 2
CN6 ASYG18LFCA : K09DR-1206HSE-C1
CN6-3 BLACK 3
B05B-XASK-1-A INDICATOR PCB
4 WHITE ASYG24LFCA : K09DR-1209HSE-C1
5
ASYG24LFCC : K09DR-1207HSE-C1 K05CY-0902HSE-D0
UL1061 AWG26 x 3
CN2-1 RED 1
CN2-2 ORANGE 2
CN2 1 CN11-1 RED 1
CN2-3 3
LOUVER ( RIGHT / LEFT ) M
CN2-4
YELLOW
PINK 4
SJH20-05WS
WHITE
2 CN11-2 WHITE 2
3 CN11-3 WHITE 3
CN2-5 BLUE 5
CN11 CN201
B07B-PASK-1 4 CN11-4 WHITE 4 07 JB20 / PAP 1061
UL1061 AWG26 x 5 WHITE WHITE
5 CN11-5 WHITE 5
6 CN11-6 WHITE 6
7 CN11-7 WHITE 7
1
UL1061 AWG28 x 7
CN5-1 RED 2
CN5-2 ORANGE 3 CN5
CN5-3 YELLOW 4 SJH20-06WS
LOUVER ( UP / DOWN ) M
CN5-4 PINK 5
WHITE
1
CN5-5 BLUE 6 CN14
2
UL1061 AWG26 x 5
B3B-XH-AM
WHITE
EXTERNAL INPUT
3
CN8-1 RED 1 CN16 1

CN8-2 ORANGE 2 B2B-XH-AM 2 EXTERNAL OUTPUT
WHITE
CN8-3 CN8
LOUVER ( DIFFUSER ) M
CN8-4
YELLOW
PINK
3
B06B-PASK-1
4 WHITE
CN8-5 BLUE 5 XARR XAP
6 -03VF -03V-1
UL1061 AWG26 x 5
CN3 1 CN3-1
RED BLACK
THERMISTOR
JC25-02HG CN3-2
WHITE
2
WHITE BLACK ( PIPE TEMPERATURE )
UL1007 AWG26 x 2
CN10-6 RED 6
CN1 1 CN2-1 BLACK THERMISTOR
150-103-86172 CN2-2
5 WHITE
2 BLACK
( ROOM TEMPERATURE )
CN10-4 BLACK 4 CN10
DC FAN MOTOR FM CN10-3 WHITE 3 B5 ( 6-5 ) B-XARK-1-A
RED
CN10-2 YELLOW 2
CN10-1 BLUE 1 1 CN13-1
UL3266 AWG22 x 5 2 CN13-2
CN13
B5B-PH-K-S
WHITE
3 CN13-3 TEST
4 CN13-4
5 CN13-5
2013.04.25 45
INDOOR UNIT
WALL MOUNTED
MAIN PCB
ASYG18LFCA : K09DR-1206HSE-C1
ASYG24LFCA : K09DR-1209HSE-C1
ASYG24LFCC : K09DR-1207HSE-C1
D12 D15
T1 D2FL20U 12V
1SS355
340V R45 MY064
100k 6 C37
5 + I C2 R55
<RS-2W> D10 1000/
GND
VCC
OUT
4 7V 5V R43 5V 15V R51 820
BA05T
C32 D8 3 8 D1FL20U 25V 330 1.0k <1/4W>
1SS355 2 9 1 3 2 1 4 340V
I C26-14
0.01
I C26-10
1 10 <1/10W> <1/4W> 1% CN10
C6 + <ECQE> JM3 2 3
C12
+ C19 C22 0R0 +C17 3 15V B5 ( 6-5 ) B-XARK-1-A
F1 100/ 330/ 0.1 330/ 0.1 I C1-39
2 I C10 +C36 RED
VA1 D6 420V R49 C35, C61 25V <F> PS2561L-1-V 100/ 5
3.15A 25V <F> Q6 1
470V D3SB60 R46, R120 5.6k D4 0.01 <KH> 5V 25V
250V 1 DTC124EUA 15V 4
TM4 <TNR> 22 <1/4W> <1/10W> D1FL20U x2 R64 R67 A A
4 3 2 3 R47 3 DC FAN MOTOR
L-IN x2 1.8k 150
C13 L2 R42 10k 2
FH1 FH2 4 C4 270 I C15 <1/10W> <1/10W> <1/10W>
0.01 0.6A - 10mH R56 1
C8 47p PS2561L-1-V C38 R53
TP00351-31 <KH> D7 <1/10W> 4 1 4.7k
0.47 <DEA> 4 1 0.1 5.6k D16 I C1-40 R63
x2 <LE> C14 UF4007 C29 <F> <1/10W> C30 R44 3 2 <1/10W>
I C8 3 2 1SS355 6.8k
0.01 0.22 1000p 1.0k
TM1 TOP244YN C
R48 200k I C14 <1/4W>
<KH> 1 Q7 I C19 3 REF
<R> <1/10W> PS2561L-1-V
N-IN 1 2 2
1
<1/10W> I C20
L1 6 D C 1
2SA1037AK TL431 I LP 20V JM9 15V
5 F L 2 A R76 47k 1% 78M15
SS28V 2 0R0
W5 4 S X 3 C27 3 R38 + C33 <1/10W> 1 I O 3
<060330> + 47/ 1% G
B 47/ 15k 12V CN8
D9 2
E 35V <1/10W> 35V C25 R8 B06B-PASK-1
D1FL20U C42 C56
0.1 1.0k + WHITE
R34 C39 + 330/ 0.1
<F> <RS-2W> 1
12k 100/ 25V <F>
I C7-6 uLN2003ADR 6 11 2
<1/10W> 50V I C1-51
I C7-5 uLN2003ADR 5
3
12
A I C1-52 LOUVER ( DIFFUSER )
4
A
I C1-53
I C7-4 uLN2003ADR 4 13
5
I C7-3 uLN2003ADR 3 14 6
I C1-54
CN2
I C1-47
I C16-3 uLN2003ADR 3 14 1 SJH20-05WS
WHITE
I C16-2 uLN2003ADR 2
2 15
I C1-48
3
IC26 I C16-1 uLN2003ADR 1 16
LOUVER ( RIGHT / LEFT )
R39 I C1-49 4
HI2003R3 5V R114 5V 10k
390 BZ1 I C7-7 uLN2003ADR 7 10 5
18 14 10 5 4 3 2 1 <1/10W> I C1-50
8 7 6 5 4 3 2 1 <1/10W> I C6 PKM13EPYH-4000-A0
R106 I C1-32 S-93C66B0 I 5V 12V CN5
470 Q10 5V 1
R105 C54 1 CS VCC 8 7 10 SJH20-06WS
<1/4W> RT1N241M I C1-73 I C1-80 BZ I C1-43
I C16-7 uLN2003ADR 7 10 2 WHITE
10k 0.01 3 DI DO 4
C26
C101 R122 3 I C1-71 2 SK NC 7 3
2 <1/10W> I C1-72 0.1 I C18-7 I C16-6 uLN2003ADR 6 11
4700p 470 5 GND TEST 6 I C1-44 LOUVER ( UP / DOWN )
I C1-42 I C1-70 uLN2003ADR R109 4
<E> <1/4W> <F> I C16-5 uLN2003ADR 5 12
1 C50 R52
R103 10k I C1-45 5
390 0.01 10k <1/10W> I C16-4 uLN2003ADR 4 13 6
TM2
3 3
<1/10W> <1/10W> R32 5V I C1-46
D14 1 2 2
I C1-31 10k
SERIAL Q11 5V
DAN202K <1/10W> SW1 CN11
1
VA6 RT1N241M KSMC632B B07B-PASK-1
R110
470V I C26-10 MANUAL AUTO R57, R60, R58 WHITE
I C1-36 10k 1
<TNR> I C26-14 SWITCH 330 <1/10W> x 3
C28 R33 <1/10W> 2
I C1-21
0.01 1.0k
3
R14 <1/10W> I C1-22
CN1 5V 4 INDICATOR PCB ASSY
1.0k I C1-23
150-103-86172 12V 5
<1/10W>
1 I C1-61
I C1-1 6
9 9 9
THERMISTOR ( ROOM TEMP. ) C2 R2 C15 7
I C7-8 VCC VCC VCC
I C16-8 C58 R113
2 0.1 10k 0.1 C53 C40 +
uLN2003ADR 47
<F> <1/10W> <F> 5V 5V uLN2003ADR G/V G/V G/V 1000p 1000p 100/
L6, L7 <R> <1/10W>
CN3 1% R13 8 8 8 <R> 25V
02 / 03 JC25 / XARR BLm18 <BD102> 1.0k C41
1
x2 <1/10W> IC1 +C18 C7 C9 C20 C21 I C18-8 0.01
I C1-62 78F1154AGK 10/ 0.1 0.1 0.1 0.1 uLN2003ADR
THERMISTOR ( PIPE TEMP. ) 2 C3 R6 C16 25V <F> <F> <F> <F> 12V
74 P00 VCC 19
0.1 49.9k 0.1
I C1-73 73 P01 EVCC 20 I C18-1 CN16
<F> <1/10W> <F>
I C1-72 72 P02 AVREF0 59 uLN2003ADR K10 B2B-XH-AM
5V 1% I C1-71 71 P03 AVREF1 56 WHITE
70 P04 P51 42
G5NB-1A
R99, R98, R97 I C1-70 I C1-42 1 16 1
39 P05 P52 43 I C1-4 4 2
CN13 10k <1/10W> C49 I C1-39 I C1-43 2 EXTERNAL OUTPUT
38 P06 P53 44
B5B-PH-K-S I C1-44
x3 1000p 54 P10 P54 45
WHITE I C1-54 I C1-45
<R> 53 P11 P55 46 I C1-46 1 3
1 I C1-53
I C1-79 52 P12 P60 21
I C1-52 I C1-21
2 51 P13 P61 22
I C1-76 I C1-51 I C1-22
50 P14 P62 23
3 I C1-50 I C1-23
TEST I C1-77 I C1-49 49 P15 P63 24
4 5V R90 - R92 C47 I C1-48
48 P16 P64 26
1000p 47 P17 P65 27
5 330 <1/10W> x 3 5V I C1-47
68 P20 P66 28
<R> 67 P21 P67 29
R9 66 P22 P70 37
R54 10k 65 P23 P71 36
5V R86 - R88 0R0 I C1-36
CN9 <1/10W> 64 P24 P72 35
I C1-35
10k <1/10W> x 3 63 P25 P73 34
B06B-PASK-1
WHITE I C1-62 62 P26 P74 33
R41, R37, R40 I C1-61 61 P27 P75 32
I C1-32
1 40 P30 P76 31
100 <1/10W> x 3 I C1-40 I C1-31
2 25 P31 P77 30 I C5-2 12V 12V
I C1-10 9 P40 P90 55
I C1-9 I C1-35 BA10393F
3 I C1-8 I C1-8 8 P41 P110 57 X1 R30 5V 6 R21 15.4k
7 P42 P111 58 7 -
FLASH 4 I C1-9 8.00MHz 10k + 5 <1/10W> F3
6 P43 P120 1
5 I C1-1
1 <FCR> <1/10W> I C5-1 1% D3 0.2A - 30V
I C1-13 5 P44 P121 15
R35 4 P45 P122 14 2 BA10393F 12V 12V DAN217U <SmDC> CN6
6 I C1-4 - 2
R22 28k
1
10k 3 P46 P123 12 3 I C1-41 + 3 D2 B05B-XASK-1-A
7 2 P47 P124 11 C60 R36 <1/10W> 1 2 WHITE
<1/10W> 41 P50 P130 69 1000p 1.0k 1% D1F60
I C1-41 1
10 *RESET P140 80 <R> <1/10W> 3
I C1-10
13 FLMD0 P140 79
I C1-80 R4, R5
I C1-13 I C1-79 1 16 2
CN14 5V 16 REGC P142 78 10k <1/10W> I C1-55
R101 C5 R31 R17 JM5 3
B3B-XH-AM 17 GND P143 77
I C1-77 x2 I C7-1 WIRED REMOTE CONTROL UNIT
WHITE
330 L3 0.1 60 AGND P144 76 390 12V 10k 0R0
5V I C1-76 uLN2003ADR 4
<1/10W> 0R0 R104 R89 <F> 18 EGND P145 75 <1/4W> <1/10W>
3 5
I C25 10k 1.0k 1% 8
2 PS2561L-1-V VCC C23
EXTERNAL I NPUT <1/10W> <1/10W> I C5-3
1 1 4
0.1
I C1-35 BA10393F G / V <F>
C51 2 3 C57 4
0.01 L4 0.01
 0R0
2013.04.25 46
INDOOR UNIT
WALL MOUNTED
ASYG18LFCA
ASYG24LFCA
ASYG24LFCC
INDICATOR PCB
K05CY-0902HSE-D0
5V 5V CN201
07 JB20 / PAP
D201 1061 L=230
SLR-325MC
GREEN 1
2
D202 3
SLR-325DC 4
ORANGE
5
C201
0.1 6
<F> 7
D203
SLR-325MC
GREEN
5V
I C201
R201
GP1UM261R
47
VCC 2 <1/4W>
OUT 1
GND 3
+ C202
47/
10V
2010.09.07 47
INDOOR UNIT
COMPACT CASSETTE MAIN PCB
CONTROL UNIT AUYG07LVLA : K06AK-1214HSE-C1
AUYG07LVLA : EZ-0122FHSE AUYG09LVLA : K06AK-1215HSE-C1
AUYG12LVLA : K06AK-1009HSE-C1
AUYG09LVLA : EZ-0122GHSE
AUYG14LVLA : K06AK-100AHSE-C1
AUYG12LVLA : EZ-01006HSE AUYG18LVLA : K06AK-100BHSE-C1
AUYG14LVLA : EZ-01007HSE AUYG12LVLB : K06AK-1216HSE-C1 CN8 CN8-1 BLACK THERMISTOR
B02B-XASK-1-A CN8-2 BLACK
AUYG18LVLA : EZ-01008HSE AUYG14LVLB : K06AK-1217HSE-C1 WHITE ( ROOM TEMPERATURE )
CN7 CN7-1
AUYG12LVLB : EZ-0122HHSE AUYG18LVLB : K06AK-1218HSE-C1 B02B-XAYK-1-A
YELLOW
CN7-2
AUYG14LVLB : EZ-0122KHSE CN2-1

CN5
B02B-XAKK-1-A
CN5-1
CN5-2
GRAY
GRAY
THERMISTOR
(PIPE - MID. TEMPERATURE )
AUYG18LVLB : EZ-0122LHSE TEST
CN2-2
CN2-3
CN2-4
CN2
B5P-SHF-1AA
BLACK
WHITE
CN2-5
DECORATION PANEL ASSEMBLY
BRANCH BOX UNIT L 1
POWER SOURCE
AC230V N 2 CN15-1
JUNCTION
INDICATOR PCB
50Hz CN15-2
CN15
SERIAL 3 CN15-3
CN15-4 B06B-XASK-1-A
CONNECTOR K06AG-1000HSE-D0
XMR-07V
CN15-5 WHITE WHITE
TERMINAL CN15-6
HP-T3031-3-L1 CN13-1 BROWN 1 1 BROWN CN201-1
E CN13-2 RED 2 2 RED CN201-2
CN13 CN13-3 ORANGE 3 3 ORANGE CN201-3
B07B-PASK-1 CN13-4 YELLOW 4 4 YELLOW CN201-4
WHITE CN13-5 GREEN 5 5 GREEN CN201-5
CN13-6 BLUE 6 6 BLUE CN201-6
UL1015 UL1015 UL1015 CN13-7 PURPLE 7 7 PURPLE CN201-7
AWG20 AWG20 AWG20
RED WHITE BLACK UL1430 AWG28 UL1430 AWG28
x7 x7 CN201
S07B-PASK-2
WHITE
W105 W102 W101
UL1015
AWG16
GREEN E101
CN14-1 UL1430 AWG22 RED
F101 UL1430 AWG22
CN14 CN14-2 WHITE
AC250V CN3-1
CN3-2
B03B-XAKK-1-A CN14-3 UL1430 AWG22 BLACK
3.15A CN3 BLACK
UL1015 CN3-3
AWG16 CN3-4 B06B-PASK-1 EMI FILTER
GREEN E102 CN3-5 WHITE
CN3-6 ZCAT1518-0730
2T
TERMINAL BLK WHT RED

EMI FILTER HP-T3031-21
ZCAT2132-1130 POWER DRIVE CN6 CN6-1
1T CN104-1 GRAY CN4-1 B02B-PAMK-1 FRESH AIR
CN104-2 GRAY CN4-2 GREEN CN6-2 ( OPTION )
1 RED CN105-6
2 CN104 CN104-3 GRAY CN4-3
CN105-5 CN104-4 GRAY CN4-4 CN4
CN105
DC FAN MOTOR FM
3
4
BLACK
WHITE
CN105-4
CN105-3 B5P6-VH-B
B08B-PASK-1
WHITE
CN104-5
CN104-6
GRAY
GRAY
CN4-5
CN4-6
B08B-PASK-1
WHITE
5 YELLOW CN105-2 WHITE
6 BROWN
CN104-7 GRAY CN4-7
CN105-1 CN104-8 GRAY CN4-8
7
8
UL1430 AWG26 x 8
UL1015 AWG22 x 5
CN10 CN10-1
DC SUPPLY B02B-PAOK-1
UL1015 AWG18 YELLOW CN106-1
CN106 ORANGE
CN10-2
DRAIN PUMP M UL1015 AWG18 YELLOW CN106-2
B2P3-VH-B-E
BLUE
CN101
B03B-PASK-1
CN101-1
CN101-2
GRAY
GRAY
CN1-1
CN1-2
CN1
B03B-PASK-1
WHITE CN101-3 GRAY CN1-3 WHITE
UL1430 AWG26 x 3
EMI FILTER
ZCAT1518-0730
CN11-1 RED RED
1T CN11 ORANGE
CN11-2 ORANGE
CN103 (LVLA) B05B-XASK-1-A

WHITE
CN11-3
CN11-4
YELLOW
PINK
YELLOW
PINK M LOUVER ( UP / DOWN )
CN103-1 CN11-5 BLUE BLUE
B2B-XH-AM
EXTERNAL OUT CN103-2 WHITE POWER SUPPLY PCB CN12-1
UL1430 AWG26 x 5
RED RED
CN12 CN12-2 ORANGE ORANGE
K06AL-1007HSE-P0 B05B-XARK-1-A
RED
CN12-3
CN12-4
YELLOW
PINK
YELLOW
PINK M LOUVER ( RIGHT / LEFT )
CN12-5 BLUE BLUE
UL1430 AWG26 x 5
CN102-1
(LVLB)
CN102
EXTERNAL I N CN102-2 B5P6-VH-B
WHITE
POWER SUPPLY PCB
CN102-3 FLOAT SWITCH
K06AL-1201HSE-P0
CN9 CN9-1 UL1007 AWG24 BLACK
B03B-XARK-1-A CN9-2
RED CN9-3 UL1007 AWG24 BLACK
2013.06.20 48
INDOOR UNIT
MAIN PCB
AUYG07LVLA : K06AK-1214HSE-C1 AUYG12LVLB : K06AK-1216HSE-C1 ARYG07LLTA : K06AK-100CHSE-C1 ARYG07LLTA : K06AK-120KHSE-C1 ABYG14LVTA : K06AK-120YHSE-C1
AUYG09LVLA : K06AK-1215HSE-C1 AUYG14LVLB : K06AK-1217HSE-C1 ARYG09LLTA : K06AK-100DHSE-C1 ARYG09LLTA : K06AK-120LHSE-C1 ABYG18LVTA : K06AK-100LHSE-C1
AUYG12LVLA : K06AK-1009HSE-C1 AUYG18LVLB : K06AK-1218HSE-C1 ARYG12LLTA : K06AK-100EHSE-C1 ARYG12LLTB : K06AK-120MHSE-C1 ABYG18LVTB : K06AK-1210HSE-C1
AUYG14LVLA : K06AK-100AHSE-C1 ARYG14LLTA : K06AK-100FHSE-C1 ARYG14LLTB : K06AK-120PHSE-C1
AUYG18LVLA : K06AK-100BHSE-C1 ARYG18LLTA : K06AK-100GHSE-C1 ARYG18LLTB : K06AK-120RHSE-C1
ARYG12LLTB : K06AK-1101HSE-C1 (Serial number : R)
D4 5V R1 - R3
ARYG14LLTB : K06AK-1102HSE-C1 5V
CN8
B02B-XASK-1-A
1SS355 10k <1/10W> x 3
ARYG18LLTB : K06AK-1103HSE-C1 5V 1
I C8 THERMISTOR ( ROOM TEMP. )
CN1 13.5V NJM7812 12V (Serial number : T) R45
10k
CN9
B03B-XARK-1-A C29 R57 R59
2
CN7
B03B-PASK-1 1 I O 3
G
<1/10W> ( LF ) ( SN ) 0.1 1.0k 10k B02B-XAYK-1-A
5V 1
JM1 <F> <1/10W> <1/10W>
1 C1 + 2 C2 + 1 2
10/ 10/
DC SUPPLY 2
50V 50V
JM2
C31 R46
2
FLOAT SWITCH C30 R58 R60
3 CN5
0.01 1.0k 3 0.1 1.0k 49.9k
D1 JM3 <F> <1/10W> <1/10W> 1
B02B-XAKK-1-A
<F> <1/10W>
1SS355
R4 - R6 2 THERMISTOR ( PIPE - M I D. TEMP. )
5V 1.0k <1/10W> x 3 C34 R62 R61
1 I O 3
C8 - C10 0.1 1.0k 49.9k
G 5V 0.1 <F> x 3 <F> <1/10W> <1/10W>
I C2 2
C3
NJM7805 0.01
<F> C32 + C33 C28
5V
100/ 0.1 0.1 CN15
6.3V <F> <F> 5V B06B-XASK-1-A
5V R15 - R18 R50
10k <1/10W> x 4 10k
1
<1/10W>
2
CN2 3
B5P-SHF-1AA R19 - R22 FLASH
4
1.0k <1/10W> x 4
1 5
2 6
TEST 3
4
5 C4 C7 R69 R56 5V I C7
0.01 1000p I C1 10k 100k S-80842CNNB
<F> <R> uPD78F0536AGK <1/10W> <1/10W> 5V
2 VDD NC 3 NC
C5 1 OUT GND 4 R43, R44 R68, R52
34 AVREF 35 JM5 10k <1/10W> x 2
1000p AVDD C27 C38 10k <1/10W>
39 IC VDD0 10 0R0 R41
<R> 36 RST* VDD1 24 0.1 0.1 x2
R24, R23, R32 43 P00 P34 15 <F> <F> 1.0k 5V CN13
5V 10k <1/10W> x 3 44 P01 P35 16 <1/10W> B07B-PASK-1
45 P02 P36 17
13.5V 46 P03 P40 57 1
CN3 R66 33 P10 P41 58
2
B06B-PASK-1 10k 32 P11 P42 59 R40
31 P12 P43 60 10k 5V 3
<1/10W> R63 - R65 30 P13 P44 61
1 R70 <1/10W> 4
1.0k <1/10W> x 3 29 P14 P45 62 I NDICATOR PCB ASSY
2 10k 28 P15 P46 63 5
3 <1/10W> 27 P16 P47 64 C25 + C26
C23 R42 10/ 6
26 P17 P50 1 1 CS VCC 8 0.01
SP PCB 4 0.01 47
18 P20 P51 2 2 SK DO 4 C13 C24 50V <F> 7
5 19 P21 P52 3 3 DI NC 7 0.1 <F> <1/10W>
20 P22 P53 4 1000p
6 NC GND 5
6 R67 21 P23 P54 5 R37 <F> <R>
C37
1.0k 0.1 22 P24 P55 6 10k
23 P25 P56 7 I C5
<1/10W> <F> <1/10W>
C36 11 P30 P57 8 S-93C66BD0 I
5V Q3 12 P31 P64 53 I C6-1
C35, C12, C11 0.47
DTC124EKA 13 P32 P65 54 BA10393F 12V
1000p <R> x 3 <F> 14 P33 P66 55
5V
R26 3
38 XT1 P67 56 7 - 6
R25 C14 + 5
10k 1 37 XT2 P70 47
1.0k 1000p 41 X1 P71 48 R55 R54
<1/10W> I C6-1
<1/10W> <R> 40 X2 P72 49 10k 15.4k
BA10393F
2 25 AGND P73 50
<1/10W> <1/10W>
9 GND0 P74 51 1 - 2
42 GND1 P75 52 + 3
5V R53 12V D2
3
2 28k DAN217U 12V CN14
CN4 R28 R29 D3 B03B-XAKK-1-A ( LF ) ( SN )
1 <1/10W>
B08B-PASK-1 10k 390 D1FS4A
R47 1 2
<1/10W> <1/10W> X1 1
1 390
8.00MHz 2 REMOTE CONTROL UNIT
<1/10W> 3
2 <FCR>
3 3
3 C16 R48
1
4 0.01 10k
POWER DRIVE C15 <F>
5 <1/10W>
0.01 2 13.5V
6 <F> Q1 R35
7 DTC124EKA 1.0k
8 5V Q2 <1/10W>
DTC124EKA
R31 R11 - R14
SW1
3 R36
10k 10k <1/10W> x 4
CFS-0402MC 1 0R0
<1/10W> B. Z. 13.5V
8 4
C17 7 3 I C4 CN11
2
0.01 6 2 BZ1 uLN2003ADR B05B-XASK-1-A
5V 5 1 PKM13EPYH-4000-A0 1
<F> 1 I1 SK 9
R7 - R10 2 I2 O1 16 2
R33 1.0k <1/10W> x 4 3 I3 O2 15
3 LOUVER ( UP / DOWN )
10k 4 I4 O3 14
5 I5 O4 13 4
<1/10W> C19 - C22 6 I6 O5 12
5
0.1 <F> x 4 7 I7 O6 11
R34 C18 O7 10
CN12
GND 8
1.0k 0.01 B05B-XARK-1-A
R27 <1/10W> 1
CN6 330
13.5V I C3 2
B02B-PAMK-1 <1/10W> 13.5V
uPA2003ADR 3 *LOUVER ( RIGHT / LEFT )
1 4
9 SK I1 1
FRESH AIR 2 *The ARYG type is not used
16 O1 I2 2 5
15 O2 I3 3
14 O3 I4 4
13 O4 I5 5
12 O5 I6 6
11 O6 I7 7
CN10 13.5V 10 O7
B02B-PAOK-1 8 GND
1
HEATER 2
2013.06.20 49
340V R103
D108 13.5V
62k
D2FL20U
<RS-2W>
T101
I C26-14 C108 ZFT22B03-C
4700p
2 12
L <FNS> C113 R111
3 +
R104 5 10 1000/ 10k
330k 6 25V <1/10W>
7
<2W> D102 8
1SR139-600
F101 C114, C115
3.15A 0.01 <KH>
250V x2
L101 C109 15V D106
LF101 REP28-15 D101 220p Q101 D1FL20U
1
FH101 FH102 ELF17N015A 15mH, 1.1A D3SB60 <BN> 2SC5354
W101 3 2 2
C110 0.047
BLACK 1 2 C105 R105 1 <ECQV>
0.010 4 75 D103 R108
W102 <RS-2W>
3
D1FL20U
WHITE VA101 C104 <YE> C107 100
470V 0.47 + Q102 D107 C112 D104 <1/2W>
100/ + D105
<TNR> <R46> C106 2SC1815 2 RD16 330/ MTZJ5.1B
450V 1 D1FL20U
0.010 <B1> 25V
4 3 <YE> R107 3 R109 C111
R106
100 330 100/
1.5 D109 +
VA102 <1/10W> <1/4W> 25V
<RS-2W> MTZJ5.1B
SA101 470V
RA-362M <TNR> C118 R110
A
0.01 10k
E102 <1/10W>
GREEN <KH>
I C26-10
N
E101
GREEN
CN105
15V 340V B5P-VH-B
6
5
INDOOR UNIT
4
3 DC FAN MOTOR COMAPCT CASSETTE
A IC105 HI2003R3
5V I C104 15V 2
TLP621
<GB>
R116
1.0k 15V
1
AUYG12LVLA
1 4 18 14 10 5 4 3 2 1
5V
2 3
<1/4W> I C103
TLP621 W105
8 VA103
0.01
7 6 5 4 3 2 1 AUYG14LVLA
CN104 R117 + C117 R114 R115
<GB>
B08B-PASK-1 820 100/ 4 1 4.7k
<1/10W>
6.8k
<1/4W>
RED <KH> AUYG18LVLA
<1/4W> A A25V 3 2 SERIAL
1 POWER SUPPLY PCB
2
3 K06AL-1007HSE-P0
4 I C26-14 I C26-10
POWER DRIVE 5
6
7
L N AUYG07LVLA
8
AUYG09LVLA
AUYG12LVLB
AUYG14LVLB
AUYG18LVLB
POWER SUPPLY PCB
K06AL-1201HSE-P0
R113 13.5V
330 K101
G5N-1A CN103
<1/10W> B2B-XH-AM
4 1
I C26-14 K102 CN106

2 3 1
5V 13.5V G5NB-1A B2P3-VH-B-E
CN101 EXTERNAL OUT 13.5V
2 3 2
B03B-PASK-1 L 2
1 4
1
2
L102
1
DRAIN PUMP
DC SUPPLY C120 5V BLm18 RC101
3 0.1 <AG601> 120/
C121 <F> I C26-10 0.1
R112 CN102
0.1
330 B3B-XH-AM
<F>
I C101 <1/10W>
3
N
TLP621
2
<GB> EXTERNAL I N
4 1 1
3 2 C116
0.01

L103
BLm18
<AG601>
2013.01.28 50
INDOOR UNIT 5V
COMPACT CASSETTE
AUYG07LVLA To MAIN PCB R201 330 <1/4W>
D201 SLR-325MC GREEN
AUYG09LVLA CN201
AUYG12LVLA S07B-PASK-2 ( LF ) ( SN )
AUYG14LVLA R202 330 <1/4W>
D202 SLR-325DC ORANGE
AUYG18LVLA OPERATE 1
AUYG12LVLB TIMER 2
R203 330 <1/4W>
AUYG14LVLB FILTER CLEN / FILTER SIGN 3 D203 SLR-325MC GREEN
AUYG18LVLB 5V 4
INDICATOR PCB ( OPTION ) REMOTE CONTROL 5
K06AG-1000HSE-D0 GND 6
MANUAL AUTO SWITCH 7
2 1 C202 C201
4 3 +
10/ 0.1
25V <F>
SW201
EVQPAG04K
PHA201
P I C-37143TH5
VCC 2
OUT 1
GND 3
2013.06.20 51
INDICATOR PCB ASSEMBLY ( SWITCH + DISPLAY )
K06DD-0801HSE-F0
THERMAL
SWITCH PCB
L IN
FUSE 102 TM5 9 CN11-9 RED 1
3A 250V 22007 F1
BLACK AC250V 3.15A 8 CN11-8 WHITE 2
L 1 BLACK 7 CN11-7 WHITE 3

POWER SOURCE
N IN 6 CN11-6 WHITE 4
AC230V N 2 WHITE
TM1 CN11 5 CN11-5 WHITE 5 CN201
50Hz 22007 B09B-PASK JB20-09HG
RED WHITE WHITE 4 CN11-4 WHITE 6
SERIAL 3 3 CN11-3 WHITE 7
SERIAL I N
TM2 2 CN11-2 WHITE 8
TERMINAL 22007
RED 1 CN11-1 WHITE 9
HP-T3064A-A28-L1 MAIN PCB CN202
JB20-06HG
AGYG09LVCA : K09DD-1200HSE-C1 1 1 2 3 4 5 6
AGYG12LVCA : K09DD-1201HSE-C1 CN13

2
3 TEST
B05B-PH-K-S
CN8-1 RED 1 AGYG14LVCA : K09DD-1202HSE-C1 WHITE 4
WIRED REMOTE CONTROL 5
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
CN8-2 WHITE 2
CN6
( OPTION ) CN8-3 BLACK 3 B05B-XASK DAMPER LIMIT SWITCH
4 WHITE ( CLOSE )
CN201-1
CN201-2
CN201-3
CN201-4
CN201-5
CN201-6
5 1 CN18-1 BLACK
CN18 2 CN18-2 BLUE

B04B-PASK 3 CN18-3 BLACK
WHITE
CN2-1 RED 4 CN18-4 BLUE
1
CN2-2 ORANGE 2 DAMPER LIMIT SWITCH
CN2
CN2-3 YELLOW 3 ( OPEN ) 6 5 4 3 2 1
DAMPER M CN2-4 PINK 4
SJH20-05WS
WHITE CN203
1
CN14 JB20-06HG
CN2-5 BLUE 5 2 EXTERNAL I NPUT 1
B3B-XH-AM
WHITE
3 ( OPTION )
INDICATOR PCB
CN5-1 RED 1
2
CN5-2 ORANGE 3 CN5 1
CN15
CN5-3
SJH20-06WS 2 EXTERNAL I NPUT 2
YELLOW 4 WHITE B3B-XH-AM-BK
LOUVER M CN5-4 PINK 5
BLACK 3 ( OPTION )
( UP / DOWN ) CN5-5 BLUE 6
1
CN16
B3B-XH-AM-RK 2 EXTERNAL INPUT 3
CN8-1 RED 1 RED ( OPTION )
3
CN8-2 ORANGE 2
DAMPER LOCK CN8-3 YELLOW 3 CN8
M B06B-PASK
( RIGHT ) 4 WHITE
CN8-4 PINK 5 CN20 1
CN8-5 BLUE B2B-XH-AM EXTERNAL OUTPUT 1
6 WHITE 2
( OPTION )
CN12-1 RED 1
CN12-2 ORANGE 2 CN21 1
CN12
B2B-XH-AM-BK EXTERNAL OUTPUT 2
DAMPER LOCK M
CN12-3 YELLOW 3 B05B-PASK
WHITE
BLACK 2
( OPTION )
CN12-4 PINK 4
( LEFT ) INDOOR UNIT
CN12-5 BLUE 5
CN22 1
FLOOR
B2B-XH-AM-RK EXTERNAL OUTPUT 3
RED 2
( OPTION ) CONTROL UNIT
CN17-7 RED 7
1 CN13-1
AGYG09LVCA : EZ-01216HSE
6
5
CN17
2 CN13-2 AGYG12LVCA : EZ-01217HSE
DC FAN MOTOR CN17-4 BLACK 4 CN9 3 CN13-3
( LOWER )
FM CN17-3 WHITE 3
B5 ( 7-5.6 ) B-XASK-1-A
WHITE B07B-PASK 4 CN13-4 FLASH AGYG14LVCA : EZ-01218HSE
WHITE
CN17-2 5 CN13-5
YELLOW 2
CN17-1 BLUE 6 CN13-6
1
7 CN13-7
CN10-6
CN3 1 CN3-1 GRAY THERMISTOR
RED 6
5
B02B-PASK
WHITE
2 CN3-2 GRAY ( PIPE TEMPERATURE )
CN10-4 BLACK 4 CN10
DC FAN MOTOR B5 ( 6-5 ) B-XARK-1-A
( UPPER )
FM CN10-3 WHITE 3 RED
CN10-2 YELLOW 2 CN1 1 CN2-1 BLACK
THERMISTOR
CN10-1 BLUE 1
2P-SAN 2 CN2-2 BLACK
WHITE ( ROOM TEMPERATURE )
2013.06.20 52
INDOOR UNIT
FLOOR
MAIN PCB
AGYG09LVCA : K09DD-1200HSE-C1
R60 - R62
10k <1/10W> 5V
D12
x3
AGYG12LVCA : K09DD-1201HSE-C1 T1
RF201L2S 12V
5V
R53 - R56
AGYG14LVCA : K09DD-1202HSE-C1
MY064 D15 C41
C10 330 <1/10W>
1000p
0.01 6 + C12 1SS355 x4
1 CN11
340V 1000/ <R> B09B-PAEK-1
<ECQE> 5
D10 2
4 25V JM6 7V 5V I C1-24 WHITE
R2 D8 3 8 RF201L2S 0R0 I C1-23 3

2 1 I O 3
100k 1SS355 9
G I C1-22
4
1 10
<RS-2W> C20 5
+ C13 INDICATOR PCB ASSEMBLY
2 C14
I C2 + C21 I C1-21
TP00351-31 330/ 0.1 BA05T 330/ 0.1 R57 47 <1/10W> 6
L2 R6 I C1-1
x2 R82, R3 25V <F> 25V <F> R58 1.0k <1/10W>
+ C9 D4
20*20*18 7
L1 1 5.6k I C1-36
FH1 FH2 SS21V-R060330 0.6A 10mH 68/ 22 <1/4W> RF101L2S C28 R59 1.0k <1/10W> 8
x2 <1/10W> R8 R9 I C1-2
TM5
2 3 420V 0.01 9
4 3 R7 1.8k 150 C59 C52 C51 C53 C50 C49
F1 D6 <F> <1/10W> +
4 C11 270 <1/10W> 1000p 0.1 0.1 1000p 100/ 0.01
3.15A VA1 C1 C2 D3SB60 D7 <1/10W> C19 <R> <F> <F>
POWER SOURCE 47p <R> 25V
250V 470V 0.22 0.22 UF4007 4 1 0.1 R11 5.6k D14
AS230V 1kV C27 R12 200k
<TNR> <ECQE> <ECQE> 3 2
<F> <1/10W> 1SS355 5V
50Hz I C8 0.22 <1/10W>
C
1 2 TOP244 1 Q7 I C15 3 REF 1%
TM1 1 I C20
6 D C 1 2
2SA1037AK PS2561L-1-V 20V JM9 78M15 15V R63 - R65 R69, R68, R67
5 F L 2 A R13 47k 0R0 330 <1/10W>
I C19 10k <1/10W>
+ C15 2
<1/10W>
+ C18
4 S X 3 3 1 I O 3
47/ TL431 I LP x3 x3 CN13
47/ R5 D9 1%
G
1
35V 2 I C1-79
35V 15k RF101L2S C29 2 B5B-PH-K-S
<1/10W> R18 C17 +C30 I C1-76 WHITE
0.1 1.0k 330/ 0.1 3
C16 + I C1-77 TEST
<F> <RS-2W> 25V <F> 5V
R4 100/ C61, C63 4
12k <1/10W> 50V 1000p <R> 5
IC26
A A x2
HI2003R3 5V R47
390 I C7-1 12V
18 14 10 5 4 3 2 1 I C7-2 uLN2003ADR 1 16
<1/10W>
uLN2003ADR 2 15
1 CN8
I C1-32
C48 5V C33 5V I C7-3 2 B06B-PASK-1
R46 5V I C1-54
3 14
WHITE
1000p 0.01 I C7-4 uLN2003ADR 3
470 R45 R44 I C1-53
4 13
<E> IC1 uLN2003ADR
<1/4W> 10k 390 C25, C26 4 DAMPER LOCK ( RIGHT )
SERIAL TM2 <1/10W>
uPD78F1154AGK +C22 C23
R80 <1/10W> 10/ 0.1 0.1 <F> I C7-5 5 12 5
3
I C1-42 74 P00 VCC 19 I C1-52
470 25V <F> x2 I C7-6 uLN2003ADR 6
2
C32 I C1-73 73 P01 EVCC 20 I C1-51
6 11
<1/4W> 0.01 72 P02 AVREF0 59 uLN2003ADR
Q10 1
I C1-72
I C1-71 71 P03 AVREF1 56
RT1N241M 70 P04 P51 42
I C1-70 I C1-42 CN12
39 P05 P52 43 1
10 7 I C1-39 I C1-43
I C1-31 38 P06 P53 44 I C7-7 7 10 2 B05B-PASK-1
I C1-44 I C1-50 WHITE
54 P10 P54 45
I C13-7
I C1-54 I C1-45 I C16-1 1 16 uLN2003ADR 3
I C1-53 53 P11 P55 46
I C1-46 I C1-49 DAMPER LOCK ( LEFT )
R24 uLN2003 I C1-52 52 P12 P60 21
I C1-21
uLN2003ADR I C16-2 2 15 4
CN1 1.0k 51 P13 P61 22 I C1-48
I C1-51 I C1-22 I C16-3 3 14 uLN2003ADR 5
150-103-86172 <1/10W> I C1-50 50 P14 P62 23
I C1-23 I C1-47
1 I C1-49 49 P15 P63 24 I C1-24 I C13-1 BZ1 uLN2003ADR
I C1-61
I C1-48 48 P16 P64 26
I C1-26 uLN2003ADR PS1240P02BT 12V
THERMISTOR ( ROOM TEMP. ) 5V C35 R23 C36 47 P17 P65 27
I C1-47 I C1-27 1 16 1 CN2
2 0.1 10k 0.1 68 P20 P66 28
I C1-28 I C1-80 BZ
<1/10W> 67 P21 P67 29 I C16-4 SJH20-05WS
L6, L7 <F> <F> I C1-29 I C1-46
4 13 2 WHITE
66 P22 P70 37
BLm18 1% R26 I C16-5 5 12 uLN2003ADR 3
65 P23 P71 36 I C1-36 I C1-45 DAMPER
CN3 <BD102> 1.0k 64 P24 P72 35 R87 uLN2003ADR I C16-6 6 11 4
I C1-35 I C1-44
B02B-PASK-1 x2 <1/10W> I C1-63 63 P25 P73 34
I C1-34 10k uLN2003ADR
1 I C16-7 7 10 5
WHITE I C1-62 62 P26 P74 33
I C1-33 <1/10W> I C1-43
C37 R25 C38 I C1-61 61 P27 P75 32
I C1-32
uLN2003ADR
2 C40
THERMISTOR ( PIPE TEMP. ) 0.1 49.9k 0.1 I C1-40
40 P30 P76 31 I C1-31
10k 25 P31 P77 30
X1 I C13-8 I C16-8
<F> <1/10W> <F> I C1-25 12V 1 CN5
<1/10W> I C1-9
9 P40 P90 55
I C1-55 8.00MHz uLN2003ADR uLN2003ADR
1% 8 P41 P110 57 I C18-8 2 SJH20-06WS
CN20 I C1-8 I C1-57
<FCR> I C7-8 WHITE
7 P42 P111 58
B2B-XH-AM I C1-58
1 uLN2003ADR 9 9 9 9 uLN2003ADR I C18-4 4 13 3
WHITE K10 I C1-6 6 P43 P120 1
I C1-1 I C1-29
2 5 P44 P121 15 2 VCC VCC VCC VCC I C18-5 uLN2003ADR 4 LOUVER ( UP / DOWN )
EXTERNAL OUTPUT 1 G5NB-1A 12V I C1-5
4 P45 P122 14 3 I C1-28 5 12
1 I C1-4 G/V G/V G/V G/V
uLN2003ADR I C18-6 6 11 5
( OPTION ) 3 P46 P123 12 I C1-27
2 3
I C1-2 2 P47 P124 11 8 8 8 8 I C18-7 7 10 uLN2003ADR 6
I C13-5 41 P50 P130 69 I C1-26
4 1 uLN2003ADR I C1-41
*RESET P140 80 R66, R81 uLN2003ADR
10
I C1-10 I C1-80
12 5 I C1-13
13 FLMD0 P141 79
I C1-79 10k <1/10W>
CN21 I C1-4 16 REGC P142 78 5V
x2
B2B-XH-AM-BK C56
17 GND P143 77
I C1-77 5V
BLACK K11 60 AGND P144 76
I C1-76 R85 R103, R104 R105, R106
2 0.47 18 EGND P145 75
EXTERNAL OUTPUT 2 G5NB-1A I C1-75 10k 1.0k <1/10W> 4.7k <1/10W>
1 <F> I C6
( OPTION ) <1/10W> x2 x2
2 3 S-93C66B0 I 1 CN18
5V I C1-57
I C13-4 B04B-PASK-1
I C1-70 2
4 1 uLN2003ADR 8 VCC CS 1
I C1-73
WHITE
4 DO DI 3 3 DAMPER LIMIT SWITCH
13 4
I C1-5 C58 7 NT SK 2
I C1-71 I C1-58
CN22 0.1 I C1-72 4
6 TEST GND 5 C76, C77
B2B-XH-AM-R <F> R29 0.1 <F>
RED 2
K12
G5NB-1A 10k x2
EXTERNAL OUTPUT 3 1 <1/10W>
( OPTION ) R32 5V R75
2 3
5V 15V 10k C44 L12 330
I C13-3 I C18-3 5V
5V <1/10W> 10/ R76 R79 0R0 <1/10W>
4 1 uLN2003ADR uLN2003ADR 1 4 3 CN16
1% 50V 1.0k 10k I C23
14 3 I C1-6 R51 3 14 2 3 340V 2
B3B-XH-AM-R
I C1-75 <1/10W> <1/10W> PS2561L-1-V RED
R19 - R21 0R0 R30 I C12 R34 + 4 1 1 EXTERNAL I NPUT 3
5V I C1-33
10k x 3 330 PS2561L-1-V 8.2k CN17 C75
15V 5 C78 3 2
R52 <1/10W> 5V <1/10W> A A 4
B5 ( 7-5.6 ) B-XASK-1-A 0.01 L13 0.01
CN9 R48 - R50 10k 1% 15V WHITE
A 0R0
B07BPASK-1 1
<1/10W> R38 3
DC FAN MOTOR 5V
100 x 3 R73
2 10k 2 ( LOWER )
5V L10
I C1-10 330
<1/10W> R78
3
I C1-8 1 R74 0R0 <1/10W>
I C1-25
4 1
1.0k 10k I C22 3 CN15
FLASH 4
I C1-9 C46 R36 3 2
<1/10W> <1/10W> PS2561L-1-V 2 B3B-XH-AM-BK
5 I C1-13
BLACK
1000p 1.0k I C9 R40 R42 4 1 1
6 I C1-34 EXTERNAL I NPUT 2
R22 12V <R> <1/10W> PS2561L-1-V 4.7k 6.8k C74 3 2 C73
7 10k <1/10W> <1/4W> 0.01 0.01
R33 L11
8
5V 15V 10k C43 5V 0R0
12V I C5-2 C47 I C5-3 I C18-1
12V VCC
4 <1/10W>
10/ L3 R70 330
BA10393F 0.1 BA10393F uLN2003ADR 1
5V 0R0
R92 5V 1% 50V R72 R77 <1/10W>
F2 6
- <F> G/V
I C1-39
1 16 2 3
3 CN14
0.2A 15.4k 7
1.0k 10k I C21
12V 5 +
R94 4
R31 I C10 R35 + 340V B3B-XH-AM
30V <1/10W> <1/10W> <1/10W> PS2561L-1-V 2
10k 330 PS2561L-1-V 8.2k CN10
WHITE
1% 5 4 1 1 EXTERNAL I NPUT 1
R90 <1/10W> <1/10W> 5V <1/10W> 15V B5 ( 6-5 ) B-XARK-1-A I C1-35
D2 R93 2
- A A 4 C71
10k 1
I C1-41 1% RED C72 3 2
D1F60 28k
3 +
15V A 3 0.01
<1/10W> I C5-1 R95 C31 R39 DC FAN MOTOR 0.01 L4
CN6 1 <1/10W>
BA10393F 1.0k 1000p 10k 2 ( UPPER ) 0R0
B05B-XASK-1-A 2 1%
<1/10W> <R> <1/10W> 1
3 JP5 3
15 2 I C1-40
4 1
WIRED REMOTE CONTROL UNIT 0R0 I C1-55 3 2
( OPTION ) 4 D3 C45 R37
R91 I C13-2
5 12V1 2
DAN217U 1000p 1.0k I C14 R41 R43
390 uLN2003ADR <R> <1/10W> PS2561L-1-V 4.7k 6.8k
<1/4W>
1% <1/10W> <1/4W>
2013.06.20 53
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
INDICATOR PCB
K06DD-0801HSE-F0
06 JB20 / JB20 09 PAP / JB20

1061 L60 1061 L550
5V
D201
5V
SLR-343DC CN201
ORANGE
CN203 CN202 5V 5V
D202, D203 6 1 9
SLR-343MC 5 2 8
GREEN
4 3 7
x2
3 4 6
5V 2 5 5
1 6 4
R201
47 3
<1/4W> 2
VCC 2
I C201 SW201 1
OUT 1 C201
GP1UM261 KSHC611BT
GND 3
+ C202 0.1
47/ <F>
10V
3 2 1
SW202
SSSS213000
2010.09.06 54
MAIN PCB
ARYG07LLTA : K06AK-100CHSE-C1 ARYG07LLTA : K06AK-120KHSE-C1
INDOOR UNIT ARYG09LLTA : K06AK-100DHSE-C1 ARYG09LLTA : K06AK-120LHSE-C1
SLIM DUCT ARYG12LLTA : K06AK-100EHSE-C1 ARYG12LLTB : K06AK-120MHSE-C1
CONTROL UNIT ARYG14LLTA : K06AK-100FHSE-C1 ARYG14LLTB : K06AK-120PHSE-C1
ARYG18LLTA : K06AK-100GHSE-C1 ARYG18LLTB : K06AK-120RHSE-C1
ARYG07LLTA : EZ-01009HSE ARYG07LLTA : EZ-01222HSE
ARYG12LLTB : K06AK-1101HSE-C1 (Serial number : R)
ARYG09LLTA : EZ-0100AHSE ARYG09LLTA : EZ-01223HSE ARYG14LLTB : K06AK-1102HSE-C1
ARYG12LLTA : EZ-0100BHSE ARYG12LLTB : EZ-01224HSE ARYG18LLTB : K06AK-1103HSE-C1
ARYG14LLTA : EZ-0100CHSE ARYG14LLTB : EZ-01225HSE (Serial number : T)
ARYG18LLTA : EZ-0100DHSE ARYG18LLTB : EZ-01226HSE
ARYG12LLTB : EZ-01110HSE (Serial number : R)
ARYG14LLTB : EZ-01111HSE CN8 THERMISTOR
ARYG18LLTB : EZ-01112HSE B02B-XASK-1-A
WHITE
CN8-1
CN8-2
BLACK
BLACK
( ROOM TEMP. )
(Serial number : T) CN7

B02B-XAYK-1-A
CN7-1
CN7-2
THERMISTOR ( PIPE - MID. TEMP. )
BLACK
CN5 CN5-1 GRAY

CN2-1 CN5-2 GRAY
CN2 B02B-XAKK-1-A
CN2-2 YELLOW
TEST CN2-3
CN2-4
B5P-SHF-1AA
WHITE
TERMINAL CB2-5
HP-T3031-3-L1
Junction
INDICATOR PCB
POWER SOURCE L 1
UL1015 AWG20 BLACK
Connector K04EI-1000HSE-D0
XMR-08V
UL1015 AWG20
AC230V
WHITE WHITE
N 2 CN15-1 CN13-1 BROWN 1 1 1 1 BROWN CN201-1
50Hz
SERIAL 3
UL1015 AWG20 RED CN15-2
CN15-3 CN15
CN13
CN13-2
CN13-3
RED
ORANGE
2
3
2
3
2
3
2
3
RED
ORANGE
CN201-2
CN201-3 CN201 RECEIVER UNIT
CN15-4 B06B-XASK-1-A 4 4 4 4 CN201-4 S07B-PASK-2
( OPTION )
B07B-PASK-1 CN13-4 WHITE WHITE
CN15-5 WHITE CN13-5 BLUE 5 5 5 5 BLUE CN201-5 WHITE
CN15-6 WHITE 6 6 6 6
CN13-6 PURPLE PURPLE CN201-6
E CN13-7 GRAY 7 7 7 7 GRAY CN201-7
8 8 8 8
UL1430 AWG28 x 7 UL1430 AWG28 x 7
Junction
Connector
XMR-08V
WHITE
W105 W102 W101
UL1015 AWG16
GREEN E101
CN14-1 UL1430 AWG22 BLACK
CN14
F101 B03B-XAKK-1-A CN14-2 UL1430 AWG22 WHITE
AC250V CN3-1 BLACK UL1430 AWG22 RED

CN14-3
5A
CN3-2 CN3
CN3-3
CN3-4 B06B-PASK-1
UL1015 AWG16 WHITE EMI FILTER
GREEN E102 CN3-5
CN3-6 ZCAT1518-0730
2T
UL1015 AWG16
POWER SUPPLY PCB
E103 TERMINAL
K06AL-1008HSE-P0
GREEN BLK WHT RED
HP-T3031-21
POWER DRIVE CN6
B02B-PAMK-1
CN6-1 FRESH AIR
DC FAN MOTOR CN104-1 GRAY CN4-1
CN6-2
1 RED CN105-6
CN104-2
CN104-3
GRAY
GRAY
CN4-2
CN4-3
GREEN
( OPTION )
2 CN105-5 CN105 CN104 CN104-4 GRAY CN4-4 CN4
3 BLACK CN105-4
FM 4 WHITE B5P6-VH-B B08B-PASK-1 CN104-5 GRAY CN4-5 B08B-PASK-1
CN105-3 WHITE CN104-6 GRAY CN4-6 WHITE
5 YELLOW CN105-2 WHITE GRAY
6 BROWN CN104-7 CN4-7
CN105-1 CN104-8 GRAY CN4-8
7
8 UL1430 AWG26 x 8
EMI FILTER
ZCAT2132-1130 WIRED REMOTE CONTROL
1T CN10
DC SUPPLY B02B-PAOK-1
CN10-1 HEATER
BLACK CN106-1 CN106 ORANGE CN10-2
( OPTION )
DRAIN PUMP M BLACK CN106-2 B2P3-VH-B-E CN101 CN101-1
CN101-2
GRAY
GRAY
CN1-1
CN1-2
CN1
BLUE B03B-PASK-1 GRAY B03B-PASK-1
UL1015 AWG18 x 2 WHITE CN101-3 CN1-3 WHITE
UL1430 AWG26 x 3
CN11-1 RED RED

CN11 CN11-2
CN11-3
ORANGE
YELLOW
ORANGE
YELLOW M
LOUVER UP / DOWN
B05B-XASK-1-A
CN103-1 CN106 WHITE CN11-4
CN11-5
PINK
BLUE
PINK
BLUE ( OPTION )
EXTERNAL OUT CN103-2 B2B-XH-AM
WHITE
UL1430 AWG26 x 5
CN12-1
CN12 CN12-2
B05B-XARK-1-A CN12-3
RED CN12-4
CN12-5
CN102-1 CN102
EXTERNAL IN CN102-2 B3B-XH-AM
CN102-3 WHITE FLOAT SWITCH
CN9 CN9-1 BLACK
B03B-XARK-1-A CN9-2
WHITE CN108-1 CN106 RED CN9-3 BLACK
REACTOR ASSY CN108-2 UL1007 AWG24 x 2

B2P3-VH-B
( RELAY41-22 ) WHITE CN108-3 WHITE
2010.09.02 55
340V R103
D108 13.5V
62k
D2FL20U
<RS-2W>
T101
I C26-14 C108 ZFT22B03-C
4700p
12
L <FNS> 2
C113 R111
3 +
R104 5 10 1000/ 10k
330k 6 25V <1/10W>
7
<2W> D102 8
NORMAL COIL 1SR139-600
C114
F101 0.01
5A CN108
B2P3-VH-B <KH> E103
250V GREEN
1 2 C109 15V D106
D101 220p Q101 D1FL20U
LF101 1
D3SB60 <BN>
FH101 FH102 2SC5354
W101 ELF20N030A 3 2 2
C110 0.047
BLACK 1 2 C105 R105 1 <ECQV>
0.010 4 75 D103 R108
W102 <RS-2W>
3
D1FL20U
WHITE VA101 C101 C104 <YE> C107 100
470V 0.22 0.22 + Q102 D107 C112 D104 <1/2W>
270/ + D105
<TNR> <LE> <F> C106 2SC1815 2 RD16 330/ MTZJ5.1B
450V D1FL20U
0.010 1
<B1> 25V
4 3 <YE> R107 3 R109 C111
R106
100 330 100/
1.5 D109 +
VA102 <1/10W> <1/4W> 25V
<RS-2W> MTZJ5.1B
SA101 470V
RA-362M <TNR> C118 R110
A
0.01 10k
E102 <1/10W>
GREEN <KH>
I C26-10
N
E101
GREEN
CN105
15V 340V
B5P-VH-B
6
5
4
3 DC FAN MOTOR
A IC105 HI2003R3
5V I C104 15V 2
TLP621 R116 1
<GB> 1.0k
1 4 15V 18 14 10 5 4 3 2 1
<1/4W> I C103 5V
2 3 8 VA103 7 6 5 4 3 2 1
CN104 R117
820
+ C117
TLP621
<GB>
R114
4.7k
R115
6.8k
W105
RED
0.01
<F>
INDOOR UNIT
B08B-PASK-1 100/ 4
SLIM DUCT
1
<1/4W> A A25V <1/10W> <1/4W>
3 2 SERIAL
1
2
3
ARYG07LLTA
4 I C26-14 I C26-10 ARYG09LLTA
POWER DRIVE
ARYG12LLTA
5
6 L N
ARYG14LLTA
7
8
ARYG18LLTA
ARYG12LLTB
ARYG14LLTB
ARYG18LLTB
POWER SUPPLY PCB
R113
K101
13.5V K06AL-1008HSE-P0
330 CN103
<1/10W> G5N-1A
4 1 B2B-XH-AM
I C26-14 K102 CN106
2 3 1
2 3 2
B03B-PASK-1 L 2
1 4
1 DRAIN PUMP
L102
2 C120 1
DC SUPPLY 5V BLm18 RC101
3 0.1 <AG601> 120/
C121 <F> I C26-10 0.2
R112 CN102
0.1
330 B3B-XH-AM
<F>
I C101 <1/10W>
3
N
TLP621
2
<GB> EXTERNAL I N
4 1 1
3 2 C116
0.01

L103
BLm18
<AG601>
2010.09.01 56
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA INDICATOR PCB ( OPTION )
ARYG14LLTA K04EI-1000HSE-D0
ARYG18LLTA
ARYG12LLTB
ARYG14LLTB 5V
ARYG18LLTB
R201 330
<1/4W> D205 EMPG3863X GREEN
R202 330
CN201 <1/4W>
08 / 08 JC25 / XMR
D206 EMAA3863X ORANGE
R203 330
( OPERATE ) BROWN 1 <1/4W>
( TIMER )
D207 EMPG3863X GREEN
RED 2
( LOUVER ) ORANGE 3
( LOUVER ) YELLOW 4
( 5V ) WHITE 5
( REMOTE SIGNAL ) BLUE 6
( GND ) PURPLE 7
( MANUAL AUTO SWITCH ) C202 C201
GRAY 8 +
1 3 10/ 0.1 JM201
16V <F>
2 4
SW201
EVQPAG04K
VCC 2
OUT 1
GND 3
PHA201
PIC-37143TH5
2013.01.22 57
INDOOR UNIT
FLOOR / CEILING
CONTROL UNIT
ABYG14LVTA : EZ-0122AHSE
CN8 GRAY
B2B-XASK-1-A
GRAY THERMISTOR ( ROOM TEMP. )
WHITE
ABYG18LVTA : EZ-0100GHSE CN7

B2B-XAYK-1-A THERMISTOR ( PIPE - ENT. TEMP. )
ABYG18LVTB : EZ-0122BHSE YELLOW
CN5 BLACK
B2B-XAKK-1-A BLACK THERMISTOR ( PIPE - MID. TEMP. )
BLACK
TERMINAL
HP-T3031-3-L1 MAIN PCB INDICATOR PCB
UL1015 AWG20 RED ABYG14LVTA : K06AK-120YHSE-C1 K04EI-1001HSE-D0
POWER SOURCE L 1
AC230V UL1015 AWG20 WHITE
ABYG18LVTA : K06AK-100LHSE-C1
50Hz N 2
UL1015 AWG20 BLACK
ABYG18LVTB : K06AK-122BHSE-C1
SERIAL 3
1 1 CN201-1
CN13-1 RED 2 2 CN201-2
E CN13-2 ORANGE 3 3 CN201-3 CN201
CN13 CN13-3 YELLOW 4 4 CN201-4
CN13-4 5 5 CN201-5 S08B-PASK-2
B07B-PASK-1 WHITE
WHITE
WHITE CN13-5 BLUE 6 6 CN201-6
CN13-6 PURPLE 7 7 CN201-7
CN13-7 GRAY 8 8 CN201-8
W101 W102 W105
UL1015 AWG16
GREEN E101
CN14-1 UL1430 AWG22 RED
CN14
CN14-2 UL1430 AWG22 WHITE
B3B-XAKK-1-A
BLACK CN14-3 UL1430 AWG22 BLACK
UL1015 AWG16
GREEN E102 POWER SUPPLY PCB EMI FILTER
ZCA1518-0730
K06AL-1009HSE-P0 2T
EMI FILTER POWER DRIVE CN6

ZCAT2132-1130 CN6-1
1T CN104-1 GRAY CN4-1 B02B-PAMK-1 CN6-2 FLESH AIR
1 RED CN104-2 GRAY CN4-2 GREEN
CN105-6 CN104-3 GRAY CN4-3
CN104 CN4
2 CN105-5
CN105 CN104-4 GRAY CN4-4 3 2 1 TERMINAL
DC FAN MOTOR
3 BLACK CN105-4
FM 4 WHITE
B08B-PASK-1 CN104-5 GRAY CN4-5 B08B-PASK-1
CN105-3 B5P6-VH-B WHITE CN104-6 GRAY CN4-6 WHITE
5 YELLOW CN105-2
6 BROWN
WHITE CN104-7 GRAY CN4-7
CN105-1 CN104-8 GRAY CN4-8
7 CN10 CN10-1
8 B02B-PAOK-1 CN10-2
HEATER
ORANGE
EARTH WIRE
DC SUPPLY
CN106
DRAIN PUMP
CN106-1
B2P3-VH-B-E CN101 CN101-1 GRAY CN1-1 CN1
CN106-2 CN101-2 GRAY
BLUE B03B-PASK-1 CN1-2 B03B-PASK-1
WHITE CN101-3 GRAY CN1-3 WHITE
EMI FILTER
ZCA1518-0730
1T
CN103
CN103-1 CN9
EXTERNAL OUT CN103-2
B2B-XH-AM
WHITE FLOAT SWITCH
CN9-1
CN9-2 B03B-XARK-1-A CN11-1 BROWN
CN9-3 RED CN11 CN11-2 RED
B05B-XASK-1-A
WHITE
CN11-3
CN11-4
ORANGE
YELLOW
M LOUVER ( UP / DOWN )
CN11-5 WHITE
CN12-1 BROWN
CN12 CN12-2 RED
CN102-1 CN12-3
LOUVER ( LEFT / RIGHT )
ORANGE
CN102 B05B-XARK-1-A M
EXTERNAL IN CN102-2 B3B-XH-AM
WHITE
RED CN12-4
CN12-5
YELLOW
WHITE
CN102-3
2013.01.28 58
340V R103
D108 13.5V
62k
D2FL20U
<RS-2W>
T101
I C26-14 C108 ZFT22B03-C
4700p
12
L <FNS> 2
C113 R111
3 +
R104 5 10 1000/ 10k
330k 6 25V <1/10W>
7
<2W> D102 8
1SR139-600
F101 C114, C115
3.15A 0.01 <KH>
250V x2
L101 C109 15V D106
LF101 REP-28-15 D101 220p Q101 D1FL20U
1
FH101 FH102 ELF17N015A 15mH, 1.1A D3SB60 <BN> 2SC5354
W101 3 2 2
C110 0.047
BLACK 1 2 C105 R105 1 <ECQV>
0.010 4 75 D103 R108
W102 <RS-2W>
3
D1FL20U
WHITE VA101 C104 <YE> C107 100
470V 0.47 + Q102 D107 C112 D104 <1/2W>
100/ + D105
<TNR> <R46> C106 2SC1815 2 RD16 330/ MTZJ5.1B
450V D1FL20U
0.010 1
<B1> 25V
4 3 <YE> R107 3 R109 C111
R106
100 330 100/
1.5 D109 +
VA102 <1/10W> <1/4W> 25V
<RS-2W> MTZJ5.1B
SA101 470V
RA-362M <TNR> C118 R110
A
0.01 10k
E102 <1/10W>
GREEN <KH>
I C26-10
N
E101
GREEN
CN105
15V 340V
B5P-VH-B
6
5
4
3 DC FAN MOTOR
A IC105 HI2003R3
5V I C104 15V 2
TLP621 R116 1
<GB> 1.0k
1 4 15V 18 14 10 5 4 3 2 1
<1/4W> I C103 5V
2 3 8 VA103 7 6 5 4 3 2 1
TLP621 W105 0.01
CN104 R117 + C117 R114 R115
<GB> RED <KH>
B08B-PASK-1 820 100/ 4 1 4.7k 6.8k
<1/10W> <1/4W>
1
<1/4W> A A25V 3 2 SERIAL
INDOOR UNIT
2
3
FLOOR / CEILING
POWER DRIVE
4
5
I C26-14 I C26-10
ABYG14LVTA
6
7
L N ABYG18LVTA
8 ABYG18LVTB
POWER SUPPLY PCB
K06AL-1009HSE-P0
R113 13.5V
330 K101
G5N-1A CN103
<1/10W> B2B-XH-AM
4 1
I C26-14 K102 CN106

2 3 1
2 3 2
B03B-PASK-1 L 2
1 4
1 DRAIN PUMP
L102
2 C120 1
DC SUPPLY 5V BLm18 RC101
3 0.1 <AG601> 120/
C121 <F> I C26-10 0.1
R112 CN102
0.1
330 B3B-XH-AM
<F>
I C101 <1/10W>
3
N
TLP621
2
<GB> EXTERNAL IN
4 1 1
3 2 C116
0.01

L103
BLm18
<AG601>
2010.10.12 59
5V
INDOOR UNIT
FLOOR / CEILING R202 330
ABYG14LVTA <1/4W>
ABYG18LVTA
CN201 D206 EMPG3863X GREEN
08 / 08 JC25 / XMR
ABYG18LVTB R203 330
INDICATOR PCB BROWN 1 <1/4W>
( OPTION ) D207 EMAA3863X ORANGE
RED 2
K04EI-1001HSE-D0 R204 330
ORANGE 3
<1/4W>
YELLOW 4 D208 EMPG3863X GREEN
WHITE 5
BLUE 6
PURPLE 7
8 C202 C201
GRAY
1 3 + 10/ 0.1 JM201
16V <F>
2 4
SW201
EVQPAG04K
VCC 2
OUT 1
GND 3
PHA201
PIC-37143TH5
2010.09.03 60
CONTROL UNIT
ARYG07LSLAP : EZ-0160BHSE
ARYG09LSLAP : EZ-0160CHSE
ARYG12LSLAP : EZ-0160DHSE
ARYG14LSLAP : EZ-0160EHSE
ARYG18LSLAP : EZ-0160FHSE
CN8
Thermistor Characteristics.
Temperature
Thermistor ( 0 ) (20 ) (30 )
CN8 8-1 BLACK
F200 B02B-XASK-1-A THERMISTOR ( ROOM TEMP. )
5A 263-1 UL1430 AWG26 WHITE 261-1 8-2 BLACK 33.6 k 12.5 k 8.0 k
WHITE Thermistor ( Room temp. )
TERMINAL AC250V 263-2 UL1430 AWG26 WHITE 261-2 1.1 V 2.2 V 2.8 V
UL1015 AWG20 BLACK 205-1 263-3 UL1430 AWG26 WHITE 261-3
1 L
263-4 UL1430 AWG26 WHITE 261-4 CN6
6-1 GRAY
THERMISTOR ( PIPE TEMP. ) CN6
UL1015 AWG20 WHITE 205-3 263-5 261-5 B03B-PASK-1 6-2
2 CN205 CN263 UL1430 AWG26 WHITE CN261 Thermistor Characteristics.
N WHITE 6-3 GRAY
B3 ( 8.0 ) B-PSILE-1 B10B-PLIRK-1 263-6 UL1430 AWG26 WHITE 261-6 B10B-PLIRK-1
Temperature
3
BLUE
UL1015 AWG20 RED 205-5 RED
263-7 UL1430 AWG26 WHITE 261-7 RED DC12V-3 ( 0 ) (20 ) (30 )
Si Thermistor
263-8 UL1430 AWG26 WHITE 261-8 71-1
DC13V-2 263-9 UL1430 AWG26 WHITE 261-9 DC13V-2 168.6 k 62.5 k 40.0 k
CN71 71-2 Thermistor ( Pipe temp. )
263-10 UL1430 AWG26 WHITE 261-10 B04B-XASK-1-A 71-3 1.1 V 2.2 V 2.8 V
WHITE
71-4
POWER DRIVE
UL1015
AWG16 UL1015
GREEN W202 AWG16
W260
GREEN 9-1 UL1007 AWG24 BLACK
CN9 FLOAT SWITCH
9-2
B03B-XARK-1-A
RED 9-3 UL1007 AWG24 BLACK
OUTDOOR UNIT DC13V-1 DC13V-1

262-1
DC13V-2 262-2
UL1061 AWG22 WHITE 260-1
DC13V-2
OPTION ( RECEIVER UNIT ) UTY-LBTYM
260-2
262-3 UL1061 AWG22 WHITE 260-3 CN48 UL1430 AWG28 x 9 SQMM 0.3 x 9 UL1430 AWG28 x 9
CN262 262-4 UL1061 AWG22 WHITE 260-4 CN260 B09B-PASK-1 48-1 BLACK BLACK BLACK 1-1
WHITE CN1
B04B-XNISK-A-1 B04B-XNISK-A-1 48-2 WHITE WHITE WHITE 1-2 S09B-PASK-2
DC SUPPLY
WHITE WHITE DC5V-1 48-3 RED RED RED 1-3 WHITE
EMI FILTER
ZCAT1518-0730 48-4 GREEN GREEN GREEN 1-4
POWER SOURCE 1 TURN DC13V-2 48-5 YELLOW YELLOW YELLOW 1-5 INDICATOR PCB
AC230V POWER SUPPLY PCB MAIN PCB 48-6 1-6
K14WT-1500HSE-D0
BLUE BLUE BLUE
50Hz
K16JB-1600HSE-P0 ARYG07LSLAP : K16GW-1600HSE-C1 48-7 GRAY GRAY GRAY 1-7
48-8 VIOLET VIOLET VIOLET 1-8
ARYG09LSLAP : K16GW-1601HSE-C1 48-9 BROWN BROWN BROWN 1-9
ARYG12LSLAP : K16GW-1602HSE-C1
DC340V
UL1430 AWG22 RED 520-1 DC13V-1
CN520
65-1 UL1430 AWG26 GRAY
B5 ( 7-2.3 ) B-XASK-1-A
WHITE 65-2 UL1430 AWG26 RED
CN65
UL1430 AWG22 BLACK 520-4 DC15V-1 B04B-PASK-1 65-3 UL1430 AWG26 ORANGE
DC FAN MOTOR FM UL1430 AWG22 WHITE 520-5
WHITE
65-4 UL1430 AWG26 YELLOW
UL1430 AWG22 YELLOW 520-6
UL1430 AWG22 BROWN 520-7 WIRELESS LAN ADAPTER
DC5V
700-1
UL1015 AWG18 YELLOW 106-1 700-2
CN106
AC DRAIN PUMP M B2P3-VH-B-E
700-3
700-4
OPTION ( EXAMPLE EXTERNAL INPUT AND OUTPUT )
UL1015 AWG18 YELLOW 106-2 BLUE
700-5
700-6 CN700
TEST 700-7 B12B-PASK-1
WHITE
CN520 DC Fan Motor 700-8
CN320
700-9 1-1
Terminal Lead wire 11R-JE
Pin No. Function of terminal 700-10 WHITE 320-1 2-1
code color CN1 1-2
700-11 320-2 2-2
1 Vm Motor power voltage input Red SM05B-SRSS-TB 1-3 FLASH
700-12 320-3 WHITE
2-3 1-4
2 320-4
DC5V-1 2-4 1-5
3 320-5 2-5
4 GND GND Black 320-6 2-6
CN2 NON-POLAR 2-WIRE
11PSL-JE
5 Vcc Control power voltage input White 320-7
320-8
2-7 WHITE
COMMUNICATION PCB 3-WIRE TYPE ( OPTION )
6 Vsp Speed control voltage input Yellow 2-8
7 FG Revolution pulse output Brown 320-9 2-9

K14VS-1400HSE-CA0 Y1
DC13V-1 320-10 REMOTE
2-10
320-11 2-11
Y2 CONTROL
( 3-WIRE )
Y3
EMI FILTER
DC13V-1 ZCAT1518-0730 TERMINAL
2 TURNS 2-WIRE TYPE
551-1 300-1 UL1007 AWG22 RED
CN300
551-2 300-2 UL1007 AWG22 WHITE
Y1 REMOTE
CN551 B03B-XNISK-A-1
551-3 WHITE
UL1007 AWG22 BLACK CONTROL
B04B-PAKK-1 300-3
Y2
551-4 BLACK ( 2-WIRE )
Y3
DC13V-1 46-1 UL1007 AWG22 BLUE
11-1
CN46 1
B3B-XH-AM 46-2 WIRE FOR EXTERNAL INPUT
UL1007 AWG22 ORANGE
11-2 WHITE
46-3 2
LOUVER ( UP / DOWN ) 11-3 CN11 EMI FILTER
( OPTION ) DC13V-1
11-4 B05B-XASK-1-A ZCAT1518-0730
11-5
WHITE CN47 47-1 2 TURNS
B02B-PASK-1 47-2 EXTERNAL OUTPUT
WHITE
2017.02.02 61
: flashing
ERROR DETECTION
: Off
OUTDOOR UNIT
LED 1 LED 2 LED 3
Communication error (outdoor unit to indoor unit A) 1 time
Communication error (outdoor unit to indoor unit B) 1 time
Communication error (outdoor unit to indoor unit C) 1 time
Discharge pipe thermistor 2 times
Outdoor unit, heat exchanger thermistor (middle) 3 times
Outdoor thermistor error 4 times
2-way valve thermistor (indoor unit A) 5 times
2-way valve thermistor (indoor unit B) 5 times
2-way valve thermistor (indoor unit C) 5 times
3-way valve thermistor (indoor unit A) 6 times

3-way valve thermistor (indoor unit B) 6 times
3-way valve thermistor (indoor unit C) 6 times

Compressor thermistor error 7 times
Heatsink thermistor error 8 times
High pressure switch 1 error 9 times
High pressure switch 2 error 10 times
Indoor unit capacity error 11 times
Trip detection 12 times

Comoressor roter position detetion error 13 times
Trip terminal L error 14 times
Outdoor unit fan motor error 15 times
Outdoor unit PCB microcomputer communication error 17 times
Discharge temperature error 18 times
Compressor temperature error 19 times
4-way valve error 20 times
Outdoor unit PCB model information error 21 times

Active filter error, PFC circuit error 22 times
2011.02.10 62
Indoor unit lamps
INDOOR UNIT Wired
remote Description
REMOTE CONTROL OPERATION TIMER ECONOMY
control
(green) (orange) (green)
(1) (1) Serial communication error
(1) (2) Wired remote control communication error
(1) (5) Check run unfinished

Unit number or Refrigerant circuit
(2) (1) address setting error
[Simultaneous Multi]
(2) (2) Indoor unit capacity error
(2) (3) Combination error

•Connection unit number error
(indoor unit)
[Simultaneous Multi]
(2) (4) •Connection unit number error
OPERATION indicator lamp (green) (indoor unit orbranch unit)
TIMER indicator lamp (orange) [Flexible Multi]
Master unit,slave unit set-up
ECONOMY indicator lamp (green) (2) (7) error [Simultaneous Multi]
(3) (2) Indoor unit PCB model information error
(3) (5) Manual auto switch error
(4) (1) Room temp. sensor error

Indoor unit Heat Ex. Middle temp.
(4) (2)
SIMPLE REMOTE CONTROL sensor error
(5) (1) Indoor unit fan motor error

If an error occurs, the following display will be shown.
(“ “ will appear in the set room temperature display.) (5) (3) Drain pump error
If “ “ is displayed, immediately contact authorized
service personnel. (5) (7) Damper error
Error code
(5) (8) Intake grill error
(5) (15) Indoor unit error
Outdoor unit main PCB model information

(6) (2) error or communication error
Faulty unit No.
(Remote controller address) (6) (3) Inverter error
Ex. Error code display
(6) (4) Active filter error, PFC circuit error
(6) (5) Trip terminal L error

Display PCB microcomputers
(6) (10) communication error
(7) (1) Discharge temp. sensor error
If an error occurs, the following display will be shown. (2)
(7) Compressor temp. sensor error
(“ “ will appear in the set room temperature display.)
If “ “ is displayed, immediately contact authorized (7) (3)
Outdoor unit Heat Ex.
service personnel. liquid temp. sensor error
(7) (4) Outdoor temp. sensor error

Unit number (usually 0) Error code
(7) (5) Suction Gas temp. sensor error
• 2-way valve temp. sensor error
(7) (6) • 3-way valve temp. sensor error
(7) (7) Heat sink temp. sensor error

Ex. Error code display • Sub-cool Heat Ex. gas inlet
temp. sensor error
(8) (2) • Sub-cool Heat Ex. gas outlet
CENTRAL REMOTE CONTROL temp. sensor error
(8) (3) Liquid pipe temp. sensor error

To show which indoor unit is the error displayed.
indoor unit's name and "ERROR" are alternately shown. (8) (4) Current sensor error
(0.5s indoor unit's name / 0.5s "ERROR") • Discharge pressure sensor error
(8) (6) • Suction pressure sensor error
• High pressure switch error
(9) (4) Trip detection

Compressor rotor position
(9) (5) detection error (permanent stop)
(9) (7) Outdoor unit fan motor error
(9) (9) 4-way valve error

Ex. Error display
(10) (1) Discharge temp. error
(10) (3) Compressor temp. error

: 0.5s ON / 0.5s OFF
(10) (4) High pressure error
: 0.1s ON / 0.1s OFF
(10) (5) Low pressure error
( ) : Number of flashing
(13) (2) Branch boxes error
2013.06.20 63
Wall mounted KMCC type
2020.09.03 64
1
7
PARTS
OUTDOOR UNIT 8
13
14
9
Ref. Description Part number
2 1 Top Panel Sub Assy 9374417049 5

2 Front Panel Sub Assy 9374414123
3 Service Panel Sub Assy 9374415045
4 Emblem Rear 9351355005
10 5 Valve Cover Sub Assy 9374827015
6 Right Panel Sub Assy 9374416103
7 Protective Net 9375381028
11
8 Thermo Holder 9375211011
9 Water Seal Plate 9375222017
12
10 Motor Bracket Sub Assy 9374418060
11 Motor DC Brushless 9379385015
12 Propeller Fan Assy 9366378020
9366378037
13 Base Assy 9374166121
14 Compressor Plate Assy 9375221058
-- Drain Assy 9303029015
-- Drain Cap 313166024302
2021.06.08 65
29
OUTDOOR UNIT
30
22 32
31
23
26
21
25
26
25
26
24
Connector : RED
21 Separate Wall Sub Assy 9374413164

22 Choke Coil 9900366018
23 Valve Plate Assy 9374628148 28
24 3-way Valve Assy (1/2") 9375104016
25 3-way Valve Assy (3/8") 9375103019
Connector : WHITE
26 2-way Valve Assy 9375102012
27 Pipe Thermistor (White) 9900543020
28 Pipe Thermistor (Red) 9900632007
29 Condenser A Sub Assy 9374420223 27
30 Inlet Pipe (Cond) A Assy 9373461104
31 Outlet Pipe (Cond) A Assy 9374266111
32 Receiver Tank Assy 9374575039
-- Strainer Assy 9372524015
2021.06.28 66
OUTDOOR UNIT
49 48
50
47 Connector : RED
WHITE
46
51
52
44
43
42
45
41 Expansion Valve Assy 9370947151
42 Expansion Valve Coil (A=Red) 9970101069
43 Expansion Valve Coil (B=White) 9970101038
44 Expansion Valve Coil (C=Green) 9970101045
45 Compressor Assy 9315297037
46 Accumulator Assy 9375250027
47 4-way Valve Assy 9374425136
48 Solenoid 9900165079
49 Pressure Switch A 9900186012

41 50 Pressure Switch B 9900341015
51 Wire (Pressure Sw) (Red) 9377823014
52 Wire (Pressure Sw) (White) 9377823021
2011.07.25 67
65
OUTDOOR UNIT
74
73
72
63
61
61 Inverter Box A 9374603015
62 Inverter Box B Assy 9374625048
64 63 Inverter Box C 9375140014
64 Inverter Box Duct 9374609017
65 Inverter Box Cover 9375139018
66 66 Heat Sink A 9375138011

62
70 67 Inverter Box D 9374606047
69 68
68 Terminal (3P) 9900203016
69 Terminal (6P) 9900016036

71
70 Terminal (3P) 9306489045
67
71 Terminal (3P) 9900433017
Connector : BLACK 72 ACTPM 9703457012

GREEN
BLUE 73 Power Supply PCB 9705647091
RED
YELLOW
74 Controller PCB (18) 9709682692
74 Controller PCB (24) 9709682708
75 Heat Sink Thermistor 9900311018
76 Compressor Thermistor 9900156053
77 Thermistor (Outdoor) 9900477011

75
78 Heat Exchanger Thermistor 9900540005
76
79 79 Discharge Thermistor 9900621018
77
78
2021.01.20 68
PARTS
INDOOR UNIT
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
10
4
5
2
Ref Description Parts number
3 1 Front Panel Total Assy 9318267174
2 Front Panel 9317642057
3 Intake Grille Assy 9318268034
4 Clamper Grille 9316906006
5 Air Filter 9317644013

7
6 Receiver Window 9317643016
7 Panel Cover 9317646017

12
8 Wire Cover 9317663007
11
9 Wire Shield 9317664011
10 Bracket Panel 9317665001
11 Remote Control 9379219006
12 Remote Control Holder 9305642045
-- Air Clean Filter Assy 9317250009

2010.10.07 69
INDOOR UNIT
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
21
24
26
25
23
22
21 Evaporator Total Assy 9317820011 27

22 Joint Pipe Assy 9317838009
28
23 Filter Guide 9317652001
24 Rear Bracket 9317651004
25 Evaporator Holder R 9317650014
26 Evaporator Holder L 9317649018
27 Holder (Room Thermistor) 9316895003
28 Thermistor Assy 9900893002

9900563004
5/ June/ 2015 70
47
48
33
INDOOR UNIT
COMPACT WALL MOUNTED 46
ASYG07LJCA
ASYG09LJCA 34
ASYG12LJCA
32 44 36
45 38
37
39 41 43
42
40
35
50 31
49
Ref Description Parts number Ref Description Parts number
31 Casing Assy 9318264050 41 Gear A 9309994003

32 Casing 9317647014 42 Motor Step 9900384128
33 Motor Cover 9316568006 43 Drain Hose Assy 9316904002
34 Motor Cover 9316601000 44 Drain Cap 9316177017
35 Cable Guide 9316567009 45 Fan Guard 9332277005
36 Casing Cover B 9317653015 46 Fan Motor 9602704002
37 Casing Cover F 9317654005 47 Crossflow Fan Assy 9316830004
38 R AND L Louver B 9316961012 48 Bearing C Assy 9306628017
39 Louver Gear Holder 9317669016 49 Louver U 9317656016
40 Louver Gear 9317648004 50 Louver Z 9317657006
2010.06.29 71
INDOOR UNIT
ASYG07LJCA
52 51
ASYG09LJCA
ASYG12LJCA
55
58
53
59
57
56 Ref Description Parts number
51 Control Box 9318187007 54
52 Box Shield 9317575010
53 Control Cover 9317659017
54 Cover Shield 9317923002
55 Main PCB (07) 9708536378
55 Main PCB (09) 9708536385
55 Main PCB (12) 9708536392
--- Display Assy 9708364018

(PCB+Display Case)
56 Display Case 9317662000
57 Indicator PCB 9707649024
58 Terminal 9900638009
59 Earth Terminal 9316586000
2021.07.09 72
INDOOR UNIT
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
2
3
6 1
9
2 Wire Cover 9318911015
3 Wire Shield 9318919004
4 Under Cover 9318879018
5 Louver U 9318880007
6 Louver Z 9318881004

7 9 Screw cap 9309002067
8
2018.09.21 73
INDOOR UNIT
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA 12
ASYG14LUCA
Front panel
13
19
20
21
17
15 18
14
16
11
11 Front Panel Total Assy 9319348001
12 Air Filter 9318883008
15 Front Panel Cover U 9318910001
16 Display Plate Holder L 9318894004
17 Display Plate Holder R 9318895001
18 Display Plate R 9318893007
19 Arm Cover 9318900002
20 Grille Stay 9318899016
21 Grille Clamper B 9316951006
2013.06.20 74
a Grille gear 9319292014
Intake grille assy
2017.08.08 75
INDOOR UNIT
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
Evaporator
35
33
36
37
34
32
31
31 Evaporator Total Assy (07,09,12) 9319327006
31 Evaporator Total Assy (14) 9319327013
32 Joint Pipe Assy (07, 09, 12) 9319322001
32 Joint Pipe Assy (14) 9319322018
33 Joint Pipe Holder 9318901009
34 Base 9318874006
37 Air Seal 9319295008
2011.03.11 76
47
48 43 42
49
52
50
44
51
53
54 55
45
46
INDOOR UNIT
57
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA 41
Control box 56
Ref. Description Part number Ref. Description Part number
41 Cover Shield A 9318916003 49 Step Motor 9900384166
42 Control Box 9318882049 50 Gear B 9319294001
43 Box Shield Assy 9319344010 51 Panel Gear 9319293004
44 Main PCB (07) 9708713281 52 Gear Case 9318903003
44 Main PCB (09) 9708713298 53 Switch Case 9319332000
44 Main PCB (12) 9708713304 54 Grille Key Top 9319334004
44 Main PCB (14) 9708713311 55 Micro Switch 9900625009
45 Terminal 9900638009 56 Display Assy 9708823010
46 Earth Terminal 9318918007 57 Indicator PCB 9708824017
47 Room Thermistor Holder 9319068008 -- Thermistor Assy 9900627003
48 Gear Cover 9318902006
2013.06.20 78
INDOOR UNIT 62 61
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
Casing assy
80
63
67
66
78
75
68
76
69 77
65
79
73
74
71
72
64
70
61 Fan Motor 9602947003 71 Pipe Bracket 9318889000

62 Crossflow Fan Assy 9319361000 72 Panel Cover 9319296012
63 Bearing C Assy 9306628017 73 Louver Holder 9318886009
64 Casing Assy 9319342009 74 R and L Louver 9318885002
65 Casing 9318873009 75 Motor Step 9900384128
66 Motor Cover 9316601000 76 Louver Gear Holder 9318905007
67 Motor Cover 9318888003 77 Louver Gear 9318904000
68 Fan Guard 9318924008 78 Gear A 9309994003
69 Casing Cover F 9318923001 79 Drain Cap 9316177017
70 Casing Cover B 9318920017 80 Drain Hose Assy 9316904002
2013.06.20 66
INDOOR UNIT
ASYG07LMCA 5
ASYG09LMCA
ASYG12LMCA
ASYG14LMCA
4 3 Bracket Panel 9332882018
6 4 Electric Filter Holder 9332911008
5 Air Clean Filter Assy 9317250009
6 Air Filter 9332875003

8
7 Front Panel Sub Assy 9332994001
8 Wire Cover 9332894004
9 Louver with Shaft Cover 9333353005

7
10 Diffuser Assy 9332998009
a Screw cap 9309002081
3
2
1
10
2019.05.15 79
5
INDOOR UNIT Ref. Description Part number
ASYG07LMCE
ASYG09LMCE 1 Remote Control 9319208008
ASYG12LMCE 6
ASYG14LMCE 2 Remote Control Holder 9318912005

4
4 Electric Filter Holder 9332911008
6 Air Filter 9332875010
7 Screw Cap 9309002074
7
2017.02.23 80
11 INDOOR UNIT
14
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
Wire
Shield
12
11 Wire Cover 9333504018
12 Louver Assy 9333353043
13 Diffuser Assy 9332998085
13 14 Front Panel Sub 9333525051

Assy (FUJITSU)
2017.02.23 81
24
21 22
25
INDOOR UNIT
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
Front panel sub assy
22 Front Panel C 9333497020
23 Under Cover 9333503011
24 Front Panel Cover R 9333502014

23
25 Front Panel R 9333500003
26
27 26 Front Panel Cover L 9333501017
27 Front Panel L 9333499000

2017.02.23 82
31 Control Box 9332892000

Box Shield Assy
32 Main PCB (ASYG07LMC_) 9709427033
35 32 Main PCB (ASYG14LMC_) 9709427040
33 Terminal 9900720001
32
34 Display Assy 9709430019
35 Room Thermistor Holder 9332868005
-- Thermistor Assy 9900930011

31
33
INDOOR UNIT
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA
ASYG14LMCA
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
Control box
Earth Terminal
Cover Shield
34
2017.02.23 83
INDOOR UNIT
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA
ASYG14LMCA
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
41 Evaporator
45
Fan
44
41 Evaporator Total Assy (07,09,12) 9332989090
42 Fan Motor 9603269005
43 Crossflow Fan Assy 9316830004

43
42 44 Bearing C Assy 9306628017
45 Casing Assy 9333009001

2017.02.23 84
INDOOR UNIT
ASYG07LMCA
ASYG09LMCA
ASYG12LMCA
ASYG14LMCA 52
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE 57
Casing assy
53
51
51 Casing 9332890006
52 Casing Cover F 9332909005

56
53 Casing Cover B 9332908008
54 R and L Louver 9332891003
55
55 Fan Guard 9332905007
54
56 Drain Cap 9316177017
57 Drain Hose Assy 9316904002
2017.02.23 85
61
INDOOR UNIT
ASYG07LMCA
ASYG09LMCA 61
ASYG12LMCA
ASYG14LMCA
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
Casing assy 63
62
61 Motor Holder L/R 9332859003
62 Cable Guide 9332903003

64
63 Step Motor 9900790004
64 Step Motor 9900790011
86 2017.02.23
P arts
5
INDOOR UNIT
4
ASYG07KMCC
ASYG09KMCC
ASYG12KMCC
ASYG14KMCC
3
1 Remote controller assy 9332438000
2 Remote control holder 9318912005
3 Bracket panel 9387480030
4 Electric filter holder 9332911008
5 Air clean filter assy 9317250009
1
2
2020.09.03 97
INDOOR UNIT
ASYG07KMCC
ASYG09KMCC Wire cover assy
ASYG12KMCC
ASYG14KMCC
14
13
11 Screw cap 9387476002
12 Under cover L 9387477009

11
13 Under cover R 9387478006
14 Front panel total assy 9387596410
12
11
2020.09.03 88
INDOOR UNIT
ASYG07KMCC
22 ASYG09KMCC
ASYG12KMCC
ASYG14KMCC
Front panel total assy
24
21 Front panel
23
21 Air filter 9387473018
22 Intake grille assy 9323546004
23 Grille clamper L 9333719009 Panel cover
24 Grille clamper R 9333704005

Front panel B
2020.09.04 89
INDOOR UNIT
ASYG07KMCC
ASYG09KMCC
ASYG12KMCC
ASYG14KMCC 33
32
31 U/D louver assy 9387479041
32 Shaft cover 9332861006
33 Louver spring P 9333951003

31
2020.09.04 90
INDOOR UNIT
ASYG07KMCC 41
ASYG09KMCC
ASYG12KMCC
ASYG14KMCC
Control box
Control cover
41 Room thermistor holder 9387467017
42 Thermistor assy 9900627027
42
2020.09.04 91
INDOOR UNIT
ASHG07KMCC 55 Ref. Description Part number
56
ASHG09KMCC
ASHG12KMCC 51 Main PCB (07KMCC) 9710368370
ASHG14KMCC
51 Main PCB (09KMCC) 9710368387
Control box 57
51 Main PCB (12KMCC) 9710368394
51 Main PCB (14KMCC) 9710368400

52
52 Terminal (KMCC) 9901013027
53 Display assy (KMCC) 9711146069

Includes all parts enclosed
59 by the dashed line.
54 Indicator PCB (KMCC) 9711147042
55 Wi-Fi folder 9387485004
56 PWB holder A 9387464009
57 PWB holder B 9387795011

58
51
58 Control box 9387463026
59 Box shield 9323537002
53 54
Display case
assy
2021.07.09 86
INDOOR UNIT
62 ASHG07KMCC
68
ASHG09KMCC
ASHG12KMCC
67 ASHG14KMCC
61
66
65
63 Motor case
Motor cover assy
61 Evaporator total assy (07, 09, 12) 9387593211

62 Evaporator total assy (14) 9387593204
63 Drain pan total assy 9387590104
Cable guide
Step motor
64 Step motor holder assy 9387714036
holder assy
Step
65 Brushless motor (07, 09, 12) 9603688011
motor
holder 65 Brushless motor (14) 9603492014
66 Crossflow fan assy 9333606033
64 67 Bearing D assy 9333628004
68 Base assy 9387587074
2020.09.04 93
9
INDOOR UNIT
WALL MOUNTED
ASYG18LFCA
6
4
2
5
3 7 1
1 Front Panel Total Assy 9318738001
4 Air Filter 9315014016
11 5 Receiver Window 9315010018
10 6 Clamper Grille 9306755010
7 Wire Clamper 9315015013
8 Cap (Screw) 9309002050

2013.04.25 94
INDOOR UNIT
WALL MOUNTED
32
ASYG18LFCA
25
26
28
27
24
22
21
23
29

30 22 Connection Pipe Assy (18) 9315354020
22 Connection Pipe Assy (24) 9315355058
23 Water Seal 9315251015

31 24 Evaporator Holder R 9314994012
26 Rear Bracket 9315022011
28 Filter Guard 9315411013
29 Bearing C Assy 9306628017
30 Crossflow Fan Assy 9315024015
31 Holder (Room Thermistor) 9315252012
32 Pipe Thermistor 9900551018

2013.04.25 95
47
INDOOR UNIT
WALL MOUNTED 43
ASYG18LFCA
44
48
46
49
55
53
45
51 50
42
56
58 57
41
52 54

41 Casing Assy (18) 9315331038 51 Louver U 9315000026
41 Casing Assy (24) 9315331045 52 Louver Z 9315001023
42 Casing 9314993015 53 Diffuser U 9315002020
43 Casing Cover B 9315016010 54 Diffuser Z 9315003027
44 Casing Cover L 9315017017 55 Spring C 9314142017
45 Casing Cover R 9315018014 56 Piller A 9315009012
46 Casing Cover F 9315019011 57 Joint B 9315006011
47 Drain Cap 9367677009 58 R and L Louver 9311997016
48 Drain Hose Assy 9315769015 - Fan Guard 9305751051
49 Bush B 9312156016 - Fan Guard Holder Right 9315814012
50 Spacer D 9315282019 - Fan Guard Holder Left 9315815019
2013.06.20 96
INDOOR UNIT
WALL MOUNTED
ASYG18LFCA
61 Control Box Cover 9314997013
62 Control Box 9314996016

63
63 Main PCB 9708540191
64 Terminal 9900447014
62 65 Terminal Earth 9315028020
66 Motor Case 9314998034
67 Fan Motor Assy 9602784004
64 68 Motor Step (Red) 9900384029
69 Motor Step (Green) 9900384036

65
70 Motor Step (Blue) 9900139063
--- Display Assy 9707209075

(PCB+Display Case)
71 Indicator PCB 9707210057
67
66
68
71
70
69
61
2021.07.09 97
9
12 9
DECORATION PANEL
UTG-UFYD-W 12
9
11
10
3
2
5 Ref. Description Part number

8 7
1 Decoration Panel 9375525040
without Insulations
2 Display Panel 9375529123
3 Receiver Window 9375547011
4
5 Intake Grille 9375531034
6 Long Life Filter 9375533014
7 Hook Bracket 9375546014
8 Grille Hook 9375532024
9 Panel Cover 9375530013
without Insulations
10 Indicator PCB Assy 9707371031
11 Connector Cover 9375549015
12 Flap Total Assy 9377760029
2021.05.18 98
DECORATION PANEL
UTG-UFYD-W
Flap total assy
Motor holder assy
21
23 22
(connector : white)
24
(connector : red)
21 Gear A 9375536015
22 Motor Holder 9375535018
23 Step Motor 9900139070
(white connector)
24 Step Motor 9900139087
(red connector)
2010.10.12 99
INDOOR UNIT
3
COMPACT CASSETTE
1
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
AUYG12LVLB
AUYG14LVLB
AUYG18LVLB
8 2
4
7
9
1 Top Plate Assy 9375490027
2 Cabinet A Assy 9375492014
3 Cabinet B 9375494018
4 Hook R 9375504014
5 Hook L 9375505011
6 Insulation Box Assy 9377764065
7 Wire Cover 9375516017
8 Pipe Cover 9375515010
12 9 Bell Mouse 9375503017

11 10 Wire Holder 9375478018
10
11 Drain Pan Sub Assy 9377765024
12 Drain Cap 9375502010

2013.06.20 100
21
INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
22
AUYG18LVLA
22 AUYG12LVLB
AUYG14LVLB
AUYG18LVLB
25 24
30
28
27
26
29
23
21 Evaporator Sub Assy (07) 9375720148
21 Evaporator Sub Assy (09, 12) 9375720100
21 Evaporator Sub Assy (14, 18) 9375720094
22 Evaporator Holder 9375508012
23 2 Stage Turbo Fan Assy 9375480011
24 Fan Motor 9602436019
25 Fan Motor Holder 9375552015
26 Pump Assy 9900472030
27 Drain Pump Holder B 9375518011
28 Float Switch 9900361037
29 Drain Port Sub Assy 9375718015
30 Rubber (Pump) 9378426016
2021.06.28 101
INDOOR UNIT 31
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
AUYG12LVLB
AUYG14LVLB
AUYG18LVLB
Control unit
32
36
34
33
35
31 Control Box Cover 9375512019 34 Power Supply PCB 9707398250

(12, 14, 18LVLA)
32 Control Box A 9375511012
34 Power Supply PCB 9707398380
33 Main PCB (07) 9707393736 (07, 09LVLA, 12, 14, 18LVLB)
33 Main PCB (09) 9707393743 35 Terminal 9306489045
33 Main PCB (12LVLA) 9707393750 36 Terminal 9703345012
33 Main PCB (14LVLA) 9707393767 -- Pipe Thermistor 9703297014
33 Main PCB (18LVLA) 9707393774 -- Room Thermistor 9900502003
33 Main PCB (12LVLB) 9709245422 -- Remote Control 9379219006
33 Main PCB (14LVLB) 9709245439 -- Remote Control Holder 9305642045
33 Main PCB (18LVLB) 9709245446
2013.06.20 102
INDOOR UNIT
8
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
6
2
2 5 4
2 Rope Assy 9316458017
3 Panel (Front) L 9316187016
4 Panel (Front) R 9316186019
5 Air Filter 9316189010
7 Panel (Front) 9316185012
-- Remote Control 9379219006
-- Remote Control Holder 9305642045
2010.10.13 103
INDOOR UNIT
FLOOR
AGYG09LVCA 27
AGYG12LVCA
AGYG14LVCA
26
23
24
25
13
14
22
12
15
21
20
29 16
19
17
11 18
30
28
25
11 Control Cover 9316201019 20 Display PCB Assy 9707571042
12 Main PCB (09) 9708532073 21 Display Cover 9316191013
12 Main PCB (12) 9708532080 22 Thermistor Holder 9316192010
12 Main PCB (14) 9708532097 23 Room Thermistor 9700801108
13 Control Box 9316200012 24 Motor Holder 9316195011
14 Terminal 9900385026 25 Bearing C Assy 9306628017
15 Bracket (Terminal) 9316269019 26 Crossflow Fan Assy 9312004034
16 Cover (Terminal) 9316307018 27 Fan Motor, MFD-34TXN 9602850006
17 Bracket (Pipe) 9316270015 28 Crossflow Fan B Assy 9316309012
18 Pipe Thermistor 9900425012 29 Fan Motor, MFD-14SXN 9602851003
19 Display Case 9316194014 30 Base 9316193017
2013.06.20 104
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
32 AGYG14LVCA
31
33
31 Evaporator Total Assy (09, 12) 9316091016
32 Evaporator Holder 9316199019
33 Water Seal 9316271012
2013.06.20 105
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
Casing assy
41 Top Cover 9316207011 41

42 R and L Louver U 9316208018
43 Fan Guard 9316211018
44 Casing 9316204010
45 Gear Case 9316213012
46 Gear A 9309994003
47 Motor Step (up / down) 9900384043
48 Louver U 9316205017
49 Louver Z 9316206014
50 REF (Casing) 9316378018
42
46
45
47
43
44
50
48
49
2010.10.13 106
52
54
51
55
53
56
58
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
Casing aast 59 57
60
61

62
51 Motor Step (Damper) 9900384050
52 Switch Micro (Limit switch) 9900424015
53 Motor Step (Damper Lock Left) 9900384067
54 Drain Cap 9316177017
55 Drain Pan U 9316214019
56 Drain Hose Assy 9314147029
57 Motor Step (Damper Lock Right) 9900384074
58 Damper 9316216013
59 R and L Louver Z 9316334014
60 Drain Pan Z 9316215016
61 Stopper 9316219014
62 Cover (Lower) 9316374010
-- Fan Guard Z 9316918009
2010.10.13 107
9
1
15
10
2
6
16
4
7
5
3
14
13
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA 12
ARYG12LLTA
ARYG14LLTA
ARYG12LLTB
ARYG14LLTB
(Serial number : T)
Refer to the service
bulletin RAC-0059
11

1 Side Panel R Sub Assy 9379906005 11 Main Panel Sub Assy 9379902007
2 Side Panel L Sub Assy 9379907002 12 Cabinet Panel (2 Fan) 9379596008
3 Pipe Panel Sub Assy 9379900003 13 Drain Cap 9358746004
4 Panel (Window) Sub Assy 9379915007 14 Drain Pan Sub Assy 9379901000
5 Outlet Frame Sub Assy 9379909006 15 Evaporater Total Assy (07) 9364499666
6 Front Panel (2 Fan) 9379593007 15 Evaporater Total Assy (09, 12) 9364499581
7 Valve Cover Sub Assy 9379576000 15 Evaporater Total Assy (14) 9364499673
8 Cover Pipe Sub Assy 9380033004 16 Pipe Thermistor 9900623005
9 Fan Guard (2 Fan) 9379637008 -- Hose Sub Assy 9378450103
10 Air Filter 9379574006
2013.06.20 108
29
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
21
ARYG12LLTB
ARYG14LLTB 32
(Serial number : T)
28 35
33
34
23
28
26 24 30
27
23
25
26
22
27 31
21 Top Panel Sub Assy 9379908009 29 Hook Metal 9379889001

22 Separator Sub Assy 9379898003 30 Fan Motor Assy (07) 9603139018
23 Sirroco Fan Assy 9379570015 30 Fan Motor Assy (09, 12, 14) 9603283018
24 Motor Band Assy 9379613002 31 Room Thermistor 9703299247
25 Motor Band 9379614009 32 Drain Pump Sub Assy 9379914000
26 Rubber (Vibration Proof) 9379644006 33 Pump Assy 9900472047
27 Casing B 9379572002 34 Float Switch 9900465032
28 Casing U 9379571005 35 Drain Hose Assy 9379913003
2013.06.20 109
9
1
10
8
6
2
15
4
16
5
7
3
14
13
INDOOR UNIT
SLIM DUCT
ARYG18LLTA
ARYG18LLTB 12
(Serial number : T)
11
1 Side Panel R Sub Assy 9379906005 10 Air Filter 9379575003

2 Side Panel L Sub Assy 9379907002 11 Main Panel Sub Assy 9379902014
3 Pipe Panel Sub Assy 9379900003 12 Cabinet Panel (3 Fan) 9379597005
4 Panel (Window) Sub Assy 9379915007 13 Drain Cap 9358746004
5 Outlet Frame Sub Assy 9379909013 14 Drain Pan Sub Assy 9379901017
6 Front Panel (3 Fan) 9379594004 15 Evaporator Total Assy 9364499604
7 Valve Cover Sub Assy 9379576000 16 Pipe Thermistor 9900623005
8 Cover Pipe Sub Assy 9380033004 -- Hose Sub Assy 9378450103
9 Fan Guard (3 Fan) 9379638005
2013.06.20 110
INDOOR UNIT
SLIM DUCT
ARYG18LLTA
ARYG18LLTB
33
(Serial number : T)
21
32
36
25
39
38
37
24 26 30 27 34 28
32
31
23
29 30
22
31
35
21 Top Panel Sub Assy 9379908016 31 Casing B 9379572002

22 Separator Sub Assy 9379898010 32 Casing U 9379571005
23 Sirroco Fan Assy 9379570022 33 Hook Metal 9379889001
24 Sirroco Fan Assy 9379570039 34 Fan Motor Assy 9603284015
25 Bracket (Bearing Sub Assy) 9379627009 35 Thermistor (Room) 9703299247
26 Shaft 9380398004 36 Drain Pump Sub Assy 9379914000
27 Joint Assy 9378038011 37 Pump Assy 9900472047
28 Motor Band Assy 9379613002 38 Float Switch 9900465032
29 Motor Band 9379614009 39 Drain Hose Assy 9379913003
30 Rubber (Vibration Proof) 9379644006
2013.06.20 111
INDOOR UNIT
SLIM DUCT 41 Control Cover Sub Assy 9379806039
ARYG07LLTA
ARYG09LLTA 42 Control Box Assy 9380041023
ARYG12LLTA 43 PCB Holder 9379402002
ARYG14LLTA
ARYG18LLTA 44 Power Supply PCB 9707398267
ARYG12LLTB 45 Main PCB (07) 9707393781
ARYG14LLTB
ARYG18LLTB 45 Main PCB (09) 9707393798
(Serial number : T)
45 Main PCB (12LLTA) 9707393804
45 Main PCB (14LLTA) 9707393811
45 Main PCB (18LLTA) 9707393828
45 Main PCB (12LLTB) 9707393897
45 Main PCB (14LLTB) 9707393903

43
45 Main PCB (18LLTB) 9707393910
46 Reactor Assy 9707457018

44 47 Terminal 3P 9306489045
48 Terminal 3P (Wired Remote) 9703345012
49 Terminal Bracket 9380132011
-- Wired Remote Control 9318593013
48
41
49
42 46
47
45
2013.01.25 112
10
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTB
ARYG14LLTB
(Serial number : R)
Refer to the service
bulletin RAC-0059
11
12
1 5
13
6
7
1 Side Panel R Sub Assy 9379906012 9 Air Filter 9379574006

2 Side Panel L Sub Assy 9379907019 10 Main Panel (2 Fan) 9380602002
3 Pipe Panel Sub Assy 9379900003 11 Cabinet Panel (2 Fan) 9380597001
4 Panel (Window) Sub Assy 9379915007 12 Drain Pan Sub Assy 9379901048
5 Outlet Frame Assy 9380042006 13 Evaporater Sub Assy (07) 9364499802
6 Front Panel (2 Fan) 9380594000 13 Evaporater Sub Assy (09, 12) 9364499819
7 Valve Cover Sub Assy 9379576017 13 Evaporater Sub Assy (14) 9364499826
8 Fan Guard (2 Fan) 9380589006
2021.06.28 113
24
22
28
29
27
26
23
INDOOR UNIT
30
SLIM DUCT
ARYG07LLTA
ARYG09LLTA 25
ARYG12LLTB
ARYG14LLTB 21
(Serial number : R)
21 Top Panel Sub Assy 9379908030 26 Fan Motor (09, 12, 14) 9603283018
22 Sirroco Fan Assy 9379570015 27 Pump Assy 9900472054
23 Rubber (Vibration Proof) 9379644006 28 Float Switch Sub Assy 9378593022
24 Casing B 9379572019 29 Drain Hose Assy 9379913003
25 Casing U 9379571012 30 Hose Sub Assy 9378450097
26 Fan Motor Assy (07) 9603139018
2014.12.26 114
10
11
INDOOR UNIT
SLIM DUCT
ARYG18LLTB
(Serial number : R)
12
1 5
13
6
7
8
4
9
1 Side Panel R Sub Assy 9379906012 8 Fan Guard (3 Fan) 9380590002
2 Side Panel L Sub Assy 9379907019 9 Air Filter 9379575003
3 Pipe Panel Sub Assy 9379900003 10 Main Panel (3 Fan) 9380603009
4 Panel (Window) Sub Assy 9379915007 11 Cabinet Panel (3 Fan) 9380598008
5 Outlet Frame Assy 9380042013 12 Drain Pan Sub Assy 9379901055
6 Front Panel (3 Fan) 9380595007 13 Evaporator Sub Assy 9364499833
7 Valve Cover Sub Assy 9379576017
2021.06.28 115
27
22
31
32
23
24
23 30
25
29
26 33
INDOOR UNIT
SLIM DUCT
ARYG18LLTB
(Serial number : R)
28
21
21 Top Panel Sub Assy 9379908047 28 Casing U 9379571012
22 Sirroco Fan Assy 9379570022 29 Fan Motor Assy 9603284015
23 Sirroco Fan Assy 9379570039 30 Pump Assy 9900472054
24 Shaft 9380398004 31 Float Switch Sub Assy 9378593022
25 Joint Assy 9378038011 32 Drain Hose Assy 9379913003
26 Rubber (Vibration Proof) 9379644006 33 Hose Sub Assy 9378450097
27 Casing B 9379572019
2014.12.26 116
INDOOR UNIT
SLIM DUCT 45
ARYG07LLTA
ARYG09LLTA
ARYG12LLTB
ARYG14LLTB
ARYG18LLTB
(Serial number : R)
42
44
43
41
42 Main PCB (07) 9709245279
42 Main PCB (09) 9709245286
42 Main PCB (12) 9709245293
42 Main PCB (14) 9709245309
42 Main PCB (18) 9709245316
43 Reactor Assy 9707457018
44 Terminal 3P 9306489045
46 Wired Remote Control 9318593013
-- Room Thermistor 9900653019
-- Pipe Thermistor 9900498108 46
2013.06.20 117
INDOOR UNIT
FLOOR CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB
8
5
7
1 Remote 9379219037
2 Remote Holder 9305642045
3 Top Cover 9358534021 2
4 Arm 9358565001
5 Hanger Bracket L 9358596005
6 Hanger Bracket R 9358595008
1
7 Cosmetic Panel R 9358535028
8 Cosmetic Panel L 9358536025
2010.10.13 118
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Insulation C ABYG18LVTB
14 Panel assy
13
Insulation F
Insulation D
PCB holder
15
Insulation E
11
11 Panel 9358531259
12 Side Cover R Assy 9359069102
13 Indicator PCB Assy 9705798090
14 Insulation (Panel) A 9358574003
15 Insulation (Panel) B 9358914007 12

-- Panel Assy (with side cover R) 9359076322
2010.10.13 119
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB
Grille
24
22
25
24
23
21
21
21 Air Filter 9358567029
22 Grill F 9358532027
23 Arm Bracket 9359281009
24 Grille Support 9358602003
25 Filter Bracket 9358607008
2010.10.13 120
33
INDOOR UNIT
37 FLOOR / CEILING
ABYG14LVTA
33 ABYG18LVTA
38 ABYG18LVTB
Kit (Flap base)
37
39
32
36
35
34
31 Kit (Flap Base) 9372670040

32 Flap Base 9358537022
33 Protect Cover 9358564011
31
34 Support Stay 9358599006
35 Louver 9358561027
36 Bushing B 9358554005
37 Louver Stopper 9358555002
38 Louver Rod 9358559017
39 Motor Rod 9358560013
2010.10.13 121
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB
Flap base sub assy
41
43 48
41 47 45
42
46
50
44
52
53
51
Ref. Description Part number 49
41 Bushing 9357942001
42 Bushing C 9358553008
43 Flap (Upper) F 9358538029
44 Kit (Flap Lower) 9372671023
45 Step Motor H 9900297015
46 Louver Link 9358556009
47 Louver Shaft 9358557006
48 Louver Link Cover 9358558010
49 Step Motor-V 9900362010
50 Motor Base 9358562017
51 Motor Rod-A (Step V) 9358550007
52 Flap Link-Upper (Step V) 9358551004
53 Flap Link-Lower (Step V) 9358552001
2009.02.06 122
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB
Base assy
62
62
61 62
63
62
61 Base Assy 9359061014
62 Cap 9358563007
63 Base Bracket 9358586006
2010.10.13 123
72
78 73
74
75
76
77
79
77
71
71 Kit (Separate Wall A) 9372666012

72 Kit (Separate Wall B) 9373448013
INDOOR UNIT
73 Kit (Drain Pan Assy) 9372669013
FLOOR / CEILING
74 Drain Cap 9358746004 ABYG14LVTA
75 Drain Hose Assy 9377785060 ABYG18LVTA
ABYG18LVTB
76 Kit (Insulation Flap Base) 9372672013
Drain pan assy
77 Kit (Dew Proof Plate) 9372673010 Evaporator
78 Catch 9359096009
79 Pipe Thermistor 9900022020
2010.10.13 124
INDOOR UNIT 84
FLOOR / CEILING
ABYG14LVTA
81 82
Evaporator
83
ABYG18LVTA
ABYG18LVTB
82
81
83
84
Part number
Ref. Description
ABYG14LVTA ABYG18LVTA/B
81 Evaporator Assy 9362513029 9362513043
82 Bypass Pipe Assy 9373032014 9377819017
83 Distributor Assy 9380354017 9380354000
84 Coupling Pipe Assy 9380355014 9380355007
2013.06.20 125
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA 93
ABYG18LVTB
Fan motor
97
98
93
98
91
94
95 95
91
92

96
91 Sirocco Fan Assy 9385258006
92 Casing 9358543009
93 Casing Cover 9358544006
95 Rubber 9385102002
92
96 Motor Fixing Table 9358591000
97 Protector 9359282006
98 Motor Fixture 9358594001
2013.06.20 126
102
103
INDOOR UNIT 104

FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
ABYG18LVTB 106
Control unit
105
101 Control Box 9358600054
102 Control Box Cover Assy 9359097006

101
103 Main PCB (14) 9709245354
103 Main PCB (18LVTA) 9707393859
103 Main PCB (18LVTB) 9709245361
105 Terminal 3P 9306489045
106 Terminal 3P 9703345012
-- Room Thermistor Assy 9703299087
2013.06.20 127
INDOOR UNIT
MINI DUCT
ARYG07LSLAP
ARYG09LSLAP
ARYG12LSLAP 1 Remote Control 9381009039
ARYG14LSLAP
ARYG18LSLAP
2017.03.13 128
INDOOR UNIT
MINI DUCT
13 ARYG07LSLAP
ARYG09LSLAP
ARYG12LSLAP
15 ARYG14LSLAP
ARYG18LSLAP
12 Main PCB (ARYG07LSLAP) 9710624001

14
11 13 2 way Remote PCB 9710019005
14 Terminal 3P 9900568009
-- Room Thermistor 9900653033
-- Pipe Thermistor 9900942021
2017.03.13 129
INDOOR UNIT
MINI DUCT
ARYG07LSLAP
ARYG09LSLAP
ARYG12LSLAP
ARYG14LSLAP
23
24
22
21 Drain Pan Sub Assy 9381930111
22 Evaporater Total Assy (07,09,12) 9381933105

21 25
22 Evaporater Total Assy (14) 9381933112
23 Pump Assy 9900472061

Main Panel (2 Fan)
25 Hose Sub Assy 9378450097
2017.03.13 130
36 37
38
39
34
32 35
31 Sirroco Fan Assy 9379570015
32 Rubber (Vibration Proof) 9381673001
33 Casing B 9381676002
INDOOR UNIT 34 Casing U 9381677016

31
MINI DUCT
ARYG07LSLAP 35 Fan Motor Assy 9603551018
ARYG09LSLAP
33 ARYG12LSLAP 36 Air Filter 9379574006
ARYG14LSLAP
37 Motor Bracket Assy 9381675005
38 Motor Band L 9381669004
39 Motor Band R 9381670000
2017.06.20 131
INDOOR UNIT
MINI DUCT
ARYG18LSLAP
23
24
22
25 21 Drain Pan Sub Assy 9381930104
22 Evaporator Total Assy 9381933129

21
23 Pump Assy 9900472061
Main Panel (3 Fan)

25 Hose Sub Assy 9378450097
2017.03.13 132
37
INDOOR UNIT
MINI DUCT
ARYG18LSLAP
39
38 34
31 Sirroco Fan Assy 9379570022
32
35 32 Sirroco Fan Assy 9379570039
32
33 Shaft Assy 9381052004
36 34 Joint Assy 9378038011
33 35 Rubber (Vibration Proof) 9381673001
36 Casing B 9381676002
37 Casing U 9381677016
Cabinet Panel (3 Fan) 39 Air Filter 9379575003
2017.03.01 133
INDOOR UNIT
MINI DUCT
ARYG18LSLAP
44
45

Bearing holder
41 41 Motor Bracket Assy 9381675005
42 Motor Band L 9381669004
43 Motor Band R 9381670000
44 Bearing Bracket 9379615006

43
45 Bearing B Assy 9357921006
42
2017.06.22 134
ACCESSORIES
OUTDOOR UNIT
Name and Shape Q'ty Use
Drain pipe For drain piping work
Drain cap
2
Adapter assy For use when connecting

12.7 mm 9.52 mm models 7-12 to outdoor port A
1
(1/2 in.) (3/8 in.)
Putty For sealing

1
2011.06.28 135
INDOOR UNIT
COMPACT WALL MOUNTED COMPACT WALL MOUNTED WALL MOUNTED
ASYG07, 09, 12LJCA ASYG07, 09, 12, 14LUCA ASYG18, 24LFCA, 24LFCC
Name and Shape Q’ty Name and Shape Q’ty Name and Shape Q’ty
Wall hook bracket Wall hook bracket Wall hook bracket
1
1 1
Remote control
1
Remote control Remote
control
1 1
Battery
1
Battery Battery
Remote control
2 holder
2 1
Remote control Remote control

holder holder Drain hose insulation
1 1 1
Cloth tape
Cloth tape Cloth tape

1
1 1
Tapping screw (big)
Tapping screw Tapping screw 8

(big) (big)
8 8
Tapping screw
(small)
2
Tapping screw Tapping screw

(small) (small)
Air cleaning filter
2 2
2
Air cleaning filter Air cleaning filter Air cleaning filter frame
2 2 2
2013.01.28 136
INDOOR UNIT
ASYG07, 09, 12, 14LMCA LMCE OPTIONAL PARTS
Name and Shape Part number Name and Shape Part number Name and Shape
Bracket Panel Cloth tape 9310519004 Wired remote control

UTY-RVNYM
Wired remote control

9332882018 UTY-RNNYM
Tapping screw 0700076046
(M4 x 25 mm)
Simple remote Control

Remote Control 9319208008 UTY-RSNYM
Tapping screw 0700019036

(M3 x 12 mm)
External connect kit
UTY-XWZXZ5
Remote Control Holder 9318912005

Communication kit
Air cleaning filter assy 9317250009 UTY-XCBXZ2
Battery (penlight) 0600185541 Filter holder 9332911008
2017.05.26 137
Wall mounted type
Models: ASYG07-14KMCC
Part name Exterior Q’ty Part name Exterior Q’ty
Operating manual 1 Cloth tape 1
Operating manual
1 Tapping screw (large) 5
(CD-ROM)
Installation manual 1 Tapping screw (small) 2
Remote controller 1 Wall hook bracket 1
Battery 2 Filter holder 2
Remote controller
1 Air cleaning filters 1
holder
2020.09.03 138
INDOOR UNIT
COMPACT CASSETTE
AUYG07, 09, 12, 14, 18LVLA DECORATION PANEL
AUYG12, 14, 18LVLB UTG-UFYD-W
Name and Shape Q’ty Application Name and Shape Q’ty Application
Coupler heat For indoor side pipe
Connector cover For covering connector
insulation 1 joint (Gas pipe)
(Large) 1
Coupler heat For indoor side pipe

insulation 1 joint (Liquid pipe) Tapping Screw For mounting decora-
(Small) tion panel
(M5 × 12 mm)
4
Special nut A (Largeßange)
For installing indoor unit
4
Tapping Screw For mounting connec-
(M4 × 12 mm) 1 tor cover
Special nut B (Small ßange)
For installing indoor unit
4 L angle For mounting the Hook
Wire to the Decoration
2
Template panel
For cealing openings cutting
(Carton top)
Also used as packing
1
Hook wire For suspending the
2 Decoration panel
Drain hose
For installing drain pipe Screw [pitch small] For mounting the Hook
1 (M4 × 10 mm) Wire (for metals)
2
Hose Band
For installing drain hose
1
Screw [pitch large] For mounting the
(M4 × 10 mm) L angle and Hook wire
4
Drain hose insulation (for resins)
1 For installing drain pipe
Remote controller
For air conditioner operation
1
Battery
For remote controller unit
2
Remote controller holder

For installing the remote
1 controller
Tapping screw
(M3 × 12mm) 2 For mounting the remote
controller holder
Binder
For electrical wiring
2
Wire clamper
1 For electrical wiring
2013.01.28 139
INDOOR UNIT Name and Shape Q’ty
FLOOR
Wall hook bracket
AGYG09LVCA
AGYG12LVCA 1
AGYG14LVCA
Remote control
Battery
Remote control
holder
Cloth tape
Tapping screw
(M4 x 25 mm)
Tapping screw
(M3 x 12 mm)
2
Air cleaning filter
2011.01.07 140
INDOOR UNIT Name and Shape Q’ty Application
SLIM DUCT Installation For positioning the
ARYG07LLTA template indoor unit
ARYG09LLTA 1
ARYG12LLTA
ARYG14LLTA
ARYG18LLTA Washer For installing indoor unit
ARYG12LLTB
ARYG14LLTB 8
ARYG18LLTB
Coupler For indoor side pipe joint
heat insulation (Large pipe)
(Large) 1
Coupler For indoor side pipe joint

heat insulation (Small pipe)
(Small) 1
Binder Medium For power supply and

remote control cable
3 binding.
Large For fixing the coupler
4 heat insulation.
Filter (Small) (ARYG07LLTA
ARYG09LLTA
2 ARYG12LLTA, B
ARYG14LLTA, B)
Filter (Big) (ARYG18LLTA

ARYG18LLTB)
2
Drain hose For installing drain pipe

1 3/4 in. (O.D. 1-1/16 in.)
Hose band For installing drain hose
Drain hose insulation B Insulates the drain hose

1
Wired remote
control 1
Remote control For connecting the

cable remote control
1
Tapping screw For installing the remote

(M4 × 16 mm) 2 control
2013.01.28 141
INDOOR UNIT Name and Shape Q’ty Name and Shape Q’ty
FLOOR / CEILING Screw (M4 × 10mm) Installation template
ABYG14LVTA
ABYG18LVTA 2 1
ABYG18LVTB
Positioning for
under ceiling type
Bracket (left) Bracket (right)
1 1
For suspending For suspending
the indoor unit from ceiling the indoor unit from ceiling
Cover plate (left) Cover plate (right)
1 1
Special nut Wall bracket
4 2
For suspending For suspending
the indoor unit from ceiling the indoor unit on the wall
Screw (M4 × 20mm) Coupler heat insulator

(Large)
6 1
For indoor
For fixing the wall bracket side pipe joint(Large pipe)
Coupler heat insulator Binder(Large)

(Small)
1 1
For indoor For fixing the drain hose
side pipe joint (Small pipe)
Binder(Small) Wire clamper
1
2
For electrical wiring For electrical wiring
Drain hose Hose Band
1 1
For installing
drain hose
Insulation (Drain hose ) VT wire
1 1
For fixing the drain hose
Adhesive type 100 x 220 mm L 280 mm
Remote control Battery
1 2
For air conditioner
operation For remote control
Remote control holder Screw (M3 × 12mm)
1 2
For remote control
holder installation
2013.06.20 142
Name and Shape Q’ty Description
Template (Carton top) For ceiling openings cutting Also

used as packing
INDOOR UNIT 1
MINI DUCT
ARYG__LSLAP Washer
For suspending the indoor
8
unit from ceiling
Coupler heat insulation (large)

For indoor side pipe joint
1
(gas pipe)
Coupler heat insulation (small)

For indoor side pipe joint
1
(liquid pipe)
Cable tie (large)

4 For fixing the heat insulation
Cable tie (medium)

2 For fixing the remote control cable
Filter (Small)
2
(AR07/09/
12/14)
Filter (Big)
2 (AR18)
Wired remote controller

(2-wire type)
1 For air conditioner operation
Remote controller accessories

See installation manual for
1 set
remote controller
Drain hose insulation B

Insulates the drain hose and
1 vinyl hose
Drain hose
For installing drain pipe
1
VP25 (O.D.32, I.D.25)
Hose Band
1 For installing drain hose
2017.03.13 143
1102G3892

ServiceManual AOYG24LAT3

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

ServiceManual AOYG24LAT3

Uploaded by

Copyright:

Available Formats

THREE ROOM MULTI

Outdoor unit Indoor unit

AOYG24LAT3 ASYG07, 09, 12LJCA

ELECTRICAL SPECIFICATIONS COMPRESSOR AND REFRIGERANT

COOLING CAPACITY 5.4 kW 6.8 kW DISCRIMINATION DA150A1F-20NA

FAN MOTOR FAN MOTOR

High 36 dB(A) 37 dB(A) 40 dB(A) High 35 dB(A) 36 dB(A) 37 dB(A) 41 dB(A)

Medium 32 dB(A) 33 dB(A) 36 dB(A) Medium 30 dB(A) 32 dB(A) 34 dB(A) 36 dB(A)

Medium 32 dB(A) 33 dB(A) 36 dB(A) Medium 30 dB(A) 32 dB(A) 34 dB(A) 36 dB(A)

Quiet 22 dB(A) 22 dB(A) 22 dB(A) Quiet 21 dB(A) 21 dB(A) 21 dB(A) 27 dB(A)

Power supply 1Ø 230 V ~50 Hz

FAN MOTOR FAN MOTOR

Quiet 22 dB(A) 22 dB(A) 22 dB(A) 27 dB(A) Quiet 25 dB(A)

FAN MOTOR (upper fan)

FAN MOTOR (lower fan)

High 1,380 r.p.m. 1,460 r.p.m.

Quiet 29 dB(A) 32 dB(A)

INDOOR UNIT 870 mm 185 mm

Drain hose length : 600 mm

for pipe inlet Ø65 for pipe inlet Ø65

540 : Hanging bolt position

100 x 6 = 600 100 x 8 = 800

ARYG12LLTB SLIM DUCT

100 x 6 = 600 100 x 8 = 800

4-way valve Strainer

Expansion Expansion Expansion

Pipe Pipe Pipe

Strainer Strainer Strainer

3-way 3-way 3-way

2-way 2-way 2-way

Room Room Room

Pipe Pipe Pipe

Heat Heat Heat

AUYG12LVLA AGYG14LVCA 9 WHITE

ARYG14LLTA 1 2 1 2 1 2 BLACK THERMISTOR

WIRED REMOTE CONTROL

1 Trans board Indicator PCB

Yellow White Black

Drain pump motor M 3 3 3 3 1 1

CT OUT UL1007 AWG24 4

B02B-XAEK-1-A R67 38.3k R66 C39 P-AN-TD R608 10k 1 COM1 4

CONTROL UNIT GREEN

R304 36k C311

WIRED REMOTE CONTROL UNIT

2 WHITE PANEL LIMIT SWITCH

MAIN PCB 6 BLUE

COMMUNICATION KIT ( OPTION )

UL1015 AWG22 GREEN W4 6 WHITE 6 K10DC-1000HSE-CA0

UL1061 AWG28 WHITE x 7

176.03 k 62.91 k 39.57 k

3 Vcc Control power voltage input White

CN6-1 RED 1 MAIN PCB

CN8-1 RED 1 CN16 1

AUYG14LVLB : EZ-0122KHSE CN2-1

W105 W102 W101

TERMINAL BLK WHT RED

CN103 (LVLA) B05B-XASK-1-A

I C26-14 K102 CN106

L 1 BLACK 7 CN11-7 WHITE 3

AGYG12LVCA : K09DD-1201HSE-C1 CN13

CN18 2 CN18-2 BLUE

R2 D8 3 8 RF201L2S 0R0 I C1-23 3

06 JB20 / JB20 09 PAP / JB20
