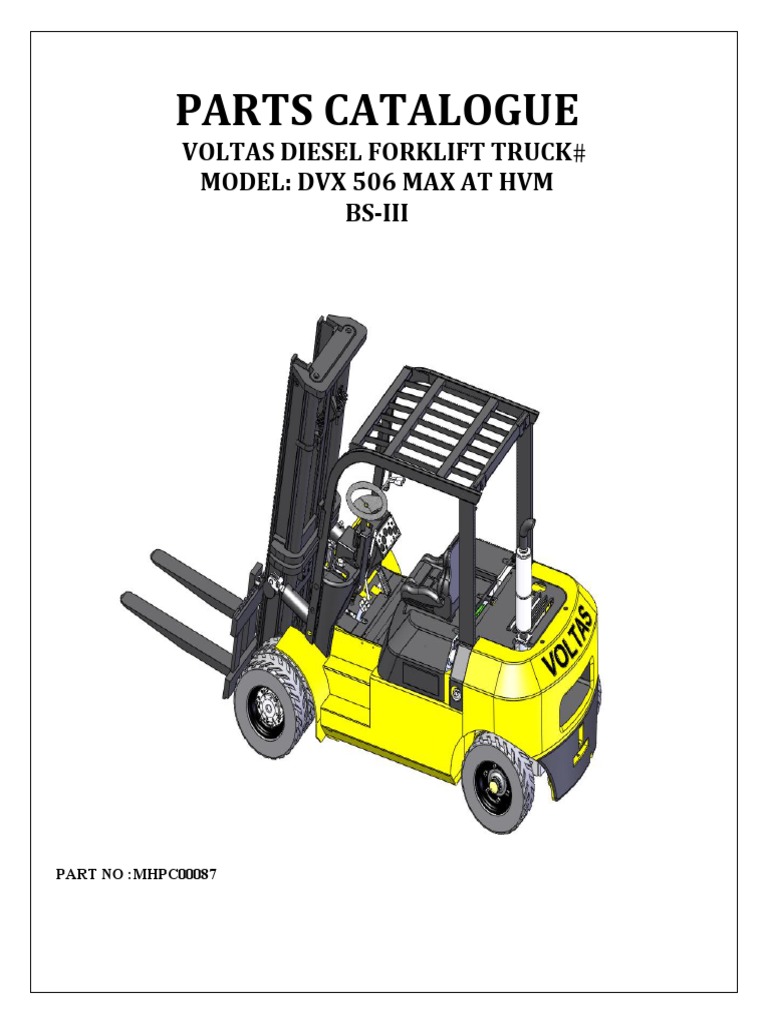

PARTS

CATALOGUE
VOLTAS DIESEL FORKLIFT TRUCK
MODEL: DVX 506 MAX AT HVM
BS‐III

PART NO :MHPC00087
DVX506MAX AT (HVM) 2 July-2013
 MATERIAL HANDLING
Voltas Material Handling Pvt. Ltd.
5 / 4 Chandan Nagar, Pune - Nagar Road, Pune 411 014, Maharashtra, INDIA,

CATALOGUE FEEDBACK FORM

(Please send to us your feedback, to serve you better)

COMPANY NAME:

CONTACT PERSON:

ADDRESS:

CITY: STATE:

STD CODE/TELEPHONE NOS.:

FAX: E-MAIL:

SITE ADDRESS:

FORKLIFT Purchase Details:

DATE OF PURCHASE:

VOLTAS BRANCH:

FORKLIFT MODEL: TRUCK NO.:

GOOD OK BAD
How is the print quality of the catalogue
How is the content of the catalogue

The Catalogue is easy to use YES NO

Is this catalogue in anyway better than previous/other catalogue YES NO

Searching for information in the catalogue is easy YES NO

You would like us to add more information to this catalogue YES NO

If YES, please mention

Please tell us how we can improve this Catalogue

KNDLY MAIL /FAX THIS FORM TO

ALL INDIA SERVICE DEPARTMENT
VOLTAS MATERIALS HANDLING PRIVATE LIMITED
5/4 Chandan Nagar, Pune-Nagar Road,
Pune 411 014, Maharashtra, INDIA
Tel.: 91 20 67342202
Fax : 91 20 67342102
F:KT:MH:308:002:00
 MATERIAL HANDLING
Voltas Material Handling Pvt. Ltd.
5 / 4 Chandan Nagar, Pune - Nagar Road, Pune 411 014, Maharashtra, INDIA,

CUSTOMER FEEDBACK ON DELIVERY & COMMISSIONING

Name of Organization:
Address:
City: Pin:
Name: Designation:
Tel.: Fax: e-mail:
Forklift Model: SL No.: Date Received:
Date Commissioned:

1. Is it the first time you have Purchased Forklift ? (Please Tick) Yes No
If your answer is No to the first question kindly furnish following data

Number of Forklifts Presently Owned by you Diesel Powered Battery LPG

Makes 0-2Yrs 2-5Yrs 5-10Yrs Above 10 yrs Total Upto 3T 4-6T Above 6T Powered Powered

Voltas

2. Kindly rate us on the following points against supply of this Forklift truck (Please Tick appropriate Boxes)
V. Poor Poor Satisfactory Good Excellent
1 Response from Voltas during Enquiry & Order Execution
2 Communication during order execution
3 Your first impression on arrival of Forklift
4 Condition of the Equipment at the time of Arrival
5 Timely arrival of Service Person & commissioning
6 Training of operators & maintenance personnel
7 Equipment meeting your specified requirements
8 Clarity in Manuals
9 Honouring Delivery Commitment
10 Honouring of other contractual obligations until now
If yes please furnish details
3. Damages During Transit ? Yes No
4. Short Receipts ? Yes No
 MATERIAL HANDLING

Kindly let us know your expectations on the following

Any other product or service/training requirements?
1. Service Response ?
2. Parts Delivery ?
3. Frequency of visits ?

1.SUGGESTIONS
What are the most important things in your opinion Voltas should improve / implement immediately ?

Signature

Thank you very much for sparing your valuable time

 INDEX

SR NO DESCRIPTION PAGE NO

1 GENERAL TRUCK 4-9

2 FRAME ASSEMBLY 10-11
3 DRIVE AXLE ASSEMBLY 12-13
4 PINION MOUNTING ASSEMBLY 14-17
5 AXLE ASSEMBLY 18-19
6 POWER UNIT ASSEMBLY 20-21
8 ACCELERATOR PEDAL ASSEMBLY 22-23
9 EXHAUST ASSEMBLY 24-25
10 CANOPY ASSEMBLY 26-27
11 COUNTER WEIGHT ASSEMBLY 28-29
12 COWL ASSEMBLY 30-31
13 STEER AXLE ASSEMBLY 32-33
14 BRAKE & ACCELERATOR ASSEMBLY 34-35
15 AIR CLEANER ASSEMBLY 36-37
16 FUEL SYSTEM 38-39
17 HYDRAULIC CIRCUIT 40-43
18 HVM MAST ASSEMBLY 44-47
19 ELECTRICAL CIRCUIT 48-51

DVX506MAX AT (HVM) 3 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)

DVX506MAX AT (HVM) 4 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)
ITEM NO. PART NO DESCRIPTION QTY
1 MH798701682 FRAME ASSEMBLY 1
2 MH798707141 POWER UNIT ASSEMBLY 1
3 MH798702231 DRIVE AXLE ASSEMBLY 1
4 MH798724013 RADIATOR 1
5 MH798703161 STEER AXLE ASSEMBLY 1
6 MH798728011 CANOPY WELDMENT 1
MH798712038 FRONT WHEEL ASSEMBLY 2
MH798712048 REAR WHEEL ASSEMBLY 2
7 MH798722011 COWL ASSEMBLY 1
8 MH798709011 EXHAUST ASSEMBLY 1
9 MH798713011 COUNTERWEIGHT ASSEMBLY 1
10 MH798726011 ENGINE HOOD 1
11 MH798725053 COVER - L.H 1
12 MH798725043 COVER - RH. 1
13 MH798725011 DASHBOARD - COWL 1
14 MH798706011 BRAKE & ACCELERATOR SYSTEM 1
15 MH798723011 FLOOR PLATE 1
16 MH797903013 BUSHING FOR TRAIL AXLE 2
17 MH992175297 HHCS M8 X 30 LONG 10
18 MH992785624 WASHER M8 34
19 MH992791525 SPRING WASHER-M8 19
20 MH992761211 M6 NUT 17
21 MH992275381 HEX SCREW M10 x 40 8
22 MH992761014 LOCK NUT M10 9
23 MH992785634 WASHER M 10 11
24 MH992791535 SPRING WASHER - M10 8
25 MH992276504 HEX SCREW M16 x 55 2
26 MH992761117 HEX NUT M16 2
27 MH992785664 WASHER M16 4
28 MH992791565 SPRING WASHER 2
29 MH992276416 HEX. SCREW M12 x 25 - P-10.9 4
30 MH992761015 NUT M12 - B4 4
31 MH992785644 WASHER 8
32 M992791545 SPRING WASHER -M12 6
33 MH798711024 PIN- TILT CYLINDER FRAME END 2

DVX506MAX AT (HVM) 5 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)

DVX506MAX AT (HVM) 6 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)
ITEM NO. PART NO DESCRIPTION QTY
34 MH992276216 HEX. SCREW M6 X 25 2
35 MH992791515 SPRING WASHER- M6 30
36 MH798711011 TILT CYLINDER ASSEMBLY-LH 1
37 MH798711031 TILT CYLINDER ASSEMBLY - R.H 1
38 M504168100 PIN RETAINER 2
39 MH509816101 TILT CYL. PIN 2
40 MH55486700 HEX BOLT 3/8" X 5/8" LONG 2
41 MH18923 MIRROR - L.H 1
42 MH992571131 SOCKET HD CAP SCREW M4 X 40 9
43 MH796418023 FRONT HEAD LIGHT 2
44 MH18003 TAIL LAMP ASSEMBLY 2
45 MH992271295 M8 HEX SCREW 27
46 MH798701853 BATTERY BASE 1
47 MH1652 BATTERY 12 V,135 AH 1
48 MH798725032 RADIATOR COVER 1
49 MH992275417 HEX SCREW M10 X 30 3
50 MH17775 RADIATOR RECOVERY TANK 1
51 MH992785604 WASHER M6 18
52 MH798726034 HOOD LOCKING MECHANISM 1
53 MH18069 KNOB 2
54 MH798726044 HOOD LOCK HOLDER 1
55 M798725022 STEERING COVER REAR 1
56 MH798725062 STEERING COVER FRONT 1
57 MH13174 REVOLVING LIGHT 1
58 MH992276299 HEX SCREW M8 x 35 4
59 MH992761413 NUT M8 4
60 MH796418053 FRONT SIGNAL LIGHT 2
61 MH798715043 CONTROL BOX MTG BKT 1
62 MH798715033 CONTROL BOX 1
63 MH798710234 PLUG FOR CANOPY 2
64 MH798706254 BRAKE PEDAL 2
65 MH798706273 ACCELERATOR PEDAL ASSLY 1
66 MH798726023 SEAT 1
67 MH992276296 HEX SCREW M8 x 25 5
68 MH992763013 NUT- M8 5
69 MH798725074 C.V FRP COVER 1
70 MH798726053 GAS SPRING MTG BKT 1
71 MH796412523 GAS SPRING 1
72 MH18922 MIRROR - R.H 1
73 MH992571126 SOCKET HD CAP SCREW M4 X 25 4
74 MH992761108 HEX NUT M4 4
75 MH785206300 PIN 1

DVX506MAX AT (HVM) 7 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)

DVX506MAX AT (HVM) 8 July-2013

 GENERAL TRUCK ASSEMBLY
(798700012)

ITEM NO. PART NO DESCRIPTION QTY

76 MH992826140 SPLIT PIN 1
77 MH798706423 BRAKE TUBE ASSEMBLY 1
78 MH11135 FORK - 60 x 150 x 1220 2
79 MH798701863 BATTERY STRAP 1
80 MH798719061 AIR CLEANER ASSEMBLY 1
81 MH798727031 HVM MAST ASSEMBLY 1
82 MH798703251 STEER AXLE DUAL TYRE ASSEMBLY 1
83 MH798712023 FRONT WHEEL RIM 2
84 MH41046 CARRIAGE ASSEMBLY 1

* ITEMS NOT SHOWN IN FIGURE

ITEM NO. PART NO DESCRIPTION QTY.
MH40314 RIM ASSEMBLY 2
MH785765901 TYRE - 7 x 12 4

DVX506MAX AT (HVM) 9 July-2013

 FRAME ASSEMBLY
(798701682)

DVX506MAX AT (HVM) 10 July-2013

 FRAME ASSEMBLY
(798701682)
ITEM NO. PART NO DESCRIPTION QTY
1 MH798701011 FRAME WELDMENT 1
2 MH798701383 HYD. TANK COVER ASSEMBLY. 1
3 MH798701373 FUEL TANK COVER ASSEMBLY 1
4 MH798701693 GASKET- HYD. TANK 1
5 MH798701703 GASKET -FUEL TANK 1
6 MH785382800 FILLING CAP- HYD. TANK 1
7 MH795306033 SUCTION STRAINER 1
8 MH785791700 DRAIN PLUG 2
9 MH992371186 M5 SCREW- 25 LG 6
10 MH992791515 SPRING WASHER- M6 28
11 MH992271214 HEX. HD. SCREW. M6X16 LG 28
12 MH40785 FUEL LEVEL SENSING UNIT 1
13 MHDE005881 FUEL PRIMMING UNIT (ENGINE SUPPLY) 1
14 MHDE005774 DUAL FUEL FILTER (ENGINE SUPPLY) 1
15 MH992175301 HEX SCREW M8 X 30 2
16 MH992785624 PLAIN WASHER M8 2
17 MH992761213 M8 NUT 2
18 MH992275377 BOLT 2
19 MH992785634 WASHER M 10 2
20 MH992763114 LOCK NUT M10 2

COMPONENTS NOT SHOWN IN HYDRAULIC TANK COVER ASSEMBLY - 798701383

ITEM
PART NO DESCRIPTION QTY.
NO.
1 MH798701393 DIPSTICK 1
2 MH798705023 RETURN LINE FILTER 1
3 MH992271377 HEX .SCREW M10X30 2
4 MH992791535 M10 SPRING WASHER 2
5 MH992785634 M10 WASHER 2

COMPONENTS NOT SHOWN IN FUEL TANK COVER ASSEMBLY - 798717013

ITEM
PART NO DESCRIPTION QTY.
NO.
1 MH795507093 FUEL SUCTION WELDMENT 1
2 MH870001084 FUEL TANK CAP ASSLY 1

DVX506MAX AT (HVM) 11 July-2013

 DRIVE AXLE ASSEMBLY
(798702231)

DVX506MAX AT (HVM) 12 July-2013

 DRIVE AXLE ASSEMBLY
(798702231)

ITEM NO. PART NO DESCRIPTION QTY.

1 MH798702161 AXLE ASSLY 1

2 MH798702121 PINION MOUNTING ASSEMBLY 1
3 MH992791545 SPRING WASHER FOR M12 10
4 MH992276419 HEX. SCREW M12 x 35 - P-10.9 10

DVX506MAX AT (HVM) 13 July-2013

 PINION MOUNTING ASSEMBLY
(798702121)

DVX506MAX AT (HVM) 14 July-2013

 PINION MOUNTING ASSEMBLY
(798702121)

ITEM NO PART NO DESCRIPTION QTY

1 MH798702111 PINION HOUSING 1
2 MH798702052* PINION 1
3 MH798702014 PINION MAIN BEARING 1
4 MH798702063 LOCKING FLANGE 1
5 MH798702024 YOKE END BEARING 1
6 MH798702133 YOKE END - 6C 1
7 MH798702034 PINION SEAL 1
8 MH11240* RING GEAR 1
9 MH15139400 DIFFERENTIAL BEARING 2
10 MH515412100 HEX. HD. SCREW 12
DIFFERENTIAL BEARING
11 MH15818800 2
RETAINER
12 MH500703300 PEDESTAL CAP 2
13 MH059117400 HEX HD. BOLT 4
14 MH798702104 AXLE LOCK NUT M32 1
15 MH992176382 BOLT M10 x 45 - P-10.9 6
16 MH798702164 YOKE END SEAL 1
17 MH798702224 WASHER FOR AXLE NUT 1
18 MH798702 094 PINION SPACER 1

* INDICATES BOTH ITEMS ARE ORDERED AS SET WITH PART NO : MH798702188

DVX506MAX AT (HVM) 15 July-2013

 DIFFERENTIAL, RING GEAR & PINION ASSEMBLY
(MH016873800)

DVX506MAX AT (HVM) 16 July-2013

 DIFFERENTIAL, RING GEAR & PINION ASSEMBLY
(MH016873800)

ITEM NO. PART NO. DESCRIPTION QTY.

1 MH870000943 BEVEL PINION 4

2 MH025607600 PINION THRUST WASHER 4
3 MH798702188 RING GEAR AND PINION ASSLY 1SET
4 MH033422600 HEX. HD. SCREW 12
5 MH870000962 DIFFERENTIAL CASE SHORT 1
MH870000971 DIFFERENTIAL CASE LONG 1
6 MH025607500 SIDE GEAR THRUST WASHER 2
7 MH870000933 DIFFERENTIAL SPIDER 1
8 MH016113600 SPACER 1
9 MH870000952 BEVEL GEAR 1

HARDWARE FOR CROWN WHEEL MOUNTING

ON DIFFERENTIAL CASE (not shown)

MH515412100 HEX. HD. SCREW 12

MH992785644 WASHER 12
MH032228900 BAIL WIRE 1

DVX506MAX AT (HVM) 17 July-2013

 AXLE ASSEMBLY
(798702161)

19
25
9

15 14

3
13 14
1

8
6

4
5
7

20
21
17

18

23
16
22

24
10 12

11

26 27

DVX506MAX AT (HVM) 18 July-2013

 AXLE ASSEMBLY
(798702161)
ITEM NO PART NO DESCRIPTION QTY
1 MH796602141F DRIVE AXLE HOUSING 1
2 MH40838 BRAKE ASSEMBLY RH 1
3 MH40837 BRAKE ASSEMBLY LH 1
4 MH40746 BRAKE DRUM 2
5 MH796602049 SPACER 2
6 MH796602019 SLEEVE 2
7 MH993361146 TAPER ROLLER BEARING 4
8 MH796602079 DRIVE SHAFT LONG 1
9 MH796602109 DRIVE SHAFT SHORT 1
10 MH791340034 WHEEL STUD 24
11 MH08724 WHEEL NUT 24
12 MH08725 WASHER 24
13 MH796405129 HEX HEAD SCREW 4
14 MH992781644 HARDENED WASHER 12
15 MH796405119 HEX HEAD SCREW 8
16 MH07565 DRIVE FLANGE 2
17 MH07566 ADAPTER RING 2
18 MH870000374 STOP PLATE 2
19 MH00211 DUST PLATE 2
20 MH785256600 LOCK PLATE 2
21 MH00205 BEARING UNIT 2
22 MH992275502 HEX HEAD SCREW 16
23 MH992791293 HEX HEAD SCREW 6
24 MH992791515 SPRING WASHER 2
25 MH992271293 HEX HEAD SCREW 6
26 MH11412PD5FC TYRE ASSY. PNEUMATIC 7X12 4
27 MH11412BC5FC TYRE ASSY. BEAR CAT 7X12 4

DVX506MAX AT (HVM) 19 July-2013

 POWER UNIT ASSEMBLY (B.S III)
(798707141)

DVX506MAX AT (HVM) 20 July-2013

 POWER UNIT ASSEMBLY
(798707141)
ITEM NO PART NO DESCRIPTION QTY
1 MH798708011 CARRARO TRANSMISSION ( TLB1 - 2WD) 1
2 MH798708033 HYDRAULIC - PUMP 1
3 MH992276416 HEX. SCREW M12 x 25 - P-10.9 8
4 MH992791545 SPRING WASHER M12 4
5 MH992186423 BOLT M12 x 50 - P-10.9 - F 5
6 MH798708053 GEAR LEVER ASSEMBLY 1
7 MH798701913 TRANSMISSION MTG. BRACKET 2
8 MH992791580 SPRING WASHER M22 4
9 MH992785693 M22 WASHER 4
10 MH40997 ENGINE 1
11 MH798701883 ENGINE MTG BKT 2
MH798707134
12 AVM+ WASHER OVER LOAD 4
MH798707114
13 MH798708073 DIPSTICK 1
14 MH798708 084 GASKET 1
15 MH798707023 PROPELLER SHAFT 1
16 MH992176666 M22x2.5 -130 4
17 MH992767120 M22 X 2.5 NYLOCK NUT 4
HEX BOLT M10X 50 LONG (TORQUE
18 MH992176383 4
CONVERTOR)
19 MH62236500 HEX. HD. SCREW 12
20 MH15029000 LOCK WASHER 12
21 MH992777115 M12 x 1.25 NYLOCK NUT 1
22 MH992176423 HEX BOLT M12x1.75 - 50 8
23 MH992791545 M12 SPRING WASHER 16
24 MH992175301 HEX SCREW M8 X 30 2
25 MH992791525 SPRING WASHER M8 2

DVX506MAX AT (HVM) 21 July-2013

 ACCELERATOR PEDAL ASSEMBLY
(798706273)

DVX506MAX AT (HVM) 22 July-2013

 ACCELERATOR PEDAL ASSEMBLY
(798706273)

ITEM NO. PART NO DESCRIPTION QTY.

1 MH798706234 ACCELERATOR PEDAL 1

2 MH798706264 BRACKET- ACCL. BASE 1

3 MH798706304 ACCL. PEDAL PIN 1

4 MH992826152 SPLIT PIN 2.5 x 32 1

DVX506MAX AT (HVM) 23 July-2013

 EXHAUST ASSEMBLY
(798709011)

DVX506MAX AT (HVM) 24 July-2013

 EXHAUST ASSEMBLY
(798709011)
ITEM NO. PART NO DESCRIPTION QTY.
1 MH798709062 EXHAUST PIPE WELD'T 1
2 MH798709073 EXHAUST PIPE WELD'T 1
3 MH798709104 GASKET FOR EXHAUST FLANGE 1
4 MH798709091 EXHAUST MUFFLER 1
5 MH17369 GASKET 1
MH992761014
LOCK NUT M10 + NUT M10+
6 + 4+6
CLAMPING(6)
MH992763114
7 MH992781654 WASHER 4
8 MH992791535 SPRING WASHER - M10 4
9 MH992171216 Hex Bolt M10 x 40 + CLAMPING(6) 4+6
10 MH992175301 BOLT - M8 X 40 2
MH992761213
11 + NUT- M8 +LOCK NUT 2
MH992763013
12 MH992785624 PLAIN WASHER M8 2
13 MH992791525 SPRING WASHER (M8) 2
MH992761213
14 M8 NUT 4

DVX506MAX AT (HVM) 25 July-2013

 CANOPY ASSEMBLY (HVM)
(798728011)

4
2

DVX506MAX AT (HVM) 26 July-2013

 CANOPY ASSEMBLY (HVM)
(798728011)

ITEM NO. PART NO DESCRIPTION QTY.

1 MH798710103 BRACKET FRONT LIGHT - RH 1

2 MH798710113 BRACKET FRONT LIGHT -LH 1
3 MH798710093 BRACKET - REAR LIGHT 2
4 MH992271295 M8 HEX SCREW 10
5 MH992791515 SPRING WASHER- M6 10
6 MH798710224 BRACKET-REVOLVING LIGHT 1

DVX506MAX AT (HVM) 27 July-2013

 COUNTERWEIGHT ASSEMBLY
(798713011)

DVX506MAX AT (HVM) 28 July-2013

 COUNTERWEIGHT ASSEMBLY
(798713011)

ITEM NO. PART NUMBER DESCRIPTION QTY.

1 MH798713021 COUNTERWEIGHT 1

2 MH992175621 M20 -2.5 X 180 LG BOLT 2

3 MH992785684 WASHER 2

DVX506MAX AT (HVM) 29 July-2013

 COWL ASSEMBLY
(798722011)

DVX506MAX AT (HVM) 30 July-2013

 COWL ASSEMBLY
(798722011)
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 MH798722021 COWL WELDMENT 1
2 MH798205083 PARKING BRAKE 1
3 MH798722173 STEERING COLUMN 1
4 MH798722063 STEERING COLMN. MTG. BKT. 1
5 MH797905254 BRAKE FLUID CONTAINER 1
6 MH992171311 HEX BOLT M 8 X 95 2
7 MH798722193 CONTROL VALVE MTG PLATE 1
8 MH798705033 CONTROL VALVE 2 SPOOL* 1
9 MH992785634 WASHER M10 11
10 MH992791535 SPRING WASHER M10 9
11 MH992791545 M12 SPRING WASHER 2
12 MH992275375 HEX SCREW M10 X20 LG 7
13 MH992275294 HEX BOLT - M8 X 16 4
14 MH40639 JUNCTION BLOCK 1
15 MH41094 LEVER FOR CONTROL VALVE 2
16 MH785766600 HOIST CONTROL KNOB 1
17 MH785766700 TILT CONTROL KNOB 1
18 MH992763115 LOCK NUT M12 2
19 MH992763114 LOCK NUT M10 2
20 MH992761213 M8 NUT 2
21 MH42068 STEERING WHEEL 1
22 MH42089 STEERING UNIT 1
23 MH992273421 HEX SCREW M12 X 40 2
24 MH992275377 M10 BOLT 30 LG 4
25 MH992785644 WASHER M12 2

* MH798705433- FOR 3 SPOOL C.V , MH798705443 - FOR 4 SPOOL C.V

DVX506MAX AT (HVM) 31 July-2013

 STEER AXLE ASSEMBLY
(798703251)

DVX506MAX AT (HVM) 32 July-2013

 STEER AXLE ASSEMBLY
(798703251)
ITEM NO. PART NO DESCRIPTION QTY.
1 MH798703231 STEER AXLE FINISHED 1
2 MH11286 STEER CYL. ASSLY. 1
3 MH798703193 STEER AXLE - LINK 4
4 MH798703229 STEER KNUCKLE RH 1
5 MH798703211 STEER KNUCKLE LH 1
6 MH02070 STEER WHEEL HUB 2
7 MH19383600 THRUST BEARING 2
8 MH66616800 STEERING KNUCKLE PIN 2
9 MH785201300 BUSH FOR STEER KNUCKLE 4
10 MH09186 BUSH 8
11 MH798703204 YOKE PIN 4
12 MH992176511 BOLT M16 x 90 - P-10.9 4
13 MH992791565 SPRING WASHER 4
14 MH785299901 TAPER ROLLER BEARING 2
15 MH151402 00 TIMKEN BEARING 2
16 MH16167300 OIL SEAL 2
17 MH796603084 SLOTTED NUT 2
18 MH15420400 SPLIT PIN 2
19 MH514008300 HUB CAP TRIAL WHEEL 2
20 MH791340034 TRAIL WHEEL BOLT 12
21 MH993791106 GREASE NIPPLE 8
22 MH08980 CLAMP SCREW 2
23 MH992763017 LOCK NUT 2
24 MH16136300 SPL. THRUST WASHER 2
25 MH23818300 EXPANSION PLUG 4
26 MH12510 SPECIAL WASHER 4
27 MH992781654 SPRING WASHER 8
28 MH992826225 SPLIT PIN 8
29 MH992275215 HEX SCREW M6 x 20 4
30 MH08724 TRAIL WHEEL NUT 12
31 MH08725 SPRING WASHER 12

DVX506MAX AT (HVM) 33 July-2013

 BRAKE & ACCELERATOR ASSEMBLY
(798706011)

DVX506MAX AT (HVM) 34 July-2013

 BRAKE & ACCELERATOR ASSEMBLY
(798706011)

ITEM NO. PART NO DESCRIPTION QTY.

1 MH798706022 BRAKE & ACCL. WELDMENT 1
2 MH798706033 BRAKE PEDAL WELDMENT 1
3 MH992785693 WASHER M 22 1
4 MH992826240 SPLIT PIN 1
5 MH797905204 BRAKE MASTER CYLINDER 1
6 MH992176382 M10 X 65 LG 2
7 MH992785634 WASHER M 10 4
8 MH992761214 M10 NUT 2
9 MH992791535 SPRING WASHER M10 2
PIN BRAKE MSTR CYLINDER
10 MH785577601 1
+ WASHER
11 MH992826140 SPLIT PIN 2
12 MH785534000 YOKE END 1
13 MH785577603 PIN + WASHER 1
14 MH992275383 HEX SCREW M10 1
15 MH992761014 LOCK NUT M10 2
16 MH992276296 HEX SCREWM8 x 25 1
17 MH796615014 RETURN SPRING 1
18 MH798706043 ACCL. PEDAL ROD WELD'T 1
19 MH992816069 SPLIT PIN 1/8" x 1 " LG 2
20 MH798706224 NYLON ROLLER 1
21 MH785203800 ACC. RET SPRING 1
22 MH11747 CONNECTOR CABLE 1
23 MH798706454 ACCELERATOR CABLE 1
24 MH798706463 PARKING BRAKE CABLE 1
25 MH993791110 GREASE NIPPLE (M10X1) 1
MH798706254
26 BRAKE PEDAL + NUT 1
MH992761014

DVX506MAX AT (HVM) 35 July-2013

 AIR CLEANER ASSEMBLY
(798719061)

DVX506MAX AT (HVM) 36 July-2013

 AIR CLEANER ASSEMBLY
(798719061)

ITEM NO. PART NUMBER DESCRIPTION QTY.

1 ENGINE SCOPE AIR CLEANER 1
2 MH796424013 AIR CLEANER MTG. BKT. 1
3 MH798719113 AIR CLEANER MTG CLAMP 1
4 MH798719094 RUBBER HOSE -AIR INTAKE 1
5 MH44Z12D9 HOSE CLIP 1
6 MH44Z12D10 HOSE CLIP 1
7 MH992271416 HEX. SCREW M12 x 25 - P-10.9 6
8 MH992761015 HEX NUT 4
9 MH992781644 M12 WASHER 6
10 MH992791545 M12 SPRING WASHER 6
11

DVX506MAX AT (HVM) 37 July-2013

 FUEL SYSTEM
(798717013)

PRIMING
UNIT

DUAL FILTER

DVX506MAX AT (HVM) 38 July-2013

 FUEL SYSTEM
(798717013)

ITEM NO PART NO DESCRIPTION QTY

FUEL LINE HOSE AS - 51" (BRAIDED
1 MH785202301 2
HOSE)
FUEL LINE HOSE AS - 16" (BRAIDED
2 MH785202304 1
HOSE)
** FUEL LINE RUBBER HOSE (FILTER TO
3 MH798717033 1
FIP)
4 MH794731014 BANJO BOLT M14 X 1.5 1

5 MH8044Z114 ADAPTOR 1

6 MH992784654 CU WASHER M14 4

7 MH8020Z74 CAP NUT 1/4"BSPT 1

8 MH795507093 FUEL SUCTION WELDMENT 1

9 MH798717044 FUEL RETURN LINE HOSE (5/16" DIA R6) 1

DE005881-
10 LINE HAND PRIMER 1
ENGINE SCOPE
DE005774-
11 FILTER FUEL OIL 1
ENGINE SCOPE

DVX506MAX AT (HVM) 39 July-2013

 HYDRAULIC CKT
(798705372)
39 40
24 24

41 41

37
34 32

6 24 24 6
24

33 33
16 16 6 36
36 6
38

P T

L R

15 30

16
28 43
42 31

29

2 17
45 44
1
11
23
4

47
17
HYDTANK 3 27 26 10

14

25
12
19 13
47 46
8

18 18

20
9

DVX506MAX AT (HVM) 40 July-2013

 HYDRAULIC CKT
(798705372)

ITEM NO. PART NO. DESCRIPTION QTY

1 MH 798705174 T RETURN LINE 1
2 MH 798705023 MICRONIC FILTER 1
3 MH 798705153 HOSE 1
4 MH 798705074 STRAIGHT ADAPTOR 1
5 --- -- ---------------- ----
6 MH 798705344 90° ELBOW 4
7 MH 798708033 HYDRAULIC PUMP 1
MH798708033-80 SEALKIT
8 MH 785756609 SUCTION HOSE 1
MH992241250 HEX. BOLT 4
MH992791555 SPRING WASHER 4
9 MH798705214 TRAIL AXLE HYD. TUBE 2
10 MH 798705094 90° ELBOW 1
MH993463064 DOWTY WASHER 1
11 MH 798705083 HOSE 1
12 MH798705064 FLANGE TYPE ELBOW 1
13 MH44Q26D3 FLANGE HALF 1" 1
MH992211169 HEX. BOLT 4
MH992785114 WASHER 4
14 MH 798705053 HOSE 1
15 MHO7286 STEERING CONTROL UNIT (SCU) 1
16 MH 798705104 STRAIGHT ADAPTOR 4
17 MH798705414 STRAIGHT ADAPTOR 1
18 MH 798705193 HOSE 2
19 MH11672 STRIGHT HOSE CLAMP BRACKET 2
MH992271297 HEX. HD. BOLT 1
MH992761013 HEX. NUT 1
MH992781624 WASHER 1
MH992791525 SPRING WASHER 1
20 MH11286 STEERING CYLINDER ASSY. 1
21 MH 798705204 STRAIGHT ADAPTOR 2
22 MH 798705033 2-SPOOL CONTROL VALVE 1

DVX506MAX AT (HVM) 41
July-2013
 HYDRAULIC CKT
(798705372)

39 40
24 24

41 41

37
34 32

6 24 24 6
24

33 33
16 16 6 36
36 6
38

P T

L R

15 30

16
28 43
42 31

29

2 17
45 44
1
11
23
4

47
17
HYDTANK 3 27 26 10

14

25
12
19 13
47 46
8

18 18

20
9

DVX506MAX AT (HVM) 42
July-2013
 HYDRAULIC CKT
(798705372)

ITEM NO. PART NO. DESCRIPTION QTY

23 M H798705033-90 SEALKIT 1
24 MH 798705144 90° ELBOW 6
25 MH 798705183 H.P. HOSE 1
26 MH 798705274 HYD FITTING 90° 2
27 MH 798705013 STRAIGHT TUBE 2
28 MH 40639 JUNCTION BLOCK 1
29 MH 992175305 HEX. BOLT 2
MH992797525 WASHER 2
30 MH 798705233 HOSE 3
31 MH 798705243 HOSE 3
32 MH40507 TILT CYLINDER R.H. (DANTAL) 1
33 MH 798705283 TUBE FRONT 2
34 MH796627192 TILT CYLINDER L.H. (DANTAL) 1
35 --- ------- ----------- ----
36 MH 798705293 TUBE REAR 2
37 MHO9 658 CYLINDER LOWERING BLOCK 1
38 MH 798705113 H.P. HOSE 1
39 REF MAST HOIST CYLINDER L.H 1
40 REF MAST HOIST CYLINDER R.H. 1
41 MH 798705133 HOSE 2
42 MH 798705264 HYD. FITTING 90° 2
43 MH 798705204 STRAIGHT FITTING 6
44 MH 992175377 HEX. BOLT 2
45 MH 992791535 SPRING WASHER 2
46 MH 44Q26D5 SPLIT FLANGE HALF-(1-1/2”) 1
47 MH798705423 SUCTION PIPE HYD TANK END 1

DVX506MAX AT (HVM) 43
July-2013
 HVM MAST ASSEMBLY
(796619442)

DVX506MAX AT (HVM) 44
July-2013
 HVM MAST ASSEMBLY
(796619442)

ITEM NO. PART NO DESCRIPTION QTY.

1 MH7 96619181 STATIONERY WELDMENT 1
2 MH9 379 ELEVATING WELDMENT 1
3 MH10416-01 HOIST CYL ASSLY- RH 1
4 MH 12777 CHAIN ASSLY 2
5 MH2023 LOAD ROLLER ASSLY 10
6 MH 9658 MANIFOLD 1
7 MH9390 BRACKET - MANIFOLD MTG 1
8 MH12682 CHAIN SHEAVE BEARING ASSLY 2
9 MH992771120 HEX NUT M22 X 1.5 4
10 M H5066111 SPECIAL WASHER 2
11 MH992791535 SPRING WASHER - M10 2
12 MH992276377 HEX. HD. BOLT M10x30 LG. 2
13 M H5077581 DOWEL 2
14 MH 11470 ROLLER THRUST 4
15 MH9383 CLAMP WELD'T - CLY SUPPORT 2
16 MH992271295 M8 HEX SCREW 4

DVX506MAX AT (HVM) 45
July-2013
 HVM MAST ASSEMBLY
(796619442)

DVX506MAX AT (HVM) 46
July-2013
 HVM MAST ASSEMBLY
(796619442)
ITEM NO. PART NO DESCRIPTION QTY.
17 MH992 791525 SPRING WASHER-M8 4
18 MH5023131 PRIMARY UPRIGHT RETAINER WEAR STRIP 2
19 MH5023141 PRIMARY UPRIGHT RETAINER STRIP 2
MH0612780-
20 HARDENED WASHER 2
00
21 MH992171386 HEX BOLT M10x55 LG. 4
22 MH9 92761014 LOCK NUT M10 4
23 MH 00514 FLOW REGULATOR 1
24 MH9 92831537 EXTERNAL CIRCLIP 4
25 MH9 92271376 HEX. SCREW 2
26 MH798 727082 CARRIAGE WELD'T 1
27 MH10416-02 HOIST CYL ASSLY- LH 1
28 MH58941300 HEX SCREW M8 X 20 2

DVX506MAX AT (HVM) 47
July-2013
 ELECTRICAL CIRCUIT
(798715012)

DVX506MAX AT (HVM) 48
July-2013
 ELECTRICAL CIRCUIT
(798715012)
ITEM
PART NO DESCRIPTION QTY.
NO.

1 MH512476400 HORN 12 VOLT 1

ENGINE
2 STARTER 12 VOLT LUKAS MAKE 1
SUPPLY
GEAR SOLONOID VALVES 12VOLT
3 MH40468 (FNR COMBINATION SWITCH 1
HONEYWELL)
4 MH11829 REVERSE HORN MUSICAL 12 VOLTS 1

5 MH07840 FLASHER 21*4 WATT 12 VOLT 1

INDICATOR LIGHT FRONT ( TWO
6 MH796418053 2
COLOUR )
INDICATOR LIGHT REAR ( THREE
7 MH18003 2
COLOUR )
8 MH13174 REVOLVING ( BICON ) LIGHT 12 VOLT 1

9 MH796418023 HALOGEN LIGHTS 35 WATT 12 VOLT 2

10 MH42370 HAZARD SWITCH 1

PIANO SWICH 10 AMPS WITH FOUR
11 MH13175 1
SWICHES
TRANS OIL TEMP INDICATOR (RED
12 MH09091 1
LIGHT)
ENGINE OIL PRESSURE GAUGE
13 MH785207900 1
PRICOL MAKE

14 MH785761600 FUEL GAUGE 12 VOLT PRICOL MAKE 1

INDICATOR LIGHT 2 WATT 12 VOLT
15 MH09091 COLOUR RED BATTERY CHARGING 1
INDICATOR
16 MH785358400 HOUR METER 12 VOLT 1

INDICATOR LIGHT 2 WATT 12 VOLT

17 MH14040 2
COLOUR GREEN
AMMETER 12 VOLT (+30 TO -30 MAX.)
18 MH785208000 1
PRICOL MALE

DVX506MAX AT (HVM) 49
July-2013
 ELECTRICAL CIRCUIT
(798715012)

DVX506MAX AT (HVM) 50
July-2013
 ELECTRICAL CIRCUIT
(798715012)

WATER TEMP.12 VOLT ( 40 TO 120C )

19 MH785207800 1
PRICOL MAKE

20 MH798715054 KEY SWITCH 10 AMPS 1

ENGINE
21 ALTERNATOR 1
SUPPLY
MH09718
22 IN CONTROL FUSE HOLDER 30 AMPS 1
BOX
MH09718
23 IN CONTROL GLASS FUSE 30 AMPS 6
BOX
ENGINE
24 WATER TEMP SENSOR 1
SUPPLY
25 MH40785 FUEL LEVEL FLOAT PRICOL MAKE 1

26 MH40580 5 PIN RELAY 30 AMPS 12 VOLT 1

BATTERY CABLE POSITVE 35 SQ MM

27 MH796625482 1
COLOUR RED
BATTERY CABLE POSITVE 35 SQ MM
28 MH10050 1
COLOUR BLACK
PRESSURE SWITCH N/O TYPE
29 MH11408 1
HONEYWELL MAKE
30 -- ---- --
MH798708103 TRANS TEMP SWITCH (TRANSMISSION
31 1
(CONNECTOR) SUPPLY)

32 MH798715113 GEAR SHIFTER SWITCH 10 AMPS 1

33 MH08995 BRAKE SWITCH 10 AMPS 1

34 MH40468 DIRECTION SWITCH 10 AMPS 1

35 MH016952C BATTERY 12V 135AH 1

DVX506MAX AT (HVM) 51
July-2013
 PARTS LIST
TSJ436 ENGINE (BSIII/CEV EMISSION NORMS)
APPLICABLE FOR VOLTAS
74.8PS@ 2200 RPM
List No. 7149

Revision Level ‘0 Page 1 of 46 Dated: 14.11.13

 AIR INDUCTION AND EXHAUST SYSTEM

Revision Level ‘0 Page 2 of 46 Dated: 14.11.13

 List No: 7149

AIR INDUCTION AND EXHAUST SYSTEM

Plate Part Quantity Per

Description Remarks
Reference Number Group

01 MH54SG4041 Induction Manifold 1

02 MH49SG4011 Joint Inlet Manifold to Cylinder Head 1

03 MHS4007408 Setscrew Inlet Manifold to Cylinder Head 9

04 MH00920053 Washer Inlet Manifold to Cylinder Head 9

05 MH54SG4034 Exhaust Manifold 1

06 MH49SG4012 Joint Exhaust Manifold to Cylinder Head 1

07 MHS4007433 Setscrew Exhaust Manifold to Cylinder Head 6

08 MH92DE0873 Washer Exhaust Manifold to Cylinder Head 8

09 MH74S30145 Setscrew Exhaust Manifold to Cylinder Head 2

Revision Level ‘0 Page 3 of 46 Dated: 14.11.13

 List No: 7149

CLOSED BREATHER SYSTEM

Revision Level ‘0 Page 4 of 46 Dated: 14.11.13

 List No: 7149

CLOSED BREATHER SYSTEM

Plate Part Quantity Per

Description Remarks
Reference Number Group

01 MH99SG3037 Crank Case Vent.Unit– (PCV) (MKH NO.3931070900) 1

02 MH74DE0227 Setscrew PCV to Inlet Manifold 1

03 MH00920052 Washer PCV to Inlet Manifold 1

04 MH99SG4195 Pipe Assembly PCV to Filter 1

05 MH62SG3009 Pipe Inlet Manifold 1

06 MH62SG3010 Rubber Hose Cylinder Head Cover to Breather Valve Inlet 1

07 MH62SG4015 Rubber Hose Breather Valve Outlet to Inlet Manifold 1

08 MH62SG3005 Rubber Hose Breather Valve Oil Drain to Cylinder Block 1

09 MH02481877 Hose Clip 4

10 MH00180063 Hose Clip 2

11 MH62SG3001 Pipe Oil Separator 1

Revision Level ‘0 Page 5 of 46 Dated: 14.11.13

Revision Level ‘0 Page 6 of 46 Dated: 14.11.13
 CRANK SHAFT
Plate Part Description Quantity Per Remarks
Reference Number Group
01 MH26SG4007 Crank Shaft 1
02 MH36271704 Key 1
03 MHS4003301 Distance Piece Crankshaft Gear 1
04 MHS4004101 Gear Crank Shaft 1
05 MH33176137 Washer Crankshaft 1
06 MH67SG4020 Pulley Crank Shaft 1
07 MH33125112 Washer Crankshaft Pulley 1
08 MHS4007426 Setscrew, Crankshaft Pulley Retaining 1
09 MHS4009918 Main Bearing Front Set STD. 1
10 MHS4009919 Main Bearing Front Set – 0.10” U/s 1
11 MHS4009920 Main Bearing Front Set - 0.20” U/s 4
12 MHS4009921 Main Bearing Middle Set – 0.30” U/s 4
13 MHS4009933 Washer Main Bearing Set Std. 4
14 MHS4009934 Washer Main Bearing Set 0.007” O/s 4
15 MHS4009933 Thrust Washer Assy (Includes Item13&14)Std. 1
16 MHSA063496 Conn Rod Assy (Includes Item 17,18,19,) 4
17 MH31134151 Bush Connecting Rod Small End 4
18 MH00095250 Bolt Connecting Rod Cap 2
19 MH33221319 Nut Connecting Rod To Cap Bolt 2
20 MH99SG4225 Piston Assembly with Gudgeon Pin, Circlip (Less Rings) 4
21 MH99SG3003 Piston Ring Assembly 4
22 MH00170001 Circlip P-Series 2
23 MH31131171 Bearing Con Rod Big End 8

Revision Level ‘0 Page 7 of 46 Dated: 14.11.13

 CYLINDER BLOCK

Revision Level ‘0 Page 8 of 46 Dated: 14.11.13

 CYLINDER BLOCK
Plate Part Description Quantity Per Remarks
Reference Number Group
01 MH99SG4173 Cylinder Block Assembly – M/M/BALANCER 1
02 MH53SG3007 Liner Cylinder Block 4
03 MH00650710 Plug Cylinder Block Water Jacket 12
04 MH65SG3001 Plug Cylinder Block Pressure Rail - Front 1
05 MH00650566 Plug Cylinder Block Pressure Rail – Rear 1
06 MH00870001 Thimble Crankshaft Main Bearing Cap 10
07 MHS4007429 Setscrew Main Bearing Cap Rear to Cylinder Block 2
08 MHS4007428 Setscrew Main Bearing Cap to Cylinder Block 8
09 MH02415608 O’ Ring Main Bearing Cap Thimble 2
10 MH82S30098 Stud Cylinder Block to Axle Bracket 1
11 MH65DE0036 Cylinder Block Drain Plug 1
12 MH20DE0193 Adaptor Lub.Oil Pressure Gauge Union 1
13 MH65SG3004 Heater Plug 1
14 MH49SG4016 Cylinder Head Gasket 1
15 MH94S30406 Tachometer Drive Blanking Plate 1
16 MH36862511 Joint Tachometer Drive Blanking Plate 1
17 MH74DE0844 Setscrew Tachometer Drive to Cylinder Block 3

Revision Level ‘0 Page 9 of 46 Dated: 14.11.13

 CYLINDER BLOCK (Contd..)

Plate Part Quantity Per

Description Remarks
Reference Number Group
18 MH00920053 Spring Washer Tachometer Drive to Cylinder Block 3

19 MH20SG3014 Water Inlet Connection (GDC) 1

20 MH73S30025 O’ Ring Water Inlet Connection 1

21 MH74DE0844 Setscrew Water Inlet Connection 1

22 MHS4007408 Setscrew Water Inlet Connection 1

23 MH00920106 Washer Water Inlet Connection 2

24 MH99SG4183 Pipe Assembly Oil Separator to Block 1

25 MH73SG3005 O’ Ring Oil Separator Pipe to Block 1

26 MH74DE0844 Setscrew Oil Separator Pipe to Block 1

27 MH00920053 Spring Washer Oil Separator Pipe to Block 1

28 MHS4001046 Bracket Lub.Oil Sump to Cylinder Block 1

29 MH00920056 Washer Bracket Lub.Oil Sump to Cylinder Block 2

30 MHS4007436 Setscrew Bracket Lub.Oil Sump to Cylinder Block 2

Revision Level ‘0 Page 10 of 46 Dated: 14.11.13

 CYLINDER HEAD

Revision Level ‘0 Page 11 of 46 Dated: 14.11.13

 CYLINDER HEAD

Plate Part Description Quantity Per Remarks

Reference Number Group
01 MH99SG4235 Cylinder Head Assembly Major 1
02 MH00650713 Cylinder Head Water Rail Plug 3
03 MH00650710 Cylinder Head Plug 9
04 MH42SG3002 Guide Exhaust & Inlet Valve 8
05 MH91SG3003 Valve Inlet 4
06 MH91SG3004 Valve Exhaust 4
MHDE006041 Engine Valve Set (Includes Items of 5 & 6) 1
07 MH78SG3001 Spring Exhaust & Inlet Valve 8
08 MH73SG3001 Seal Valve Stem 8
09 MH33177518 Washer Inlet & Exhaust Valve Spring Locating 8
10 MH00150008 Cap Valve Spring 8
11 MH00230001 Cotter Valve Spring ( ALT-33173115 ) 16
12 MH74SG3001 Cylinder Head Setscrew - Long 10
13 MH74SG3002 Cylinder Head Setscrew - Short 5
14 MH94SG3038 Plate Engine Lifting Hook Front 1
15 MH94SG3039 Plate Engine Lifting Hook Rear 1
16 MHS4008209 Stud Lifting Plate Front & Rear 4

Revision Level ‘0 Page 12 of 46 Dated: 14.11.13

 CYLINDER HEAD (contd..)

Plate Part Quantity Per

Description Remarks
Reference Number Group
17 MHS4005703 Nut Lifting Plate Front & Rear 4

18 MH92DE0873 Washer Lifting Plate Front & Rear 4

19 MH08SG3011 Cylinder Head Water Outlet Body 1

20 MH00650586 Plug Cylinder Head Water Outlet Body 1

21 MH49SG3003 Joint Cylinder Head Water Outlet Body 1

22 MHS4007404 Setscrew Cylinder Head Water Outlet Body 2

23 MH74S30166 Setscrew Cylinder Head Water Outlet Body 2

24 MH00920053 Washer Cylinder Head Water Outlet Body 4

25 MH20SG4028 Water Outlet Connection 1

26 MH00490184 Joint Water Outlet Connection 1

27 MHDE006051 Thermostat 1

28 MH47SJ3001 Insert Inlet Valve Seat 4

29 MH47SJ3002 Insert Exhaust Valve Seat 4

30 MH82SG4004 Stud Water Outlet Connection 2

31 MH92DE0873 Spring Washer Water Outlet Connection 2

32 MH70SG3001 Push Rod 8

33 MH86SG3001 Tappet 8

Revision Level ‘0 Page 13 of 46 Dated: 14.11.13

 CYLINDER HEAD COVER

Revision Level ‘0 Page 14 of 46 Dated: 14.11.13

 CYLINDER HEAD COVER

Plate Part Quantity Per

Description Remarks
Reference Number Group

01 MH99SG4072 Cylinder Head Cover Assembly 1

02 MH49SG4025 Joint Cylinder Head Cover 1

03 MH82SG3001 Stud Cylinder Head Cover 5

04 MH92SG4003 Washer Cylinder Head Cover 5

05 MH77SG4003 Sleeve Cylinder Head Cover 5

06 MH73SG4010 Rubber Seal Cylinder Head Cover 5

07 MHS4005710 Nut Cylinder Head Cover 5

Revision Level ‘0 Page 15 of 46 Dated: 14.11.13

 DUAL FUEL FILTER(0.6 LITRE)

Revision Level ‘0 Page 16 of 46 Dated: 14.11.13

 DUAL FUEL FILTER(0.6 LITRE)

Plate Part Quantity Per

Description Remarks
Reference Number Group

01 MHDE005774 Fuel Filter Oil (Mico No. F 002 H20 138) 1 To be procured from BOSCH

02 MHDE006009 Pre Filter Oil (Mico No. F 002 H20 231) 1 To be procured from BOSCH

03 MHDE006010 Fine Filter Oil (Mico No. F 002 H20 232) 1 To be procured from BOSCH

Revision Level ‘0 Page 17 of 46 Dated: 14.11.13

 FLYWHEEL HOUSING REAR END OIL SEAL

Revision Level ‘0 Page 18 of 46 Dated: 14.11.13

 FLYWHEEL HOUSING REAR END OIL SEAL

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH00350015 Dowel Flywheel 2

02 MH49S30119 Joint Rear End Housing To Cyl.Block 1

03 MH73DE0019 Unitized Lip Seal Crankshaft Rear End 1 AltNo.2418f475

04 MH37424611 R.End Oil Seal Housing 1

05 MH00920053 Spring Washer 9

06 MH74DE0844 Set Screw Seal Housing to Cyl Block 9

07 MH44DE0241 Flywheel Housing 1

08 MH00350016 Dowel Cylinder Block To Adaptor Plate 2

09 MHS4008210 Stud Adaptor Plate To Cylinder Block 6

10 MH92DE0873 Washer Adaptor Plate Stud 6

11 MHS4005703 Nut 6

12 MH72S30011 Cap Screw Adaptor Plate To Cyl Block 2

13 MH99SG4457 Flywheel & Starter Ring Assembly 1

14 MH00410264 Flywheel Ring Gear 1

15 MH00921062 Washer Tab Flywheel Set Screw 3

16 MHS4007444 Setscrew Flywheel To Crankshaft 6

Revision Level ‘0 Page 19 of 46 Dated: 14.11.13

 FUEL INJECTION EQUIPMENT

Revision Level ‘0 Page 20 of 46 Dated: 14.11.13

 FUEL INJECTION EQUIPMENT

Plate Part Quantity Per

Description Remarks
Reference Number Group
Fuel Injection Pump - for DOMESTIC APPLICATION
01 MHDE006253 1 To be Procured from Bosch
(Bosch No: B 0.460.424.494)

02 MH33828112 Joint FIP to Timing Case 1

03 MH41SG4034 Gear FIP Drive 1

04 MH99SG4174 Pipe FIP Assembly No.1 Cylinder 1

05 MH99SG4175 Pipe FIP Assembly No.2 Cylinder 1

06 MH99SG4176 Pipe FIP Assembly No.3 Cylinder 1

07 MH99SG4177 Pipe FIP Assembly No.4 Cylinder 1

08 MH99SG4125 Pipe Assembly Main Leak off Pipe 1

09 MHDE006033 Nozzle & Holder Assembly (Bosch No: E 080 2109 00) 4 To be Procured from Bosch

10 MH92SG4004 Washer Nozzle Seating (Bosch No: 2 430 105 009) 4 To be Procured from Bosch

11 MH92DE0003 Washer Banjo Leak off Pipe (Bosch No: 2 916 710 603) 4 To be Procured from Bosch

12 MH09DE0004 Banjo Bolt Leak off Pipe (Bosch No: 2911 232 700) 4 To be Procured from Bosch

13 MHDE005884 Thermo Switch 1 To be Procured from Bosch

Revision Level ‘0 Page 21 of 46 Dated: 14.11.13

 JOINTS AND GASKETS

Revision Level ‘0 Page 22 of 46 Dated: 14.11.13

 JOINTS AND GASKETS

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH49SG4016 Gasket Cylinder Head for SJ436 1

02 MH49SG4011 Joint Induction Manifold to Cylinder Head 1

03 MH49SG4025 Joint Cylinder Head Cover 1

04 MH49SG3003 Joint Cylinder Head Water Outlet Body 1

05 MH49SG4012 Joint Exhaust Manifold to Cylinder Head 1

06 MH49SG3010 Joint Timing Case to Cylinder Block 1

07 MH49SG4057 Joint Sump to Cylinder Block 1 Set

08 MH49S30119 Joint Rear End Oil Seal Housing to Cylinder Block 1

9 MH49S30123 Joint Cylinder Block to Lubricating Oil Filter 1

10 MH49S30121 Joint Water Pump Back Plate 1

11 MH49DE0162 Joint Turbocharger Oil Drain 1

12 MH49S30150 Joint Lubricating Oil Filler to Timing Case 1

13 MH49DE0158 Joint Turbocharger Inlet 1

14 MH33828112 Joint F.I.P to Timing Case 1

15 MH49SG3042 Joint Timing Case Cover to Timing Case 1

16 MH49S30081 Joint Lubricating Oil Sump Front 1

Revision Level ‘0 Page 23 of 46 Dated: 14.11.13

 JOINTS AND GASKETS (contd..)

Plate Part Quantity Per

Description Remarks
Reference Number Group
17 MH49S30105 Joint Lubricating Oil Sump Rear 1

18 MH49SG3044 Joint Lubricating Oil Filler 1

19 MH36862511 Joint Tachometer Drive 1

20 MH49DE0141 Gasket Feed Pump 1

21 MH00490184 Joint Cylinder Head Water Outlet Connection Top 1

22 MH49SG3055 Joint P.T.O Blanking 1

23 MH49DE0157 Joint Turbocharger Exhaust Outlet 1

24 MH49SG3004 Joint Water Inlet Body 1

25 MH49S30151 Joint – Cyl .Block To Housing 1

26 MH49DE0171 Joint Turbo Charger – Exhaust 1

MH99SG3381 Joints & Gaskets For Minor Kit 1 Not illustrated

MH99SG4404 Joints & Gaskets For Sump Kit 1 Not illustrated

MH99SG4405 Joints & Gaskets For Major Kit 1 Not illustrated

Revision Level ‘0 Page 24 of 46 Dated: 14.11.13

 LUBRICATING OIL FILTER

Revision Level ‘0 Page 25 of 46 Dated: 14.11.13

 LUBRICATING OIL FILTER

Plate Part Quantity Per

Description Remarks
Reference Number Group
Lubricating Oil Filter Assembly – Canister Type
01 MHDE005501 1
(Includes items 02 & 03)

02 MH02654408 Lubricating Oil Filter 1

03 MH37764251 Head Lubricating Oil Filter Assembly 1

04 MH49S30123 Joint Cylinder Block to Lubricating Oil Filter 1

05 MHS4007415 Setscrew Lubricating Oil Filter 2

06 MH92DE0873 Washer Spring 2

07 MH92DE0023 Washer Lubricating Oil Filter Head Retaining 2

Revision Level ‘0 Page 26 of 46 Dated: 14.11.13

 LUBRICATING OIL PUMP

Revision Level ‘0 Page 27 of 46 Dated: 14.11.13

 LUBRICATING OIL PUMP

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH99SG4100 Pump Lub. Oil Assembly 1

02 MH32712715 Plunger 1 Not Serviced Separately

03 MH00920053 Washer Spring, Lub Oil Pump Assy to Front Bearing Cap Setscrew 3

04 MH74S30121 Setscrew Lubricating Oil Pump Assembly Front Bearing Cap 3

05 MHS4009905 Lubricating Oil Pump Idler Gear Assembly 1

06 MH00180831 Circlip, Pump Idler Gear Retaining 1

07 MHS4006202 Pipe, Lubricating Oil Delivery, Pump to Cylinder Block 1

08 MHS4005711 Gland Nut Lubricating Oil Pump and Delivery Pipe 2

09 MH00560244 Olive, Lubricating Oil Delivery Pipe 2

10 MH99SG4186 Pipe Lubricating Oil Suction Assembly - Flange Pump 1

11 MH00490016 Joint Lubricating, Oil Suction Pipe Flange to Pump 1

12 MH00920798 Washer Tab Lub Oil Suction Pipe Flange 2

13 MHS4007403 Setscrew Suction Pipe to Oil Pump 2

Revision Level ‘0 Page 28 of 46 Dated: 14.11.13

 LUBRICATING OIL SUMP

Revision Level ‘0 Page 29 of 46 Dated: 14.11.13

 LUBRICATING OIL SUMP

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH83SG4028 Sump Lubricating Oil 1

02 MH49S30081 Joint Sump To Cylinder Block – Front 1

03 MH49S30105 Joint Sump To Cylinder Block – Rear 1

04 MH49SG4057 Joint Lubricating Oil Sump to Block Assembly 1 Set

05 MH32SG4013 Dipstick 1

06 MH99SG4460 Tube Dipstick Assy 1

07 MH73S30025 O Ring 1
08 MH65S30050 Plug Sump Drain 1

09 MH00920053 Spring Washer 17

10 MHS4007471 Setscrew Sump to Rear End Oil Seal Housing 2

11 MHS4008216 Stud Cylinder Block to Sump – Rear 2

12 MHS4008244 Stud Sump to Timing Case – Front 3

13 MHS4007470 Setscrew Lub Oil Sump to Cylinder Block 4

14 MH74SG4008 Setscrew Lub Oil Sump to Cylinder Block 3

15 MH74S30242 Setscrew Lub Oil Sump to Cylinder Block 3

16 MH74DE0250 Setscrew Lub Oil Sump to Cylinder Block Bracket 1

17 MHS4005702 Nut Sump to Block 5

18 MH00920053 Spring Washer 1

Revision Level ‘0 Page 30 of 46 Dated: 14.11.13

 ROCKER SHAFT ASSEMBLY

Revision Level ‘0 Page 31 of 46 Dated: 14.11.13

 ROCKER SHAFT ASSEMBLY

Plate Part Quantity Per

Description Remarks
Reference Number Group
MH99SG4043 Rocker Shaft Assembly (Includes Items 1,2,3,4,5,6,10&11) 1Set

01 MH75SG4002 Rocker Shaft 1

02 MH00650507 Plug Rocker Shaft End 2

MH99SG3022 Rocker Arm Assembly (Includes Items 3 & 4)

03 MH72SG3001 Rocker Lever 8

04 MH05SG3001 Bush Rocker Lever 8

05 MH78SG3003 Spring Rocker Shaft Front & Rear 4

06 MH10SG3003 Bracket Rocker Shaft 5

07 MH74DE0219 Setscrew Rocker Bracket 10

08 MH00920053 Washer Rocker Bracket 10

09 MH86SG3001 Tappet 8
10 MH72SG3001 Tappet Adjusting Screw 8

11 MH57SG3001 Locknut Tappet Adjusting Screw 8

12 MH70SG3001 Push Rod 8

13 MH33SG4001 Spacer Rocker Shaft 2

Revision Level ‘0 Page 32 of 46 Dated: 14.11.13

 TIMING GEAR AND CAMSHAFT

Revision Level ‘0 Page 33 of 46 Dated: 14.11.13

 TIMING GEAR AND CAMSHAFT

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH44SG4029 Timing Case 1

02 MH49SG3010 Joint Timing Case to Block 1

03 MH00350016 Dowel 2
04 MHS4007403 Setscrew 8

05 MH74S30121 Setscrew 1

06 MH00920053 Washer 42

07 MH24S30111 Bridge Piece 1

08 MHS4008214 Stud 5
09 MHS4005702 Nut 11

10 MH49S30150 Joint Blanking Lubricating Oil Filler 1

11 MH94S30199 Blanking Plate Lubricating Oil Filler 1

12 MHS4007432 Setscrew 3

13 MHS4004501 Hub Idler Upper 1

14 MHS4009937 Gear Lower Idler 1

15 MHS4009404 Plate Idler Gear Lower 1

16 MHS4009201 Thrust Washer 2

17 MHS4008206 Stud 6

18 MHS4005703 Nut 6

Revision Level ‘0 Page 34 of 46 Dated: 14.11.13

 TIMING GEAR AND CAMSHAFT

Plate Part Quantity Per

Description Remarks
Reference Number Group
19 MHS4004126 Gear Idler Upper 1

20 MHS4009401 Plate Idler Gear Upper 1

21 MH14SG4008 Camshaft 1

22 MH31SG3001 Thrust Washer 1

23 MH74DE0844 Setscrew 2

24 MH41SG3001 Camshaft Gear 1

25 MH2314J603 Setscrew 1
26 MHS4009906 Pipe Lubricating Oil Idler 1

27 MH92DE0003 Banjo Washer 2

28 MHS4000901 Banjo Bolt 1

29 MH49SG3042 Joint Front Cover to Timing Case 1

30 MH99SG4198 Timing Case Cover Assembly With Cover & Seal 1

31 MHS4007403 Setscrew 8

32 MHS4007404 Setscrew 1

33 MH49SG3044 Joint Lubricating Oil Filler 1

34 MH99SG3147 Lubricating Oil Filler Assembly 1

35 MH00920052 Spring Washer 6

Revision Level ‘0 Page 35 of 46 Dated: 14.11.13

 TIMING GEAR AND CAMSHAFT

Plate Part Quantity Per

Description Remarks
Reference Number Group
36 MHS4007402 Setscrew 6

37 MHS4007410 Setscrew 6
38 MH82S30106 Stud 4

39 MHS4007405 Setscrew 1

40 MHS4007406 Setscrew 3

41 MH02415344 Seal Timing Case Cover 1 Not Serviced Separately

42 MH00350005 Dowel - Camshaft 1

43 MHS4009415 Timing Pointer 1

44 MHS4008217 Stud Lubricating Oil Filler Blanking to Timing Case 2

45 MH49SG3055 Rubber Joint P.T.O Plate 1

46 MH94SG3006 Plate P.T.O Blanking 1

Revision Level ‘0 Page 36 of 46 Dated: 14.11.13

 WATER PUMP ASSEMBLY

Revision Level ‘0 Page 37 of 46 Dated: 14.11.13

 WATER PUMP ASSEMBLY

Plate Part Quantity Per

Description Remarks
Reference Number Group

01 MH99SG4126 Water Pump Assembly 1

02 MH67SG4012 Pulley Water Pump 1

03 MH00032346 Shaft Water Pump 1

04 MH2418M006 Seal Water Pump (Unitized) 1

05 MH37447194 Impeller Water Pump 1

06 MH49S30121 Joint Water Pump Back Plate 1

07 MHDE006092 Water Pump Kit (Includes – 3,4,5 & 6)

08 MH94S20189 Back Plate Water Pump Body to Timing Case Front Cover 1

09 MH20SG4029 Hose Bypass Connection to Water Pump Body 1

10 MH00180064 Clip Water Connection Hose 2

11 MH20SG4025 Hose Water Pump Outlet to Cylinder Block Water Inlet 1

12 MH00180067 Clip Water Connection Hose 2

13 MH82S20071 Stud Water Pump Mounting 4

14 MH00920053 Spring Washer 4

15 MHS4005702 Nut 4

16 MH00360091 Fan 17 Dia. Pusher Type 1

17 MH36DE0010 Fan Extension 1

Revision Level ‘0 Page 38 of 46 Dated: 14.11.13

 TURBOCHARGER

Revision Level ‘0 Page 39 of 46 Dated: 14.11.13

 TURBOCHARGER

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MHDE006234 Turbocharger for SJ436 Engine 1
02 MH49DE0158 Joint Turbocharger Inlet 1
03 MH49DE0162 Joint Turbocharger Oil Drain 1
04 MHS4007418 Setscrew Joint Turbocharger Oil Drain 2
05 MH99SG4354 Pipe Assembly Turbocharger Oil Drain 1
06 MH49DE0157 Joint Turbocharger Exhaust Outlet 1
07 MH99SG4320 Pipe Assembly Turbocharger Oil Feed 1
08 MH82SG4005 Stud Turbocharger to Exhaust Manifold 4
09 MHS4005702 Nut 4
10 MH00920053 Washer 2
11 MH09DE0006 Banjo Bolt Pipe Assembly Oil Feed (Block End) 1
12 MH92DE0009 Banjo Washer Pipe Assembly Oil Feed 4
13 MH20SG4052 Union Turbocharger Oil Drain 1
14 MH20SG4060 Hose Turbocharger to Inlet Manifold 1
15 MH18SG4002 Hose Clip Turbocharger End 1
16 MH02481830 Hose Clip Manifold End 1
17 MH00920052 Washer Joint Turbocharger Oil Drain 1
18 MH09DE0025 Banjo Bolt Pipe Assembly Oil Feed (Turbocharger End) 1

Revision Level ‘0 Page 40 of 46 Dated: 14.11.13

 BRACKET ALTERNATOR

BRACKET ALTERNATOR
Plate Part Quantity Per
Description Remarks
Reference Number Group
01 MH10SG3017 Bracket alternator 1

Revision Level ‘0 Page 41 of 46 Dated: 14.11.13

 PMP ALTERNATOR

PMP ALTERNATOR

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MHDE005517 Alternator 1

Revision Level ‘0 Page 42 of 46 Dated: 14.11.13

 FAN ASSEMBLY

FAN ASSEMBLY

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH07DE0003 Belt Alternator Driving 1
02 MH00920645 Washer Tab Fan to Water Pump Pulley 1

03 MHS4007403 Setscrew 1

04 MH00360091 Fan ( 17” Dia Pusher Type ) 1

Revision Level ‘0 Page 43 of 46 Dated: 14.11.13
 LEVER ALTERNATOR

LEVER ALTERNATOR

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MH52S30078 Lever Alternator 1

Revision Level ‘0 Page 44 of 46 Dated: 14.11.13

 STARTER MOTOR (M14 -12V)

STARTER MOTOR

Plate Part Quantity Per

Description Remarks
Reference Number Group
01 MHDE006250 PANALFA Starter 1
Revision Level ‘0 Page 45 of 46 Dated: 14.11.13
Trasmissione TLB1 2WD
TLB1 2WD Transmission
Ref. 643809
Index
1.0.0 Pompa olio
Oil pump

2.0.0 Filtri
Filters

3.0.0 Scatola trasmissione

Transmission housing

4.0.0 Alberi entrata

Input shafts

5.0.0 Albero rinvio e albero priimario

Reverse and primary shafts

6.0.0 Albero secondario

Secondary shaft

7.0.0 Comando marce

Speed control

8.0.0 Distributore
Control valve

9.0.0 Convertitore
Converter

10.0.0 Sommario kit

Kit summary
Pompa olio Oilpump
 Pompa olio Oilpump

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH133566 1 Anello tenuta Oil seal
2 MH020803 6 Vite M8x60 Screw M8x60
3 MH135190 1 Assieme pompa Pump assembly
4 MH028561 1 Anello OR O. ring
Filtri Filters

7
 Filtri Filters

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH028171 1 Anello OR O.ring
2 MH135859 1 Filtro olio Oil filter
3 MH028131 1 Anello OR O.ring
4 MH131368 1 Coperchio Cover
5 MH020777 2 Vite M8x18 Bolt M8x18
6 MH148430 1 Raccordo filtro olio Oil filter connection
7 MH139413 1 Filtro olio Oil filter
8 MH028513 1 Anello OR O.ring
9 MH148431 1 Coperchio Cover
10 MH030745 2 Tappo 7/8 Plug 7/8
Scatola Trasmissione Transmission housing
 Scatola trasmissione Transmission housing

Sr Ref. Q.ty Descrizione Description Kit Note

.
Semiscatola
1 MH359717 1 Front housing
anteriore
MH148781 1 Semiscatola Rear housing
2
posteriore
3 MH028560 3 Anello OR O.ring
4 MH030368 1 Sfiato Breather
5 MH139278 1 Tubo sfiato olio Breather pipe
6 MH021322 3 Tappo Plug
MH023260 3 Rondella rame Copper washer 10x14x1,5
7
10x14x1,5
8 MH072259 3 Spina D10x25 Pin D10x25
9 MH020879 2 Vite M10x150 Bolt M10x150
10 MH028571 1 Anello OR O.ring
11 MH020858 2 Vite M10x45 Bolt M10x45
12 MH020852 19 Vite M10x30 Bolt M10x30
13 MH644150 1 Coperchio Cover
14 MH125280 1 Tappo olio M30x2 Oil plug M30x2
15 MH030773 4 Tappo D7 Plug D7
16 MH130663 2 Vite M14x1.5 Bolt M14x1.5
17 MH023272 4 Guarnizione rame Copper washer
MH132634 1 Tubazione Lubrication pipe
18
lubrificazione
19 MH030745 2 Tappo 7/8 Plug 7/8
Sensore
20 MH63546 1 Oil temperature sensor
temperatura olio
Alberi entrata Input shafts
 Alberi entrata Input shafts

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH139197 2 Anello Ten.RotanteD45 Seal ring D45
2 MH024800 1 Anello seeger D45 Snap ring D45
3 MH026160 1 Cuscinetto Bearing
4 MH139011 1 Ralla 68x45x105 Spacer 68x45x105
5 MH027956 2 Gabbia rulli Needle bearing bush
6 MH138973 1 Ingranaggio Z35 Gear Z35
7 MH025067 2 Anello arresto Lockring
8 MH135020 2 Anello arresto disco friz. Clutch plate lockring
9 MH138986 3 Ralla 60x50x4 Thrust washer 60x50x4
10 MH133924 14 Controdisco frizione Clutch Counterdisk
11 MH147389 1 Albero trasmissione PTO PTO transmission shaft
12 MH139351 2 Molla Spring
13 MH133912 2 Coperchio fermo molla Lock-spring cover
14 MH025031 2 Anello arresto Lockring
15 MH138984 2 Manicotto frizione Clutch sleeve
16 MH138983 2 Pistone com. frizione Clutch piston
17 MH139199 2 Anello tenuta Seal ring
18 MH139198 2 Anello tenuta D55 Seal ring D55
19 MH068354 1 KitAlbero entrata Inner shaft Kit
20 MH138974 1 Ingranaggio Z29 Gear Z29
21 MH024321 2 Spina elast.D3x8 Split pin D3x8
22 MH025811 1 Cuscinetto Bearing
23 MH023835 4 Rivetto D6x5,84 Rivet D6x5,84 068345
24 MH142858 4 AnelloTen.Rotante D50 Seal ring D50
25 MH024805 1 Anello seeger D50 Snap ring D50
26 MH024785 1 Anello seeger D30 Snap ring D30
27 MH025735 1 Cuscinetto Bearing
28 MH133972 2 Disco frizione Clutch Disk
Albero rinvio e albero priimario Reverseandprimary shafts

1
2
1
 Albero rinvio e albero priimario Reverseandprimary shafts

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH025808 2 Cuscinetto Bearing
2 MH137646 1 Albero rinvio Z27 Bearing Reverse shaft Z27
3 MH025859 1 Cuscinetto Bearing
4 MH145132 1 Albero principale Primary shaft Bearing
5 MH027554 1 Cuscinetto Bearing
Albero secondario Secondary shaft
 Albero secondario Secondary shaft

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH145134 1 Ingranaggio Z=44 Gear Z=44
2 MH139010 1 Ralla Thrust washer
3 MH132813 - Spessore 0.05mm Shim 0.05mm
3 MH132814 - Spessore 0.10mm Shim 0.10mm
3 MH132815 - Spessore 0.30mm Shim 0.30mm
3 MH133360 - Spessore 0.50mm Shim 0.50mm
4 MH025053 1 Anello d’arresto D.40 Lock ring D.40 132637
5 MH027554 1 Cuscinetto Bearing 132637
6 MH132867 2 Distanziale Spacer 132637
7 MH046308 2 Anello frizione conico Tapered friction ring 132637
8 MH046305 2 Anello sincronizzatore Synchronizing ring 132637
9 MH046303 3 Molla Spring 132637
10 MH046304 1 Mozzo Hub 132637
11 MH046306 2 Anello sinterizzato Sintered ring 132637
12 MH046307 2 Anello d’acciaio Steel ring 132637
13 MH046302 3 Placchetta fermo molla Lock-spring plate
14 MH046301 3 Sfera Ball
15 MH046300 1 Manicotto scorrevole Sleeve
16 MH132637 1 Kit sincronizzatore Synchronizing kit
17 MH145133 1 Ingranaggio Z=50 Gear Z=50
18 MH138970 1 Ingranaggio Z=23 Gear Z=23 138548
19 MH139019 1 Albero secondario Secondary shaft 138548
20 MH24321 1 Spina elastica D3x8 Split pin D3x8 138548
21 MH046329 2 Anello d'innesto Clutch ring 138548
22 MH046328 1 Mozzo Hub 138548
23 MH046330 2 Anello frizione conico Tapered friction ring 138548
24 MH046326 3 Tassello Plate 138548
25 MH046314 3 Sfera Ball 138548
26 MH046327 3 Molla Spring 138548
27 MH046325 1 Manicotto scorrevole Sleeve
28 MH138548 1 Kit sincronizzatore Synchronizing kit
29 MH123918 1 Vite M12x25 Bolt M12x25
30 MH129924 1 Rondella Washer Washer
Albero secondario Secondary shaft
 Albero secondario Secondary shaft

Sr. Ref. Q.ty Descrizione Description Kit Note

31 MH028623 1 Anello OR O.ring
32 MH137303 1 Flangia Flange
33 MH025485 1 Anello di tenuta Oil seal
34 MH026190 1 Cuscinetto Bearing
35 MH138985 1 Ralla Thrust washer
36 MH138969 1 Ingranaggio Z=33 Gear Z=33
Comando marce Speed control
 Comando marce Speed control

Sr. Ref. Q.ty Descrizione Description Kit Note

2 MH023288 2 Rondella 12x20x1.5 Washer 12x20x1.5
3 MH138003 2 Vite Bolt
4 MH071352 2 Molla Spring
5 MH028270 4 Sfera D10 Ball D10
6 MH021393 3 Vite M8x25 Bolt M8x25
7 MH130299 1 Coperchio marce Cover
8 MH138549 1 Leva com. Marce Control lever
9 MH117385 2 Spina D6x14 Pin D6x14
10 MH117330 1 Cuffia Boot
11 MH130404 1 Fascetta Clamp
12 MH028205 1 Anello OR O.ring
13 MH138308 1 Molla Spring
14 MH138309 1 Bussola Bush
15 MH024772 1 Anello seeger D17 Snap ring D17
16 MH130303 2 Blochetto marce Shifter
17 MH021407 2 Vite M10x20 Bolt M10x20
18 MH132865 2 Perno comando Shifter
19 MH024444 4 Spina spirol 6x30 Spli pin 6x30
20 MH130305 1 Forcella comando Drive fork
21 MH130304 1 Forcella comando Drive fork
22 MH130306 1 Piastrina Plate
Distributore Controlvalve
 Distributore Controlvalve

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH641986 1 Distributore Control valve 641986
2 MH134125 1 Tubo per solenoide Solenoid pipe 641986
3 MH41635 1 Sfera Ball 641986
4 MH021322 4 Tappo Plug 641986
5 MH023260 4 Rondella rame Copper washer 641986
6 MH132928 1 Molla Spring
7 MH020807 6 Vite M8x80 Bolt M8x80 641986
8 MH021581 2 Tappo Plug 641986
9 MH023286 2 Rondella rame Copper washer 641986
10 MH068414 1 Kit corpo distributor Control valve body kit 641986
11 MH139863 2 Molla Spring 641986
12 MH132914 2 Rondella Washer 641986
13 MH139861 1 Pistone Piston 641986
14 MH028129 3 Anello OR O.ring 641986
15 MH132922 2 Tappo M26x1.5 Plug M26x1.5 641986
16 MH642892 1 Pistone Piston 641986
17 MH132927 1 Molla Spring
18 MH130242 1 Guarnizione Gasket
19 MH131328 1 Piastra distribuzione Plate
20 MH131329 1 Guarnizione Gasket 641986
21 MH021391 3 Vite M8x20 Bolt M8x20 641986
22 MH642891 1 Pistone interno Inward piston 641986
23 MH134086 1 Spina D8x27 Pin D8x27 641986
24 MH134089 1 Molla Spring 641986
25 MH134075 1 Molla Spring 641986
26 MH134074 1 Molla Spring 641986
27 MH134084 1 Pistone esterno Outward piston 641986
28 MH132919 2 Guarnizione piastrina Plate gasket 641986
29 MH139934 1 Piastrina Plate 641986
30 MH021373 4 Vite M6x20 Bolt M6x20 641986
31 MH132912 1 Coperchio valvola Valve cover 641986
32 MH028114 3 Anello OR O.ring 641986
33 MH642100 1 Tappo Plug 641986
34 MH024898 1 Anello elastic Elastic ring 641986
35 MH642096 2 Bobina Coil 641986
Convertitore Converter
 Convertitore Converter

Sr. Ref. Q.ty Descrizione Description Kit Note

1 MH359576 1 Convertitore Converter

2 MH642654 1 Disco traino Flywheel towing plate

volano
3 MH023050 4 Molla tazza Spring washer

4 MH020842 4 Vite M10x16 Bolt M10x163

 Sommario kit Kit summary

Sr. Ref. Q.ty Descrizione Description Kit Note

1 - - Kit alb ero Shaft kit 68354
2 - 1 Albero Shaft -
3 MH23835 4 Rivetto Rivet -
4 - - Kit sincronizzatore Synchronizing kit 132637
5 MH046308 2 Anello frizione conico Tapered friction ring
6 MH046305 2 Anello sincronizzatore Synchronizingring
7 MH046303 3 Molla Spring
8 MH046304 1 Mozzo Hub
9 MH046306 2 Anello sinterizzato Sintered ring
10 MH046307 2 Anello d’acciaio Steel ring
11 MH046302 3 Placchetta fermo molla Lock-spring plate
12 MH046301 3 Sfera Ball
13 MH046300 1 Manicotto scorrevole Sleeve
14 - Kit sincronizzatore Synchronizing kit 138548
15 MH046329 2 Anello d'innesto Clutch ring
16 MH046328 1 Mozzo Hub
17 MH046330 2 Anello frizione conico Ring
18 MH046326 3 Tassello Plate
19 MH046314 3 Perno Pin
20 MH046327 3 Molla Spring
21 MH046325 1 Manicotto scorrevole Sleeve
22 - Distributore 641986
23 MH134125 1 Tubo per solenoid Solenoid pipe -
24 MH041635 1 Sfera Ball -
25 MH021322 4 Tappo Plug -
26 MH023260 4 Rondella rame Copper washer -
27 MH132928 1 Molla Spring -
28 MH021581 2 Tappo Plug -
29 MH023286 2 Rondella rame Copper washer -
30 MH068414 1 Kit corpo distributor Control valve body kit -
 Sommario kit Kit summary

Sr. Ref. Q.ty Descrizione Description Kit Note

31 MH139863 2 Molla Spring -
32 MH132914 2 Rondella Washer -
33 MH139861 1 Pistone Piston -
34 MH028129 3 Anello OR O.ring -
35 MH132922 2 Tappo M26x1.5 Plug M26x1.5 -
36 MH642892 1 Pistone Piston -
37 MH132927 1 Molla Spring -
38 MH642891 1 Pistone interno Inward piston -
39 MH134086 1 Spina D8x27 Pin D8x27 -
40 MH134089 1 Molla Spring -
41 MH134075 1 Molla Spring -
42 MH134074 1 Molla Spring -
43 MH134084 1 Pistone esterno Outward piston -
44 MH132919 2 Guarnizione piastrina Plate gasket -
45 MH139934 1 Piastrina Plate -
46 MH021373 4 Vite M6x20 Bolt M6x20 -
47 MH132912 1 Coperchio valvola Valve cover -
48 MH028114 3 Anello OR O.ring -
49 MH642100 1 Tappo Plug -
50 MH024898 2 Anello elastic Elastic ring -
51 MH642096 1 Bobina Coil -
 LIST OF BRANCH OFFICES –VMHPL
Mr. Anant Makwana Mr.Gajendra Singh
(Branch Manager) (Branch Manger)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Private Limited.,
Voltas Ltd. Voltas Limited.,
A-301 Shivalik Corporate Park, 61, Keshav Nagar,
Behind IOC Pump, Hawa Sadak, Civil Lines,
132, Feet Ring Road, Satellite, Jaipur, Rajasthan
Ahmedabad-380015 Tel: 0141-6541013
Tel: 079-66306600/6601 E: gajendra.singh@voltas-mh.com
Fax: 079-66301199
E: anant.makwana@voltas-mh.com
Mr.Punyakoti Prabhakar Mr.Anubroto Bose
(Branch Manger) (Regional Head CZ)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Pvt. Ltd.
Voltas Ltd. Voltas Ltd.
503, Anna Salai, Nirmiit House, 280,
Chennai-600018 Off WHC Road, Bajaj Nagar,
T: 044-66760322/0323 Nagpur -440010
F:044-24342178 T: 0712-6454868
E: p.prabhakar@voltas-mh.com F: 0712-2553814
E: anubroto.bose@voltas-mh.com
Mr.Sanjiv Arora Mr. Rajesh Tella
(Branch Manager) (Branch Manager)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Pvt. Ltd.
Voltas Ltd Voltas Ltd.
A 43 Mohan Co-op, Industrial Estate, 87/D, Rashtrapathi Road,
Mathur road, Secundrabad-500003.
New Delhi-110 044 T: 040-66746820/6821
T: 011-66505511/5512 F: 040-66203882
F: 011-26950022/26950081 E: rajesh.tella@voltas-mh.com
E: sanjiv.arora@voltas-mh.com
Mr. N Guru Prasad Mr Swapnil Pradhan
(Parts Engineer) (Branch Manger)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Pvt. Ltd.
Voltas Ltd. Voltas Ltd.
Prestige Blue Chip, Block 3, Ground Floor, 2nd Pokhran Road, PBox No. 72
No.9, Hosur Road, Thane (W) -400601
(Opp. To Christ University, Near Dairy circle) T: 022- 67920125
Bangalore-560029 F: 022- 67920164
T: 080-67132539 E: swapnil.pradhan@voltas-mh.com
F: 080-22212769,22270172
E: nguru.prasad@voltas-mh.com
Mr.Amit Rakhunde Mr.Tapas Roy
(Parts Engineer) (Branch Manager)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Pvt. Ltd.
Voltas Ltd. Voltas Ltd.
14, Mumbai-Pune Road, Gillander House
Wakadewadi, 8, Netaji Subhash Road,
Pune-411093 Kolkatta-700 001
T: 020-66046614/11 T: 033-66266323/325
F: 020-66046600/601 F: 033-66266328
E: amit.rakhunde@voltas-mh.com E: tapas.r@voltas-mh.com
 LIST OF AREA OFFICES – VMHPL
Mr.S S Dubey Mr.Sudhir Saini
(Branch Manger) (Branch Manager)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Private Limited.,
Voltas Ltd. Voltas Limited.,
Voltas House, PO Box No 52 SCO 201-202-203, 2nd floor, Sector 34A,
Main Road, Bistupur, Chandigarh 160022
Jamshedpur-831011 Tel: 079-66306600/6601
T: 0657-6518804 Fax: 079-66301199
F: 0657-2432201 E: sudhir.saini@voltas-mh.com
E: ss.dubey@voltas-mh.com

Mr.Agee Koshy Mr.Satyajit Pattnaik

(Branch Manager) (Branch Manager)
Voltas Material Handling Pvt. Ltd. Voltas Material Handling Pvt. Ltd.
Voltas Ltd. Voltas Ltd.
Shema Building, Door No. 39/3608, B-15, Arihant Plaza, 2nd floor,
M.G. Road, Ravipuram, Infront of OMFED office, Sahid nagar.
Kochi-682016 Bhubneshwar-751009
T: 0484-6605508/2359624 T: 9178737311
E: agee.koshy@voltas-mh.com F: 0674-2544920
E: satyajit.pattnaik@voltas-mh.com

REGD OFFICE : 5 / 4 Chandan Nagar, Pune - Nagar Road,

Pune 411 014, Maharashtra, INDIA,
PHONE :+91 20 67342105.
Fax : 91 20 67342102.
Voltas Material Handling Pvt. Ltd.
HEAD OFFICE : 5 / 4 Chandan Nagar, Pune - Nagar Road,
Pune 411 014, Maharashtra, INDIA,
PHONE :+91 20 67342105.
Fax : 91 20 67342102.
