Revised 3.22.

19 - JR

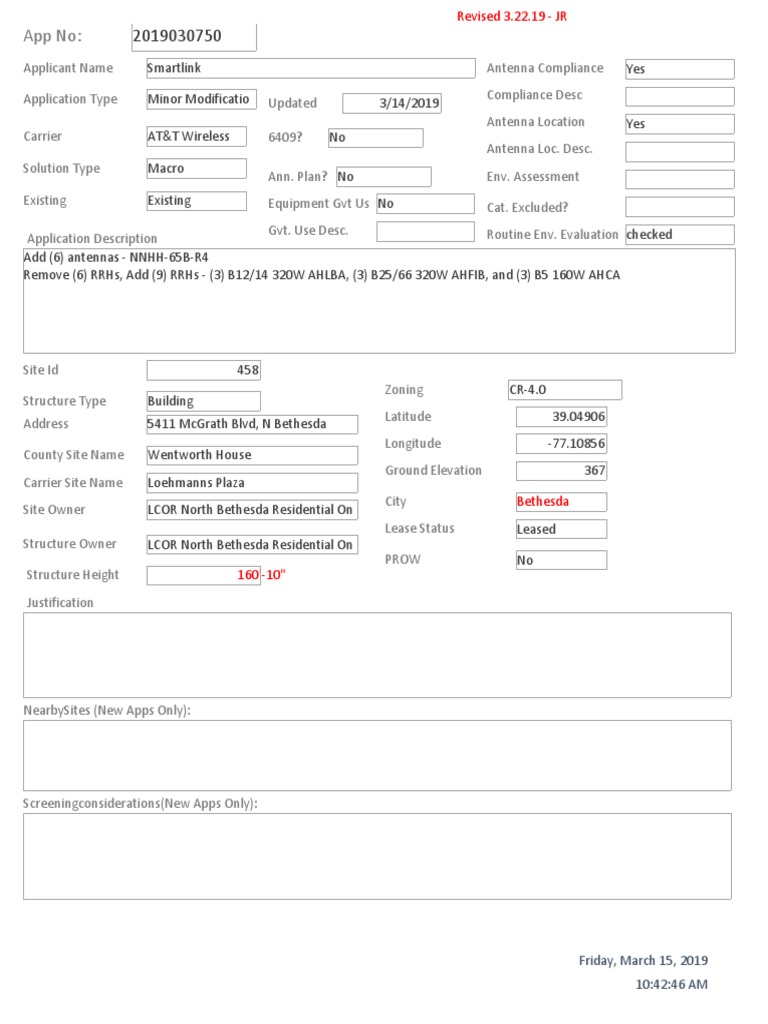

App No: 2019030750
Applicant Name Smartlink Antenna Compliance Yes

Application Type Minor Modificatio Compliance Desc


Updated 3/14/2019
Antenna Location Yes
Carrier AT&T Wireless 6409? No
Antenna Loc. Desc.
Solution Type Macro
Ann. Plan? No Env. Assessment
Existing Existing Equipment Gvt Us No Cat. Excluded?
Gvt. Use Desc. Routine Env. Evaluation checked
Application Description
Add (6) antennas ‐ NNHH‐65B‐R4
Remove (6) RRHs, Add (9) RRHs ‐ (3) B12/14 320W AHLBA, (3) B25/66 320W AHFIB, and (3) B5 160W AHCA

Site Id 458
Zoning CR‐4.0
Structure Type Building
Latitude 39.04906
Address 5411 McGrath Blvd, N Bethesda
Longitude ‐77.10856
County Site Name Wentworth House
Ground Elevation 367
Carrier Site Name Loehmanns Plaza
City Bethesda
Site Owner LCOR North Bethesda Residential On
Lease Status Leased
Structure Owner LCOR North Bethesda Residential On
PROW No
Structure Height 160'-10"
Justification

NearbySites (New Apps Only):

Screeningconsiderations(New Apps Only):

Friday, March 15, 2019
10:42:46 AM
App No: 2019030750

Antenna Model B5 160W AHCA
Frequency 2100 LTE 1710‐1770
RAD Center 184 Max ERP 1608 Antenna Dimensions 13.3" x 11.6" x 6.6" Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model B25/66 320W AHFIB
Frequency 1900 LTE 1865‐1885
RAD Center 184 Max ERP 1584 Antenna Dimensions 22" x 12.1" x 5.9" Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model B12/14 320W AHLBA
Frequency 850 LTE 824‐846.5
RAD Center 184 Max ERP 384 Antenna Dimensions 28.7" x 15.4" x 9.5"  Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model NNHH‐65B‐R4
Frequency 700 FN 788‐798, 700 LTE 704‐716
RAD Center 184 Max ERP 310 Antenna Dimensions 72" x 19.6" x 7.8" Quantity 6

Friday, March 15, 2019
10:42:47 AM
AirScale RRH 4T4R B5 160W AHCA
Capacity, performance, low total cost of ownership and investment protection

Nokia AirScale Remote Radio Head (RRH) AHCA supports band 5 - full band-
along with 4×4 MIMO and 256 QAM modulation to deliver higher data rates.
It offers Nokia’s unique book mounting for faster roll out and radio-integrated
Passive Intermodulation (PIM) cancellation for enhanced network performance.
Furthermore, 4TX and 4RX paths in a single radio unit gives the flexibility to
support 2T2R-2 sectors or 4T4R-single sector from a single unit, for cost-
effective scaling of both coverage and capacity.

Capacity and performance


AirScale RRH 4T4R delivers 160 W (4×40 W) transmit
power and can support 2×2 MIMO, 4×2 MIMO and
4×4 MIMO. The radio supports 256 QAM modulation
in the downlink (DL) for up to 30 percent higher
throughput. The Virtual Spectrum Analyzer feature
enables both uplink and downlink spectrum to be
analyzed.

Low total cost of ownership


With up to two sectors in a single radio, light weight
and zero-bolt book mounting, AirScale RRH 4T4R
allows operators to achieve faster roll outs and
more cost-effective installation and maintenance of
radios and tower space.

Investment protection 28 Gbps capacity. AirScale RRH is part of the AirScale


Base Station portfolio, the next generation Nokia
AirScale RRH 4T4R complements the AirScale System base station platform, and is backwards-compatible
Module, offering a complete base station solution. with the Nokia Flexi Multiradio 10 Base Station to
AirScale System Module is 5G capable and offers best use an operator’s existing investments.

1 Data sheet
AirScale RRH 4T4R B5 160W AHCA
Product name AirScale RRH 4T4R B5 160W AHCA - 473966A
Supported frequency bands 3GPP band 5
Frequencies DL 869-894MHz, UL 824-849MHz
Number of TX/RX ports 4/4
Instantaneous Bandwidth IBW 25MHz
Occupied Bandwidth OBW 25MHz
Output power 4T4R 40 W/ 2T4R 60W
Dimensions (mm) height x width x depth 337 x 295 x 165
Volume (liters) 16.4
Weight (kg) 16.7
Supply Voltage / Voltage Range DC-48V / -36V to -60V
Typical Power Consumption 207 W (ETSI 24h Avg – 4x20W mode)
Antenna ports 4TX/4RX, 4.3-10+
Optical ports 2 x CPRI 9.8 Gbps
ALD control interfaces AISG3.0 from ANT1, 2, 3, 4 and RET
(Power supply ANT1 and ANT3)
Other interfaces External alarm MDR-26 serial connector (4 inputs, 1 output)
DC circular power connector
Operational temperature range -40°C to 55°C (with no solar load)
Ingress protection class IP65
Installation options Pole or wall, RAS, vertical or horizontal book mount
Surge protection Class II 5kA

Nokia is a registered trademark of Nokia Corporation. Other product and company names
mentioned herein may be trademarks or trade names of their respective owners.

Nokia Oyj
Karaportti 3
FI-02610 Espoo
Finland
Tel. +358 (0) 10 44 88 000

Product code: SR1611002341EN (April)

© Nokia 2017 nokia.com


DOC: BTS-HW-2018-109 Date: September 25, 2018

Field Notice
BTS Hardware Product/Solution
Product Name: Nokia_AirScale Dual RRH 4T4R B25/B66
320W (AHFIB)
Product/Solution description: AirScale 4T4R B25/B66 Remote Radio Unit
HQ NP&E RAN Contact: Shahid Waheed (sw905t); Shane Smith (c34017); Effendi Jubilee (ej9883); Ming
Ho(mh8532)
HQ CTO RAN Contact: Dan Edwards (de4055)
HQ SCM Contact: Jeff Brashears (jb245y); Ricky Ayo JR. (ra5144)
HQ FNP Contact: Hull, Brian (bh2374), McAleer Heather (hm5610)
HQ C&E Contact: Thomas Land (tl5529)
HQ NP&E Asset Opt. Contact: Rob Seawright (rs6833)

Review & Approval Committee


ALAM, TANVI FODJE, JULIUS MARTIN, JAMES RIEBE, MICHAEL A WEHAGE, ANNE K
AYERS, JOSHUA P FRAZIER, WILLIAM M MCALEER, HEATHER A SEAWRIGHT, ROB WESBERRY, BENNY
AYO JR., RICKY D GEORGE, MONTY D MCELROY, DOUGLAS P SHARIF, SHAHALI WHITNEY, SCOTT
BRASHEARS, JEFF HO, MING-JU MCKIBBEN, BOB SHELLEY, BRIAN CAPOZZI, NINO
CLARK, ROBERT I HODGDON, DAVID MCKIERNAN, SHANNON T SHEN, ERIC
CLENNAN, LISA HOGG, TURLEY, ADRIENNE MIR, NABEEL SIMON, BEN D
COMPTON, JIM HUDSON, PAUL D MORRISON, SHANE SMITH, C. S
DE OCAMPO, SICILY V HULL, BRIAN MURRAY, HERBERT L SOLENE, LEANN
DEMARCO, TONY JUBILEE, EFFENDI NICI, JAMES SPARKS, GLEN R
EDWARDS, DAN KAMENTZ, TIMOTHY W NIEVES, MARITZA SUNDARAMANI, BANDIT
ELLSBERRY, JASON L KARCHER, MATT W PHAN, DAT TAYLOR, ROB
ERB, BRIAN L LAND, THOMAS PIETZ, BRIAN TELANG, KUNAL R
FITZGERALD, MARY LIDDIL, JAKE PORTZER, BRUCE T WAHEED, SHAHID

Notice:

• FL18-GA3 has achieved GA. It has AirScale Dual RRH 4T4R


B25/B66 320W (AHFIB) to support
- 2T2R, 2T4R or 4T4R mode on B2, B4, and B66A
- CPRI IQ compression (LTE2492) on carrier with either 15MHz or
20MHz that AHFIB could support up to 6 carriers total, 3 carriers
per band total according to Table 2

• AirScale AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) has


achieved GA

• Market shall prepare the 2nd Fronthaul Fiber for future 5G NR.

Page 1 © 2012 AT&T


AT&T Mobility Field Notice-BTS Hardware Product/Solution

Item Master Status


Description
Number
AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) with Ancillary kits, 3 Active
units of SFP7- 2 for RRH sides and 1 for BBU side

Components:
Nokia Part # ATT Item # Qty Description
474384A TBD 2 KIT: PLUG WEATHERIZED-R2CT Short Plug
408978567 CEQ.16546 1 KIT, WEATHERPROOF TAPE
CEQ.19789 471649A CEQ.32098 2 FPKA Flexi Pole Kit
472949A NEQ.20022 3 FOSP Optical SFP P 1310nm 9.8Gb 10km
SM
474216A CEQ.19790 1 AirScale Dual RRH 4T4R B25/B66 320W
(AHFIB)
474283A TBD 1 DC power connector (6 AWG)

AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) – RADIO ONLY as Active
CEQ.19790
Spare

Key Technical Characteristic

Page 2
AT&T Mobility Field Notice-BTS Hardware Product/Solution

AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)


Dimension HxWxD (with Solar
Shield) 22" x 12.1" x 5.9"
Weight (Core Only) 66.1 lbs
Band 25: DL 1930–1995MHz, UL 1850–1915MHz
Frequency Band Band 66: DL 2110–2200MHz, UL 1710–1780MHz
Instantaneous Bandwidth Band 25/ Band 66 – full band
Technology LTE, 5GNR
Rx Diversity 2-Way or 4-way
TX MIMO 2TX or 4TX
RF Power Range 4x40W per band (4x80W Total)
RF Ports 4 ports of 4.3-10 (F)
Operating Temperature -40°C to 55°C, IP65
Wind load (@150km/h or 93mph) 367N (83b)
Power Supply DC-48 V / -36V to -60V
525W (ETSI 24h Avg – 4x20W per band, 40W per TX
Power Consumption port)
AISG RF port AISG on all ports, BiasT support on ANT1 & ANT3
RET Port (RS485) 30 W max, 14.5 V

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) can be supported by the
following baseband products:
o Nokia AirScale BBU-FSM4 (LTE)

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) equipped with 4 RF ports of 4.3-
10 Female Connectors

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) has an integrated Bias Tee on
RF ports TxRx1 and TxRx3.

• Unused RF port connectors must have min of 2-watt load terminator installed,
which are not provided with the Radio CEQs. If needed, they must be ordered
separately.

Page 3
AT&T Mobility Field Notice-BTS Hardware Product/Solution

Application Dependencies:

• Per Policy Letter - RRH Placement, ATT-002-290-744; the ATT deployment


preference is still to place RRH on top by the antenna location.

• CPRI Daisy Chaining is not supported

• 1 CPRI for LTE and 1 CPRI for 5G NR

• Under FL18-GA3 (Sept 2018); AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)
could operate up to 4T4R mode for B2, B4, and B66A.

Antenna Configuration for


AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)
Antenna Bottom View
• Below is the mapping to configure
2T or 4T4R configuration with 4
antenna LO ports

RRH Ports Antenna Ports


Tx/Rx1 (ANT1) H1 +45
Tx/Rx2 (ANT2) H1 -45
Tx/Rx3 (ANT3) H2 +45
Tx/Rx4 (ANT4) H2 -45

• As exception, 2-port antenna


configuration (2T2R) might be used
and it requires the red lines (Tx/Rx1
and Tx/Rx3) to be connected to the
antenna ports.
• Market shall wire the jumpers
accordingly to the table above per
the field notice: 4T4R
Antenna_Radio Port Connections

Page 4
AT&T Mobility Field Notice-BTS Hardware Product/Solution

• Below is the mapping to configure Antenna Bottom View


2T2R configuration with 2 antenna
LO ports

RRH Ports Antenna


Ports
Tx/Rx1 (ANT1) H1 +45
Tx/Rx3 (ANT3) H1 -45

• Under FL18-GA3; AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) supports

- Max 3 carriers on B25 band and Max 3 carriers on B66 band


- LTE2492-IQ CPRI Compression only for 15MHz and 20 MHz LTE Carriers.
With LTE2492 only 3 CPRI ports in ABIA could be used (RF-1, RF-2 and RF-3)

Table 1. CPRI IQ compression (LTE2492)

Page 5
AT&T Mobility Field Notice-BTS Hardware Product/Solution

- Supported BW Combo:

Note1. IQ CPRI Compression needed.


Note2. Since max ABW per CPRI without IQ CPRI Compression is 40MHz; not all
carriers could support 10MHz.
Table 2. Carrier BW Combo

Page 6
AT&T Mobility Field Notice-BTS Hardware Product/Solution

IM Analysis for Multicarrier Capable Radios


Per Intermodulation Distortion Analysis guideline (ATT-002-290-319), markets must run the
Intermodulation (IM) Analysis during their planning phase to anticipate future multicarrier
deployment using a single radio.
Markets must avoid 3rd order IM when operating multiple carriers in single radio by
considering other alternatives such as swapping to other spectrum bands, adding additional
radio or so on.
In addition to the guideline, market could use the tools below for IM analysis.
- Commscope IM tool (easy to use)
Band_and_Block_North_America.zip

- Quintel IM tool
Full Band PIM Simulator (010915) v9_1 no UKL.zip
Full Band PIM Simulator (010915) v9_1 no UKL64.zip (for 64-bit computer)

Identification and Treatment of Assets Removed from Service


The goal of the Mobility Network Asset Acceleration program is to manage, minimize
financial impact when the business dictates a high probability a network element(s) will be
retired prior to the end of its useful life. In-Service RAN equipment associated with pre-
identified company directed decommission initiatives, not defined by the enterprise for
reuse or sparing will qualify for accelerated depreciation treatment when retired. Eligible
items must meet one of the following criteria:

— Part of a Technology turndown (e.g. TDMA, GSM, and CDMA)


— Part of an exception process (Battery Replacement, Antenna Turndown)
— On the Excess & Obsolete list
• Item/part numbers that are on the E&O list are preapproved for retirement
Please note:
• Idle/spare equipment, Destroyed/Damaged Sites, Cancelled Projects are not
eligible for re-class to depreciation expense

Equipment Reuse Program


Under a condition of reusing older equipment in the inventory, a special Reuse Program
might be setup and would supersede this policy letter on how to use the above equipment.

C&E Deployment Notice


When initially installing equipment, such as new site builds (NSB) or first carrier (1C), along
with adding equipment to existing sites (2C, 3C, etc.), the following practices must be
followed:

- Properly dimension equipment per ATT-002-291-223 (C&E Mobility: Cell Site DC Power
and Battery Backup) including, but not limited to:
• DC power plant (rectifiers & converters)

Page 7
AT&T Mobility Field Notice-BTS Hardware Product/Solution

• Commercial AC power feed


• Backup batteries
• Fixed generators
• HVAC
- Complete a Site Power Calculation Tool (SPCT) for properly dimensioning the site (as
directed in ATT-002-290-223)
• Utilize the Rosenberger Voltage Drop Calculator or the Commscope Voltage Drop
Calculator for determining the proper size DC trunk (4, 6 or 8-AWG) and jumper cables
(8, 10 or 12-AWG) for RRH/RRUs
• Max DC jumper cable size from SQUID to radio is 10-AWG; 8-AWG DC jumper may
only be used with a NEMA enclosure style Raycap device, not a SQUID; unless the
RRH is powered via a breaker larger than 30 amps, then follow ATT-CEM-18004
to install #8 AWG DC jumpers
• Shielded DC cable is required
• Max DC trunk (feeder) cable size for SQUID is #4-AWG

Maximum Permissible Exposure (MPE) limits


Market shall follow to the AT&T Radio Frequency (RF) Safety Compliance Program for
complying with the Federal Communications Commission (FCC) regulations on RF safety
requirements to wireless communication services and Maximum Permissible Exposure
(MPE) limits for preventing harmful effects from exposure to RF energy.

Below are RF Safety and MPE guidelines:


- RF Exposure Compliance (ATT-002-290-394)
- RF Exposure: Responsibilities, Procedures & Guidelines (ATT-002-290-078)
Additional Information/Technical References
1. Policy Letter – RRH Placement, ATT-002-290-744
2. LTE RF Network Design Guidelines, ATT-002-290-329
3. LTE eDNB RF Operation Guidelines, ATT-002-290-531
4. ATT-CEM-18002-OEM Radio Breaker Size Standard v5 053018

Refer to website:
o AT&T APEX for guideline and policy letter
o NP&E Emerging Technology- Policy Letter
o NP&E Emerging Technology- Field Notice
o NP&E Emerging Technology- RF HW Equipment Engineering
o C&E Site Support

Page 8
AT&T Mobility Field Notice-BTS Hardware Product/Solution

Revision

Date Remark
Rev
FL18-GA3 achieved GA, AHFIB support CPRI IQ
Sep 25, 2018
6.0 Compression to allow 6C.
Sep 19, 2018 Operate up to 4T4R under FL18-GA3 and after
5.0
Aug 7, 2018 Jumper set up for 2T and 4T
4.0
July 26, 2018 GA under FL18-Dr4.2
3.0
June 27, 2018 FL18-GA2 and G3 support / limitation
2.0
June 8, 2018 Initial Release-Orderable
1.0

Page 9
Product Specifications
NNHH
NNHH--65B
65B--R4
8-port sector antenna, 4x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 4x RETs
Electrical Specifications
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.5 15.0 17.0 17.3 17.5 17.9
Beamwidth, Horizontal,
66 64 60 60 62 58
degrees
Beamwidth, Vertical, degrees 11.8 10.4 7.3 6.8 6.4 5.8
Beam Tilt, degrees 2–14 2–14 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 13 16 15 16
Front-to-Back Ratio at 180°, dB 31 33 37 37 35 33
Isolation, dB 25 25 25 25 25 25
Isolation, Intersystem, dB 30 30 30 30 30 30
VSWR | Return Loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port,
300 300 250 250 250 250
maximum, watts
Polarization ±45° ±45° ±45° ±45° ±45° ±45°
Impedance 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm

Electrical Specifications, BASTA*

* CommScope® supports NGMN recommendations on Base Station Antenna Standards (BASTA). To learn more about the benefits of BASTA,
download the whitepaper Time to Raise the Bar on BSAs.

Array Layout

Port Configuration

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 1 of 3
2017 September 27, 2017
Product Specifications
NNHH
NNHH--65B
65B--R4

General Specifications
Operating Frequency Band 1695 – 2360 MHz | 698 – 896 MHz
Antenna Type Sector
Band Multiband
Performance Note Outdoor usage

Mechanical Specifications
RF Connector Quantity, total 8
RF Connector Quantity, low band 4
RF Connector Quantity, high band 4
RF Connector Interface 4.3-10 Female
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and
mounting bracket
Radiator Material Aluminum | Low loss circuit board
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Location Bottom
Wind Loading, frontal 1147.0 N @ 150 km/h
257.9 lbf @ 150 km/h
Wind Speed, maximum 241 km/h | 150 mph

Dimensions
Length 1828.0 mm | 72.0 in
Width 498.0 mm | 19.6 in
Depth 197.0 mm | 7.8 in
Net Weight, without mounting kit 38.0 kg | 83.8 lb

Remote Electrical Tilt (RET) Information


Input Voltage 10–30 Vdc

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 2 of 3
2017 September 27, 2017
Product Specifications
NNHH
NNHH--65B
65B--R4

Internal RET High band (2) | Low band (2)


Power Consumption, idle state, maximum 1W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Multi-RET)
RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male

Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU Compliant by Exemption
China RoHS SJ/T 11364-2006 Above Maximum Concentration Value (MCV)
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system

Included Products
BSAMNT-4 — Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains
one scissor top bracket set and one bottom bracket set.

* Footnotes
Performance Note Severe environmental conditions may degrade optimum performance

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 3 of 3
2017 September 27, 2017
January 24, 2019

Smartlink, LLC
1449 Whitehall Road
Annapolis, MD 21409
Attn: Nathan Lenig

Subject: Appurtenance Mount Analysis Letter

Carrier Designation: Site Number: 11680129


Site Name: Loehmanns Plaza

Engineering Firm Designation: Providence Project Number: 182236.18

Site Data: 5411 McGrath Boulevard, Bethesda, MD, Montgomery County, 20852
Latitude 39.0490600o, Longitude -77.1085600o
Existing Building Rooftop
Dear Mr. Lenig,

Pursuant to your request we have completed the analysis of the existing AT&T antenna mounts for the proposed
antennas and equipment. The purpose of this review is to determine the conformance of the mounts to be used at
the above referenced site in conjunction with the project in accordance with the governing IBC-2015 and the
applicable industry standard TIA-222-H.

In addition to the existing Commscope SBJAH4-1D65B-DL antenna, AT&T proposes to install two new Commscope
NNHH-65B-R4 antennas at sectors Alpha, Beta and Gamma. The proposed antennas will be mounted to existing
antenna mount pipes, which are attached to an existing antenna frame that also supports concealment panels.
AT&T will remove two existing remote radio heads (RRHs) and add three new Nokia Airscale RRHs (B12/14 320W
AHLBA, B25/66 320W AHFIB and B5 160W AHCA), in addition to the existing Alcatel Lucent RRH (RRH4x25-WCS-4R)
that is to remain, at sectors Alpha, Beta and Gamma. The new RRHs will be mounted to existing vertical pipes.

Per the original calculations (by Entrex Communications Services dated 9/20/16) for the antenna frame with
concealment panels, the wind load on the concealment panels controls the design of the antenna frame and its
support components. Also, the antenna frame was designed for future antenna and equipment dead load such that
the dead loads from existing and proposed antennas and equipment does not exceed the dead load that used for
the original design. Therefore, it is our professional opinion and engineering judgment that the proposed antennas
and equipment does not jeopardize the integrity of the antenna frame and its support components. The existing
mount components have adequate capacity to support the proposed antennas and equipment.

If you have any questions or need further assistance on this or any other projects please give us a call.

Respectfully, Professional Certification: I hereby certify that these


documents were prepared or approved by me,
and that I am a duly licensed professional engineer
under the laws of the State of Maryland,
License No. 43310, Expiration Date: 03/18/2019

Vincent P. Rissler, P.E.


Senior Structural Engineer

PROVENG.COM | 717-509-7000 | INFO@PROVENG.COM


10 Eisenhower Blvd., Lancaster, PA 17603
7150 STANDARD DRIVE
HANOVER, MD 21076

SITE NAME:
LOEHMANNS PLAZA
FA NUMBER: 11680129
5411 MCGRATH BLVD
BETHESDA, MD 20852
JURISDICTION: MONTGOMERY COUNTY, MD

SITE

at&t

T-1
7150 STANDARD DRIVE
HANOVER, MD 21076

A-1
7150 STANDARD DRIVE
HANOVER, MD 21076

A-2
7150 STANDARD DRIVE
HANOVER, MD 21076

A-3
7150 STANDARD DRIVE
HANOVER, MD 21076

A-4
7150 STANDARD DRIVE
HANOVER, MD 21076

A-5
7150 STANDARD DRIVE
HANOVER, MD 21076

A-6
7150 STANDARD DRIVE
HANOVER, MD 21076

A-7
7150 STANDARD DRIVE
HANOVER, MD 21076

A-8
7150 STANDARD DRIVE
HANOVER, MD 21076

A-9
7150 STANDARD DRIVE
HANOVER, MD 21076

A-10
7150 STANDARD DRIVE
HANOVER, MD 21076

A-11
7150 STANDARD DRIVE
HANOVER, MD 21076

A-12
7150 STANDARD DRIVE
HANOVER, MD 21076

“ “

A-13
7150 STANDARD DRIVE
HANOVER, MD 21076

A-14
7150 STANDARD DRIVE
HANOVER, MD 21076

G-1
App No: 2019030750
Applicant Name Smartlink Antenna Compliance Yes

Application Type Minor Modificatio Compliance Desc


Updated 3/14/2019
Antenna Location Yes
Carrier AT&T Wireless 6409? No
Antenna Loc. Desc.
Solution Type Macro
Ann. Plan? No Env. Assessment
Existing Existing Equipment Gvt Us No Cat. Excluded?
Gvt. Use Desc. Routine Env. Evaluation checked
Application Description
Add (6) antennas ‐ NNHH‐65B‐R4
Remove (6) RRHs, Add (9) RRHs ‐ (3) B12/14 320W AHLBA, (3) B25/66 320W AHFIB, and (3) B5 160W AHCA

Site Id 458
Zoning CR‐4.0
Structure Type Building
Latitude 39.04906
Address 5411 McGrath Blvd, N Bethesda
Longitude ‐77.10856
County Site Name Wentworth House
Ground Elevation 367
Carrier Site Name Loehmanns Plaza
City N Bethesda
Site Owner LCOR North Bethesda Residential On
Lease Status Leased
Structure Owner LCOR North Bethesda Residential On
PROW No
Structure Height 179
Justification

NearbySites (New Apps Only):

Screeningconsiderations(New Apps Only):

Friday, March 15, 2019
10:42:46 AM
App No: 2019030750

Antenna Model B5 160W AHCA
Frequency 2100 LTE 1710‐1770
RAD Center 184 Max ERP 1608 Antenna Dimensions 13.3" x 11.6" x 6.6" Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model B25/66 320W AHFIB
Frequency 1900 LTE 1865‐1885
RAD Center 184 Max ERP 1584 Antenna Dimensions 22" x 12.1" x 5.9" Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model B12/14 320W AHLBA
Frequency 850 LTE 824‐846.5
RAD Center 184 Max ERP 384 Antenna Dimensions 28.7" x 15.4" x 9.5"  Quantity 3

Friday, March 15, 2019
10:42:47 AM
App No: 2019030750
Antenna Model NNHH‐65B‐R4
Frequency 700 FN 788‐798, 700 LTE 704‐716
RAD Center 184 Max ERP 310 Antenna Dimensions 72" x 19.6" x 7.8" Quantity 6

Friday, March 15, 2019
10:42:47 AM
January 24, 2019

Smartlink, LLC
1449 Whitehall Road
Annapolis, MD 21409
Attn: Nathan Lenig

Subject: Appurtenance Mount Analysis Letter

Carrier Designation: Site Number: 11680129


Site Name: Loehmanns Plaza

Engineering Firm Designation: Providence Project Number: 182236.18

Site Data: 5411 McGrath Boulevard, Rockville, MD, Montgomery County, 20852
Latitude 39.0490600o, Longitude -77.1085600o
Existing Building Rooftop
Dear Mr. Lenig,

Pursuant to your request we have completed the analysis of the existing AT&T antenna mounts for the proposed
antennas and equipment. The purpose of this review is to determine the conformance of the mounts to be used at
the above referenced site in conjunction with the project in accordance with the governing IBC-2015 and the
applicable industry standard TIA-222-H.

In addition to the existing Commscope SBJAH4-1D65B-DL antenna, AT&T proposes to install two new Commscope
NNHH-65B-R4 antennas at sectors Alpha, Beta and Gamma. The proposed antennas will be mounted to existing
antenna mount pipes, which are attached to an existing antenna frame that also supports concealment panels.
AT&T will remove two existing remote radio heads (RRHs) and add three new Nokia Airscale RRHs (B12/14 320W
AHLBA, B25/66 320W AHFIB and B5 160W AHCA), in addition to the existing Alcatel Lucent RRH (RRH4x25-WCS-4R)
that is to remain, at sectors Alpha, Beta and Gamma. The new RRHs will be mounted to existing vertical pipes.

Per the original calculations (by Entrex Communications Services dated 9/20/16) for the antenna frame with
concealment panels, the wind load on the concealment panels controls the design of the antenna frame and its
support components. Also, the antenna frame was designed for future antenna and equipment dead load such that
the dead loads from existing and proposed antennas and equipment does not exceed the dead load that used for
the original design. Therefore, it is our professional opinion and engineering judgment that the proposed antennas
and equipment does not jeopardize the integrity of the antenna frame and its support components. The existing
mount components have adequate capacity to support the proposed antennas and equipment.

If you have any questions or need further assistance on this or any other projects please give us a call.

Respectfully, Professional Certification: I hereby certify that these


documents were prepared or approved by me,
and that I am a duly licensed professional engineer
under the laws of the State of Maryland,
License No. 43310, Expiration Date: 03/18/2019

Vincent P. Rissler, P.E.


Senior Structural Engineer

PROVENG.COM | 717-509-7000 | INFO@PROVENG.COM


10 Eisenhower Blvd., Lancaster, PA 17603
AirScale RRH 4T4R B5 160W AHCA
Capacity, performance, low total cost of ownership and investment protection

Nokia AirScale Remote Radio Head (RRH) AHCA supports band 5 - full band-
along with 4×4 MIMO and 256 QAM modulation to deliver higher data rates.
It offers Nokia’s unique book mounting for faster roll out and radio-integrated
Passive Intermodulation (PIM) cancellation for enhanced network performance.
Furthermore, 4TX and 4RX paths in a single radio unit gives the flexibility to
support 2T2R-2 sectors or 4T4R-single sector from a single unit, for cost-
effective scaling of both coverage and capacity.

Capacity and performance


AirScale RRH 4T4R delivers 160 W (4×40 W) transmit
power and can support 2×2 MIMO, 4×2 MIMO and
4×4 MIMO. The radio supports 256 QAM modulation
in the downlink (DL) for up to 30 percent higher
throughput. The Virtual Spectrum Analyzer feature
enables both uplink and downlink spectrum to be
analyzed.

Low total cost of ownership


With up to two sectors in a single radio, light weight
and zero-bolt book mounting, AirScale RRH 4T4R
allows operators to achieve faster roll outs and
more cost-effective installation and maintenance of
radios and tower space.

Investment protection 28 Gbps capacity. AirScale RRH is part of the AirScale


Base Station portfolio, the next generation Nokia
AirScale RRH 4T4R complements the AirScale System base station platform, and is backwards-compatible
Module, offering a complete base station solution. with the Nokia Flexi Multiradio 10 Base Station to
AirScale System Module is 5G capable and offers best use an operator’s existing investments.

1 Data sheet
AirScale RRH 4T4R B5 160W AHCA
Product name AirScale RRH 4T4R B5 160W AHCA - 473966A
Supported frequency bands 3GPP band 5
Frequencies DL 869-894MHz, UL 824-849MHz
Number of TX/RX ports 4/4
Instantaneous Bandwidth IBW 25MHz
Occupied Bandwidth OBW 25MHz
Output power 4T4R 40 W/ 2T4R 60W
Dimensions (mm) height x width x depth 337 x 295 x 165
Volume (liters) 16.4
Weight (kg) 16.7
Supply Voltage / Voltage Range DC-48V / -36V to -60V
Typical Power Consumption 207 W (ETSI 24h Avg – 4x20W mode)
Antenna ports 4TX/4RX, 4.3-10+
Optical ports 2 x CPRI 9.8 Gbps
ALD control interfaces AISG3.0 from ANT1, 2, 3, 4 and RET
(Power supply ANT1 and ANT3)
Other interfaces External alarm MDR-26 serial connector (4 inputs, 1 output)
DC circular power connector
Operational temperature range -40°C to 55°C (with no solar load)
Ingress protection class IP65
Installation options Pole or wall, RAS, vertical or horizontal book mount
Surge protection Class II 5kA

Nokia is a registered trademark of Nokia Corporation. Other product and company names
mentioned herein may be trademarks or trade names of their respective owners.

Nokia Oyj
Karaportti 3
FI-02610 Espoo
Finland
Tel. +358 (0) 10 44 88 000

Product code: SR1611002341EN (April)

© Nokia 2017 nokia.com


DOC: BTS-HW-2018-109 Date: September 25, 2018

Field Notice
BTS Hardware Product/Solution
Product Name: Nokia_AirScale Dual RRH 4T4R B25/B66
320W (AHFIB)
Product/Solution description: AirScale 4T4R B25/B66 Remote Radio Unit
HQ NP&E RAN Contact: Shahid Waheed (sw905t); Shane Smith (c34017); Effendi Jubilee (ej9883); Ming
Ho(mh8532)
HQ CTO RAN Contact: Dan Edwards (de4055)
HQ SCM Contact: Jeff Brashears (jb245y); Ricky Ayo JR. (ra5144)
HQ FNP Contact: Hull, Brian (bh2374), McAleer Heather (hm5610)
HQ C&E Contact: Thomas Land (tl5529)
HQ NP&E Asset Opt. Contact: Rob Seawright (rs6833)

Review & Approval Committee


ALAM, TANVI FODJE, JULIUS MARTIN, JAMES RIEBE, MICHAEL A WEHAGE, ANNE K
AYERS, JOSHUA P FRAZIER, WILLIAM M MCALEER, HEATHER A SEAWRIGHT, ROB WESBERRY, BENNY
AYO JR., RICKY D GEORGE, MONTY D MCELROY, DOUGLAS P SHARIF, SHAHALI WHITNEY, SCOTT
BRASHEARS, JEFF HO, MING-JU MCKIBBEN, BOB SHELLEY, BRIAN CAPOZZI, NINO
CLARK, ROBERT I HODGDON, DAVID MCKIERNAN, SHANNON T SHEN, ERIC
CLENNAN, LISA HOGG, TURLEY, ADRIENNE MIR, NABEEL SIMON, BEN D
COMPTON, JIM HUDSON, PAUL D MORRISON, SHANE SMITH, C. S
DE OCAMPO, SICILY V HULL, BRIAN MURRAY, HERBERT L SOLENE, LEANN
DEMARCO, TONY JUBILEE, EFFENDI NICI, JAMES SPARKS, GLEN R
EDWARDS, DAN KAMENTZ, TIMOTHY W NIEVES, MARITZA SUNDARAMANI, BANDIT
ELLSBERRY, JASON L KARCHER, MATT W PHAN, DAT TAYLOR, ROB
ERB, BRIAN L LAND, THOMAS PIETZ, BRIAN TELANG, KUNAL R
FITZGERALD, MARY LIDDIL, JAKE PORTZER, BRUCE T WAHEED, SHAHID

Notice:

• FL18-GA3 has achieved GA. It has AirScale Dual RRH 4T4R


B25/B66 320W (AHFIB) to support
- 2T2R, 2T4R or 4T4R mode on B2, B4, and B66A
- CPRI IQ compression (LTE2492) on carrier with either 15MHz or
20MHz that AHFIB could support up to 6 carriers total, 3 carriers
per band total according to Table 2

• AirScale AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) has


achieved GA

• Market shall prepare the 2nd Fronthaul Fiber for future 5G NR.

Page 1 © 2012 AT&T


AT&T Mobility Field Notice-BTS Hardware Product/Solution

Item Master Status


Description
Number
AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) with Ancillary kits, 3 Active
units of SFP7- 2 for RRH sides and 1 for BBU side

Components:
Nokia Part # ATT Item # Qty Description
474384A TBD 2 KIT: PLUG WEATHERIZED-R2CT Short Plug
408978567 CEQ.16546 1 KIT, WEATHERPROOF TAPE
CEQ.19789 471649A CEQ.32098 2 FPKA Flexi Pole Kit
472949A NEQ.20022 3 FOSP Optical SFP P 1310nm 9.8Gb 10km
SM
474216A CEQ.19790 1 AirScale Dual RRH 4T4R B25/B66 320W
(AHFIB)
474283A TBD 1 DC power connector (6 AWG)

AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) – RADIO ONLY as Active
CEQ.19790
Spare

Key Technical Characteristic

Page 2
AT&T Mobility Field Notice-BTS Hardware Product/Solution

AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)


Dimension HxWxD (with Solar
Shield) 22" x 12.1" x 5.9"
Weight (Core Only) 66.1 lbs
Band 25: DL 1930–1995MHz, UL 1850–1915MHz
Frequency Band Band 66: DL 2110–2200MHz, UL 1710–1780MHz
Instantaneous Bandwidth Band 25/ Band 66 – full band
Technology LTE, 5GNR
Rx Diversity 2-Way or 4-way
TX MIMO 2TX or 4TX
RF Power Range 4x40W per band (4x80W Total)
RF Ports 4 ports of 4.3-10 (F)
Operating Temperature -40°C to 55°C, IP65
Wind load (@150km/h or 93mph) 367N (83b)
Power Supply DC-48 V / -36V to -60V
525W (ETSI 24h Avg – 4x20W per band, 40W per TX
Power Consumption port)
AISG RF port AISG on all ports, BiasT support on ANT1 & ANT3
RET Port (RS485) 30 W max, 14.5 V

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) can be supported by the
following baseband products:
o Nokia AirScale BBU-FSM4 (LTE)

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) equipped with 4 RF ports of 4.3-
10 Female Connectors

• AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) has an integrated Bias Tee on
RF ports TxRx1 and TxRx3.

• Unused RF port connectors must have min of 2-watt load terminator installed,
which are not provided with the Radio CEQs. If needed, they must be ordered
separately.

Page 3
AT&T Mobility Field Notice-BTS Hardware Product/Solution

Application Dependencies:

• Per Policy Letter - RRH Placement, ATT-002-290-744; the ATT deployment


preference is still to place RRH on top by the antenna location.

• CPRI Daisy Chaining is not supported

• 1 CPRI for LTE and 1 CPRI for 5G NR

• Under FL18-GA3 (Sept 2018); AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)
could operate up to 4T4R mode for B2, B4, and B66A.

Antenna Configuration for


AirScale Dual RRH 4T4R B25/B66 320W (AHFIB)
Antenna Bottom View
• Below is the mapping to configure
2T or 4T4R configuration with 4
antenna LO ports

RRH Ports Antenna Ports


Tx/Rx1 (ANT1) H1 +45
Tx/Rx2 (ANT2) H1 -45
Tx/Rx3 (ANT3) H2 +45
Tx/Rx4 (ANT4) H2 -45

• As exception, 2-port antenna


configuration (2T2R) might be used
and it requires the red lines (Tx/Rx1
and Tx/Rx3) to be connected to the
antenna ports.
• Market shall wire the jumpers
accordingly to the table above per
the field notice: 4T4R
Antenna_Radio Port Connections

Page 4
AT&T Mobility Field Notice-BTS Hardware Product/Solution

• Below is the mapping to configure Antenna Bottom View


2T2R configuration with 2 antenna
LO ports

RRH Ports Antenna


Ports
Tx/Rx1 (ANT1) H1 +45
Tx/Rx3 (ANT3) H1 -45

• Under FL18-GA3; AirScale Dual RRH 4T4R B25/B66 320W (AHFIB) supports

- Max 3 carriers on B25 band and Max 3 carriers on B66 band


- LTE2492-IQ CPRI Compression only for 15MHz and 20 MHz LTE Carriers.
With LTE2492 only 3 CPRI ports in ABIA could be used (RF-1, RF-2 and RF-3)

Table 1. CPRI IQ compression (LTE2492)

Page 5
AT&T Mobility Field Notice-BTS Hardware Product/Solution

- Supported BW Combo:

Note1. IQ CPRI Compression needed.


Note2. Since max ABW per CPRI without IQ CPRI Compression is 40MHz; not all
carriers could support 10MHz.
Table 2. Carrier BW Combo

Page 6
AT&T Mobility Field Notice-BTS Hardware Product/Solution

IM Analysis for Multicarrier Capable Radios


Per Intermodulation Distortion Analysis guideline (ATT-002-290-319), markets must run the
Intermodulation (IM) Analysis during their planning phase to anticipate future multicarrier
deployment using a single radio.
Markets must avoid 3rd order IM when operating multiple carriers in single radio by
considering other alternatives such as swapping to other spectrum bands, adding additional
radio or so on.
In addition to the guideline, market could use the tools below for IM analysis.
- Commscope IM tool (easy to use)
Band_and_Block_North_America.zip

- Quintel IM tool
Full Band PIM Simulator (010915) v9_1 no UKL.zip
Full Band PIM Simulator (010915) v9_1 no UKL64.zip (for 64-bit computer)

Identification and Treatment of Assets Removed from Service


The goal of the Mobility Network Asset Acceleration program is to manage, minimize
financial impact when the business dictates a high probability a network element(s) will be
retired prior to the end of its useful life. In-Service RAN equipment associated with pre-
identified company directed decommission initiatives, not defined by the enterprise for
reuse or sparing will qualify for accelerated depreciation treatment when retired. Eligible
items must meet one of the following criteria:

— Part of a Technology turndown (e.g. TDMA, GSM, and CDMA)


— Part of an exception process (Battery Replacement, Antenna Turndown)
— On the Excess & Obsolete list
• Item/part numbers that are on the E&O list are preapproved for retirement
Please note:
• Idle/spare equipment, Destroyed/Damaged Sites, Cancelled Projects are not
eligible for re-class to depreciation expense

Equipment Reuse Program


Under a condition of reusing older equipment in the inventory, a special Reuse Program
might be setup and would supersede this policy letter on how to use the above equipment.

C&E Deployment Notice


When initially installing equipment, such as new site builds (NSB) or first carrier (1C), along
with adding equipment to existing sites (2C, 3C, etc.), the following practices must be
followed:

- Properly dimension equipment per ATT-002-291-223 (C&E Mobility: Cell Site DC Power
and Battery Backup) including, but not limited to:
• DC power plant (rectifiers & converters)

Page 7
AT&T Mobility Field Notice-BTS Hardware Product/Solution

• Commercial AC power feed


• Backup batteries
• Fixed generators
• HVAC
- Complete a Site Power Calculation Tool (SPCT) for properly dimensioning the site (as
directed in ATT-002-290-223)
• Utilize the Rosenberger Voltage Drop Calculator or the Commscope Voltage Drop
Calculator for determining the proper size DC trunk (4, 6 or 8-AWG) and jumper cables
(8, 10 or 12-AWG) for RRH/RRUs
• Max DC jumper cable size from SQUID to radio is 10-AWG; 8-AWG DC jumper may
only be used with a NEMA enclosure style Raycap device, not a SQUID; unless the
RRH is powered via a breaker larger than 30 amps, then follow ATT-CEM-18004
to install #8 AWG DC jumpers
• Shielded DC cable is required
• Max DC trunk (feeder) cable size for SQUID is #4-AWG

Maximum Permissible Exposure (MPE) limits


Market shall follow to the AT&T Radio Frequency (RF) Safety Compliance Program for
complying with the Federal Communications Commission (FCC) regulations on RF safety
requirements to wireless communication services and Maximum Permissible Exposure
(MPE) limits for preventing harmful effects from exposure to RF energy.

Below are RF Safety and MPE guidelines:


- RF Exposure Compliance (ATT-002-290-394)
- RF Exposure: Responsibilities, Procedures & Guidelines (ATT-002-290-078)
Additional Information/Technical References
1. Policy Letter – RRH Placement, ATT-002-290-744
2. LTE RF Network Design Guidelines, ATT-002-290-329
3. LTE eDNB RF Operation Guidelines, ATT-002-290-531
4. ATT-CEM-18002-OEM Radio Breaker Size Standard v5 053018

Refer to website:
o AT&T APEX for guideline and policy letter
o NP&E Emerging Technology- Policy Letter
o NP&E Emerging Technology- Field Notice
o NP&E Emerging Technology- RF HW Equipment Engineering
o C&E Site Support

Page 8
AT&T Mobility Field Notice-BTS Hardware Product/Solution

Revision

Date Remark
Rev
FL18-GA3 achieved GA, AHFIB support CPRI IQ
Sep 25, 2018
6.0 Compression to allow 6C.
Sep 19, 2018 Operate up to 4T4R under FL18-GA3 and after
5.0
Aug 7, 2018 Jumper set up for 2T and 4T
4.0
July 26, 2018 GA under FL18-Dr4.2
3.0
June 27, 2018 FL18-GA2 and G3 support / limitation
2.0
June 8, 2018 Initial Release-Orderable
1.0

Page 9
Product Specifications
NNHH
NNHH--65B
65B--R4
8-port sector antenna, 4x 698–896 and 4x 1695–2360 MHz, 65° HPBW, 4x RETs
Electrical Specifications
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 14.5 15.0 17.0 17.3 17.5 17.9
Beamwidth, Horizontal,
66 64 60 60 62 58
degrees
Beamwidth, Vertical, degrees 11.8 10.4 7.3 6.8 6.4 5.8
Beam Tilt, degrees 2–14 2–14 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 17 18 13 16 15 16
Front-to-Back Ratio at 180°, dB 31 33 37 37 35 33
Isolation, dB 25 25 25 25 25 25
Isolation, Intersystem, dB 30 30 30 30 30 30
VSWR | Return Loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port,
300 300 250 250 250 250
maximum, watts
Polarization ±45° ±45° ±45° ±45° ±45° ±45°
Impedance 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm 50 ohm

Electrical Specifications, BASTA*

* CommScope® supports NGMN recommendations on Base Station Antenna Standards (BASTA). To learn more about the benefits of BASTA,
download the whitepaper Time to Raise the Bar on BSAs.

Array Layout

Port Configuration

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 1 of 3
2017 September 27, 2017
Product Specifications
NNHH
NNHH--65B
65B--R4

General Specifications
Operating Frequency Band 1695 – 2360 MHz | 698 – 896 MHz
Antenna Type Sector
Band Multiband
Performance Note Outdoor usage

Mechanical Specifications
RF Connector Quantity, total 8
RF Connector Quantity, low band 4
RF Connector Quantity, high band 4
RF Connector Interface 4.3-10 Female
Color Light gray
Grounding Type RF connector inner conductor and body grounded to reflector and
mounting bracket
Radiator Material Aluminum | Low loss circuit board
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Location Bottom
Wind Loading, frontal 1147.0 N @ 150 km/h
257.9 lbf @ 150 km/h
Wind Speed, maximum 241 km/h | 150 mph

Dimensions
Length 1828.0 mm | 72.0 in
Width 498.0 mm | 19.6 in
Depth 197.0 mm | 7.8 in
Net Weight, without mounting kit 38.0 kg | 83.8 lb

Remote Electrical Tilt (RET) Information


Input Voltage 10–30 Vdc

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 2 of 3
2017 September 27, 2017
Product Specifications
NNHH
NNHH--65B
65B--R4

Internal RET High band (2) | Low band (2)


Power Consumption, idle state, maximum 1W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Multi-RET)
RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male

Regulatory Compliance/Certifications
Agency Classification
RoHS 2011/65/EU Compliant by Exemption
China RoHS SJ/T 11364-2006 Above Maximum Concentration Value (MCV)
ISO 9001:2008 Designed, manufactured and/or distributed under this quality management system

Included Products
BSAMNT-4 — Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains
one scissor top bracket set and one bottom bracket set.

* Footnotes
Performance Note Severe environmental conditions may degrade optimum performance

©2017 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks, respectively, of CommScope.
All specifications are subject to change without notice. See www.commscope.com for the most current information. Revised: September 27, page 3 of 3
2017 September 27, 2017
7150 STANDARD DRIVE
HANOVER, MD 21076

SITE NAME:
LOEHMANNS PLAZA
FA NUMBER: 11680129
5411 MCGRATH BLVD
ROCKVILLE, MD 20852
JURISDICTION: MONTGOMERY COUNTY, MD

SITE

at&t

T-1
7150 STANDARD DRIVE
HANOVER, MD 21076

A-1
7150 STANDARD DRIVE
HANOVER, MD 21076

A-2
7150 STANDARD DRIVE
HANOVER, MD 21076

A-3
7150 STANDARD DRIVE
HANOVER, MD 21076

A-4
7150 STANDARD DRIVE
HANOVER, MD 21076

A-5
7150 STANDARD DRIVE
HANOVER, MD 21076

A-6
7150 STANDARD DRIVE
HANOVER, MD 21076

A-7
7150 STANDARD DRIVE
HANOVER, MD 21076

A-8
7150 STANDARD DRIVE
HANOVER, MD 21076

A-9
7150 STANDARD DRIVE
HANOVER, MD 21076

A-10
7150 STANDARD DRIVE
HANOVER, MD 21076

A-11
7150 STANDARD DRIVE
HANOVER, MD 21076

A-12
7150 STANDARD DRIVE
HANOVER, MD 21076

“ “

A-13
7150 STANDARD DRIVE
HANOVER, MD 21076

A-14
7150 STANDARD DRIVE
HANOVER, MD 21076

G-1

You might also like
