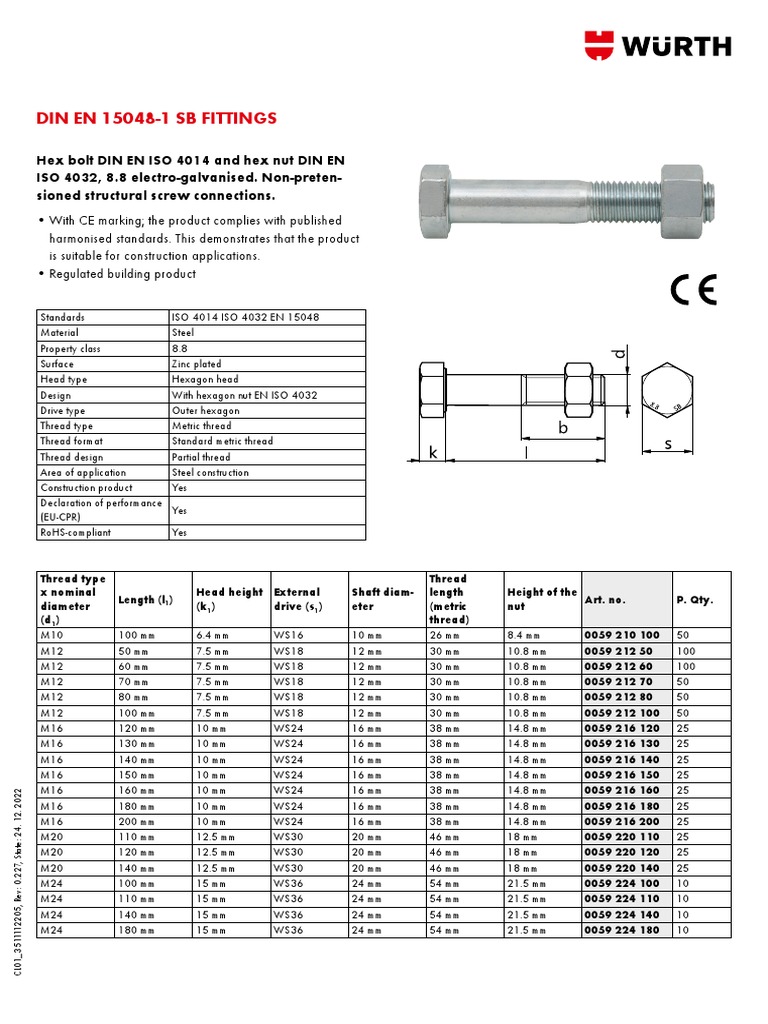

DIN EN 15048-1 SB FITTINGS

Hex bolt DIN EN ISO 4014 and hex nut DIN EN

ISO 4032, 8.8 electro-galvanised. Non-preten-
sioned structural screw connections.
• With CE marking; the product complies with published
harmonised standards. This demonstrates that the product
is suitable for construction applications.
• Regulated building product

Standards ISO 4014 ISO 4032 EN 15048

Material Steel
Property class 8.8
Surface Zinc plated
Head type Hexagon head
Design With hexagon nut EN ISO 4032
Drive type Outer hexagon
Thread type Metric thread
Thread format Standard metric thread
Thread design Partial thread
Area of application Steel construction
Construction product Yes
Declaration of performance
Yes
(EU-CPR)
RoHS-compliant Yes

Thread type Thread

x nominal Head height External Shaft diam- length Height of the
Length (l1) Art. no. P. Qty.
diameter (k1) drive (s1) eter (metric nut
(d1) thread)
M10 100 mm 6.4 mm WS16 10 mm 26 mm 8.4 mm 0059 210 100 50
M12 50 mm 7.5 mm WS18 12 mm 30 mm 10.8 mm 0059 212 50 100
M12 60 mm 7.5 mm WS18 12 mm 30 mm 10.8 mm 0059 212 60 100
M12 70 mm 7.5 mm WS18 12 mm 30 mm 10.8 mm 0059 212 70 50
M12 80 mm 7.5 mm WS18 12 mm 30 mm 10.8 mm 0059 212 80 50
M12 100 mm 7.5 mm WS18 12 mm 30 mm 10.8 mm 0059 212 100 50
M16 120 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 120 25
M16 130 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 130 25
M16 140 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 140 25
M16 150 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 150 25
M16 160 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 160 25
CL01_3511112205, Rev: 0.227, State: 24. 12. 2022

M16 180 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 180 25

M16 200 mm 10 mm WS24 16 mm 38 mm 14.8 mm 0059 216 200 25
M20 110 mm 12.5 mm WS30 20 mm 46 mm 18 mm 0059 220 110 25
M20 120 mm 12.5 mm WS30 20 mm 46 mm 18 mm 0059 220 120 25
M20 140 mm 12.5 mm WS30 20 mm 46 mm 18 mm 0059 220 140 25
M24 100 mm 15 mm WS36 24 mm 54 mm 21.5 mm 0059 224 100 10
M24 110 mm 15 mm WS36 24 mm 54 mm 21.5 mm 0059 224 110 10
M24 140 mm 15 mm WS36 24 mm 54 mm 21.5 mm 0059 224 140 10
M24 180 mm 15 mm WS36 24 mm 54 mm 21.5 mm 0059 224 180 10


 Details/Application
Ideal for indoor use.

Notice
“SB = Structural Bolting; nuts and bolts compliant with DIN EN 15048 must be marked with “SB”.
The thread sizes M8 and M10 with the designation “8.8U” comply with the minimum break strength and test strength (for
threaded bolts of tolerance class 6az) in accordance with EN ISO 10684. Fittings with bolts with shaft (partial thread) consisting
of: Hex bolts DIN EN ISO 4014 and hex nuts DIN EN ISO 4032”
