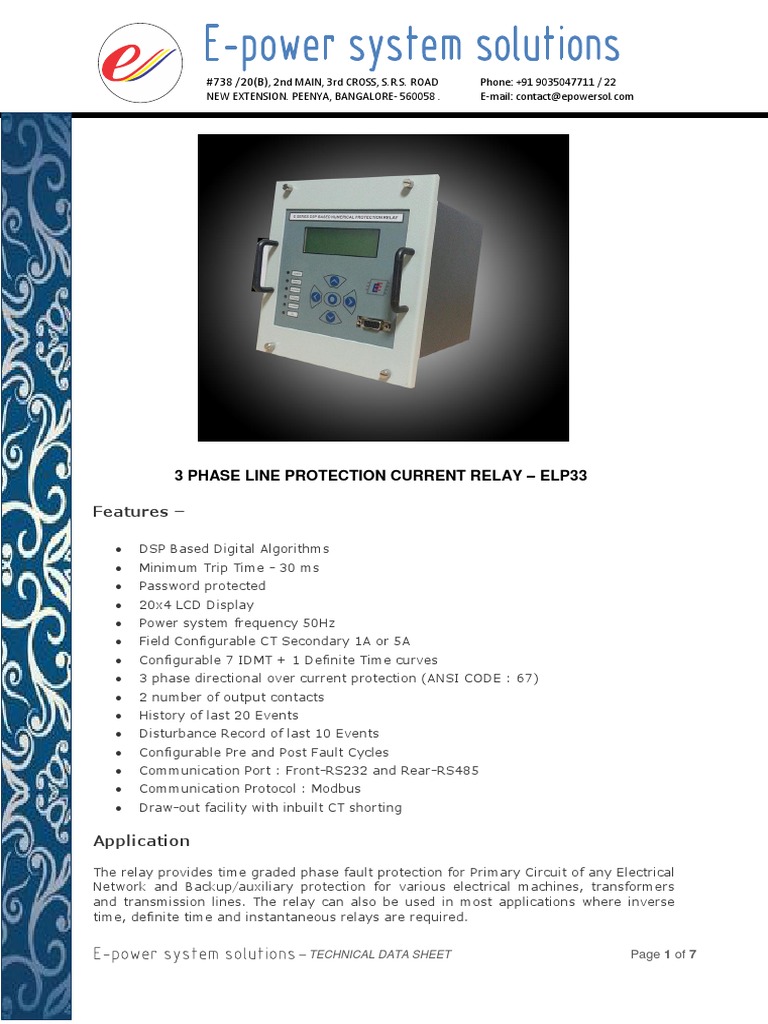

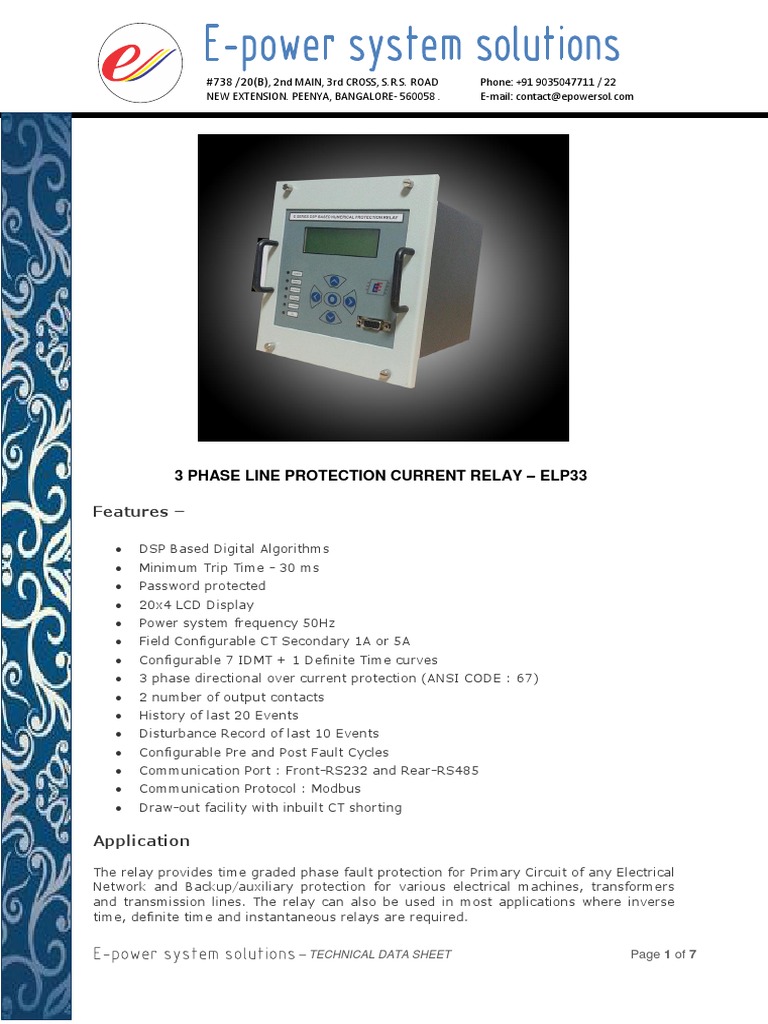

3 PHASE LINE PROTECTION CURRENT RELAY – ELP33

Features –

 DSP Based Digital Algorithms

 Minimum Trip Time - 30 ms
 Password protected
 20x4 LCD Display
 Power system frequency 50Hz
 Field Configurable CT Secondary 1A or 5A
 Configurable 7 IDMT + 1 Definite Time curves
 3 phase directional over current protection (ANSI CODE : 67)
 2 number of output contacts
 History of last 20 Events
 Disturbance Record of last 10 Events
 Configurable Pre and Post Fault Cycles
 Communication Port : Front-RS232 and Rear-RS485
 Communication Protocol : Modbus
 Draw-out facility with inbuilt CT shorting

Application

The relay provides time graded phase fault protection for Primary Circuit of any Electrical
Network and Backup/auxiliary protection for various electrical machines, transformers
and transmission lines. The relay can also be used in most applications where inverse
time, definite time and instantaneous relays are required.

E-power system solutions – TECHNICAL DATA SHEET Page 1 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

Relay Parameters

Sl. No Name Range Step size

Configuration
1 Type of Relay 1/5
2 CT Primary(In = 1A) 1-3000 1
3 CT Primary(In = 5A) 5-3000 5
4 Reset=0/ Lockout=1 0-1 1

Over Current
5 Low Set ( En=1/Dis=0) 0-1 1
6 IDMT Curve 1-8 1

1. Normal Inverse
2. Extremely Inverse
3. Very Inverse
4. Restricted Inverse
5. 3 Sec Delay
6. 1.3 Sec Delay
7. Long Time Delay
8. Definite Time

7 Low Set PSM 0.1-2.5 0.1

8 Low Set TMS(S) 0.1-1 0.01
9 Definite Time(S) 1-100 0.1
10 High Set(En=1/Dis=0) 0-1 1
11 High Set PSM 2-10 0.1
12 High Set Time(S) 0-1 1
13 Direction(En=1/Dis=0) 0-1 1
14 Forward Angle(Degree) 0-180 1
15 Reverse Angle(Degree) 0-180 1
16 Trip Contact 1-2 1

E-power system solutions – TECHNICAL DATA SHEET Page 2 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

Over Load Rating

Current input : 2 times rated continuous

: 20 times rated for 3s
: 40 times rated for 1s

Voltage input : 2 times rated continuous

Burden

Current input : 0.1VA per phase (Rated 5A)

: 0.05VA per phase (Rated 1A)

Voltage input : 0.1VA per phase

Aux. Supply : Less than 6W (non- operated)

: Less than 11W (operated)

Operating Time

Operating Time : Typical 35ms

High set operating time : Typical 30ms

Accuracy

Operating value : +/- 5%

Operating Time : Typical 30ms

Contact Rating

Make and Carry : 1250VA with max Current 5A

Break : 2500VA with max Current 10A
: 200W (Resistive) with max Current 10A

Contact Durability

Loaded contact : 10,000 operations minimum

Unloaded contact : 10,000 operations minimum

E-power system solutions – TECHNICAL DATA SHEET Page 3 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

Terminal Block Diagram

R-CT S1, R-CT S2 : R- Phase Current Terminals

Y-CT S1, R-CT S2 : Y- Phase Current Terminals
B-CT S1, R-CT S2 : B- Phase Current Terminals

R-PT P, R-PT N : R- Phase Voltage Terminals

Y-PT P, R-PT N : Y- Phase Voltage Terminals
B-PT P, R-PT N : B- Phase Voltage Terminals

X : Not Applicable

RLY 1 NO, RLY2 NO : Normally Open Contacts

RLY 1 NC, RLY2 NC : Normally Closed Contacts
RLY 1 CM, RLY2 CM : Common Contacts

RS485+, RS485- : RS485 Comm. Terminals

AUX+, AUX- : Auxiliary Terminals

E-power system solutions – TECHNICAL DATA SHEET Page 4 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

E-power system solutions – TECHNICAL DATA SHEET Page 5 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

E-power system solutions – TECHNICAL DATA SHEET Page 6 of 7

 #738 /20(B), 2nd MAIN, 3rd CROSS, S.R.S. ROAD Phone: +91 9035047711 / 22
NEW EXTENSION. PEENYA, BANGALORE- 560058 . E-mail: contact@epowersol.com

ORDERING INFORMATION

1 2 3 4 5 6 7 8 9 10

E P X X X X X X X 0

Character Index Description

1,2 EP : E Series Protection Relays
3,4,5 Protection Functions
OCD : Over Current Directional
OCN : Over Current Non-Directional

6 No. of Voltage Channels

7 No. of Current Channels
8 Communication

0 : No Communication
1 : Communication with Modbus
9 Auxillary Voltage
1 : 120-280 V AC
10 0 : Reserved

Example:

1. 3 Phase Directional Over Current Relay without communication. The order code is
EPOCD33010

2. 3 Phase Directional Over Current Relay with communication. The order code is
EPOCD33110
