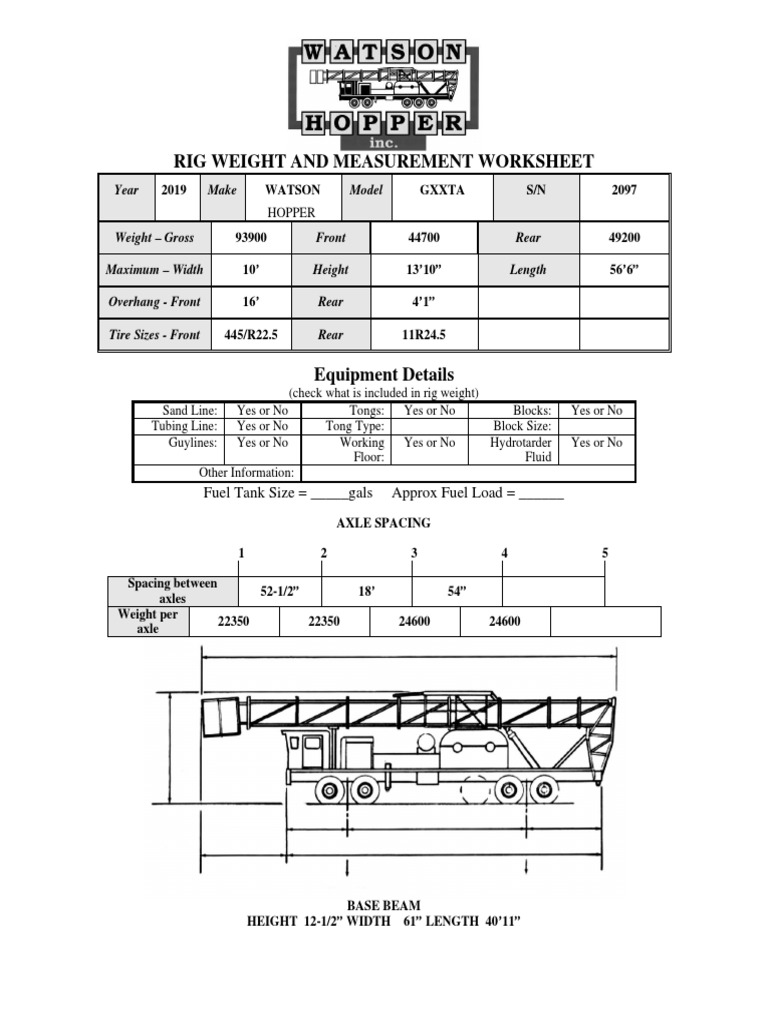

RIG WEIGHT AND MEASUREMENT WORKSHEET

Year 2019 Make WATSON Model GXXTA S/N 2097

HOPPER
Weight – Gross 93900 Front 44700 Rear 49200

Maximum – Width 10’ Height 13’10” Length 56’6”

Overhang - Front 16’ Rear 4’1”

Tire Sizes - Front 445/R22.5 Rear 11R24.5

Equipment Details
(check what is included in rig weight)
Sand Line: Yes or No Tongs: Yes or No Blocks: Yes or No
Tubing Line: Yes or No Tong Type: Block Size:
Guylines: Yes or No Working Yes or No Hydrotarder Yes or No
Floor: Fluid
Other Information:
Fuel Tank Size = _____gals Approx Fuel Load = ______
AXLE SPACING

1 2 3 4 5

Spacing between
52-1/2” 18’ 54”
axles
Weight per
22350 22350 24600 24600
axle

BASE BEAM
HEIGHT 12-1/2” WIDTH 61” LENGTH 40’11”
