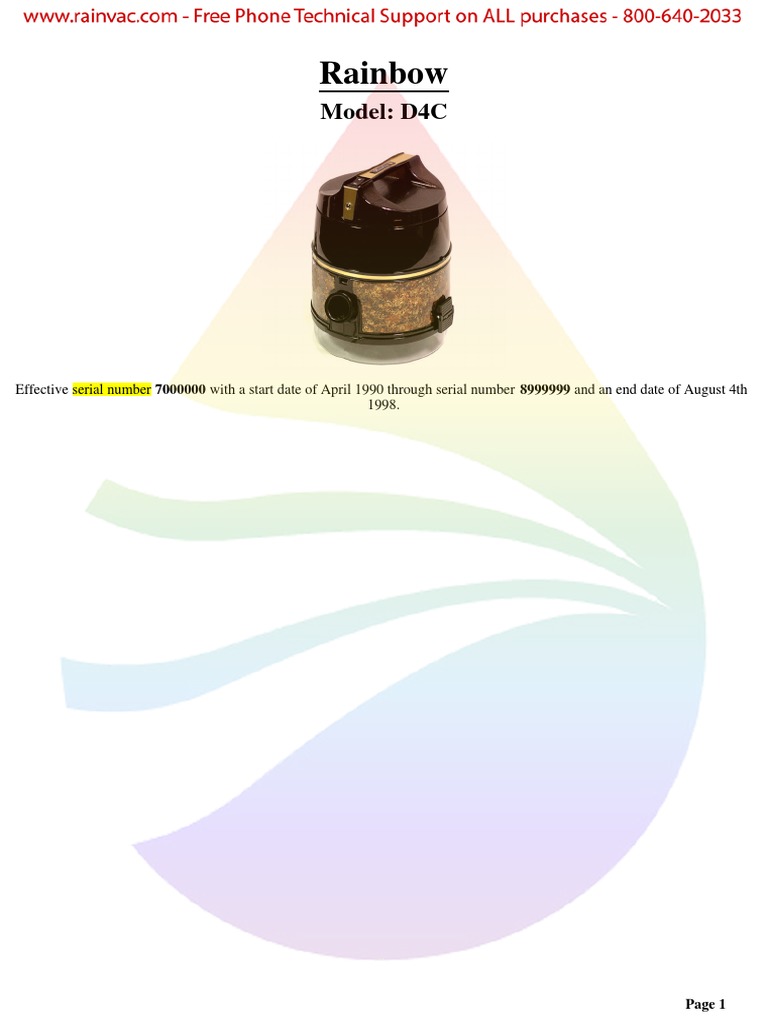

Rainbow

Model: D4C

Effective serial number 7000000 with a start date of April 1990 through serial number 8999999 and an end date of August 4th
1998.

Page 1
 Cap Assembly

This category covers the complete Rainbow D4 cap cover assembly replacement parts that include the main power
switch, handle pad, and inner baffle.

This early version has four wires coming from the switch.

Page 2
# Image Item Name Item # Price

1 Applique, Handle, D4 R2721 Discontinued*

2a Cap Cover Asm, D4 R3160 $79.30 USD*

2b Cap / Cap Cover Asm, D4 R3240 $86.79 USD*

3 Handle Pad, D4 R2584 Discontinued*

4a Cap, D4 R3470 $22.40 USD*

4b Cap, SE R4369 $21.32 USD*

5 Screw, #10-10 x .62 Inch H515 $0.88 USD*

$23.14 USD
6a Switch, D4 R2728
$18.79 USD*

6b Closed End Connector, Large R2755 $0.88 USD*

7 Applique, Side Handle, D4 R2722 $8.91 USD*

8a Applique, Cap, D4 R2592 Discontinued*

8b Applique, Cap, SE R5403 Discontinued*

9 Baffle, Inner, D4 R2764 $12.68 USD*

* Prices correct as of November 5, 2021, 3:01 pm.

Page 3
 Main Housing

This category covers the complete Rainbow D4 main housing assembly replacement parts that include the main
power cord, exhaust cover, latches, and motor gasket.

Page 4
# Image Item Name Item # Price

$9.88 USD
1 Shroud, Cooling Fan, D4 R2582
$7.30 USD*

2 Screw, #8-10 x .62 Inch H556 $0.23 USD*

$3.58 USD
3 Outer Clamp, Motor Mount, D4 R2172
$2.20 USD*

$3.28 USD
4 Inner Clamp, Motor Mount, D4 R2585
$2.02 USD*

$11.86 USD
5 Motor Mount, D4 R2701
$7.30 USD*

$2.93 USD
6 Strain Relief Clip, D4 R2607
$1.87 USD*

7a O-Ring, 1.614 ID x 1.754 OD, R3845 R4148 Discontinued*

7b Non-Wettable Foam Filter R4176 Discontinued*

8a Exhaust Cover, D4, v2 R3845 Out of Stock*

8b Exhaust Cover, D4, v1 R2708 $7.58 USD*

Product Details Unavailable - Please call us for availability CALL

9 -
Quote: /rainbow-vacuum-schematics/d4/main-housing #9 800-640-2033

10 Electric Cord, D4 R4052 $35.13 USD*

11 Strain Relief Clip, Plastic R2605 $1.56 USD*

12 Screw, #10-10 x .62 Inch H515 $0.88 USD*

13 Baffle Plate, D4 R2909 $16.22 USD*

$14.27 USD
14 Gasket, Motor, D4 R2702
$8.78 USD*

Product Details Unavailable - Please call us for availability CALL

15 -
Quote: /rainbow-vacuum-schematics/d4/main-housing #15 800-640-2033

16 Receptacle, P/Nozzle, D4 R3184 $12.29 USD*

* Prices correct as of November 5, 2021, 3:01 pm.

Page 5
# Image Item Name Item # Price

17 Main Housing, SE R4230 $83.53 USD*

18 Applique, Main Housing, SE R4201 Discontinued*

19 Latch, D4/D3 R6178 $9.23 USD*

20 Applique, Latch, SE R4203 Discontinued*

21 Spring, Latch, D4 R2654 $1.76 USD*

22 Pin, Latch, D4/D3 R1566 Discontinued*

23 Screw, #8-10 x .50 Inch H491 Discontinued*

24 Water Pan, 2 Qt, D4/D3 R6854 $43.20 USD*

* Prices correct as of November 5, 2021, 3:01 pm.

Page 6
 Motor Assembly

This category covers the complete Rainbow D4 motor assembly replacement parts that include the bearings,
armature, separator, flange, and carbon brushes.

Page 7
# Image Item Name Item # Price

0 Motor, Rainbow, 120v, D4 R3242 Discontinued*

1 Screw, #10-10 x 2.81 Inch, Field, D4 H545 $1.20 USD*

2a Bearing, D4/D3 R1981 $14.78 USD*

2b Bridge / Bearing Asm, D4 R2677 $33.61 USD*

3a Motor Brush, D4/D3 R2421 $18.34 USD*

3b Motor Brush, D4, v2 R5125 $16.91 USD*

$1.82 USD
4 Clip, Brush Holder, D4 R2703
$0.92 USD*

5a Field, 120v, D4 R3159 $19.79 USD*

$25.00 USD
5b Thermal Cut-Off, D4 NTE8125
$6.79 USD*

6 Motor Base / Bearing Asm, D4 R2773 $65.94 USD*

7 Motor Base, D4 R2636 $34.28 USD*

8 Spacer, Upper, D4 R2680 $1.79 USD*

9 Spacer, Middle, D4 R2681 $7.41 USD*

10 Spacer, Lower, D4 R2679 $6.05 USD*

11 Clip, Motor Base, D4 R2682 Out of Stock*

12 Housing, Lower Motor, D4 R2774 Discontinued*

13 Bearing, D4/D3 R1981 $14.78 USD*

14 Shield, Bearing, D4 R2630 Out of Stock*

* Prices correct as of November 5, 2021, 3:01 pm.

Page 8
# Image Item Name Item # Price

15 Spider, D4/D3, v2 R4101 Discontinued*

16 Housing Asm, Lower Motor, D4 R4612 Discontinued*

17 Screw, #8-10 x .43 Inch, R747, D4 H542 $0.48 USD*

18 Nut, Spider, D4/D3 H526 $1.76 USD*

19 Nut, Separator, SE H555 Out of Stock*

20 Motor Cooling Fan, D4 R3277 Out of Stock*

21a O-Ring, .364 ID x .504 OD, D4 R2936 Discontinued*

21b Tolerance Ring, SE R5758 $3.02 USD*

22 Washer, Wave, D4 R2525 $1.20 USD*

23 Washer, Insulator, D4 R2946 Discontinued*

24a Armature, Tall, 120v, D4 R5319 Out of Stock*

24b Retaining Ring, D4/D3 H523 $1.30 USD*

25a Brush Holder, D4, v1 R2700 Discontinued*

$4.32 USD
25b Brush Holder, D4, v2 R5124
$2.66 USD*

26 Boot, Bearing, D4/D3 R1987 $2.88 USD*

27 Stage, Upper, D4 R2613 Discontinued*

28 Fan, D4 R2609 $16.61 USD*

29 Stage, Lower, D4 R2617 $15.49 USD*

* Prices correct as of November 5, 2021, 3:01 pm.

Page 9
# Image Item Name Item # Price

30 Slinger Ring, D4/D3 R1979 Discontinued*

31 Air Deflector, D4 R2698 $7.16 USD*

$14.98 USD
32 Flange, D4/D3/D2 R747
$9.22 USD*

$22.26 USD
33 Separator, D4/D3, v2 R4100
$18.79 USD*

34 Bearing, D4 R5238 $16.92 USD*

* Prices correct as of November 5, 2021, 3:01 pm.
