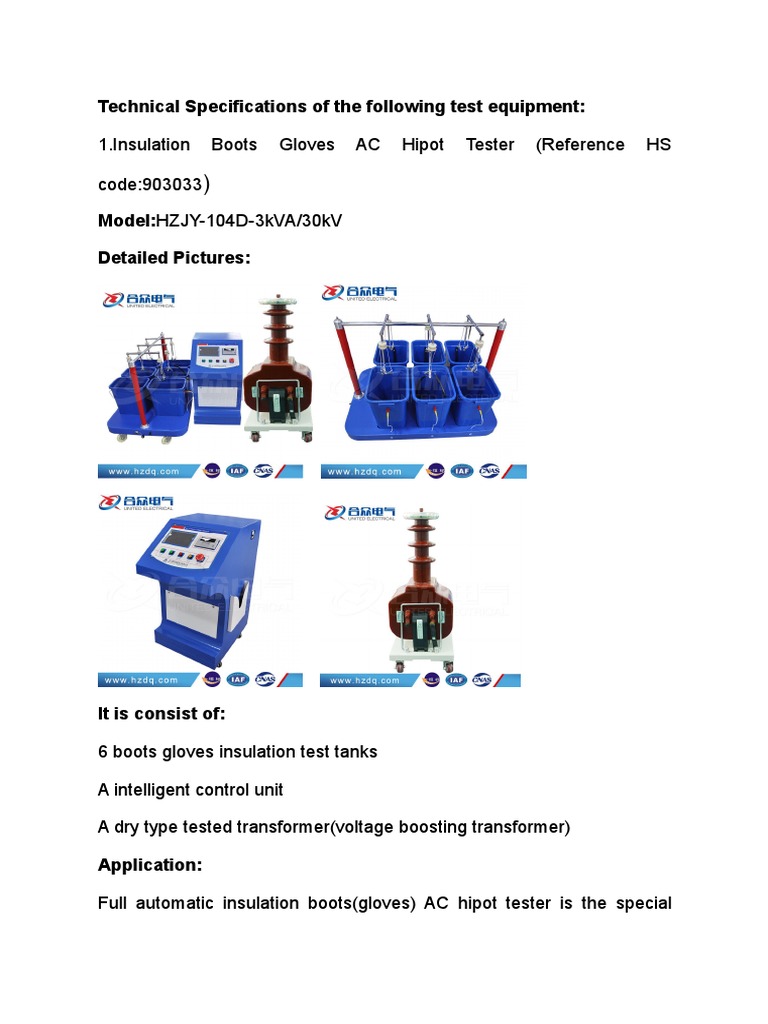

Technical Specifications of the following test equipment:

1.Insulation Boots Gloves AC Hipot Tester (Reference HS

code:903033)

Model:HZJY-104D-3kVA/30kV

Detailed Pictures:

It is consist of:

6 boots gloves insulation test tanks

A intelligent control unit

A dry type tested transformer(voltage boosting transformer)

Application:

Full automatic insulation boots(gloves) AC hipot tester is the special

 equipment for batch test of insulating boot(glove). It can effectively solve

the past irregular test method, simplifies the test program, improve the

detection speed and reduce the test strength, ensure the safety of the

inspectors, reliable identification leakage current of insulating boots

(gloves), insulation aging and parameters of power frequency voltage

withstand. It can simultaneously detect 6pcs insulating gloves,

(boots).Can also be used for insulating tools measurement, the device

integrating high voltage power source and control system, with the

features of junction box testing is simple, layout is reasonable and

reliable, convenient movement, disassembling flexible, is an ideal and

replacement product.

Technical specifications of the completed system:

Rated Capacity 3kVA Leakage Current 0~17.0mA

AC 220V±10% Leakage Current Resolution 0.1mA

Input Voltage
50Hz/60Hz±1

Output Voltage 0-30KV，AC Current Accuracy <1.5%(F.S)

Voltage Accuracy <1.5%(F.S) Timing Range 0~999S

Low Voltage Current 0~13.64A Environment Temperature -20℃~50℃

 2. Transformer oil BDV test set (Reference HS code: 903033)

Model:HZJC-202

Detailed Picture:

Application:
HZJC-202 insulated oil BDV (dielectric strength) tester is single cup used to test
transformer oil dielectric strength.The instrument is simple and easy to operate due
to adopt automatic digital microcomputer control, the measurement precision is high,
anti-interference ability is strong, safe and reliable.

Technical specifications:
Power Source Distortion
Booster Capacity 1.5kVA ＜1%
Factor
2.0 kV/s，3.0 kV/s, 2 gears
Step-up Speed Display Method Large LCD screen
option
Output Voltage 0～80 kV Electrode Gap Standard 2.5 mm
3.Single phase DC wingding resistance tester(Reference HS code:

903033)

Model:HZ210-10A

Detailed Picture:

Application:

DC resistance test is the necessary test item for a transformer handover

before delivery, it is the ideal equipment to measure DC resistance of

transformer winding and high-power inductive devices.

Technical specifications:
Measurement Measurement Measurement Display and
Mode Power Source
Range Current Accuracy Printing
AC220±10% 0.2%±2 bit Crystal with
HZ210-10A 0.2mΩ~10Ω 0.2~10A
45Hz—60Hz (25±2℃) printer
4.Digital Insulation Resistance Meter(Reference HS code: 903033)

Model:HZJY-624-5kV or HZJY-624-10kV

Detailed Picture:

Application:

HZJY-624 digital insulation resistance meter, also known as megohm

meter, high voltage insulation resistance meter, mainly used for

insulation resistance testing.

It also has shockproof, dustproof and moisture-proof structure, which is

suitable for harsh working environment. It is a common and essential

meter for telecom, electric power, meteorology, machine room, oil field,

electromechanical installation and maintenance as well as industrial

enterprise departments that use electric power as industrial power or

energy.It is suitable for measuring the insulation resistance of various

insulating materials and transformers, motors, cables and electrical

equipment.

Technical Specification:
 Function Insulation resistance test, voltage test
Basic condition 23℃±5℃，<75%RH
Rated Voltage(V) 250；500；1000；2500；5000V；10KV
Measuring Voltage(V) Rated voltage×（1±10%）
Measuring range of insulation 0.01MΩ～1000GΩ
resistance（GΩ） Accuracy:±3%rdg±5dgt
Insulation resistance 0.01MΩ
resolution
DC voltage measuring range 0～1000V
DC voltage resolution 0.1V
AC voltage measuring range 0～750V
AC voltage resolution 0.1V
Output short-circuit current ≥5mA(10KV)
DAR & polarization index yes
Power supply 12V rechargeable battery
Backlight Controllable grey screen backlight, suitable for dim places
Display mode Large LCD display, gray screen backlight
LCD size 108mm×65mm
Meter size L277.2mm×W227.5mm×H153mm
With USB interface, software monitoring, storage data can be uploaded
USB port
to the computer, save and print
Communication line 1pcs USB communication line
high voltage rod is red 3m, the high voltage testing line is black 1.5 m,
Testing line
green line is 1.5m
Data storage 500 group，The "FULL" symbol flashes to indicate that the storage is full
Data query Data query function: "READ" symbol display
Overflow Indication Overflow function: "OL" symbol display
When the measured value exceeds the set alarm value, an alarm will be
Alarm function
given
Stand by computer: 30mA Max(backlight closed)
Power Consumption Turn on, the backlight: 42mA Max
Measurement：200mA Max(backlight closed)
Meter weight 2.720kg(including buttery)
Battery voltage Insufficient battery voltage, display low power symbol“ ”

Auto Power -Off meter no operation 15 minutes shutdown

Insulation resistance ≥50MΩ(Measure the distance between the circuit and the housing)
Voltage withstand AC 3kV/50Hz 1min
Operating temperature and －10℃～+50℃＜85%RH
humidity
Storage temperature and －15℃～+55℃＜90%RH
humidity
IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54),Pollution etc.
Suitable for safety
2.CAT Ⅲ 300V
 5.Adjustable high voltage digital Mega ohm meter(Reference HS code:

903033)

Model:HZJY-622-5kV

Detailed Picture:

Application:

HZJY-622 adjustable high voltage digital Mega ohm meter is designed

and developed in order to solve the electrical insulation resistance test

for large high voltage transformer, electric motor, remote power cables

or buried cable under site strong interference of the high voltage

substation and power plant. It can also be used for a wide range of

electrical insulation resistance measurements.

Technical specification:

Voltage Short Circuit Resistance Measurement

Model Test Voltage
Accuracy Current Range
HZ622-5kV 0~0.25, 0.5, 1, 2.5, 5kV ±(5%+10V) >5mA 0.5~19.99MΩ
 6.Full-Automatic Transformer Turn Ratio Tester(Reference HS code:

903033)

Model:HZZB-201A

Detailed picture:

Application:
HZZB-201 automatic transformer turn ratio tester is a new generation automatic
transformer ratio tester developed by our company adopting modern electrode
techniques. It is small volume, light weight, high precision, good stability. It uses the
large screen display menu operation, friendly interface, can measure ratio group by
one time.

Technical specifications:
AC 220±10%
Power source Phase difference resolution 0.001
45Hz--60Hz
Ratio range 1.0000~9999.9 Volume 400x335x185 mm²
Group Group 1~group 12 Weight 8kg
Phase difference Ration measurement
0~360 0.1%
measurement range accuracy
