Upgrades

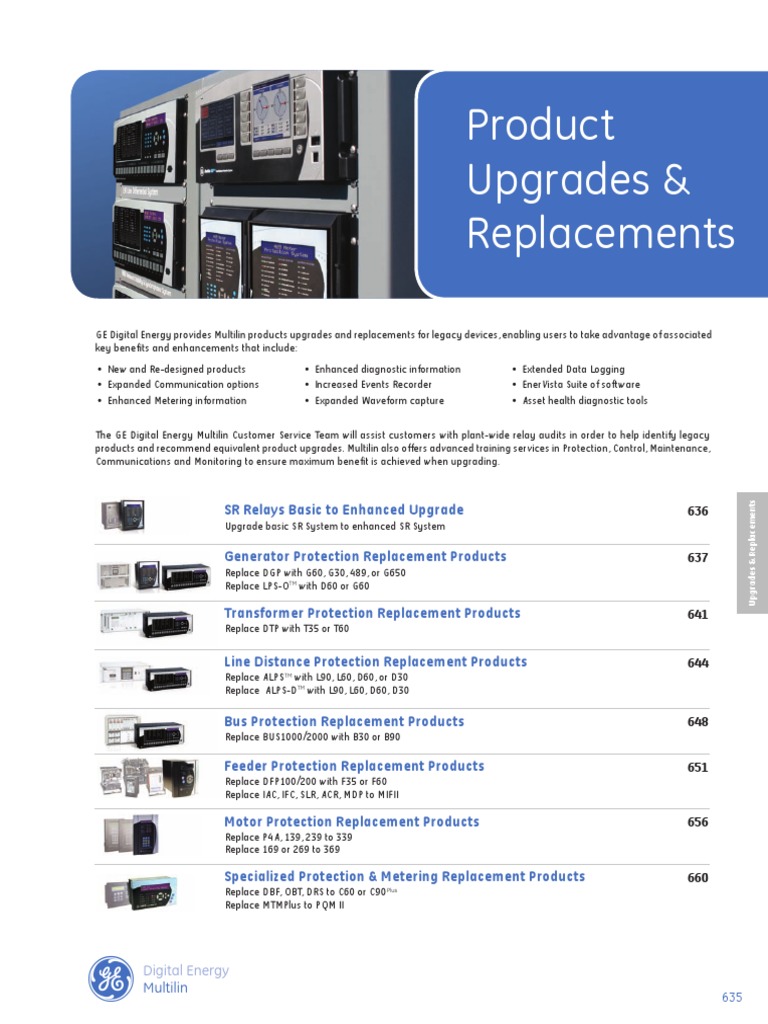

Product
Upgrades &
Replacements
GE Digital Energy provides Multilin products upgrades and replacements for legacy devices, enabling users to take advantage of associated
key benefits and enhancements that include:
• New and Re-designed products • Enhanced diagnostic information • Extended Data Logging
• Expanded Communication options • Increased Events Recorder • EnerVista Suite of software
• Enhanced Metering information • Expanded Waveform capture • Asset health diagnostic tools
The GE Digital Energy Multilin Customer Service Team will assist customers with plant-wide relay audits in order to help identify legacy
products and recommend equivalent product upgrades. Multilin also offers advanced training services in Protection, Control, Maintenance,
Communications and Monitoring to ensure maximum benefit is achieved when upgrading.
Upgrades & Replacements

SR Relays Basic to Enhanced Upgrade 636
Upgrade basic SR System to enhanced SR System
Generator Protection Replacement Products 637

Replace DGP with G60, G30, 489, or G650
Replace LPS-OTM with D60 or G60
Transformer Protection Replacement Products 641

Replace DTP with T35 or T60
Line Distance Protection Replacement Products 644

Replace ALPSTM with L90, L60, D60, or D30
Replace ALPS-DTM with L90, L60, D60, D30
Bus Protection Replacement Products 648

Replace BUS1000/2000 with B30 or B90
Feeder Protection Replacement Products 651

Replace DFP100/200 with F35 or F60
Replace IAC, IFC, SLR, ACR, MDP to MIFII
Motor Protection Replacement Products 656

Replace P4A, 139, 239 to 339
Replace 169 or 269 to 369
Specialized Protection & Metering Replacement Products 660

Replace DBF, OBT, DRS to C60 or C90Plus
Replace MTMPlus to PQM II
g Digital Energy
Multilin
635
SR Relays
Basic to Enhanced Upgrade
Upgrade your SR Basic to a
newer, more advanced SR
Enhanced Relay
Upgrade
Consider upgrading your current SR Systems, to a newer, more advanced version. Take advantage of additional benefits not
available with older versions of the SR Systems. Send us your old SR Basic System and we will implement, at your choice, one or
all of the following updates:
• Replace internal boards with the latest hardware version • Replace the old face plate with the newer enhanced version
• Environmental protection to the electronic boards of your • Install new options

SR System by applying conformal coating for chemically • Upgrade the relay firmware to the latest version
harsh environments
• Full test and calibration
Key Benefits
• 2 Year Service Warranty

• Extend the life expectancy of your SR System when installed in chemically harsh environments
• Additional memory for future implementation of new features
• Future firmware upgrades not compatible with older hardware versions
Features
Features
• Best in class man machine interface (MMI) - Large backlit display with 40 characters to view relay information and settings in
direct sunlight, full numerical keypad, and setpoint navigation keys.
• Re-designed keypad and menu structure
• New communication protocols - Modbus RTU over TCP/IP, Profibus & Device Net interface available.
• New Ethernet capabilities to drastically increase communication speed and data transfer rates between the SR Relays and the
Local Operation Interface or Remote SCADA System.
Expanded memory for:

• Sequence of event recorder - between 256 and 512 timestamped
events, depending on the SR Product
• Waveform capture - more waveform capture events with more
samples of data
• Data Logger - Variable sampling rates and more data stored in
the relay memory
For more information on services, upgrades, pricing, or to place an order

via our On Line Store at www.GEMultilin.com/onlinestore
636 g Digital Energy

Multilin
DGP, To G60, G30,
489 or G650 Replacement
DGP Digital Generator Protection

The DGP is a digital system, which provides protection, monitoring, control and recording functions for AC generators. It has been used
on generators driven by steam, gas and hydraulic turbines. All sizes of generators has been protected with the DGP.
To take advantage of the latest in technology and the new developments for Generator Protection consider the DGP replacements,
depending on the specific application needs.

UR Family
• G60 Generator Protection System for Generators of any size
• G30 Generator Protection System for small to medium
generators or for applications needing in-zone transformer
protection
Key Benefits
• Flash memory for product field upgrade • Front panel display and keypad for local direct access, with
• Multiple breaker support an RS232 port for local PC access
• Multiple communication options and protocols • Customize protection and control functions with
Programmable logic (FlexLogic™), custom time-current
• Exchange inputs and outputs between relays via high speed curves (FlexCurves™), and custom built protection and
communications control functions (FlexElements™)
• Incorporates protection and control functions, • Multi-language support - French, Chinese, Russian option
programmable pushbuttons, programmable status LEDs, and
communication interfaces • Networking options - Ethernet-fiber (optional redundancy),
RS485
• Modular construction simplifying and reducing the stock of
spare parts • Pilot channel options - Direct fiber for up to 150 km, RS422,
G.703, direct to multiplexer fiber C37.94
• Multiple I/O options
• Multiple protocols - IEC61850, DNP 3.0 Level 2, Modbus RTU,
• Embedded IEC61850 Protocol - No external protocol Modbus TCP/IP, IEC 60870-5-104
converters required
• Direct exchange of Inputs/Outputs - exchange of binary data
• Rich Metering - current, voltage, power, energy, frequency between peer G60s via communication link
g Digital Energy
Multilin
637
Product Upgrades and Replacements
SR Family
• 489 Generator Protection
System Primary, backup and co-generator applications with 25, 50
or 60 Hz synchronous or induction generators
Key Benefits
• Multiple RTD inputs for stator thermal protection • IRIG-B time synchronization, event reports, waveform
• Advanced monitoring functions - vibration, bearing capture, data logger, learned data
temperature through Analogue I/O • Built in simulation features for setpoint verification
• Large backlit display with 40 characters to view relay • Multiple communication ports and protocols -Via Modbus
information and settings in direct sunlight, full numerical RTU and DNP3.0 Level 2 protocols, through standard RS232
keypad, and setpoint navigation keys. & RS485 serial ports, optional Modbus TCP/IP through
• Accurate metering during start up and system disturbances embedded Ethernet Port
- Tracks power system frequency and adjusts sampling rate • Optional conformal coating for application in chemically
accordingly corrosive and humid environments
• Built in inductive hall effect sensor for speed monitoring • Rich metering: A, V, W, VAR, VA, Wh, VARh, PF, Hz, demand
• Flash memory for product field upgrade A, W, VAR, VA
• Draw-out construction • RS232 and RS485 ports - up to 19,200 bps, Ethernet port
650 Family
• G650 Machine Controller
Distributed generation management, primary protection and
control where distributed I/O is a requirement to interact with

prime mover control system
Key Benefits
• Reliable Distributed Generation interconnection protection • Compatible with standard internet browsers - Via protocols
• A multifunction device that incorporates protection and such as Http, ftp, and tftp
control functions, programmable pushbuttons, program- • Reliable redundant Ethernet Communication ports
mable status LEDs, and communication interfaces • Basic generator condition monitoring - Full metering
• Modular construction simplifying and reducing the stock including demand & energy, analog I/O, breaker arcing
of spare parts to plug & play modules instead of complete current monitoring
relays • Rich Metering - Current, voltage, power, power factor,
• Flexible and cost effective control for complex systems with frequency metering, Demand: Ia , Ib , Ic , Ig, Isg, I2, MW, MVA
IEC compatible programmable logic to customize the • Vector Shift Monitoring
functionality to address unique, site specific applications
• Optional Power Surge Monitoring, and Reactive Power
• Standard backlit LCD display with 4 x 20 characters, optional Limiting
16 x 40 (240 x 128 pixels) graphical LCD, programmable
buttons, and rotary knob for selecting setting menus, and • User programmable local display, LEDs and pushbuttons
submenus. • Customize protection and control functions with
• Multiple protocols, through standard RS232 & RS485, programmable logic and FlexCurves™
Ethernet Ports - Modbus RTU, Modbus TCP/IP, DNP 3.0 Level
2, IEC 60870-5-104, IEC61850, CAN BUS
638 www.GEDigitalEnergy.com
LPS-0TM, To
D60 or G60 Replacement
LPS-OTM Generator Backup Protection System
The LPS-OTM is a digital protective relay system that provides backup protection for generators and transmission lines. It has been
available for single or three phase tripping applications.
The UR product portfolio offered by GE Multilin has more options to meet your specific application needs. To take advantage of the latest

in technology and the new developments on Transmission Line Protection, consider replacing the LPS-OTM with a UR product.
UR Family
• D60 Line Distance Protection System
• G60 Generator Protection System
Key Benefits
• Fitted with the features needed to provide secure operation • Rich Metering - current, voltage, power, energy, frequency
during external faults • Front panel display and keypad for local direct access, with
• Flash memory for product field upgrade an RS232 port for local PC access
• Multiple breaker support • Customize protection and control functions with
• Multiple communication options and protocols Programmable logic (FlexLogic™), custom time-current
curves (FlexCurves™), and custom built protection and
• Exchange inputs and outputs between relays via high speed control functions (FlexElements™)
communications
• Multi-language support - French, Chinese, Russian option
• Incorporates protection and control functions,
programmable pushbuttons, programmable status LEDs, and • Networking options - Ethernet-fiber (optional redundancy),
communication interfaces RS485
• Modular construction simplifying and reducing the stock of • Pilot channel options - Direct fiber for up to 150 km, RS422,
spare parts G.703, direct to multiplexer fiber C37.94
• Multiple I/O options • Multiple protocols - IEC61850, DNP 3.0 Level 2, Modbus RTU,
Modbus TCP/IP, IEC 60870-5-104
• Embedded IEC61850 Protocol - No external protocol
converters required • Direct exchange of Inputs/Outputs - exchange of binary data
between peer G60s via communication link
g Digital Energy
Multilin
639
D60 Line Distance Protection System

• Overhead AC transmission lines of any voltage level, including • Up to four shots of single/three pole automatic breaker
series compensated lines, with single and three pole tripping. reclosing, with synchronism and voltage checks to optimize
system restoration.
Key Benefits
• Full featured transmission line protection system with five • Enhanced single-pole tripping applications using multi-bit
zones of ground and phase protection, five standard pilot- communications schemes
aided schemes. • High speed single/three pole tripping and reclosing
G60 Generator Protection System
• Comprehensive generator protection for AC generators • Standard protection offering on GE generators, protecting
of any size, typically driven by steam, gas or hydraulic machine up to 1000MW.
turbines • Backup protection for Transmission lines
Key Benefits
• High speed Stator Differential protection is provided for fast • Integrated out-of-step tripping and power swing blocking
clearance of stator phase faults. functions use either two or three characteristics to trace
• Advanced CT saturation detection algorithms as well as dual the positive sequence impedance trajectory for out-of-step
slope characteristic are is incorporated for increased security detection. It incorporates an adaptive disturbance detector
during heavy external fault/disturbances. and the trip action is programmable (instantaneous or
delayed).
• Backup protection for overhead AC Transmission lines,
including dual power supply, three zones of phase distance
protection with transformer compensation to ensure correct
reach for faults on the high side of the step up transformer.
DTP to
T35,T60
Upgrade your DTP,

to the advanced T35 or T60
DTP – Digital Tranformer Protection

The DTP is a digital relay that provides high-speed differential and backup instantaneous differential three-phase protection for
power transformers with two, three or four windings.
The UR product portfolio offered by GE Multilin has more options to meet your specific application needs. To take advantage of
the latest in technology and the new developments on Power Transformer Protection, consider replacing the DTP with an UR T35
or T60 system.

UR Family
• T35 Cost Effective Transformer Protection System
• T60 Fully Featured Transformer Protection System
Key benefits
Features
• Enahnced operation during external faults • Customize protection and control functions with
• Flash memory for product field upgrade Programmable logic (FlexLogic™), custom time-current
• Multiple breakers and disconnect switches support control functions (FlexElements™)
• Reduced installation space requirements through compact • Multi-language support - French, Chinese, Russian option
design - True convergence of protection, metering and
control functions, multiple I/O options programmable • Networking options – Ethernet cooper or fiber (optional
pushbuttons and status LEDS, and communication interfaces redundancy), RS485
• Advanced programmable logic for building customized • Multiple protocols - IEC61850, DNP 3.0 Level 2, DNP TCP/
schemes IP, Modbus RTU, Modbus TCP/IP, IEC 60870-5-104, HTTP,
TFTP,SNTP, EGD
• Embedded IEC61850 Protocol - No external protocol
converters required • Reduced relay to relay wiring and associated installation
costs through high-speed inter-relay communications
• Comprehensive metering - current, voltage, power, energy,
frequency, phasors • Dependable - Globally accepted, with performance backed
up by more than a decade of field experience
• Front panel display and keypad for local direct access, with a
RS232 port for local PC access • Reduce cooper wiring and labor cost of electrical
substationsthrough the IEC61850 Process Bus solution
“HARFIBER”
g Digital Energy
Multilin
641
T35 Cost Effective Transformer Protection System
• Secure high-speed transformer differential protection with • Advanced fault and disturbance recording, including
advanced features in a cost-effective package internal relay operating signals thus eliminating the need for
• Improved security for transformer energization and inrush redundant recording devices
provided through a superior Adaptive 2nd Harmonic Restraint • Ambient temperature monitoring with alarming when outside
algorithm temperature exceeds upper thresholds
• Application flexibility for transformers with up to 6 sets of CTs, • Primary and backup protection of power transformers
with independent magnitude/phase angle compensation and autotransformer, reactors, split-phase and angle regulating
grounding settings transformer
• Robust network security enabling Critical Infrastructure • Event Recorder - 1024 time tagged events with 0.5ms scan of
Protection through user command logging, and dual digital inputs
permission access control • Oscillography – analog and digital parameters at 64 samples/
• Combined protection for transformer and small bus zone, cycle
including breaker-and-a-half and ring bus diameters • Data Logger - 16 channels with sampling rate up to 1 sample
• Stand-alone or component in automated substation control / cycle
system • Setting Security Audit Trail for tracking changes to T35
• Complete IEC 61850 Process Bus solution providing resource configuration
optimization and minimizing total P&C life cycle costs
T35 Enhanced Front Panel

Functional Block Diagram

ANSI Device Numbers & Functions
Device
Number Function
Measure Measure
50/87 Instanataneous Differential Overcurrent
3I_0 3I_0 51G Ground Time Overcurrent
51P Phase Time Overcurrent
87T Transformer Differential
Calculate Calculate Calculate

Restraint Amps Operate Amps 2nd, 5th harmonics
51P-1 50/87 51P-2
87T
Metering
TM
Transducer Input FlexElement
T35 Transformer Protection System
T60 Full Featured Transformer Protection System
• Secure high-speed protection for transformers, compliant • Robust network security enabling Critical Infrastructure
with IEEE C37.91 Protection through user command logging, and dual
• Complete IEC 61850 Process Bus solution providing resource permission access control
optimization and minimizing total P&C life cycle costs • Advanced fault and disturbance recording, including
• Improved security for transformer energization and inrush internal relay operating signals thus eliminating the need for
provided through a superior Adaptive 2nd Harmonic Restraint redundant recording devices
algorithm • Event Recorder - 1024 time tagged events with 0.5ms scan of
• Ambient temperature monitoring with alarming when outside digital inputs
temperature exceeds upper thresholds • Oscillography – analog and digital parameters at 64 samples/
• Integrated transformer thermal monitoring for asset cycle
management maintenance optimization • Data Logger - 16 channels with sampling rate up to 1 sample
• Transformer asset monitoring using Hottest Spot, Loss-of-Life / cycle
and Aging Factor • Setting Security Audit Trail for tracking changes to T60
• Applicable for transformers with windings in a ring bus or configuration
breaker-and-a-half configuration
• Sensitive ground fault protection provides low impedance
differential protection down to 5% of the winding to limit
transformer damage
T60 Enhanced Front Panel

Device
Number Function
3V_0
21P
DEVICE Phase Distance
NUMBER
21G FUNCTION
Ground Distance
2424 VoltsPer
Volts PerHertz
Hertz
Transducer Input
59P 59N 21P 21G Harmonics Amps 67P 51P-1

Calculate
67N 50P-1
3
2727 Phase
PhaseUndervoltage
Undervoltage
Amps Restraint Amps 27X
27X Auxiliary Undervoltage
Auxiliary Undervoltage
THE AC SIGNAL PATH IS CONFIGURABLE
50/87 Instantaneous Differential Overcurrent

TYPICAL CONFIGURATION
50G Ground Instantaneous Overcurrent

Winding 1
24 50G Ground Instantaneous Overcurrent

Calculate
50N
50N NeutralInstantaneous
Neutral InstantaneousOvercurrent
Overcurrent
27P 50N-1 51N-1 Amps 87G-1 Amps 51G-1 50G-1
3I_0 50P
50P PhaseInstantaneous
Phase InstantaneousOvercurrent
Overcurrent
Operate Amps
51G Ground Time Overcurrent

Metering
50/87 Instantaneous Differential Overcurrent

Calculate
Amps
81 U 87T 50/87
51N
51G Neutral
GroundTime
TimeOvercurrent
Overcurrent
Winding 2
Calculate
50N-2 51N-2 Amps 87G-2 Amps 51G-2 50G-2 51P
51N Phase Time
Neutral Overcurrent
Time Overcurrent
3I_0 59N Neutral Overvoltage
Block
51P PhaseOvervoltage
Time Overcurrent
FlexElement
81 O 59P Phase
59N
59C Neutral Overvoltage
Auxiliary Overvoltage
Harmonic
Restraint
Calculate
Harmonics 2&5 3
67N
59P Neutral Overvoltage
Phase Directional Overcurrent
59X 27X Harmonics Amps 51P-2 50P-2 67P
59C Phase Directional
Auxiliary Overcurrent
Overvoltage
81O Overfrequency
TM
67N Neutral Directional Overcurrent

81U Underfrequency
67P
87G Phase Directional
Restricted Overcurrent
Ground Fault
T60 Transformer Protection System 81O
87T Overfrequency
Transformer Differential
828713AD.EPS
81U Underfrequency
87G Restricted Ground Fault
87T Transformer Differential
www.GEDigitalEnergy.com 643
ALPSTM, To L90, L60
D60 or D30 Replacement
ALPSTM Advanced Line Protection System

ALPSTM is a digital protective relay system providing distance protection for HV or EHV transmission lines. It has been applied on, or
adjacent to, series compensated lines, and for single or three phase tripping applications.
The current product portfolio offered by GE Multilin has more options to meet your specific application needs. To take advantage of
the latest in technology and the new developments on Transmission Line Protection, consider these ALPSTM replacements from the UR
Family of Products:
UR Family
• L90 Line Differential System • D60 Line Distance Protection System
• L60 Line Phase Comparison System • D30 Line Distance Protection System
Key Benefits
• Secure operation during external faults • Customize protection and control functions with
• Multiple breaker support control functions (FlexElements™)
control functions, multiple I/O options programmable • Networking options - Ethernet-fiber (optional redundancy),
pushbuttons and status LEDS, and communication interfaces RS485
• Programmable scheme logics for building customized • Multiple protocols - IEC61850, DNP 3.0 Level 2, Modbus RTU,
schemes Modbus TCP/IP, IEC 60870-5-104
• Embedded IEC61850 Protocol - No external protocol • Reduced relay to relay wiring and associated installation
converters required costs through high-speed inter-relay communications
• Comprehensive metering - current, voltage, power, energy, • Dependable - Globally accepted, with performance backed
frequency up by many years of field experience
• Front panel display and keypad for local direct access, with
an RS232 port for local PC access

Multilin
L90 Line Differential System

• Overhead lines including series compensated lines and • Circuits with in-zone power transformers and tapped
underground cables of different voltage levels transformer feeders.
• Suitable for three terminal line configurations, with channel • Wide area system monitoring and control and using
redundancy and direct transfer tripping (DTT) integrated protection and synchrophasor measurement
Key Benefits
• Real time monitoring of remote, local and differential per • Increased sensitivity through dynamic charging current
phase currents compensation and communication channel asymmetry
• Highly secure, phase segregated current differential compensation
protection • Reliable and secure protection on lines equipped with series
• Adaptive restraint characteristic provides excellent stability compensation
against measurement errors including CT saturation. • Superior phase selection algorithm ensures secure high speed
single pole tripping
L60 Line Phase Comparison System

• Flexibility in application - short and long lines and cables of • Suitable for applications with in-zone transformer feeders.
different voltage level • Well suited for line equipped with series compensation
• Adpated to suit different line configurations - Breaker-and-
half or ring bus configurations
Key Benefits
• Phase comparison protection, with a true replication of a • Real time monitoring of remote, local and differential per
simple phase-comparison principle including permissive and phase currents
blocking schemes, dual or single phase comparison, and 2 or • Backup Distance protection with three zones of phase and
3-terminal applications ground distance protection with power swing blocking, out-
• High-speed single/three pole tripping and reclosing, with a of-step tripping, line pickup, load encroachment, and POTT
typical tripping time of ¾ power cycle. features are included
• Cost effective and reliable solution in systems with
communication links based on Power Line Carrier, due

to advanced algorithms for channel noise immunity,
accurate per-channel signal asymmetry and channel delay
compensation

underground cables of different voltage levels transformer feeders
• Single and dual-breaker circuits requiring single pole/ • Secure application with Capacitively-Coupled Voltage
three-pole autoreclosing and independent synchrocheck Transformers (CCVTs)
supervision • Backup protection for generators, transformers and reactors
Key Benefits
• High speed cost effective five zone quad or mho, phase and • Supports multiple standard pilot schemes for fast fault
ground distance protection clearance within the protected section
• Reliable and secure protection on lines equipped with series • Programmable scheme logics for building customized
compensation schemes
• Superior phase selection algorithm ensures secure high speed • Simplified teleprotection interfaces with Direct I/O
single pole tripping communications hardware for Transfer Trip and Pilot-Aided
distance schemes

• Overhead sub-transmission lines and underground cables • Secure application with Capacitively-Coupled Voltage
including series compensated lines. Transformers (CCVTs)
• Single and dual-breaker circuits requiring three-pole • Backup protection for generators, transformers and reactors
autoreclosing and independent synchrocheck supervision
• Circuits with in-zone power transformers
Key Benefits
• Cost effective, three zone quad or mho, phase and ground • Simplified teleprotection interfaces with Direct I/O
distance protection communications hardware for Transfer Trip and Pilot-Aided
• Programmable scheme logic for building customized pilot distance schemes
schemes
LPS-DTM, To L90, L60
D60 or D30 Replacement
LPS-DTM Transmission Line Protection System

The LPS-D™ is a digital protective relay system providing main or backup distance protection for transmission lines. It is available for
single or three phase tripping applications.
the latest in technology and the new developments on Transmission Line Protection, consider replacing the LPS-D™ with a UR
product.
UR Family
• L90 Line Differential System • D60 Line Distance Protection System
• L60 Line Phase Comparison System • D30 Line Distance Protection System
Key Benefits
• Secure operation during external faults • Customize protection and control functions with
• Multiple breaker support control functions (FlexElements™)
control functions, multiple I/O options programmable • Networking options - Ethernet-fiber (optional redundancy),
pushbuttons and status LEDS, and communication interfaces RS485
• Programmable scheme logics for building customized • Multiple protocols - IEC61850, DNP 3.0 Level 2, Modbus RTU,
schemes Modbus TCP/IP, IEC 60870-5-104
• Embedded IEC61850 Protocol - No external protocol • Reduced relay to relay wiring and associated installation
converters required costs through high-speed inter-relay communications
• Comprehensive metering - current, voltage, power, energy, • Dependable - Globally accepted, with performance backed
frequency up by many years of field experience
• Front panel display and keypad for local direct access, with
an RS232 port for local PC access

Multilin
L90 Line Differential System

underground cables of different voltage levels transformer feeders.
• Suitable for three terminal line configurations, with channel • Wide area system monitoring and control and using
redundancy and direct transfer tripping (DTT) integrated protection and synchrophasor measurement
Key Benefits
• Real time monitoring of remote, local and differential per • Increased sensitivity through dynamic charging current
phase currents compensation and communication channel asymmetry
• Highly secure, phase segregated current differential compensation
protection • Reliable and secure protection on lines equipped with series
• Adaptive restraint characteristic provides excellent stability compensation
against measurement errors including CT saturation. • Superior phase selection algorithm ensures secure high speed
single pole tripping
L60 Line Phase Comparison System

• Flexibility in application - short and long lines and cables of • Suitable for applications with in-zone transformer feeders.
different voltage level • Well suited for line equipped with series compensation
• Adpated to suit different line configurations - Breaker-and-
half or ring bus configurations
Key Benefits
• Phase comparison protection, with a true replication of a • Real time monitoring of remote, local and differential per
simple phase-comparison principle including permissive and phase currents
blocking schemes, dual or single phase comparison, and 2 or • Backup Distance protection with three zones of phase and
3-terminal applications ground distance protection with power swing blocking, out-
• High-speed single/three pole tripping and reclosing, with a of-step tripping, line pickup, load encroachment, and POTT
typical tripping time of ¾ power cycle. features are included
• Cost effective and reliable solution in systems with
communication links based on Power Line Carrier, due

to advanced algorithms for channel noise immunity,
accurate per-channel signal asymmetry and channel delay
compensation

underground cables of different voltage levels transformer feeders
• Single and dual-breaker circuits requiring single pole/ • Secure application with Capacitively-Coupled Voltage
three-pole autoreclosing and independent synchrocheck Transformers (CCVTs)
supervision • Backup protection for generators, transformers and reactors
Key Benefits
• High speed cost effective five zone quad or mho, phase and • Supports multiple standard pilot schemes for fast fault
ground distance protection clearance within the protected section
• Reliable and secure protection on lines equipped with series • Programmable scheme logics for building customized
compensation schemes
• Superior phase selection algorithm ensures secure high speed • Simplified teleprotection interfaces with Direct I/O
single pole tripping communications hardware for Transfer Trip and Pilot-Aided
distance schemes

• Overhead sub-transmission lines and underground cables • Secure application with Capacitively-Coupled Voltage
including series compensated lines. Transformers (CCVTs)
• Single and dual-breaker circuits requiring three-pole • Backup protection for generators, transformers and reactors
autoreclosing and independent synchrocheck supervision
• Circuits with in-zone power transformers
Key Benefits
• Cost effective, three zone quad or mho, phase and ground • Simplified teleprotection interfaces with Direct I/O
distance protection communications hardware for Transfer Trip and Pilot-Aided
• Programmable scheme logic for building customized pilot distance schemes
schemes
0410-v2
BUS1000/2000 To
B30, B90 Replacement
BUS1000/2000 – Solid state, high-speed busbar protection

The BUS 1000/2000 is a solid state, high-speed protection system for phase-to-phase and phase-to-ground faults on busbar
installations of any voltage.
the latest in technology and the new developments on Low Impedance Busbar Differential Protection, consider replacing the BUS
1000/2000 with an UR B30 or B90 system.
UR Family
• B30 Cost Effective Low Impedance Bus Differential System
• B90 Scalable Low Impedance Bus Differential System
Key Benefits
• Enahnced operation during external faults • Customize protection and control functions with
• Reduced installation space requirements through compact • Networking options – Ethernet cooper or fiber (optional
design - True convergence of protection, metering and redundancy), RS485
control functions, multiple I/O options programmable
pushbuttons and status LEDS, and communication interfaces • Pilot channel options - Direct fiber for up to 150 km, RS422,
spare parts • Multiple protocols - IEC61850, DNP 3.0 Level 2, DNP TCP/
IP, Modbus RTU, Modbus TCP/IP, IEC 60870-5-104, HTTP,
• Advanced programmable logic for building customized TFTP,SNTP, EGD
schemes
• Reduced relay to relay wiring and associated installation
• Embedded IEC61850 Protocol - No external protocol costs through high-speed inter-relay communications
converters required
• Dependable - Globally accepted, with performance backed
• Comprehensive metering - current, voltage, power, energy, up by more than a decade of field experience
frequency, phasors
• Reduce cooper wiring and labor cost of electrical
• Front panel display and keypad for local direct access, with a substationsthrough the IEC61850 Process Bus solution
RS232 port for local PC access “HARFIBER”

Multilin
B30 Cost Effective Low Impedance Bus Differential System
• High speed differential protection algorithm for enhanced • High-end fault and disturbance recording, including internal
with Subcycle trip times of 0.75 power cycle relay operating signals provided thus eliminating the need for
• Complete IEC 61850 Process Bus solution providing resource redundant recording devices
optimization and minimizing total P&C lifecycle costs • Application flexibility with multiple I/O options and
• Superior CT saturation detector capable of detecting CT programmable logic (FlexLogic™)
saturation even with only 2 msec of saturation free current • Robust network security enabling Critical Infrastructure
for enhanced through fault stability. Protection through user command logging, and dual
• Ambient temperature monitoring with alarming when outside permission access control
temperature exceeds upper thresholds • Isolator monitoring, CT trouble monitoring, VT supervision
• Cost effective alternative to high impedance schemes • Oscillography - 64 samples/cycle, up to 64 records
• Advanced automation capabilities for providing customized • Event Recorder - 1024 time tagged events, with 0.5 ms scan
protection and control solutions of digital inputs
• Re-configurable simple bus applications, up to 6 feeders with • Data Logger - 16 channels with sampling rate up to 1 sample
breaker failure / cycle
• Integrated bus protection and metering for HV and EHV
substations
B30 Enhanced Front Panel

Device
Metering FlexElements TM
Number Function
25 Phase Undervoltage
27P
(optional)
VT input
50N Neutral Instantaneous Overcurrent

59X
50P Phase Instantaneous Overcurrent
50/74 CT Trouble
59N
51P 50N 51N 50G 51G 50/87 Unrestrained Bus Differential
Current Directional Comparison
50P
51P 50N 51N 50G 51G 51N Neutral Time Overcurrent
CT Saturation Detection

Restraint Current
CT Trouble (50/74)
51P 50N 51N 50G 51G 87B 50/87 59N Neutral Overvoltage
Bus Differential System
59X Auxiliary Overvoltage

51P 50N 51N 50G 51G 87B Restrained Bus Differential
51P 50N 51N 50G 51G
51P 50N 51N 50G 51G

B30
B90 Scalable Low Impedance Bus Differential System
• High speed protection algorithm for enhanced stability with • Pre Engineered Bus protection system - Use experienced GE
trip times of 0.75 power cycle Multilin application engineers to develop busbar protection
• Superior CT saturation detector capable of detecting CT system for your specific configurations
saturation even with only 2 msec of saturation free current • Use high speed communications to reduce wiring and
for enhanced through fault stability installation costs - Exchange inputs and outputs between
• Ambient temperature monitoring with alarming when outside relays to achieve relay-to-relay interaction
temperature exceeds upper thresholds • Robust network security enabling Critical Infrastructure
• Suitable for different bus configurations, scalable architecture Protection through user command logging, and dual
to protect up to 24 feeders. permission access control
• Re-configurable multi-section busbar with up to 24 feeders • Oscillography – analog and digital parameters at 64 samples/
cycle
• Integrated isolator position monitoring & alarming
• Event Recorder - 1024 time tagged events with 0.5ms scan of
• Single Bus, Breaker and half bus bar configurations, Double digital inputs
Bus and Triple Bus with and without bus couplers
• Setting Security Audit Trail for tracking changes to C60
• Isolator monitoring, CT trouble monitoring, VT supervision configuration
B90 Enhanced Front Panel


Isolator Monitoring Metering: Device
& Function
Isolator position Dynamic Bus Replica A, V, Hz Number
27 Undervoltage
50 Instantaneous Overcurrent
50/74 CT Trouble
50 51 50BF
87B Bus Differential
51 Time Overcurrent
50BF Breaker Fail
27 50/74 50/74 50/74 50/74
50 51 50BF
50/87 50/87 50/87 50/87
50 51 50BF
87B 87B 87B 87B

27
ZONE 1 ZONE 2 ZONE 3 ZONE 4

50 51 50BF
B90 BUS DIFFERENTIAL SYSTEM
Breaker position & trip
DFP100/200 To
F35/F60 Replacement
DFP100/200 – Digital Feeder Protection

The DFP100/200 are digital relay systems that provide distribution feeder protection, control, metering, and monitoring. The DFP200
provides comprehensive protection functions including a high impedance fault detection function that distinguishes between downed
conductors and other arcing faults.
The UR and URPlus product portfolio offered by GE Multilin has more options to meet your specific application needs. To take advantage
of the latest in technology and the new developments on Feeder Protection and control, consider replacing the DFP with a F35 or F60

system.
UR Family
• F35 Cost Effective protection for single or multiples feeders
• F60 Advanced Feeder Protection and Control
Key Benefits
• Enhanced operation during external faults • Customize protection and control functions with
control functions, multiple I/O options programmable
pushbuttons and status LEDS, and communication interfaces • Pilot channel options - Direct fiber for up to 150 km, RS422,
spare parts • Multiple protocols - IEC61850, DNP 3.0 Level 2, DNP TCP/
IP, Modbus RTU, Modbus TCP/IP, IEC 60870-5-104, HTTP,
schemes
• Reduced relay to relay wiring and associated installation
converters required
• Dependable - Globally accepted, with performance backed
frequency, phasors
• Reduce cooper wiring and labor cost of electrical
• Front panel display and keypad for local direct access, with a substationsthrough the IEC61850 Process Bus solution
RS232 port for local PC access (USB port on URPlus) “HARFIBER”
g Digital Energy
Multilin
651
F35 Cost Effective protection for single or multiples feeders
• Cost effective and flexible protection and control device for • Advanced automation capabilities for providing customized
distribution feeder applications protection and control solutions
• Complete IEC 61850 Process Bus solution providing resource • Ambient temperature monitoring with alarming when outside
optimization and minimizing total P&C life cycle costs temperature exceeds upper thresholds
• Improved system stability at reduced cost - Control schemes • Busblocking/ interlocking schemes
using hi-speed communications • Throw over schemes (bus transfer scheme applications)
• High-end fault and disturbance recording, including internal • Distributed Generation (DG) interconnect protection, including
relay operating signals thus eliminating the need for active and passive anti-islanding
redundant recording devices
• Oscillography – analog and digital parameters at 64 samples/
• Robust network security enabling Critical Infrastructure cycle
Protection through user command logging, and dual
permission access control • Event Recorder - 1024 time tagged events with 0.5ms scan of
digital inputs
• Primary protection and control for multiple distribution
feeders • Data Logger - 16 channels with sampling rate up to 1 sample
/ cycle
• Distribution load shedding schemes based on voltage and
frequency elements • Setting Security Audit Trail for tracking changes to F35
configuration
• Incipient cable fault detection
F35 Enhanced Front Panel


Device
Number Function
DEVICE
27P
NUMBER FUNCTION
Phase Undervoltage
27X
27P Auxiliary
Phase Undervoltage
Undervoltage
52 2 3 4 5
50G
27X Ground Instantaneous
Auxiliary Undervoltage Overcurrent
50N (up to 12) Ground
50G Neutral Instantaneous
InstantaneousOvercurrent
Overcurrent
50N
50P (up to 12) Neutral InstantaneousOvercurrent
Phase Instantaneous Overcurrent
50P
51G(up to 12) Phase
Ground Instantaneous Overcurrent
Time Overcurrent
79 51G (up to 6) Ground Time Overcurrent
Monitoring Same Functions as Breaker 1
CLOSE TRIP 51N (up to 6) Neutral
51N Neutral Time
TimeOvercurrent
Overcurrent
51P (up to 6)
51P Phase Time
Phase Time Overcurrent
Overcurrent
52
52 AC Circuit
AC Circuit Breaker
Breaker
59N
59N Neutral
Neutral Overvoltage
Overvoltage
50P 51P 50N 51N For Breaker 1 59X
59X Auxiliary Overvoltage
79 (up to 6) Autoreclose
2 1 2 1 79 (up to 6)
81 Automatic Recloser
Underfrequency
27X 27P 81U 59N 59X
81 Underfrequency
2 6
50G 51G METERING
2 1
Transducer
FlexElement
TM
Inputs
F35 Multiple Feeder Protection System

832738A7.CDR
F60 Advanced Feeder Protection and Control
• The most flexible protection and control device for distribution • Application flexibility with multiple I/O options and
feeder applications programmable logic (FlexLogic™)
• Complete IEC 61850 Process Bus solution providing resource • Robust network security enabling Critical Infrastructure
optimization and minimizing total P&C life cycle costs Protection through user command logging, and dual
• Unique and secure downed conductor detection, backed up permission access control
by many years of field experience • Advanced fault and disturbance recording, including internal
• Flexible load encroachment allows secure operation during relay operating signals provided thus eliminating the need for
heavy load conditions redundant recording devices
• Voltage and frequency elements to provide load shedding • Ambient temperature monitoring with alarming when outside
and transfer schemes for increased system uptime and temperature exceeds upper thresholds
improve system stability • Distributed Generation (DG) interconnect protection, including
• Advanced automation capabilities for providing customized active and passive anti-islanding
protection and control solutions • Oscillography – analog and digital parameters at 64 samples/
• Primary protection and control for feeders on solidly, cycle
impedance or resonant (Peterson Coil) grounded systems • Event Recorder - 1024 time tagged events with 0.5ms scan of
• Bus blocking/Interlocking schemes digital inputs
• Distribution load shedding schemes based on voltage and • Data Logger - 16 channels with sampling rate up to 1 sample
frequency elements / cycle
• High-speed fault detection for arc flash mitigation • Setting Security Audit Trail for tracking changes to F60
configuration
• Throw over schemes (bus transfer scheme applications)
• Incipient cable fault detection
• Back-up protection for transmission lines, feeders and
transformers
F60 Enhanced Front Panel

Functional Block Diagram Device
Number Function
25 (2) Synchronism Check
DEVICE
27P Phase Undervoltage
NUMBER FUNCTION
25 (2)
32 Synchrocheck
Sensitive Directional Power
52 27P Phase Undervoltage
50BF/50BNF
27X Breaker Undervoltage
Auxiliary Failure
50DD
32 Disturbance
Sensitive Detector
Directional Power
79 50BF/50BNF(2)
50G Breaker Failure
CLOSE TRIP 81U 50DD Disturbance Detector
50N
50G (2) NeutralInstantaneous
Overcurrent
Monitoring 6
50P
50N (2) Phase Instantaneous
Neutral Overcurrent
Instantaneous Overcurrent
81O 50P (2)
50_2 Phase Instantaneous
Negative Sequence Overcurrent
Instantaneous
50P 50_2 51_2 50BF 51P/V 67P 67_2 32 50N 51N 67N/G 50NBF 4 50_2 (2)
51G Negative
OvercurrentSequence Instantaneous
2 2 2 2 2 2 2 2 2 2 2 2 51G (2)
51N Overcurrent
Ground Time Overcurrent
27P 51N (2) Ground Time Overcurrent
51N
51N (2)
(2) Neutral Time Overcurrent
Neutral Time Overcurrent
2
51P
51P (2) PhaseTime
Phase TimeOvercurrent
Overcurrent
51_2 (2)
51_2(2) Negative
NegativeSequence
SequenceTimeTimeOvercurrent
Overcurrent
59P 52 AC
ACCircuit
CircuitBreaker
Transducer
FlexElement™ METERING Inputs 52 Breaker
1 59N Neutral Overvoltage
59N
59P Neutral
Phase Overvoltage
Overvoltage
50G 51G 59N 59P
59X Phase Overvoltage
1 59_2
59X Negative
AuxiliarySequence Overvoltage
Overvoltage
2 2
67N (2) Neutral Directional Overcurrent
59_2 59_2
67P (2) Negative Sequence Overvoltage
Phase Directional
27X 59X 67N
67_2 (2) Neutral Directional
Negative Overcurrent
Sequence Directional
1
25 67P Overcurrent
Phase Directional Overcurrent
F60 Feeder Protection System 2 67_2
81O (4)
79
Negative Sequence Directional Overcurrent
Overfrequency
Automatic Recloser
832727AC.CDR 81U (6) Underfrequency
81O Overfrequency
81U Underfrequency
IAC, IFC, SLR, ACR, MDP
To MIF II Replacement
Similar Protection Features Plus State of

the Art Digital Technology
Key Benefits
Replace your current IAC Time-overcurrent Relay , IFC Time-overcurrent Relays , SLR Reclosing Relays, ACR Reclosing Relays, and
MDP Digital Time-Overcurrent Relays with an MIF II Feeder Protection System for the following benefits:
• Migration to microprocessor technology provides more • Enables remote access to relay event records and fault
features and programming flexibility information
• Future upgrades achieved through firmware upgrade • Allow time sync capability across multiple devices
• Access to information - via RS485 Serial Communications • Microprocessor relays offer installation assistance via
with Modbus RTUTM protocol EnerVista Setup Software help feature
• Multiple settings groups for switching flexibility • Improve uptime of auxiliary equipment through I/O
• Allows remote setting changes monitoring
Features
Only microprocessor relays offer:
• Computer aided downloading and retrieval of settings via • Automatic relay self-diagnostics
EnerVista Software • Allow Integration for Data Acquisition and Remote Control
• Comparison of settings issued vs. settings applied with
EnerVista Suite of Software Tools
Additional functionality obtained through integration:

• It is a natural progression from the microprocessor relay • Eliminates need for stand alone remote terminal unit (RTU)
platform and its associated wiring
• Communication of information and control commands to • Provides additional functionality not traditionally
master control computer, PLC or DCS implemented with RTU

Multilin
Implemented functionality of integrated • Enables station level sequence of events

microprocessor relays: • Enables sending additional data to database
• Further reduces substation wiring • Back-up alarming
• Facilitates the transmittal of data for storage in remote
database for further analysis Take advantage of the following additional values you
• Human machine interface of microprocessor relays
obtain by upgrading to the MIF II Feeder Protection
Relay:
Additional functionality obtained through EnerVista • Low priced scalable options - event reports, waveform capture,
Automation software: recloser, breaker fail
• Metering and system monitoring with plug & play tools • Design flexibility - Easy to use programming logic
• Enhances local operation • Asset monitoring - Breaker health, and breaker failure
• Provides local annunciation protection
• Allows electronic tagging • AC/DC power supply
• Provides station schematic • Password protection for local operation
• Displays breaker status • Automatic display of last fault information
• Displays transformer loading and temperatures • Access via front panel keypad or communication links
• Isolated front RS232 serial port
The MIF II Feeder Protection System User Interface

DISPLAY
16x2 characters LCD display for
viewing setpoints, actual value
messages, and fault reports
STATUS INDICATION LEDs

Four of six status LEDs are
user programmable in function
and color
CONTROL AND
PROGRAMMING KEYS
Escape, Reset, Enter, Menu Up,
and Menu Down keys for complete
access to settings and information
without a computer
PROGRAMMING PORT
RS232 Communications Port
for connection to a computer
P4A/139/239 to 339
Replacement
Upgrade your 169/269 Motor
Protection System with the
339 Motor Protection System
Similar Protection Features with Newer, More Advanced
Hardware, and Feature Set
Key Benefits
• Enhanced Thermal Model including RTD and current • Easy access to information via multiple communication
unbalance biasing providing complete motor protection network options including USB, Serial, Fiber & copper
• Detailed Motor Health Report providing critical motor data Ethernet
simplifying motor analysis • Eliminate FT switches, needed for testing with the unique
• Increase process uptime by trouble shooting problems draw-out construction
faster with time stamped event reports, waveform capture, • Reduced wiring with support for remote I/O and RTD’s
motor start and motor trending • Reduce setup and configuration time with the Simplified
• Increase security and reduce potential system risks with Motor Setup screen
the Security Audit Trail capturing setting and command • Flex curves, and multiple settings group
changes
• Powerful communication capabilities allowing seamless

integration into most communication architectures
Applications
• Small to Medium sized Medium Voltage AC Motors • Harsh environments requiring protection against corrosive
• Protection of pumps, conveyors, fans, compressors, etc. chemicals and humid environments
• Applications requiring fast and secure communications
Features
Protection and Control Metering & Monitoring
• Thermal model biased with RTD and negative • Current Metering
sequence current feedback • RTD Temperature
• Phase and ground TOC and IOC • Event Recorder: 256 events with 1ms time stamping
• Start supervision and inhibit • Oscillography with 32 samples per cycle and digital states
• Mechanical Jam • IRIG-B clock synchronization
• Current Unbalance • Motor health diagnostics
• Current Phase Reversal • Security audit trail
• Acceleration Time
User Interface
• Undercurrent / Underpower
• 4X20 character LCD display
• Starts per Hour
• Control panel with 12 LED indicators
• Two setting groups
• Front USB and rear serial, Ethernet and Fiber ports
Enervista Software
TM
• Multiple Protocols:
• EnervistaTM Software- an industry-leading suite of software IEC 61850 GOOSE,
tools that simplifies every aspect of working with GE Multilin MODBUS TCP/IP, MODBUS RTU,
devices.
DNP 3.0, IEC60870-5-104, IEC60870-5-103,
• Simplified motor setting configurator
Profibus, DeviceNet

Multilin
User Interface
IN SERVICE: This indicator will be on continuously lit if
the relay is functioning normally and no major self-
test errors have been detected.
Trouble: Trouble indicator LED will be RED if there is a

problem with the relay.
SETPOINT GROUP 1, 2: These indicators flash when

the corresponding group is selected for editing and/or
display; they are continuously on if the corresponding
group is providing settings for the protection
elements.
Running: Indicates that the motor is running in normal

operation
Stopped: Indicates that the motor is stopped
Starting: Indicates that the motor is in the starting
process
The display messages are organized into Main Menus,

Pages, and Sub-pages.
There are four main menus labeled Actual Values,

Quick Setup, Setpoints, and Maintenance. Pressing the
MENU key followed by the MESSAGE key scrolls through
the four Main Menu Headers.
TRIP: Indicates that the relay has tripped the motor

offline based on predefined programmed conditions.
ALARM: Indicates that the motor is currently operating

in an alarm condition and may proceed to a trip
condition if not addressed.
MAINTENANCE: Environmental alarms such as ambient

temperature alarm.

A ten button keypad allows user access to easy relay
interrogation and change of settings.
Dimensions
3.96”
7.93” 100.6mm
201.51mm
1.73” 7.89”
43.8mm 200.4mm
6.62”
168.2mm
6.82”
173.2mm
169/269 to 369
Replacement
Replace the 169/269 Motor
Management Relay with the 369
Motor Protection System
Similar Protection Features with Newer, More Advanced
Key Benefits
Take advantage of the following additional values you obtain by upgrading to the 369 Motor Management System:
• Same dimensions and cut-out as 169 and 269 Plus relays • Multiple communication protocols - Modbus RTU, Profibus,
• Unique and advanced protection features - Back-spin Device Net
detection, advanced thermal model including multiple RTD • Optional embedded Ethernet and Profibus Ports.
inputs for stator thermal protection • Flash memory for product field upgrade
• Complete asset monitoring - stator, bearing & ambient • New improved conformal coating for harsh (chemical)
temperature, optional full metering including demand & environments
energy
• Suitable for hazardous locations - Underwriters Laboratory
• Reduce troubleshooting time and maintenance costs -Event certification for Class 1 Division 2 applications
reports, waveform capture, data logger
New Applications
• "Down Hole" pump applications
Features
• Incorporates protection, control and metering in one • Diagnostic features - event recording, oscillography and
platform data logging
• Local and remote user interfaces
Monitoring and Metering
Additional Protection and Control Functions • Full metering: A V W var VA PF Hz Wh varh demand
• Undervoltage, overvoltage • Fault diagnosis
• Underfrequency • Event record
Inputs and Outputs • Voltage/frequency/power display (M)
• 12 programmable RTD inputs • 4 analog outputs (M)
• Assignable digital inputs • Oscillography & Data Logger
• 4 programmable analog outputs
User Interface
• Front Panel 10 LEDs, key pad, and backlit LCD display
Note: For more details on the 369 Motor Management System, visit • RS232, and RS485 ports - up to 19,200 bps
GE Multilin’s web site at www.GEMultilin.com where you can download
• Optional embedded Ethernet port - NEW Ethernet port
the product brochure, installation and instruction manual, and more
• Optional Profibus Protocol via dedicated port
details about EnerVista suite of setup and monitoring software tools.
• ModBus™ RTU over TCP/IP Protocol with Ethernet port
g
• Optional Device Net Protocol
Digital Energy
Multilin
658
169/269 vs 369 Feature Comparison

Description DEVICE 169-Plus 269-Plus 369-Basic 369+RTD 369+Meter 369+RTD+Meter 369-Full
Differential 87 Digital Input Digital Input Digital Input Digital Input Digital Input Digital Input Digital Input
Breaker Failure 50BF • • • • •
Thermal Model • • • • • • •
Custom programmable overload curves • • • • • • •
IOC, Phase 50P • • • • • • •
Multiple IOC Ground 50G-2 • • • • • • •
IOC, Ground 50G • • • • • • •
IOC, Sensitive Ground 50SG • • • • • • •
Locked Rotor 48 • • • • • • •
Jam Protection 51R • • • • • • •
Stall Protection • • • • • • •
Phase Overvoltage 59P • • •
Phase Undervoltage 27P Optional • • •
Under/Overfrequency 81U/O • • •
• • • • •
Protection
Lockout Functionality 86 Optional Optional

Jogging 66 • • • • • • •
Undercurrent/Underpower 37 • • • • •
Current Unbalance 46 • • • • • • •
Stator RTD 49 • • • • •
Bearing RTD 38 • • • • •
Phase Reversal 47 • • • • •
Frequency 81 Optional • • •
Power Factor 55 Optional • • •
Reduced Voltage Start 19 • • • • • •
Incomplete Sequence 48 • • • • • • •
Speed Switch 14 • • • • • • •
Reverse Power 32 • • •
Reactive Overpower • • •
Remote Start/Stop via Communications • • • • •
Back-spin Detection •
Back-spin Timer • • • • • •
Start Inhibit • • • • • • •
Emergency Start • • • • • • •
Learned motor data • • • • • • •
Drawout Construction Optional Optional
Remote Display Optional Optional • • • • •
Power Supply, AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC
CT Inputs 5/1 A 5/1 A 5/1 A 5/1 A 5/1 A 5/1 A 5/1 A
Self-Test Failure Contact • • • • • • •
Settings Groups 1 1 1 1 1 1 1
Flash Memory • • • • •
Contact Inputs 5 5 5 5 5 5 5
Control
User-Programmable Digital Inputs 1 1 1 1 1 1

Contact Outputs (Fixed) 4 2 2 2 2 2 2
Contact Outputs (Programmable) 2 2 2 2 2 2
VFD/LCD Display • • • • • • •
User-Definable Displays • • • • •
Keypad • • • • • • •
Breaker Control • • • • •
Digital Counters • • • • •
Analog Outputs 1 1 4 4 4
Remote RTDs • •
RTD Inputs 10 10 12 12 12
Power Factor Optional • • •
Thermal Capacity Used • • • • • • •
Current - RMS • • • • • • •
Current - Phasor • • • • •
Current - Demand • • • • •
Monitoring/Metering
Current - Unbalance • • • • • • •
Current - Ground Leakage • • • • • • •
Voltage - RMS Optional • • •
Voltage - Phasor • • •
Power - Apparent, Real, Reactive Optional • • •
MW, MVA, Mvar Demand • • •
Energy Optional • • •
Frequency Optional • • •
Temperature • • • • •
Fault Report/Trip Data • • • • • • •
Event Recorder - Number of Events 250 250 250 250 250
Event Recorder - Time resolution 1ms 1ms 1ms 1ms 1ms
Oscillography - Cycles 64 64 64 64 64
Sampling Rate 12 12 16 16 16 16 16
Trip Counters • • • • • • •
Data Logger • • • • •
Operating Temperature Range - Minimum °C -10 -10 -40 -40 -40 -40 -40
Operating Temperature Range - Maximum °C 60 60 60 60 60 60 60
E/M
Interface Program • • • • • •
RS232 Port • • • • •
RS485 Port • • • • • • •
Communications
RS422 Port Optional Optional

Ethernet Communications •
Fiber Optic Port •
ModBus Protocol • • • • • • •
ModBus User Map • • • • •
Profibus Port •
Device Net •
TCP/IP •
Note: See 369 Motor Protection System for complete information.
DBF, DBT, DRS to
C60, C90Plus
Upgrade your DBF, DBT,

DRS to the advanced UR or URPlus
DBF, DBT, DRS - Digital Breaker Failure, Supervision and Recloser

The DBF is a digital breaker failure relay that provides phase and ground backup protection if the primary circuit breaker fails to clear
a system fault.. The DBT is a digital relay that supervises the integrity of the breaker’s tripping and closing coils. The DRS provides both
single pole and three pole reclosing for one or two breakers. These devices are usually combined to created a Breaker Control Scheme.
The UR and URPlus product portfolio offered by GE Multilin has more options to meet your specific application needs. To take
advantage of the latest in technology and the new developments, and to reduce hardware on Breaker Control Schemes, consider
replacing the DBF, DBT and DRS with a single C60 or C90Plus system.
UR and URPlus Family

• C60 Breaker Monitoring and Control System
• C90Plus Substation Automation Logic Controller
Key benefits
Features
• Enhanced operation during external faults • Front panel display and keypad for local direct access, with a
• Flash memory for product field upgrade RS232 port for local PC access (USB port on URPlus)
• Multiple breakers and disconnect switches support • Multi-language support - French, Chinese, Russian option
control functions, multiple I/O options programmable • Pilot channel options - Direct fiber for up to 150 km, RS422,
pushbuttons and status LEDS, and communication interfaces G.703, direct to multiplexer fiber C37.94
• Modular construction simplifying and reducing the stock of • Multiple protocols - IEC61850, DNP 3.0 Level 2, DNP TCP/
spare parts IP, Modbus RTU, Modbus TCP/IP, IEC 60870-5-104, HTTP,
schemes • Reduced relay to relay wiring and associated installation
converters required • Dependable - Globally accepted, with performance backed
frequency, phasors • Reduce cooper wiring and labor cost of electrical
• Customize protection and control functions with substationsthrough the IEC61850 Process Bus solution
Programmable logic (FlexLogic™), custom time-current “HARFIBER”
control functions (FlexElements™)

Multilin
C60 Breaker Monitoring and Control System
• Complete breaker control, monitoring and integration in a • Complete breaker control, monitoring and integration in a
single platform single platform
• Complete IEC 61850 Process Bus solution providing resource • Complete IEC 61850 Process Bus solution providing resource
optimization and minimizing total P&C lifecycle costs optimization and minimizing total P&C lifecycle costs
• Reduced wiring through the use of high-speed peer-to-peer • Reduced wiring through the use of high-speed peer-to-peer
communication for accepting Trip and Close commands from communication for accepting Trip and Close commands from
other relays other relays
• Advanced automation capabilities for providing customized • Advanced automation capabilities for providing customized
protection and control solutions protection and control solutions
• Ambient temperature monitoring with alarming when outside • Ambient temperature monitoring with alarming when outside
temperature exceeds upper thresholds temperature exceeds upper thresholds
• Stand-alone breaker monitoring and control • Stand-alone breaker monitoring and control
• Multiple breaker configuration control including Breaker-and- • Multiple breaker configuration control including Breaker-and-
a-Half and Ring Bus a-Half and Ring Bus
• Breaker monitoring - accumulated wear and operation • Breaker monitoring - accumulated wear and operation
time, number of operations, breaker flashover and trip coil time, number of operations, breaker flashover and trip coil
monitoring monitoring
C60 Enhanced Front Panel

Device
Number Function
59N 25 Synchrocheck
50P 51P 50BF 32 50BF 27 25
32 Directional Power
TRIP 50N Neutral Instantaneous Overcurrent
59X 27X 50P Phase Instantaneous Overcurrent
52 CLOSE
51N Neutral Time Overcurrent
79 METERING
59N Neutral Overvoltage
52 CLOSE
TM Transducer 59X Auxiliary Overvoltage
FlexElement
TRIP Input 79 Autoreclose
50BF Breaker Failure
50P 51P 50BF 32

32 50BF 27 25
59N
C60 Breaker Protection System
ANSI DEVICE NUMBERS AND FUNCTIONS

DEVICE DEVICE
FUNCTION FUNCTION
NUMBER
25 Synchrocheck
www.GEDigitalEnergy.com
NUMBER
50P BF Phase Instantaneous Overcurrent,

661
27P Phase Undervoltage Breaker Failure
27X Auxiliary Undervoltage 51G Ground Time Overcurrent
C90Plus Substation Automation Logic Controller
• Simplified powerful programmable automation controller • Configurable alarm annunciator eliminates the need for
with math engine eliminates the need for separate substation separate annunciator panel
programmable logic controller • High-end fault and disturbance recording, including internal
• Deterministic execution of automation logic regardless of the relay operating signals eliminates the need for redundant
number of equations configured recording devices
• Local HMI dedicated real time bay control with configurable • Reduced installation space requirements through compact
single line diagrams with control of up to six breakers design - True convergence of protection, metering,
• High-end load shedding blocks with multiple stages of under automation, bay control functions, multiple I/O options and
frequency, rate-of-change-of-frequency and undervoltage extensive communications capability
elements • Phasor Measurement Unit - Synchronized phasor information
• Intuitive large front panel color HMI dedicated to metering, according to IEEEC37.118 standard for detection of system
fault records, event records and equipment status instability
• Custom protection and bay interlocking schemes • Dedicated protection logic at 1 msec execution rate
• Bay controller for common bus-bar arrangements • CT and VT monitoring
• Substation alarm concentrator & controller • Metering - current, voltage, frequency, power, energy and
phasors as per IEEE C37.118
• Control for up to 6 breakers and 30 disconnect switches
• Transient recorder - 256 samples/cycle, 30 sec of storage
• Custom bus transfer schemes capacity
• Standalone breaker fail & reclosing for dual-breaker • Disturbance recorder – 1 sample/cycle, 5 min of storage
arrangements capacity
• Dedicated automation controller with 4000 lines of logic at a • Event recorder - 8000 time tagged events, with 0.5 ms scan of
deterministic 50 msec execution rate digital inputs
C90Plus Front Panel


Functional Block Diagram Device
Number Function
25 Synchronism Check
52 52 50BF Breaker Failure
50DD Current Disturbance Detector
50N Neutral Instantaneous Overcurrent
CLOSE TRIP 50P Phase Instantaneous Overcurrent
Monitoring
59X 27X 25 (2)
50_2 Negative Sequence Instantaneous Overcurrent
79 51N Neutral Time Overcurrent
50DD 50P (2) 50_2 (2) 51P (2) 51_2 (2) 50BF (2) 67P (2) 67_2 (2) 50N (2) 51N (2) 67N/G (2) 51_2 Negative Sequence Time Overcurrent
52 AC Circuit Breaker
59P 59N Neutral Overvoltage
Transducer
Metering
TM
FlexElement Inputs
59P Phase Overvoltage
27P (2)
50G (2) 51G (2) 59X Auxiliary Overvoltage
59_2 Negative Sequence Overvoltage
59N
67N Neutral Directional Overcurrent
67P Phase Directional Overcurrent
C90Plus Controller System 67_2 Negative Sequence Directional Overcurrent
837709AE.CDR
ANSI DEVICE NUMBERS AND FUNCTIONS 81 U/O Under and over frequency
DEVICE DEVICE
NUMBER FUNCTION NUMBER FUNCTION
21G Ground Distance 51P Phase Time Overcurrent
662 21P Phase Distance www.GEDigitalEnergy.com
51_2 Negative Sequence Time Overcurrent
25 Synchrocheck 52 AC Circuit Breaker
27P Phase Undervoltage 59N Neutral Overvoltage
MTMPlus to
PQM II Replacement
Replace the MTMPlus Meter with

the PQM II Power Quality Meter
Similar Features with Newer, More Advanced

Key Benefits
Replace your current MTMPlus Meters to PQM II Power Quality Meter for the following benefits:
• Advances in Digital Technology both hardware and firmware product integration for remote data acquisition

allow the implementation of newer features into a newer, • Additional options available through firmware upgrades
more sophisticated and more compact product
• Future upgrades easily added achieved through firmware
upgrades
• Have more options for communication protocols, to facilitate
Features
Take advantage of the following additional values you obtain by upgrading to the Power Quality Meter:
• More compact form factor Event reports, waveform capture, data logger
• Unique and advanced metering features - Power Quality • Simplify testing - Built in simulation features
Metering, Analog Outputs, Harmonic Analysis, total harmonic • Cost Effective Access information - Through standard RS232
distortion (THD) calculations & RS485 serial ports
• Sag and Swell and Disturbance Report • Flash memory for product field upgrade
• Complete system monitoring - optional full metering • Installation flexibility - Remote display option
including demand & energy, auxiliary equipment monitoring
through analog inputs
• Improve uptime of auxiliary equipment - through I/O
monitoring
• Reduce troubleshooting time and maintenance costs -
g Digital Energy
Multilin
663
MTMPlus vs. PQM II - Feature Comparison

Description MTMPlus PQMII Description MTMPlus PQMII
Real - Time Readings Phase Rotation • •
Current - RMS - 3 Phase • Sequence Components •
Current - RMS - Per Phase • • Power Quality
Current - Phasors • Current THD • •
Current - Ground • Voltage THD • •
Current - Neutral • • Sag & Swell •
Voltage - RMS - L-L • • Voltage Disturbance Recorder •
Voltage - RMS - L-N • • Number of Sag & Swell Events 500
Voltage - RMS - 3 Phase • Min./Max. THD Voltage - L-N - Date/Time Stamped •
Voltage - Phasor • Min./Max. THD Voltage - L-L - Date/Time Stamped •
Frequency • • Min./Max. THD Current - Phase - Date/Time Stamped •
Power Factor - Per Phase • Metering Sampling Rate 16 64
Power Factor - 3 Phase • • Oscillography - Cycles N/a 36
Real Power - Single Phase • Oscillography - Sampling Rate 16
Real Power - 3 Phase • • Harmonic Resolution 32
Reactive Power - Single Phase • Inputs/Outputs
Reactive Power - 3 Phase • • User Programmable Digital Inputs 2 4
Apparent Power - Single Phase • User Programmable Digital Outputs 3
Apparent Power - 3 Phase • • Fix Outputs 1 1
Demand Readings Pulse Inputs 1 4
Demand Current - Per Phase • • Alarming
Peak Demand Current - 3 Phase Avg. • Setpoint Driven Alarms • •
Demand Real Power - 3 Phase • • Custom Alarms with Priority Levels •
Demand Real Power - Peak • • High Speed (100 ms) •
Demand Reactive Power - 3 Phase • • Multiple Level Alarming •
Demand Reactive Power - Peak • • Disturbance (1/2) Cycle •
Demand Apparent Power - 3 Phase • • Other Features
Demand Apparent Power - Peak • • Downloadable Firmware •
Energy Readings Setpoint-controlled alarm & data logging •

Accumulated Energy - Real • • Analog Inputs 4
Accumulated Energy - Reactive • • Analog Outputs 4 4
Accumulated Energy - Apparent • • Event Recorder - Number of Events 150
Bidirectional Readings • • Time Stamp Resolution (ms) 1
Incremental Energy • Min./Max. Average Log •
Energy Cost - Accumulated • Power Analysis Oscillography - Cycles 1
Energy Cost - Per Day • Oscillography - Sampling Rate 256
Programmable Energy Tariffs • Data Logger •
Power Analysis Values Display • •
Crest Factor (per phase) • Key Pad • •
THD Factor - Current Per Phase • • Memory - Standard 1 2
Fundamental Voltage - per Phase • • Specifications
Fundamental Current - per Phase • • Voltage Input - Nominal Full Scale (Vac) 240 600
Fundamental Real Power - per Phase • Control Voltage Range DC 300
Fundamental Reactive Power - per Phase • Control Voltage Range AC 140 265
Unbalance Current • • Current Inputs Range 10 15
Min./Max. Current per Phase - Date/Time Stamped • Communications
Unbalance Voltage • • Interface Program • •
Min./Max. Voltage L-N - Date/Time Stamped • RS232 Port •
Min./Max. Voltage L-L - Date/Time Stamped • RS485 Port • •
Min./Max. Real Pwr. 3 - Phase - Date/Time Stamped • Time Synchronization - Comms. Clock Synch. •
Min./Max. Pwr Fac. 3 - Phase - Date/Time Stamped • ModBus Protocol • •
Min./Max. Real Pwr. 1 - Phase - Date/Time Stamped • ModBus User Map •
Min./Max. Pwr Fac. 1 - Phase - Date/Time Stamped • DNP3 Protocol •
Min./Max. Frequency - Date/Time Stamped •

Upgrades

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Upgrades

Uploaded by

Copyright:

Available Formats

Product

Upgrades & Replacements

Generator Protection Replacement Products 637

Transformer Protection Replacement Products 641

Line Distance Protection Replacement Products 644

Bus Protection Replacement Products 648

Feeder Protection Replacement Products 651

Motor Protection Replacement Products 656

Specialized Protection & Metering Replacement Products 660

• Environmental protection to the electronic boards of your • Install new options

• 2 Year Service Warranty

Expanded memory for:

For more information on services, upgrades, pricing, or to place an order

636 g Digital Energy

DGP Digital Generator Protection

Upgrades & Replacements

control where distributed I/O is a requirement to interact with

LPS-OTM Generator Backup Protection System

Upgrades & Replacements

D60 Line Distance Protection System

G60 Generator Protection System

Upgrade your DTP,

DTP – Digital Tranformer Protection

Upgrades & Replacements

T35 Cost Effective Transformer Protection System

T35 Enhanced Front Panel

Functional Block Diagram

Calculate Calculate Calculate

51P-1 50/87 51P-2

T35 Transformer Protection System

T60 Full Featured Transformer Protection System

T60 Enhanced Front Panel

Upgrades & Replacements

59P 59N 21P 21G Harmonics Amps 67P 51P-1

50/87 Instantaneous Differential Overcurrent

50G Ground Instantaneous Overcurrent

24 50G Ground Instantaneous Overcurrent

51G Ground Time Overcurrent

50/87 Instantaneous Differential Overcurrent

67N Neutral Directional Overcurrent

ALPSTM Advanced Line Protection System

644 g Digital Energy

L90 Line Differential System

L60 Line Phase Comparison System

Upgrades & Replacements

D60 Line Distance Protection System

D30 Line Distance Protection System

LPS-DTM Transmission Line Protection System

646 g Digital Energy

L90 Line Differential System

L60 Line Phase Comparison System

Upgrades & Replacements

D60 Line Distance Protection System

D30 Line Distance Protection System

BUS1000/2000 – Solid state, high-speed busbar protection

1000/2000 with an UR B30 or B90 system.

648 g Digital Energy

B30 Cost Effective Low Impedance Bus Differential System

B30 Enhanced Front Panel

Upgrades & Replacements

50N Neutral Instantaneous Overcurrent

51P Phase Time Overcurrent

59X Auxiliary Overvoltage
